#include <pzbeam2.h>

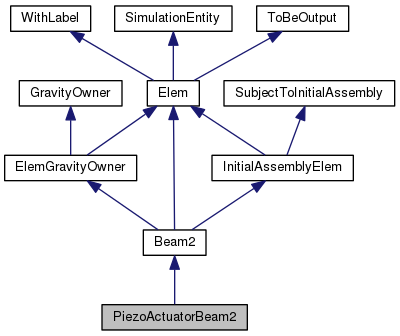

Inheritance diagram for PiezoActuatorBeam2:

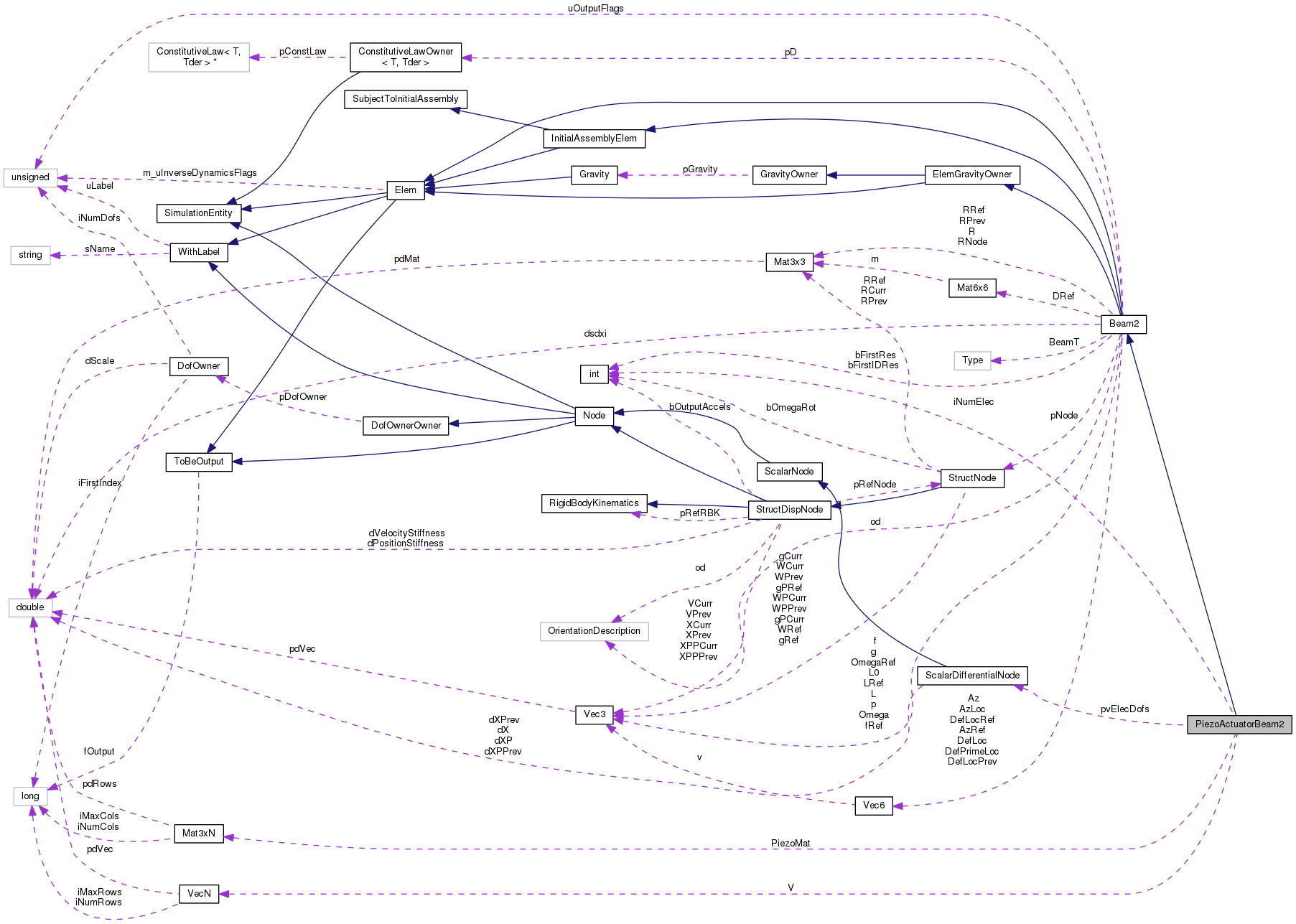

Collaboration diagram for PiezoActuatorBeam2:

Public Member Functions
	PiezoActuatorBeam2 (unsigned int uL, const StructNode pN1, const StructNode pN2, const Vec3 &F1, const Vec3 &F2, const Mat3x3 &R1, const Mat3x3 &R2, const Mat3x3 &r, const ConstitutiveLaw6D pd, int iEl, const ScalarDifferentialNode *pEDof, const Mat3xN &T_Ie, const Mat3xN &T_Ik, OrientationDescription ood, flag fOut)

virtual	~PiezoActuatorBeam2 (void)

virtual Beam::Type	GetBeamType (void) const

virtual std::ostream &	Restart (std::ostream &out) const

virtual void	WorkSpaceDim (integer piNumRows, integer piNumCols) const

void	SetValue (DataManager pDM, VectorHandler &, VectorHandler &, SimulationEntity::Hints ph=0)

virtual void	AfterPredict (VectorHandler &, VectorHandler &)

virtual VariableSubMatrixHandler &	AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual VariableSubMatrixHandler &	InitialAssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler &	InitialAssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr)

virtual void	GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

Public Member Functions inherited from Beam2
	Beam2 (unsigned int uL, const StructNode pN1, const StructNode pN2, const Vec3 &F1, const Vec3 &F2, const Mat3x3 &R1, const Mat3x3 &R2, const Mat3x3 &r, const ConstitutiveLaw6D *pd, OrientationDescription ood, flag fOut)

virtual	~Beam2 (void)

virtual Elem::Type	GetElemType (void) const

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual SubVectorHandler &	AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	OutputPrepare (OutputHandler &OH)

virtual void	Output (OutputHandler &OH) const

virtual bool	bInverseDynamics (void) const

VariableSubMatrixHandler &	AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

SubVectorHandler &	AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int	iGetInitialNumDof (void) const

virtual void	InitialWorkSpaceDim (integer piNumRows, integer piNumCols) const

virtual void	SetInitialValue (VectorHandler &)

virtual unsigned int	iGetNumPrivData (void) const

virtual unsigned int	iGetPrivDataIdx (const char *s) const

virtual doublereal	dGetPrivData (unsigned int i) const

virtual const StructNode *	pGetNode (unsigned int i) const

Public Member Functions inherited from Elem
	Elem (unsigned int uL, flag fOut)

virtual	~Elem (void)

virtual unsigned int	iGetNumDof (void) const

virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order	GetDofType (unsigned int) const

virtual void	AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

void	SetInverseDynamicsFlags (unsigned uIDF)

unsigned	GetInverseDynamicsFlags (void) const

bool	bIsErgonomy (void) const

bool	bIsRightHandSide (void) const

virtual int	GetNumConnectedNodes (void) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)

virtual	~SimulationEntity (void)

virtual bool	bIsValidIndex (unsigned int i) const

virtual DofOrder::Order	GetEqType (unsigned int i) const

virtual Hint *	ParseHint (DataManager pDM, const char s) const

virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual std::ostream &	OutputAppend (std::ostream &out) const

virtual void	ReadInitialState (MBDynParser &HP)

Public Member Functions inherited from ToBeOutput
	ToBeOutput (flag fOut=fDefaultOut)

virtual	~ToBeOutput (void)

virtual void	Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag	fToBeOutput (void) const

virtual bool	bToBeOutput (void) const

virtual void	SetOutputFlag (flag f=flag(1))

Public Member Functions inherited from ElemGravityOwner
	ElemGravityOwner (unsigned int uL, flag fOut)

virtual	~ElemGravityOwner (void)

virtual doublereal	dGetM (void) const

Vec3	GetS (void) const

Mat3x3	GetJ (void) const

Vec3	GetB (void) const

Vec3	GetG (void) const

Public Member Functions inherited from GravityOwner
	GravityOwner (void)

virtual	~GravityOwner (void)

void	PutGravity (const Gravity *pG)

virtual bool	bGetGravity (const Vec3 &X, Vec3 &Acc) const

Public Member Functions inherited from InitialAssemblyElem
	InitialAssemblyElem (unsigned int uL, flag fOut)

virtual	~InitialAssemblyElem (void)

Public Member Functions inherited from SubjectToInitialAssembly
	SubjectToInitialAssembly (void)

virtual	~SubjectToInitialAssembly (void)

Protected Member Functions
virtual void	AssStiffnessMat (FullSubMatrixHandler &WMA, FullSubMatrixHandler &WMB, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	AssStiffnessVec (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	AddInternalForces (Vec6 &AzLoc)

Protected Member Functions inherited from Beam2
virtual Vec3	InterpState (const Vec3 &v1, const Vec3 &v2)

virtual Vec3	InterpDeriv (const Vec3 &v1, const Vec3 &v2)

virtual void	AssInertiaMat (FullSubMatrixHandler &, FullSubMatrixHandler &, doublereal, const VectorHandler &, const VectorHandler &)

virtual void	AssInertiaVec (SubVectorHandler &, doublereal, const VectorHandler &, const VectorHandler &)

virtual void	DsDxi (void)

virtual void	Omega0 (void)

void	SetBeamType (Beam::Type T)

virtual std::ostream &	Restart_ (std::ostream &out) const

Protected Member Functions inherited from ElemGravityOwner
virtual Vec3	GetS_int (void) const

virtual Mat3x3	GetJ_int (void) const

virtual Vec3	GetB_int (void) const

virtual Vec3	GetG_int (void) const

Protected Attributes
int	iNumElec

const ScalarDifferentialNode **	pvElecDofs

VecN	V

Mat3xN	PiezoMat [NUMDEFORM]

Protected Attributes inherited from Beam2
unsigned	uOutputFlags

OrientationDescription	od

const StructNode *	pNode [NUMNODES]

Vec3	f [NUMNODES]

Vec3	fRef [NUMNODES]

Mat3x3	RNode [NUMNODES]

Mat3x3	R

Mat3x3	RRef

Mat3x3	RPrev

ConstitutiveLaw6DOwner *	pD

Mat6x6	DRef

Vec3	Omega

Vec3	OmegaRef

Vec6	Az

Vec6	AzRef

Vec6	AzLoc

Vec6	DefLoc

Vec6	DefLocRef

Vec6	DefLocPrev

Vec6	DefPrimeLoc

Vec3	p

Vec3	g

Vec3	L0

Vec3	L

Vec3	LRef

doublereal	dsdxi

bool	bFirstRes

bool	bFirstIDRes

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Protected Attributes inherited from ToBeOutput
flag	fOutput

Protected Attributes inherited from GravityOwner
Gravity *	pGravity

Private Member Functions
	PiezoActuatorBeam2 (const PiezoActuatorBeam2 &)

const PiezoActuatorBeam2 &	operator= (const PiezoActuatorBeam2 &)

Additional Inherited Members
Public Types inherited from Elem
enum	Type { UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL, GRAVITY, BODY, JOINT, JOINT_REGULARIZATION, BEAM, PLATE, FORCE, INERTIA, ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC, BULK, LOADABLE, DRIVEN, EXTERNAL, AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT, RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE }

Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints

Public Types inherited from ToBeOutput
enum	{ OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

Protected Types inherited from Beam2
enum	NodeName { NODE1 = 0, NODE2 = 1, NUMNODES = 2 }

enum	Deformations { STRAIN = 0, CURVAT = 1, NUMDEFORM = 2 }

Detailed Description

Definition at line 41 of file pzbeam2.h.

Constructor & Destructor Documentation

PiezoActuatorBeam2::PiezoActuatorBeam2 ( const PiezoActuatorBeam2 & )

private

PiezoActuatorBeam2::PiezoActuatorBeam2	(	unsigned int	uL,
		const StructNode *	pN1,
		const StructNode *	pN2,
		const Vec3 &	F1,
		const Vec3 &	F2,
		const Mat3x3 &	R1,
		const Mat3x3 &	R2,
		const Mat3x3 &	r,
		const ConstitutiveLaw6D *	pd,
		int	iEl,
		const ScalarDifferentialNode **	pEDof,
		const Mat3xN &	T_Ie,
		const Mat3xN &	T_Ik,
		OrientationDescription	ood,
		flag	fOut
	)

Definition at line 110 of file pzbeam2.cc.

References ASSERT, Mat3xN::Copy(), Beam2::CURVAT, iNumElec, PiezoMat, pvElecDofs, and Beam2::STRAIN.

 : Elem(uL, fOut),
 Beam2(uL, pN1, pN2, F1, F2, R1, R2, r, pd, ood, fOut),
 iNumElec(iEl), pvElecDofs(pEDof), V(iEl)
 {
         ASSERT(iNumElec > 0);
         ASSERT(pvElecDofs != NULL);

 #ifdef DEBUG
         for (int i = iNumElec; i-- > 0; ) {
                 ASSERT(pvElecDofs[i] != NULL);
         }
 #endif /* DEBUG */

         PiezoMat[STRAIN].Copy(Te);
         PiezoMat[CURVAT].Copy(Tk);
 }

Here is the call graph for this function:

PiezoActuatorBeam2::~PiezoActuatorBeam2 ( void )

virtual

Definition at line 140 of file pzbeam2.cc.

References ASSERT, pvElecDofs, and SAFEDELETEARR.

 {
         ASSERT(pvElecDofs != NULL);
         SAFEDELETEARR(pvElecDofs);
 }

Member Function Documentation

void PiezoActuatorBeam2::AddInternalForces ( Vec6 & AzLoc )

protectedvirtual

Reimplemented from Beam2.

Definition at line 103 of file pzbeam2.cc.

References Beam2::CURVAT, PiezoMat, Beam2::STRAIN, and V.

 {
         AzLoc += Vec6(PiezoMat[STRAIN]*V, PiezoMat[CURVAT]*V);
 }

void PiezoActuatorBeam2::AfterPredict	(	VectorHandler &	X,
		VectorHandler &	XP
	)

virtual

Reimplemented from Beam2.

Definition at line 183 of file pzbeam2.cc.

References Beam2::AfterPredict(), iNumElec, VecN::Put(), pvElecDofs, and V.

 {
         /*
          * Calcola le deformazioni, aggiorna il legame costitutivo
          * e crea la FDE
          */
         for (integer iCnt = 1; iCnt <= iNumElec; iCnt++) {
                 V.Put(iCnt, pvElecDofs[iCnt-1]->dGetX());
         }

         Beam2::AfterPredict(X, XP);
 }

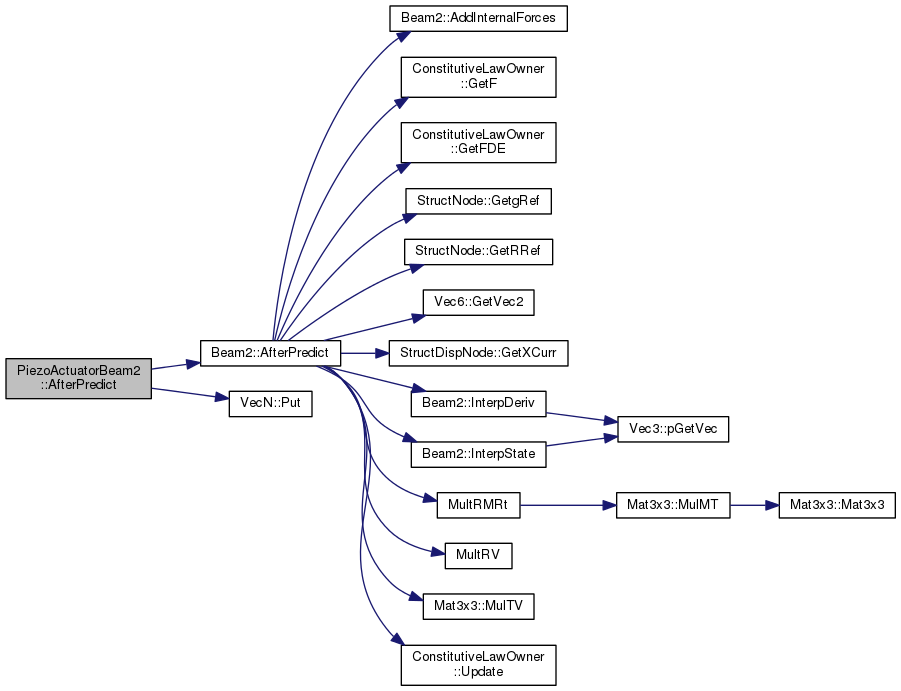

Here is the call graph for this function:

VariableSubMatrixHandler & PiezoActuatorBeam2::AssJac	(	VariableSubMatrixHandler &	WorkMat,
		doublereal	dCoef,
		const VectorHandler &	XCurr,
		const VectorHandler &	XPrimeCurr
	)

virtual

Reimplemented from Beam2.

Definition at line 199 of file pzbeam2.cc.

References AssStiffnessMat(), DEBUGCOUT, StructDispNode::iGetFirstMomentumIndex(), StructDispNode::iGetFirstPositionIndex(), iNumElec, Beam2::NODE1, Beam2::NODE2, Beam2::pNode, FullSubMatrixHandler::PutColIndex(), FullSubMatrixHandler::PutRowIndex(), pvElecDofs, FullSubMatrixHandler::ResizeReset(), and VariableSubMatrixHandler::SetFull().

 {
         DEBUGCOUT("Entering PiezoActuatorBeam2::AssJac();"
                         " will result in call to AssStiffnessMat()" << std::endl);

         integer iNode1FirstMomIndex = pNode[NODE1]->iGetFirstMomentumIndex();
         integer iNode1FirstPosIndex = pNode[NODE1]->iGetFirstPositionIndex();
         integer iNode2FirstMomIndex = pNode[NODE2]->iGetFirstMomentumIndex();
         integer iNode2FirstPosIndex = pNode[NODE2]->iGetFirstPositionIndex();

         FullSubMatrixHandler& WM = WorkMat.SetFull();

         /* Dimensiona la matrice, la azzera e pone gli indici corretti */
         WM.ResizeReset(12, 12+iNumElec);

         for (int iCnt = 1; iCnt <= 6; iCnt++) {
                 WM.PutRowIndex(iCnt, iNode1FirstMomIndex+iCnt);
                 WM.PutColIndex(iCnt, iNode1FirstPosIndex+iCnt);
                 WM.PutRowIndex(6+iCnt, iNode2FirstMomIndex+iCnt);
                 WM.PutColIndex(6+iCnt, iNode2FirstPosIndex+iCnt);
         }

         for (int iCnt = 1; iCnt <= iNumElec; iCnt++) {
                 WM.PutColIndex(12+iCnt,
                                 pvElecDofs[iCnt-1]->iGetFirstColIndex()+1);
         }

         AssStiffnessMat(WM, WM, dCoef, XCurr, XPrimeCurr);

         return WorkMat;
 }

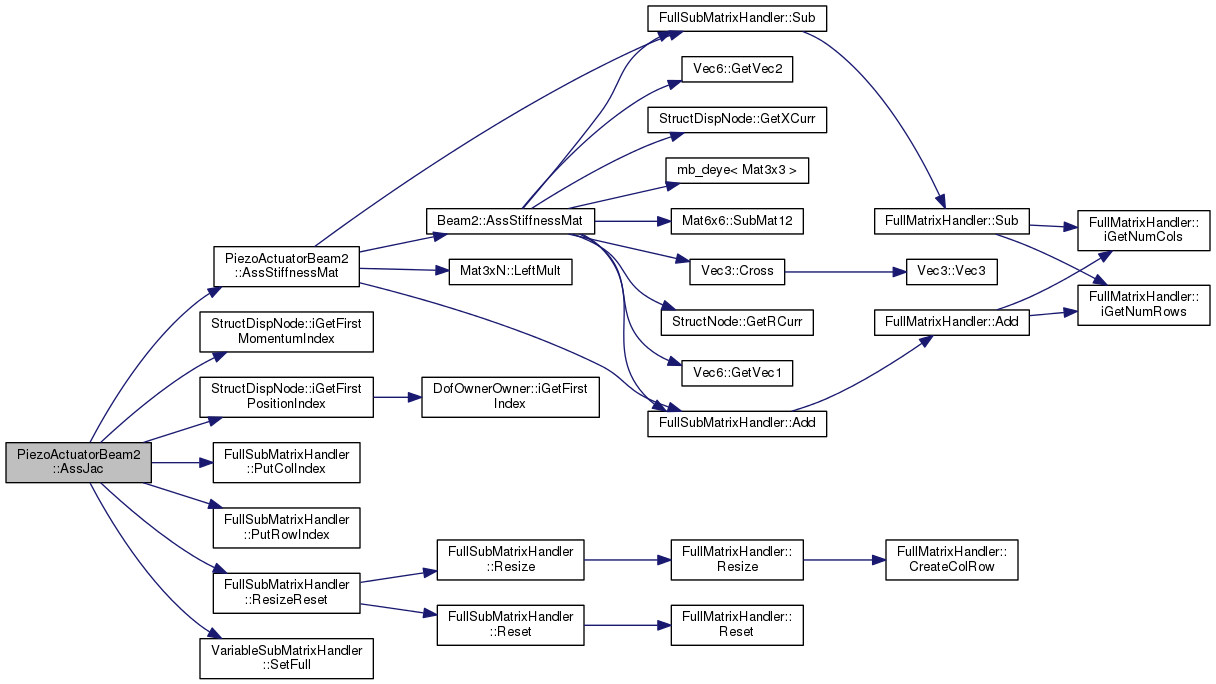

Here is the call graph for this function:

void PiezoActuatorBeam2::AssStiffnessMat	(	FullSubMatrixHandler &	WMA,
		FullSubMatrixHandler &	WMB,
		doublereal	dCoef,
		const VectorHandler &	XCurr,
		const VectorHandler &	XPrimeCurr
	)

protectedvirtual

Reimplemented from Beam2.

Definition at line 41 of file pzbeam2.cc.

References FullSubMatrixHandler::Add(), Beam2::AssStiffnessMat(), Beam2::CURVAT, DEBUGCOUT, iNumElec, Mat3xN::LeftMult(), MatCross, Beam2::NODE1, Beam2::NODE2, Beam2::p, PiezoMat, Beam2::pNode, Beam2::R, Beam2::STRAIN, and FullSubMatrixHandler::Sub().

Referenced by AssJac().

 {
         DEBUGCOUT("Entering PiezoActuatorBeam2::AssStiffnessMat()" << std::endl);

    Beam2::AssStiffnessMat(WMA, WMB, dCoef, XCurr, XPrimeCurr);

    Mat3xN tmp1(iNumElec);
    Mat3xN tmp2(iNumElec);

    tmp1.LeftMult(R*dCoef, PiezoMat[STRAIN]);
    WMA.Sub(1, 13, tmp1);
    WMA.Add(7, 13, tmp1);
    tmp2.LeftMult(Mat3x3(MatCross, p - pNode[NODE1]->GetXCurr()), tmp1);
    WMA.Add(4, 13, tmp2);
    tmp2.LeftMult(Mat3x3(MatCross, p - pNode[NODE2]->GetXCurr()), tmp1);
    WMA.Sub(10, 13, tmp2);

    tmp1.LeftMult(R*dCoef, PiezoMat[CURVAT]);
    WMA.Sub(4, 13, tmp1);
    WMA.Add(10, 13, tmp1);
 }

Here is the call graph for this function:

void PiezoActuatorBeam2::AssStiffnessVec	(	SubVectorHandler &	WorkVec,
		doublereal	dCoef,
		const VectorHandler &	XCurr,
		const VectorHandler &	XPrimeCurr
	)

protectedvirtual

Reimplemented from Beam2.

Definition at line 69 of file pzbeam2.cc.

References Beam2::AssStiffnessVec(), Beam2::bFirstRes, DEBUGCOUT, iNumElec, VecN::Put(), pvElecDofs, and V.

 {
         DEBUGCOUT("Entering PiezoActuatorBeam2::AssStiffnessVec()" << std::endl);

         /*
          * Riceve il vettore gia' dimensionato e con gli indici a posto
          * per scrivere il residuo delle equazioni di equilibrio dei tre nodi
          */

         /*
          * Per la trattazione teorica, il riferimento e' il file ul-travi.tex
          * (ora e' superato)
          */

         if (bFirstRes) {
                 /*
                  * AfterPredict ha gia' calcolato tutto;
                  * bFirstRes viene resettato poi da Beam2::AssStiffnessVec
                  */

         } else {
                 for (integer iCnt = 1; iCnt <= iNumElec; iCnt++) {
                         V.Put(iCnt, pvElecDofs[iCnt-1]->dGetX());
                 }
         }

         Beam2::AssStiffnessVec(WorkVec, dCoef, XCurr, XPrimeCurr);
 }

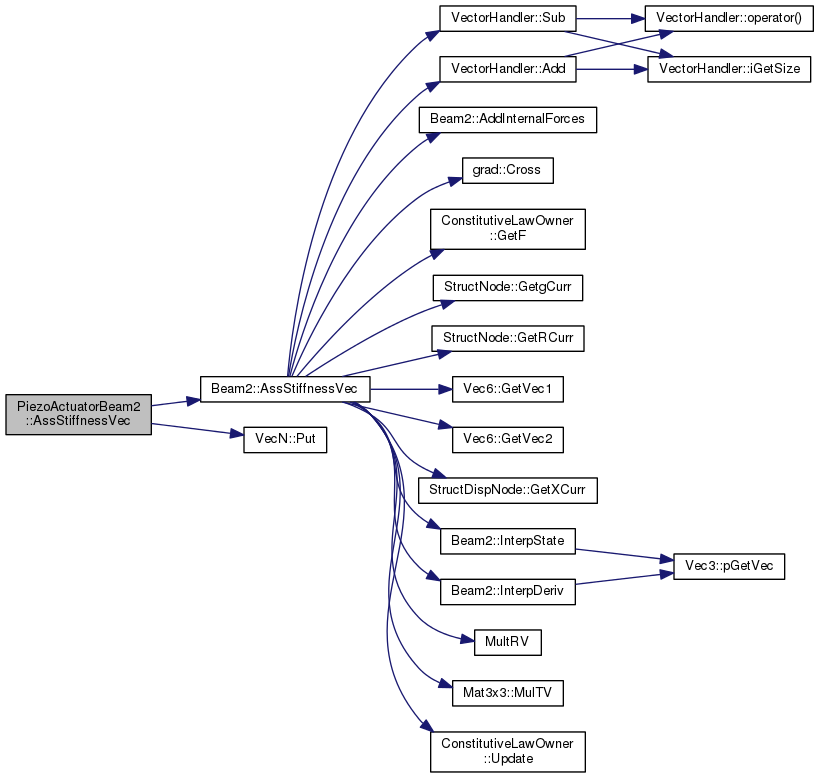

Here is the call graph for this function:

virtual Beam::Type PiezoActuatorBeam2::GetBeamType ( void ) const

inlinevirtual

Reimplemented from Beam2.

Definition at line 85 of file pzbeam2.h.

References Beam::PIEZOELECTRICELASTIC.

                                             {
       return Beam::PIEZOELECTRICELASTIC;
    };

virtual void PiezoActuatorBeam2::GetConnectedNodes ( std::vector< const Node * > & connectedNodes ) const

inlinevirtual

Reimplemented from Beam2.

Definition at line 126 of file pzbeam2.h.

References Beam2::GetConnectedNodes(), iNumElec, and pvElecDofs.

                                                                                  {
      Beam2::GetConnectedNodes(connectedNodes);
      int NumNodes = connectedNodes.size();
      connectedNodes.resize(NumNodes + iNumElec);
      for (int i = 0; i < iNumElec; i++) {
        connectedNodes[NumNodes + i] = pvElecDofs[i];
      }
    };

Here is the call graph for this function:

VariableSubMatrixHandler & PiezoActuatorBeam2::InitialAssJac	(	VariableSubMatrixHandler &	WorkMat,
		const VectorHandler &	XCurr
	)

virtual

Reimplemented from Beam2.

Definition at line 237 of file pzbeam2.cc.

References Beam2::InitialAssJac().

 {
         return Beam2::InitialAssJac(WorkMat, XCurr);
 }

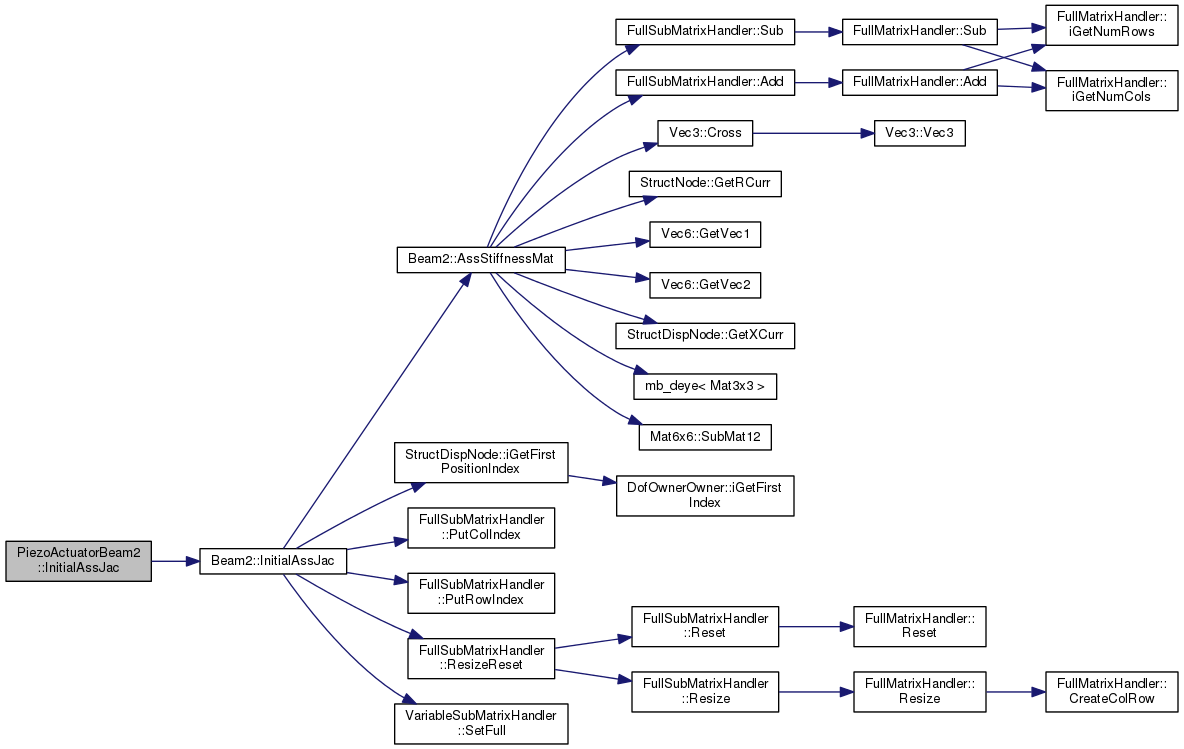

Here is the call graph for this function:

SubVectorHandler & PiezoActuatorBeam2::InitialAssRes	(	SubVectorHandler &	WorkVec,
		const VectorHandler &	XCurr
	)

virtual

Reimplemented from Beam2.

Definition at line 246 of file pzbeam2.cc.

References Beam2::InitialAssRes().

 {
         return Beam2::InitialAssRes(WorkVec, XCurr);
 }

Here is the call graph for this function:

const PiezoActuatorBeam2& PiezoActuatorBeam2::operator= ( const PiezoActuatorBeam2 & )

private

std::ostream & PiezoActuatorBeam2::Restart ( std::ostream & out ) const

virtual

Reimplemented from Beam2.

Definition at line 149 of file pzbeam2.cc.

References Beam2::Restart_().

 {
         Restart_(out);
         return out << "/* piezoelectric actuator NOT IMPLEMENTED YET */ ;"
                 << std::endl;
 }

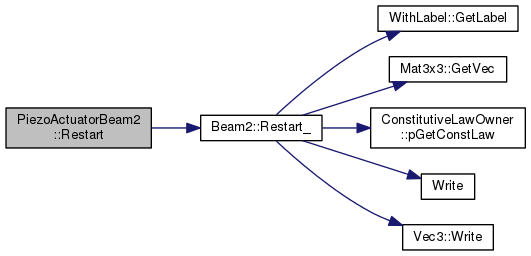

Here is the call graph for this function:

void PiezoActuatorBeam2::SetValue	(	DataManager *	pDM,
		VectorHandler &	X,
		VectorHandler &	XP,
		SimulationEntity::Hints *	ph = `0`
	)

virtual

Reimplemented from Beam2.

Definition at line 172 of file pzbeam2.cc.

References Beam2::SetValue().

 {
         /* se proprio non serve, si puo' eliminare */
         Beam2::SetValue(pDM, X, XP, ph);
 }

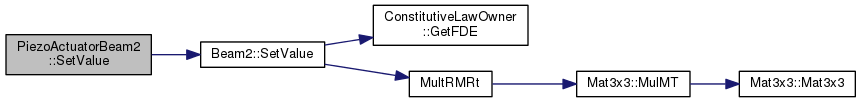

Here is the call graph for this function:

void PiezoActuatorBeam2::WorkSpaceDim	(	integer *	piNumRows,
		integer *	piNumCols
	)		const

virtual

Reimplemented from Beam2.

Definition at line 163 of file pzbeam2.cc.

References iNumElec.

 {
         *piNumRows = 12;
         *piNumCols = 18+iNumElec;
 }

Member Data Documentation

int PiezoActuatorBeam2::iNumElec

protected

Definition at line 48 of file pzbeam2.h.

Referenced by AfterPredict(), AssJac(), AssStiffnessMat(), AssStiffnessVec(), GetConnectedNodes(), PiezoActuatorBeam2(), and WorkSpaceDim().

Mat3xN PiezoActuatorBeam2::PiezoMat[NUMDEFORM]

protected

Definition at line 51 of file pzbeam2.h.

Referenced by AddInternalForces(), AssStiffnessMat(), and PiezoActuatorBeam2().

const ScalarDifferentialNode** PiezoActuatorBeam2::pvElecDofs

protected

Definition at line 49 of file pzbeam2.h.

Referenced by AfterPredict(), AssJac(), AssStiffnessVec(), GetConnectedNodes(), PiezoActuatorBeam2(), and ~PiezoActuatorBeam2().

VecN PiezoActuatorBeam2::V

protected

Definition at line 50 of file pzbeam2.h.

Referenced by AddInternalForces(), AfterPredict(), and AssStiffnessVec().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
