#include <constltp.h>

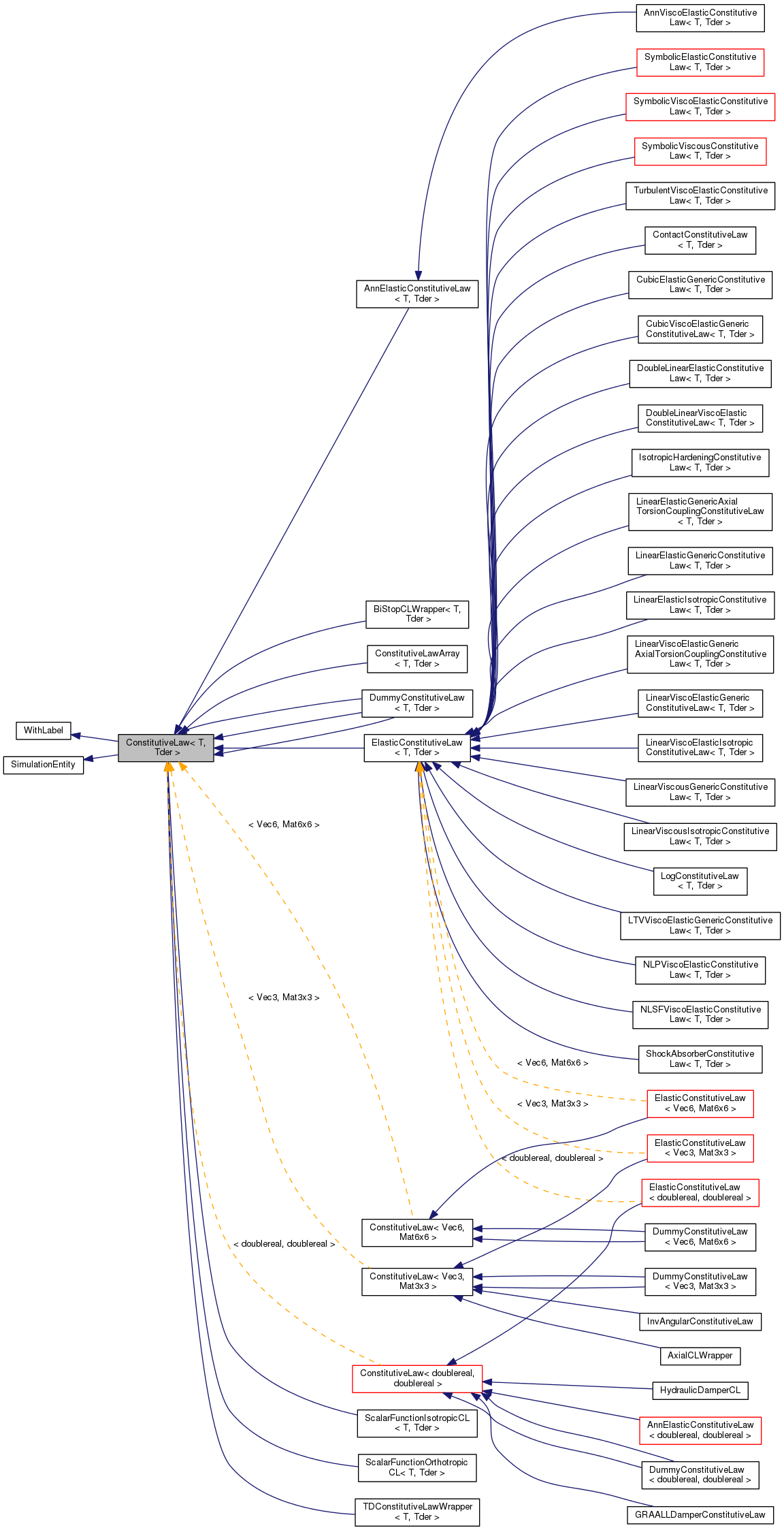

Inheritance diagram for ConstitutiveLaw< T, Tder >:

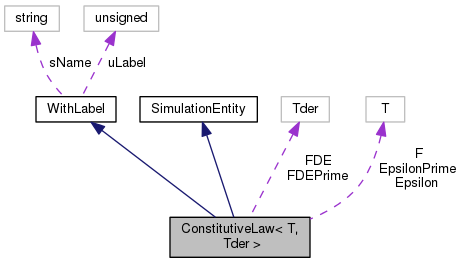

Collaboration diagram for ConstitutiveLaw< T, Tder >:

Classes
class	ErrNotAvailable

Public Types
typedef ConstitutiveLaw< T, Tder >::ErrNotAvailable	Err

Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints

Public Member Functions
	ConstitutiveLaw (void)

virtual	~ConstitutiveLaw (void)

virtual ConstLawType::Type	GetConstLawType (void) const =0

virtual ConstitutiveLaw< T, Tder > *	pCopy (void) const =0

virtual std::ostream &	Restart (std::ostream &out) const

virtual void	Update (const T &Eps, const T &EpsPrime=mb_zero< T >())=0

virtual void	AfterConvergence (const T &Eps, const T &EpsPrime=mb_zero< T >())

virtual const T &	GetEpsilon (void) const

virtual const T &	GetEpsilonPrime (void) const

virtual const T &	GetF (void) const

virtual const Tder &	GetFDE (void) const

virtual const Tder &	GetFDEPrime (void) const

virtual unsigned int	iGetNumDof (void) const

virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order	GetDofType (unsigned int i) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)

virtual	~SimulationEntity (void)

virtual bool	bIsValidIndex (unsigned int i) const

virtual DofOrder::Order	GetEqType (unsigned int i) const

virtual void	SetValue (DataManager pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints h=0)

virtual Hint *	ParseHint (DataManager pDM, const char s) const

virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int	iGetNumPrivData (void) const

virtual unsigned int	iGetPrivDataIdx (const char *s) const

virtual doublereal	dGetPrivData (unsigned int i) const

virtual std::ostream &	OutputAppend (std::ostream &out) const

virtual void	ReadInitialState (MBDynParser &HP)

Protected Attributes
T	Epsilon

T	EpsilonPrime

T	F

Tder	FDE

Tder	FDEPrime

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Detailed Description

template<class T, class Tder>
class ConstitutiveLaw< T, Tder >

Definition at line 61 of file constltp.h.

Member Typedef Documentation

template<class T, class Tder>

typedef ConstitutiveLaw<T, Tder>::ErrNotAvailable ConstitutiveLaw< T, Tder >::Err

Definition at line 82 of file constltp.h.

Constructor & Destructor Documentation

template<class T, class Tder>

ConstitutiveLaw< T, Tder >::ConstitutiveLaw ( void )

inline

Definition at line 93 of file constltp.h.

         : WithLabel(0),
         Epsilon(mb_zero<T>()), EpsilonPrime(mb_zero<T>()),
         F(mb_zero<T>()), FDE(mb_zero<Tder>()), FDEPrime(mb_zero<Tder>()) {
                 NO_OP;
         };

template<class T, class Tder>

virtual ConstitutiveLaw< T, Tder >::~ConstitutiveLaw ( void )

inlinevirtual

Definition at line 100 of file constltp.h.

                                        {
                 NO_OP;
         };

Member Function Documentation

template<class T, class Tder>

virtual void ConstitutiveLaw< T, Tder >::AfterConvergence	(	const T &	Eps,
		const T &	EpsPrime = `mb_zero<T>()`
	)

inlinevirtual

Reimplemented in BiStopCLWrapper< T, Tder >, ContContact3DCL, DummyConstitutiveLaw< Vec6, Mat6x6 >, DummyConstitutiveLaw< Vec6, Mat6x6 >, AnnElasticConstitutiveLaw< doublereal, doublereal >, DummyConstitutiveLaw< Vec3, Mat3x3 >, DummyConstitutiveLaw< Vec3, Mat3x3 >, ContContactCL, ConstitutiveLawArray< T, Tder >, DummyConstitutiveLaw< doublereal, doublereal >, DummyConstitutiveLaw< doublereal, doublereal >, HuntCrossleyCL, AnnElasticConstitutiveLaw< T, Tder >, AxialCLWrapper, DummyConstitutiveLaw< T, Tder >, DummyConstitutiveLaw< T, Tder >, and TDConstitutiveLawWrapper< T, Tder >.

Definition at line 113 of file constltp.h.

Referenced by AxialCLWrapper::AfterConvergence(), and ConstitutiveLawArray< T, Tder >::AfterConvergence().

                                                                                       {
                 NO_OP;
         };

template<class T, class Tder>

virtual std::ostream& ConstitutiveLaw< T, Tder >::DescribeDof	(	std::ostream &	out,
		const char *	prefix = `""`,
		bool	bInitial = `false`
	)		const

inlinevirtual

Implements SimulationEntity.

Definition at line 142 of file constltp.h.

         {
                 return out;
         };

template<class T, class Tder>

virtual void ConstitutiveLaw< T, Tder >::DescribeDof	(	std::vector< std::string > &	desc,
		bool	bInitial = `false`,
		int	i = `-1`
	)		const

inlinevirtual

Implements SimulationEntity.

Definition at line 148 of file constltp.h.

         {
                 ASSERT(i <= 0);
                 desc.resize(0);
         };

template<class T, class Tder>

virtual std::ostream& ConstitutiveLaw< T, Tder >::DescribeEq	(	std::ostream &	out,
		const char *	prefix = `""`,
		bool	bInitial = `false`
	)		const

inlinevirtual

Implements SimulationEntity.

Definition at line 155 of file constltp.h.

         {
                 return out;
         };

template<class T, class Tder>

virtual void ConstitutiveLaw< T, Tder >::DescribeEq	(	std::vector< std::string > &	desc,
		bool	bInitial = `false`,
		int	i = `-1`
	)		const

inlinevirtual

Implements SimulationEntity.

Definition at line 162 of file constltp.h.

         {
                 ASSERT(i <= 0);
                 desc.resize(0);
         };

template<class T, class Tder>

virtual ConstLawType::Type ConstitutiveLaw< T, Tder >::GetConstLawType ( void ) const

pure virtual

Referenced by AxialCLWrapper::GetConstLawType(), InvAngularConstitutiveLaw::GetConstLawType(), CLArray1DR::Read(), CLArray3DR::Read(), CLArray6DR::Read(), ReadBeam2(), and InvAngularConstitutiveLaw::Update().

template<class T, class Tder>

virtual DofOrder::Order ConstitutiveLaw< T, Tder >::GetDofType ( unsigned int i ) const

inlinevirtual

Implements SimulationEntity.

Definition at line 169 of file constltp.h.

                                                                {
                 throw ErrGeneric(MBDYN_EXCEPT_ARGS);
         };

template<class T, class Tder>

virtual const T& ConstitutiveLaw< T, Tder >::GetEpsilon ( void ) const

inlinevirtual

Definition at line 117 of file constltp.h.

                                                 {
                 return Epsilon;
         };

template<class T, class Tder>

virtual const T& ConstitutiveLaw< T, Tder >::GetEpsilonPrime ( void ) const

inlinevirtual

Definition at line 121 of file constltp.h.

                                                      {
                 return EpsilonPrime;
         };

template<class T, class Tder>

virtual const T& ConstitutiveLaw< T, Tder >::GetF ( void ) const

inlinevirtual

Definition at line 125 of file constltp.h.

Referenced by TDConstitutiveLawWrapper< T, Tder >::AfterConvergence(), TDConstitutiveLawWrapper< T, Tder >::Update(), AxialCLWrapper::Update(), ConstitutiveLawArray< T, Tder >::Update(), and InvAngularConstitutiveLaw::Update().

                                           {
                 return F;
         };

template<class T, class Tder>

virtual const Tder& ConstitutiveLaw< T, Tder >::GetFDE ( void ) const

inlinevirtual

Definition at line 129 of file constltp.h.

Referenced by ReadBeam(), ReadBeam2(), ReadHBeam(), TDConstitutiveLawWrapper< T, Tder >::Update(), AxialCLWrapper::Update(), ConstitutiveLawArray< T, Tder >::Update(), and InvAngularConstitutiveLaw::Update().

                                                {
                 return FDE;
         };

template<class T, class Tder>

virtual const Tder& ConstitutiveLaw< T, Tder >::GetFDEPrime ( void ) const

inlinevirtual

Definition at line 133 of file constltp.h.

Referenced by TDConstitutiveLawWrapper< T, Tder >::Update(), AxialCLWrapper::Update(), ConstitutiveLawArray< T, Tder >::Update(), and InvAngularConstitutiveLaw::Update().

                                                     {
                 return FDEPrime;
         };

template<class T, class Tder>

virtual unsigned int ConstitutiveLaw< T, Tder >::iGetNumDof ( void ) const

inlinevirtual

Implements SimulationEntity.

Definition at line 138 of file constltp.h.

Referenced by ReadBeam(), ReadBeam2(), ReadGenel(), and ReadHBeam().

                                                     {
                 return 0;
         };

template<class T, class Tder>

virtual ConstitutiveLaw<T, Tder>* ConstitutiveLaw< T, Tder >::pCopy ( void ) const

pure virtual

Referenced by AxialCLWrapper::pCopy(), InvAngularConstitutiveLaw::pCopy(), and ReadBeam().

template<class T, class Tder>

virtual std::ostream& ConstitutiveLaw< T, Tder >::Restart ( std::ostream & out ) const

inlinevirtual

Definition at line 107 of file constltp.h.

Referenced by AxialCLWrapper::Restart(), and InvAngularConstitutiveLaw::Restart().

                                                            {
                 return out;
         };

template<class T, class Tder>

virtual void ConstitutiveLaw< T, Tder >::Update	(	const T &	Eps,
		const T &	EpsPrime = `mb_zero< T >()`
	)

pure virtual

Referenced by TDConstitutiveLawWrapper< T, Tder >::Update(), AxialCLWrapper::Update(), and InvAngularConstitutiveLaw::Update().

Member Data Documentation

template<class T, class Tder>

T ConstitutiveLaw< T, Tder >::Epsilon

protected

Definition at line 85 of file constltp.h.

Referenced by ContContact3DCL::AfterConvergence(), ShockAbsorberConstitutiveLaw< doublereal, doublereal >::Restart(), ShockAbsorberConstitutiveLaw< doublereal, doublereal >::Update(), ContContact3DCL::Update(), LinearElasticGenericAxialTorsionCouplingConstitutiveLaw< Vec6, Mat6x6 >::Update(), LogConstitutiveLaw< doublereal, doublereal >::Update(), DoubleLinearElasticConstitutiveLaw< doublereal, doublereal >::Update(), DoubleLinearElasticConstitutiveLaw< Vec3, Mat3x3 >::Update(), ContactConstitutiveLaw< doublereal, doublereal >::Update(), ContactConstitutiveLaw< Vec3, Mat3x3 >::Update(), LinearViscoElasticGenericAxialTorsionCouplingConstitutiveLaw< Vec6, Mat6x6 >::Update(), DoubleLinearViscoElasticConstitutiveLaw< doublereal, doublereal >::Update(), DoubleLinearViscoElasticConstitutiveLaw< Vec3, Mat3x3 >::Update(), and TurbulentViscoElasticConstitutiveLaw< doublereal, doublereal >::Update().

template<class T, class Tder>

T ConstitutiveLaw< T, Tder >::EpsilonPrime

protected

Definition at line 86 of file constltp.h.

Referenced by ShockAbsorberConstitutiveLaw< doublereal, doublereal >::Update(), ContContact3DCL::Update(), DoubleLinearViscoElasticConstitutiveLaw< doublereal, doublereal >::Update(), DoubleLinearViscoElasticConstitutiveLaw< Vec3, Mat3x3 >::Update(), and TurbulentViscoElasticConstitutiveLaw< doublereal, doublereal >::Update().

template<class T, class Tder>

T ConstitutiveLaw< T, Tder >::F

protected

Definition at line 88 of file constltp.h.

Referenced by ContContact3DCL::AfterConvergence(), ContactConstitutiveLaw< Vec3, Mat3x3 >::ContactConstitutiveLaw(), ShockAbsorberConstitutiveLaw< doublereal, doublereal >::ShockAbsorberConstitutiveLaw(), GiNaCElasticConstitutiveLaw< T, Tder >::Update(), AnnElasticConstitutiveLaw< T, Tder >::Update(), NLPViscoElasticConstitutiveLaw< T, Tder >::Update(), NLSFViscoElasticConstitutiveLaw< T, Tder >::Update(), AnnViscoElasticConstitutiveLaw< T, Tder >::Update(), GiNaCViscousConstitutiveLaw< T, Tder >::Update(), ShockAbsorberConstitutiveLaw< doublereal, doublereal >::Update(), ContContact3DCL::Update(), LinearElasticGenericAxialTorsionCouplingConstitutiveLaw< Vec6, Mat6x6 >::Update(), GiNaCViscoElasticConstitutiveLaw< T, Tder >::Update(), LogConstitutiveLaw< doublereal, doublereal >::Update(), DoubleLinearElasticConstitutiveLaw< doublereal, doublereal >::Update(), DoubleLinearElasticConstitutiveLaw< Vec3, Mat3x3 >::Update(), ContactConstitutiveLaw< doublereal, doublereal >::Update(), ScalarFunctionIsotropicCL< T, Tder >::Update(), ContactConstitutiveLaw< Vec3, Mat3x3 >::Update(), ScalarFunctionOrthotropicCL< T, Tder >::Update(), DoubleLinearViscoElasticConstitutiveLaw< doublereal, doublereal >::Update(), DoubleLinearViscoElasticConstitutiveLaw< Vec3, Mat3x3 >::Update(), and TurbulentViscoElasticConstitutiveLaw< doublereal, doublereal >::Update().

template<class T, class Tder>

Tder ConstitutiveLaw< T, Tder >::FDE

protected

Definition at line 89 of file constltp.h.

template<class T, class Tder>

Tder ConstitutiveLaw< T, Tder >::FDEPrime

protected

Definition at line 90 of file constltp.h.

The documentation for this class was generated from the following file:

constltp.h
