#include <constltp_impl.h>

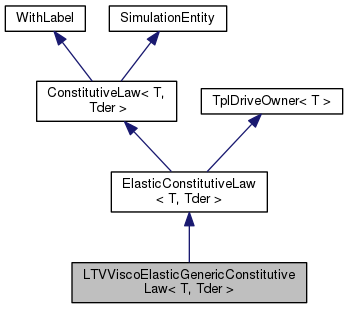

Inheritance diagram for LTVViscoElasticGenericConstitutiveLaw< T, Tder >:

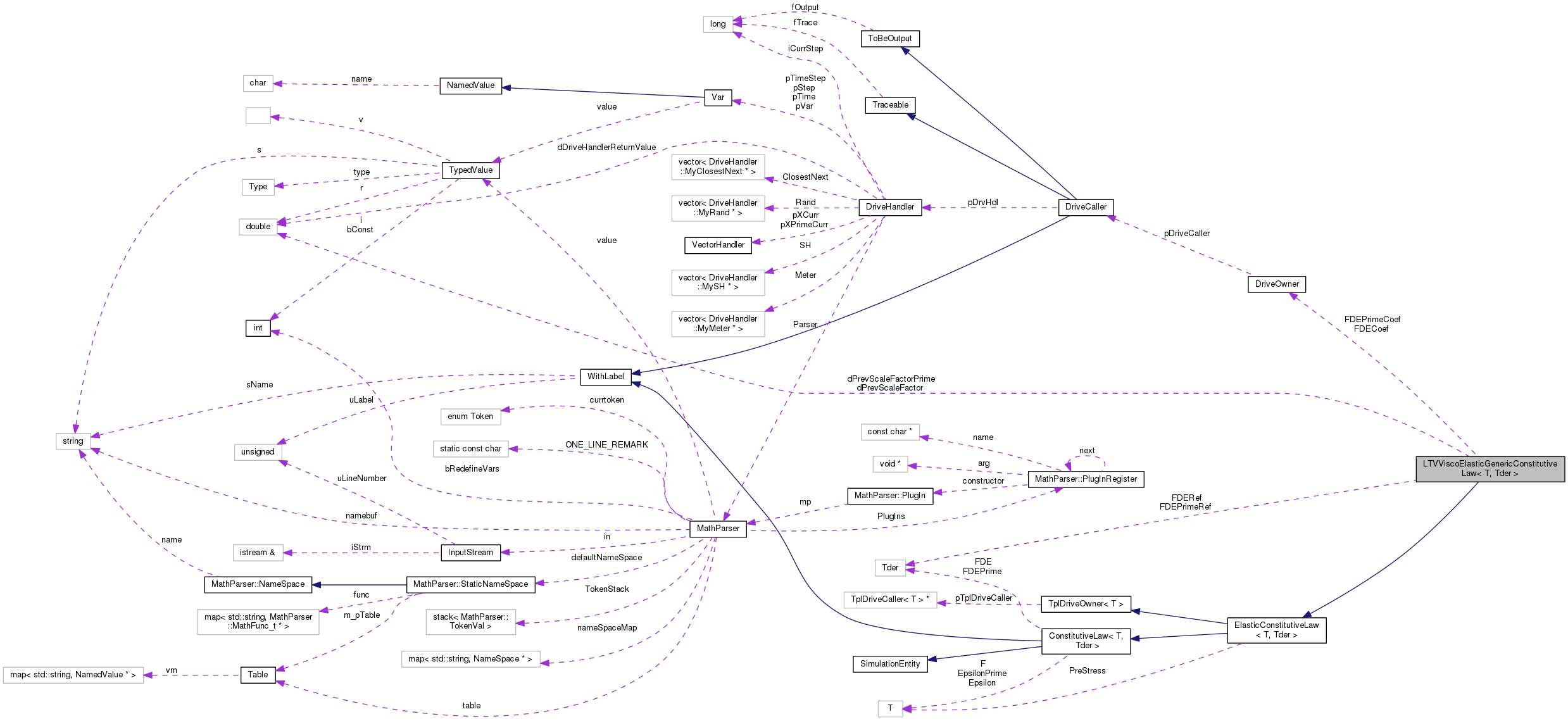

Collaboration diagram for LTVViscoElasticGenericConstitutiveLaw< T, Tder >:

Public Member Functions
	LTVViscoElasticGenericConstitutiveLaw (const TplDriveCaller< T > pDC, const T &PStress, const Tder &Stiff, const DriveCaller pdc, const Tder &StiffPrime, const DriveCaller *pdcp)

virtual	~LTVViscoElasticGenericConstitutiveLaw (void)

ConstLawType::Type	GetConstLawType (void) const

virtual ConstitutiveLaw< T, Tder > *	pCopy (void) const

virtual std::ostream &	Restart (std::ostream &out) const

virtual void	Update (const T &Eps, const T &EpsPrime=mb_zero< T >())

Public Member Functions inherited from ElasticConstitutiveLaw< T, Tder >
	ElasticConstitutiveLaw (const TplDriveCaller< T > *pDC, const T &PStress)

virtual	~ElasticConstitutiveLaw (void)

void	SetValue (DataManager pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints ph=0)

virtual Hint *	ParseHint (DataManager pDM, const char s) const

Public Member Functions inherited from ConstitutiveLaw< T, Tder >
	ConstitutiveLaw (void)

virtual	~ConstitutiveLaw (void)

virtual void	AfterConvergence (const T &Eps, const T &EpsPrime=mb_zero< T >())

virtual const T &	GetEpsilon (void) const

virtual const T &	GetEpsilonPrime (void) const

virtual const T &	GetF (void) const

virtual const Tder &	GetFDE (void) const

virtual const Tder &	GetFDEPrime (void) const

virtual unsigned int	iGetNumDof (void) const

virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order	GetDofType (unsigned int i) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)

virtual	~SimulationEntity (void)

virtual bool	bIsValidIndex (unsigned int i) const

virtual DofOrder::Order	GetEqType (unsigned int i) const

virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int	iGetNumPrivData (void) const

virtual unsigned int	iGetPrivDataIdx (const char *s) const

virtual doublereal	dGetPrivData (unsigned int i) const

virtual std::ostream &	OutputAppend (std::ostream &out) const

virtual void	ReadInitialState (MBDynParser &HP)

Public Member Functions inherited from TplDriveOwner< T >
	TplDriveOwner (const TplDriveCaller< T > *pDC=0)

virtual	~TplDriveOwner (void)

void	Set (const TplDriveCaller< T > *pDC)

TplDriveCaller< T > *	pGetDriveCaller (void) const

T	Get (const doublereal &dVar) const

T	Get (void) const

virtual bool	bIsDifferentiable (void) const

virtual T	GetP (void) const

Protected Attributes
DriveOwner	FDECoef

Tder	FDERef

doublereal	dPrevScaleFactor

DriveOwner	FDEPrimeCoef

Tder	FDEPrimeRef

doublereal	dPrevScaleFactorPrime

Protected Attributes inherited from ElasticConstitutiveLaw< T, Tder >
T	PreStress

Protected Attributes inherited from ConstitutiveLaw< T, Tder >
T	Epsilon

T	EpsilonPrime

T	F

Tder	FDE

Tder	FDEPrime

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Protected Attributes inherited from TplDriveOwner< T >
TplDriveCaller< T > *	pTplDriveCaller

Additional Inherited Members
Public Types inherited from ConstitutiveLaw< T, Tder >
typedef ConstitutiveLaw< T, Tder >::ErrNotAvailable	Err

Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints

Protected Member Functions inherited from ElasticConstitutiveLaw< T, Tder >
virtual std::ostream &	Restart_int (std::ostream &out) const

Detailed Description

template<class T, class Tder>
class LTVViscoElasticGenericConstitutiveLaw< T, Tder >

Definition at line 1425 of file constltp_impl.h.

Constructor & Destructor Documentation

template<class T , class Tder >

LTVViscoElasticGenericConstitutiveLaw< T, Tder >::LTVViscoElasticGenericConstitutiveLaw	(	const TplDriveCaller< T > *	pDC,
		const T &	PStress,
		const Tder &	Stiff,
		const DriveCaller *	pdc,
		const Tder &	StiffPrime,
		const DriveCaller *	pdcp
	)

inline

Definition at line 1436 of file constltp_impl.h.

References LTVViscoElasticGenericConstitutiveLaw< T, Tder >::dPrevScaleFactor, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::dPrevScaleFactorPrime, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDEPrimeRef, and LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDERef.

         : ElasticConstitutiveLaw<T, Tder>(pDC, PStress),
         FDECoef(pdc), FDEPrimeCoef(pdcp) {
                 FDERef = Stiff;
                 dPrevScaleFactor = 0.;
                 FDEPrimeRef = StiffPrime;
                 dPrevScaleFactorPrime = 0.;
         };

template<class T , class Tder >

virtual LTVViscoElasticGenericConstitutiveLaw< T, Tder >::~LTVViscoElasticGenericConstitutiveLaw ( void )

inlinevirtual

Definition at line 1450 of file constltp_impl.h.

References NO_OP.

                                                              {
                 NO_OP;
         };

Member Function Documentation

template<class T , class Tder >

ConstLawType::Type LTVViscoElasticGenericConstitutiveLaw< T, Tder >::GetConstLawType ( void ) const

inlinevirtual

Reimplemented from ElasticConstitutiveLaw< T, Tder >.

Definition at line 1454 of file constltp_impl.h.

References ConstLawType::VISCOELASTIC.

                                                      {
                 return ConstLawType::VISCOELASTIC;
         };

template<class T , class Tder >

virtual ConstitutiveLaw<T, Tder>* LTVViscoElasticGenericConstitutiveLaw< T, Tder >::pCopy ( void ) const

inlinevirtual

Implements ConstitutiveLaw< T, Tder >.

Definition at line 1458 of file constltp_impl.h.

References LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDECoef, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDEPrimeCoef, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDEPrimeRef, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDERef, DriveCaller::pCopy(), DriveOwner::pGetDriveCaller(), and SAFENEWWITHCONSTRUCTOR.

                                                             {
                 ConstitutiveLaw<T, Tder>* pCL = 0;

                 typedef LTVViscoElasticGenericConstitutiveLaw<T, Tder> cl;
                 SAFENEWWITHCONSTRUCTOR(pCL,
                         cl,
                         cl(ElasticConstitutiveLaw<T, Tder>::pGetDriveCaller()->pCopy(),
                                 ElasticConstitutiveLaw<T, Tder>::PreStress,
                                 FDERef,
                                 FDECoef.pGetDriveCaller()->pCopy(),
                                 FDEPrimeRef,
                                 FDEPrimeCoef.pGetDriveCaller()->pCopy()));

                 return pCL;
         };

Here is the call graph for this function:

template<class T , class Tder >

virtual std::ostream& LTVViscoElasticGenericConstitutiveLaw< T, Tder >::Restart ( std::ostream & out ) const

inlinevirtual

Reimplemented from ConstitutiveLaw< T, Tder >.

Definition at line 1474 of file constltp_impl.h.

References LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDECoef, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDEPrimeCoef, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDEPrimeRef, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDERef, DriveOwner::pGetDriveCaller(), DriveCaller::Restart(), ElasticConstitutiveLaw< T, Tder >::Restart_int(), and Write().

                                                            {
                 out << "linear time variant viscoelastic generic, ",
                         Write(out, FDERef, ", ") << ", ",
                         FDECoef.pGetDriveCaller()->Restart(out) << ", ",
                         Write(out, FDEPrimeRef, ", ") << ", ",
                         FDEPrimeCoef.pGetDriveCaller()->Restart(out);
                 return ElasticConstitutiveLaw<T, Tder>::Restart_int(out);
         };

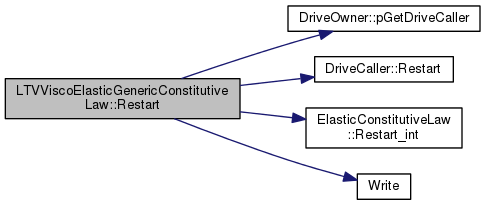

Here is the call graph for this function:

template<class T , class Tder >

virtual void LTVViscoElasticGenericConstitutiveLaw< T, Tder >::Update	(	const T &	Eps,
		const T &	EpsPrime = `mb_zero<T>()`
	)

inlinevirtual

Implements ConstitutiveLaw< T, Tder >.

Definition at line 1483 of file constltp_impl.h.

References DriveOwner::dGet(), LTVViscoElasticGenericConstitutiveLaw< T, Tder >::dPrevScaleFactor, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::dPrevScaleFactorPrime, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDECoef, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDEPrimeCoef, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDEPrimeRef, LTVViscoElasticGenericConstitutiveLaw< T, Tder >::FDERef, and TplDriveOwner< T >::Get().

                                                                             {
                 ConstitutiveLaw<T, Tder>::Epsilon = Eps;
                 ConstitutiveLaw<T, Tder>::EpsilonPrime = EpsPrime;
                 doublereal dCurrScaleFactor = FDECoef.dGet();
                 if (dCurrScaleFactor != dPrevScaleFactor) {
                         dPrevScaleFactor = dCurrScaleFactor;
                         ConstitutiveLaw<T, Tder>::FDE = FDERef*dCurrScaleFactor;
                 }
                 doublereal dCurrScaleFactorPrime = FDEPrimeCoef.dGet();
                 if (dCurrScaleFactorPrime != dPrevScaleFactorPrime) {
                         dPrevScaleFactorPrime = dCurrScaleFactorPrime;
                         ConstitutiveLaw<T, Tder>::FDEPrime = FDEPrimeRef*dCurrScaleFactorPrime;
                 }
                 ConstitutiveLaw<T, Tder>::F = ElasticConstitutiveLaw<T, Tder>::PreStress
                         + ConstitutiveLaw<T, Tder>::FDE*(ConstitutiveLaw<T, Tder>::Epsilon - ElasticConstitutiveLaw<T, Tder>::Get())
                         + ConstitutiveLaw<T, Tder>::FDEPrime*ConstitutiveLaw<T, Tder>::EpsilonPrime;
         };
