#include <constltp_impl.h>

Inheritance diagram for ConstitutiveLawArray< T, Tder >:

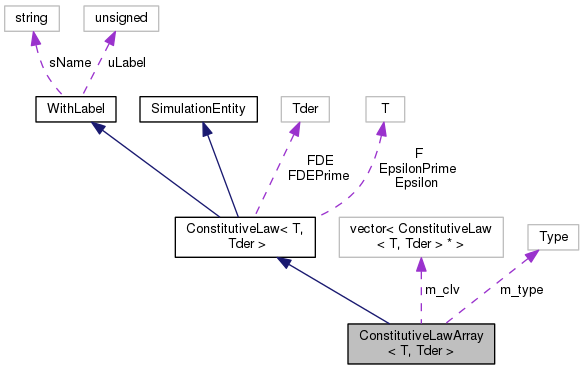

Collaboration diagram for ConstitutiveLawArray< T, Tder >:

Public Member Functions
	ConstitutiveLawArray (const std::vector< ConstitutiveLaw< T, Tder > * > &clv)

virtual	~ConstitutiveLawArray (void)

ConstLawType::Type	GetConstLawType (void) const

void	SetValue (DataManager pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints ph=0)

virtual ConstitutiveLaw< T, Tder > *	pCopy (void) const

virtual std::ostream &	Restart (std::ostream &out) const

virtual void	Update (const T &Eps, const T &EpsPrime=::mb_zero< T >())

virtual void	AfterConvergence (const T &Eps, const T &EpsPrime=mb_zero< T >())

virtual std::ostream &	OutputAppend (std::ostream &out) const

Public Member Functions inherited from ConstitutiveLaw< T, Tder >
	ConstitutiveLaw (void)

virtual	~ConstitutiveLaw (void)

virtual const T &	GetEpsilon (void) const

virtual const T &	GetEpsilonPrime (void) const

virtual const T &	GetF (void) const

virtual const Tder &	GetFDE (void) const

virtual const Tder &	GetFDEPrime (void) const

virtual unsigned int	iGetNumDof (void) const

virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order	GetDofType (unsigned int i) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)

virtual	~SimulationEntity (void)

virtual bool	bIsValidIndex (unsigned int i) const

virtual DofOrder::Order	GetEqType (unsigned int i) const

virtual Hint *	ParseHint (DataManager pDM, const char s) const

virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int	iGetNumPrivData (void) const

virtual unsigned int	iGetPrivDataIdx (const char *s) const

virtual doublereal	dGetPrivData (unsigned int i) const

virtual void	ReadInitialState (MBDynParser &HP)

Protected Attributes
ConstLawType::Type	m_type

std::vector< ConstitutiveLaw < T, Tder > * >	m_clv

Protected Attributes inherited from ConstitutiveLaw< T, Tder >
T	Epsilon

T	EpsilonPrime

T	F

Tder	FDE

Tder	FDEPrime

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Additional Inherited Members
Public Types inherited from ConstitutiveLaw< T, Tder >
typedef ConstitutiveLaw< T, Tder >::ErrNotAvailable	Err

Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints

Detailed Description

template<class T, class Tder>
class ConstitutiveLawArray< T, Tder >

Definition at line 50 of file constltp_impl.h.

Constructor & Destructor Documentation

template<class T , class Tder >

ConstitutiveLawArray< T, Tder >::ConstitutiveLawArray ( const std::vector< ConstitutiveLaw< T, Tder > * > & clv )

inline

Definition at line 57 of file constltp_impl.h.

References ConstitutiveLawArray< T, Tder >::m_clv, and ConstitutiveLawArray< T, Tder >::m_type.

         : m_clv(clv)
         {
                 unsigned type = 0;
                 for (typename std::vector<ConstitutiveLaw<T, Tder> *>::const_iterator i = m_clv.begin(); i != m_clv.end(); ++i) {
                         type |= (*i)->GetConstLawType();
                 }
                 m_type = ConstLawType::Type(type);
         };

template<class T , class Tder >

virtual ConstitutiveLawArray< T, Tder >::~ConstitutiveLawArray ( void )

inlinevirtual

Definition at line 67 of file constltp_impl.h.

References NO_OP.

         {
                 NO_OP;
         };

Member Function Documentation

template<class T , class Tder >

virtual void ConstitutiveLawArray< T, Tder >::AfterConvergence	(	const T &	Eps,
		const T &	EpsPrime = `mb_zero<T>()`
	)

inlinevirtual

Reimplemented from ConstitutiveLaw< T, Tder >.

Definition at line 140 of file constltp_impl.h.

References ConstitutiveLaw< T, Tder >::AfterConvergence(), and ConstitutiveLawArray< T, Tder >::m_clv.

                                                                                       {
                 ConstitutiveLaw<T, Tder>::Epsilon = Eps;
                 ConstitutiveLaw<T, Tder>::EpsilonPrime = EpsPrime;

                 for (typename std::vector<ConstitutiveLaw<T, Tder> *>::iterator i = m_clv.begin(); i != m_clv.end(); ++i) {
                         (*i)->AfterConvergence(Eps, EpsPrime);
                 }
         };

Here is the call graph for this function:

template<class T , class Tder >

ConstLawType::Type ConstitutiveLawArray< T, Tder >::GetConstLawType ( void ) const

inlinevirtual

Implements ConstitutiveLaw< T, Tder >.

Definition at line 72 of file constltp_impl.h.

References ConstitutiveLawArray< T, Tder >::m_type.

                                                      {
                 return m_type;
         };

template<class T , class Tder >

virtual std::ostream& ConstitutiveLawArray< T, Tder >::OutputAppend ( std::ostream & out ) const

inlinevirtual

Reimplemented from SimulationEntity.

Definition at line 149 of file constltp_impl.h.

References ConstitutiveLawArray< T, Tder >::m_clv.

                                                                 {
                 for (typename std::vector<ConstitutiveLaw<T, Tder> *>::const_iterator i = m_clv.begin(); i != m_clv.end(); ++i) {
                         (*i)->OutputAppend(out);
                 }
                 return out;
         };

template<class T , class Tder >

virtual ConstitutiveLaw<T, Tder>* ConstitutiveLawArray< T, Tder >::pCopy ( void ) const

inlinevirtual

Implements ConstitutiveLaw< T, Tder >.

Definition at line 85 of file constltp_impl.h.

References ConstitutiveLawArray< T, Tder >::m_clv, and SAFENEWWITHCONSTRUCTOR.

                                                             {
                 ConstitutiveLaw<T, Tder>* pCL = 0;

                 std::vector<ConstitutiveLaw<T, Tder> *> clv(m_clv.size());
                 for (unsigned i = 0; i < m_clv.size(); i++) {
                         clv[i] = m_clv[i]->pCopy();
                 }

                 typedef ConstitutiveLawArray<T, Tder> cl;
                 SAFENEWWITHCONSTRUCTOR(pCL, cl, cl(clv));
                 return pCL;
         };

template<class T , class Tder >

virtual std::ostream& ConstitutiveLawArray< T, Tder >::Restart ( std::ostream & out ) const

inlinevirtual

Reimplemented from ConstitutiveLaw< T, Tder >.

Definition at line 98 of file constltp_impl.h.

References ConstitutiveLawArray< T, Tder >::m_clv.

                                                            {
                 out << "array, " << m_clv.size();
                 for (typename std::vector<ConstitutiveLaw<T, Tder> *>::const_iterator i = m_clv.begin(); i != m_clv.end(); ++i) {
                         out << ", ", (*i)->Restart(out);
                 }
                 return out;
         };

template<class T , class Tder >

void ConstitutiveLawArray< T, Tder >::SetValue	(	DataManager *	pDM,
		VectorHandler &	X,
		VectorHandler &	XP,
		SimulationEntity::Hints *	ph = `0`
	)

inlinevirtual

Reimplemented from SimulationEntity.

Definition at line 76 of file constltp_impl.h.

References ConstitutiveLawArray< T, Tder >::m_clv.

         {
                 for (typename std::vector<ConstitutiveLaw<T, Tder> *>::iterator i = m_clv.begin(); i != m_clv.end(); ++i) {
                         (*i)->SetValue(pDM, X, XP, ph);
                 }
         };

template<class T , class Tder >

virtual void ConstitutiveLawArray< T, Tder >::Update	(	const T &	Eps,
		const T &	EpsPrime = `::mb_zero<T>()`
	)

inlinevirtual

Implements ConstitutiveLaw< T, Tder >.

Definition at line 106 of file constltp_impl.h.

References ConstLawType::ELASTIC, ConstitutiveLaw< T, Tder >::GetF(), ConstitutiveLaw< T, Tder >::GetFDE(), ConstitutiveLaw< T, Tder >::GetFDEPrime(), ConstitutiveLawArray< T, Tder >::m_clv, ConstitutiveLawArray< T, Tder >::m_type, MBDYN_EXCEPT_ARGS, and ConstLawType::VISCOUS.

                                                                             {
                 ConstitutiveLaw<T, Tder>::Epsilon = Eps;
                 ConstitutiveLaw<T, Tder>::EpsilonPrime = EpsPrime;
                 ConstitutiveLaw<T, Tder>::F = ::mb_zero<T>();
                 if (m_type & ConstLawType::ELASTIC) {
                         ConstitutiveLaw<T, Tder>::FDE = ::mb_zero<Tder>();
                 }
                 if (m_type & ConstLawType::VISCOUS) {
                         ConstitutiveLaw<T, Tder>::FDEPrime = ::mb_zero<Tder>();
                 }

                 bool bChangeJac(false);
                 for (typename std::vector<ConstitutiveLaw<T, Tder> *>::iterator i = m_clv.begin(); i != m_clv.end(); ++i) {
                         try {
                                 (*i)->Update(Eps, EpsPrime);
                         }
                         catch (Elem::ChangedEquationStructure& e) {
                                 bChangeJac = true;
                         }
                         ConstitutiveLaw<T, Tder>::F += (*i)->GetF();
                         if (m_type & ConstLawType::ELASTIC) {
                                 ConstitutiveLaw<T, Tder>::FDE += (*i)->GetFDE();
                         }

                         if (m_type & ConstLawType::VISCOUS) {
                                 ConstitutiveLaw<T, Tder>::FDEPrime += (*i)->GetFDEPrime();
                         }
                 }
                 if (bChangeJac) {
                         /* if activating, ask for jacobian rigeneration */
                         throw Elem::ChangedEquationStructure(MBDYN_EXCEPT_ARGS);
                 }
         };
