AnnViscoElasticConstitutiveLaw< doublereal, doublereal > Class Template Reference

#include <constltp_ann.h>

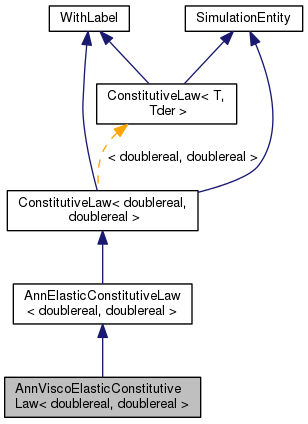

Inheritance diagram for AnnViscoElasticConstitutiveLaw< doublereal, doublereal >:

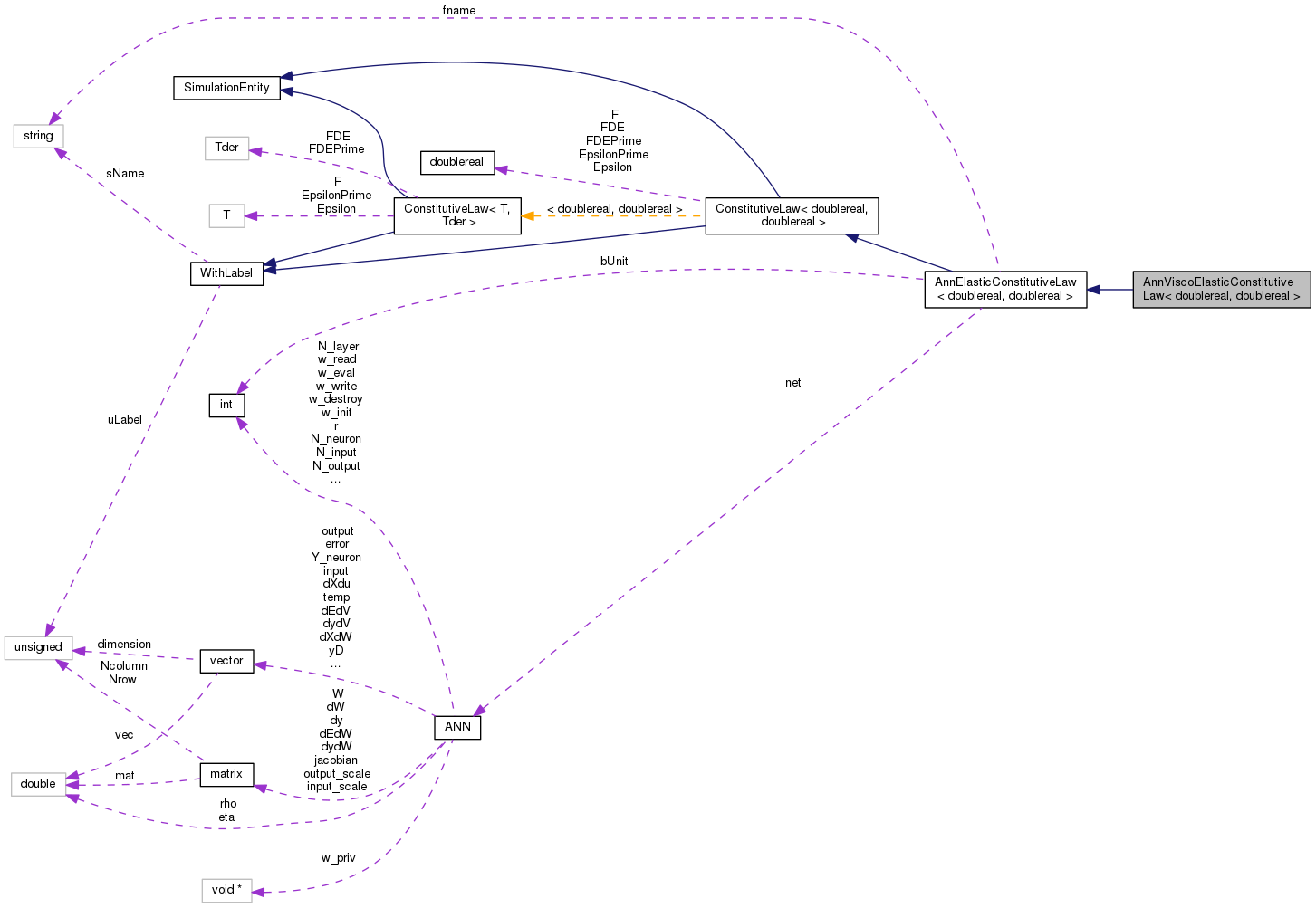

Collaboration diagram for AnnViscoElasticConstitutiveLaw< doublereal, doublereal >:

Public Member Functions
	AnnViscoElasticConstitutiveLaw (const std::string &f, bool b=false)
virtual	~AnnViscoElasticConstitutiveLaw (void)
ConstLawType::Type	GetConstLawType (void) const
virtual ConstitutiveLaw < doublereal, doublereal > *	pCopy (void) const
Public Member Functions inherited from AnnElasticConstitutiveLaw< doublereal, doublereal >
	AnnElasticConstitutiveLaw (const std::string &f, bool b=false)
virtual	~AnnElasticConstitutiveLaw (void)
virtual void	AfterConvergence (const doublereal &Eps, const doublereal &EpsPrime=0.)
virtual std::ostream &	Restart (std::ostream &out) const
virtual void	Update (const doublereal &Eps, const doublereal &EpsPrime=0.)
Public Member Functions inherited from ConstitutiveLaw< doublereal, doublereal >
	ConstitutiveLaw (void)
virtual	~ConstitutiveLaw (void)
virtual const doublereal &	GetEpsilon (void) const
virtual const doublereal &	GetEpsilonPrime (void) const
virtual const doublereal &	GetF (void) const
virtual const doublereal &	GetFDE (void) const
virtual const doublereal &	GetFDEPrime (void) const
virtual unsigned int	iGetNumDof (void) const
virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const
virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const
virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const
virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const
virtual DofOrder::Order	GetDofType (unsigned int i) const
Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")
virtual	~WithLabel (void)
void	PutLabel (unsigned int uL)
void	PutName (const std::string &sN)
unsigned int	GetLabel (void) const
const std::string &	GetName (void) const
Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)
virtual	~SimulationEntity (void)
virtual bool	bIsValidIndex (unsigned int i) const
virtual DofOrder::Order	GetEqType (unsigned int i) const
virtual void	SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *h=0)
virtual Hint *	ParseHint (DataManager *pDM, const char *s) const
virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const
virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)
virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)
virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)
virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)
virtual unsigned int	iGetNumPrivData (void) const
virtual unsigned int	iGetPrivDataIdx (const char *s) const
virtual doublereal	dGetPrivData (unsigned int i) const
virtual std::ostream &	OutputAppend (std::ostream &out) const
virtual void	ReadInitialState (MBDynParser &HP)

Protected Member Functions
virtual void	AnnSanity (void)
virtual void	Update (const doublereal &Eps, const doublereal &EpsPrime, int feedback)
Protected Member Functions inherited from AnnElasticConstitutiveLaw< doublereal, doublereal >
void	AnnInit (void)

Additional Inherited Members
Public Types inherited from ConstitutiveLaw< doublereal, doublereal >
typedef ConstitutiveLaw < doublereal, doublereal > ::ErrNotAvailable	Err
Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints
Protected Attributes inherited from AnnElasticConstitutiveLaw< doublereal, doublereal >
bool	bUnit
ANN *	net
std::string	fname
Protected Attributes inherited from ConstitutiveLaw< doublereal, doublereal >
doublereal	Epsilon
doublereal	EpsilonPrime
doublereal	F
doublereal	FDE
doublereal	FDEPrime
Protected Attributes inherited from WithLabel
unsigned int	uLabel
std::string	sName

Detailed Description

template<>
class AnnViscoElasticConstitutiveLaw< doublereal, doublereal >

Definition at line 301 of file constltp_ann.h.

Constructor & Destructor Documentation

AnnViscoElasticConstitutiveLaw< doublereal, doublereal >::AnnViscoElasticConstitutiveLaw ( const std::string &  f, bool  b = false  )

inline

Definition at line 340 of file constltp_ann.h.

References NO_OP.

        : AnnElasticConstitutiveLaw<doublereal, doublereal>(f, b)
        {
                NO_OP;
        };

virtual AnnViscoElasticConstitutiveLaw< doublereal, doublereal >::~AnnViscoElasticConstitutiveLaw ( void  )

inlinevirtual

Definition at line 346 of file constltp_ann.h.

References NO_OP.

                                                      {
                NO_OP;
        };

Member Function Documentation

virtual void AnnViscoElasticConstitutiveLaw< doublereal, doublereal >::AnnSanity ( void  )

inlineprotectedvirtual

Reimplemented from AnnElasticConstitutiveLaw< doublereal, doublereal >.

Definition at line 306 of file constltp_ann.h.

References NO_OP.

        {
                /* add sanity checks */
                NO_OP;
        }

ConstLawType::Type AnnViscoElasticConstitutiveLaw< doublereal, doublereal >::GetConstLawType ( void  ) const

inlinevirtual

Reimplemented from AnnElasticConstitutiveLaw< doublereal, doublereal >.

Definition at line 350 of file constltp_ann.h.

References ConstLawType::VISCOELASTIC.

                                                     {
                return ConstLawType::VISCOELASTIC;
        };

virtual ConstitutiveLaw<doublereal, doublereal>* AnnViscoElasticConstitutiveLaw< doublereal, doublereal >::pCopy ( void  ) const

inlinevirtual

Reimplemented from AnnElasticConstitutiveLaw< doublereal, doublereal >.

Definition at line 354 of file constltp_ann.h.

References SAFENEWWITHCONSTRUCTOR.

                                                                           {
                ConstitutiveLaw<doublereal, doublereal>* pCL = NULL;

                typedef AnnViscoElasticConstitutiveLaw<doublereal, doublereal> cl;
                SAFENEWWITHCONSTRUCTOR(pCL, cl, cl(cl::fname));
                return pCL;
        };

virtual void AnnViscoElasticConstitutiveLaw< doublereal, doublereal >::Update ( const doublereal &  Eps, const doublereal &  EpsPrime, int  feedback  )

inlineprotectedvirtual

Reimplemented from AnnElasticConstitutiveLaw< doublereal, doublereal >.

Definition at line 312 of file constltp_ann.h.

References ANN_jacobian_matrix(), ANN_sim(), AnnElasticConstitutiveLaw< T, Tder >::bUnit, ANN::input, ANN::jacobian, matrix::mat, MBDYN_EXCEPT_ARGS, ANN::N_input, AnnElasticConstitutiveLaw< T, Tder >::net, ANN::output, and vector::vec.

                                                                                              {
                ConstitutiveLaw<doublereal, doublereal>::Epsilon = Eps;
                ConstitutiveLaw<doublereal, doublereal>::EpsilonPrime = EpsPrime;

                doublereal E = ConstitutiveLaw<doublereal, doublereal>::Epsilon;

                ANN *net = AnnElasticConstitutiveLaw<doublereal, doublereal>::net;
                net->input.vec[0] = E;
                net->input.vec[1] = EpsPrime;
                if (net->N_input == 3) {
                        if (bUnit) {
                                net->input.vec[2] = 1.;
                        } else {
                                net->input.vec[2] = 0.;
                        }
                }
                if (ANN_sim(net, &net->input, &net->output, feedback))
                {
                        silent_cout("AnnViscoElasticConstitutiveLaw: Network simulation error" << std::endl);
                        throw ErrGeneric(MBDYN_EXCEPT_ARGS);
                }
                ANN_jacobian_matrix(net, &net->jacobian );

                ConstitutiveLaw<doublereal, doublereal>::F = -net->output.vec[0];
                ConstitutiveLaw<doublereal, doublereal>::FDE = -net->jacobian.mat[0][0];
        };

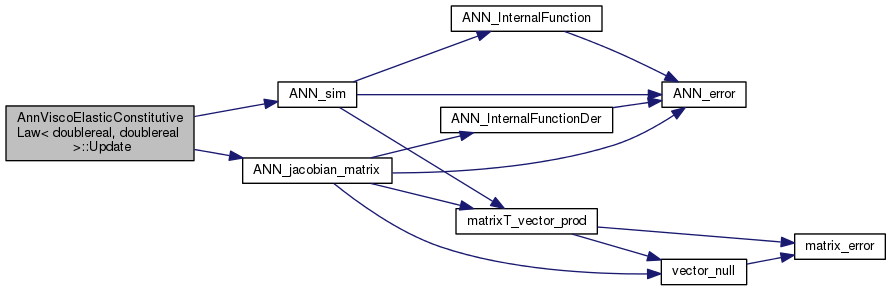

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• constltp_ann.h
