ScalarFunctionIsotropicCL< doublereal, doublereal > Class Template Reference

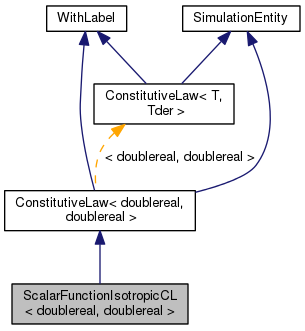

Inheritance diagram for ScalarFunctionIsotropicCL< doublereal, doublereal >:

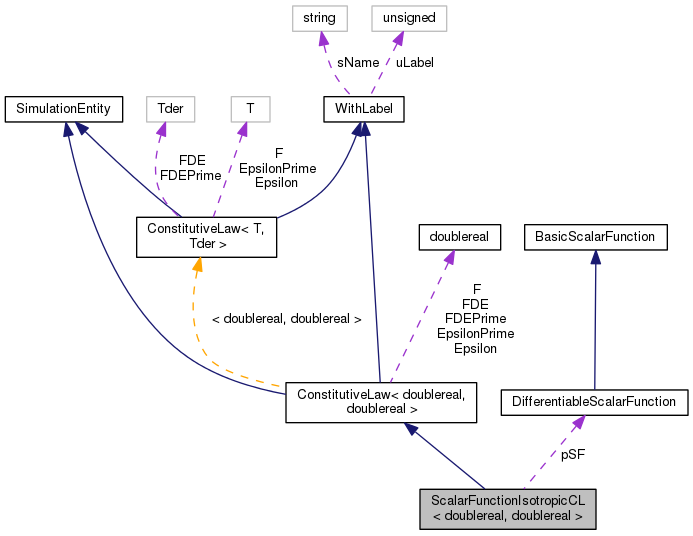

Collaboration diagram for ScalarFunctionIsotropicCL< doublereal, doublereal >:

Public Member Functions
	ScalarFunctionIsotropicCL (const DifferentiableScalarFunction *psf)
virtual	~ScalarFunctionIsotropicCL (void)
ConstLawType::Type	GetConstLawType (void) const
virtual ConstitutiveLaw < doublereal, doublereal > *	pCopy (void) const
virtual std::ostream &	Restart (std::ostream &out) const
virtual void	Update (const doublereal &Eps, const doublereal &=0.)
Public Member Functions inherited from ConstitutiveLaw< doublereal, doublereal >
	ConstitutiveLaw (void)
virtual	~ConstitutiveLaw (void)
virtual void	AfterConvergence (const doublereal &Eps, const doublereal &EpsPrime=mb_zero< doublereal >())
virtual const doublereal &	GetEpsilon (void) const
virtual const doublereal &	GetEpsilonPrime (void) const
virtual const doublereal &	GetF (void) const
virtual const doublereal &	GetFDE (void) const
virtual const doublereal &	GetFDEPrime (void) const
virtual unsigned int	iGetNumDof (void) const
virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const
virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const
virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const
virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const
virtual DofOrder::Order	GetDofType (unsigned int i) const
Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")
virtual	~WithLabel (void)
void	PutLabel (unsigned int uL)
void	PutName (const std::string &sN)
unsigned int	GetLabel (void) const
const std::string &	GetName (void) const
Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)
virtual	~SimulationEntity (void)
virtual bool	bIsValidIndex (unsigned int i) const
virtual DofOrder::Order	GetEqType (unsigned int i) const
virtual void	SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *h=0)
virtual Hint *	ParseHint (DataManager *pDM, const char *s) const
virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const
virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)
virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)
virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)
virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)
virtual unsigned int	iGetNumPrivData (void) const
virtual unsigned int	iGetPrivDataIdx (const char *s) const
virtual doublereal	dGetPrivData (unsigned int i) const
virtual std::ostream &	OutputAppend (std::ostream &out) const
virtual void	ReadInitialState (MBDynParser &HP)

Private Attributes
const DifferentiableScalarFunction *	pSF

Additional Inherited Members
Public Types inherited from ConstitutiveLaw< doublereal, doublereal >
typedef ConstitutiveLaw < doublereal, doublereal > ::ErrNotAvailable	Err
Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints
Protected Attributes inherited from ConstitutiveLaw< doublereal, doublereal >
doublereal	Epsilon
doublereal	EpsilonPrime
doublereal	F
doublereal	FDE
doublereal	FDEPrime
Protected Attributes inherited from WithLabel
unsigned int	uLabel
std::string	sName

Detailed Description

template<>
class ScalarFunctionIsotropicCL< doublereal, doublereal >

Definition at line 1192 of file ScalarFunctionsImpl.cc.

Constructor & Destructor Documentation

ScalarFunctionIsotropicCL< doublereal, doublereal >::ScalarFunctionIsotropicCL ( const DifferentiableScalarFunction *  psf )

inline

Definition at line 1198 of file ScalarFunctionsImpl.cc.

References NO_OP.

        : pSF(psf) {
                NO_OP;
        };

virtual ScalarFunctionIsotropicCL< doublereal, doublereal >::~ScalarFunctionIsotropicCL ( void  )

inlinevirtual

Definition at line 1203 of file ScalarFunctionsImpl.cc.

References NO_OP.

                                                 {
                NO_OP;
        };

Member Function Documentation

ConstLawType::Type ScalarFunctionIsotropicCL< doublereal, doublereal >::GetConstLawType ( void  ) const

inlinevirtual

Implements ConstitutiveLaw< doublereal, doublereal >.

Definition at line 1207 of file ScalarFunctionsImpl.cc.

References ConstLawType::ELASTIC.

                                                     {
                return ConstLawType::ELASTIC;
        };

virtual ConstitutiveLaw<doublereal, doublereal>* ScalarFunctionIsotropicCL< doublereal, doublereal >::pCopy ( void  ) const

inlinevirtual

Implements ConstitutiveLaw< doublereal, doublereal >.

Definition at line 1211 of file ScalarFunctionsImpl.cc.

References ScalarFunctionIsotropicCL< T, Tder >::pSF, and SAFENEWWITHCONSTRUCTOR.

                                                                           {
                ConstitutiveLaw<doublereal, doublereal>* pCL = NULL;

                typedef ScalarFunctionIsotropicCL<doublereal, doublereal> cl;
                SAFENEWWITHCONSTRUCTOR(pCL, cl, cl(pSF));
                return pCL;
        };

virtual std::ostream& ScalarFunctionIsotropicCL< doublereal, doublereal >::Restart ( std::ostream &  out ) const

inlinevirtual

Reimplemented from ConstitutiveLaw< doublereal, doublereal >.

Definition at line 1219 of file ScalarFunctionsImpl.cc.

                                                           {
                return out << "# not implemented!";
        };

virtual void ScalarFunctionIsotropicCL< doublereal, doublereal >::Update ( const doublereal &  Eps, const doublereal &  = 0.  )

inlinevirtual

Implements ConstitutiveLaw< doublereal, doublereal >.

Definition at line 1223 of file ScalarFunctionsImpl.cc.

References DifferentiableScalarFunction::ComputeDiff(), and ScalarFunctionIsotropicCL< T, Tder >::pSF.

                                                                              {
                ConstitutiveLaw<doublereal, doublereal>::Epsilon = Eps;
                ConstitutiveLaw<doublereal, doublereal>::F = (*pSF)(Eps);
                ConstitutiveLaw<doublereal, doublereal>::FDE = pSF->ComputeDiff(Eps);
        };

Here is the call graph for this function:

Member Data Documentation

const DifferentiableScalarFunction* ScalarFunctionIsotropicCL< doublereal, doublereal >::pSF

private

Definition at line 1195 of file ScalarFunctionsImpl.cc.

---

The documentation for this class was generated from the following file:

• ScalarFunctionsImpl.cc
