ShockAbsorberConstitutiveLaw< doublereal, doublereal > Class Template Reference

#include <shockabsorber.h>

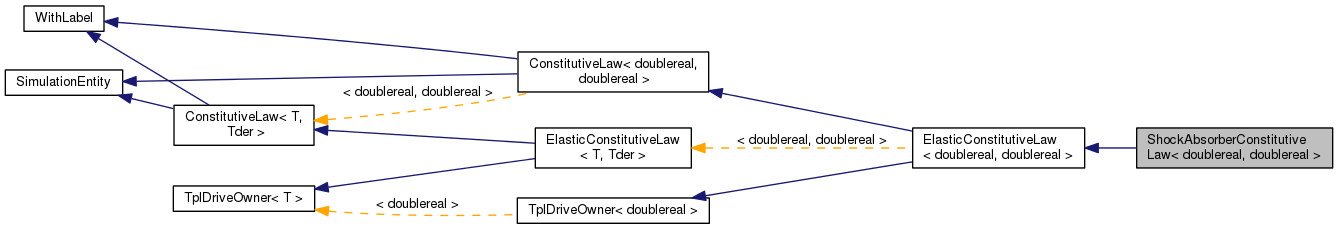

Inheritance diagram for ShockAbsorberConstitutiveLaw< doublereal, doublereal >:
Inheritance graph
[legend]

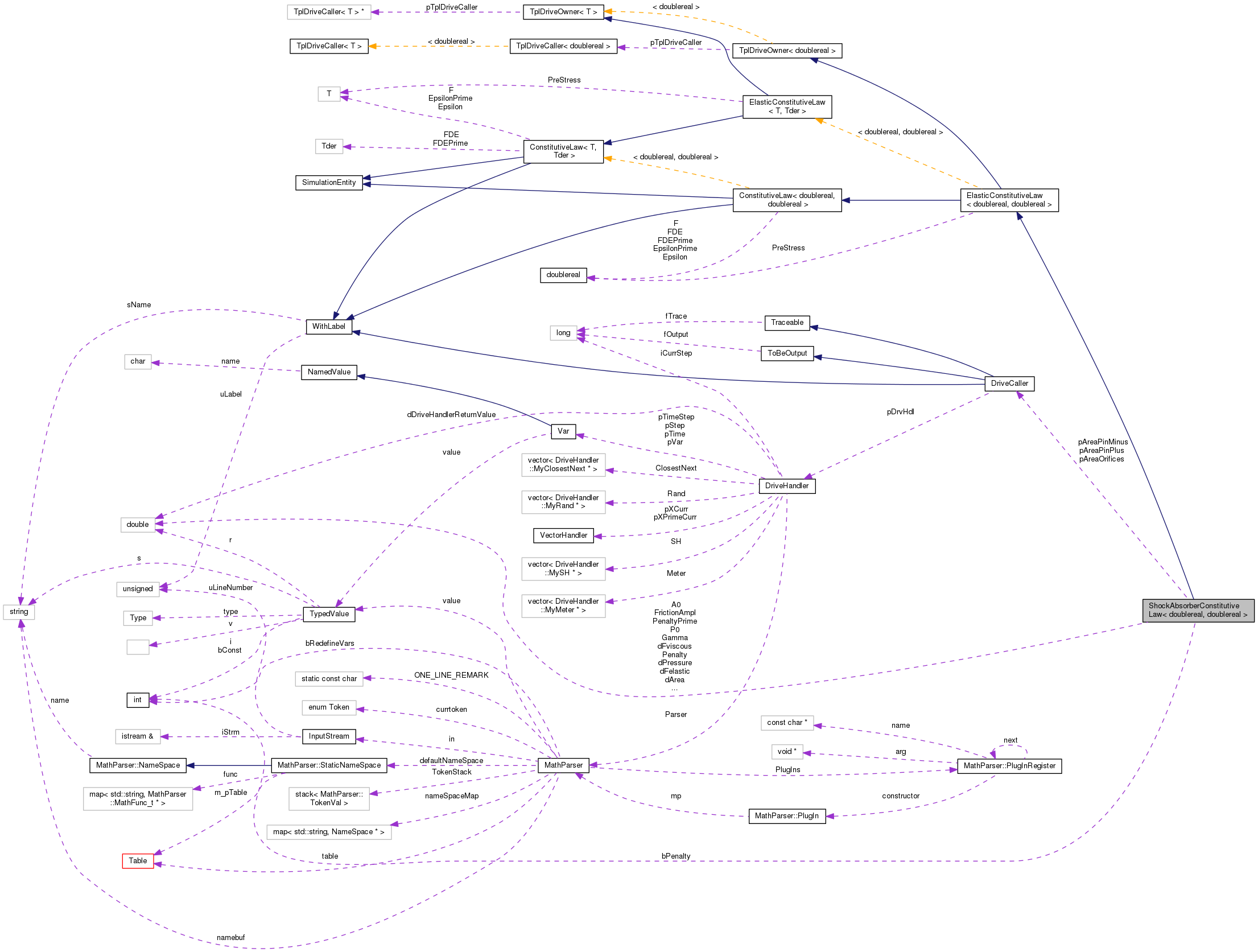

Collaboration diagram for ShockAbsorberConstitutiveLaw< doublereal, doublereal >:
Collaboration graph
[legend]

Public Member Functions

 ShockAbsorberConstitutiveLaw (const DataManager *pDM, TplDriveCaller< doublereal > *pDC, MBDynParser &HP)

virtual ~ShockAbsorberConstitutiveLaw (void)

virtual ConstitutiveLaw
< doublereal, doublereal > * 		pCopy (void) const

virtual std::ostream & Restart (std::ostream &out) const

virtual void Update (const doublereal &Eps, const doublereal &EpsPrime=0.)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual std::ostream & OutputAppend (std::ostream &out) const

- Public Member Functions inherited from ElasticConstitutiveLaw< doublereal, doublereal >
 ElasticConstitutiveLaw (const TplDriveCaller< doublereal > *pDC, const doublereal &PStress)

virtual ~ElasticConstitutiveLaw (void)

ConstLawType::Type GetConstLawType (void) const

void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph=0)

virtual Hint * ParseHint (DataManager *pDM, const char *s) const

- Public Member Functions inherited from ConstitutiveLaw< doublereal, doublereal >
 ConstitutiveLaw (void)

virtual ~ConstitutiveLaw (void)

virtual void AfterConvergence (const doublereal &Eps, const doublereal &EpsPrime=mb_zero< doublereal >())

virtual const doublereal & GetEpsilon (void) const

virtual const doublereal & GetEpsilonPrime (void) const

virtual const doublereal & GetF (void) const

virtual const doublereal & GetFDE (void) const

virtual const doublereal & GetFDEPrime (void) const

virtual unsigned int iGetNumDof (void) const

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order GetDofType (unsigned int i) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from TplDriveOwner< doublereal >
 TplDriveOwner (const TplDriveCaller< doublereal > *pDC=0)

virtual ~TplDriveOwner (void)

void Set (const TplDriveCaller< doublereal > *pDC)

TplDriveCaller< doublereal > * pGetDriveCaller (void) const

doublereal Get (const doublereal &dVar) const

doublereal Get (void) const

virtual bool bIsDifferentiable (void) const

virtual doublereal GetP (void) const


Private Member Functions

 ShockAbsorberConstitutiveLaw (const ShockAbsorberConstitutiveLaw *p)


Private Attributes

doublereal P0

doublereal A0

doublereal Cint

doublereal Gamma

doublereal EpsMax

doublereal EpsMin

doublereal Penalty

doublereal PenaltyPrime

bool bPenalty

DriveCaller * pAreaPinPlus

DriveCaller * pAreaPinMinus

DriveCaller * pAreaOrifices

doublereal AreaFluid

doublereal RhoFluid

doublereal Cd

doublereal EpsPrimeRef

doublereal FrictionAmpl

doublereal dPressure

doublereal dArea

doublereal dFelastic

doublereal dFviscous


Additional Inherited Members

- Public Types inherited from ConstitutiveLaw< doublereal, doublereal >
typedef ConstitutiveLaw
< doublereal, doublereal >
::ErrNotAvailable 		Err

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Protected Member Functions inherited from ElasticConstitutiveLaw< doublereal, doublereal >
virtual std::ostream & Restart_int (std::ostream &out) const

- Protected Attributes inherited from ElasticConstitutiveLaw< doublereal, doublereal >
doublereal PreStress

- Protected Attributes inherited from ConstitutiveLaw< doublereal, doublereal >
doublereal Epsilon

doublereal EpsilonPrime

doublereal F

doublereal FDE

doublereal FDEPrime

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from TplDriveOwner< doublereal >
TplDriveCaller< doublereal > * pTplDriveCaller


Detailed Description

template<>
class ShockAbsorberConstitutiveLaw< doublereal, doublereal >

Definition at line 92 of file shockabsorber.h.

Constructor & Destructor Documentation

ShockAbsorberConstitutiveLaw< doublereal, doublereal >::ShockAbsorberConstitutiveLaw ( const ShockAbsorberConstitutiveLaw< doublereal, doublereal > *  p)
inlineprivate

Definition at line 171 of file shockabsorber.h.

References ShockAbsorberConstitutiveLaw< T, Tder >::pCopy().

173  : ElasticConstitutiveLaw<doublereal, doublereal>(
174  p->pGetDriveCaller()->pCopy(),
175  0.
176  ) {
177  P0 = p->P0;
178  A0 = p->A0;
179  Cint = p->Cint;
180  Gamma = p->Gamma;
181
182  EpsMax = p->EpsMax;
183  EpsMin = p->EpsMin;
184  Penalty = p->Penalty;
185  PenaltyPrime = p->PenaltyPrime;
186 #if 0
187  FMax = p->FMax;
188  FMin = p->FMin;
189 #endif
190
191  pAreaPinPlus = p->pAreaPinPlus->pCopy();
192  pAreaPinMinus = p->pAreaPinMinus->pCopy();
193  pAreaOrifices = p->pAreaOrifices->pCopy();
194
195  AreaFluid = p->AreaFluid;
196  RhoFluid = p->RhoFluid;
197  Cd = p->Cd;
198
199  EpsPrimeRef = p->EpsPrimeRef;
200  FrictionAmpl = p->FrictionAmpl;
201  };
ShockAbsorberConstitutiveLaw::pCopy
virtual ConstitutiveLaw< T, Tder > * pCopy(void) const
Definition: shockabsorber.h:73
TplDriveOwner::pGetDriveCaller
TplDriveCaller< T > * pGetDriveCaller(void) const
Definition: tpldrive.h:105

Here is the call graph for this function:

ShockAbsorberConstitutiveLaw< doublereal, doublereal >::ShockAbsorberConstitutiveLaw ( const DataManager *  pDM,
TplDriveCaller< doublereal > *  pDC,
MBDynParser &  HP
)
inline

Definition at line 204 of file shockabsorber.h.

References defaultEpsMax, defaultEpsMin, defaultPenalty, defaultPenaltyPrime, ConstitutiveLaw< T, Tder >::F, MBDynParser::GetDriveCaller(), IncludeParser::GetLineData(), HighParser::GetReal(), HighParser::IsArg(), HighParser::IsKeyWord(), MBDYN_EXCEPT_ARGS, DriveCaller::pCopy(), and ShockAbsorberConstitutiveLaw< T, Tder >::Update().

208  : ElasticConstitutiveLaw<doublereal, doublereal>(pDC, 0.),
209  EpsMax(defaultEpsMax), EpsMin(defaultEpsMin),
210  Penalty(defaultPenalty), PenaltyPrime(defaultPenaltyPrime),
211  bPenalty(false),
212  pAreaPinPlus(NULL), pAreaPinMinus(NULL), pAreaOrifices(NULL),
213  EpsPrimeRef(1.), FrictionAmpl(0.), dPressure(0.) {
214  if (HP.IsKeyWord("help")) {
215
216  silent_cout(
217 "\n"
218 "this help refers to the specific \"shock absorber\" constitutive\n"
219 "law input data. The prestrain value, if required, must be inserted\n"
220 "at the beginning of the data. The syntax is:\n"
221 "\n"
222 "\t[ prestrain , <value> , ]\n"
223 "\t<reference pressure> ,\n"
224 "\t<reference area for force computation> ,\n"
225 "\t<interaction coefficient (kinematic scale * ( L * A / V0 ) )> ,\n"
226 "\t<gamma (polytropic exponent)> ,\n"
227 "\t[ epsilon max , <upper strain bound, > prestrain; defaults to " << defaultEpsMax << ")> , ]\n"
228 "\t[ epsilon min , <lower strain bound, < prestrain; defaults to " << defaultEpsMin << ")> , ]\n"
229 "\t[ penalty , <penalty factor for strain bound enforcement, defaults to " << defaultPenalty << "> ,\n"
230 "\t\t<penalty factor for strain rate, active only when strain bounds are violated; defaults to " << defaultPenaltyPrime << "> ]\n"
231 "\t[ metering , <metering area (drive, strain dependent)> ,\n"
232 "\t\t[ negative , <metering area for negative strain rate (drive, strain dependent); same as above if not given> , ] ]\n"
233 "\t[ orifice , <orifice area (drive, strain rate dependent)> , ]\n"
234 "\t<fluid area> ,\n"
235 "\t<fluid density> ,\n"
236 "\t<drag coefficient / reference length (scales strain rate to velocity)>\n"
237 "\t[ , friction, <reference epsilon prime> ,\n"
238 "\t\t <friction amplitude coefficient> ] ;\n"
239 "\n"
240 "Note: at least one of \"metering\" and \"orifice\" must be defined.\n"
241 "Note: if 'friction' is enabled, the elastic force is multiplied\n"
242 " by the factor\n"
243 "\n"
244 "\t\t1. - <friction amplitude coefficient> * tanh( <epsilon prime> / <reference epsilon prime> )\n"
245 "\n"
246 "\toutput appended to output from element;\n"
247 "\t\trod joint:\n"
248 "\t\t\tcolumn 19: gas pressure\n"
249 "\t\t\tcolumn 20: metering area\n"
250 "\t\t\tcolumn 21: elastic force\n"
251 "\t\t\tcolumn 22: viscous force\n"
252 "\n"
253 "\toutput available as element private data; syntax:\n"
254 "\n"
255 "\t\t# in nodes data block\n"
256 "\t\tparameter: <parameter node label> , element ;\n"
257 "\t\t# in elements data block\n"
258 "\t\tbind: <rod label> , joint , <parameter node label> ,\n"
259 "\t\t\tstring , \"constitutiveLaw.<X>\" ;\n"
260 "\n"
261 "\twhere \"<X>\" can be:\n"
262 "\t\t\"p\": gas pressure\n"
263 "\t\t\"A\": metering area\n"
264 "\t\t\"Fe\": elastic force\n"
265 "\t\t\"Fv\": viscous force\n"
266 "\n"
267  << std::endl);
268
269  if (!HP.IsArg()) {
270  /*
271  * Exit quietly if nothing else is provided
272  */
273  throw NoErr(MBDYN_EXCEPT_ARGS);
274  }
275
276  }
277
278  dPressure = P0 = HP.GetReal();
279  A0 = HP.GetReal();
280  Cint = HP.GetReal();
281  Gamma = HP.GetReal();
282
283  if (HP.IsKeyWord("epsilon" "max")) {
284  EpsMax = HP.GetReal(defaultEpsMax);
285  }
286
287  if (HP.IsKeyWord("epsilon" "min")) {
288  EpsMin = HP.GetReal(defaultEpsMin);
289  if (EpsMin >= EpsMax) {
290  silent_cerr("line " << HP.GetLineData()
291  << ": epsilon min must be less"
292  " than epsilon max" << std::endl);
293  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
294  }
295  }
296
297  if (HP.IsKeyWord("penalty")) {
298  Penalty = HP.GetReal(defaultPenalty);
299  PenaltyPrime = HP.GetReal(defaultPenaltyPrime);
300  }
301
302  if (HP.IsKeyWord("metering")) {
303  pAreaPinPlus = HP.GetDriveCaller();
304  if (HP.IsKeyWord("negative")) {
305  pAreaPinMinus = HP.GetDriveCaller();
306  } else {
307  pAreaPinMinus = pAreaPinPlus->pCopy();
308  }
309  }
310
311  if (HP.IsKeyWord("orifice")) {
312  pAreaOrifices = HP.GetDriveCaller();
313  }
314
315  if (pAreaPinPlus == NULL && pAreaOrifices == NULL) {
316  silent_cerr("line " << HP.GetLineData()
317  << ": at least one area (metering or orifice)"
318  " must be defined" << std::endl);
319  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
320  }
321
322  AreaFluid = HP.GetReal();
323  RhoFluid = HP.GetReal();
324  Cd = HP.GetReal();
325
326  if (HP.IsKeyWord("friction")) {
327  EpsPrimeRef = HP.GetReal();
328  if (EpsPrimeRef <= 0.) {
329  silent_cerr("Illegal Reference "
330  "Epsilon Prime " << EpsPrimeRef
331  << " at line " << HP.GetLineData()
332  << std::endl);
333  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
334  }
335
336  FrictionAmpl = HP.GetReal();
337  if (FrictionAmpl < 0. || FrictionAmpl > 1.) {
338  silent_cerr("Illegal Friction "
339  "Amplitude Coefficient " << FrictionAmpl
340  << " at line " << HP.GetLineData()
341  << std::endl);
342  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
343  }
344  }
345
346 #if 0
347  Update(EpsMax, 0.);
348  FMin = F;
349  Update(EpsMin, 0.);
350  FMax = F;
351 #endif
352  };
defaultPenalty
const doublereal defaultPenalty
Definition: shockabsorber.h:48
defaultPenaltyPrime
const doublereal defaultPenaltyPrime
Definition: shockabsorber.h:49
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
defaultEpsMin
const doublereal defaultEpsMin
Definition: shockabsorber.h:46
ShockAbsorberConstitutiveLaw< doublereal, doublereal >::Update
virtual void Update(const doublereal &Eps, const doublereal &EpsPrime=0.)
Definition: shockabsorber.h:424
HighParser::IsKeyWord
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910
defaultEpsMax
const doublereal defaultEpsMax
Definition: shockabsorber.h:47
NoErr
Definition: except.h:79
DriveCaller::pCopy
virtual DriveCaller * pCopy(void) const =0
HighParser::IsArg
virtual bool IsArg(void)
Definition: parser.cc:807
MBDynParser::GetDriveCaller
DriveCaller * GetDriveCaller(bool bDeferred=false)
Definition: mbpar.cc:2033
IncludeParser::GetLineData
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697
HighParser::GetReal
virtual doublereal GetReal(const doublereal &dDefval=0.0)
Definition: parser.cc:1056

Here is the call graph for this function:

virtual ShockAbsorberConstitutiveLaw< doublereal, doublereal >::~ShockAbsorberConstitutiveLaw ( void  )
inlinevirtual

Definition at line 355 of file shockabsorber.h.

References NO_OP.

355  {
356  NO_OP;
357  };
NO_OP
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

virtual doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::dGetPrivData ( unsigned int  i) const
inlinevirtual

Reimplemented from SimulationEntity.

Definition at line 587 of file shockabsorber.h.

References ASSERT, SimulationEntity::iGetNumPrivData(), and MBDYN_EXCEPT_ARGS.

587  {
588  ASSERT(i > 0 && i <= iGetNumPrivData());
589
590  switch (i) {
591  case 1:
592  return dPressure;
593
594  case 2:
595  return dArea;
596
597  case 3:
598  return dFelastic;
599
600  case 4:
601  return dFviscous;
602
603  /* aggiungere ulteriori case */
604  }
605
606  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
607  };
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
ShockAbsorberConstitutiveLaw< doublereal, doublereal >::iGetNumPrivData
virtual unsigned int iGetNumPrivData(void) const
Definition: shockabsorber.h:543

Here is the call graph for this function:

virtual unsigned int ShockAbsorberConstitutiveLaw< doublereal, doublereal >::iGetNumPrivData ( void  ) const
inlinevirtual

Reimplemented from SimulationEntity.

Definition at line 543 of file shockabsorber.h.

543  {
544  /*
545  * deve essere pari al totale di dati che
546  * si intende esportare
547  */
548  return 4;
549  };
virtual unsigned int ShockAbsorberConstitutiveLaw< doublereal, doublereal >::iGetPrivDataIdx ( const char *  s) const
inlinevirtual

Reimplemented from SimulationEntity.

Definition at line 556 of file shockabsorber.h.

References ASSERT.

556  {
557  ASSERT(s != NULL);
558
559  if (strcmp(s, "p") == 0) {
560  return 1;
561  }
562
563  if (strcmp(s, "A") == 0) {
564  return 2;
565  }
566
567  if (strcmp(s, "Fe") == 0) {
568  return 3;
569  }
570
571  if (strcmp(s, "Fv") == 0) {
572  return 4;
573  }
574
575  /*
576  * aggiungere i nomi dei dati che si intende esportare
577  */
578
579  /* error; handle later */
580  return 0;
581  };
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
virtual std::ostream& ShockAbsorberConstitutiveLaw< doublereal, doublereal >::OutputAppend ( std::ostream &  out) const
inlinevirtual

Reimplemented from SimulationEntity.

Definition at line 609 of file shockabsorber.h.

609  {
610  return out << " " << dPressure << " " << dArea
611  << " " << dFelastic << " " << dFviscous;
612  };
virtual ConstitutiveLaw<doublereal, doublereal>* ShockAbsorberConstitutiveLaw< doublereal, doublereal >::pCopy ( void  ) const
inlinevirtual

Implements ConstitutiveLaw< doublereal, doublereal >.

Definition at line 360 of file shockabsorber.h.

References SAFENEWWITHCONSTRUCTOR.

360  {
361  typedef ShockAbsorberConstitutiveLaw<doublereal, doublereal> L;
362
363  L* p = NULL;
364  SAFENEWWITHCONSTRUCTOR(p, L, L(this));
365  return p;
366  };
SAFENEWWITHCONSTRUCTOR
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698
virtual std::ostream& ShockAbsorberConstitutiveLaw< doublereal, doublereal >::Restart ( std::ostream &  out) const
inlinevirtual

Reimplemented from ConstitutiveLaw< doublereal, doublereal >.

Definition at line 369 of file shockabsorber.h.

References ConstitutiveLaw< T, Tder >::Epsilon, TplDriveOwner< T >::pGetDriveCaller(), and Write().

369  {
370
371  /*
372  * FIXME: devo trovare il modo di ripristinare
373  * le deformazioni iniziali senza grossi danni :)
374  */
375  if (pGetDriveCaller()) {
376  out
377  << ", prestrain, single, ",
378  Write(out, -Epsilon, ", ") << ", one /* ",
379  pGetDriveCaller()->Restart(out) << " */ , ";
380  }
381
382  /*
383  * dati sempre presenti
384  */
385  out
386  << P0 << ", "
387  << A0 << ", "
388  << Cint << ", "
389  << Gamma << ", "
390  << "epsilon max, " << EpsMax << ", "
391  << "epsilon min, " << EpsMin << ", "
392  << "penalty, " << Penalty << ", " << PenaltyPrime;
393
394  /*
395  * drive delle aree (solo quelli definiti)
396  */
397  if (pAreaPinPlus) {
398  out
399  << ", metering, ",
400  pAreaPinPlus->Restart(out)
401  << ", negative, ",
402  pAreaPinMinus->Restart(out);
403  }
404
405  if (pAreaOrifices) {
406  out
407  << ", orifice, ",
408  pAreaOrifices->Restart(out);
409  }
410
411  /*
412  * dati parte viscosa
413  */
414  out
415  << ", "
416  << AreaFluid << ", "
417  << RhoFluid << ", "
418  << Cd;
419
420  return out;
421  };
Write
std::ostream & Write(std::ostream &out, const FullMatrixHandler &m, const char *s, const char *s2)
Definition: fullmh.cc:376
DriveCaller::Restart
virtual std::ostream & Restart(std::ostream &out) const =0
TplDriveOwner< doublereal >::pGetDriveCaller
TplDriveCaller< doublereal > * pGetDriveCaller(void) const
Definition: tpldrive.h:105
TplDriveCaller::Restart
virtual std::ostream & Restart(std::ostream &out) const =0

Here is the call graph for this function:

virtual void ShockAbsorberConstitutiveLaw< doublereal, doublereal >::Update ( const doublereal &  Eps,
const doublereal &  EpsPrime = 0.
)
inlinevirtual

Implements ConstitutiveLaw< doublereal, doublereal >.

Definition at line 424 of file shockabsorber.h.

References copysign(), ConstitutiveLaw< T, Tder >::Epsilon, ConstitutiveLaw< T, Tder >::EpsilonPrime, ConstitutiveLaw< T, Tder >::F, grad::fabs(), ConstitutiveLaw< T, Tder >::FDE, ConstitutiveLaw< T, Tder >::FDEPrime, TplDriveOwner< T >::Get(), MBDYN_EXCEPT_ARGS, grad::pow(), and grad::tanh().

424  {
425  Epsilon = Eps;
426  EpsilonPrime = EpsPrime;
427
428  FDEPrime = 0.;
429
430  /*
431  * Parte elastica
432  */
433
434  doublereal CurrEpsilon = Epsilon-Get();
435  doublereal VRatio = 1./(1.+Cint*CurrEpsilon);
436  doublereal Adiab = pow(VRatio, Gamma);
437
438  dPressure = P0*Adiab;
439
440  /* FIXME */
441  F = -A0*dPressure;
442
443  dFelastic = F;
444
445  if (FrictionAmpl != 0.) {
446  F *= (1.-FrictionAmpl*tanh(EpsPrime/EpsPrimeRef));
447  }
448
449  FDE = Gamma*Cint*VRatio*F;
450
451  bool ChangeJac(false);
452
453  if (CurrEpsilon > EpsMax) {
454  FDE += Penalty;
455 #if 0
456  doublereal dFP = Penalty*(CurrEpsilon-EpsMax)
457  + PenaltyPrime*EpsPrime;
458  FDEPrime = PenaltyPrime;
459 #endif
460  doublereal dFP = Penalty*(CurrEpsilon-EpsMax);
461  if (EpsPrime > 0.) {
462  FDEPrime = PenaltyPrime;
463  dFP += PenaltyPrime*EpsPrime;
464  }
465
466  dFelastic += dFP;
467  F += dFP;
468
469  if (!bPenalty) {
470  bPenalty = true;
471  ChangeJac = true;
472  }
473
474  } else if (CurrEpsilon < EpsMin) {
475  FDE += Penalty;
476 #if 0
477  doublereal dFP = Penalty*(CurrEpsilon-EpsMin)
478  + PenaltyPrime*EpsPrime;
479  FDEPrime = PenaltyPrime;
480 #endif
481  doublereal dFP = Penalty*(CurrEpsilon-EpsMin);
482  if (EpsPrime < 0.) {
483  FDEPrime = PenaltyPrime;
484  dFP += PenaltyPrime*EpsPrime;
485  }
486
487  dFelastic += dFP;
488  F += dFP;
489
490  if (!bPenalty) {
491  bPenalty = true;
492  ChangeJac = true;
493  }
494
495  } else if (bPenalty) {
496  bPenalty = false;
497  ChangeJac = true;
498  }
499
500
501  /*
502  * Parte viscosa
503  *
504  * FIXME: manca L0 per scalare correttamente la velocita'
505  * (basta metterla in Cd!!!)
506  */
507  dArea = 0.;
508  if (pAreaPinPlus != NULL) {
509  if (copysign(1., EpsPrime) == 1.) {
510  dArea += pAreaPinPlus->dGet(CurrEpsilon);
511  } else {
512  dArea += pAreaPinMinus->dGet(CurrEpsilon);
513  }
514  }
515
516  if (pAreaOrifices != NULL) {
517  dArea += pAreaOrifices->dGet(EpsPrime);
518  }
519
520  if (dArea <= 0.) {
521  silent_cerr("ShockAbsorberConstitutiveLaw::Update:"
522  " null or negative area" << std::endl);
523  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
524  }
525
526  doublereal d = .5*RhoFluid*AreaFluid*pow(AreaFluid/(dArea*Cd), 2);
527
528  dFviscous = d*EpsPrime*fabs(EpsPrime);
529
530  F += dFviscous;
531  FDEPrime += d*fabs(EpsPrime);
532
533  if (ChangeJac) {
534  throw Elem::ChangedEquationStructure(MBDYN_EXCEPT_ARGS);
535  }
536  };
grad::tanh
GradientExpression< UnaryExpr< FuncTanh, Expr > > tanh(const GradientExpression< Expr > &u)
Definition: gradient.h:2982
grad::pow
GradientExpression< BinaryExpr< FuncPow, LhsExpr, RhsExpr > > pow(const GradientExpression< LhsExpr > &u, const GradientExpression< RhsExpr > &v)
Definition: gradient.h:2961
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
grad::fabs
GradientExpression< UnaryExpr< FuncFabs, Expr > > fabs(const GradientExpression< Expr > &u)
Definition: gradient.h:2973
copysign
doublereal copysign(doublereal x, doublereal y)
Definition: gradient.h:97
DriveCaller::dGet
virtual doublereal dGet(const doublereal &dVar) const =0
doublereal
double doublereal
Definition: colamd.c:52
TplDriveOwner< doublereal >::Get
doublereal Get(void) const
Definition: tpldrive.h:113

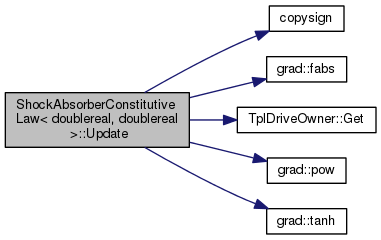

Here is the call graph for this function:

Member Data Documentation

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::A0
private

Definition at line 133 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::AreaFluid
private

Definition at line 153 of file shockabsorber.h.

bool ShockAbsorberConstitutiveLaw< doublereal, doublereal >::bPenalty
private

Definition at line 144 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::Cd
private

Definition at line 155 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::Cint
private

Definition at line 134 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::dArea
private

Definition at line 164 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::dFelastic
private

Definition at line 165 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::dFviscous
private

Definition at line 166 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::dPressure
private

Definition at line 163 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::EpsMax
private

Definition at line 140 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::EpsMin
private

Definition at line 141 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::EpsPrimeRef
private

Definition at line 157 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::FrictionAmpl
private

Definition at line 158 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::Gamma
private

Definition at line 135 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::P0
private

Definition at line 132 of file shockabsorber.h.

DriveCaller* ShockAbsorberConstitutiveLaw< doublereal, doublereal >::pAreaOrifices
private

Definition at line 151 of file shockabsorber.h.

DriveCaller* ShockAbsorberConstitutiveLaw< doublereal, doublereal >::pAreaPinMinus
private

Definition at line 150 of file shockabsorber.h.

DriveCaller* ShockAbsorberConstitutiveLaw< doublereal, doublereal >::pAreaPinPlus
private

Definition at line 149 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::Penalty
private

Definition at line 142 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::PenaltyPrime
private

Definition at line 143 of file shockabsorber.h.

doublereal ShockAbsorberConstitutiveLaw< doublereal, doublereal >::RhoFluid
private

Definition at line 154 of file shockabsorber.h.

The documentation for this class was generated from the following file:
