#include <constltp_impl.h>

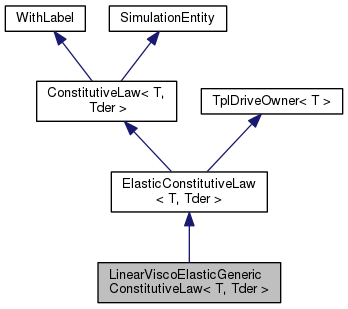

Inheritance diagram for LinearViscoElasticGenericConstitutiveLaw< T, Tder >:

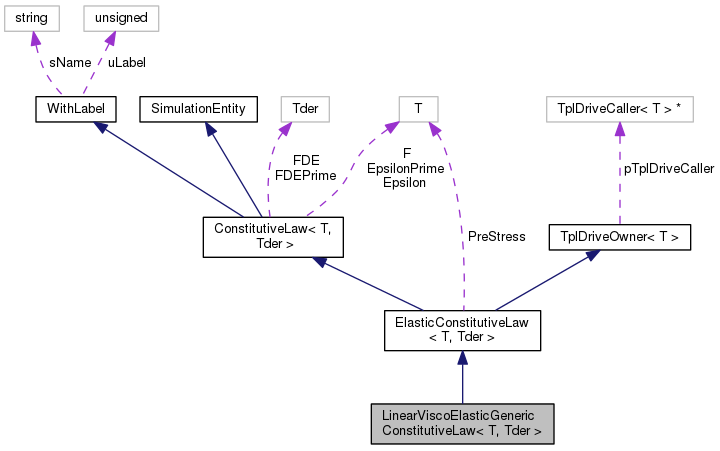

Collaboration diagram for LinearViscoElasticGenericConstitutiveLaw< T, Tder >:

Public Member Functions
	LinearViscoElasticGenericConstitutiveLaw (const TplDriveCaller< T > *pDC, const T &PStress, const Tder &Stiff, const Tder &StiffPrime)

virtual	~LinearViscoElasticGenericConstitutiveLaw (void)

ConstLawType::Type	GetConstLawType (void) const

virtual ConstitutiveLaw< T, Tder > *	pCopy (void) const

virtual std::ostream &	Restart (std::ostream &out) const

virtual void	Update (const T &Eps, const T &EpsPrime=mb_zero< T >())

Public Member Functions inherited from ElasticConstitutiveLaw< T, Tder >
	ElasticConstitutiveLaw (const TplDriveCaller< T > *pDC, const T &PStress)

virtual	~ElasticConstitutiveLaw (void)

void	SetValue (DataManager pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints ph=0)

virtual Hint *	ParseHint (DataManager pDM, const char s) const

Public Member Functions inherited from ConstitutiveLaw< T, Tder >
	ConstitutiveLaw (void)

virtual	~ConstitutiveLaw (void)

virtual void	AfterConvergence (const T &Eps, const T &EpsPrime=mb_zero< T >())

virtual const T &	GetEpsilon (void) const

virtual const T &	GetEpsilonPrime (void) const

virtual const T &	GetF (void) const

virtual const Tder &	GetFDE (void) const

virtual const Tder &	GetFDEPrime (void) const

virtual unsigned int	iGetNumDof (void) const

virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order	GetDofType (unsigned int i) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)

virtual	~SimulationEntity (void)

virtual bool	bIsValidIndex (unsigned int i) const

virtual DofOrder::Order	GetEqType (unsigned int i) const

virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int	iGetNumPrivData (void) const

virtual unsigned int	iGetPrivDataIdx (const char *s) const

virtual doublereal	dGetPrivData (unsigned int i) const

virtual std::ostream &	OutputAppend (std::ostream &out) const

virtual void	ReadInitialState (MBDynParser &HP)

Public Member Functions inherited from TplDriveOwner< T >
	TplDriveOwner (const TplDriveCaller< T > *pDC=0)

virtual	~TplDriveOwner (void)

void	Set (const TplDriveCaller< T > *pDC)

TplDriveCaller< T > *	pGetDriveCaller (void) const

T	Get (const doublereal &dVar) const

T	Get (void) const

virtual bool	bIsDifferentiable (void) const

virtual T	GetP (void) const

Additional Inherited Members
Public Types inherited from ConstitutiveLaw< T, Tder >
typedef ConstitutiveLaw< T, Tder >::ErrNotAvailable	Err

Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints

Protected Member Functions inherited from ElasticConstitutiveLaw< T, Tder >
virtual std::ostream &	Restart_int (std::ostream &out) const

Protected Attributes inherited from ElasticConstitutiveLaw< T, Tder >
T	PreStress

Protected Attributes inherited from ConstitutiveLaw< T, Tder >
T	Epsilon

T	EpsilonPrime

T	F

Tder	FDE

Tder	FDEPrime

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Protected Attributes inherited from TplDriveOwner< T >
TplDriveCaller< T > *	pTplDriveCaller

Detailed Description

template<class T, class Tder>
class LinearViscoElasticGenericConstitutiveLaw< T, Tder >

Definition at line 1366 of file constltp_impl.h.

Constructor & Destructor Documentation

template<class T , class Tder >

LinearViscoElasticGenericConstitutiveLaw< T, Tder >::LinearViscoElasticGenericConstitutiveLaw	(	const TplDriveCaller< T > *	pDC,
		const T &	PStress,
		const Tder &	Stiff,
		const Tder &	StiffPrime
	)

inline

Definition at line 1369 of file constltp_impl.h.

      : ElasticConstitutiveLaw<T, Tder>(pDC, PStress) {
       ConstitutiveLaw<T, Tder>::FDE = Stiff;
       ConstitutiveLaw<T, Tder>::FDEPrime = StiffPrime;
    };

template<class T , class Tder >

virtual LinearViscoElasticGenericConstitutiveLaw< T, Tder >::~LinearViscoElasticGenericConstitutiveLaw ( void )

inlinevirtual

Definition at line 1378 of file constltp_impl.h.

References NO_OP.

                                                            {
       NO_OP;
    };

Member Function Documentation

template<class T , class Tder >

ConstLawType::Type LinearViscoElasticGenericConstitutiveLaw< T, Tder >::GetConstLawType ( void ) const

inlinevirtual

Reimplemented from ElasticConstitutiveLaw< T, Tder >.

Definition at line 1382 of file constltp_impl.h.

References ConstLawType::VISCOELASTIC.

                                                      {
                 return ConstLawType::VISCOELASTIC;
         };

template<class T , class Tder >

virtual ConstitutiveLaw<T, Tder>* LinearViscoElasticGenericConstitutiveLaw< T, Tder >::pCopy ( void ) const

inlinevirtual

Implements ConstitutiveLaw< T, Tder >.

Definition at line 1386 of file constltp_impl.h.

References SAFENEWWITHCONSTRUCTOR.

                                                        {
       ConstitutiveLaw<T, Tder>* pCL = 0;

       typedef LinearViscoElasticGenericConstitutiveLaw<T, Tder> cl;
       SAFENEWWITHCONSTRUCTOR(pCL,
                             cl,
                             cl(ElasticConstitutiveLaw<T, Tder>::pGetDriveCaller()->pCopy(),
                                ElasticConstitutiveLaw<T, Tder>::PreStress,
                                ConstitutiveLaw<T, Tder>::FDE,
                                ConstitutiveLaw<T, Tder>::FDEPrime));

       return pCL;
    };

template<class T , class Tder >

virtual std::ostream& LinearViscoElasticGenericConstitutiveLaw< T, Tder >::Restart ( std::ostream & out ) const

inlinevirtual

Reimplemented from ConstitutiveLaw< T, Tder >.

Definition at line 1400 of file constltp_impl.h.

References ElasticConstitutiveLaw< T, Tder >::Restart_int(), and Write().

                                                       {
      out << "linear viscoelastic generic, ",
        Write(out, ConstitutiveLaw<T, Tder>::FDE, ", ") << ", ",
        Write(out, ConstitutiveLaw<T, Tder>::FDEPrime, ", ");
        return ElasticConstitutiveLaw<T, Tder>::Restart_int(out);
    };

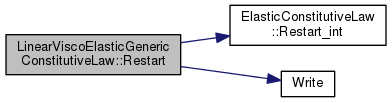

Here is the call graph for this function:

template<class T , class Tder >

virtual void LinearViscoElasticGenericConstitutiveLaw< T, Tder >::Update	(	const T &	Eps,
		const T &	EpsPrime = `mb_zero<T>()`
	)

inlinevirtual

Implements ConstitutiveLaw< T, Tder >.

Definition at line 1407 of file constltp_impl.h.

References TplDriveOwner< T >::Get().

                                                                        {
       ConstitutiveLaw<T, Tder>::Epsilon = Eps;
       ConstitutiveLaw<T, Tder>::EpsilonPrime = EpsPrime;
       ConstitutiveLaw<T, Tder>::F = ElasticConstitutiveLaw<T, Tder>::PreStress
         +ConstitutiveLaw<T, Tder>::FDE*(ConstitutiveLaw<T, Tder>::Epsilon-ElasticConstitutiveLaw<T, Tder>::Get())
         +ConstitutiveLaw<T, Tder>::FDEPrime*ConstitutiveLaw<T, Tder>::EpsilonPrime;
    };

Here is the call graph for this function:

The documentation for this class was generated from the following file:

constltp_impl.h
