ContactConstitutiveLaw< T, Tder > Class Template Reference

#include <constltp_impl.h>

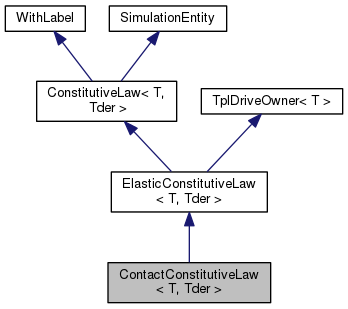

Inheritance diagram for ContactConstitutiveLaw< T, Tder >:

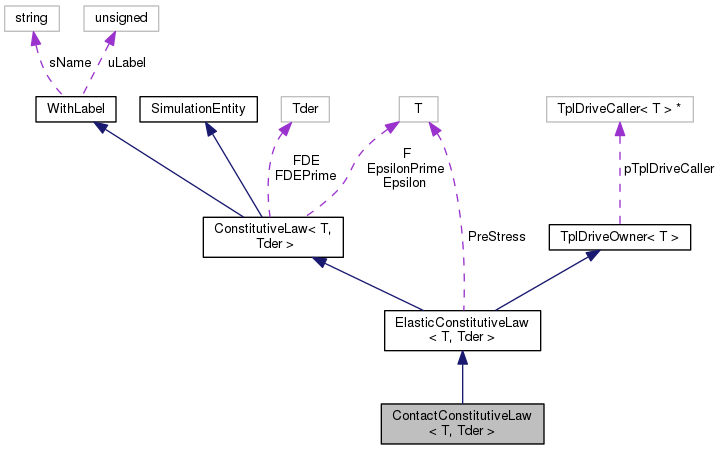

Collaboration diagram for ContactConstitutiveLaw< T, Tder >:

Public Member Functions

 ContactConstitutiveLaw (const TplDriveCaller< T > *pDC, const T &PStress, const doublereal=0., const doublereal=0.)

virtual ~ContactConstitutiveLaw (void)

virtual ConstitutiveLaw< T,
Tder > *
pCopy (void) const

virtual std::ostream & Restart (std::ostream &out) const

virtual void Update (const T &, const T &=mb_zero< T >())

- Public Member Functions inherited from ElasticConstitutiveLaw< T, Tder >
 ElasticConstitutiveLaw (const TplDriveCaller< T > *pDC, const T &PStress)

virtual ~ElasticConstitutiveLaw (void)

ConstLawType::Type GetConstLawType (void) const

void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph=0)

virtual HintParseHint (DataManager *pDM, const char *s) const

- Public Member Functions inherited from ConstitutiveLaw< T, Tder >
 ConstitutiveLaw (void)

virtual ~ConstitutiveLaw (void)

virtual void AfterConvergence (const T &Eps, const T &EpsPrime=mb_zero< T >())

virtual const T & GetEpsilon (void) const

virtual const T & GetEpsilonPrime (void) const

virtual const T & GetF (void) const

virtual const Tder & GetFDE (void) const

virtual const Tder & GetFDEPrime (void) const

virtual unsigned int iGetNumDof (void) const

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order GetDofType (unsigned int i) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from TplDriveOwner< T >
 TplDriveOwner (const TplDriveCaller< T > *pDC=0)

virtual ~TplDriveOwner (void)

void Set (const TplDriveCaller< T > *pDC)

TplDriveCaller< T > * pGetDriveCaller (void) const

Get (const doublereal &dVar) const

Get (void) const

virtual bool bIsDifferentiable (void) const

virtual T GetP (void) const


Additional Inherited Members

- Public Types inherited from ConstitutiveLaw< T, Tder >
typedef ConstitutiveLaw< T,
Tder >::ErrNotAvailable
Err

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Protected Member Functions inherited from ElasticConstitutiveLaw< T, Tder >
virtual std::ostream & Restart_int (std::ostream &out) const

- Protected Attributes inherited from ElasticConstitutiveLaw< T, Tder >
PreStress

- Protected Attributes inherited from ConstitutiveLaw< T, Tder >
Epsilon

EpsilonPrime

F

Tder FDE

Tder FDEPrime

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from TplDriveOwner< T >
TplDriveCaller< T > * pTplDriveCaller


Detailed Description

template<class T, class Tder>
class ContactConstitutiveLaw< T, Tder >

Definition at line 1039 of file constltp_impl.h.

Constructor & Destructor Documentation

template<class T , class Tder >
ContactConstitutiveLaw< T, Tder >::ContactConstitutiveLaw ( const TplDriveCaller< T > *  pDC,
const T &  PStress,
const doublereal  = 0.,
const doublereal  = 0.
)
inline

Definition at line 1043 of file constltp_impl.h.

1047  : ElasticConstitutiveLaw<T, Tder>(pDC, PStress) {
1048  throw (typename ElasticConstitutiveLaw<T, Tder>::Err(std::cerr, "contact constitutive law "
1049  "is allowed only for rods"));
1050  };
template<class T , class Tder >
virtual ContactConstitutiveLaw< T, Tder >::~ContactConstitutiveLaw ( void  )
inlinevirtual

Definition at line 1052 of file constltp_impl.h.

References NO_OP.

1052  {
1053  NO_OP;
1054  };
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

template<class T , class Tder >
virtual ConstitutiveLaw<T, Tder>* ContactConstitutiveLaw< T, Tder >::pCopy ( void  ) const
inlinevirtual

Implements ConstitutiveLaw< T, Tder >.

Definition at line 1056 of file constltp_impl.h.

Referenced by ContactConstitutiveLaw< doublereal, doublereal >::pCopy(), and ContactConstitutiveLaw< Vec3, Mat3x3 >::pCopy().

1056  {
1057  return 0;
1058  };
template<class T , class Tder >
virtual std::ostream& ContactConstitutiveLaw< T, Tder >::Restart ( std::ostream &  out) const
inlinevirtual

Reimplemented from ConstitutiveLaw< T, Tder >.

Definition at line 1060 of file constltp_impl.h.

1060  {
1061  return out;
1062  };
template<class T , class Tder >
virtual void ContactConstitutiveLaw< T, Tder >::Update ( const T &  ,
const T &  = mb_zero<T>()
)
inlinevirtual

Implements ConstitutiveLaw< T, Tder >.

Definition at line 1064 of file constltp_impl.h.

References NO_OP.

1064  {
1065  NO_OP;
1066  };
#define NO_OP
Definition: myassert.h:74

The documentation for this class was generated from the following file:
