DoubleLinearViscoElasticConstitutiveLaw< doublereal, doublereal > Class Template Reference

#include <constltp_impl.h>

Inheritance diagram for DoubleLinearViscoElasticConstitutiveLaw< doublereal, doublereal >:

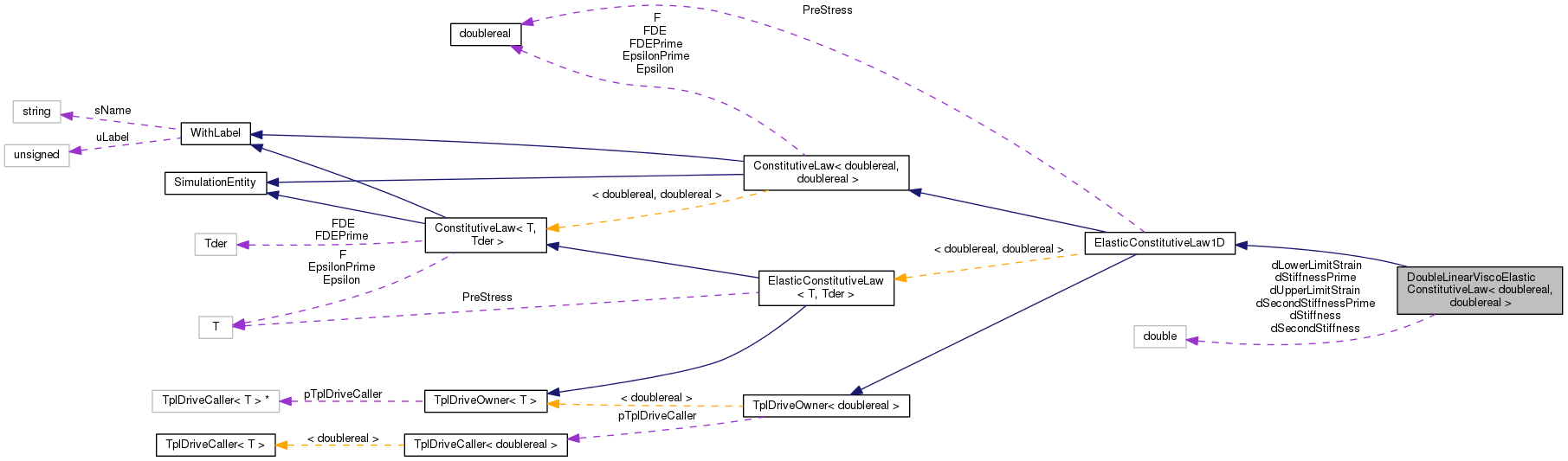

Collaboration diagram for DoubleLinearViscoElasticConstitutiveLaw< doublereal, doublereal >:

Public Member Functions

 DoubleLinearViscoElasticConstitutiveLaw (const TplDriveCaller< doublereal > *pDC, const doublereal &PStress, doublereal dStiff, doublereal dUpp, doublereal dLow, doublereal dSecondS, doublereal dStiffPrime, doublereal dSecondSPrime)

virtual ~DoubleLinearViscoElasticConstitutiveLaw (void)

ConstLawType::Type GetConstLawType (void) const

virtual ConstitutiveLaw
< doublereal, doublereal > *
pCopy (void) const

virtual std::ostream & Restart (std::ostream &out) const

virtual void Update (const doublereal &Eps, const doublereal &EpsPrime=0.)

- Public Member Functions inherited from ElasticConstitutiveLaw< doublereal, doublereal >
 ElasticConstitutiveLaw (const TplDriveCaller< doublereal > *pDC, const doublereal &PStress)

virtual ~ElasticConstitutiveLaw (void)

ConstLawType::Type GetConstLawType (void) const

void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph=0)

virtual HintParseHint (DataManager *pDM, const char *s) const

- Public Member Functions inherited from ConstitutiveLaw< doublereal, doublereal >
 ConstitutiveLaw (void)

virtual ~ConstitutiveLaw (void)

virtual void AfterConvergence (const doublereal &Eps, const doublereal &EpsPrime=mb_zero< doublereal >())

virtual const doublerealGetEpsilon (void) const

virtual const doublerealGetEpsilonPrime (void) const

virtual const doublerealGetF (void) const

virtual const doublerealGetFDE (void) const

virtual const doublerealGetFDEPrime (void) const

virtual unsigned int iGetNumDof (void) const

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order GetDofType (unsigned int i) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from TplDriveOwner< doublereal >
 TplDriveOwner (const TplDriveCaller< doublereal > *pDC=0)

virtual ~TplDriveOwner (void)

void Set (const TplDriveCaller< doublereal > *pDC)

TplDriveCaller< doublereal > * pGetDriveCaller (void) const

doublereal Get (const doublereal &dVar) const

doublereal Get (void) const

virtual bool bIsDifferentiable (void) const

virtual doublereal GetP (void) const


Private Attributes

doublereal dStiffness

doublereal dUpperLimitStrain

doublereal dLowerLimitStrain

doublereal dSecondStiffness

doublereal dStiffnessPrime

doublereal dSecondStiffnessPrime


Additional Inherited Members

- Public Types inherited from ConstitutiveLaw< doublereal, doublereal >
typedef ConstitutiveLaw
< doublereal, doublereal >
::ErrNotAvailable
Err

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Protected Member Functions inherited from ElasticConstitutiveLaw< doublereal, doublereal >
virtual std::ostream & Restart_int (std::ostream &out) const

- Protected Attributes inherited from ElasticConstitutiveLaw< doublereal, doublereal >
doublereal PreStress

- Protected Attributes inherited from ConstitutiveLaw< doublereal, doublereal >
doublereal Epsilon

doublereal EpsilonPrime

doublereal F

doublereal FDE

doublereal FDEPrime

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from TplDriveOwner< doublereal >
TplDriveCaller< doublereal > * pTplDriveCaller


Detailed Description

template<>
class DoubleLinearViscoElasticConstitutiveLaw< doublereal, doublereal >

Definition at line 1831 of file constltp_impl.h.

Constructor & Destructor Documentation

DoubleLinearViscoElasticConstitutiveLaw< doublereal, doublereal >::DoubleLinearViscoElasticConstitutiveLaw ( const TplDriveCaller< doublereal > *  pDC,
const doublereal PStress,
doublereal  dStiff,
doublereal  dUpp,
doublereal  dLow,
doublereal  dSecondS,
doublereal  dStiffPrime,
doublereal  dSecondSPrime
)
inline

Definition at line 1860 of file constltp_impl.h.

References NO_OP.

1860  {
1861  NO_OP;
1862  };
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

ConstLawType::Type DoubleLinearViscoElasticConstitutiveLaw< doublereal, doublereal >::GetConstLawType ( void  ) const
inlinevirtual

Implements ConstitutiveLaw< doublereal, doublereal >.

Definition at line 1864 of file constltp_impl.h.

References ConstLawType::VISCOELASTIC.

1864  {
1866  };

Implements ConstitutiveLaw< doublereal, doublereal >.

Definition at line 1868 of file constltp_impl.h.

References DoubleLinearViscoElasticConstitutiveLaw< T, Tder >::pCopy(), TplDriveOwner< T >::pGetDriveCaller(), ElasticConstitutiveLaw< T, Tder >::PreStress, and SAFENEWWITHCONSTRUCTOR.

1868  {
1870
1873  cl,
1874  cl(pGetDriveCaller()->pCopy(),
1875  PreStress,
1876  dStiffness,
1882
1883  return pCL;
1884  };
TplDriveCaller< doublereal > * pGetDriveCaller(void) const
Definition: tpldrive.h:105
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698
virtual ConstitutiveLaw< doublereal, doublereal > * pCopy(void) const

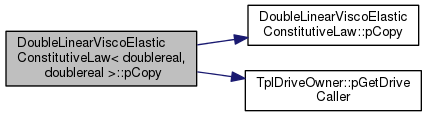

Here is the call graph for this function:

virtual std::ostream& DoubleLinearViscoElasticConstitutiveLaw< doublereal, doublereal >::Restart ( std::ostream &  out) const
inlinevirtual

Reimplemented from ConstitutiveLaw< doublereal, doublereal >.

Definition at line 1886 of file constltp_impl.h.

References ElasticConstitutiveLaw< T, Tder >::Restart_int().

Here is the call graph for this function:

virtual void DoubleLinearViscoElasticConstitutiveLaw< doublereal, doublereal >::Update ( const doublereal Eps,
const doublereal EpsPrime = 0.
)
inlinevirtual

Implements ConstitutiveLaw< doublereal, doublereal >.

Definition at line 1897 of file constltp_impl.h.

References ConstitutiveLaw< T, Tder >::Epsilon, ConstitutiveLaw< T, Tder >::EpsilonPrime, ConstitutiveLaw< T, Tder >::F, ConstitutiveLaw< T, Tder >::FDE, ConstitutiveLaw< T, Tder >::FDEPrime, TplDriveOwner< T >::Get(), and ElasticConstitutiveLaw< T, Tder >::PreStress.

1897  {
1898  Epsilon = Eps;
1899  EpsilonPrime = EpsPrime;
1900
1901  doublereal dPreStrain = Get();
1902  doublereal dCurrStrain = Epsilon-dPreStrain;
1903  if (dCurrStrain <= dUpperLimitStrain && dCurrStrain >= dLowerLimitStrain) {
1904  FDE = dStiffness;
1906  F = PreStress+dStiffness*dCurrStrain
1908  } else {
1911
1912  if (dCurrStrain > dUpperLimitStrain) {
1914  +dSecondStiffness*(dCurrStrain-dUpperLimitStrain)
1916  } else /* if (dCurrStrain < dLowerLimitStrain) */ {
1918  +dSecondStiffness*(dCurrStrain-dLowerLimitStrain)
1920  }
1921  }
1922  };
double doublereal
Definition: colamd.c:52
doublereal Get(void) const
Definition: tpldrive.h:113

Here is the call graph for this function:

Member Data Documentation

Definition at line 1836 of file constltp_impl.h.

Definition at line 1837 of file constltp_impl.h.

Definition at line 1839 of file constltp_impl.h.

Definition at line 1834 of file constltp_impl.h.

Definition at line 1838 of file constltp_impl.h.

Definition at line 1835 of file constltp_impl.h.


The documentation for this class was generated from the following file:
