Inheritance diagram for ScalarFunctionOrthotropicCL< T, Tder >:

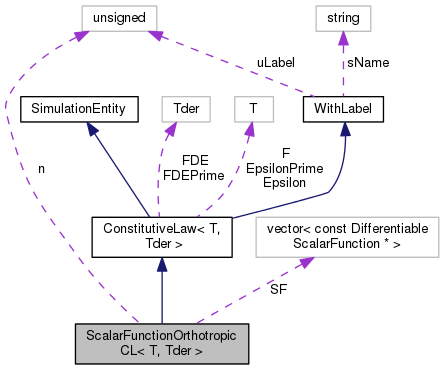

Collaboration diagram for ScalarFunctionOrthotropicCL< T, Tder >:

Public Member Functions
	ScalarFunctionOrthotropicCL (const std::vector< const DifferentiableScalarFunction * > &sf)

virtual	~ScalarFunctionOrthotropicCL (void)

ConstLawType::Type	GetConstLawType (void) const

virtual ConstitutiveLaw< T, Tder > *	pCopy (void) const

virtual std::ostream &	Restart (std::ostream &out) const

virtual void	Update (const T &Eps, const T &=0.)

Public Member Functions inherited from ConstitutiveLaw< T, Tder >
	ConstitutiveLaw (void)

virtual	~ConstitutiveLaw (void)

virtual void	AfterConvergence (const T &Eps, const T &EpsPrime=mb_zero< T >())

virtual const T &	GetEpsilon (void) const

virtual const T &	GetEpsilonPrime (void) const

virtual const T &	GetF (void) const

virtual const Tder &	GetFDE (void) const

virtual const Tder &	GetFDEPrime (void) const

virtual unsigned int	iGetNumDof (void) const

virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order	GetDofType (unsigned int i) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)

virtual	~SimulationEntity (void)

virtual bool	bIsValidIndex (unsigned int i) const

virtual DofOrder::Order	GetEqType (unsigned int i) const

virtual void	SetValue (DataManager pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints h=0)

virtual Hint *	ParseHint (DataManager pDM, const char s) const

virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int	iGetNumPrivData (void) const

virtual unsigned int	iGetPrivDataIdx (const char *s) const

virtual doublereal	dGetPrivData (unsigned int i) const

virtual std::ostream &	OutputAppend (std::ostream &out) const

virtual void	ReadInitialState (MBDynParser &HP)

Private Attributes
std::vector< const DifferentiableScalarFunction * >	SF

unsigned	n

Additional Inherited Members
Public Types inherited from ConstitutiveLaw< T, Tder >
typedef ConstitutiveLaw< T, Tder >::ErrNotAvailable	Err

Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints

Protected Attributes inherited from ConstitutiveLaw< T, Tder >
T	Epsilon

T	EpsilonPrime

T	F

Tder	FDE

Tder	FDEPrime

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Detailed Description

template<class T, class Tder>
class ScalarFunctionOrthotropicCL< T, Tder >

Definition at line 1281 of file ScalarFunctionsImpl.cc.

Constructor & Destructor Documentation

template<class T , class Tder >

ScalarFunctionOrthotropicCL< T, Tder >::ScalarFunctionOrthotropicCL ( const std::vector< const DifferentiableScalarFunction * > & sf )

inline

Definition at line 1288 of file ScalarFunctionsImpl.cc.

References ASSERT, MBDYN_EXCEPT_ARGS, ScalarFunctionOrthotropicCL< T, Tder >::n, and ScalarFunctionOrthotropicCL< T, Tder >::SF.

         {
                 if (typeid(T) == typeid(Vec3)) {
                         n = 3;

                 } else if (typeid(T) == typeid(Vec6)) {
                         n = 6;

                 } else {
                         silent_cerr("ScalarFunctionOrthotropicCL<" << typeid(T).name() << ", " << typeid(Tder).name() << "> not implemented" << std::endl);
                         throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
                 }

                 ASSERT(sf.size() == n);
                 SF.resize(n);
                 for (unsigned i = 0; i < n; i++) {
                         SF[i] = sf[i];
                 }
         };

template<class T , class Tder >

virtual ScalarFunctionOrthotropicCL< T, Tder >::~ScalarFunctionOrthotropicCL ( void )

inlinevirtual

Definition at line 1308 of file ScalarFunctionsImpl.cc.

References NO_OP.

                                                    {
                 NO_OP;
         };

Member Function Documentation

template<class T , class Tder >

ConstLawType::Type ScalarFunctionOrthotropicCL< T, Tder >::GetConstLawType ( void ) const

inlinevirtual

Implements ConstitutiveLaw< T, Tder >.

Definition at line 1312 of file ScalarFunctionsImpl.cc.

References ConstLawType::ELASTIC.

                                                      {
                 return ConstLawType::ELASTIC;
         };

template<class T , class Tder >

virtual ConstitutiveLaw<T, Tder>* ScalarFunctionOrthotropicCL< T, Tder >::pCopy ( void ) const

inlinevirtual

Implements ConstitutiveLaw< T, Tder >.

Definition at line 1316 of file ScalarFunctionsImpl.cc.

References SAFENEWWITHCONSTRUCTOR, and ScalarFunctionOrthotropicCL< T, Tder >::SF.

                                                             {
                 ConstitutiveLaw<T, Tder>* pCL = NULL;

                 typedef ScalarFunctionOrthotropicCL<T, Tder> cl;
                 SAFENEWWITHCONSTRUCTOR(pCL, cl, cl(SF));
                 return pCL;
         };

template<class T , class Tder >

virtual std::ostream& ScalarFunctionOrthotropicCL< T, Tder >::Restart ( std::ostream & out ) const

inlinevirtual

Reimplemented from ConstitutiveLaw< T, Tder >.

Definition at line 1324 of file ScalarFunctionsImpl.cc.

                                                            {
                 return out << "# not implemented!";
         };

template<class T , class Tder >

virtual void ScalarFunctionOrthotropicCL< T, Tder >::Update	(	const T &	Eps,
		const T &	= `0.`
	)

inlinevirtual

Implements ConstitutiveLaw< T, Tder >.

Definition at line 1328 of file ScalarFunctionsImpl.cc.

References ConstitutiveLaw< T, Tder >::F, ConstitutiveLaw< T, Tder >::FDE, ScalarFunctionOrthotropicCL< T, Tder >::n, and ScalarFunctionOrthotropicCL< T, Tder >::SF.

                                                             {
                 ConstitutiveLaw<T, Tder>::Epsilon = Eps;
                 for (unsigned i = 1; i <= n; i++) {
                         /* skip null scalar functions */
                         if (SF[i - 1] == 0) {
                                 continue;
                         }

 #if defined(MBDYN_X_WORKAROUND_GCC_3_2) || defined(MBDYN_X_WORKAROUND_GCC_3_3)
                         ConstitutiveLaw<T, Tder>::F.Put(i, (*SF[i - 1])(Eps(i)));
                         ConstitutiveLaw<T, Tder>::FDE.Put(i, i, SF[i - 1]->ComputeDiff(Eps(i)));
 #else // !MBDYN_X_WORKAROUND_GCC_3_2 && ! MBDYN_X_WORKAROUND_GCC_3_3
                         ConstitutiveLaw<T, Tder>::F(i) = (*SF[i - 1])(Eps(i));
                         ConstitutiveLaw<T, Tder>::FDE(i, i) = SF[i - 1]->ComputeDiff(Eps(i));
 #endif // !MBDYN_X_WORKAROUND_GCC_3_2 && ! MBDYN_X_WORKAROUND_GCC_3_3
                 }
         };
