#include <constltp_impl.h>

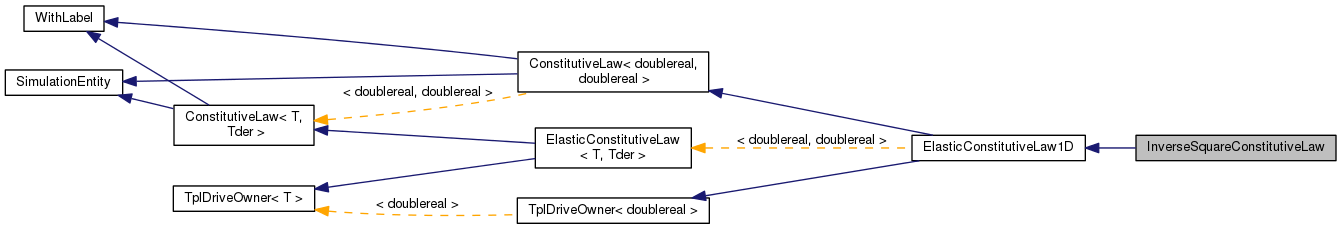

Inheritance diagram for InverseSquareConstitutiveLaw:

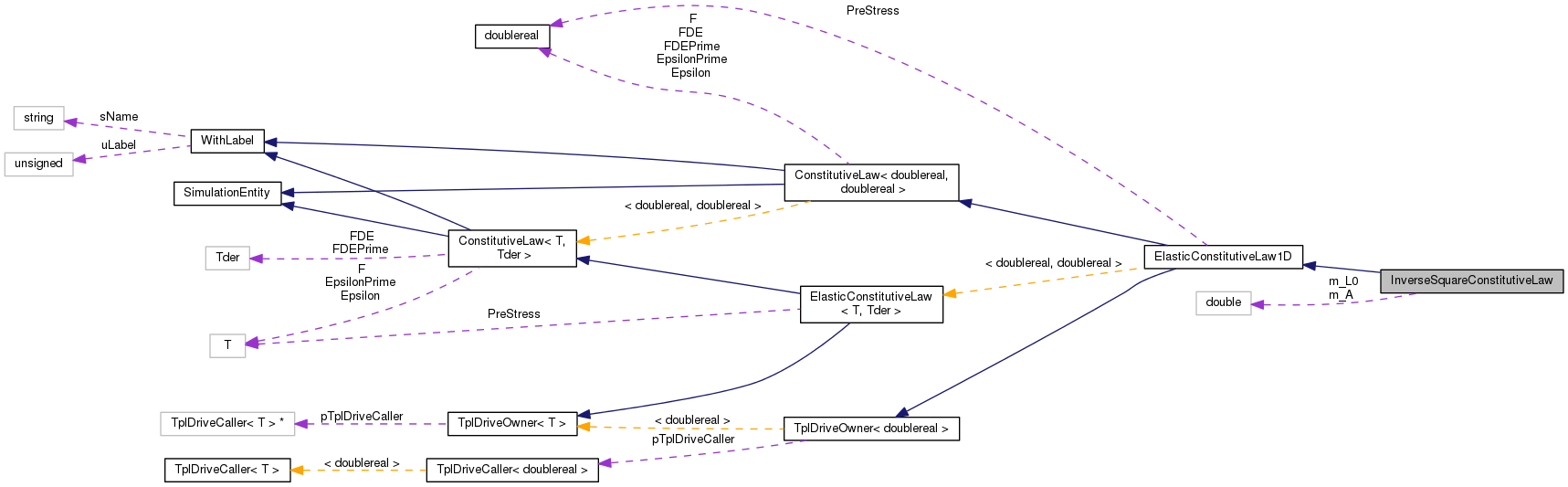

Collaboration diagram for InverseSquareConstitutiveLaw:

Public Member Functions
	InverseSquareConstitutiveLaw (const TplDriveCaller< doublereal > *pDC, const doublereal &PStress, const doublereal &A, const doublereal &L0)

virtual	~InverseSquareConstitutiveLaw (void)

virtual ConstitutiveLaw1D *	pCopy (void) const

virtual std::ostream &	Restart (std::ostream &out) const

virtual void	Update (const doublereal &Eps, const doublereal &=0.)

Public Member Functions inherited from ElasticConstitutiveLaw< doublereal, doublereal >
	ElasticConstitutiveLaw (const TplDriveCaller< doublereal > *pDC, const doublereal &PStress)

virtual	~ElasticConstitutiveLaw (void)

ConstLawType::Type	GetConstLawType (void) const

void	SetValue (DataManager pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints ph=0)

virtual Hint *	ParseHint (DataManager pDM, const char s) const

Public Member Functions inherited from ConstitutiveLaw< doublereal, doublereal >
	ConstitutiveLaw (void)

virtual	~ConstitutiveLaw (void)

virtual void	AfterConvergence (const doublereal &Eps, const doublereal &EpsPrime=mb_zero< doublereal >())

virtual const doublereal &	GetEpsilon (void) const

virtual const doublereal &	GetEpsilonPrime (void) const

virtual const doublereal &	GetF (void) const

virtual const doublereal &	GetFDE (void) const

virtual const doublereal &	GetFDEPrime (void) const

virtual unsigned int	iGetNumDof (void) const

virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order	GetDofType (unsigned int i) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)

virtual	~SimulationEntity (void)

virtual bool	bIsValidIndex (unsigned int i) const

virtual DofOrder::Order	GetEqType (unsigned int i) const

virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int	iGetNumPrivData (void) const

virtual unsigned int	iGetPrivDataIdx (const char *s) const

virtual doublereal	dGetPrivData (unsigned int i) const

virtual std::ostream &	OutputAppend (std::ostream &out) const

virtual void	ReadInitialState (MBDynParser &HP)

Public Member Functions inherited from TplDriveOwner< doublereal >
	TplDriveOwner (const TplDriveCaller< doublereal > *pDC=0)

virtual	~TplDriveOwner (void)

void	Set (const TplDriveCaller< doublereal > *pDC)

TplDriveCaller< doublereal > *	pGetDriveCaller (void) const

doublereal	Get (const doublereal &dVar) const

doublereal	Get (void) const

virtual bool	bIsDifferentiable (void) const

virtual doublereal	GetP (void) const

Private Attributes
doublereal	m_A

doublereal	m_L0

Additional Inherited Members
Public Types inherited from ConstitutiveLaw< doublereal, doublereal >
typedef ConstitutiveLaw < doublereal, doublereal > ::ErrNotAvailable	Err

Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints

Protected Member Functions inherited from ElasticConstitutiveLaw< doublereal, doublereal >
virtual std::ostream &	Restart_int (std::ostream &out) const

Protected Attributes inherited from ElasticConstitutiveLaw< doublereal, doublereal >
doublereal	PreStress

Protected Attributes inherited from ConstitutiveLaw< doublereal, doublereal >
doublereal	Epsilon

doublereal	EpsilonPrime

doublereal	F

doublereal	FDE

doublereal	FDEPrime

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Protected Attributes inherited from TplDriveOwner< doublereal >
TplDriveCaller< doublereal > *	pTplDriveCaller

Detailed Description

Definition at line 626 of file constltp_impl.h.

Constructor & Destructor Documentation

InverseSquareConstitutiveLaw::InverseSquareConstitutiveLaw	(	const TplDriveCaller< doublereal > *	pDC,
		const doublereal &	PStress,
		const doublereal &	A,
		const doublereal &	L0
	)

inline

Definition at line 633 of file constltp_impl.h.

References NO_OP.

Referenced by pCopy().

         : ElasticConstitutiveLaw1D(pDC, PStress),
                 m_A(A), m_L0(L0)
         {
                 NO_OP;
         };

virtual InverseSquareConstitutiveLaw::~InverseSquareConstitutiveLaw ( void )

inlinevirtual

Definition at line 642 of file constltp_impl.h.

References NO_OP.

                                                     {
                 NO_OP;
         };

Member Function Documentation

virtual ConstitutiveLaw1D* InverseSquareConstitutiveLaw::pCopy ( void ) const

inlinevirtual

Implements ConstitutiveLaw< doublereal, doublereal >.

Definition at line 646 of file constltp_impl.h.

References InverseSquareConstitutiveLaw(), m_A, m_L0, TplDriveOwner< doublereal >::pGetDriveCaller(), ElasticConstitutiveLaw< doublereal, doublereal >::PreStress, and SAFENEWWITHCONSTRUCTOR.

                                                      {
                 ConstitutiveLaw1D* pCL = 0;

                 SAFENEWWITHCONSTRUCTOR(pCL,
                         InverseSquareConstitutiveLaw,
                         InverseSquareConstitutiveLaw(ElasticConstitutiveLaw1D::pGetDriveCaller()->pCopy(),
                                 ElasticConstitutiveLaw1D::PreStress,
                                 m_A, m_L0));
                 return pCL;
         };

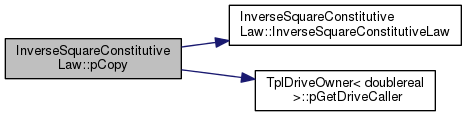

Here is the call graph for this function:

virtual std::ostream& InverseSquareConstitutiveLaw::Restart ( std::ostream & out ) const

inlinevirtual

Reimplemented from ConstitutiveLaw< doublereal, doublereal >.

Definition at line 657 of file constltp_impl.h.

References m_A, m_L0, and ElasticConstitutiveLaw< doublereal, doublereal >::Restart_int().

                                                            {
                 out << "inverse square, " << m_A << ", " << m_L0;
                 return ElasticConstitutiveLaw1D::Restart_int(out);
         };

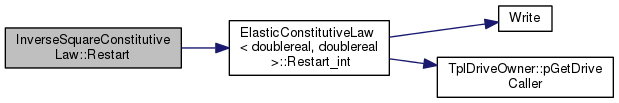

Here is the call graph for this function:

virtual void InverseSquareConstitutiveLaw::Update	(	const doublereal &	Eps,
		const doublereal &	= `0.`
	)

inlinevirtual

Implements ConstitutiveLaw< doublereal, doublereal >.

Definition at line 662 of file constltp_impl.h.

References ConstitutiveLaw< doublereal, doublereal >::Epsilon, ConstitutiveLaw< doublereal, doublereal >::F, ConstitutiveLaw< doublereal, doublereal >::FDE, TplDriveOwner< doublereal >::Get(), m_A, m_L0, and ElasticConstitutiveLaw< doublereal, doublereal >::PreStress.

                                                                              {
                 ConstitutiveLaw1D::Epsilon = Eps;
                 doublereal e1 = Eps - ElasticConstitutiveLaw1D::Get();
                 doublereal d = m_L0*(1 + e1);
                 doublereal d2 = d*d;
                 ConstitutiveLaw1D::F = ElasticConstitutiveLaw1D::PreStress + m_A/d2;
                 ConstitutiveLaw1D::FDE = -2.*m_A/(d2*d)*m_L0;
         };
