SymbolicViscoElasticConstitutiveLaw< T, Tder > Class Template Reference

#include <symcltp.h>

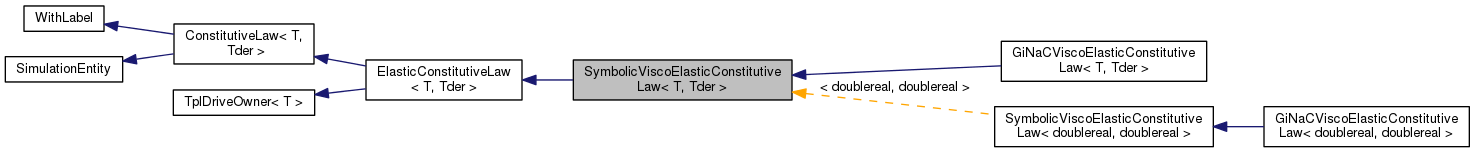

Inheritance diagram for SymbolicViscoElasticConstitutiveLaw< T, Tder >:

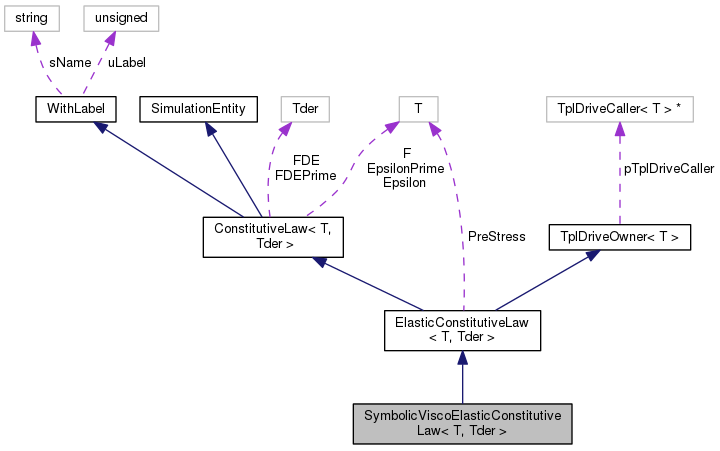

Collaboration diagram for SymbolicViscoElasticConstitutiveLaw< T, Tder >:

Public Member Functions
	SymbolicViscoElasticConstitutiveLaw (const TplDriveCaller< T > *pDC, const T &PStress, std::vector< std::string > &epsilon, std::vector< std::string > &epsilonPrime, std::vector< std::string > &expression)
virtual	~SymbolicViscoElasticConstitutiveLaw (void)
virtual ConstLawType::Type	GetConstLawType (void) const
Public Member Functions inherited from ElasticConstitutiveLaw< T, Tder >
	ElasticConstitutiveLaw (const TplDriveCaller< T > *pDC, const T &PStress)
virtual	~ElasticConstitutiveLaw (void)
void	SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph=0)
virtual Hint *	ParseHint (DataManager *pDM, const char *s) const
Public Member Functions inherited from ConstitutiveLaw< T, Tder >
	ConstitutiveLaw (void)
virtual	~ConstitutiveLaw (void)
virtual ConstitutiveLaw< T, Tder > *	pCopy (void) const =0
virtual std::ostream &	Restart (std::ostream &out) const
virtual void	Update (const T &Eps, const T &EpsPrime=mb_zero< T >())=0
virtual void	AfterConvergence (const T &Eps, const T &EpsPrime=mb_zero< T >())
virtual const T &	GetEpsilon (void) const
virtual const T &	GetEpsilonPrime (void) const
virtual const T &	GetF (void) const
virtual const Tder &	GetFDE (void) const
virtual const Tder &	GetFDEPrime (void) const
virtual unsigned int	iGetNumDof (void) const
virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const
virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const
virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const
virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const
virtual DofOrder::Order	GetDofType (unsigned int i) const
Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")
virtual	~WithLabel (void)
void	PutLabel (unsigned int uL)
void	PutName (const std::string &sN)
unsigned int	GetLabel (void) const
const std::string &	GetName (void) const
Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)
virtual	~SimulationEntity (void)
virtual bool	bIsValidIndex (unsigned int i) const
virtual DofOrder::Order	GetEqType (unsigned int i) const
virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const
virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)
virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)
virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)
virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)
virtual unsigned int	iGetNumPrivData (void) const
virtual unsigned int	iGetPrivDataIdx (const char *s) const
virtual doublereal	dGetPrivData (unsigned int i) const
virtual std::ostream &	OutputAppend (std::ostream &out) const
virtual void	ReadInitialState (MBDynParser &HP)
Public Member Functions inherited from TplDriveOwner< T >
	TplDriveOwner (const TplDriveCaller< T > *pDC=0)
virtual	~TplDriveOwner (void)
void	Set (const TplDriveCaller< T > *pDC)
TplDriveCaller< T > *	pGetDriveCaller (void) const
T	Get (const doublereal &dVar) const
T	Get (void) const
virtual bool	bIsDifferentiable (void) const
virtual T	GetP (void) const

Additional Inherited Members
Public Types inherited from ConstitutiveLaw< T, Tder >
typedef ConstitutiveLaw< T, Tder >::ErrNotAvailable	Err
Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints
Protected Member Functions inherited from ElasticConstitutiveLaw< T, Tder >
virtual std::ostream &	Restart_int (std::ostream &out) const
Protected Attributes inherited from ElasticConstitutiveLaw< T, Tder >
T	PreStress
Protected Attributes inherited from ConstitutiveLaw< T, Tder >
T	Epsilon
T	EpsilonPrime
T	F
Tder	FDE
Tder	FDEPrime
Protected Attributes inherited from WithLabel
unsigned int	uLabel
std::string	sName
Protected Attributes inherited from TplDriveOwner< T >
TplDriveCaller< T > *	pTplDriveCaller

Detailed Description

template<class T, class Tder>
class SymbolicViscoElasticConstitutiveLaw< T, Tder >

Definition at line 129 of file symcltp.h.

Constructor & Destructor Documentation

template<class T, class Tder >

SymbolicViscoElasticConstitutiveLaw< T, Tder >::SymbolicViscoElasticConstitutiveLaw	(	const TplDriveCaller< T > *	pDC,
		const T &	PStress,
		std::vector< std::string > &	epsilon,
		std::vector< std::string > &	epsilonPrime,
		std::vector< std::string > &	expression
	)

Definition at line 150 of file symcltp.h.

References NO_OP.

: ElasticConstitutiveLaw<T, Tder>(pDC, PStress)
{
        NO_OP;
}

template<class T , class Tder >

SymbolicViscoElasticConstitutiveLaw< T, Tder >::~SymbolicViscoElasticConstitutiveLaw ( void  )

virtual

Definition at line 162 of file symcltp.h.

References NO_OP.

{
        NO_OP;
}

Member Function Documentation

template<class T , class Tder >

ConstLawType::Type SymbolicViscoElasticConstitutiveLaw< T, Tder >::GetConstLawType ( void  ) const

virtual

Reimplemented from ElasticConstitutiveLaw< T, Tder >.

Definition at line 169 of file symcltp.h.

References ConstLawType::VISCOELASTIC.

{
        return ConstLawType::VISCOELASTIC;
}

---

The documentation for this class was generated from the following file:

• symcltp.h
