ElasticDispJointInv Class Reference

#include <vehj2.h>

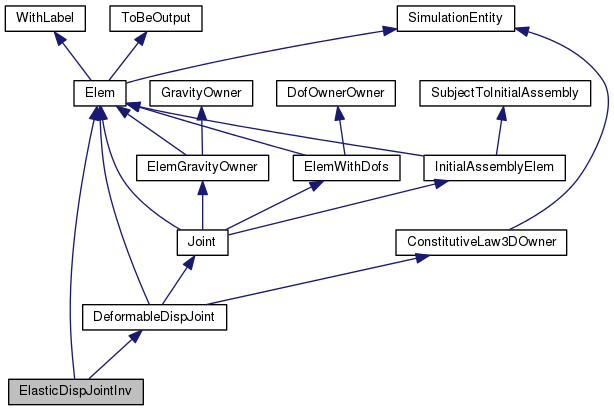

Inheritance diagram for ElasticDispJointInv:
Inheritance graph
[legend]

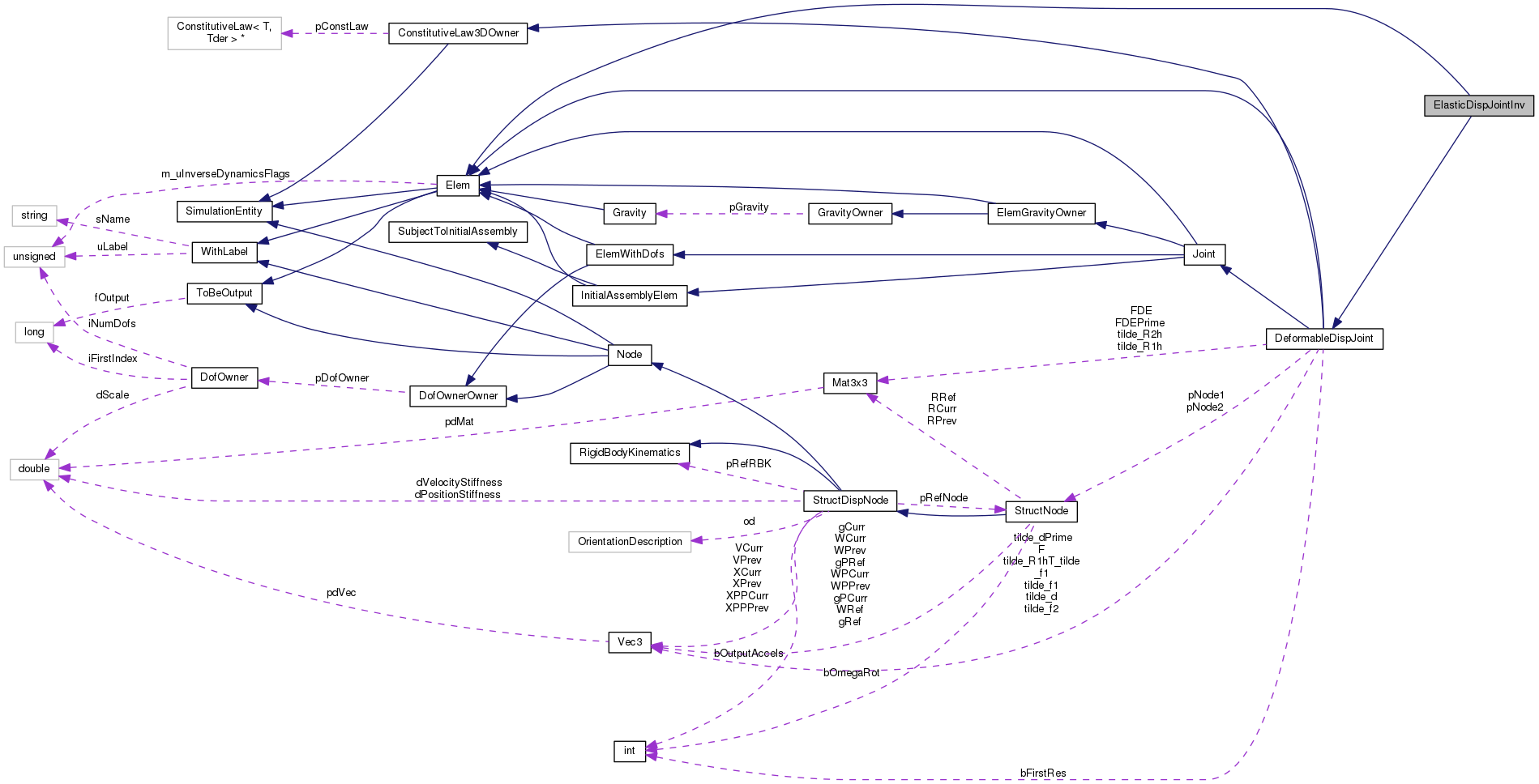

Collaboration diagram for ElasticDispJointInv:
Collaboration graph
[legend]

Public Member Functions

 ElasticDispJointInv (unsigned int uL, const DofOwner *pDO, const ConstitutiveLaw3D *pCL, const StructNode *pN1, const StructNode *pN2, const Vec3 &tilde_f1, const Vec3 &tilde_f2, const Mat3x3 &tilde_R1, const Mat3x3 &tilde_R2, flag fOut)

 ~ElasticDispJointInv (void)

virtual ConstLawType::Type GetConstLawType (void) const

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual SubVectorHandler & AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

SubVectorHandler & AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual void InitialWorkSpaceDim (integer *piNumRows, integer *piNumCols) const

virtual VariableSubMatrixHandler & InitialAssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler & InitialAssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr)

- Public Member Functions inherited from Elem
 Elem (unsigned int uL, flag fOut)

virtual ~Elem (void)

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

void SetInverseDynamicsFlags (unsigned uIDF)

unsigned GetInverseDynamicsFlags (void) const

bool bIsErgonomy (void) const

bool bIsRightHandSide (void) const

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual int GetNumConnectedNodes (void) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))

- Public Member Functions inherited from DeformableDispJoint
 DeformableDispJoint (unsigned int uL, const DofOwner *pDO, const ConstitutiveLaw3D *pCL, const StructNode *pN1, const StructNode *pN2, const Vec3 &tilde_f1, const Vec3 &tilde_f2, const Mat3x3 &tilde_R1, const Mat3x3 &tilde_R2, flag fOut)

virtual ~DeformableDispJoint (void)

virtual Joint::Type GetJointType (void) const

virtual std::ostream & Restart (std::ostream &out) const

void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH) const

void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph=0)

virtual Hint * ParseHint (DataManager *pDM, const char *s) const

virtual unsigned int iGetNumDof (void) const

virtual DofOrder::Order GetDofType (unsigned int) const

virtual void WorkSpaceDim (integer *piNumRows, integer *piNumCols) const

virtual bool bInverseDynamics (void) const

virtual unsigned int iGetInitialNumDof (void) const

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual void GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

- Public Member Functions inherited from Joint
 Joint (unsigned int uL, const DofOwner *pD, flag fOut)

virtual ~Joint (void)

virtual Elem::Type GetElemType (void) const

std::ostream & Output (std::ostream &out, const char *sJointName, unsigned int uLabel, const Vec3 &FLocal, const Vec3 &MLocal, const Vec3 &FGlobal, const Vec3 &MGlobal) const

virtual void SetInitialValue (VectorHandler &)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

bool bIsPrescribedMotion (void) const

bool bIsTorque (void) const

- Public Member Functions inherited from ElemGravityOwner
 ElemGravityOwner (unsigned int uL, flag fOut)

virtual ~ElemGravityOwner (void)

virtual doublereal dGetM (void) const

Vec3 GetS (void) const

Mat3x3 GetJ (void) const

Vec3 GetB (void) const

Vec3 GetG (void) const

- Public Member Functions inherited from GravityOwner
 GravityOwner (void)

virtual ~GravityOwner (void)

void PutGravity (const Gravity *pG)

virtual bool bGetGravity (const Vec3 &X, Vec3 &Acc) const

- Public Member Functions inherited from ElemWithDofs
 ElemWithDofs (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~ElemWithDofs (void)

- Public Member Functions inherited from DofOwnerOwner
 DofOwnerOwner (const DofOwner *pDO)

virtual ~DofOwnerOwner ()

virtual const DofOwner * pGetDofOwner (void) const

virtual integer iGetFirstIndex (void) const

- Public Member Functions inherited from InitialAssemblyElem
 InitialAssemblyElem (unsigned int uL, flag fOut)

virtual ~InitialAssemblyElem (void)

- Public Member Functions inherited from SubjectToInitialAssembly
 SubjectToInitialAssembly (void)

virtual ~SubjectToInitialAssembly (void)

- Public Member Functions inherited from ConstitutiveLawOwner< T, Tder >
 ConstitutiveLawOwner (const ConstitutiveLaw< T, Tder > *pCL)

virtual ~ConstitutiveLawOwner (void)

ConstitutiveLaw< T, Tder > * pGetConstLaw (void) const

void Update (const T &Eps, const T &EpsPrime=mb_zero< T >())

void AfterConvergence (const T &Eps, const T &EpsPrime=mb_zero< T >())

const T & GetF (void) const

const Tder & GetFDE (void) const

const Tder & GetFDEPrime (void) const

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & OutputAppend (std::ostream &out) const


Protected Member Functions

void AssMats (FullSubMatrixHandler &WMA, FullSubMatrixHandler &WMB, doublereal dCoef)

void AssVec (SubVectorHandler &WorkVec)

- Protected Member Functions inherited from DeformableDispJoint
void AssMatF (FullSubMatrixHandler &WMA, const Vec3 &d1, const Vec3 &d2, doublereal dCoef)

void AssMatFDE (FullSubMatrixHandler &WMA, const Vec3 &d1, const Vec3 &d2, doublereal dCoef)

void AssMatFDEPrime (FullSubMatrixHandler &WMA, FullSubMatrixHandler &WMB, const Vec3 &d1, const Vec3 &d2, doublereal dCoef)

- Protected Member Functions inherited from Joint
virtual void OutputPrepare_int (const std::string &type, OutputHandler &OH, std::string &name)

- Protected Member Functions inherited from ElemGravityOwner
virtual Vec3 GetS_int (void) const

virtual Mat3x3 GetJ_int (void) const

virtual Vec3 GetB_int (void) const

virtual Vec3 GetG_int (void) const


Additional Inherited Members

- Public Types inherited from Elem
enum  Type {
  UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL,
  GRAVITY, BODY, JOINT, JOINT_REGULARIZATION,
  BEAM, PLATE, FORCE, INERTIA,
  ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC,
  BULK, LOADABLE, DRIVEN, EXTERNAL,
  AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT,
  RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE
}

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Public Types inherited from Joint
enum  Type {
  UNKNOWN = -1, DISTANCE = 0, DISTANCEWITHOFFSET, CLAMP,
  SPHERICALHINGE, PIN, UNIVERSALHINGE, UNIVERSALROTATION,
  UNIVERSALPIN, PLANEHINGE, PLANEROTATION, PLANEPIN,
  AXIALROTATION, PLANEDISP, PLANEDISPPIN, INPLANE,
  INPLANECONTACT, J_INLINE, ROD, RODBEZIER,
  DEFORMABLEHINGE, DEFORMABLEDISPJOINT, DEFORMABLEJOINT, DEFORMABLEAXIALJOINT,
  VISCOUSBODY, LINEARVELOCITY, ANGULARVELOCITY, LINEARACCELERATION,
  ANGULARACCELERATION, PRISMATIC, DRIVEHINGE, DRIVEDISP,
  DRIVEDISPPIN, IMPOSEDORIENTATION, IMPOSEDDISP, IMPOSEDDISPPIN,
  IMPOSEDKINEMATICS, BEAMSLIDER, BRAKE, GIMBAL,
  POINT_SURFACE_CONTACT, TOTALJOINT, TOTALPINJOINT, TOTALEQUATION,
  TOTALREACTION, MODAL, SCREWJOINT, LASTJOINTTYPE
}

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput

- Protected Attributes inherited from DeformableDispJoint
const StructNode * pNode1

const StructNode * pNode2

Vec3 tilde_f1

Vec3 tilde_f2

Mat3x3 tilde_R1h

Mat3x3 tilde_R2h

Vec3 tilde_R1hT_tilde_f1

Vec3 tilde_d

Vec3 tilde_dPrime

bool bFirstRes

Vec3 F

Mat3x3 FDE

Mat3x3 FDEPrime

- Protected Attributes inherited from GravityOwner
Gravity * pGravity

- Protected Attributes inherited from ConstitutiveLawOwner< T, Tder >
ConstitutiveLaw< T, Tder > * pConstLaw


Detailed Description

Definition at line 294 of file vehj2.h.

Constructor & Destructor Documentation

ElasticDispJointInv::ElasticDispJointInv ( unsigned int  uL,
const DofOwner *  pDO,
const ConstitutiveLaw3D *  pCL,
const StructNode *  pN1,
const StructNode *  pN2,
const Vec3 &  tilde_f1,
const Vec3 &  tilde_f2,
const Mat3x3 &  tilde_R1,
const Mat3x3 &  tilde_R2,
flag  fOut
)

Definition at line 863 of file vehj2.cc.

References DeformableDispJoint::FDE, ConstitutiveLawOwner< T, Tder >::GetFDE(), StructNode::GetRRef(), DeformableDispJoint::pNode1, and DeformableDispJoint::tilde_R1h.

873 : Elem(uL, fOut),
874 DeformableDispJoint(uL, pDO, pCL, pN1, pN2, tilde_f1, tilde_f2, tilde_R1h, tilde_R2h, fOut)
875 {
876  /*
877  * Chiede la matrice tangente di riferimento
878  * e la porta nel sistema globale
879  */
880  Mat3x3 R1h(pNode1->GetRRef()*tilde_R1h);
881  FDE = R1h*GetFDE().MulMT(R1h);
882 }
StructNode::GetRRef
virtual const Mat3x3 & GetRRef(void) const
Definition: strnode.h:1006
ConstitutiveLawOwner::GetFDE
const Tder & GetFDE(void) const
Definition: constltp.h:298
DeformableDispJoint::pNode1
const StructNode * pNode1
Definition: vehj2.h:46
DeformableDispJoint::tilde_R2h
Mat3x3 tilde_R2h
Definition: vehj2.h:51
DeformableDispJoint::tilde_R1h
Mat3x3 tilde_R1h
Definition: vehj2.h:50
DeformableDispJoint::DeformableDispJoint
DeformableDispJoint(unsigned int uL, const DofOwner *pDO, const ConstitutiveLaw3D *pCL, const StructNode *pN1, const StructNode *pN2, const Vec3 &tilde_f1, const Vec3 &tilde_f2, const Mat3x3 &tilde_R1, const Mat3x3 &tilde_R2, flag fOut)
Definition: vehj2.cc:43
Elem::Elem
Elem(unsigned int uL, flag fOut)
Definition: elem.cc:41

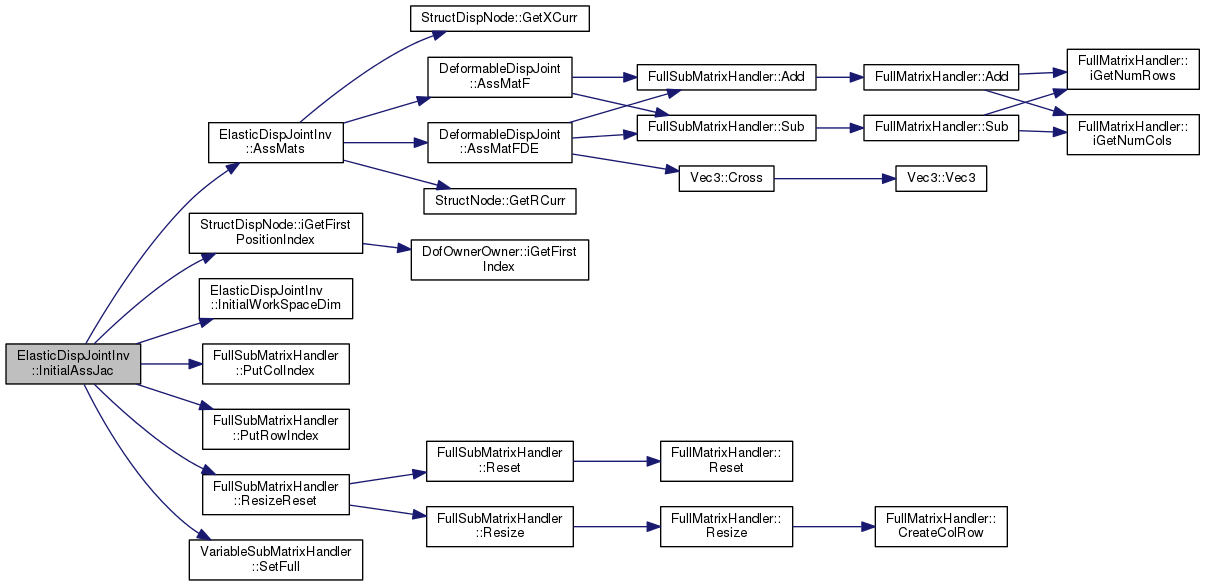

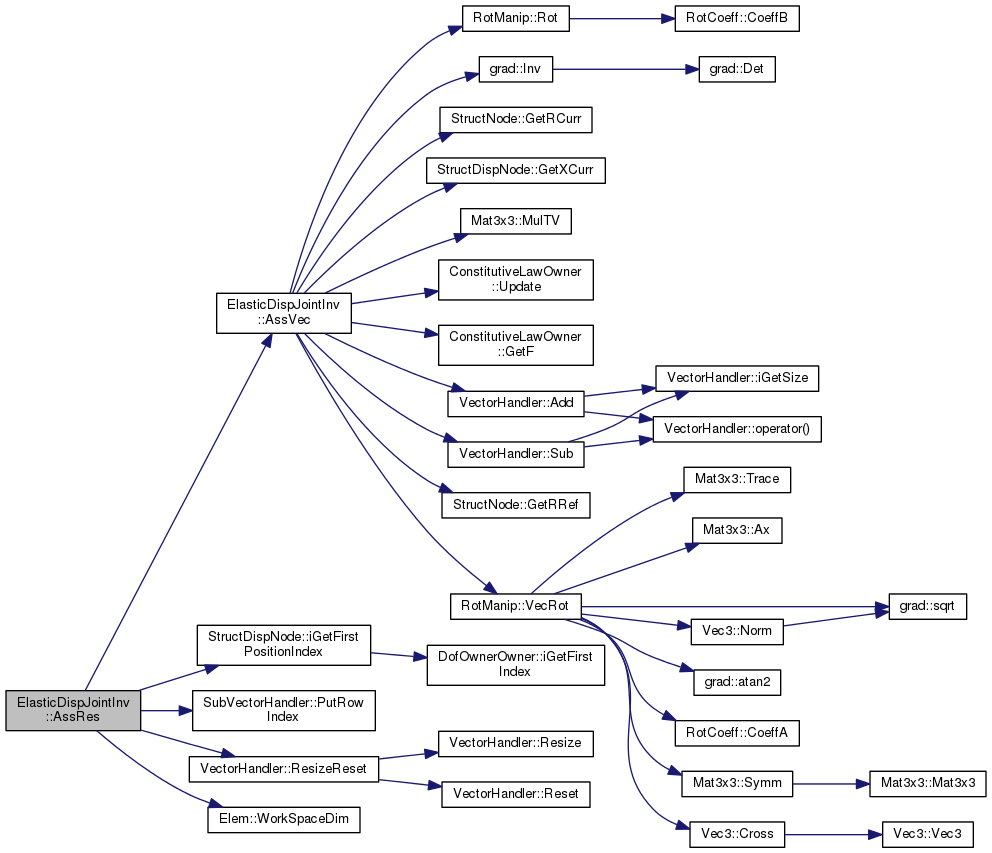

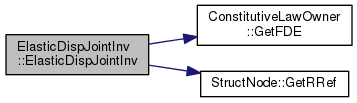

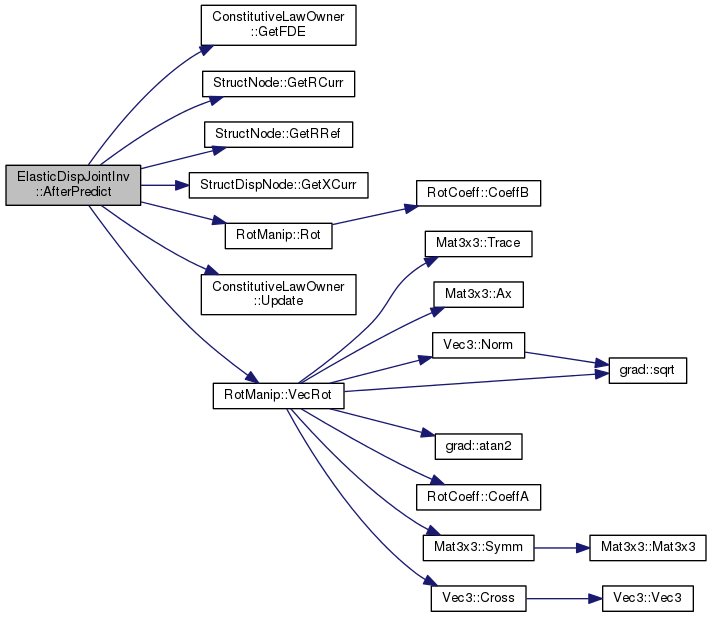

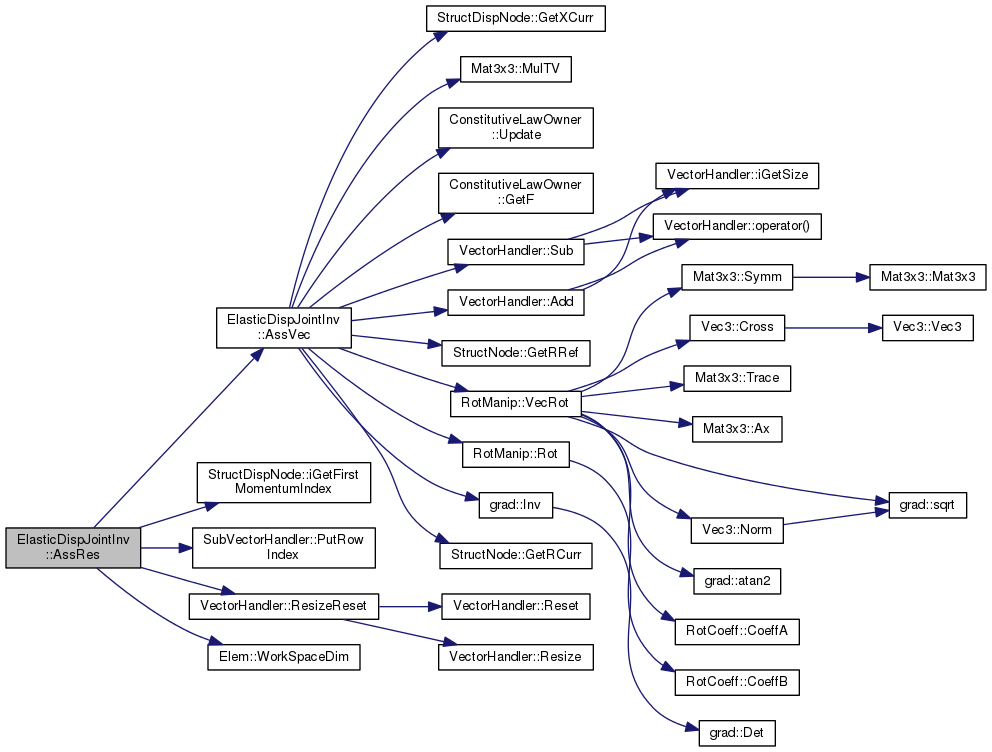

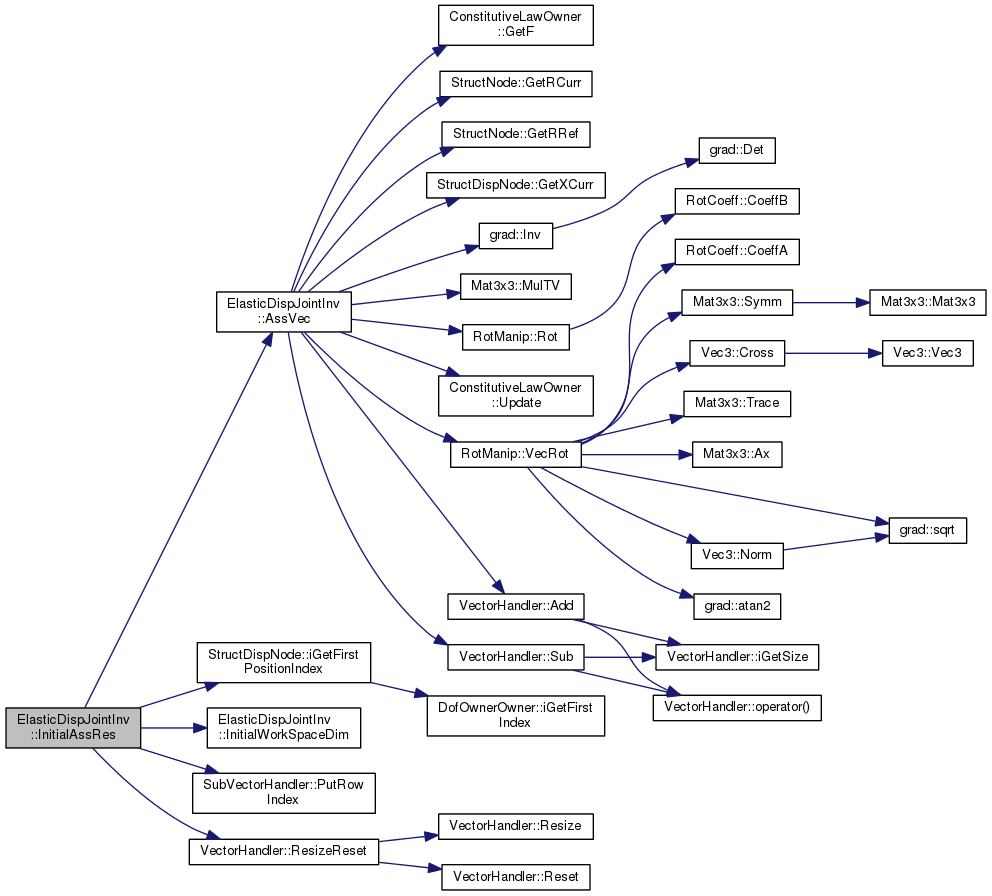

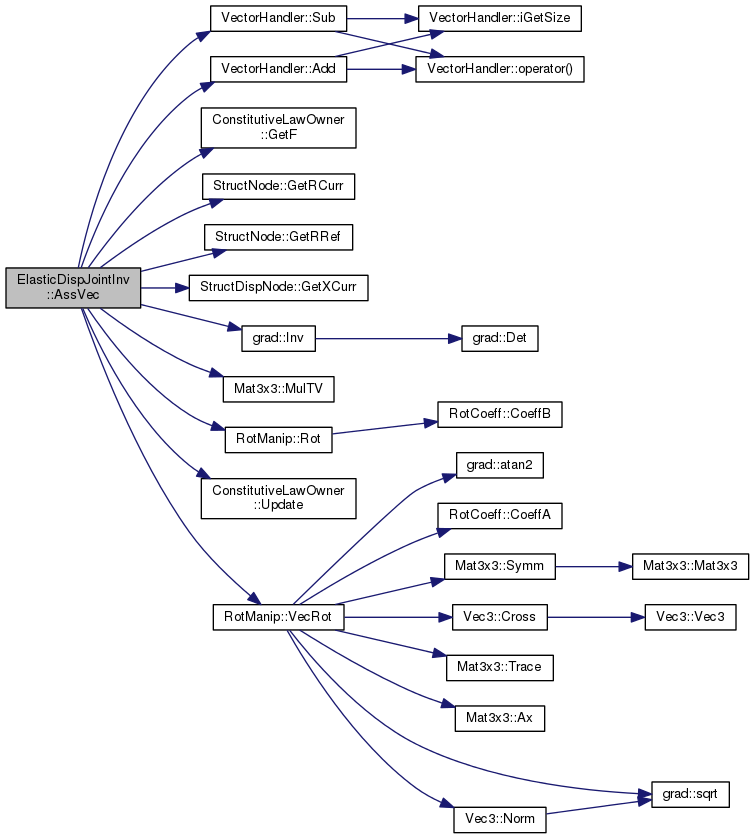

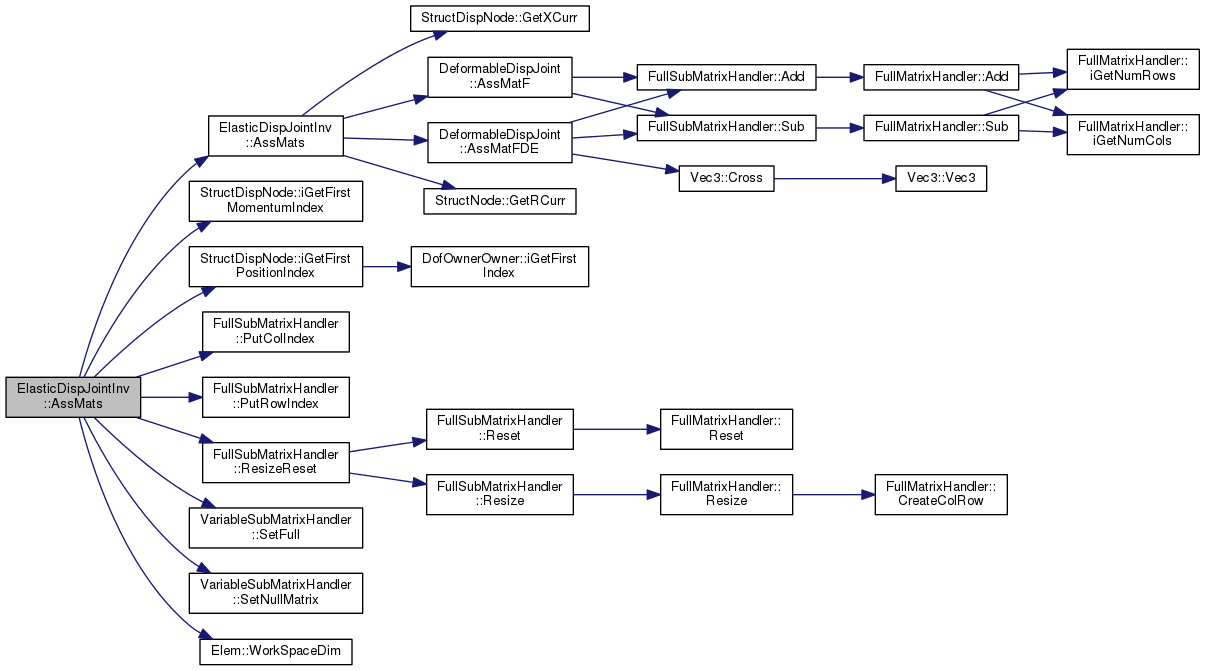

Here is the call graph for this function:

ElasticDispJointInv::~ElasticDispJointInv ( void  )

Definition at line 884 of file vehj2.cc.

References NO_OP.

885 {
886  NO_OP;
887 }
NO_OP
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

void ElasticDispJointInv::AfterConvergence ( const VectorHandler &  X,
const VectorHandler &  XP
)
virtual

Reimplemented from SimulationEntity.

Definition at line 890 of file vehj2.cc.

References ConstitutiveLawOwner< T, Tder >::AfterConvergence(), and DeformableDispJoint::tilde_d.

892 {
893  ConstitutiveLaw3DOwner::AfterConvergence(tilde_d);
894 }
ConstitutiveLawOwner::AfterConvergence
void AfterConvergence(const T &Eps, const T &EpsPrime=mb_zero< T >())
Definition: constltp.h:288

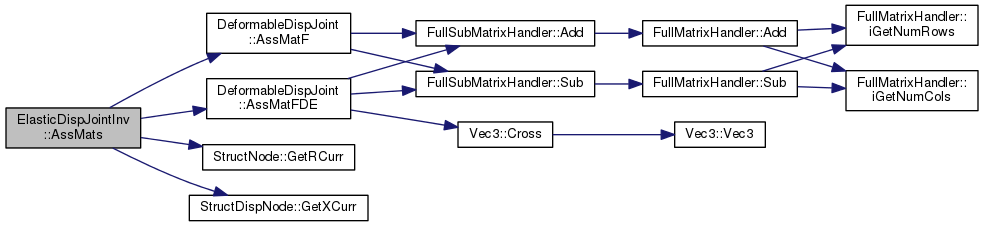

Here is the call graph for this function:

void ElasticDispJointInv::AfterPredict ( VectorHandler &  X,
VectorHandler &  XP
)
virtual

Reimplemented from SimulationEntity.

Definition at line 1037 of file vehj2.cc.

References DeformableDispJoint::bFirstRes, DeformableDispJoint::FDE, ConstitutiveLawOwner< T, Tder >::GetFDE(), StructNode::GetRCurr(), StructNode::GetRRef(), StructDispNode::GetXCurr(), DeformableDispJoint::pNode1, DeformableDispJoint::pNode2, RotManip::Rot(), DeformableDispJoint::tilde_d, DeformableDispJoint::tilde_f1, DeformableDispJoint::tilde_f2, DeformableDispJoint::tilde_R1h, DeformableDispJoint::tilde_R2h, ConstitutiveLawOwner< T, Tder >::Update(), and RotManip::VecRot().

1038 {
1039  Mat3x3 R1h(pNode1->GetRRef()*tilde_R1h);
1040  Mat3x3 R2h(pNode2->GetRRef()*tilde_R2h);
1041  Vec3 ThetaCurr = RotManip::VecRot(R1h.MulTM(R2h));
1042  Mat3x3 hat_R(R1h*RotManip::Rot(ThetaCurr/2.));
1043
1044  Vec3 f1(pNode1->GetRCurr()*tilde_f1);
1045  Vec3 f2(pNode2->GetRCurr()*tilde_f2);
1046  tilde_d = hat_R.MulTV(pNode2->GetXCurr() + f2 - pNode1->GetXCurr() - f1);
1047
1048  ConstitutiveLaw3DOwner::Update(tilde_d);
1049
1050  /* FIXME: we need to be able to regenerate FDE
1051  * if the constitutive law throws ChangedEquationStructure */
1052  FDE = hat_R*GetFDE().MulMT(hat_R);
1053
1054  bFirstRes = true;
1055 }
StructNode::GetRRef
virtual const Mat3x3 & GetRRef(void) const
Definition: strnode.h:1006
Vec3
Definition: matvec3.h:98
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
ConstitutiveLawOwner::GetFDE
const Tder & GetFDE(void) const
Definition: constltp.h:298
DeformableDispJoint::pNode1
const StructNode * pNode1
Definition: vehj2.h:46
DeformableDispJoint::tilde_R2h
Mat3x3 tilde_R2h
Definition: vehj2.h:51
RotManip::VecRot
Vec3 VecRot(const Mat3x3 &Phi)
Definition: Rot.cc:136
DeformableDispJoint::tilde_R1h
Mat3x3 tilde_R1h
Definition: vehj2.h:50
RotManip::Rot
Mat3x3 Rot(const Vec3 &phi)
Definition: Rot.cc:62
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
DeformableDispJoint::pNode2
const StructNode * pNode2
Definition: vehj2.h:47
ConstitutiveLawOwner::Update
void Update(const T &Eps, const T &EpsPrime=mb_zero< T >())
Definition: constltp.h:283

Here is the call graph for this function:

void ElasticDispJointInv::AssMats ( FullSubMatrixHandler &  WMA,
FullSubMatrixHandler &  WMB,
doublereal  dCoef
)
protectedvirtual

Implements DeformableDispJoint.

Definition at line 931 of file vehj2.cc.

References DeformableDispJoint::AssMatF(), DeformableDispJoint::AssMatFDE(), StructNode::GetRCurr(), StructDispNode::GetXCurr(), DeformableDispJoint::pNode1, DeformableDispJoint::pNode2, and DeformableDispJoint::tilde_f2.

Referenced by AssMats(), and InitialAssJac().

934 {
935  Vec3 d2(pNode2->GetRCurr()*tilde_f2);
936  Vec3 d1(pNode2->GetXCurr() + d2 - pNode1->GetXCurr());
937
938  AssMatF(WMA, d1, d2, dCoef);
939  AssMatFDE(WMA, d1, d2, dCoef);
940 }
Vec3
Definition: matvec3.h:98
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
DeformableDispJoint::pNode1
const StructNode * pNode1
Definition: vehj2.h:46
DeformableDispJoint::AssMatF
void AssMatF(FullSubMatrixHandler &WMA, const Vec3 &d1, const Vec3 &d2, doublereal dCoef)
Definition: vehj2.cc:83
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
DeformableDispJoint::AssMatFDE
void AssMatFDE(FullSubMatrixHandler &WMA, const Vec3 &d1, const Vec3 &d2, doublereal dCoef)
Definition: vehj2.cc:108
DeformableDispJoint::pNode2
const StructNode * pNode2
Definition: vehj2.h:47

Here is the call graph for this function:

void ElasticDispJointInv::AssMats ( VariableSubMatrixHandler &  WorkMatA,
VariableSubMatrixHandler &  WorkMatB,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Reimplemented from Elem.

Definition at line 898 of file vehj2.cc.

References AssMats(), StructDispNode::iGetFirstMomentumIndex(), StructDispNode::iGetFirstPositionIndex(), DeformableDispJoint::pNode1, DeformableDispJoint::pNode2, FullSubMatrixHandler::PutColIndex(), FullSubMatrixHandler::PutRowIndex(), FullSubMatrixHandler::ResizeReset(), VariableSubMatrixHandler::SetFull(), VariableSubMatrixHandler::SetNullMatrix(), and Elem::WorkSpaceDim().

902 {
903  FullSubMatrixHandler& WMA = WorkMatA.SetFull();
904  WorkMatB.SetNullMatrix();
905
906  /* Dimensiona e resetta la matrice di lavoro */
907  integer iNumRows = 0;
908  integer iNumCols = 0;
909  WorkSpaceDim(&iNumRows, &iNumCols);
910  WMA.ResizeReset(iNumRows, iNumCols);
911
912  /* Recupera gli indici */
913  integer iNode1FirstPosIndex = pNode1->iGetFirstPositionIndex();
914  integer iNode1FirstMomIndex = pNode1->iGetFirstMomentumIndex();
915  integer iNode2FirstPosIndex = pNode2->iGetFirstPositionIndex();
916  integer iNode2FirstMomIndex = pNode2->iGetFirstMomentumIndex();
917
918  /* Setta gli indici della matrice */
919  for (int iCnt = 1; iCnt <= 6; iCnt++) {
920  WMA.PutRowIndex(iCnt, iNode1FirstMomIndex + iCnt);
921  WMA.PutColIndex(iCnt, iNode1FirstPosIndex + iCnt);
922  WMA.PutRowIndex(6 + iCnt, iNode2FirstMomIndex + iCnt);
923  WMA.PutColIndex(6 + iCnt, iNode2FirstPosIndex + iCnt);
924  }
925
926  // NOTE: the second instance of WMA is ignored (see below)
927  AssMats(WMA, WMA, 1.);
928 }
FullSubMatrixHandler::PutColIndex
void PutColIndex(integer iSubCol, integer iCol)
Definition: submat.h:325
VariableSubMatrixHandler::SetFull
FullSubMatrixHandler & SetFull(void)
Definition: submat.h:1168
DeformableDispJoint::pNode1
const StructNode * pNode1
Definition: vehj2.h:46
VariableSubMatrixHandler::SetNullMatrix
void SetNullMatrix(void)
Definition: submat.h:1159
StructDispNode::iGetFirstMomentumIndex
virtual integer iGetFirstMomentumIndex(void) const =0
StructDispNode::iGetFirstPositionIndex
virtual integer iGetFirstPositionIndex(void) const
Definition: strnode.h:452
FullSubMatrixHandler::ResizeReset
virtual void ResizeReset(integer, integer)
Definition: submat.cc:182
FullSubMatrixHandler::PutRowIndex
void PutRowIndex(integer iSubRow, integer iRow)
Definition: submat.h:311
DeformableDispJoint::pNode2
const StructNode * pNode2
Definition: vehj2.h:47
Elem::WorkSpaceDim
virtual void WorkSpaceDim(integer *piNumRows, integer *piNumCols) const =0
integer
long int integer
Definition: colamd.c:51
ElasticDispJointInv::AssMats
void AssMats(FullSubMatrixHandler &WMA, FullSubMatrixHandler &WMB, doublereal dCoef)
Definition: vehj2.cc:931

Here is the call graph for this function:

SubVectorHandler & ElasticDispJointInv::AssRes ( SubVectorHandler &  WorkVec,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 944 of file vehj2.cc.

References AssVec(), StructDispNode::iGetFirstMomentumIndex(), DeformableDispJoint::pNode1, DeformableDispJoint::pNode2, SubVectorHandler::PutRowIndex(), VectorHandler::ResizeReset(), and Elem::WorkSpaceDim().

948 {
949  /* Dimensiona e resetta la matrice di lavoro */
950  integer iNumRows = 0;
951  integer iNumCols = 0;
952  WorkSpaceDim(&iNumRows, &iNumCols);
953  WorkVec.ResizeReset(iNumRows);
954
955  /* Recupera gli indici */
956  integer iNode1FirstMomIndex = pNode1->iGetFirstMomentumIndex();
957  integer iNode2FirstMomIndex = pNode2->iGetFirstMomentumIndex();
958
959  /* Setta gli indici della matrice */
960  for (int iCnt = 1; iCnt <= 6; iCnt++) {
961  WorkVec.PutRowIndex(iCnt, iNode1FirstMomIndex + iCnt);
962  WorkVec.PutRowIndex(6 + iCnt, iNode2FirstMomIndex + iCnt);
963  }
964
965  AssVec(WorkVec);
966
967  return WorkVec;
968 }
VectorHandler::ResizeReset
virtual void ResizeReset(integer)
Definition: vh.cc:55
DeformableDispJoint::pNode1
const StructNode * pNode1
Definition: vehj2.h:46
SubVectorHandler::PutRowIndex
virtual void PutRowIndex(integer iSubRow, integer iRow)=0
StructDispNode::iGetFirstMomentumIndex
virtual integer iGetFirstMomentumIndex(void) const =0
ElasticDispJointInv::AssVec
void AssVec(SubVectorHandler &WorkVec)
Definition: vehj2.cc:1004
DeformableDispJoint::pNode2
const StructNode * pNode2
Definition: vehj2.h:47
Elem::WorkSpaceDim
virtual void WorkSpaceDim(integer *piNumRows, integer *piNumCols) const =0
integer
long int integer
Definition: colamd.c:51

Here is the call graph for this function:

SubVectorHandler & ElasticDispJointInv::AssRes ( SubVectorHandler &  WorkVec,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr,
const VectorHandler &  XPrimePrimeCurr,
InverseDynamics::Order  iOrder = InverseDynamics::INVERSE_DYNAMICS
)
virtual

Reimplemented from Elem.

Definition at line 972 of file vehj2.cc.

References ASSERT, AssVec(), DeformableDispJoint::bFirstRes, StructDispNode::iGetFirstPositionIndex(), InverseDynamics::INVERSE_DYNAMICS, DeformableDispJoint::pNode1, DeformableDispJoint::pNode2, SubVectorHandler::PutRowIndex(), VectorHandler::ResizeReset(), and Elem::WorkSpaceDim().

977 {
978  ASSERT(iOrder == InverseDynamics::INVERSE_DYNAMICS);
979
980  bFirstRes = false;
981
982  /* Dimensiona e resetta la matrice di lavoro */
983  integer iNumRows = 0;
984  integer iNumCols = 0;
985  WorkSpaceDim(&iNumRows, &iNumCols);
986  WorkVec.ResizeReset(iNumRows);
987
988  /* Recupera gli indici */
989  integer iNode1FirstMomIndex = pNode1->iGetFirstPositionIndex();
990  integer iNode2FirstMomIndex = pNode2->iGetFirstPositionIndex();
991
992  /* Setta gli indici della matrice */
993  for (int iCnt = 1; iCnt <= 6; iCnt++) {
994  WorkVec.PutRowIndex(iCnt, iNode1FirstMomIndex + iCnt);
995  WorkVec.PutRowIndex(6 + iCnt, iNode2FirstMomIndex + iCnt);
996  }
997
998  AssVec(WorkVec);
999
1000  return WorkVec;
1001 }
VectorHandler::ResizeReset
virtual void ResizeReset(integer)
Definition: vh.cc:55
DeformableDispJoint::pNode1
const StructNode * pNode1
Definition: vehj2.h:46
SubVectorHandler::PutRowIndex
virtual void PutRowIndex(integer iSubRow, integer iRow)=0
StructDispNode::iGetFirstPositionIndex
virtual integer iGetFirstPositionIndex(void) const
Definition: strnode.h:452
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
ElasticDispJointInv::AssVec
void AssVec(SubVectorHandler &WorkVec)
Definition: vehj2.cc:1004
DeformableDispJoint::pNode2
const StructNode * pNode2
Definition: vehj2.h:47
Elem::WorkSpaceDim
virtual void WorkSpaceDim(integer *piNumRows, integer *piNumCols) const =0
integer
long int integer
Definition: colamd.c:51

Here is the call graph for this function:

void ElasticDispJointInv::AssVec ( SubVectorHandler &  WorkVec)
protected

Definition at line 1004 of file vehj2.cc.

References VectorHandler::Add(), DeformableDispJoint::bFirstRes, Eye3, DeformableDispJoint::F, ConstitutiveLawOwner< T, Tder >::GetF(), StructNode::GetRCurr(), StructNode::GetRRef(), StructDispNode::GetXCurr(), grad::Inv(), Mat3x3::MulTV(), DeformableDispJoint::pNode1, DeformableDispJoint::pNode2, RotManip::Rot(), VectorHandler::Sub(), DeformableDispJoint::tilde_d, DeformableDispJoint::tilde_f1, DeformableDispJoint::tilde_f2, DeformableDispJoint::tilde_R1h, DeformableDispJoint::tilde_R2h, ConstitutiveLawOwner< T, Tder >::Update(), and RotManip::VecRot().

Referenced by AssRes(), and InitialAssRes().

1005 {
1006  Mat3x3 R1h(pNode1->GetRRef()*tilde_R1h);
1007  Mat3x3 R2h(pNode2->GetRRef()*tilde_R2h);
1008  Vec3 ThetaCurr = RotManip::VecRot(R1h.MulTM(R2h));
1009  Mat3x3 tilde_R = RotManip::Rot(ThetaCurr/2.);
1010  Mat3x3 hat_R(R1h*tilde_R);
1011
1012  Mat3x3 hat_I = hat_R*((Eye3 + tilde_R).Inv()).MulMT(hat_R);
1013
1014  Vec3 f1(pNode1->GetRCurr()*tilde_f1);
1015  Vec3 f2(pNode2->GetRCurr()*tilde_f2);
1016  Vec3 d(pNode2->GetXCurr() + f2 - pNode1->GetXCurr() - f1);
1017
1018  if (bFirstRes) {
1019  bFirstRes = false;
1020
1021  } else {
1022  tilde_d = hat_R.MulTV(d);
1023
1024  ConstitutiveLaw3DOwner::Update(tilde_d);
1025  }
1026
1027  F = hat_R*GetF();
1028
1029  Vec3 dCrossF(d.Cross(F));
1030  WorkVec.Add(1, F);
1031  WorkVec.Add(4, f1.Cross(F) + hat_I*dCrossF);
1032  WorkVec.Sub(6 + 1, F);
1033  WorkVec.Sub(6 + 4, f2.Cross(F) - hat_I.MulTV(dCrossF));
1034 }
StructNode::GetRRef
virtual const Mat3x3 & GetRRef(void) const
Definition: strnode.h:1006
Vec3
Definition: matvec3.h:98
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
VectorHandler::Sub
virtual void Sub(integer iRow, const Vec3 &v)
Definition: vh.cc:78
Eye3
const Mat3x3 Eye3(1., 0., 0., 0., 1., 0., 0., 0., 1.)
DeformableDispJoint::pNode1
const StructNode * pNode1
Definition: vehj2.h:46
DeformableDispJoint::tilde_R2h
Mat3x3 tilde_R2h
Definition: vehj2.h:51
RotManip::VecRot
Vec3 VecRot(const Mat3x3 &Phi)
Definition: Rot.cc:136
Mat3x3::MulTV
Vec3 MulTV(const Vec3 &v) const
Definition: matvec3.cc:482
DeformableDispJoint::tilde_R1h
Mat3x3 tilde_R1h
Definition: vehj2.h:50
grad::Inv
Matrix< T, 2, 2 > Inv(const Matrix< T, 2, 2 > &A)
Definition: matvec.h:3282
RotManip::Rot
Mat3x3 Rot(const Vec3 &phi)
Definition: Rot.cc:62
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
VectorHandler::Add
virtual void Add(integer iRow, const Vec3 &v)
Definition: vh.cc:63
ConstitutiveLawOwner::GetF
const T & GetF(void) const
Definition: constltp.h:293
DeformableDispJoint::pNode2
const StructNode * pNode2
Definition: vehj2.h:47
ConstitutiveLawOwner::Update
void Update(const T &Eps, const T &EpsPrime=mb_zero< T >())
Definition: constltp.h:283

Here is the call graph for this function:

virtual ConstLawType::Type ElasticDispJointInv::GetConstLawType ( void  ) const
inlinevirtual

Implements DeformableDispJoint.

Definition at line 316 of file vehj2.h.

References ConstLawType::ELASTIC.

316  {
317  return ConstLawType::ELASTIC;
318  };
VariableSubMatrixHandler & ElasticDispJointInv::InitialAssJac ( VariableSubMatrixHandler &  WorkMat,
const VectorHandler &  XCurr
)
virtual

Implements SubjectToInitialAssembly.

Definition at line 1059 of file vehj2.cc.

References AssMats(), StructDispNode::iGetFirstPositionIndex(), InitialWorkSpaceDim(), DeformableDispJoint::pNode1, DeformableDispJoint::pNode2, FullSubMatrixHandler::PutColIndex(), FullSubMatrixHandler::PutRowIndex(), FullSubMatrixHandler::ResizeReset(), and VariableSubMatrixHandler::SetFull().

1061 {
1062  FullSubMatrixHandler& WM = WorkMat.SetFull();
1063
1064  /* Dimensiona e resetta la matrice di lavoro */
1065  integer iNumRows = 0;
1066  integer iNumCols = 0;
1067  InitialWorkSpaceDim(&iNumRows, &iNumCols);
1068  WM.ResizeReset(iNumRows, iNumCols);
1069
1070  /* Recupera gli indici */
1071  integer iNode1FirstPosIndex = pNode1->iGetFirstPositionIndex();
1072  integer iNode2FirstPosIndex = pNode2->iGetFirstPositionIndex();
1073
1074  /* Setta gli indici della matrice */
1075  for (int iCnt = 1; iCnt <= 6; iCnt++) {
1076  WM.PutRowIndex(iCnt, iNode1FirstPosIndex + iCnt);
1077  WM.PutColIndex(iCnt, iNode1FirstPosIndex + iCnt);
1078  WM.PutRowIndex(6 + iCnt, iNode2FirstPosIndex + iCnt);
1079  WM.PutColIndex(6 + iCnt, iNode2FirstPosIndex + iCnt);
1080  }
1081
1082  AssMats(WM, WM, 1.);
1083
1084  return WorkMat;
1085 }
FullSubMatrixHandler::PutColIndex
void PutColIndex(integer iSubCol, integer iCol)
Definition: submat.h:325
VariableSubMatrixHandler::SetFull
FullSubMatrixHandler & SetFull(void)
Definition: submat.h:1168
DeformableDispJoint::pNode1
const StructNode * pNode1
Definition: vehj2.h:46
StructDispNode::iGetFirstPositionIndex
virtual integer iGetFirstPositionIndex(void) const
Definition: strnode.h:452
FullSubMatrixHandler::ResizeReset
virtual void ResizeReset(integer, integer)
Definition: submat.cc:182
ElasticDispJointInv::InitialWorkSpaceDim
virtual void InitialWorkSpaceDim(integer *piNumRows, integer *piNumCols) const
Definition: vehj2.h:349
FullSubMatrixHandler::PutRowIndex
void PutRowIndex(integer iSubRow, integer iRow)
Definition: submat.h:311
DeformableDispJoint::pNode2
const StructNode * pNode2
Definition: vehj2.h:47
integer
long int integer
Definition: colamd.c:51
ElasticDispJointInv::AssMats
void AssMats(FullSubMatrixHandler &WMA, FullSubMatrixHandler &WMB, doublereal dCoef)
Definition: vehj2.cc:931

Here is the call graph for this function:

SubVectorHandler & ElasticDispJointInv::InitialAssRes ( SubVectorHandler &  WorkVec,
const VectorHandler &  XCurr
)
virtual

Implements SubjectToInitialAssembly.

Definition at line 1089 of file vehj2.cc.

References AssVec(), StructDispNode::iGetFirstPositionIndex(), InitialWorkSpaceDim(), DeformableDispJoint::pNode1, DeformableDispJoint::pNode2, SubVectorHandler::PutRowIndex(), and VectorHandler::ResizeReset().

1091 {
1092  /* Dimensiona e resetta la matrice di lavoro */
1093  integer iNumRows = 0;
1094  integer iNumCols = 0;
1095  InitialWorkSpaceDim(&iNumRows, &iNumCols);
1096  WorkVec.ResizeReset(iNumRows);
1097
1098  /* Recupera gli indici */
1099  integer iNode1FirstPosIndex = pNode1->iGetFirstPositionIndex();
1100  integer iNode2FirstPosIndex = pNode2->iGetFirstPositionIndex();
1101
1102  /* Setta gli indici della matrice */
1103  for (int iCnt = 1; iCnt <= 6; iCnt++) {
1104  WorkVec.PutRowIndex(iCnt, iNode1FirstPosIndex + iCnt);
1105  WorkVec.PutRowIndex(6 + iCnt, iNode2FirstPosIndex + iCnt);
1106  }
1107
1108  AssVec(WorkVec);
1109
1110  return WorkVec;
1111 }
VectorHandler::ResizeReset
virtual void ResizeReset(integer)
Definition: vh.cc:55
DeformableDispJoint::pNode1
const StructNode * pNode1
Definition: vehj2.h:46
SubVectorHandler::PutRowIndex
virtual void PutRowIndex(integer iSubRow, integer iRow)=0
StructDispNode::iGetFirstPositionIndex
virtual integer iGetFirstPositionIndex(void) const
Definition: strnode.h:452
ElasticDispJointInv::InitialWorkSpaceDim
virtual void InitialWorkSpaceDim(integer *piNumRows, integer *piNumCols) const
Definition: vehj2.h:349
ElasticDispJointInv::AssVec
void AssVec(SubVectorHandler &WorkVec)
Definition: vehj2.cc:1004
DeformableDispJoint::pNode2
const StructNode * pNode2
Definition: vehj2.h:47
integer
long int integer
Definition: colamd.c:51

Here is the call graph for this function:

virtual void ElasticDispJointInv::InitialWorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
inlinevirtual

Implements SubjectToInitialAssembly.

Definition at line 349 of file vehj2.h.

Referenced by InitialAssJac(), and InitialAssRes().

349  {
350  *piNumRows = 12;
351  *piNumCols = 12;
352  };
The documentation for this class was generated from the following files:
