Shell4EAS Class Reference

#include <shelleas.h>

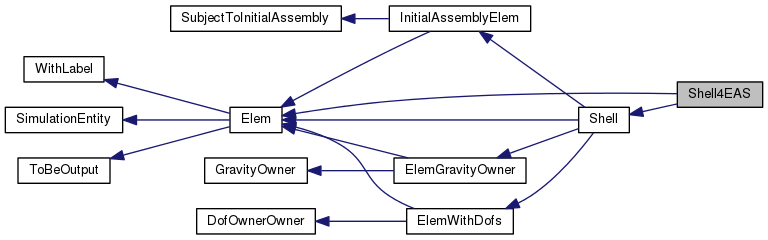

Inheritance diagram for Shell4EAS:
Inheritance graph
[legend]

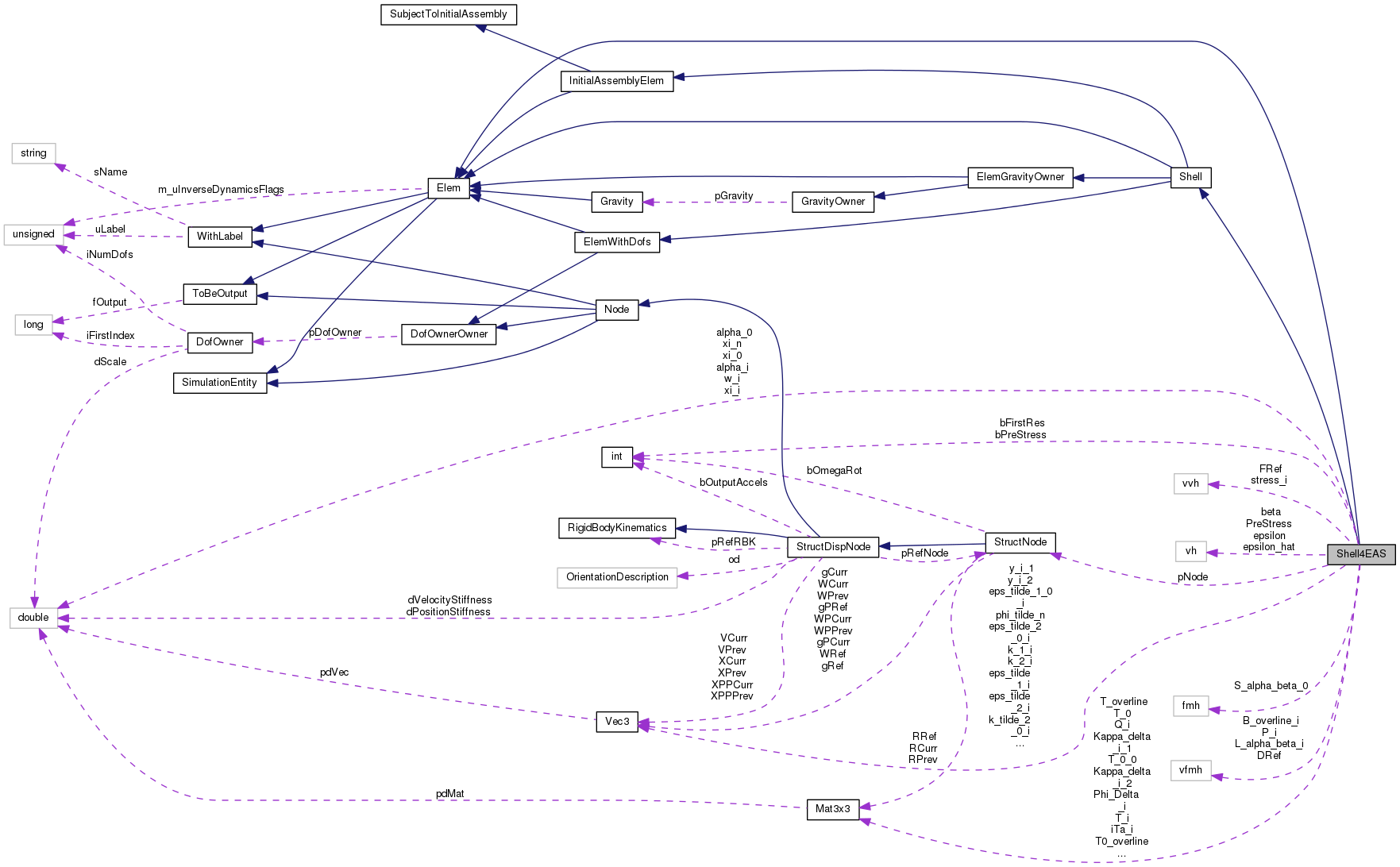

Collaboration diagram for Shell4EAS:
Collaboration graph
[legend]

Public Types

enum  IntegrationPoint {
  IP_1_1 = 0, IP_1_2 = 1, IP_1_3 = 2, IP_2_1 = 3,
  IP_2_2 = 4, IP_2_3 = 5, IP_3_1 = 6, IP_3_2 = 7,
  IP_3_3 = 8, NUMIP = 4
}

enum  ShearStrainEvaluationPoint { SSEP_1 = 0, SSEP_2 = 1, SSEP_3 = 2, SSEP_4 = 3 }

enum  NodeName {
  NODE1 = 0, NODE2 = 1, NODE3 = 2, NODE4 = 3,
  NUMNODES = 4
}

enum  Deformations { STRAIN = 0, CURVAT = 1, NUMDEFORM = 2 }

- Public Types inherited from Elem
enum  Type {
  UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL,
  GRAVITY, BODY, JOINT, JOINT_REGULARIZATION,
  BEAM, PLATE, FORCE, INERTIA,
  ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC,
  BULK, LOADABLE, DRIVEN, EXTERNAL,
  AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT,
  RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE
}

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Public Types inherited from Shell
enum  Type { UNKNOWN = -1, ELASTIC = 0, VISCOELASTIC, LASTSHELLTYPE }

typedef MyVectorHandler vh

typedef std::vector< vh > vvh

typedef FullMatrixHandler fmh

typedef std::vector< fmh > vfmh

typedef ConstitutiveLawOwner
< vh, fmh > 		ConstitutiveLawOwnerType


Public Member Functions

 Shell4EAS (unsigned int uL, const DofOwner *pDO, const StructNode *pN1, const StructNode *pN2, const StructNode *pN3, const StructNode *pN4, const Mat3x3 &R1, const Mat3x3 &R2, const Mat3x3 &R3, const Mat3x3 &R4, const fmh &pDTmp, const vh &PreStress, flag fOut)

virtual ~Shell4EAS (void)

virtual Shell::Type GetShellType (void) const

virtual unsigned int iGetNumDof (void) const

virtual DofOrder::Order GetDofType (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual std::ostream & Restart (std::ostream &out) const

virtual void WorkSpaceDim (integer *piNumRows, integer *piNumCols) const

void SetValue (DataManager *pDM, VectorHandler &, VectorHandler &, SimulationEntity::Hints *ph=0)

virtual SubVectorHandler & AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Output (OutputHandler &OH) const

virtual unsigned int iGetInitialNumDof (void) const

virtual void InitialWorkSpaceDim (integer *piNumRows, integer *piNumCols) const

virtual void SetInitialValue (VectorHandler &)

virtual VariableSubMatrixHandler & InitialAssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler & InitialAssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr)

virtual const StructNode * pGetNode (unsigned int i) const

virtual void GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

- Public Member Functions inherited from Elem
 Elem (unsigned int uL, flag fOut)

virtual ~Elem (void)

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual void AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual bool bInverseDynamics (void) const

void SetInverseDynamicsFlags (unsigned uIDF)

unsigned GetInverseDynamicsFlags (void) const

bool bIsErgonomy (void) const

bool bIsRightHandSide (void) const

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler & AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual int GetNumConnectedNodes (void) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual Hint * ParseHint (DataManager *pDM, const char *s) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))

- Public Member Functions inherited from Shell
 Shell (unsigned uLabel, const DofOwner *pDO, flag fOut)

virtual ~Shell (void)

virtual Elem::Type GetElemType (void) const

- Public Member Functions inherited from ElemGravityOwner
 ElemGravityOwner (unsigned int uL, flag fOut)

virtual ~ElemGravityOwner (void)

virtual doublereal dGetM (void) const

Vec3 GetS (void) const

Mat3x3 GetJ (void) const

Vec3 GetB (void) const

Vec3 GetG (void) const

- Public Member Functions inherited from GravityOwner
 GravityOwner (void)

virtual ~GravityOwner (void)

void PutGravity (const Gravity *pG)

virtual bool bGetGravity (const Vec3 &X, Vec3 &Acc) const

- Public Member Functions inherited from ElemWithDofs
 ElemWithDofs (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~ElemWithDofs (void)

- Public Member Functions inherited from DofOwnerOwner
 DofOwnerOwner (const DofOwner *pDO)

virtual ~DofOwnerOwner ()

virtual const DofOwner * pGetDofOwner (void) const

virtual integer iGetFirstIndex (void) const

- Public Member Functions inherited from InitialAssemblyElem
 InitialAssemblyElem (unsigned int uL, flag fOut)

virtual ~InitialAssemblyElem (void)

- Public Member Functions inherited from SubjectToInitialAssembly
 SubjectToInitialAssembly (void)

virtual ~SubjectToInitialAssembly (void)


Static Public Attributes

static doublereal xi_i [NUMIP][2]

static doublereal w_i [NUMIP]

static doublereal xi_n [NUMNODES][2]

static doublereal xi_0 [2] = {0., 0.}


Protected Member Functions

virtual void AddInternalForces (Vec6 &, unsigned int)

- Protected Member Functions inherited from ElemGravityOwner
virtual Vec3 GetS_int (void) const

virtual Mat3x3 GetJ_int (void) const

virtual Vec3 GetB_int (void) const

virtual Vec3 GetG_int (void) const


Protected Attributes

const StructNode * pNode [NUMNODES]

Vec3 xa_0 [NUMNODES]

Vec3 xa [NUMNODES]

Mat3x3 iTa [NUMNODES]

Mat3x3 iTa_i [NUMIP]

Vec3 phi_tilde_n [NUMNODES]

Vec3 phi_tilde_i [NUMIP]

Mat3x3 T0_overline

Mat3x3 T_overline

Mat3x3 T_0_0

Mat3x3 T_0_i [NUMIP]

Mat3x3 T_0

Mat3x3 T_i [NUMIP]

Mat3x3 Phi_Delta_i [NUMIP][NUMNODES]

Mat3x3 Kappa_delta_i_1 [NUMIP][NUMNODES]

Mat3x3 Kappa_delta_i_2 [NUMIP][NUMNODES]

Mat3x3 Q_i [NUMIP]

Vec3 k_1_i [NUMIP]

Vec3 k_2_i [NUMIP]

Vec3 eps_tilde_1_0_i [NUMIP]

Vec3 eps_tilde_2_0_i [NUMIP]

Vec3 eps_tilde_1_i [NUMIP]

Vec3 eps_tilde_2_i [NUMIP]

Vec3 k_tilde_1_0_i [NUMIP]

Vec3 k_tilde_2_0_i [NUMIP]

Vec3 k_tilde_1_i [NUMIP]

Vec3 k_tilde_2_i [NUMIP]

fmh S_alpha_beta_0

doublereal alpha_0

doublereal alpha_i [NUMIP]

vfmh L_alpha_beta_i

vfmh B_overline_i

vfmh P_i

Vec3 y_i_1 [NUMIP]

Vec3 y_i_2 [NUMIP]

vh beta

vh epsilon_hat

vh epsilon

vvh FRef

bool bPreStress

vh PreStress

vfmh DRef

vvh stress_i

bool bFirstRes

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput

- Protected Attributes inherited from GravityOwner
Gravity * pGravity


Private Member Functions

void UpdateNodalAndAveragePosAndOrientation ()

void ComputeInitialNodeAndIptOrientation ()

void InterpolateOrientation ()

void ComputeIPCurvature ()


Detailed Description

Definition at line 59 of file shelleas.h.

Member Enumeration Documentation

enum Shell4EAS::Deformations
Enumerator
STRAIN
CURVAT
NUMDEFORM

Definition at line 129 of file shelleas.h.

129  {
130  STRAIN = 0,
131  CURVAT = 1,
132
133  NUMDEFORM = 2
134  };
enum Shell4EAS::IntegrationPoint
Enumerator
IP_1_1
IP_1_2
IP_1_3
IP_2_1
IP_2_2
IP_2_3
IP_3_1
IP_3_2
IP_3_3
NUMIP

Definition at line 91 of file shelleas.h.

91  {
92  IP_1_1 = 0,
93  IP_1_2 = 1,
94  IP_1_3 = 2,
95  IP_2_1 = 3,
96  IP_2_2 = 4,
97  IP_2_3 = 5,
98  IP_3_1 = 6,
99  IP_3_2 = 7,
100  IP_3_3 = 8,
101
102  NUMIP = 4
103  };
enum Shell4EAS::NodeName
Enumerator
NODE1
NODE2
NODE3
NODE4
NUMNODES

Definition at line 116 of file shelleas.h.

116  {
117  NODE1 = 0,
118  NODE2 = 1,
119  NODE3 = 2,
120  NODE4 = 3,
121
122  NUMNODES = 4
123  };
enum Shell4EAS::ShearStrainEvaluationPoint
Enumerator
SSEP_1
SSEP_2
SSEP_3
SSEP_4

Definition at line 109 of file shelleas.h.

109  {
110  SSEP_1 = 0,
111  SSEP_2 = 1,
112  SSEP_3 = 2,
113  SSEP_4 = 3,
114  };

Constructor & Destructor Documentation

Shell4EAS::Shell4EAS ( unsigned int  uL,
const DofOwner *  pDO,
const StructNode *  pN1,
const StructNode *  pN2,
const StructNode *  pN3,
const StructNode *  pN4,
const Mat3x3 &  R1,
const Mat3x3 &  R2,
const Mat3x3 &  R3,
const Mat3x3 &  R4,
const fmh &  pDTmp,
const vh &  PreStress,
flag  fOut
)

Definition at line 215 of file shelleas.cc.

References a, alpha_0, alpha_i, ComputeInitialNodeAndIptOrientation(), ComputeIPCurvature(), DRef, eps_tilde_1_0_i, eps_tilde_2_0_i, Mat3x3::GetCol(), iGetNumDof(), k_1_i, k_2_i, k_tilde_1_0_i, k_tilde_2_0_i, L_alpha_beta_i, MatrixHandler::MatMatMul(), MatrixHandler::MatTMatMul(), Mat3x3::MulTV(), NODE1, NODE2, NODE3, NODE4, NUMIP, NUMNODES, P_i, pNode, S_alpha_beta_0, SAFENEWWITHCONSTRUCTOR, T0_overline, T_0, T_0_0, T_0_i, T_i, T_overline, xa, xa_0, xi_0, xi_i, y_i_1, and y_i_2.

232 :
233 Elem(uL, fOut),
234 Shell(uL, pDO, fOut),
235
236 S_alpha_beta_0(2, 2),
237
238 L_alpha_beta_i(NUMIP, fmh(4, 2) ),
239
240 B_overline_i(NUMIP, fmh(12, 24) ),
241
242 P_i(NUMIP, fmh(12, iGetNumDof()) ),
243
244 beta(iGetNumDof()),
245 epsilon_hat(12),
246 epsilon(12),
247
248 #ifndef USE_CL_IN_SHELL
249 bPreStress(PreStress.Norm() > 0.),
250 PreStress(PreStress),
251 #endif // ! USE_CL_IN_SHELL
252
253 DRef(NUMIP, fmh(12, 12)),
254 stress_i(NUMIP, vh(12))
255 {
256 #ifdef USE_CL_IN_SHELL
257  for (integer i = 0; i < NUMIP; i++) {
258  pD[i] = 0;
259  SAFENEWWITHCONSTRUCTOR(pD[i],
260  ConstitutiveLawOwnerType,
261  ConstitutiveLawOwnerType(pDTmp[i]));
262  }
263 #else // ! USE_CL_IN_SHELL
264  for (unsigned i = 0; i < NUMIP; i++) {
265  DRef[i] = pDTmp;
266  }
267 #endif // ! USE_CL_IN_SHELL
268
269  pNode[NODE1] = pN1;
270  pNode[NODE2] = pN2;
271  pNode[NODE3] = pN3;
272  pNode[NODE4] = pN4;
273 // f[NODE1] = f1;
274 // f[NODE2] = f2;
275 // f[NODE3] = f3;
276 // f[NODE4] = f4;
277  ComputeInitialNodeAndIptOrientation();
278 // UpdateNodalAndAveragePosAndOrientation();
279 // InterpolateOrientation();
280  // copy ref values
281  T0_overline = T_overline;
282  T_0_0 = T_0;
283  for (integer i = 0; i < NUMNODES; i++) {
284  xa_0[i] = xa[i];
285  }
286  for (integer i = 0; i < NUMIP; i++) {
287  T_0_i[i] = T_i[i];
288  }
289
290
291  fmh M_0(6, 6);
292  fmh M_0_Inv(6, 6);
293  {
294  Vec3 x_1 = InterpDeriv_xi1(xa, xi_0);
295  Vec3 x_2 = InterpDeriv_xi2(xa, xi_0);
296  S_alpha_beta_0(1, 1) = T_0_0.GetCol(1) * x_1;
297  S_alpha_beta_0(2, 1) = T_0_0.GetCol(2) * x_1;
298  S_alpha_beta_0(1, 2) = T_0_0.GetCol(1) * x_2;
299  S_alpha_beta_0(2, 2) = T_0_0.GetCol(2) * x_2;
300  alpha_0 = S_alpha_beta_0(1, 1) * S_alpha_beta_0(2, 2) -
301  S_alpha_beta_0(1, 2) * S_alpha_beta_0(2, 1);
302
303  M_0(1, 1) = S_alpha_beta_0(1, 1) * S_alpha_beta_0(1, 1);
304  M_0(1, 2) = S_alpha_beta_0(1, 2) * S_alpha_beta_0(1, 2);
305  M_0(1, 3) = S_alpha_beta_0(1, 2) * S_alpha_beta_0(1, 1);
306  M_0(1, 4) = S_alpha_beta_0(1, 1) * S_alpha_beta_0(1, 2);
307
308  M_0(2, 1) = S_alpha_beta_0(2, 1) * S_alpha_beta_0(2, 1);
309  M_0(2, 2) = S_alpha_beta_0(2, 2) * S_alpha_beta_0(2, 2);
310  M_0(2, 3) = S_alpha_beta_0(2, 2) * S_alpha_beta_0(2, 1);
311  M_0(2, 4) = S_alpha_beta_0(2, 1) * S_alpha_beta_0(2, 2);
312
313  M_0(3, 1) = S_alpha_beta_0(1, 1) * S_alpha_beta_0(2, 1);
314  M_0(3, 2) = S_alpha_beta_0(1, 2) * S_alpha_beta_0(2, 2);
315  M_0(3, 3) = S_alpha_beta_0(1, 1) * S_alpha_beta_0(2, 2);
316  M_0(3, 4) = S_alpha_beta_0(1, 2) * S_alpha_beta_0(2, 1);
317
318  M_0(4, 1) = S_alpha_beta_0(1, 1) * S_alpha_beta_0(2, 1);
319  M_0(4, 2) = S_alpha_beta_0(1, 2) * S_alpha_beta_0(2, 2);
320  M_0(4, 3) = S_alpha_beta_0(1, 2) * S_alpha_beta_0(2, 1);
321  M_0(4, 4) = S_alpha_beta_0(1, 1) * S_alpha_beta_0(2, 2);
322
323  M_0(5, 5) = S_alpha_beta_0(1, 1);
324  M_0(5, 6) = S_alpha_beta_0(1, 2);
325  M_0(6, 5) = S_alpha_beta_0(2, 1);
326  M_0(6, 6) = S_alpha_beta_0(2, 2);
327
328  InvBlockDiagonal4_2x4_2(M_0, M_0_Inv);
329  }
330
331  for (integer i = 0; i < NUMIP; i++) {
332  fmh L_alpha_B_i(4, 2);
333  fmh S_alpha_beta_i(2, 2);
334  Vec3 x_1 = InterpDeriv_xi1(xa, xi_i[i]);
335  Vec3 x_2 = InterpDeriv_xi2(xa, xi_i[i]);
336  S_alpha_beta_i(1, 1) = T_0_i[i].GetCol(1) * x_1;
337  S_alpha_beta_i(2, 1) = T_0_i[i].GetCol(2) * x_1;
338  S_alpha_beta_i(1, 2) = T_0_i[i].GetCol(1) * x_2;
339  S_alpha_beta_i(2, 2) = T_0_i[i].GetCol(2) * x_2;
340  // alpha_i = det(S_alpha_beta_i)
341  alpha_i[i] = S_alpha_beta_i(1, 1) * S_alpha_beta_i(2, 2) -
342  S_alpha_beta_i(1, 2) * S_alpha_beta_i(2, 1);
343
344  // xi_i_i = S_alpha_beta_i^{-1}
345  FullMatrixHandler xi_i_i(2, 2);
346  Inv2x2(S_alpha_beta_i, xi_i_i);
347
348  for (integer n = 0; n < NUMNODES; n++) {
349  for (integer ii = 0; ii < 2; ii++) {
350  L_alpha_B_i(n + 1, ii + 1) = LI_J[n][ii](xi_i[i]);
351  }
352  }
353
354  L_alpha_B_i.MatMatMul(L_alpha_beta_i[i], xi_i_i);
355
356  fmh H(6, iGetNumDof());
357  doublereal t = xi_i[i][0] * xi_i[i][1];
358  H(1, 1) = xi_i[i][0];
359  H(1, 2) = t;
360
361  H(2, 3) = xi_i[i][1];
362  H(2, 4) = t;
363
364  H(3, 5) = xi_i[i][0];
365  H(3, 6) = t;
366
367  H(4, 7) = xi_i[i][1];
368  H(4, 6) = t;
369
370  doublereal a = 2. * xi_i[i][0] * (xi_i[i][1] * xi_i[i][1] - 1.);
371  doublereal b = 2. * xi_i[i][1] * (xi_i[i][0] * xi_i[i][0] - 1.);
372  H(5, 8) = a;
373  H(5, 9) = b;
374  H(5, 10) = a * b;
375  H(6, 11) = b;
376  H(6, 12) = a;
377  H(6, 13) = a * b;
378 // doublereal a = 2. * xi_i[i][0] * (xi_i[i][1] * xi_i[i][1] - 1.);
379 // doublereal b = 2. * xi_i[i][1] * (xi_i[i][0] * xi_i[i][0] - 1.);
380 // H(5, 9) = a;
381 // H(5, 10) = b;
382 // H(5, 11) = a * b;
383 // H(6, 12) = b;
384 // H(6, 13) = a;
385 // H(6, 14) = a * b;
386  fmh Perm(12, 6), tmpP(6, iGetNumDof());
387  // 1, 5, 4, 2, 3, 6
388  Perm(1, 1) = 1.;
389  Perm(2, 3) = 1.;
390  Perm(3, 5) = 1.;
391  Perm(4, 4) = 1.;
392  Perm(5, 2) = 1.;
393  Perm(6, 6) = 1.;
394
395  M_0_Inv.MatTMatMul(tmpP, H);
396  Perm.MatMatMul(P_i[i], tmpP);
397  P_i[i].ScalarMul(alpha_0 / alpha_i[i]);
398  }
399  // save initial axial values
400  ComputeIPCurvature();
401  for (integer i = 0; i < NUMIP; i++) {
402  InterpDeriv(xa, L_alpha_beta_i[i], y_i_1[i], y_i_2[i]);
403  eps_tilde_1_0_i[i] = T_i[i].MulTV(y_i_1[i]);
404  eps_tilde_2_0_i[i] = T_i[i].MulTV(y_i_2[i]);
405  k_tilde_1_0_i[i] = T_i[i].MulTV(k_1_i[i]);
406  k_tilde_2_0_i[i] = T_i[i].MulTV(k_2_i[i]);
407  }
408 }
Shell4EAS::T_overline
Mat3x3 T_overline
Definition: shelleas.h:161
Shell4EAS::ComputeInitialNodeAndIptOrientation
void ComputeInitialNodeAndIptOrientation()
Definition: shelleas.cc:123
Shell4EAS::P_i
vfmh P_i
Definition: shelleas.h:230
Shell4EAS::S_alpha_beta_0
fmh S_alpha_beta_0
Definition: shelleas.h:223
Shell4EAS::epsilon_hat
vh epsilon_hat
Definition: shelleas.h:236
Shell4EAS::y_i_1
Vec3 y_i_1[NUMIP]
Definition: shelleas.h:232
Vec3
Definition: matvec3.h:98
Shell4EAS::T_0_i
Mat3x3 T_0_i[NUMIP]
Definition: shelleas.h:166
Shell4EAS::xi_i
static doublereal xi_i[NUMIP][2]
Definition: shelleas.h:105
Shell4EAS::y_i_2
Vec3 y_i_2[NUMIP]
Definition: shelleas.h:233
Shell4EAS::bPreStress
bool bPreStress
Definition: shelleas.h:244
Shell4EAS::L_alpha_beta_i
vfmh L_alpha_beta_i
Definition: shelleas.h:226
Shell4EAS::stress_i
vvh stress_i
Definition: shelleas.h:252
Mat3x3::GetCol
Vec3 GetCol(unsigned short int i) const
Definition: matvec3.h:903
Shell4EAS::T0_overline
Mat3x3 T0_overline
Definition: shelleas.h:159
Shell::Shell
Shell(unsigned uLabel, const DofOwner *pDO, flag fOut)
Definition: shell.cc:47
Shell4EAS::ComputeIPCurvature
void ComputeIPCurvature()
Definition: shelleas.cc:191
Shell4EAS::xi_0
static doublereal xi_0[2]
Definition: shelleas.h:127
Shell4EAS::eps_tilde_1_0_i
Vec3 eps_tilde_1_0_i[NUMIP]
Definition: shelleas.h:191
VectorHandler::Norm
virtual doublereal Norm(void) const
Definition: vh.cc:262
Shell4EAS::alpha_i
doublereal alpha_i[NUMIP]
Definition: shelleas.h:225
Mat3x3::MulTV
Vec3 MulTV(const Vec3 &v) const
Definition: matvec3.cc:482
Shell4EAS::T_i
Mat3x3 T_i[NUMIP]
Definition: shelleas.h:169
Shell4EAS::iGetNumDof
virtual unsigned int iGetNumDof(void) const
Definition: shelleas.h:297
Shell4EAS::DRef
vfmh DRef
Definition: shelleas.h:249
Shell4EAS::k_tilde_1_0_i
Vec3 k_tilde_1_0_i[NUMIP]
Definition: shelleas.h:199
Shell4EAS::xa
Vec3 xa[NUMNODES]
Definition: shelleas.h:148
Shell4EAS::alpha_0
doublereal alpha_0
Definition: shelleas.h:224
Shell4EAS::k_1_i
Vec3 k_1_i[NUMIP]
Definition: shelleas.h:184
Shell4EAS::epsilon
vh epsilon
Definition: shelleas.h:237
Shell4EAS::PreStress
vh PreStress
Definition: shelleas.h:245
SAFENEWWITHCONSTRUCTOR
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698
Shell4EAS::eps_tilde_2_0_i
Vec3 eps_tilde_2_0_i[NUMIP]
Definition: shelleas.h:192
Shell4EAS::B_overline_i
vfmh B_overline_i
Definition: shelleas.h:228
Shell4EAS::xa_0
Vec3 xa_0[NUMNODES]
Definition: shelleas.h:147
a
static const doublereal a
Definition: hfluid_.h:289
Shell::fmh
FullMatrixHandler fmh
Definition: shell.h:82
Shell4EAS::T_0_0
Mat3x3 T_0_0
Definition: shelleas.h:165
Elem::Elem
Elem(unsigned int uL, flag fOut)
Definition: elem.cc:41
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51
Shell4EAS::pNode
const StructNode * pNode[NUMNODES]
Definition: shelleas.h:138
Shell4EAS::T_0
Mat3x3 T_0
Definition: shelleas.h:168
Shell4EAS::k_2_i
Vec3 k_2_i[NUMIP]
Definition: shelleas.h:185
Shell::ConstitutiveLawOwnerType
ConstitutiveLawOwner< vh, fmh > ConstitutiveLawOwnerType
Definition: shell.h:84
Shell4EAS::k_tilde_2_0_i
Vec3 k_tilde_2_0_i[NUMIP]
Definition: shelleas.h:200
Shell::vh
MyVectorHandler vh
Definition: shell.h:80

Here is the call graph for this function:

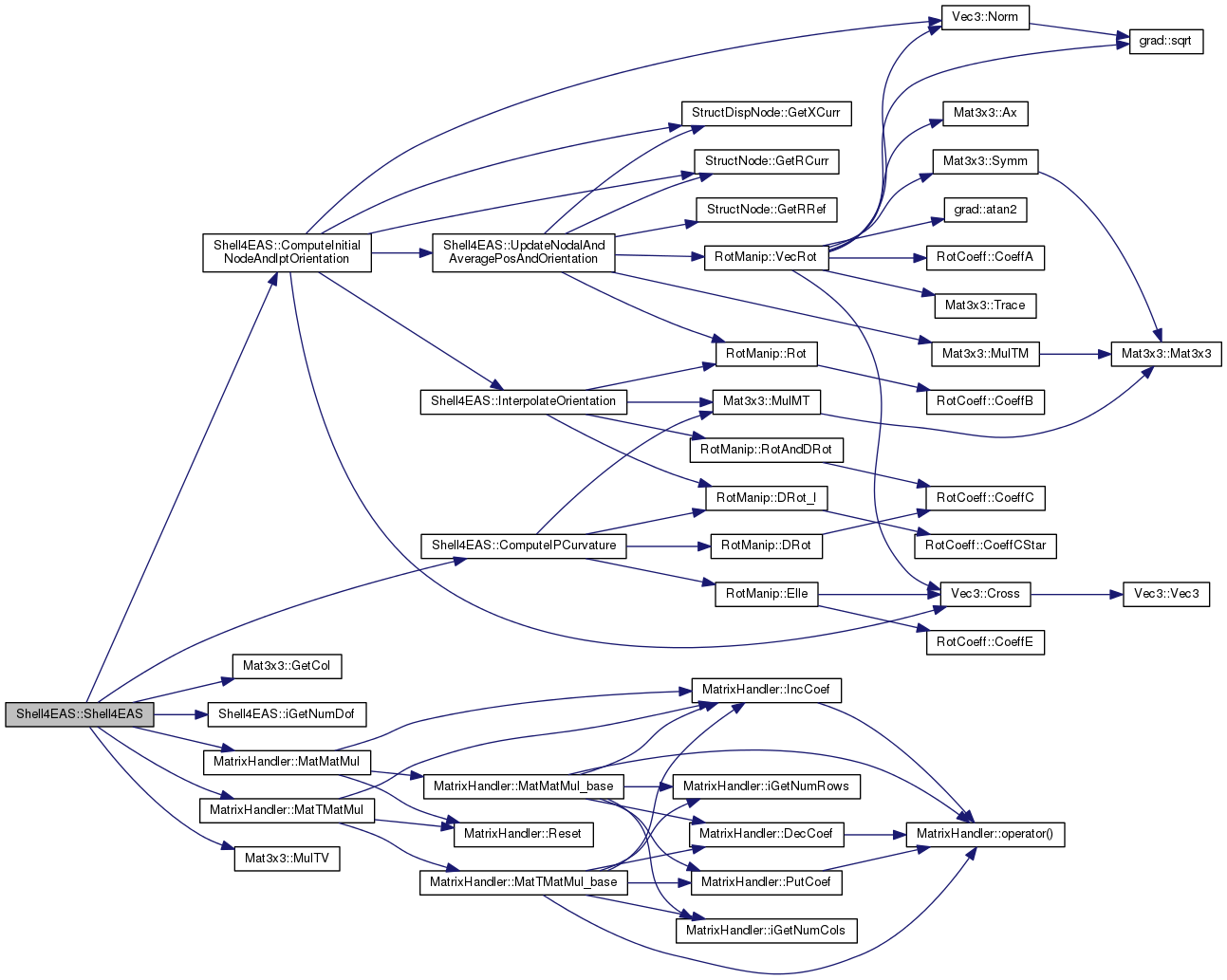

Shell4EAS::~Shell4EAS ( void  )
virtual

Definition at line 410 of file shelleas.cc.

References ASSERT, NUMIP, and SAFEDELETE.

411 {
412 #ifdef USE_CL_IN_SHELL
413  for (integer i = 0; i < NUMIP; i++) {
414  ASSERT(pD[i] != 0);
415  if (pD[i] != 0) {
416  SAFEDELETE(pD[i]);
417  }
418  }
419 #endif // USE_CL_IN_SHELL
420 }
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
integer
long int integer
Definition: colamd.c:51
SAFEDELETE
#define SAFEDELETE(pnt)
Definition: mynewmem.h:710

Member Function Documentation

virtual void Shell4EAS::AddInternalForces ( Vec6 &  ,
unsigned  int
)
inlineprotectedvirtual

Definition at line 260 of file shelleas.h.

References NO_OP.

260  {
261  NO_OP;
262  };
NO_OP
#define NO_OP
Definition: myassert.h:74

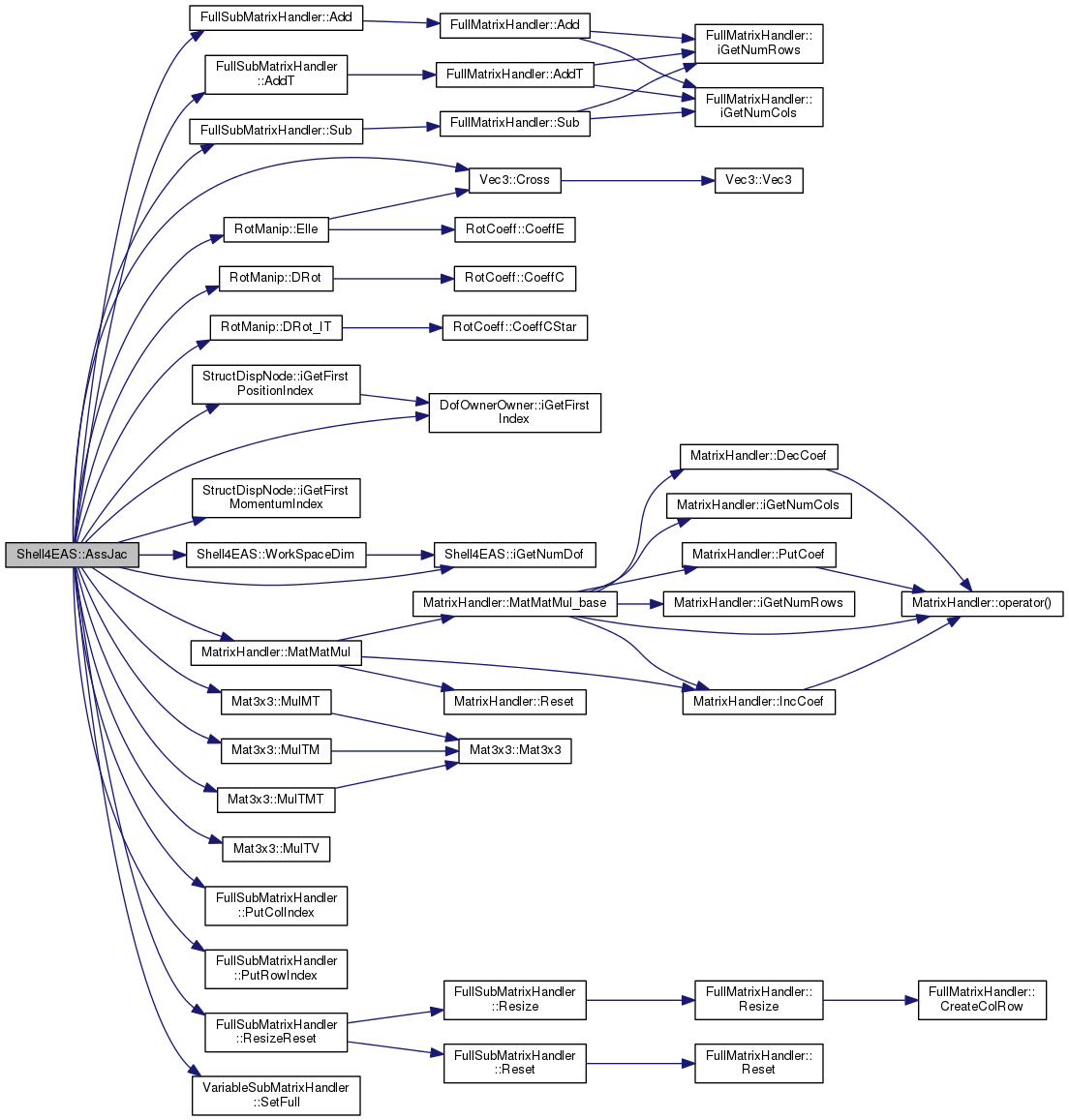

VariableSubMatrixHandler & Shell4EAS::AssJac ( VariableSubMatrixHandler &  WorkMat,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 545 of file shelleas.cc.

References FullSubMatrixHandler::Add(), FullSubMatrixHandler::AddT(), alpha_i, B_overline_i, Vec3::Cross(), DRef, RotManip::DRot(), RotManip::DRot_IT(), RotManip::Elle(), DofOwnerOwner::iGetFirstIndex(), StructDispNode::iGetFirstMomentumIndex(), StructDispNode::iGetFirstPositionIndex(), iGetNumDof(), k_1_i, k_2_i, Kappa_delta_i_1, Kappa_delta_i_2, L_alpha_beta_i, MatCross, MatrixHandler::MatMatMul(), Mat3x3::MulMT(), Mat3x3::MulTM(), Mat3x3::MulTMT(), Mat3x3::MulTV(), NUMIP, NUMNODES, P_i, Phi_Delta_i, phi_tilde_i, phi_tilde_n, pNode, FullSubMatrixHandler::PutColIndex(), FullSubMatrixHandler::PutRowIndex(), FullSubMatrixHandler::ResizeReset(), VariableSubMatrixHandler::SetFull(), stress_i, FullSubMatrixHandler::Sub(), T_i, T_overline, w_i, WorkSpaceDim(), xi_i, y_i_1, and y_i_2.

549 {
550  FullSubMatrixHandler& WM = WorkMat.SetFull();
551
552  /* Dimensiona e resetta la matrice di lavoro */
553  integer iNumRows = 0;
554  integer iNumCols = 0;
555  WorkSpaceDim(&iNumRows, &iNumCols);
556  WM.ResizeReset(iNumRows, iNumCols);
557
558  /* Recupera e setta gli indici */
559  integer iFirstReactionIndex = iGetFirstIndex();
560  for (integer i = 0; i < 4; i++) {
561  integer iNodeFirstMomIndex = pNode[i]->iGetFirstMomentumIndex();
562  integer iNodeFirstPosIndex = pNode[i]->iGetFirstPositionIndex();
563  for (int iCnt = 1; iCnt <= 6; iCnt++) {
564  WM.PutRowIndex(iCnt + 6 * i, iNodeFirstMomIndex + iCnt);
565  WM.PutColIndex(iCnt + 6 * i, iNodeFirstPosIndex + iCnt);
566  }
567  }
568  for (unsigned int iCnt = 1; iCnt <= iGetNumDof(); iCnt++) {
569  WM.PutRowIndex(24 + iCnt, iFirstReactionIndex + iCnt);
570  WM.PutColIndex(24 + iCnt, iFirstReactionIndex + iCnt);
571  }
572
573
578 // for (integer ip = 0; ip < NUMIP; ip++) {
579 // /* Finite difference check of B_overline matrix */
580 // Vec3 eps1, eps2, k1, k2, y1, y2;
581 //
582 // fmh B_overline_base(12, 24);
583 // B_overline_base = B_overline_i[ip];
584 // fmh pippo(12, 24);
585 // fmh pippodiff(12, 24);
586 //
587 // MyVectorHandler basedef(12);
588 // MyVectorHandler incdef(12);
589 //
590 // MyVectorHandler inc(50);
591 // MyVectorHandler xprime(50);
592 // inc.Reset();
593 // xprime.Reset();
594 //
595 // std::cerr << "----------- B_overline[" << ip << "]-----------" << std::endl;
596 // doublereal ddd = 0.000001;
597 // doublereal maxdiff = 0.;
598 // std::cerr << "\nxxxxxxxxxxxxxxx\n" << std::endl;
599 // std::cerr << std::fixed << std::setprecision(6) << B_overline_i[ip] << std::endl;
600 // for (integer n = 0; n < NUMNODES; n++) {
601 // Vec3 xbase = xa[n];
602 // Mat3x3 RDelta = pNode[n]->GetRCurr().MulMT(pNode[n]->GetRRef());
603 // Vec3 gbase(CGR_Rot::Param, RDelta);
604 // for (integer gdl = 1; gdl <= 3; gdl ++) {
605 // inc.PutCoef(pNode[n]->iGetFirstIndex() + 0 + gdl, xbase(gdl));
606 // inc.PutCoef(pNode[n]->iGetFirstIndex() + 3 + gdl, gbase(gdl));
607 // }
608 // }
609 //
610 // for (integer n = 0; n < NUMNODES; n++) {
611 // for (integer gdl = 1; gdl <= 6; gdl ++) {
612 // if (n == 1 && gdl == 1) {
613 // std::cerr << "Eccomi!\n";
614 // for (integer nn=0; nn < 4; nn++) {
615 // std::cerr << std::setprecision(12) << "node " << nn
616 // << " " << xa[nn] << "\n";
617 // }
618 // std::cerr << std::setprecision(12) << "etilde 1 " << eps_tilde_1_i[ip] << "\n";
619 // std::cerr << std::setprecision(12) << "etilde 2 " << eps_tilde_2_i[ip] << "\n";
620 // std::cerr << std::setprecision(12) << "y_i_1 " << y_i_1[ip] << "\n";
621 // std::cerr << std::setprecision(12) << "y_i_2 " << y_i_2[ip] << "\n";
622 // std::cerr << std::setprecision(12) << "T y_i_1 " << T_i[ip].MulTV(y_i_1[ip]) << "\n";
623 // std::cerr << std::setprecision(12) << "T y_i_2 " << T_i[ip].MulTV(y_i_2[ip]) << "\n";
624 // std::cerr << std::setprecision(12) << "T " << T_i[ip] << "\n";
625 // }
626 // doublereal saved_value = inc(pNode[n]->iGetFirstIndex() + gdl);
627 // inc.IncCoef(pNode[n]->iGetFirstIndex() + gdl, ddd);
628 // const_cast<StructNode*>(pNode[n])->Update(inc, xprime);
629 // UpdateNodalAndAveragePosAndOrientation();
630 // InterpolateOrientation();
631 // ComputeIPCurvature();
632 // InterpDeriv(xa, L_alpha_beta_i[ip], y1, y2);
633 // eps1 = T_i[ip].MulTV(y1) - Vec3(1., 0., 0.);
634 // eps2 = T_i[ip].MulTV(y2) - Vec3(0., 1., 0.);
635 // k1 = T_i[ip].MulTV(k_1_i[ip]) - T_0_i[ip].MulTV(k_1_0_i[ip]);
636 // k2 = T_i[ip].MulTV(k_2_i[ip]) - T_0_i[ip].MulTV(k_2_0_i[ip]);
637 // if (n == 1 && gdl == 1) {
638 // std::cerr << std::setprecision(12) << "e1 " << eps1 << "\n";
639 // std::cerr << std::setprecision(12) << "e2 " << eps2 << "\n";
640 // std::cerr << std::setprecision(12) << "y1 " << y1 << "\n";
641 // std::cerr << std::setprecision(12) << "y2 " << y2 << "\n";
642 // std::cerr << std::setprecision(12) << "T y_1 " << T_i[ip].MulTV(y1) << "\n";
643 // std::cerr << std::setprecision(12) << "T y_2 " << T_i[ip].MulTV(y2) << "\n";
644 // std::cerr << std::setprecision(12) << T_i[ip] << "\n";
645 // std::cerr << ",,,,,,,,,,,,,,,,,\n";
646 //
647 // }
648 // // Backup changes
649 // inc.PutCoef(pNode[n]->iGetFirstPositionIndex() + gdl, saved_value);
650 // const_cast<StructNode*>(pNode[n])->Update(inc, xprime);
651 // UpdateNodalAndAveragePosAndOrientation();
652 // InterpolateOrientation();
653 // ComputeIPCurvature();
654 // InterpDeriv(xa, L_alpha_beta_i[ip], y1, y2);
655 // for (integer comp = 1; comp <= 3; comp++) {
656 // doublereal d1 = (eps1(comp) - eps_tilde_1_i[ip](comp)) / ddd;
657 // doublereal d2 = (eps2(comp) - eps_tilde_2_i[ip](comp)) / ddd;
658 // doublereal d3 = (k1(comp) - k_tilde_1_i[ip](comp)) / ddd;
659 // doublereal d4 = (k2(comp) - k_tilde_2_i[ip](comp)) / ddd;
660 // d1 = std::abs(d1) > 1.E-100 ? d1 : 0.;
661 // d2 = std::abs(d2) > 1.E-100 ? d2 : 0.;
662 // d3 = std::abs(d3) > 1.E-100 ? d3 : 0.;
663 // d4 = std::abs(d4) > 1.E-100 ? d4 : 0.;
664 // pippo( comp, gdl + 6 * n) = d1;
665 // pippo(3 + comp, gdl + 6 * n) = d2;
666 // pippo(6 + comp, gdl + 6 * n) = d3;
667 // pippo(9 + comp, gdl + 6 * n) = d4;
668 //
669 // pippodiff(comp, gdl + 6 * n) =
670 // std::abs(pippo(comp, gdl + 6 * n) -
671 // B_overline_i[ip](comp, gdl + 6 * n)) > 1.E-30?
672 // pippo(comp, gdl + 6 * n) -
673 // B_overline_i[ip](comp, gdl + 6 * n) : 0.;
674 // pippodiff(3 + comp, gdl + 6 * n) =
675 // std::abs(pippo(3 + comp, gdl + 6 * n) -
676 // B_overline_i[ip](3 + comp, gdl + 6 * n) ) > 1.E-30?
677 // pippo(3 + comp, gdl + 6 * n) -
678 // B_overline_i[ip](3 + comp, gdl + 6 * n) : 0.;
679 // pippodiff(6 + comp, gdl + 6 * n) =
680 // std::abs(pippo(6 + comp, gdl + 6 * n) -
681 // B_overline_i[ip](6 + comp, gdl + 6 * n)) > 1.E-30?
682 // pippo(6 + comp, gdl + 6 * n) -
683 // B_overline_i[ip](6 + comp, gdl + 6 * n) : 0.;
684 // pippodiff(9 + comp, gdl + 6 * n) =
685 // std::abs(pippo(9 + comp, gdl + 6 * n) -
686 // B_overline_i[ip](9 + comp, gdl + 6 * n)) > 1.E-30?
687 // pippo(9 + comp, gdl + 6 * n) -
688 // B_overline_i[ip](9 + comp, gdl + 6 * n) : 0.;
689 // maxdiff = std::max(maxdiff, std::abs(pippodiff(0 + comp, gdl + 6 * n)));
690 // maxdiff = std::max(maxdiff, std::abs(pippodiff(3 + comp, gdl + 6 * n)));
691 // maxdiff = std::max(maxdiff, std::abs(pippodiff(6 + comp, gdl + 6 * n)));
692 // maxdiff = std::max(maxdiff, std::abs(pippodiff(9 + comp, gdl + 6 * n)));
693 // }
694 // }
695 // // check rotation linearization
696 // for (integer gdl = 4; gdl <= 6; gdl ++) {
697 // //Mat3x3 RDelta = pNode[n]->GetRCurr().MulMT(pNode[n]->GetRRef());
698 // //Mat3x3 Gamma = RotManip::DRot(RotManip::VecRot(RDelta));
699 // Mat3x3 Gamma = Mat3x3(CGR_Rot::MatG, pNode[n]->GetgCurr());
700 // doublereal saved_value = inc(pNode[n]->iGetFirstIndex() + gdl);
701 // Mat3x3 SavedT = T_i[ip];
702 // inc.IncCoef(pNode[n]->iGetFirstIndex() + gdl, ddd);
703 // const_cast<StructNode*>(pNode[n])->Update(inc, xprime);
704 // UpdateNodalAndAveragePosAndOrientation();
705 // InterpolateOrientation();
706 // ComputeIPCurvature();
707 // Vec3 phi_delta = ((T_i[ip]-SavedT).MulMT(SavedT)).Ax() / ddd;
708 // // Backup changes
709 // inc.PutCoef(pNode[n]->iGetFirstPositionIndex() + gdl, saved_value);
710 // const_cast<StructNode*>(pNode[n])->Update(inc, xprime);
711 // UpdateNodalAndAveragePosAndOrientation();
712 // InterpolateOrientation();
713 // ComputeIPCurvature();
714 // InterpDeriv(xa, L_alpha_beta_i[ip], y1, y2);
715 // std::cerr << std::fixed << std::setprecision(12) << "gdl "
716 // << gdl << " " << phi_delta << " ; "
717 // << (Phi_Delta_i[ip][n] * Gamma ).GetCol(gdl - 3) * LI[n](xi_i[ip]) << "\n";
718 // }
719 // }
720 // // for (integer j = 1; j <= pJac->iGetNumCols(); j++) {
721 // // pippo.PutCoef(j, i,
722 // // std::abs(incsol(j)) >
723 // // 1.E-100?incsol(j):0.);
724 // // pippodiff.PutCoef(j, i,
725 // // std::abs(pippo(j,i)-pJac->operator()(j,i)) >
726 // // 1.E-30?pippo(j,i)-pJac->operator()(j,i):0.);
727 // // maxdiff = std::max(maxdiff, std::abs(pippodiff(j, i)));
728 // // // use finite difference Jacobian matrix
729 // // pJac->PutCoef(j, i, incsol(j));
730 // // }
731 // std::cerr << "\n---------------\n" << std::endl;
732 // std::cerr << std::fixed << std::setprecision(6) << pippo << std::endl;
733 // std::cerr << "\n===============\n" << std::endl;
734 // std::cerr << std::fixed << std::setprecision(6) << pippodiff << std::endl;
735 // std::cerr << "\nZZZZZZZZZZZZZZZ\n" << std::endl;
736 // std::cerr << "MAXDIFF: " << std::fixed << std::setprecision(12) << maxdiff << std::endl;
737 // std::cerr << "\nXXXXXXXXXXXXXXX\n" << std::endl;
738 //
739 // }
744
745
746
747
748
749
750  // tangente
751
752  FullMatrixHandler Km(24, 24);
753  FullMatrixHandler K_beta_q(iGetNumDof(), 24);
754  FullMatrixHandler K_beta_beta(iGetNumDof(), iGetNumDof());
755
756  FullMatrixHandler Ktm(24, 12);
757 // FullMatrixHandler Kttm(24, 24);
758
759  FullMatrixHandler Ktbetaq(iGetNumDof(), 12);
760
761  FullMatrixHandler C(12, 12);
762  for (integer i = 0; i < NUMIP; i++) {
763
764 #ifdef USE_CL_IN_SHELL
765  C = pD[i]->GetFDE();
766 #else // ! USE_CL_IN_SHELL
767  C = DRef[i];
768 #endif // ! USE_CL_IN_SHELL
769
770  B_overline_i[i].MatTMatMul(Ktm, C);
771 // B_overline_i[i].MatTMatMul(Ktm, C);
772 // FullMatrixHandler Gamma(24, 24);
773 // for (integer n = 0; n < NUMNODES; n++) {
774 // Mat3x3 nGamma = Mat3x3(CGR_Rot::MatG, pNode[n]->GetgCurr());
775 // InsertMatrix(Gamma, 1 + 6 * n, 1 + 6 * n, Mat3x3(1.));
776 // InsertMatrix(Gamma, 4 + 6 * n, 4 + 6 * n, nGamma);
777 // InsertMatrix(Gamma, 4 + 6 * n, 4 + 6 * n, Mat3x3(1.));
778 // }
779
780
781  Ktm.MatMatMul(Km, B_overline_i[i]);
782 // Ktm.MatMatMul(Kttm, B_overline_i[i]);
783 // Kttm.MatMatMul(Km, Gamma);
784
785  P_i[i].MatTMatMul(Ktbetaq, C);
786  Ktbetaq.MatMatMul(K_beta_q, B_overline_i[i]);
787
788  Ktbetaq.MatMatMul(K_beta_beta, P_i[i]);
789
790
791 // {
792 // Vec3 n1, n2, m1, m2;
793 // ExtractVec3(n1, stress_i[i], 1);
794 // ExtractVec3(n2, stress_i[i], 4);
795 // ExtractVec3(m1, stress_i[i], 7);
796 // ExtractVec3(m2, stress_i[i], 10);
797 // n1(3) = 0.;
798 // n2(3) = 0.;
799 //
800 // Vec3 Tn1 = T_i[i] * n1;
801 // Vec3 Tn2 = T_i[i] * n2;
802 // Vec3 Tm1 = T_i[i] * m1;
803 // Vec3 Tm2 = T_i[i] * m2;
804 // for (int n = 0; n < NUMNODES; n++) {
805 // for (int m = 0; m < NUMNODES; m++) {
806 // // forze
807 // WM.Add(4 + 6 * n, 4 + 6 * m,
808 // // 1
809 // Phi_Delta_i[i][n].MulTM(Mat3x3(y_i_1[i])) *
810 // Mat3x3(Tn1) * Phi_Delta_i[i][m] *
811 // LI[m](xi_i[i]) * LI[n](xi_i[i])
812 // * alpha_i[i] * w_i[i] * dCoef
813 // +
814 // // 2
815 // Phi_Delta_i[i][n].MulTM(Mat3x3(y_i_2[i])) *
816 // Mat3x3(Tn2) * Phi_Delta_i[i][m] *
817 // LI[m](xi_i[i]) * LI[n](xi_i[i])
818 // * alpha_i[i] * w_i[i] * dCoef
819 // );
820 // WM.Add(4 + 6 * n, 1 + 6 * m,
821 // // 1
822 // Phi_Delta_i[i][n].MulTM(Mat3x3(Tn1)) *
823 // L_alpha_beta_i[i](m + 1, 1) * LI[n](xi_i[i])
824 // * alpha_i[i] * w_i[i] * dCoef
825 // +
826 // // 2
827 // Phi_Delta_i[i][n].MulTM(Mat3x3(Tn2)) *
828 // L_alpha_beta_i[i](m + 1, 2) * LI[n](xi_i[i])
829 // * alpha_i[i] * w_i[i] * dCoef
830 // );
831 // WM.Sub(1 + 6 * n, 4 + 6 * m,
832 // // 1
833 // Mat3x3(Tn1) * Phi_Delta_i[i][m] *
834 // LI[m](xi_i[i]) * L_alpha_beta_i[i](n + 1, 1)
835 // * alpha_i[i] * w_i[i] * dCoef
836 // +
837 // // 2
838 // Mat3x3(Tn2) * Phi_Delta_i[i][m] *
839 // LI[m](xi_i[i]) * L_alpha_beta_i[i](n + 1, 2)
840 // * alpha_i[i] * w_i[i] * dCoef
841 // );
842 // // pezzo in Elle
843 // WM.Add(4 + 6 * n, 4 + 6 * m,
844 // // 1
845 // -Phi_Delta_i[i][n] *
846 // RotManip::Elle(
847 // -phi_tilde_i[i],
848 // T_overline * (Tn1 * Mat3x3(y_i_1[i]))
849 // ) * Phi_Delta_i[i][m]
850 // * LI[n](xi_i[i]) * LI[m](xi_i[i])
851 // * alpha_i[i] * w_i[i] * dCoef
852 // // 2
853 // -
854 // Phi_Delta_i[i][n] *
855 // RotManip::Elle(
856 // -phi_tilde_i[i],
857 // T_overline * (Tn2 * Mat3x3(y_i_2[i]))
858 // ) * Phi_Delta_i[i][m]
859 // * LI[n](xi_i[i]) * LI[m](xi_i[i])
860 // * alpha_i[i] * w_i[i] * dCoef
861 // // 1
862 // +
863 // T_overline.MulMT(RotManip::DRot_IT(phi_tilde_n[n])) *
864 // RotManip::Elle(
865 // -phi_tilde_n[n],
866 // RotManip::DRot_IT(phi_tilde_n[n]).MulMT(
867 // RotManip::DRot(phi_tilde_i[i])
868 // ).MulMT(T_overline) * Tn1 * Mat3x3(y_i_1[i])
869 // ) * Phi_Delta_i[i][m]
870 // * LI[n](xi_i[i]) * LI[m](xi_i[i])
871 // * alpha_i[i] * w_i[i] * dCoef
872 // // 2
873 // +
874 // T_overline.MulMT(RotManip::DRot_IT(phi_tilde_n[n])) *
875 // RotManip::Elle(
876 // -phi_tilde_n[n],
877 // RotManip::DRot_IT(phi_tilde_n[n]).MulMT(
878 // RotManip::DRot(phi_tilde_i[i])
879 // ).MulMT(T_overline) * Tn2 * Mat3x3(y_i_2[i])
880 // ) * Phi_Delta_i[i][m]
881 // * LI[n](xi_i[i]) * LI[m](xi_i[i])
882 // * alpha_i[i] * w_i[i] * dCoef
883 // );
884 //
885 // // momenti
886 // WM.Add(4 + 6 * n, 4 + 6 * m,
887 // // 1
888 // Phi_Delta_i[i][n].MulTM(Mat3x3(k_1_i[i])) * Mat3x3(Tm1) *
889 // Phi_Delta_i[i][m] * LI[m](xi_i[i]) * LI[n](xi_i[i])
890 // * alpha_i[i] * w_i[i] * dCoef
891 // +
892 // Phi_Delta_i[i][n].MulTM(Mat3x3(Tm1)) *
893 // Phi_Delta_i[i][m] * L_alpha_beta_i[i](m + 1, 1)
894 // * LI[n](xi_i[i])
895 // * alpha_i[i] * w_i[i] * dCoef
896 //
897 // +
898 //
899 // // 2
900 // Phi_Delta_i[i][n].MulTM(Mat3x3(k_2_i[i])) * Mat3x3(Tm2) *
901 // Phi_Delta_i[i][m] * LI[m](xi_i[i])
902 // * LI[n](xi_i[i])
903 // * alpha_i[i] * w_i[i] * dCoef
904 // +
905 // Phi_Delta_i[i][n].MulTM(Mat3x3(Tm2)) *
906 // Phi_Delta_i[i][m] * L_alpha_beta_i[i](m + 1, 2)
907 // * LI[n](xi_i[i])
908 // * alpha_i[i] * w_i[i] * dCoef
909 // );
910 // // pezzo in Elle
911 // WM.Add(4 + 6 * n, 4 + 6 * m,
912 // // 1
913 // -
914 // Phi_Delta_i[i][m].MulTMT(
915 // RotManip::Elle(
916 // phi_tilde_i[i],
917 // T_overline.MulTV(Tm1)
918 // )
919 // ) *
920 // RotManip::DRot_I(phi_tilde_n[n]).MulMT(
921 // T_overline
922 // )
923 // * LI[m](xi_i[i]) * L_alpha_beta_i[i](n + 1, 1)
924 // * alpha_i[i] * w_i[i] * dCoef
925 // -
926 // T_overline * RotManip::DRot_IT(phi_tilde_n[m]) *
927 // RotManip::Elle(
928 // phi_tilde_i[i],
929 // T_overline.MulTV(Tm1)
930 // ) * Phi_Delta_i[i][n]
931 // * LI[n](xi_i[i]) * L_alpha_beta_i[i](m + 1, 1)
932 // * alpha_i[i] * w_i[i] * dCoef
933 // // 2
934 // -
935 // Phi_Delta_i[i][m].MulTMT(
936 // RotManip::Elle(
937 // phi_tilde_i[i],
938 // T_overline.MulTV(Tm2)
939 // )
940 // ) *
941 // RotManip::DRot_I(phi_tilde_n[n]).MulMT(
942 // T_overline
943 // )
944 // * LI[m](xi_i[i]) * L_alpha_beta_i[i](n + 1, 2)
945 // * alpha_i[i] * w_i[i] * dCoef
946 // -
947 // T_overline * RotManip::DRot_IT(phi_tilde_n[m]) *
948 // RotManip::Elle(
949 // phi_tilde_i[i],
950 // T_overline.MulTV(Tm2)
951 // ) * Phi_Delta_i[i][n]
952 // * LI[n](xi_i[i]) * L_alpha_beta_i[i](m + 1, 2)
953 // * alpha_i[i] * w_i[i] * dCoef
954 // );
955 // }
956 // WM.Add(4 + 6 * n, 4 + 6 * n,
957 // // 1
958 // T_overline * RotManip::DRot_IT(phi_tilde_n[n]) *
959 // RotManip::Elle(
960 // phi_tilde_n[n],
961 // RotManip::DRot_IT(phi_tilde_n[n]).MulMT(
962 // RotManip::DRot(phi_tilde_i[i])
963 // ).MulMT(T_overline) * Tm1
964 // ) * RotManip::DRot_I(phi_tilde_n[n])
965 // * L_alpha_beta_i[i](n + 1, 1)
966 // * alpha_i[i] * w_i[i] * dCoef
967 // // 2
968 // +
969 // T_overline * RotManip::DRot_IT(phi_tilde_n[n]) *
970 // RotManip::Elle(
971 // phi_tilde_n[n],
972 // RotManip::DRot_IT(phi_tilde_n[n]).MulMT(
973 // RotManip::DRot(phi_tilde_i[i])
974 // ).MulMT(T_overline) * Tm2
975 // ) * RotManip::DRot_I(phi_tilde_n[n])
976 // * L_alpha_beta_i[i](n + 1, 2)
977 // * alpha_i[i] * w_i[i] * dCoef
978 // );
979 // }
980 // }
981
982
984 //
985 // VERSIONE DI PIERO
986 //
988  {
989  Vec3 n1, n2, m1, m2;
990  ExtractVec3(n1, stress_i[i], 1);
991  ExtractVec3(n2, stress_i[i], 4);
992  ExtractVec3(m1, stress_i[i], 7);
993  ExtractVec3(m2, stress_i[i], 10);
994 // n1(3) = 0.;
995 // n2(3) = 0.;
996
997  Vec3 Tn1 = T_i[i] * n1;
998  Vec3 Tn2 = T_i[i] * n2;
999  Vec3 Tm1 = T_i[i] * m1;
1000  Vec3 Tm2 = T_i[i] * m2;
1001  for (int n = 0; n < NUMNODES; n++) {
1002  Mat3x3 ToverGammaITn(T_overline * RotManip::DRot_IT(phi_tilde_n[n]));
1003  for (int m = 0; m < NUMNODES; m++) {
1004  Mat3x3 ToverGammaITm(T_overline * RotManip::DRot_IT(phi_tilde_n[m]));
1005  // forze
1006  WM.Add(4 + 6 * n, 4 + 6 * m,
1007  // 1
1008  Phi_Delta_i[i][n].MulTM(Mat3x3(MatCross, y_i_1[i])) *
1009  Tn1.Cross(Phi_Delta_i[i][m]) *
1010  LI[m](xi_i[i]) * LI[n](xi_i[i])
1011  * alpha_i[i] * w_i[i] * dCoef
1012  +
1013  // 2
1014  Phi_Delta_i[i][n].MulTM(Mat3x3(MatCross, y_i_2[i])) *
1015  Tn2.Cross(Phi_Delta_i[i][m]) *
1016  LI[m](xi_i[i]) * LI[n](xi_i[i])
1017  * alpha_i[i] * w_i[i] * dCoef
1018  );
1019  WM.Add(4 + 6 * n, 1 + 6 * m,
1020  // 1
1021  Phi_Delta_i[i][n].MulTM(Mat3x3(MatCross, Tn1)) *
1022  L_alpha_beta_i[i](m + 1, 1) * LI[n](xi_i[i])
1023  * alpha_i[i] * dCoef
1024  +
1025  // 2
1026  Phi_Delta_i[i][n].MulTM(Mat3x3(MatCross, Tn2)) *
1027  L_alpha_beta_i[i](m + 1, 2) * LI[n](xi_i[i])
1028  * alpha_i[i] * w_i[i] * w_i[i] * dCoef
1029  );
1030  WM.Sub(1 + 6 * n, 4 + 6 * m,
1031  // 1
1032  Tn1.Cross(Phi_Delta_i[i][m]) *
1033  LI[m](xi_i[i]) * L_alpha_beta_i[i](n + 1, 1)
1034  * alpha_i[i] * w_i[i] * dCoef
1035  +
1036  // 2
1037  Tn2.Cross(Phi_Delta_i[i][m]) *
1038  LI[m](xi_i[i]) * L_alpha_beta_i[i](n + 1, 2)
1039  * alpha_i[i] * w_i[i] * dCoef
1040  );
1041  // pezzo in Elle
1042  WM.Add(4 + 6 * n, 4 + 6 * m,
1043  // 1
1044  -ToverGammaITn *
1045  RotManip::Elle(
1046  -phi_tilde_i[i],
1047  T_overline.MulTM(Mat3x3(MatCross, Tn1)) * y_i_1[i]
1048  ).MulMT(ToverGammaITm)
1049  * LI[n](xi_i[i]) * LI[m](xi_i[i])
1050  * alpha_i[i] * w_i[i] * dCoef
1051  // 2
1052  -ToverGammaITn *
1053  RotManip::Elle(
1054  -phi_tilde_i[i],
1055  T_overline.MulTM(Mat3x3(MatCross, Tn2)) * y_i_2[i]
1056  ).MulMT(ToverGammaITm)
1057  * LI[n](xi_i[i]) * LI[m](xi_i[i])
1058  * alpha_i[i] * w_i[i] * dCoef
1059  );
1060
1061  // momenti
1062  WM.Add(4 + 6 * n, 4 + 6 * m,
1063  // 1
1064  Phi_Delta_i[i][n].MulTM(Mat3x3(MatCross, k_1_i[i])) *
1065  Tm1.Cross(Phi_Delta_i[i][m]) * LI[m](xi_i[i]) * LI[n](xi_i[i])
1066  * alpha_i[i] * w_i[i] * dCoef
1067  +
1068  // 2
1069  Phi_Delta_i[i][n].MulTM(Mat3x3(MatCross, k_2_i[i])) *
1070  Tm2.Cross(Phi_Delta_i[i][m]) * LI[m](xi_i[i])
1071  * LI[n](xi_i[i])
1072  * alpha_i[i] * w_i[i] * dCoef
1073  +
1074  // 1
1075  Phi_Delta_i[i][n].MulTM(Mat3x3(MatCross, Tm1)) *
1076  Kappa_delta_i_1[i][m]
1077  * LI[n](xi_i[i])
1078  * alpha_i[i] * dCoef
1079  // 2
1080  +
1081  Phi_Delta_i[i][n].MulTM(Mat3x3(MatCross, Tm2)) *
1082  Kappa_delta_i_2[i][m]
1083  * LI[n](xi_i[i])
1084  * alpha_i[i] * w_i[i] * dCoef
1085  );
1086  // pezzo in Elle
1087  WM.Add(4 + 6 * n, 4 + 6 * m,
1088  // 1
1089  -
1090  Phi_Delta_i[i][m].MulTMT(
1091  RotManip::Elle(
1092  phi_tilde_i[i],
1093  T_overline.MulTV(Tm1)
1094  )
1095  ).MulMT(ToverGammaITn)
1096  * LI[m](xi_i[i]) * L_alpha_beta_i[i](n + 1, 1)
1097  * alpha_i[i] * w_i[i] * dCoef
1098  // 2
1099  -
1100  Phi_Delta_i[i][m].MulTMT(
1101  RotManip::Elle(
1102  phi_tilde_i[i],
1103  T_overline.MulTV(Tm2)
1104  )
1105  ).MulMT(ToverGammaITn)
1106  * LI[m](xi_i[i]) * L_alpha_beta_i[i](n + 1, 2)
1107  * alpha_i[i] * w_i[i] * dCoef
1108  // 1
1109  -
1110  ToverGammaITm *
1111  RotManip::Elle(
1112  phi_tilde_i[i],
1113  T_overline.MulTV(Tm1)
1114  )
1115  * Phi_Delta_i[i][n]
1116  * LI[n](xi_i[i]) * L_alpha_beta_i[i](m + 1, 1)
1117  * alpha_i[i] * w_i[i] * dCoef
1118  // 2
1119  -
1120  ToverGammaITm *
1121  RotManip::Elle(
1122  phi_tilde_i[i],
1123  T_overline.MulTV(Tm2)
1124  )
1125  * Phi_Delta_i[i][n]
1126  * LI[n](xi_i[i]) * L_alpha_beta_i[i](m + 1, 2)
1127  * alpha_i[i] * w_i[i] * dCoef
1128  );
1129  }
1130  //pezzo in Elle sono su n per le forze
1131  WM.Add(4 + 6 * n, 4 + 6 * n,
1132  // 1
1133  ToverGammaITn *
1134  RotManip::Elle(
1135  -phi_tilde_n[n],
1136  RotManip::DRot_IT(phi_tilde_n[n]).MulMT(
1137  RotManip::DRot(phi_tilde_i[i])
1138  ).MulMT(T_overline) * Tn1.Cross(y_i_1[i])
1139  ).MulMT(ToverGammaITn)
1140  * LI[n](xi_i[i])
1141  * alpha_i[i] * w_i[i] * dCoef
1142  // 2
1143  +
1144  ToverGammaITn *
1145  RotManip::Elle(
1146  -phi_tilde_n[n],
1147  RotManip::DRot_IT(phi_tilde_n[n]).MulMT(
1148  RotManip::DRot(phi_tilde_i[i])
1149  ).MulMT(T_overline) * Tn2.Cross(y_i_2[i])
1150  ).MulMT(ToverGammaITn)
1151  * LI[n](xi_i[i])
1152  * alpha_i[i] * w_i[i] * dCoef
1153  );
1154  //pezzo in Elle sono su n per i momenti
1155  WM.Add(4 + 6 * n, 4 + 6 * n,
1156  // 1
1157  ToverGammaITn *
1158  RotManip::Elle(
1159  phi_tilde_n[n],
1160  RotManip::DRot_IT(phi_tilde_n[n]).MulMT(
1161  RotManip::DRot(phi_tilde_i[i])
1162  ).MulMT(T_overline) * Tm1
1163  ).MulMT(ToverGammaITn)
1164  * L_alpha_beta_i[i](n + 1, 1)
1165  * alpha_i[i] * w_i[i] * dCoef
1166  // 2
1167  +
1168  ToverGammaITn *
1169  RotManip::Elle(
1170  phi_tilde_n[n],
1171  RotManip::DRot_IT(phi_tilde_n[n]).MulMT(
1172  RotManip::DRot(phi_tilde_i[i])
1173  ).MulMT(T_overline) * Tm2
1174  ).MulMT(ToverGammaITn)
1175  * L_alpha_beta_i[i](n + 1, 2)
1176  * alpha_i[i] * w_i[i] * dCoef
1177  );
1178  }
1179  }
1180
1181
1182
1183 // std::cerr << "Kg:\n" << std::fixed << std::setprecision(12) << Kg << std::endl;
1184
1185
1186 // std::cerr << "Km:\n" << std::fixed << std::setprecision(12) << Km << std::endl;
1187  // AssembleMatrix(WM, 1, 1, Km, alpha_i[i] * w_i[i] * dCoef);
1188
1189  // AssembleTransposeMatrix(WM, 1, 25, K_beta_q, alpha_i[i] * w_i[i]);
1190  // AssembleMatrix(WM, 25, 1, K_beta_q, alpha_i[i] * w_i[i] * dCoef);
1191  // AssembleMatrix(WM, 25, 25, K_beta_beta, alpha_i[i] * w_i[i]);
1192
1193  WM.Add(1, 1, Km, alpha_i[i] * w_i[i] * dCoef);
1194
1195  WM.AddT(1, 25, K_beta_q, alpha_i[i] * w_i[i]);
1196  WM.Add(25, 1, K_beta_q, alpha_i[i] * w_i[i] * dCoef);
1197  WM.Add(25, 25, K_beta_beta, alpha_i[i] * w_i[i]);
1198  }
1199  return WorkMat;
1200
1201 }
Shell4EAS::T_overline
Mat3x3 T_overline
Definition: shelleas.h:161
FullSubMatrixHandler::PutColIndex
void PutColIndex(integer iSubCol, integer iCol)
Definition: submat.h:325
Shell4EAS::P_i
vfmh P_i
Definition: shelleas.h:230
RotManip::DRot_IT
Mat3x3 DRot_IT(const Vec3 &phi)
Definition: Rot.cc:100
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
Shell4EAS::y_i_1
Vec3 y_i_1[NUMIP]
Definition: shelleas.h:232
Vec3
Definition: matvec3.h:98
Shell4EAS::xi_i
static doublereal xi_i[NUMIP][2]
Definition: shelleas.h:105
MatCross
const MatCross_Manip MatCross
Definition: matvec3.cc:639
Shell4EAS::y_i_2
Vec3 y_i_2[NUMIP]
Definition: shelleas.h:233
Mat3x3::MulTMT
Mat3x3 MulTMT(const Mat3x3 &m) const
Definition: matvec3.cc:538
VariableSubMatrixHandler::SetFull
FullSubMatrixHandler & SetFull(void)
Definition: submat.h:1168
Shell4EAS::L_alpha_beta_i
vfmh L_alpha_beta_i
Definition: shelleas.h:226
Shell4EAS::Phi_Delta_i
Mat3x3 Phi_Delta_i[NUMIP][NUMNODES]
Definition: shelleas.h:171
FullSubMatrixHandler::Add
void Add(integer iRow, integer iCol, const Vec3 &v)
Definition: submat.cc:209
Shell4EAS::stress_i
vvh stress_i
Definition: shelleas.h:252
RotManip::DRot
Mat3x3 DRot(const Vec3 &phi)
Definition: Rot.cc:74
Shell4EAS::Kappa_delta_i_1
Mat3x3 Kappa_delta_i_1[NUMIP][NUMNODES]
Definition: shelleas.h:172
Shell4EAS::phi_tilde_i
Vec3 phi_tilde_i[NUMIP]
Definition: shelleas.h:156
Shell4EAS::alpha_i
doublereal alpha_i[NUMIP]
Definition: shelleas.h:225
FullSubMatrixHandler::AddT
void AddT(integer iRow, integer iCol, const Vec3 &v)
Definition: submat.cc:227
Mat3x3::MulTV
Vec3 MulTV(const Vec3 &v) const
Definition: matvec3.cc:482
Shell4EAS::WorkSpaceDim
virtual void WorkSpaceDim(integer *piNumRows, integer *piNumCols) const
Definition: shelleas.h:327
Shell4EAS::T_i
Mat3x3 T_i[NUMIP]
Definition: shelleas.h:169
Shell4EAS::iGetNumDof
virtual unsigned int iGetNumDof(void) const
Definition: shelleas.h:297
Shell4EAS::DRef
vfmh DRef
Definition: shelleas.h:249
Shell4EAS::phi_tilde_n
Vec3 phi_tilde_n[NUMNODES]
Definition: shelleas.h:153
Shell4EAS::Kappa_delta_i_2
Mat3x3 Kappa_delta_i_2[NUMIP][NUMNODES]
Definition: shelleas.h:173
Shell4EAS::w_i
static doublereal w_i[NUMIP]
Definition: shelleas.h:106
StructDispNode::iGetFirstMomentumIndex
virtual integer iGetFirstMomentumIndex(void) const =0
StructDispNode::iGetFirstPositionIndex
virtual integer iGetFirstPositionIndex(void) const
Definition: strnode.h:452
Shell4EAS::k_1_i
Vec3 k_1_i[NUMIP]
Definition: shelleas.h:184
Mat3x3::MulTM
Mat3x3 MulTM(const Mat3x3 &m) const
Definition: matvec3.cc:500
RotManip::Elle
Mat3x3 Elle(const Vec3 &phi, const Vec3 &a)
Definition: Rot.cc:179
FullSubMatrixHandler::ResizeReset
virtual void ResizeReset(integer, integer)
Definition: submat.cc:182
Shell4EAS::B_overline_i
vfmh B_overline_i
Definition: shelleas.h:228
FullSubMatrixHandler::PutRowIndex
void PutRowIndex(integer iSubRow, integer iRow)
Definition: submat.h:311
FullSubMatrixHandler::Sub
void Sub(integer iRow, integer iCol, const Vec3 &v)
Definition: submat.cc:215
Mat3x3::MulMT
Mat3x3 MulMT(const Mat3x3 &m) const
Definition: matvec3.cc:444
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
integer
long int integer
Definition: colamd.c:51
Shell4EAS::pNode
const StructNode * pNode[NUMNODES]
Definition: shelleas.h:138
Shell4EAS::k_2_i
Vec3 k_2_i[NUMIP]
Definition: shelleas.h:185

Here is the call graph for this function:

SubVectorHandler & Shell4EAS::AssRes ( SubVectorHandler &  WorkVec,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 422 of file shelleas.cc.

References alpha_i, B_overline_i, beta, bPreStress, ComputeIPCurvature(), DRef, eps_tilde_1_0_i, eps_tilde_1_i, eps_tilde_2_0_i, eps_tilde_2_i, epsilon, epsilon_hat, DofOwnerOwner::iGetFirstIndex(), StructDispNode::iGetFirstMomentumIndex(), iGetNumDof(), InterpolateOrientation(), k_1_i, k_2_i, k_tilde_1_0_i, k_tilde_1_i, k_tilde_2_0_i, k_tilde_2_i, Kappa_delta_i_1, Kappa_delta_i_2, L_alpha_beta_i, MatCross, Mat3x3::MulTV(), NUMIP, NUMNODES, P_i, Phi_Delta_i, phi_tilde_n, pNode, PreStress, MyVectorHandler::Put(), SubVectorHandler::PutRowIndex(), VectorHandler::ResizeReset(), stress_i, T_i, UpdateNodalAndAveragePosAndOrientation(), w_i, WorkSpaceDim(), xa, xi_i, y_i_1, y_i_2, and Zero3.

426 {
427  /* Dimensiona e resetta la matrice di lavoro */
428  integer iNumRows = 0;
429  integer iNumCols = 0;
430  WorkSpaceDim(&iNumRows, &iNumCols);
431  WorkVec.ResizeReset(iNumRows);
432
433  /* Recupera e setta gli indici */
434  for (integer i = 0; i < 4; i++) {
435  integer iNodeFirstMomIndex = pNode[i]->iGetFirstMomentumIndex();
436  for (int iCnt = 1; iCnt <= 6; iCnt++) {
437  WorkVec.PutRowIndex(iCnt + 6 * i, iNodeFirstMomIndex + iCnt);
438  }
439  }
440
441  integer iFirstReactionIndex = iGetFirstIndex();
442  for (unsigned int iCnt = 1; iCnt <= iGetNumDof(); iCnt++) {
443  WorkVec.PutRowIndex(24 + iCnt, iFirstReactionIndex + iCnt);
444  }
445
446  UpdateNodalAndAveragePosAndOrientation();
447  InterpolateOrientation();
448 // ComputeIPSEPRotations();
449  for (unsigned int i = 1; i <= iGetNumDof(); i++) {
450  beta(i) = XCurr(iFirstReactionIndex + i);
451  }
452
453
454  ComputeIPCurvature();
455  for (integer i = 0; i < NUMIP; i++) {
456  InterpDeriv(xa, L_alpha_beta_i[i], y_i_1[i], y_i_2[i]);
457  eps_tilde_1_i[i] = T_i[i].MulTV(y_i_1[i]) - eps_tilde_1_0_i[i];
458  eps_tilde_2_i[i] = T_i[i].MulTV(y_i_2[i]) - eps_tilde_2_0_i[i];
459  k_tilde_1_i[i] = T_i[i].MulTV(k_1_i[i]) - k_tilde_1_0_i[i];
460  k_tilde_2_i[i] = T_i[i].MulTV(k_2_i[i]) - k_tilde_2_0_i[i];
461  // parte variabile di B_overline_i
462  for (integer n = 0; n < NUMNODES; n++) {
463  Mat3x3 Phi_Delta_i_n_LI_i = Phi_Delta_i[i][n] * LI[n](xi_i[i]);
464
465  // delta epsilon_tilde_1_i
466  B_overline_i[i].PutT(1, 1 + 6 * n, T_i[i] * L_alpha_beta_i[i](n + 1, 1));
467  B_overline_i[i].Put(1, 4 + 6 * n,
468  T_i[i].MulTM(Mat3x3(MatCross, y_i_1[i])) * Phi_Delta_i_n_LI_i
469  );
470
471  // delta epsilon_tilde_2_i
472  B_overline_i[i].PutT(4, 1 + 6 * n, T_i[i] * L_alpha_beta_i[i](n + 1, 2));
473  B_overline_i[i].Put(4, 4 + 6 * n,
474  T_i[i].MulTM(Mat3x3(MatCross, y_i_2[i])) * Phi_Delta_i_n_LI_i
475  );
476
477  // delta k_tilde_1_i
478  Vec3 phi_tilde_1_i(Zero3);
479  Vec3 phi_tilde_2_i(Zero3);
480  InterpDeriv(phi_tilde_n, L_alpha_beta_i[i], phi_tilde_1_i, phi_tilde_2_i);
481  B_overline_i[i].Put(7, 4 + 6 * n,
482  T_i[i].MulTM(Mat3x3(MatCross, k_1_i[i])) * Phi_Delta_i_n_LI_i
483  +
484  T_i[i].MulTM(Kappa_delta_i_1[i][n])
485  );
486
487  // delta k_tilde_2_i
488  B_overline_i[i].Put(10, 4 + 6 * n,
489  T_i[i].MulTM(Mat3x3(MatCross, k_2_i[i])) * Phi_Delta_i_n_LI_i
490  +
491  T_i[i].MulTM(Kappa_delta_i_2[i][n])
492  );
493  }
494  }
495
496
497  /* Calcola le azioni interne */
498  for (integer i = 0; i < NUMIP; i++) {
499  epsilon.Put(1, eps_tilde_1_i[i]);
500  epsilon.Put(4, eps_tilde_2_i[i]);
501  epsilon.Put(7, k_tilde_1_i[i]);
502  epsilon.Put(10, k_tilde_2_i[i]);
503  // TODO: recupera epsilon_hat con l'ordine giusto per qua
504  P_i[i].MatVecMul(epsilon_hat, beta);
505 // {
506 // for (int off = 0; off < 4; off++) {
507 // Vec3 e1(epsilon_hat(1 + 3 * off), epsilon_hat(2 + 3 * off), epsilon_hat(3 + 3 * off));
508 // e1 = T_i[i].MulTV(e1);
509 // epsilon_hat(1 + 3 * off) = e1(1);
510 // epsilon_hat(2 + 3 * off) = e1(2);
511 // epsilon_hat(3 + 3 * off) = e1(3);
512 // }
513 // }
514
515  epsilon += epsilon_hat;
516 #ifdef USE_CL_IN_SHELL
517  pD[i]->Update(epsilon);
518  stress_i[i] = pD[i]->GetF();
519 #else // ! USE_CL_IN_SHELL
520  DRef[i].MatVecMul(stress_i[i], epsilon);
521  if (bPreStress) {
522  stress_i[i] += PreStress;
523  }
524 #endif // ! USE_CL_IN_SHELL
525  }
526
527
528  //Residuo
529  //forze di volume
530  MyVectorHandler rd(24);
531  MyVectorHandler rbeta(iGetNumDof());
532  for (integer i = 0; i < NUMIP; i++) {
533  B_overline_i[i].MatTVecMul(rd, stress_i[i]);
534  P_i[i].MatTVecMul(rbeta, stress_i[i]);
535
536  AssembleVector(WorkVec, 1, rd, -alpha_i[i] * w_i[i]);
537  AssembleVector(WorkVec, 25, rbeta, -alpha_i[i] * w_i[i]);
538  }
539
540  return WorkVec;
541 }
Shell4EAS::P_i
vfmh P_i
Definition: shelleas.h:230
Zero3
const Vec3 Zero3(0., 0., 0.)
Shell4EAS::epsilon_hat
vh epsilon_hat
Definition: shelleas.h:236
Shell4EAS::y_i_1
Vec3 y_i_1[NUMIP]
Definition: shelleas.h:232
Vec3
Definition: matvec3.h:98
Shell4EAS::k_tilde_1_i
Vec3 k_tilde_1_i[NUMIP]
Definition: shelleas.h:202
Shell4EAS::xi_i
static doublereal xi_i[NUMIP][2]
Definition: shelleas.h:105
VectorHandler::ResizeReset
virtual void ResizeReset(integer)
Definition: vh.cc:55
MatCross
const MatCross_Manip MatCross
Definition: matvec3.cc:639
Shell4EAS::y_i_2
Vec3 y_i_2[NUMIP]
Definition: shelleas.h:233
Shell4EAS::bPreStress
bool bPreStress
Definition: shelleas.h:244
Shell4EAS::L_alpha_beta_i
vfmh L_alpha_beta_i
Definition: shelleas.h:226
Shell4EAS::Phi_Delta_i
Mat3x3 Phi_Delta_i[NUMIP][NUMNODES]
Definition: shelleas.h:171
Shell4EAS::stress_i
vvh stress_i
Definition: shelleas.h:252
Shell4EAS::Kappa_delta_i_1
Mat3x3 Kappa_delta_i_1[NUMIP][NUMNODES]
Definition: shelleas.h:172
Shell4EAS::k_tilde_2_i
Vec3 k_tilde_2_i[NUMIP]
Definition: shelleas.h:203
MyVectorHandler::Put
virtual void Put(integer iRow, const Vec3 &v)
Definition: vh.cc:699
Shell4EAS::ComputeIPCurvature
void ComputeIPCurvature()
Definition: shelleas.cc:191
Shell4EAS::eps_tilde_1_0_i
Vec3 eps_tilde_1_0_i[NUMIP]
Definition: shelleas.h:191
Shell4EAS::alpha_i
doublereal alpha_i[NUMIP]
Definition: shelleas.h:225
Mat3x3::MulTV
Vec3 MulTV(const Vec3 &v) const
Definition: matvec3.cc:482
Shell4EAS::WorkSpaceDim
virtual void WorkSpaceDim(integer *piNumRows, integer *piNumCols) const
Definition: shelleas.h:327
SubVectorHandler::PutRowIndex
virtual void PutRowIndex(integer iSubRow, integer iRow)=0
Shell4EAS::T_i
Mat3x3 T_i[NUMIP]
Definition: shelleas.h:169
Shell4EAS::iGetNumDof
virtual unsigned int iGetNumDof(void) const
Definition: shelleas.h:297
Shell4EAS::DRef
vfmh DRef
Definition: shelleas.h:249
Shell4EAS::phi_tilde_n
Vec3 phi_tilde_n[NUMNODES]
Definition: shelleas.h:153
Shell4EAS::k_tilde_1_0_i
Vec3 k_tilde_1_0_i[NUMIP]
Definition: shelleas.h:199
Shell4EAS::Kappa_delta_i_2
Mat3x3 Kappa_delta_i_2[NUMIP][NUMNODES]
Definition: shelleas.h:173
Shell4EAS::xa
Vec3 xa[NUMNODES]
Definition: shelleas.h:148
Shell4EAS::w_i
static doublereal w_i[NUMIP]
Definition: shelleas.h:106
StructDispNode::iGetFirstMomentumIndex
virtual integer iGetFirstMomentumIndex(void) const =0
Shell4EAS::k_1_i
Vec3 k_1_i[NUMIP]
Definition: shelleas.h:184
Shell4EAS::epsilon
vh epsilon
Definition: shelleas.h:237
Shell4EAS::PreStress
vh PreStress
Definition: shelleas.h:245
Shell4EAS::eps_tilde_2_0_i
Vec3 eps_tilde_2_0_i[NUMIP]
Definition: shelleas.h:192
Shell4EAS::B_overline_i
vfmh B_overline_i
Definition: shelleas.h:228
Shell4EAS::UpdateNodalAndAveragePosAndOrientation
void UpdateNodalAndAveragePosAndOrientation()
Definition: shelleas.cc:101
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
integer
long int integer
Definition: colamd.c:51
Shell4EAS::eps_tilde_1_i
Vec3 eps_tilde_1_i[NUMIP]
Definition: shelleas.h:194
Shell4EAS::pNode
const StructNode * pNode[NUMNODES]
Definition: shelleas.h:138
Shell4EAS::k_2_i
Vec3 k_2_i[NUMIP]
Definition: shelleas.h:185
Shell4EAS::eps_tilde_2_i
Vec3 eps_tilde_2_i[NUMIP]
Definition: shelleas.h:195
Shell4EAS::InterpolateOrientation
void InterpolateOrientation()
Definition: shelleas.cc:157
Shell4EAS::k_tilde_2_0_i
Vec3 k_tilde_2_0_i[NUMIP]
Definition: shelleas.h:200

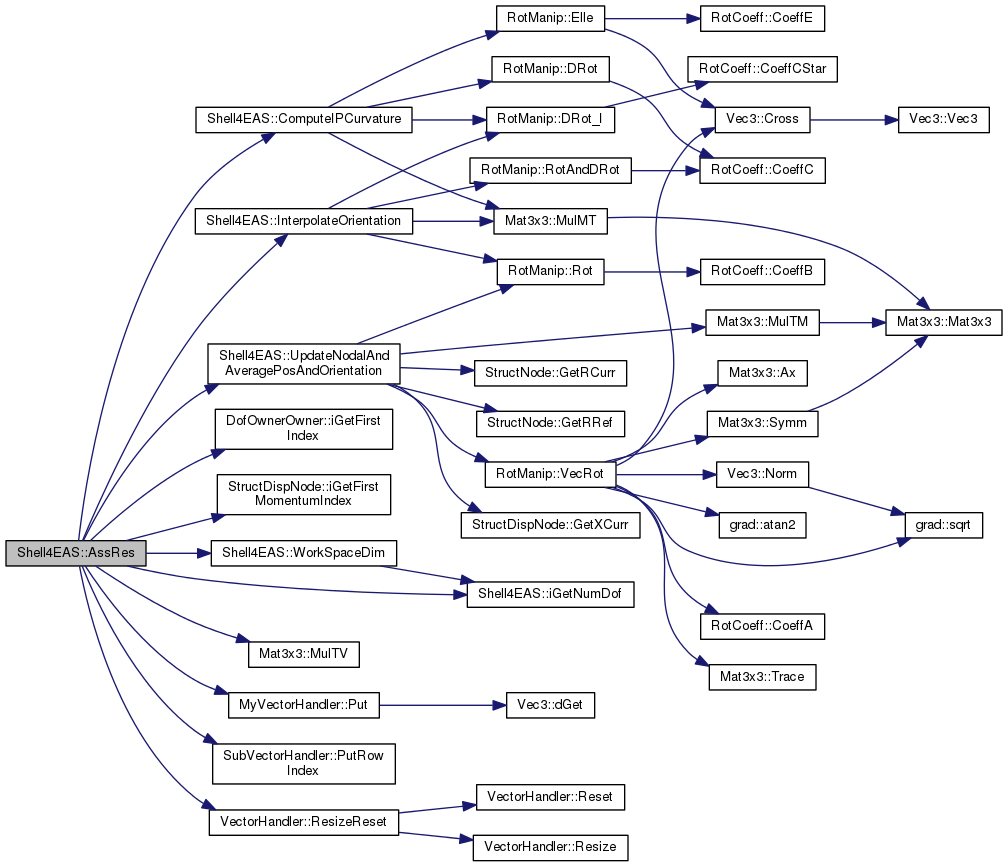

Here is the call graph for this function:

void Shell4EAS::ComputeInitialNodeAndIptOrientation ( void  )
private

Definition at line 123 of file shelleas.cc.

References Vec3::Cross(), Eye3, StructNode::GetRCurr(), StructDispNode::GetXCurr(), InterpolateOrientation(), iTa, iTa_i, Vec3::Norm(), NUMIP, NUMNODES, pNode, T_i, UpdateNodalAndAveragePosAndOrientation(), xa, xi_i, and xi_n.

Referenced by Shell4EAS().

124 {
125  for (integer i = 0; i < NUMNODES; i++) {
126  xa[i] = pNode[i]->GetXCurr();
127  }
128  for (integer i = 0; i < NUMNODES; i++) {
129  Vec3 t1 = InterpDeriv_xi1(xa, xi_n[i]);
130  t1 = t1 / t1.Norm();
131  Vec3 t2 = InterpDeriv_xi2(xa, xi_n[i]);
132  t2 = t2 / t2.Norm();
133  Vec3 t3 = t1.Cross(t2);
134  t3 = t3 / t3.Norm();
135  t2 = t3.Cross(t1);
136  iTa[i] = (pNode[i]->GetRCurr()).MulTM(Mat3x3(t1, t2, t3));
137  }
138  for (integer i = 0; i < NUMIP; i++) {
139  iTa_i[i] = Eye3;
140  }
141  UpdateNodalAndAveragePosAndOrientation();
142  InterpolateOrientation();
143  for (integer i = 0; i < NUMIP; i++) {
144  Vec3 t1 = InterpDeriv_xi1(xa, xi_i[i]);
145  t1 = t1 / t1.Norm();
146  Vec3 t2 = InterpDeriv_xi2(xa, xi_i[i]);
147  t2 = t2 / t2.Norm();
148  Vec3 t3 = t1.Cross(t2);
149  t3 = t3 / t3.Norm();
150  t2 = t3.Cross(t1);
151  iTa_i[i] = (T_i[i]).MulTM(Mat3x3(t1, t2, t3));
152  }
153  InterpolateOrientation();
154 }
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
Vec3
Definition: matvec3.h:98
Shell4EAS::xi_i
static doublereal xi_i[NUMIP][2]
Definition: shelleas.h:105
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
Vec3::Norm
doublereal Norm(void) const
Definition: matvec3.h:263
Eye3
const Mat3x3 Eye3(1., 0., 0., 0., 1., 0., 0., 0., 1.)
Shell4EAS::xi_n
static doublereal xi_n[NUMNODES][2]
Definition: shelleas.h:125
Shell4EAS::T_i
Mat3x3 T_i[NUMIP]
Definition: shelleas.h:169
Shell4EAS::xa
Vec3 xa[NUMNODES]
Definition: shelleas.h:148
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
Shell4EAS::iTa_i
Mat3x3 iTa_i[NUMIP]
Definition: shelleas.h:151
Shell4EAS::iTa
Mat3x3 iTa[NUMNODES]
Definition: shelleas.h:150
Shell4EAS::UpdateNodalAndAveragePosAndOrientation
void UpdateNodalAndAveragePosAndOrientation()
Definition: shelleas.cc:101
integer
long int integer
Definition: colamd.c:51
Shell4EAS::pNode
const StructNode * pNode[NUMNODES]
Definition: shelleas.h:138
Shell4EAS::InterpolateOrientation
void InterpolateOrientation()
Definition: shelleas.cc:157

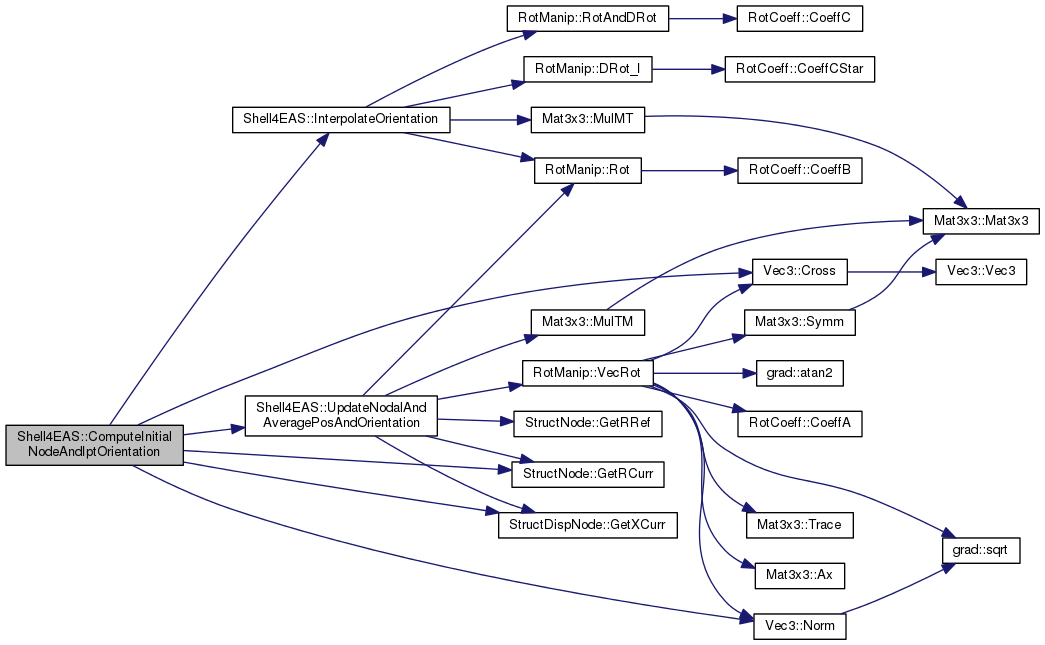

Here is the call graph for this function:

void Shell4EAS::ComputeIPCurvature ( void  )
private

Definition at line 191 of file shelleas.cc.

References RotManip::DRot(), RotManip::DRot_I(), RotManip::Elle(), k_1_i, k_2_i, Kappa_delta_i_1, Kappa_delta_i_2, L_alpha_beta_i, Mat3x3::MulMT(), NUMIP, NUMNODES, Phi_Delta_i, phi_tilde_i, phi_tilde_n, T_overline, xi_i, and Zero3.

Referenced by AssRes(), and Shell4EAS().

192 {
193  Mat3x3 Gamma_I_n_MT_T_overline[NUMNODES];
194  for (integer n = 0; n < NUMNODES; n++) {
195  Gamma_I_n_MT_T_overline[n] = RotManip::DRot_I(phi_tilde_n[n]).MulMT(T_overline);
196  }
197  for (integer i = 0; i < NUMIP; i++) {
198  Vec3 phi_tilde_1_i(Zero3);
199  Vec3 phi_tilde_2_i(Zero3);
200  InterpDeriv(phi_tilde_n, L_alpha_beta_i[i], phi_tilde_1_i, phi_tilde_2_i);
201  Mat3x3 T_overlineGamma_tilde_i(T_overline * RotManip::DRot(phi_tilde_i[i]));
202  k_1_i[i] = T_overlineGamma_tilde_i * phi_tilde_1_i;
203  k_2_i[i] = T_overlineGamma_tilde_i * phi_tilde_2_i;
204  Mat3x3 tmp1 = T_overline * RotManip::Elle(phi_tilde_i[i], phi_tilde_1_i);
205  Mat3x3 tmp2 = T_overline * RotManip::Elle(phi_tilde_i[i], phi_tilde_2_i);
206  for (int n = 0; n < NUMNODES; n++) {
207  Kappa_delta_i_1[i][n] = tmp1 * Gamma_I_n_MT_T_overline[n] * LI[n](xi_i[i]) +
208  Phi_Delta_i[i][n] * L_alpha_beta_i[i](n + 1, 1);
209  Kappa_delta_i_2[i][n] = tmp2 * Gamma_I_n_MT_T_overline[n] * LI[n](xi_i[i]) +
210  Phi_Delta_i[i][n] * L_alpha_beta_i[i](n + 1, 2);
211  }
212  }
213 }
Shell4EAS::T_overline
Mat3x3 T_overline
Definition: shelleas.h:161
Zero3
const Vec3 Zero3(0., 0., 0.)
Vec3
Definition: matvec3.h:98
Shell4EAS::xi_i
static doublereal xi_i[NUMIP][2]
Definition: shelleas.h:105
Shell4EAS::L_alpha_beta_i
vfmh L_alpha_beta_i
Definition: shelleas.h:226
Shell4EAS::Phi_Delta_i
Mat3x3 Phi_Delta_i[NUMIP][NUMNODES]
Definition: shelleas.h:171
RotManip::DRot
Mat3x3 DRot(const Vec3 &phi)
Definition: Rot.cc:74
Shell4EAS::Kappa_delta_i_1
Mat3x3 Kappa_delta_i_1[NUMIP][NUMNODES]
Definition: shelleas.h:172
Shell4EAS::phi_tilde_i
Vec3 phi_tilde_i[NUMIP]
Definition: shelleas.h:156
Shell4EAS::phi_tilde_n
Vec3 phi_tilde_n[NUMNODES]
Definition: shelleas.h:153
Shell4EAS::Kappa_delta_i_2
Mat3x3 Kappa_delta_i_2[NUMIP][NUMNODES]
Definition: shelleas.h:173
Shell4EAS::k_1_i
Vec3 k_1_i[NUMIP]
Definition: shelleas.h:184
RotManip::Elle
Mat3x3 Elle(const Vec3 &phi, const Vec3 &a)
Definition: Rot.cc:179
Mat3x3::MulMT
Mat3x3 MulMT(const Mat3x3 &m) const
Definition: matvec3.cc:444
integer
long int integer
Definition: colamd.c:51
Shell4EAS::k_2_i
Vec3 k_2_i[NUMIP]
Definition: shelleas.h:185
RotManip::DRot_I
Mat3x3 DRot_I(const Vec3 &phi)
Definition: Rot.cc:111

Here is the call graph for this function:

virtual void Shell4EAS::GetConnectedNodes ( std::vector< const Node * > &  connectedNodes) const
inlinevirtual

Reimplemented from Elem.

Definition at line 413 of file shelleas.h.

References NUMNODES, and pNode.

413  {
414  connectedNodes.resize(NUMNODES);
415  for (int i = 0; i < NUMNODES; i++) {
416  connectedNodes[i] = pNode[i];
417  }
418  };
Shell4EAS::pNode
const StructNode * pNode[NUMNODES]
Definition: shelleas.h:138
virtual DofOrder::Order Shell4EAS::GetDofType ( unsigned int  i) const
inlinevirtual

Reimplemented from Elem.

Definition at line 302 of file shelleas.h.

References DofOrder::ALGEBRAIC, ASSERT, and iGetNumDof().

302  {
303  ASSERT(i >= 0 && i < iGetNumDof());
304  return DofOrder::ALGEBRAIC;
305  };
Shell4EAS::iGetNumDof
virtual unsigned int iGetNumDof(void) const
Definition: shelleas.h:297
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977

Here is the call graph for this function:

virtual DofOrder::Order Shell4EAS::GetEqType ( unsigned int  i) const
inlinevirtual

Reimplemented from SimulationEntity.

Definition at line 307 of file shelleas.h.

References DofOrder::ALGEBRAIC, ASSERT, and iGetNumDof().

307  {
308  ASSERT(i >= 0 && i < iGetNumDof());
309  return DofOrder::ALGEBRAIC;
310  };
Shell4EAS::iGetNumDof
virtual unsigned int iGetNumDof(void) const
Definition: shelleas.h:297
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977

Here is the call graph for this function:

virtual Shell::Type Shell4EAS::GetShellType ( void  ) const
inlinevirtual

Definition at line 293 of file shelleas.h.

References Shell::ELASTIC.

293  {
294  return Shell::ELASTIC;
295  };
virtual unsigned int Shell4EAS::iGetInitialNumDof ( void  ) const
inlinevirtual

Implements SubjectToInitialAssembly.

Definition at line 378 of file shelleas.h.

378  {
379  return 0;
380  };
virtual unsigned int Shell4EAS::iGetNumDof ( void  ) const
inlinevirtual

Reimplemented from Elem.

Definition at line 297 of file shelleas.h.

Referenced by AssJac(), AssRes(), GetDofType(), GetEqType(), Shell4EAS(), and WorkSpaceDim().

297  {
298  //return 14;
299  return 13;
300  };
VariableSubMatrixHandler & Shell4EAS::InitialAssJac ( VariableSubMatrixHandler &  WorkMat,
const VectorHandler &  XCurr
)
virtual

Implements SubjectToInitialAssembly.

Definition at line 1220 of file shelleas.cc.

References VariableSubMatrixHandler::SetNullMatrix().

1222 {
1223  WorkMat.SetNullMatrix();
1224  return WorkMat;
1225 }
VariableSubMatrixHandler::SetNullMatrix
void SetNullMatrix(void)
Definition: submat.h:1159

Here is the call graph for this function:

SubVectorHandler & Shell4EAS::InitialAssRes ( SubVectorHandler &  WorkVec,
const VectorHandler &  XCurr
)
virtual

Implements SubjectToInitialAssembly.

Definition at line 1228 of file shelleas.cc.

References VectorHandler::Resize().

1229 {
1230  WorkVec.Resize(0);
1231  return WorkVec;
1232 }
VectorHandler::Resize
virtual void Resize(integer iNewSize)=0

Here is the call graph for this function:

virtual void Shell4EAS::InitialWorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
inlinevirtual

Implements SubjectToInitialAssembly.

Definition at line 383 of file shelleas.h.

383  {
384  *piNumRows = 6*4;
385  *piNumCols = 6*4;
386  };
void Shell4EAS::InterpolateOrientation ( void  )
private

Definition at line 157 of file shelleas.cc.

References RotManip::DRot_I(), iTa_i, Mat3x3::MulMT(), NUMIP, NUMNODES, Phi_Delta_i, phi_tilde_i, phi_tilde_n, RotManip::Rot(), RotManip::RotAndDRot(), T_0, T_i, T_overline, xi_0, and xi_i.

Referenced by AssRes(), and ComputeInitialNodeAndIptOrientation().

158 {
159  Mat3x3 DRot_I_phi_tilde_n_MT_T_overline[NUMNODES];
160  for (integer n = 0; n < NUMNODES; n++) {
161  DRot_I_phi_tilde_n_MT_T_overline[n] =
162  RotManip::DRot_I(phi_tilde_n[n]).MulMT(T_overline);
163  }
164  Mat3x3 Ri, Gammai;
165  for (integer i = 0; i < NUMIP; i++) {
166  phi_tilde_i[i] = Interp(phi_tilde_n, xi_i[i]);
167  RotManip::RotAndDRot(phi_tilde_i[i], Ri, Gammai);
168  T_i[i] = T_overline * Ri * iTa_i[i];
169  Mat3x3 T_overline_Gamma_tilde_i(T_overline * Gammai);
170  for (int n = 0; n < NUMNODES; n++) {
171  Phi_Delta_i[i][n] = T_overline_Gamma_tilde_i *
172  DRot_I_phi_tilde_n_MT_T_overline[n];
173  }
174  }
175  Vec3 phi_tilde_0 = Interp(phi_tilde_n, xi_0);
176  T_0 = T_overline * RotManip::Rot(phi_tilde_0);
177 }
Shell4EAS::T_overline
Mat3x3 T_overline
Definition: shelleas.h:161
Vec3
Definition: matvec3.h:98
Shell4EAS::xi_i
static doublereal xi_i[NUMIP][2]
Definition: shelleas.h:105
Shell4EAS::Phi_Delta_i
Mat3x3 Phi_Delta_i[NUMIP][NUMNODES]
Definition: shelleas.h:171
Shell4EAS::phi_tilde_i
Vec3 phi_tilde_i[NUMIP]
Definition: shelleas.h:156
Shell4EAS::xi_0
static doublereal xi_0[2]
Definition: shelleas.h:127
Shell4EAS::T_i
Mat3x3 T_i[NUMIP]
Definition: shelleas.h:169
Shell4EAS::phi_tilde_n
Vec3 phi_tilde_n[NUMNODES]
Definition: shelleas.h:153
RotManip::Rot
Mat3x3 Rot(const Vec3 &phi)
Definition: Rot.cc:62
Shell4EAS::iTa_i
Mat3x3 iTa_i[NUMIP]
Definition: shelleas.h:151
RotManip::RotAndDRot
void RotAndDRot(const Vec3 &phi, Mat3x3 &Phi, Mat3x3 &Ga)
Definition: Rot.cc:86
Mat3x3::MulMT
Mat3x3 MulMT(const Mat3x3 &m) const
Definition: matvec3.cc:444
integer
long int integer
Definition: colamd.c:51
Shell4EAS::T_0
Mat3x3 T_0
Definition: shelleas.h:168
RotManip::DRot_I
Mat3x3 DRot_I(const Vec3 &phi)
Definition: Rot.cc:111

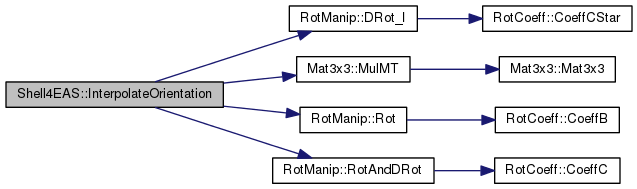

Here is the call graph for this function:

void Shell4EAS::Output ( OutputHandler &  OH) const
virtual

Reimplemented from ToBeOutput.

Definition at line 1251 of file shelleas.cc.

References ToBeOutput::bToBeOutput(), WithLabel::GetLabel(), NUMIP, OutputHandler::PLATES, OutputHandler::Plates(), stress_i, and OutputHandler::UseText().

1252 {
1253  if (bToBeOutput()) {
1254  if (OH.UseText(OutputHandler::PLATES)) {
1255  std::ostream& out = OH.Plates();
1256  out << std::setw(8) << GetLabel();
1257  // TODO: complete
1258  for (integer i = 0; i < NUMIP; i++) {
1259  for (integer r = 1; r <= 12; r++) {
1260  out << " " << stress_i[i](r);
1261  }
1262  }
1263  out << std::endl;
1264  }
1265  }
1266 }
ToBeOutput::bToBeOutput
virtual bool bToBeOutput(void) const
Definition: output.cc:890
Shell4EAS::stress_i
vvh stress_i
Definition: shelleas.h:252
OutputHandler::Plates
std::ostream & Plates(void) const
Definition: output.h:580
integer
long int integer
Definition: colamd.c:51
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
OutputHandler::UseText
bool UseText(int out) const
Definition: output.cc:446

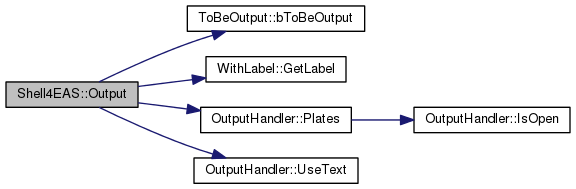

Here is the call graph for this function:

const StructNode * Shell4EAS::pGetNode ( unsigned int  i) const
virtual

Definition at line 1236 of file shelleas.cc.

References ASSERT, MBDYN_EXCEPT_ARGS, and pNode.

1237 {
1238  ASSERT(i >= 1 && i <= 4);
1239  switch (i) {
1240  case 1:
1241  case 2:
1242  case 3:
1243  case 4:
1244  return pNode[i - 1];
1245  default:
1246  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1247  }
1248 }
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
Shell4EAS::pNode
const StructNode * pNode[NUMNODES]
Definition: shelleas.h:138
std::ostream & Shell4EAS::Restart ( std::ostream &  out) const
virtual

Implements Elem.

Definition at line 1205 of file shelleas.cc.

1206 {
1207  return out << "# not implemented yet" << std::endl;
1208 }
virtual void Shell4EAS::SetInitialValue ( VectorHandler &  X)
inlinevirtual

Initialize state vector used in initial assembly. May set internal states of the element. Do not rely on being always called, because initial assembly could be implicitly or explicitly skipped

Reimplemented from DofOwnerOwner.

Definition at line 388 of file shelleas.h.

References NO_OP.

388  {
389  NO_OP;
390  };
NO_OP
#define NO_OP
Definition: myassert.h:74
void Shell4EAS::SetValue ( DataManager *  pDM,
VectorHandler &  ,
VectorHandler &  ,
SimulationEntity::Hints *  ph = 0
)
virtual

Reimplemented from SimulationEntity.

Definition at line 1212 of file shelleas.cc.

References NO_OP.

1215 {
1216  NO_OP;
1217 }
NO_OP
#define NO_OP
Definition: myassert.h:74
void Shell4EAS::UpdateNodalAndAveragePosAndOrientation ( void  )
private

Definition at line 101 of file shelleas.cc.

References StructNode::GetRCurr(), StructNode::GetRRef(), StructDispNode::GetXCurr(), iTa, Mat3x3::MulTM(), NUMNODES, phi_tilde_n, pNode, RotManip::Rot(), T_overline, RotManip::VecRot(), xa, and Zero3x3.

Referenced by AssRes(), and ComputeInitialNodeAndIptOrientation().

102 {
103  Mat3x3 T_avg(Zero3x3);
104  Mat3x3 Tn[NUMNODES];
105  Mat3x3 R_tilde_n[NUMNODES];
106  for (integer i = 0; i < NUMNODES; i++) {
107 // xa[i] = pNode[i]->GetXCurr()+pNode[i]->GetRCurr()*f[i];
108  xa[i] = pNode[i]->GetXCurr();
109  Tn[i] = pNode[i]->GetRCurr() * iTa[i];
110 // T_a_avg += Ta[i];
111  T_avg += pNode[i]->GetRRef() * iTa[i];
112  }
113  T_avg /= 4.;
114  //FIXME; alternative solution: polar decomposition of T_a_avg = T0*U
115  T_overline = RotManip::Rot(RotManip::VecRot(T_avg));
116  for (integer i = 0; i < NUMNODES; i++) {
117  R_tilde_n[i] = T_overline.MulTM(Tn[i]);
118  phi_tilde_n[i] = RotManip::VecRot(R_tilde_n[i]);
119  }
120 }
Shell4EAS::T_overline
Mat3x3 T_overline
Definition: shelleas.h:161
StructNode::GetRRef
virtual const Mat3x3 & GetRRef(void) const
Definition: strnode.h:1006
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
RotManip::VecRot
Vec3 VecRot(const Mat3x3 &Phi)
Definition: Rot.cc:136
Zero3x3
const Mat3x3 Zero3x3(0., 0., 0., 0., 0., 0., 0., 0., 0.)
Shell4EAS::phi_tilde_n
Vec3 phi_tilde_n[NUMNODES]
Definition: shelleas.h:153
Shell4EAS::xa
Vec3 xa[NUMNODES]
Definition: shelleas.h:148
RotManip::Rot
Mat3x3 Rot(const Vec3 &phi)
Definition: Rot.cc:62
Mat3x3::MulTM
Mat3x3 MulTM(const Mat3x3 &m) const
Definition: matvec3.cc:500
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
Shell4EAS::iTa
Mat3x3 iTa[NUMNODES]
Definition: shelleas.h:150
integer
long int integer
Definition: colamd.c:51
Shell4EAS::pNode
const StructNode * pNode[NUMNODES]
Definition: shelleas.h:138

Here is the call graph for this function:

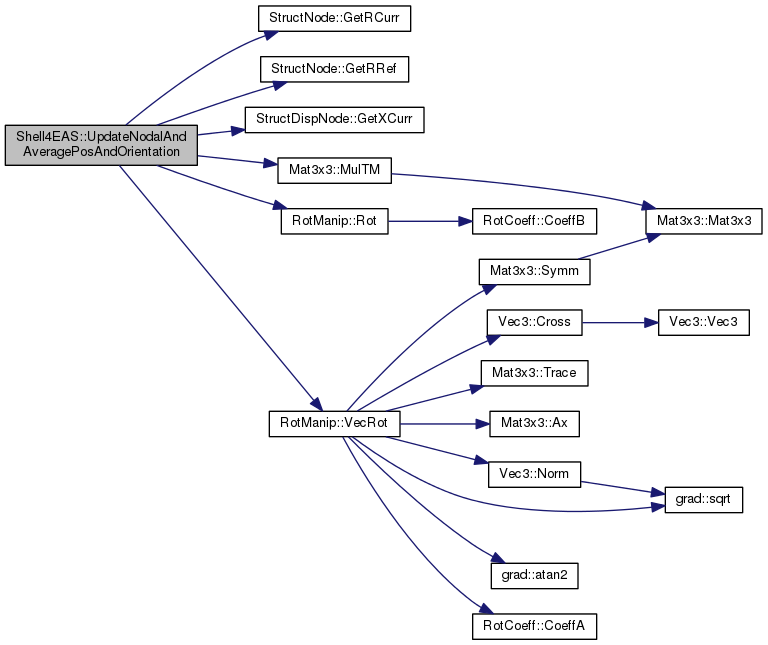

virtual void Shell4EAS::WorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
inlinevirtual

Implements Elem.

Definition at line 327 of file shelleas.h.

References iGetNumDof().

Referenced by AssJac(), and AssRes().

327  {
328  *piNumRows = 6*4 + iGetNumDof();
329  *piNumCols = 6*4 + iGetNumDof();
330  };
Shell4EAS::iGetNumDof
virtual unsigned int iGetNumDof(void) const
Definition: shelleas.h:297

Here is the call graph for this function:

Member Data Documentation

doublereal Shell4EAS::alpha_0
protected

Definition at line 224 of file shelleas.h.

Referenced by Shell4EAS().

doublereal Shell4EAS::alpha_i[NUMIP]
protected

Definition at line 225 of file shelleas.h.

Referenced by AssJac(), AssRes(), and Shell4EAS().

vfmh Shell4EAS::B_overline_i
protected

Definition at line 228 of file shelleas.h.

Referenced by AssJac(), and AssRes().

vh Shell4EAS::beta
protected

Definition at line 235 of file shelleas.h.

Referenced by AssRes().

bool Shell4EAS::bFirstRes
protected

Definition at line 255 of file shelleas.h.

bool Shell4EAS::bPreStress
protected

Definition at line 244 of file shelleas.h.

Referenced by AssRes().

vfmh Shell4EAS::DRef
protected

Definition at line 249 of file shelleas.h.

Referenced by AssJac(), AssRes(), and Shell4EAS().

Vec3 Shell4EAS::eps_tilde_1_0_i[NUMIP]
protected

Definition at line 191 of file shelleas.h.

Referenced by AssRes(), and Shell4EAS().

Vec3 Shell4EAS::eps_tilde_1_i[NUMIP]
protected

Definition at line 194 of file shelleas.h.

Referenced by AssRes().

Vec3 Shell4EAS::eps_tilde_2_0_i[NUMIP]
protected

Definition at line 192 of file shelleas.h.

Referenced by AssRes(), and Shell4EAS().

Vec3 Shell4EAS::eps_tilde_2_i[NUMIP]
protected

Definition at line 195 of file shelleas.h.

Referenced by AssRes().

vh Shell4EAS::epsilon
protected

Definition at line 237 of file shelleas.h.

Referenced by AssRes().

vh Shell4EAS::epsilon_hat
protected

Definition at line 236 of file shelleas.h.

Referenced by AssRes().

vvh Shell4EAS::FRef
protected

Definition at line 243 of file shelleas.h.

Mat3x3 Shell4EAS::iTa[NUMNODES]
protected

Definition at line 150 of file shelleas.h.

Referenced by ComputeInitialNodeAndIptOrientation(), and UpdateNodalAndAveragePosAndOrientation().

Mat3x3 Shell4EAS::iTa_i[NUMIP]
protected

Definition at line 151 of file shelleas.h.

Referenced by ComputeInitialNodeAndIptOrientation(), and InterpolateOrientation().

Vec3 Shell4EAS::k_1_i[NUMIP]
protected

Definition at line 184 of file shelleas.h.

Referenced by AssJac(), AssRes(), ComputeIPCurvature(), and Shell4EAS().

Vec3 Shell4EAS::k_2_i[NUMIP]
protected

Definition at line 185 of file shelleas.h.

Referenced by AssJac(), AssRes(), ComputeIPCurvature(), and Shell4EAS().

Vec3 Shell4EAS::k_tilde_1_0_i[NUMIP]
protected

Definition at line 199 of file shelleas.h.

Referenced by AssRes(), and Shell4EAS().

Vec3 Shell4EAS::k_tilde_1_i[NUMIP]
protected

Definition at line 202 of file shelleas.h.

Referenced by AssRes().

Vec3 Shell4EAS::k_tilde_2_0_i[NUMIP]
protected

Definition at line 200 of file shelleas.h.

Referenced by AssRes(), and Shell4EAS().

Vec3 Shell4EAS::k_tilde_2_i[NUMIP]
protected

Definition at line 203 of file shelleas.h.

Referenced by AssRes().

Mat3x3 Shell4EAS::Kappa_delta_i_1[NUMIP][NUMNODES]
protected

Definition at line 172 of file shelleas.h.

Referenced by AssJac(), AssRes(), and ComputeIPCurvature().

Mat3x3 Shell4EAS::Kappa_delta_i_2[NUMIP][NUMNODES]
protected

Definition at line 173 of file shelleas.h.

Referenced by AssJac(), AssRes(), and ComputeIPCurvature().

vfmh Shell4EAS::L_alpha_beta_i
protected

Definition at line 226 of file shelleas.h.

Referenced by AssJac(), AssRes(), ComputeIPCurvature(), and Shell4EAS().

vfmh Shell4EAS::P_i
protected

Definition at line 230 of file shelleas.h.

Referenced by AssJac(), AssRes(), and Shell4EAS().

Mat3x3 Shell4EAS::Phi_Delta_i[NUMIP][NUMNODES]
protected

Definition at line 171 of file shelleas.h.

Referenced by AssJac(), AssRes(), ComputeIPCurvature(), and InterpolateOrientation().

Vec3 Shell4EAS::phi_tilde_i[NUMIP]
protected

Definition at line 156 of file shelleas.h.

Referenced by AssJac(), ComputeIPCurvature(), and InterpolateOrientation().

Vec3 Shell4EAS::phi_tilde_n[NUMNODES]
protected

Definition at line 153 of file shelleas.h.

Referenced by AssJac(), AssRes(), ComputeIPCurvature(), InterpolateOrientation(), and UpdateNodalAndAveragePosAndOrientation().

const StructNode* Shell4EAS::pNode[NUMNODES]
protected

Definition at line 138 of file shelleas.h.

Referenced by AssJac(), AssRes(), ComputeInitialNodeAndIptOrientation(), GetConnectedNodes(), pGetNode(), Shell4EAS(), and UpdateNodalAndAveragePosAndOrientation().

vh Shell4EAS::PreStress
protected

Definition at line 245 of file shelleas.h.

Referenced by AssRes().

Mat3x3 Shell4EAS::Q_i[NUMIP]
protected

Definition at line 181 of file shelleas.h.

fmh Shell4EAS::S_alpha_beta_0
protected

Definition at line 223 of file shelleas.h.

Referenced by Shell4EAS().

vvh Shell4EAS::stress_i
protected

Definition at line 252 of file shelleas.h.

Referenced by AssJac(), AssRes(), and Output().

Mat3x3 Shell4EAS::T0_overline
protected

Definition at line 159 of file shelleas.h.

Referenced by Shell4EAS().

Mat3x3 Shell4EAS::T_0
protected

Definition at line 168 of file shelleas.h.

Referenced by InterpolateOrientation(), and Shell4EAS().

Mat3x3 Shell4EAS::T_0_0
protected

Definition at line 165 of file shelleas.h.

Referenced by Shell4EAS().

Mat3x3 Shell4EAS::T_0_i[NUMIP]
protected

Definition at line 166 of file shelleas.h.

Referenced by Shell4EAS().

Mat3x3 Shell4EAS::T_i[NUMIP]
protected

Definition at line 169 of file shelleas.h.

Referenced by AssJac(), AssRes(), ComputeInitialNodeAndIptOrientation(), InterpolateOrientation(), and Shell4EAS().

Mat3x3 Shell4EAS::T_overline
protected

Definition at line 161 of file shelleas.h.

Referenced by AssJac(), ComputeIPCurvature(), InterpolateOrientation(), Shell4EAS(), and UpdateNodalAndAveragePosAndOrientation().

doublereal Shell4EAS::w_i
static
Initial value:
= {
1.,
1.,
1.,
1.
}

Definition at line 106 of file shelleas.h.

Referenced by AssJac(), and AssRes().

Vec3 Shell4EAS::xa[NUMNODES]
protected

Definition at line 148 of file shelleas.h.

Referenced by AssRes(), ComputeInitialNodeAndIptOrientation(), Shell4EAS(), and UpdateNodalAndAveragePosAndOrientation().

Vec3 Shell4EAS::xa_0[NUMNODES]
protected

Definition at line 147 of file shelleas.h.

Referenced by Shell4EAS().

doublereal Shell4EAS::xi_0 = {0., 0.}
static

Definition at line 127 of file shelleas.h.

Referenced by InterpolateOrientation(), and Shell4EAS().

doublereal Shell4EAS::xi_i
static
Initial value:
= {
{-1. / std::sqrt(3.), -1. / std::sqrt(3.)},
{ 1. / std::sqrt(3.), -1. / std::sqrt(3.)},
{ 1. / std::sqrt(3.), 1. / std::sqrt(3.)},
{-1. / std::sqrt(3.), 1. / std::sqrt(3.)}
}

Definition at line 105 of file shelleas.h.

Referenced by AssJac(), AssRes(), ComputeInitialNodeAndIptOrientation(), ComputeIPCurvature(), InterpolateOrientation(), and Shell4EAS().

doublereal Shell4EAS::xi_n
static
Initial value:
= {
{ 1., 1.},
{-1., 1.},
{-1., -1.},
{ 1., -1.}
}

Definition at line 125 of file shelleas.h.

Referenced by ComputeInitialNodeAndIptOrientation().

Vec3 Shell4EAS::y_i_1[NUMIP]
protected

Definition at line 232 of file shelleas.h.

Referenced by AssJac(), AssRes(), and Shell4EAS().

Vec3 Shell4EAS::y_i_2[NUMIP]
protected

Definition at line 233 of file shelleas.h.

Referenced by AssJac(), AssRes(), and Shell4EAS().

The documentation for this class was generated from the following files:
