InlineFriction Class Reference

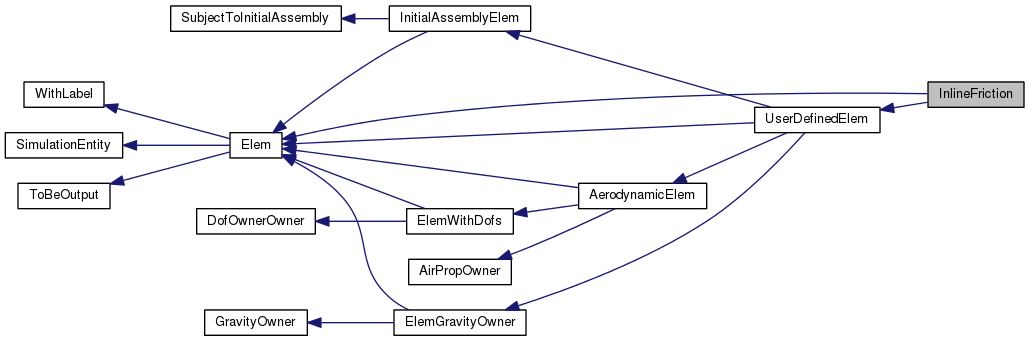

Inheritance diagram for InlineFriction:
Inheritance graph
[legend]

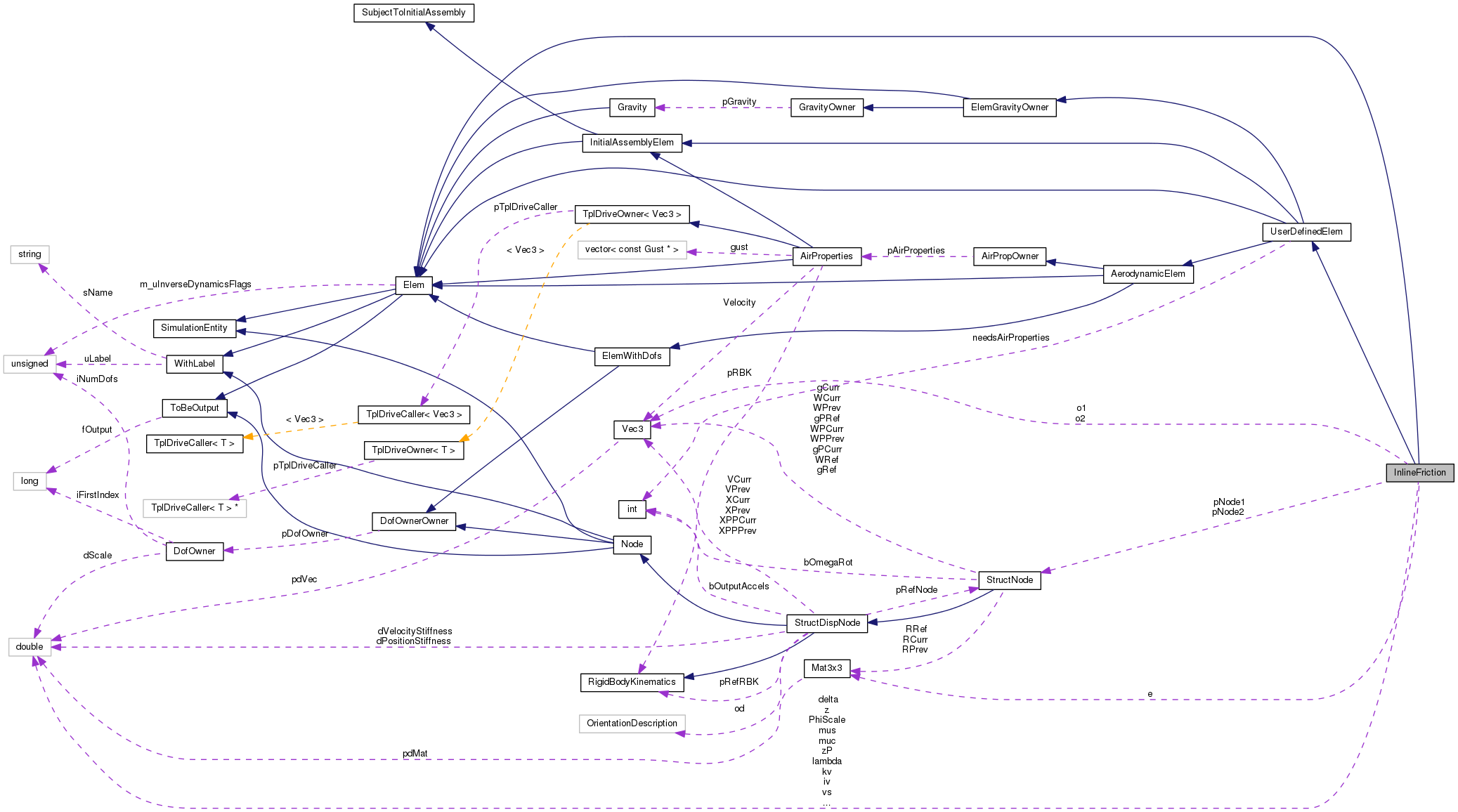

Collaboration diagram for InlineFriction:
Collaboration graph
[legend]

Public Member Functions

 InlineFriction (unsigned uLabel, const DofOwner *pDO, DataManager *pDM, MBDynParser &HP)

virtual ~InlineFriction (void)

virtual unsigned int iGetNumDof (void) const

virtual DofOrder::Order GetDofType (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix, bool bInitial) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix, bool bInitial) const

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

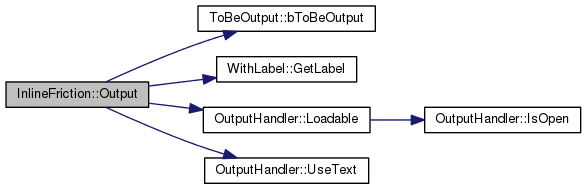

virtual void Output (OutputHandler &OH) const

virtual void WorkSpaceDim (integer *piNumRows, integer *piNumCols) const

VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

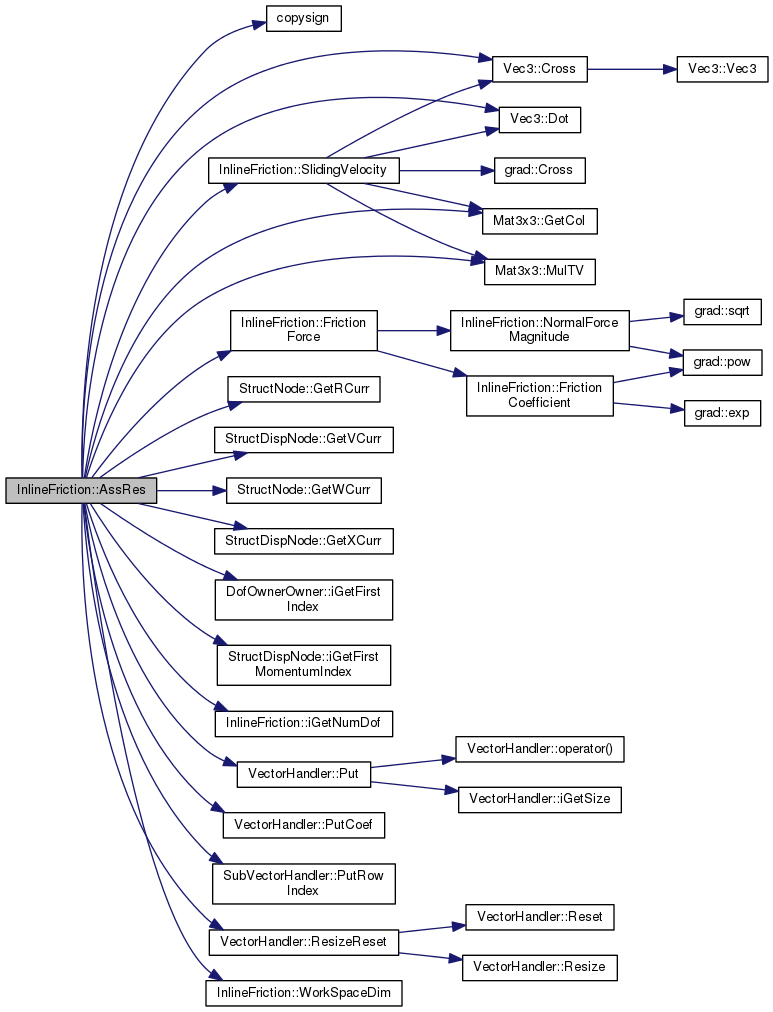

SubVectorHandler & AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

int iGetNumConnectedNodes (void) const

void GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph)

std::ostream & Restart (std::ostream &out) const

virtual unsigned int iGetInitialNumDof (void) const

virtual void InitialWorkSpaceDim (integer *piNumRows, integer *piNumCols) const

VariableSubMatrixHandler & InitialAssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

SubVectorHandler & InitialAssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr)

- Public Member Functions inherited from Elem
 Elem (unsigned int uL, flag fOut)

virtual ~Elem (void)

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual void AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual bool bInverseDynamics (void) const

void SetInverseDynamicsFlags (unsigned uIDF)

unsigned GetInverseDynamicsFlags (void) const

bool bIsErgonomy (void) const

bool bIsRightHandSide (void) const

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler & AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual int GetNumConnectedNodes (void) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual Hint * ParseHint (DataManager *pDM, const char *s) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))

- Public Member Functions inherited from UserDefinedElem
 UserDefinedElem (unsigned uLabel, const DofOwner *pDO)

virtual ~UserDefinedElem (void)

bool NeedsAirProperties (void) const

void NeedsAirProperties (bool yesno)

virtual Elem::Type GetElemType (void) const

virtual AerodynamicElem::Type GetAerodynamicElemType (void) const

- Public Member Functions inherited from InitialAssemblyElem
 InitialAssemblyElem (unsigned int uL, flag fOut)

virtual ~InitialAssemblyElem (void)

- Public Member Functions inherited from SubjectToInitialAssembly
 SubjectToInitialAssembly (void)

virtual ~SubjectToInitialAssembly (void)

- Public Member Functions inherited from AerodynamicElem
 AerodynamicElem (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~AerodynamicElem (void)

virtual const InducedVelocity * pGetInducedVelocity (void) const

- Public Member Functions inherited from ElemWithDofs
 ElemWithDofs (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~ElemWithDofs (void)

- Public Member Functions inherited from DofOwnerOwner
 DofOwnerOwner (const DofOwner *pDO)

virtual ~DofOwnerOwner ()

virtual const DofOwner * pGetDofOwner (void) const

virtual integer iGetFirstIndex (void) const

virtual void SetInitialValue (VectorHandler &X)

- Public Member Functions inherited from AirPropOwner
 AirPropOwner (void)

virtual ~AirPropOwner (void)

virtual void PutAirProperties (const AirProperties *pAP)

virtual flag fGetAirVelocity (Vec3 &Velocity, const Vec3 &X) const

virtual doublereal dGetAirDensity (const Vec3 &X) const

virtual doublereal dGetAirPressure (const Vec3 &X) const

virtual doublereal dGetAirTemperature (const Vec3 &X) const

virtual doublereal dGetSoundSpeed (const Vec3 &X) const

virtual bool GetAirProps (const Vec3 &X, doublereal &rho, doublereal &c, doublereal &p, doublereal &T) const

- Public Member Functions inherited from ElemGravityOwner
 ElemGravityOwner (unsigned int uL, flag fOut)

virtual ~ElemGravityOwner (void)

virtual doublereal dGetM (void) const

Vec3 GetS (void) const

Mat3x3 GetJ (void) const

Vec3 GetB (void) const

Vec3 GetG (void) const

- Public Member Functions inherited from GravityOwner
 GravityOwner (void)

virtual ~GravityOwner (void)

void PutGravity (const Gravity *pG)

virtual bool bGetGravity (const Vec3 &X, Vec3 &Acc) const


Private Types

enum  LagrangeMultiplierIndex_t { L1 = 0, L2 = 1 }


Private Member Functions

doublereal SlidingVelocity (const Vec3 &X1, const Mat3x3 &R1, const Vec3 &XP1, const Vec3 &omega1, const Vec3 &X2, const Mat3x3 &R2, const Vec3 &XP2, const Vec3 &omega2) const

doublereal NormalForceMagnitude () const

doublereal FrictionCoefficient (doublereal DeltaXP) const

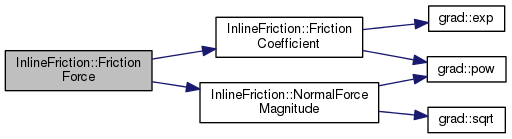

doublereal FrictionForce (doublereal DeltaXP) const


Private Attributes

StructNode * pNode1

Vec3 o1

Mat3x3 e

StructNode * pNode2

Vec3 o2

doublereal lambda [2]

doublereal z

doublereal zP

doublereal mus

doublereal muc

doublereal vs

doublereal iv

doublereal kv

doublereal delta

doublereal PhiScale


Additional Inherited Members

- Public Types inherited from Elem
enum  Type {
  UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL,
  GRAVITY, BODY, JOINT, JOINT_REGULARIZATION,
  BEAM, PLATE, FORCE, INERTIA,
  ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC,
  BULK, LOADABLE, DRIVEN, EXTERNAL,
  AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT,
  RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE
}

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Public Types inherited from AerodynamicElem
enum  Type {
  UNKNOWN = -1, INDUCEDVELOCITY = 0, AEROMODAL, AERODYNAMICBODY,
  AERODYNAMICBEAM, AERODYNAMICEXTERNAL, AERODYNAMICEXTERNALMODAL, AERODYNAMICLOADABLE,
  AIRCRAFTINSTRUMENTS, GENERICFORCE, LASTAEROTYPE
}

- Protected Member Functions inherited from ElemGravityOwner
virtual Vec3 GetS_int (void) const

virtual Mat3x3 GetJ_int (void) const

virtual Vec3 GetB_int (void) const

virtual Vec3 GetG_int (void) const

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput

- Protected Attributes inherited from UserDefinedElem
bool needsAirProperties

- Protected Attributes inherited from AirPropOwner
const AirProperties * pAirProperties

- Protected Attributes inherited from GravityOwner
Gravity * pGravity


Detailed Description

Definition at line 62 of file module-inline_friction.cc.

Member Enumeration Documentation

enum InlineFriction::LagrangeMultiplierIndex_t
private
Enumerator
L1
L2

Definition at line 115 of file module-inline_friction.cc.

116  {
117  L1 = 0,
118  L2 = 1
119  };

Constructor & Destructor Documentation

InlineFriction::InlineFriction ( unsigned  uLabel,
const DofOwner *  pDO,
DataManager *  pDM,
MBDynParser &  HP
)

Definition at line 134 of file module-inline_friction.cc.

References delta, e, DataManager::fReadOutput(), WithLabel::GetLabel(), IncludeParser::GetLineData(), DataManager::GetLogFile(), MBDynParser::GetPosRel(), HighParser::GetReal(), MBDynParser::GetRotRel(), HighParser::IsArg(), HighParser::IsKeyWord(), iv, kv, lambda, Elem::LOADABLE, MBDYN_EXCEPT_ARGS, muc, mus, o1, o2, PhiScale, pNode1, pNode2, DataManager::ReadNode(), ToBeOutput::SetOutputFlag(), Node::STRUCTURAL, vs, z, and zP.

137 : Elem(uLabel, flag(0)),
138  UserDefinedElem(uLabel, pDO),
139  pNode1(0),
140  o1(Zero3),
141  e(Eye3),
142  pNode2(0),
143  o2(Zero3),
144  z(0.),
145  zP(0.),
146  mus(0.),
147  muc(0.),
148  vs(1.),
149  iv(1.),
150  kv(0.),
151  delta(1.),
152  PhiScale(1.)
153 {
154  for (int i = 0; i < 2; ++i) {
155  lambda[i] = 0;
156  }
157
158  // help
159  if (HP.IsKeyWord("help")) {
160  silent_cout(
161  "\n"
162  "Module: InlineFriction\n"
163  "\n"
164  " This element implements a inline joint with friction\n"
165  "\n"
166  " inline friction,\n"
167  " node1, (label) <node1>,\n"
168  " [ offset, (Vec3) <offset>, ]\n"
169  " [ hinge, (Mat3x3) <orientation>, ]\n"
170  " node2, (label) <node2>,\n"
171  " [ offset, (Vec3) <offset>, ]\n"
172  " coulomb friction coefficient, (real) <muc>,\n"
173  " static friction coefficient, (real) <mus>,\n"
174  " sliding velocity coefficient, (real) <vs>,\n"
175  " [ sliding velocity exponent, (real) <i>, ]\n"
176  " micro slip displacement, (real) <delta>,\n"
177  " [ initial stiction state, (real) <z0>, ]\n"
178  " [ initial stiction derivative, (real) <zP0>, ]\n"
179  " [ viscous friction coefficient, (real) <kv>, ]\n"
180  " [ stiction state equation scale, (real) <PhiScale> ]\n"
181  "\n"
182  << std::endl);
183
184  if (!HP.IsArg()) {
185  /*
186  * Exit quietly if nothing else is provided
187  */
188  throw NoErr(MBDYN_EXCEPT_ARGS);
189  }
190  }
191
192  if ( !HP.IsKeyWord("node1") ) {
193  silent_cerr("inline friction(" << GetLabel() << "): keyword \"node1\" expected at line " << HP.GetLineData() << std::endl);
194  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
195  }
196
197  pNode1 = dynamic_cast<StructNode*>(pDM->ReadNode(HP,Node::STRUCTURAL));
198
199  if (!pNode1) {
200  silent_cerr("inline friction(" << GetLabel() << "): structural node expected at line " << HP.GetLineData() << std::endl);
201  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
202  }
203
204  const ReferenceFrame refNode1(pNode1);
205
206  if (HP.IsKeyWord("offset")) {
207  o1 = HP.GetPosRel(refNode1);
208  }
209
210  if (HP.IsKeyWord("hinge") || HP.IsKeyWord("orientation")) {
211  e = HP.GetRotRel(refNode1);
212  }
213
214  if (!HP.IsKeyWord("node2")) {
215  silent_cerr("inline friction(" << GetLabel() << "): keyword \"node2\" expected at line " << HP.GetLineData() << std::endl);
216  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
217  }
218
219  pNode2 = dynamic_cast<StructNode*>(pDM->ReadNode(HP,Node::STRUCTURAL));
220
221  if (!pNode2) {
222  silent_cerr("inline friction(" << GetLabel() << "): structural node expected at line " << HP.GetLineData() << std::endl);
223  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
224  }
225
226  if (HP.IsKeyWord("offset")) {
227  const ReferenceFrame refNode2(pNode2);
228
229  o2 = HP.GetPosRel(refNode2);
230  }
231
232  if (HP.IsKeyWord("coulomb" "friction" "coefficient")) {
233  muc = HP.GetReal();
234
235  if (muc < 0) {
236  silent_cerr("inline friction(" << GetLabel() << "): coulomb friction coefficient must be greater than zero at line " << HP.GetLineData() << std::endl);
237  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
238  }
239
240  if (HP.IsKeyWord("static" "friction" "coefficient")) {
241  mus = HP.GetReal();
242  } else {
243  mus = muc;
244  }
245
246  if (mus < 0) {
247  silent_cerr("inline friction(" << GetLabel() << "): static friction coefficient must be greater than or equal to zero at line " << HP.GetLineData() << std::endl);
248  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
249  }
250
251  if (HP.IsKeyWord("sliding" "velocity" "coefficient")) {
252  vs = HP.GetReal();
253  }
254
255  if (vs <= 0.) {
256  silent_cerr("inline friction(" << GetLabel() << "): sliding velocity coefficient must be greater than zero at line " << HP.GetLineData() << std::endl);
257  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
258  }
259
260  if (HP.IsKeyWord("sliding" "velocity" "exponent")) {
261  iv = HP.GetReal();
262  }
263
264  if (!HP.IsKeyWord("micro" "slip" "displacement")) {
265  silent_cerr("inline friction(" << GetLabel() << "): keyword \"micro slip displacement\" expected at line " << HP.GetLineData() << std::endl);
266  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
267  }
268
269  delta = HP.GetReal();
270
271  if (delta <= 0) {
272  silent_cerr("inline friction(" << GetLabel() << "): micro slip displacement must be greater than zero at line " << HP.GetLineData() << std::endl);
273  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
274  }
275
276  if (HP.IsKeyWord("initial" "stiction" "state")) {
277  z = HP.GetReal();
278  }
279
280  if (std::abs(z) > 1.) {
281  silent_cerr("inline friction(" << GetLabel() << "): initial stiction state must be between -1 and 1 at line " << HP.GetLineData() << std::endl);
282  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
283  }
284
285  if (HP.IsKeyWord("initial" "stiction" "derivative")) {
286  zP = HP.GetReal();
287  }
288
289  z *= delta;
290  zP *= delta;
291  }
292
293  if (HP.IsKeyWord("viscous" "friction" "coefficient")) {
294  kv = HP.GetReal();
295  }
296
297  if (kv < 0) {
298  silent_cerr("inline friction(" << GetLabel() << "): viscous friction coefficient must be greater than or equal to zero at line " << HP.GetLineData() << std::endl);
299  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
300  }
301
302  if (HP.IsKeyWord("stiction" "state" "equation" "scale")) {
303  PhiScale = HP.GetReal();
304  }
305
306  if (PhiScale == 0.) {
307  silent_cerr("inline friction(" << GetLabel() << "): stiction state equation scale must not be equal to zero at line " << HP.GetLineData() << std::endl);
308  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
309  }
310
311  SetOutputFlag(pDM->fReadOutput(HP, Elem::LOADABLE));
312
313  std::ostream& out = pDM->GetLogFile();
314
315  out << "inline friction: " << GetLabel() << " "
316  << pNode1->GetLabel() << " "
317  << o1 << " "
318  << e << " "
319  << pNode2->GetLabel() << " " << o2 << " "
320  << muc << " "
321  << mus << " "
322  << vs << " "
323  << iv << " "
324  << kv << " "
325  << delta << " "
326  << z << " "
327  << zP
328  << std::endl;
329 }
DataManager::fReadOutput
flag fReadOutput(MBDynParser &HP, const T &t) const
Definition: dataman.h:1064
MBDynParser::GetRotRel
Mat3x3 GetRotRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1795
Zero3
const Vec3 Zero3(0., 0., 0.)
flag
long int flag
Definition: mbdyn.h:43
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Eye3
const Mat3x3 Eye3(1., 0., 0., 0., 1., 0., 0., 0., 1.)
MBDynParser::GetPosRel
Vec3 GetPosRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1331
HighParser::IsKeyWord
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910
WithLabel::uLabel
unsigned int uLabel
Definition: withlab.h:44
NoErr
Definition: except.h:79
HighParser::IsArg
virtual bool IsArg(void)
Definition: parser.cc:807
DataManager::GetLogFile
std::ostream & GetLogFile(void) const
Definition: dataman.h:326
UserDefinedElem::UserDefinedElem
UserDefinedElem(unsigned uLabel, const DofOwner *pDO)
Definition: userelem.cc:152
ToBeOutput::SetOutputFlag
virtual void SetOutputFlag(flag f=flag(1))
Definition: output.cc:896
Elem::Elem
Elem(unsigned int uL, flag fOut)
Definition: elem.cc:41
IncludeParser::GetLineData
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
DataManager::ReadNode
Node * ReadNode(MBDynParser &HP, Node::Type type) const
Definition: dataman3.cc:2309
HighParser::GetReal
virtual doublereal GetReal(const doublereal &dDefval=0.0)
Definition: parser.cc:1056

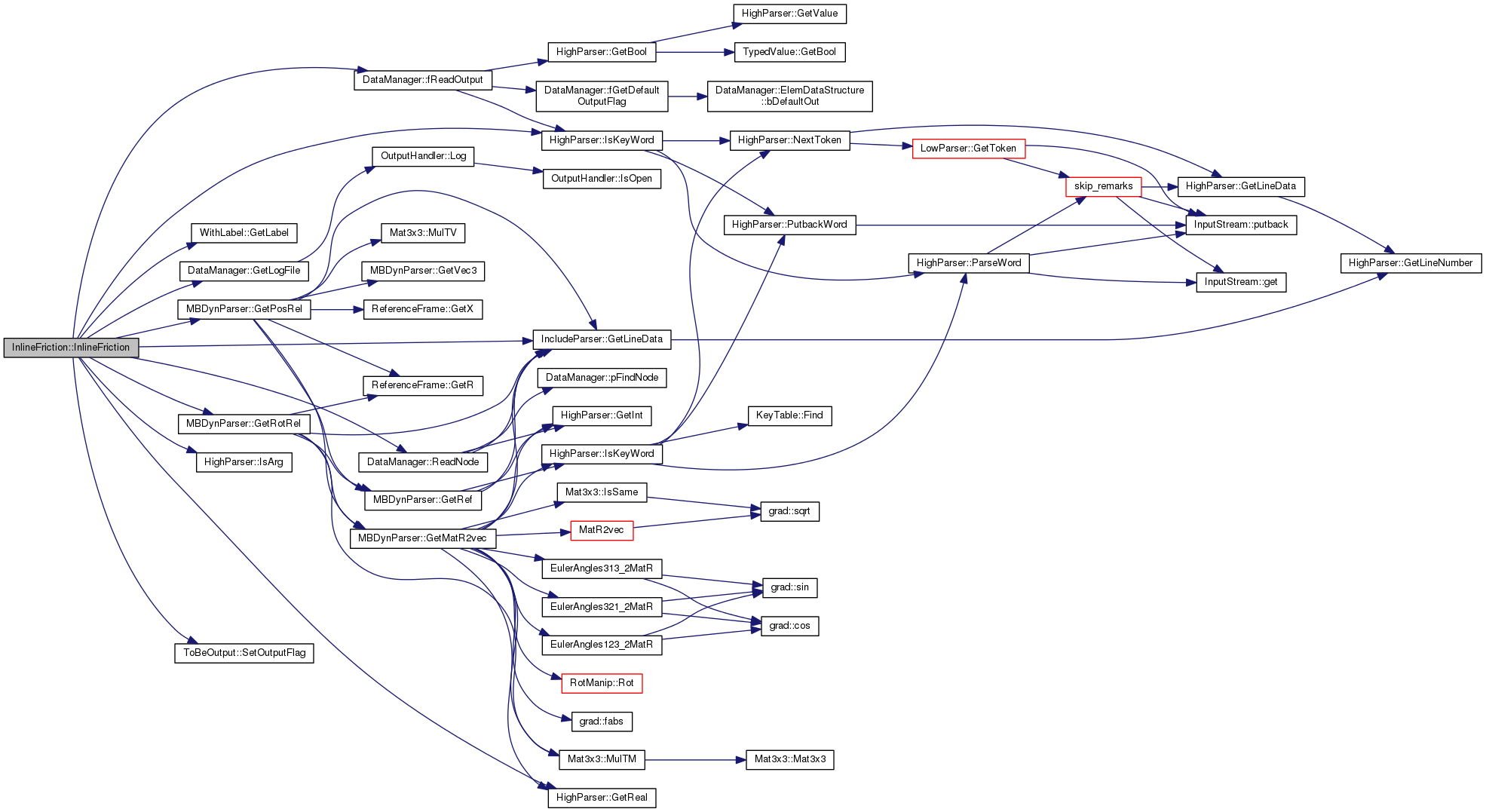

Here is the call graph for this function:

InlineFriction::~InlineFriction ( void  )
virtual

Definition at line 331 of file module-inline_friction.cc.

332 {
333  // destroy private data
334 }

Member Function Documentation

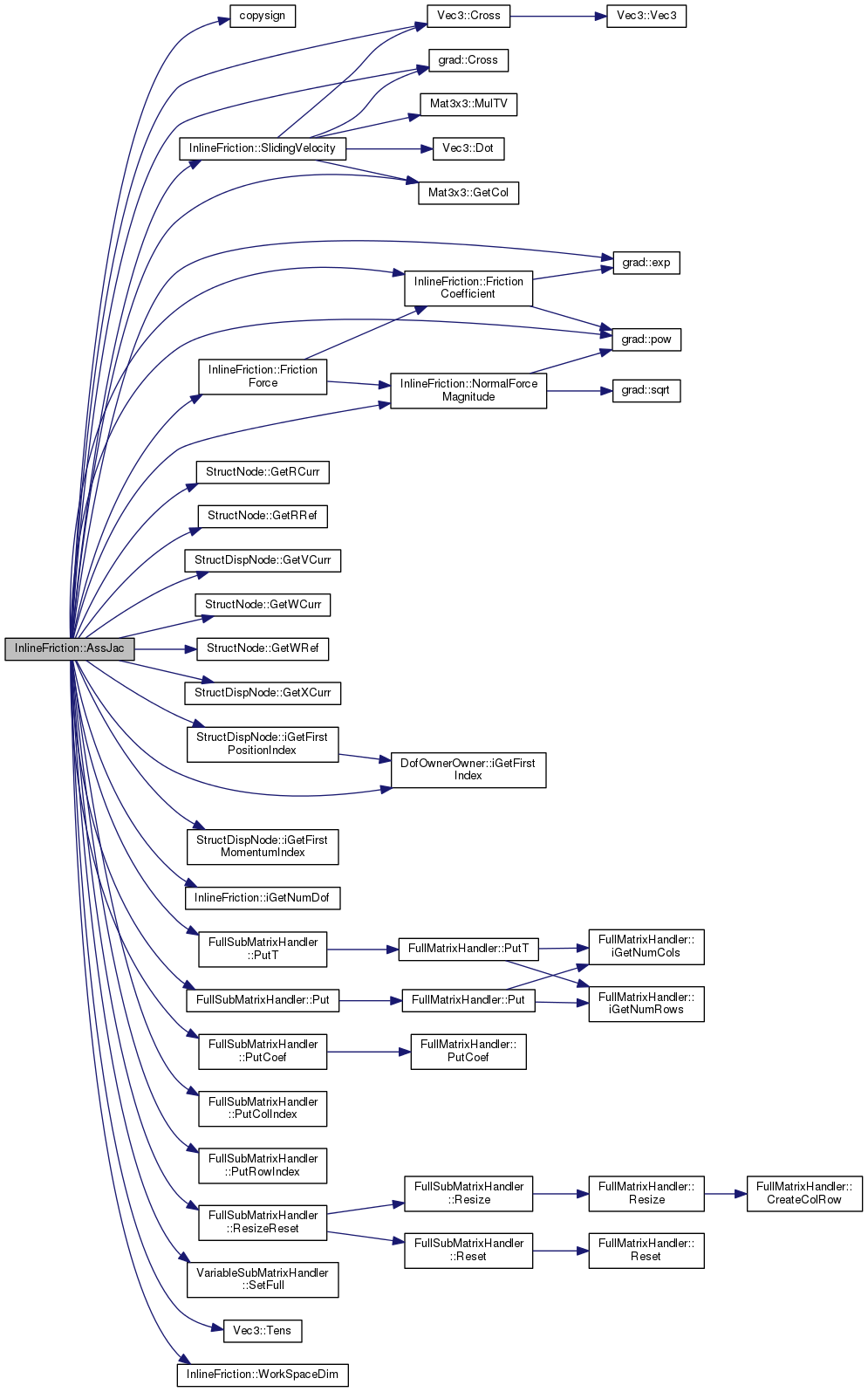

VariableSubMatrixHandler & InlineFriction::AssJac ( VariableSubMatrixHandler &  WorkMat,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 488 of file module-inline_friction.cc.

References copysign(), Vec3::Cross(), grad::Cross(), delta, e, grad::exp(), FrictionCoefficient(), FrictionForce(), Mat3x3::GetCol(), StructNode::GetRCurr(), StructNode::GetRRef(), StructDispNode::GetVCurr(), StructNode::GetWCurr(), StructNode::GetWRef(), StructDispNode::GetXCurr(), DofOwnerOwner::iGetFirstIndex(), StructDispNode::iGetFirstMomentumIndex(), StructDispNode::iGetFirstPositionIndex(), iGetNumDof(), iv, kv, L1, L2, lambda, MatCross, MatCrossCross, muc, mus, NormalForceMagnitude(), o2, PhiScale, pNode1, pNode2, grad::pow(), FullSubMatrixHandler::Put(), FullSubMatrixHandler::PutCoef(), FullSubMatrixHandler::PutColIndex(), FullSubMatrixHandler::PutRowIndex(), FullSubMatrixHandler::PutT(), FullSubMatrixHandler::ResizeReset(), VariableSubMatrixHandler::SetFull(), SlidingVelocity(), Vec3::Tens(), vs, WorkSpaceDim(), and z.

492 {
493  integer iNumRows, iNumCols;
494  WorkSpaceDim(&iNumRows, &iNumCols);
495
496  FullSubMatrixHandler& WorkMat = WorkMatVar.SetFull();
497
498  WorkMat.ResizeReset(iNumRows, iNumCols);
499
500  const integer iFirstMomentumIndexNode1 = pNode1->iGetFirstMomentumIndex();
501  const integer iFirstPositionIndexNode1 = pNode1->iGetFirstPositionIndex();
502  const integer iFirstMomentumIndexNode2 = pNode2->iGetFirstMomentumIndex();
503  const integer iFirstPositionIndexNode2 = pNode2->iGetFirstPositionIndex();
504  const integer iFirstIndex = iGetFirstIndex();
505  const integer iNumDof = iGetNumDof();
506
507  for (integer i = 1; i <= 6; ++i) {
508  WorkMat.PutRowIndex(i, iFirstMomentumIndexNode1 + i);
509  WorkMat.PutColIndex(i, iFirstPositionIndexNode1 + i);
510  WorkMat.PutRowIndex(i + 6, iFirstMomentumIndexNode2 + i);
511  WorkMat.PutColIndex(i + 6, iFirstPositionIndexNode2 + i);
512  }
513
514  for (integer i = 1; i <= iNumDof; ++i) {
515  WorkMat.PutRowIndex(12 + i, iFirstIndex + i);
516  WorkMat.PutColIndex(12 + i, iFirstIndex + i);
517  }
518
519  const Vec3& X1 = pNode1->GetXCurr();
520  const Mat3x3& R1 = pNode1->GetRCurr();
521  const Mat3x3& R1_0 = pNode1->GetRRef();
522  const Vec3& X2 = pNode2->GetXCurr();
523  const Mat3x3& R2 = pNode2->GetRCurr();
524  const Mat3x3& R2_0 = pNode2->GetRRef();
525
526  // common subexpressions
527  const Vec3 R1e1 = R1 * e.GetCol(1);
528  const Vec3 R1e2 = R1 * e.GetCol(2);
529  const Vec3 R1e3 = R1 * e.GetCol(3);
530  const Vec3 R2o2 = R2 * o2;
531  const Vec3 R2_0o2 = R2_0 * o2;
532  const Vec3 l1 = X2 + R2o2 - X1;
533
534  const Vec3& XP1 = pNode1->GetVCurr();
535  const Vec3& omega1 = pNode1->GetWCurr();
536  const Vec3& omega1_0 = pNode1->GetWRef();
537  const Vec3& XP2 = pNode2->GetVCurr();
538  const Vec3& omega2 = pNode2->GetWCurr();
539
540  const doublereal DeltaXP = SlidingVelocity(X1, R1, XP1, omega1, X2, R2, XP2, omega2);
541  const Vec3 dDeltaXP_dX1_T = -omega1.Cross(R1e1);
542  const Vec3 dDeltaXP_dg1_T = -(XP2 + omega2.Cross(R2o2) - XP1 - omega1.Cross(l1)).Cross(R1_0 * e.GetCol(1))
543  - omega1_0.Cross((l1).Cross(R1e1));
544  const Vec3 dDeltaXP_dXP1_T = -R1e1;
545  const Vec3 dDeltaXP_dgP1_T = -l1.Cross(R1e1);
546  const Vec3 dDeltaXP_dX2_T = omega1.Cross(R1e1);
547  const Vec3 dDeltaXP_dg2_T = R2_0o2.Cross((omega1 - omega2).Cross(R1e1)) + omega2.Cross(R2o2.Cross(R1e1));
548  const Vec3& dDeltaXP_dXP2_T = R1e1;
549  const Vec3 dDeltaXP_dgP2_T = R2o2.Cross(R1e1);
550
551  const doublereal tau = FrictionForce(DeltaXP);
552  doublereal dtau_dDeltaXP = kv;
553  doublereal dtau_dlambda[2];
554
555  if (muc > 0)
556  {
557  const doublereal mu = FrictionCoefficient(DeltaXP);
558  const doublereal lambda_res = NormalForceMagnitude();
559
560  dtau_dDeltaXP -= muc * lambda_res * z / delta * (mus / muc - 1) * exp(-std::pow(std::abs(DeltaXP) / vs, iv))
561  * iv * std::pow(std::abs(DeltaXP) / vs, iv - 1) * copysign(1., DeltaXP) / vs;
562
563  if (lambda_res != 0) {
564  for (int i = 0; i < 2; ++i) {
565  dtau_dlambda[i] = mu * lambda[i] * z / (lambda_res * delta);
566  }
567  } else { // avoid division by zero
568  for (int i = 0; i < 2; ++i) {
569  dtau_dlambda[i] = mu * copysign(1., lambda[i]) * z / delta;
570  }
571  }
572
573  const doublereal dtau_dz = mu * lambda_res / delta;
574  const Vec3 dF1_dz = R1e1 * dtau_dz;
575  const Vec3 dM1_dz = l1.Cross(dF1_dz);
576  const Vec3 dM2_dz = (-R2o2).Cross(dF1_dz);
577
578  const doublereal alpha = z / delta * copysign(1., DeltaXP) - 1;
579
580  const Vec3 dPhi_dX1_T = dDeltaXP_dX1_T * alpha;
581  const Vec3 dPhi_dg1_T = dDeltaXP_dg1_T * alpha;
582  const Vec3 dPhi_dXP1_T = dDeltaXP_dXP1_T * alpha;
583  const Vec3 dPhi_dgP1_T = dDeltaXP_dgP1_T * alpha;
584  const Vec3 dPhi_dX2_T = dDeltaXP_dX2_T * alpha;
585  const Vec3 dPhi_dg2_T = dDeltaXP_dg2_T * alpha;
586  const Vec3 dPhi_dXP2_T = dDeltaXP_dXP2_T * alpha;
587  const Vec3 dPhi_dgP2_T = dDeltaXP_dgP2_T * alpha;
588
589  const doublereal dPhi_dz = std::abs(DeltaXP) / delta;
590  const doublereal dPhi_dzP = 1.;
591
592  WorkMat.Put(1, 15, -dF1_dz * dCoef);
593  WorkMat.Put(4, 15, -dM1_dz * dCoef);
594  WorkMat.Put(7, 15, dF1_dz * dCoef);
595  WorkMat.Put(10, 15, -dM2_dz * dCoef);
596  WorkMat.PutT(15, 1, (dPhi_dXP1_T + dPhi_dX1_T * dCoef) * (-PhiScale));
597  WorkMat.PutT(15, 4, (dPhi_dgP1_T + dPhi_dg1_T * dCoef) * (-PhiScale));
598  WorkMat.PutT(15, 7, (dPhi_dXP2_T + dPhi_dX2_T * dCoef) * (-PhiScale));
599  WorkMat.PutT(15, 10, (dPhi_dgP2_T + dPhi_dg2_T * dCoef) * (-PhiScale));
600  WorkMat.PutCoef(15, 15, (dPhi_dzP + dPhi_dz * dCoef) * (-PhiScale));
601  }
602  else
603  {
604  for (int i = 0; i < 2; ++i)
605  {
606  dtau_dlambda[i] = 0;
607  }
608  }
609
610  const Vec3 dtau_dX1_T = dDeltaXP_dX1_T * dtau_dDeltaXP;
611  const Vec3 dtau_dg1_T = dDeltaXP_dg1_T * dtau_dDeltaXP;
612  const Vec3 dtau_dXP1_T = dDeltaXP_dXP1_T * dtau_dDeltaXP;
613  const Vec3 dtau_dgP1_T = dDeltaXP_dgP1_T * dtau_dDeltaXP;
614  const Vec3 dtau_dX2_T = dDeltaXP_dX2_T * dtau_dDeltaXP;
615  const Vec3 dtau_dg2_T = dDeltaXP_dg2_T * dtau_dDeltaXP;
616  const Vec3 dtau_dXP2_T = dDeltaXP_dXP2_T * dtau_dDeltaXP;
617  const Vec3 dtau_dgP2_T = dDeltaXP_dgP2_T * dtau_dDeltaXP;
618
619  const Vec3 F1 = R1e1 * tau + R1e2 * lambda[L1] + R1e3 * lambda[L2];
620  const Vec3 M1 = l1.Cross(F1);
621
622  const Mat3x3 dF1_dX1 = R1e1.Tens(dtau_dX1_T);
623  const Mat3x3 dF1_dg1 = R1e1.Tens(dtau_dg1_T) - Mat3x3(MatCross, R1_0 * (e.GetCol(1) * tau + e.GetCol(2) * lambda[L1] + e.GetCol(3) * lambda[L2]));
624  const Mat3x3 dF1_dXP1 = R1e1.Tens(dtau_dXP1_T);
625  const Mat3x3 dF1_dgP1 = R1e1.Tens(dtau_dgP1_T);
626  const Mat3x3 dF1_dX2 = R1e1.Tens(dtau_dX2_T);
627  const Mat3x3 dF1_dg2 = R1e1.Tens(dtau_dg2_T);
628  const Mat3x3 dF1_dXP2 = R1e1.Tens(dtau_dXP2_T);
629  const Mat3x3 dF1_dgP2 = R1e1.Tens(dtau_dgP2_T);
630  const Vec3 dF1_dlambda1 = R1e1 * dtau_dlambda[L1] + R1e2;
631  const Vec3 dF1_dlambda2 = R1e1 * dtau_dlambda[L2] + R1e3;
632
633  const Mat3x3 dM1_dX1 = l1.Cross(dF1_dX1) + Mat3x3(MatCross, F1);
634  const Mat3x3 dM1_dg1 = l1.Cross(dF1_dg1);
635  const Mat3x3 dM1_dXP1 = l1.Cross(dF1_dXP1);
636  const Mat3x3 dM1_dgP1 = l1.Cross(dF1_dgP1);
637  const Mat3x3 dM1_dX2 = l1.Cross(dF1_dX2) - Mat3x3(MatCross, F1);
638  const Mat3x3 dM1_dg2 = l1.Cross(dF1_dg2) + Mat3x3(MatCrossCross, F1, R2_0o2);
639  const Mat3x3 dM1_dXP2 = l1.Cross(dF1_dXP2);
640  const Mat3x3 dM1_dgP2 = l1.Cross(dF1_dgP2);
641  const Vec3 dM1_dlambda1 = l1.Cross(dF1_dlambda1);
642  const Vec3 dM1_dlambda2 = l1.Cross(dF1_dlambda2);
643
644  const Mat3x3 dM2_dX1 = (-R2o2).Cross(dF1_dX1);
645  const Mat3x3 dM2_dg1 = (-R2o2).Cross(dF1_dg1);
646  const Mat3x3 dM2_dXP1 = (-R2o2).Cross(dF1_dXP1);
647  const Mat3x3 dM2_dgP1 = (-R2o2).Cross(dF1_dgP1);
648  const Mat3x3 dM2_dX2 = (-R2o2).Cross(dF1_dX2);
649  const Mat3x3 dM2_dg2 = Mat3x3(MatCrossCross, -F1, R2_0o2) - R2o2.Cross(dF1_dg2);
650  const Mat3x3 dM2_dXP2 = (-R2o2).Cross(dF1_dXP2);
651  const Mat3x3 dM2_dgP2 = (-R2o2).Cross(dF1_dgP2);
652  const Vec3 dM2_dlambda1 = (-R2o2).Cross(dF1_dlambda1);
653  const Vec3 dM2_dlambda2 = (-R2o2).Cross(dF1_dlambda2);
654
655  const Vec3 dc1_dX1_T = -R1e2;
656  const Vec3 dc1_dg1_T = -l1.Cross(R1_0 * e.GetCol(2));
657  const Vec3& dc1_dX2_T = R1e2;
658  const Vec3 dc1_dg2_T = R2_0o2.Cross(R1e2);
659
660  const Vec3 dc2_dX1_T = -R1e3;
661  const Vec3 dc2_dg1_T = -l1.Cross(R1_0 * e.GetCol(3));
662  const Vec3& dc2_dX2_T = R1e3;
663  const Vec3 dc2_dg2_T = R2_0o2.Cross(R1e3);
664
665  WorkMat.Put(1, 1, -dF1_dXP1 - dF1_dX1 * dCoef);
666  WorkMat.Put(1, 4, -dF1_dgP1 - dF1_dg1 * dCoef);
667  WorkMat.Put(1, 7, -dF1_dXP2 - dF1_dX2 * dCoef);
668  WorkMat.Put(1, 10, -dF1_dgP2 - dF1_dg2 * dCoef);
669  WorkMat.Put(1, 13, -dF1_dlambda1);
670  WorkMat.Put(1, 14, -dF1_dlambda2);
671
672  WorkMat.Put(4, 1, -dM1_dXP1 - dM1_dX1 * dCoef);
673  WorkMat.Put(4, 4, -dM1_dgP1 - dM1_dg1 * dCoef);
674  WorkMat.Put(4, 7, -dM1_dXP2 - dM1_dX2 * dCoef);
675  WorkMat.Put(4, 10, -dM1_dgP2 - dM1_dg2 * dCoef);
676  WorkMat.Put(4, 13, -dM1_dlambda1);
677  WorkMat.Put(4, 14, -dM1_dlambda2);
678
679  WorkMat.Put(7, 1, dF1_dXP1 + dF1_dX1 * dCoef);
680  WorkMat.Put(7, 4, dF1_dgP1 + dF1_dg1 * dCoef);
681  WorkMat.Put(7, 7, dF1_dXP2 + dF1_dX2 * dCoef);
682  WorkMat.Put(7, 10, dF1_dgP2 + dF1_dg2 * dCoef);
683  WorkMat.Put(7, 13, dF1_dlambda1);
684  WorkMat.Put(7, 14, dF1_dlambda2);
685
686  WorkMat.Put(10, 1, -dM2_dXP1 - dM2_dX1 * dCoef);
687  WorkMat.Put(10, 4, -dM2_dgP1 - dM2_dg1 * dCoef);
688  WorkMat.Put(10, 7, -dM2_dXP2 - dM2_dX2 * dCoef);
689  WorkMat.Put(10, 10, -dM2_dgP2 - dM2_dg2 * dCoef);
690  WorkMat.Put(10, 13, -dM2_dlambda1);
691  WorkMat.Put(10, 14, -dM2_dlambda2);
692
693  WorkMat.PutT(13, 1, -dc1_dX1_T);
694  WorkMat.PutT(13, 4, -dc1_dg1_T);
695  WorkMat.PutT(13, 7, -dc1_dX2_T);
696  WorkMat.PutT(13, 10, -dc1_dg2_T);
697
698  WorkMat.PutT(14, 1, -dc2_dX1_T);
699  WorkMat.PutT(14, 4, -dc2_dg1_T);
700  WorkMat.PutT(14, 7, -dc2_dX2_T);
701  WorkMat.PutT(14, 10, -dc2_dg2_T);
702
703  return WorkMatVar;
704 }
grad::exp
GradientExpression< UnaryExpr< FuncExp, Expr > > exp(const GradientExpression< Expr > &u)
Definition: gradient.h:2975
FullSubMatrixHandler::PutColIndex
void PutColIndex(integer iSubCol, integer iCol)
Definition: submat.h:325
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
StructNode::GetRRef
virtual const Mat3x3 & GetRRef(void) const
Definition: strnode.h:1006
grad::pow
GradientExpression< BinaryExpr< FuncPow, LhsExpr, RhsExpr > > pow(const GradientExpression< LhsExpr > &u, const GradientExpression< RhsExpr > &v)
Definition: gradient.h:2961
Vec3
Definition: matvec3.h:98
MatCross
const MatCross_Manip MatCross
Definition: matvec3.cc:639
VariableSubMatrixHandler::SetFull
FullSubMatrixHandler & SetFull(void)
Definition: submat.h:1168
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
FullSubMatrixHandler::PutT
void PutT(integer iRow, integer iCol, const Vec3 &v)
Definition: submat.cc:239
FullSubMatrixHandler::Put
void Put(integer iRow, integer iCol, const Vec3 &v)
Definition: submat.cc:221
FullSubMatrixHandler::PutCoef
void PutCoef(integer iRow, integer iCol, const doublereal &dCoef)
Definition: submat.h:672
Mat3x3::GetCol
Vec3 GetCol(unsigned short int i) const
Definition: matvec3.h:903
InlineFriction::FrictionCoefficient
doublereal FrictionCoefficient(doublereal DeltaXP) const
Definition: module-inline_friction.cc:1141
InlineFriction::WorkSpaceDim
virtual void WorkSpaceDim(integer *piNumRows, integer *piNumCols) const
Definition: module-inline_friction.cc:482
StructNode::GetWRef
virtual const Vec3 & GetWRef(void) const
Definition: strnode.h:1024
InlineFriction::FrictionForce
doublereal FrictionForce(doublereal DeltaXP) const
Definition: module-inline_friction.cc:1146
copysign
doublereal copysign(doublereal x, doublereal y)
Definition: gradient.h:97
InlineFriction::SlidingVelocity
doublereal SlidingVelocity(const Vec3 &X1, const Mat3x3 &R1, const Vec3 &XP1, const Vec3 &omega1, const Vec3 &X2, const Mat3x3 &R2, const Vec3 &XP2, const Vec3 &omega2) const
Definition: module-inline_friction.cc:1124
StructDispNode::iGetFirstMomentumIndex
virtual integer iGetFirstMomentumIndex(void) const =0
StructDispNode::iGetFirstPositionIndex
virtual integer iGetFirstPositionIndex(void) const
Definition: strnode.h:452
StructNode::GetWCurr
virtual const Vec3 & GetWCurr(void) const
Definition: strnode.h:1030
InlineFriction::NormalForceMagnitude
doublereal NormalForceMagnitude() const
Definition: module-inline_friction.cc:1129
InlineFriction::iGetNumDof
virtual unsigned int iGetNumDof(void) const
Definition: module-inline_friction.cc:336
Vec3::Tens
Mat3x3 Tens(const Vec3 &v) const
Definition: matvec3.cc:53
grad::Cross
VectorExpression< VectorCrossExpr< VectorLhsExpr, VectorRhsExpr >, 3 > Cross(const VectorExpression< VectorLhsExpr, 3 > &u, const VectorExpression< VectorRhsExpr, 3 > &v)
Definition: matvec.h:3248
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
FullSubMatrixHandler::ResizeReset
virtual void ResizeReset(integer, integer)
Definition: submat.cc:182
MatCrossCross
const MatCrossCross_Manip MatCrossCross
Definition: matvec3.cc:640
FullSubMatrixHandler::PutRowIndex
void PutRowIndex(integer iSubRow, integer iRow)
Definition: submat.h:311
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51

Here is the call graph for this function:

SubVectorHandler & InlineFriction::AssRes ( SubVectorHandler &  WorkVec,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 708 of file module-inline_friction.cc.

References a, copysign(), Vec3::Cross(), delta, Vec3::Dot(), e, FrictionForce(), Mat3x3::GetCol(), StructNode::GetRCurr(), StructDispNode::GetVCurr(), StructNode::GetWCurr(), StructDispNode::GetXCurr(), DofOwnerOwner::iGetFirstIndex(), StructDispNode::iGetFirstMomentumIndex(), iGetNumDof(), L1, L2, lambda, muc, Mat3x3::MulTV(), o1, o2, PhiScale, pNode1, pNode2, VectorHandler::Put(), VectorHandler::PutCoef(), SubVectorHandler::PutRowIndex(), VectorHandler::ResizeReset(), SlidingVelocity(), WorkSpaceDim(), z, and zP.

712 {
713  integer iNumRows, iNumCols;
714  WorkSpaceDim(&iNumRows, &iNumCols);
715  WorkVec.ResizeReset(iNumRows);
716
717  const integer iFirstMomentumIndexNode1 = pNode1->iGetFirstMomentumIndex();
718  const integer iFirstMomentumIndexNode2 = pNode2->iGetFirstMomentumIndex();
719  const integer iFirstIndex = iGetFirstIndex();
720  const integer iNumDof = iGetNumDof();
721
722  for (integer i = 1; i <= 6; ++i) {
723  WorkVec.PutRowIndex(i, iFirstMomentumIndexNode1 + i);
724  WorkVec.PutRowIndex(i + 6, iFirstMomentumIndexNode2 + i);
725  }
726
727  for (integer i = 1; i <= iNumDof; ++i) {
728  WorkVec.PutRowIndex(i + 12, iFirstIndex + i);
729  }
730
731  for (int i = 1; i <= 2; ++i)
732  lambda[i - 1] = XCurr(iFirstIndex + i);
733
734  const Vec3& X1 = pNode1->GetXCurr();
735  const Mat3x3& R1 = pNode1->GetRCurr();
736  const Vec3& X2 = pNode2->GetXCurr();
737  const Mat3x3& R2 = pNode2->GetRCurr();
738
739  const Vec3 R2o2 = R2 * o2;
740  const Vec3 l1 = X2 + R2o2 - X1;
741
742  const Vec3& XP1 = pNode1->GetVCurr();
743  const Vec3& omega1 = pNode1->GetWCurr();
744  const Vec3& XP2 = pNode2->GetVCurr();
745  const Vec3& omega2 = pNode2->GetWCurr();
746
747  const doublereal DeltaXP = SlidingVelocity(X1, R1, XP1, omega1, X2, R2, XP2, omega2);
748
749  if (muc > 0)
750  {
751  z = XCurr(iFirstIndex + 3); // Attention: update z before calling FrictionForce!
752  zP = XPrimeCurr(iFirstIndex + 3);
753
754  const doublereal Phi = zP - DeltaXP * (1. - z / delta * copysign(1., DeltaXP));
755
756  WorkVec.PutCoef(15, Phi * PhiScale);
757  }
758
759  const doublereal tau = FrictionForce(DeltaXP);
760
761  const Vec3 F1 = R1 * ( e.GetCol(1) * tau + e.GetCol(2) * lambda[L1] + e.GetCol(3) * lambda[L2] );
762  const Vec3 M1 = l1.Cross(F1);
763  const Vec3 F2 = -F1;
764  const Vec3 M2 = R2o2.Cross(F2);
765
766  const Vec3 a = R1.MulTV(l1) - o1;
767
768  WorkVec.Put(1, F1);
769  WorkVec.Put(4, M1);
770  WorkVec.Put(7, F2);
771  WorkVec.Put(10, M2);
772
773  for (int i = 1; i <= 2; ++i) {
774  WorkVec.PutCoef(12 + i, e.GetCol(i + 1).Dot(a) / dCoef);
775  }
776
777  return WorkVec;
778 }
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
Vec3
Definition: matvec3.h:98
VectorHandler::ResizeReset
virtual void ResizeReset(integer)
Definition: vh.cc:55
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
Vec3::Dot
doublereal Dot(const Vec3 &v) const
Definition: matvec3.h:243
Mat3x3::GetCol
Vec3 GetCol(unsigned short int i) const
Definition: matvec3.h:903
InlineFriction::WorkSpaceDim
virtual void WorkSpaceDim(integer *piNumRows, integer *piNumCols) const
Definition: module-inline_friction.cc:482
InlineFriction::FrictionForce
doublereal FrictionForce(doublereal DeltaXP) const
Definition: module-inline_friction.cc:1146
Mat3x3::MulTV
Vec3 MulTV(const Vec3 &v) const
Definition: matvec3.cc:482
SubVectorHandler::PutRowIndex
virtual void PutRowIndex(integer iSubRow, integer iRow)=0
copysign
doublereal copysign(doublereal x, doublereal y)
Definition: gradient.h:97
InlineFriction::SlidingVelocity
doublereal SlidingVelocity(const Vec3 &X1, const Mat3x3 &R1, const Vec3 &XP1, const Vec3 &omega1, const Vec3 &X2, const Mat3x3 &R2, const Vec3 &XP2, const Vec3 &omega2) const
Definition: module-inline_friction.cc:1124
StructDispNode::iGetFirstMomentumIndex
virtual integer iGetFirstMomentumIndex(void) const =0
StructNode::GetWCurr
virtual const Vec3 & GetWCurr(void) const
Definition: strnode.h:1030
InlineFriction::iGetNumDof
virtual unsigned int iGetNumDof(void) const
Definition: module-inline_friction.cc:336
VectorHandler::PutCoef
virtual void PutCoef(integer iRow, const doublereal &dCoef)=0
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
VectorHandler::Put
virtual void Put(integer iRow, const Vec3 &v)
Definition: vh.cc:93
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
a
static const doublereal a
Definition: hfluid_.h:289
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51

Here is the call graph for this function:

std::ostream & InlineFriction::DescribeDof ( std::ostream &  out,
const char *  prefix,
bool  bInitial
) const
virtual

Reimplemented from Elem.

Definition at line 369 of file module-inline_friction.cc.

References DofOwnerOwner::iGetFirstIndex(), and muc.

370 {
371  const integer iFirstIndex = iGetFirstIndex();
372
373  out << prefix << iFirstIndex + 1 << "->" << iFirstIndex + 2 << ": reaction forces [lambda1, lambda2]" << std::endl;
374
375  if (bInitial) {
376  out << prefix << iFirstIndex + 3 << "->" << iFirstIndex + 4 << ": reaction force derivatives [lambdaP1, lambdaP2]" << std::endl;
377  } else if (muc > 0) {
378  out << prefix << iFirstIndex + 3 << ": stiction state [z]" << std::endl;
379  }
380
381  return out;
382 }
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
integer
long int integer
Definition: colamd.c:51

Here is the call graph for this function:

std::ostream & InlineFriction::DescribeEq ( std::ostream &  out,
const char *  prefix,
bool  bInitial
) const
virtual

Reimplemented from Elem.

Definition at line 384 of file module-inline_friction.cc.

References DofOwnerOwner::iGetFirstIndex(), and muc.

385 {
386  const integer iFirstIndex = iGetFirstIndex();
387
388  out << prefix << iFirstIndex + 1 << "->" << iFirstIndex + 2 << ": position constraints [c1, c2]" << std::endl;
389
390  if (bInitial) {
391  out << prefix << iFirstIndex + 3 << "->" << iFirstIndex + 4 << ": velocity constraints [cP1, cP2]" << std::endl;
392  } else if (muc > 0) {
393  out << prefix << iFirstIndex + 3 << ": stick slip transition [Phi]" << std::endl;
394  }
395
396  return out;
397 }
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
integer
long int integer
Definition: colamd.c:51

Here is the call graph for this function:

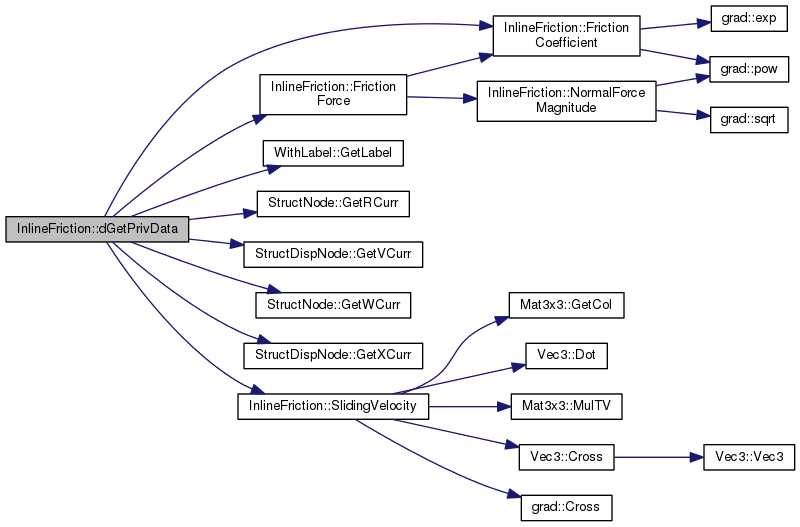

doublereal InlineFriction::dGetPrivData ( unsigned int  i) const
virtual

Reimplemented from SimulationEntity.

Definition at line 431 of file module-inline_friction.cc.

References FrictionCoefficient(), FrictionForce(), WithLabel::GetLabel(), StructNode::GetRCurr(), StructDispNode::GetVCurr(), StructNode::GetWCurr(), StructDispNode::GetXCurr(), lambda, MBDYN_EXCEPT_ARGS, pNode1, pNode2, SlidingVelocity(), z, and zP.

432 {
433  const Vec3& X1 = pNode1->GetXCurr();
434  const Mat3x3& R1 = pNode1->GetRCurr();
435  const Vec3& XP1 = pNode1->GetVCurr();
436  const Vec3& omega1 = pNode1->GetWCurr();
437  const Vec3& X2 = pNode2->GetXCurr();
438  const Mat3x3& R2 = pNode2->GetRCurr();
439  const Vec3& XP2 = pNode2->GetVCurr();
440  const Vec3& omega2 = pNode2->GetWCurr();
441
442  switch (i) {
443  case 1:
444  case 2:
445  return lambda[i - 1];
446  case 3:
447  return FrictionForce(SlidingVelocity(X1, R1, XP1, omega1, X2, R2, XP2, omega2));
448  case 4:
449  return FrictionCoefficient(SlidingVelocity(X1, R1, XP1, omega1, X2, R2, XP2, omega2));
450  case 5:
451  return z;
452  case 6:
453  return zP;
454  case 7:
455  return SlidingVelocity(X1, R1, XP1, omega1, X2, R2, XP2, omega2);
456  case 8:
457  {
458  const double v = SlidingVelocity(X1, R1, XP1, omega1, X2, R2, XP2, omega2);
459  return -v * FrictionForce(v);
460  }
461  default:
462  silent_cerr("inline friction(" << GetLabel() << "): invalid private data index " << i << std::endl);
463  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
464  }
465 }
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Vec3
Definition: matvec3.h:98
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
InlineFriction::FrictionCoefficient
doublereal FrictionCoefficient(doublereal DeltaXP) const
Definition: module-inline_friction.cc:1141
InlineFriction::FrictionForce
doublereal FrictionForce(doublereal DeltaXP) const
Definition: module-inline_friction.cc:1146
InlineFriction::SlidingVelocity
doublereal SlidingVelocity(const Vec3 &X1, const Mat3x3 &R1, const Vec3 &XP1, const Vec3 &omega1, const Vec3 &X2, const Mat3x3 &R2, const Vec3 &XP2, const Vec3 &omega2) const
Definition: module-inline_friction.cc:1124
StructNode::GetWCurr
virtual const Vec3 & GetWCurr(void) const
Definition: strnode.h:1030
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62

Here is the call graph for this function:

doublereal InlineFriction::FrictionCoefficient ( doublereal  DeltaXP) const
inlineprivate

Definition at line 1141 of file module-inline_friction.cc.

References grad::exp(), iv, muc, mus, grad::pow(), and vs.

Referenced by AssJac(), dGetPrivData(), and FrictionForce().

1142 {
1143  return muc > 0 ? (1. + (mus / muc - 1.) * exp(-std::pow(std::abs(DeltaXP) / vs, iv))) * muc : 0;
1144 }
grad::exp
GradientExpression< UnaryExpr< FuncExp, Expr > > exp(const GradientExpression< Expr > &u)
Definition: gradient.h:2975
grad::pow
GradientExpression< BinaryExpr< FuncPow, LhsExpr, RhsExpr > > pow(const GradientExpression< LhsExpr > &u, const GradientExpression< RhsExpr > &v)
Definition: gradient.h:2961

Here is the call graph for this function:

doublereal InlineFriction::FrictionForce ( doublereal  DeltaXP) const
inlineprivate

Definition at line 1146 of file module-inline_friction.cc.

References delta, FrictionCoefficient(), kv, NormalForceMagnitude(), and z.

Referenced by AssJac(), AssRes(), and dGetPrivData().

1147 {
1148  const doublereal mu = FrictionCoefficient(DeltaXP);
1149  const doublereal lambda_res = NormalForceMagnitude();
1150  const doublereal tau = mu * lambda_res * z / delta + kv * DeltaXP;
1151
1152  return tau;
1153 }
InlineFriction::FrictionCoefficient
doublereal FrictionCoefficient(doublereal DeltaXP) const
Definition: module-inline_friction.cc:1141
InlineFriction::NormalForceMagnitude
doublereal NormalForceMagnitude() const
Definition: module-inline_friction.cc:1129
doublereal
double doublereal
Definition: colamd.c:52

Here is the call graph for this function:

void InlineFriction::GetConnectedNodes ( std::vector< const Node * > &  connectedNodes) const
virtual

Reimplemented from Elem.

Definition at line 787 of file module-inline_friction.cc.

References iGetNumConnectedNodes(), pNode1, and pNode2.

788 {
789  connectedNodes.resize(iGetNumConnectedNodes());
790  connectedNodes[0] = pNode1;
791  connectedNodes[1] = pNode2;
792 }
InlineFriction::iGetNumConnectedNodes
int iGetNumConnectedNodes(void) const
Definition: module-inline_friction.cc:781

Here is the call graph for this function:

DofOrder::Order InlineFriction::GetDofType ( unsigned int  i) const
virtual

Reimplemented from Elem.

Definition at line 341 of file module-inline_friction.cc.

References DofOrder::ALGEBRAIC, ASSERT, DofOrder::DIFFERENTIAL, and MBDYN_EXCEPT_ARGS.

342 {
343  switch (i) {
344  case 0:
345  case 1:
346  return DofOrder::ALGEBRAIC;
347  case 2:
348  return DofOrder::DIFFERENTIAL;
349  default:
350  ASSERT(0);
351  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
352  }
353 }
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
DofOrder::Order InlineFriction::GetEqType ( unsigned int  i) const
virtual

Reimplemented from SimulationEntity.

Definition at line 355 of file module-inline_friction.cc.

References DofOrder::ALGEBRAIC, ASSERT, DofOrder::DIFFERENTIAL, and MBDYN_EXCEPT_ARGS.

356 {
357  switch (i) {
358  case 0:
359  case 1:
360  return DofOrder::ALGEBRAIC;
361  case 2:
362  return DofOrder::DIFFERENTIAL;
363  default:
364  ASSERT(0);
365  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
366  }
367 }
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
unsigned int InlineFriction::iGetInitialNumDof ( void  ) const
virtual

Implements SubjectToInitialAssembly.

Definition at line 818 of file module-inline_friction.cc.

819 {
820  return 4;
821 }
int InlineFriction::iGetNumConnectedNodes ( void  ) const

Definition at line 781 of file module-inline_friction.cc.

Referenced by GetConnectedNodes().

782 {
783  return 2;
784 }
unsigned int InlineFriction::iGetNumDof ( void  ) const
virtual

Reimplemented from Elem.

Definition at line 336 of file module-inline_friction.cc.

References muc.

Referenced by AssJac(), and AssRes().

337 {
338  return 2u + 1u * (muc > 0.);
339 }
unsigned int InlineFriction::iGetNumPrivData ( void  ) const
virtual

Reimplemented from SimulationEntity.

Definition at line 399 of file module-inline_friction.cc.

Referenced by iGetPrivDataIdx().

400 {
401  return 8u;
402 }
unsigned int InlineFriction::iGetPrivDataIdx ( const char *  s) const
virtual

Reimplemented from SimulationEntity.

Definition at line 404 of file module-inline_friction.cc.

References iGetNumPrivData().

405 {
406  static const struct {
407  int index;
408  char name[8];
409  } data[] = {
410  { 1, "lambda1" },
411  { 2, "lambda2" },
412  { 3, "tau" },
413  { 4, "mu" },
414  { 5, "z" },
415  { 6, "zP" },
416  { 7, "v" },
417  { 8, "Pf" }
418  };
419
420  const int N = iGetNumPrivData();
421
422  for (int i = 0; i < N; ++i) {
423  if (0 == strcmp(data[i].name, s)) {
424  return data[i].index;
425  }
426  }
427
428  return 0;
429 }
InlineFriction::iGetNumPrivData
virtual unsigned int iGetNumPrivData(void) const
Definition: module-inline_friction.cc:399

Here is the call graph for this function:

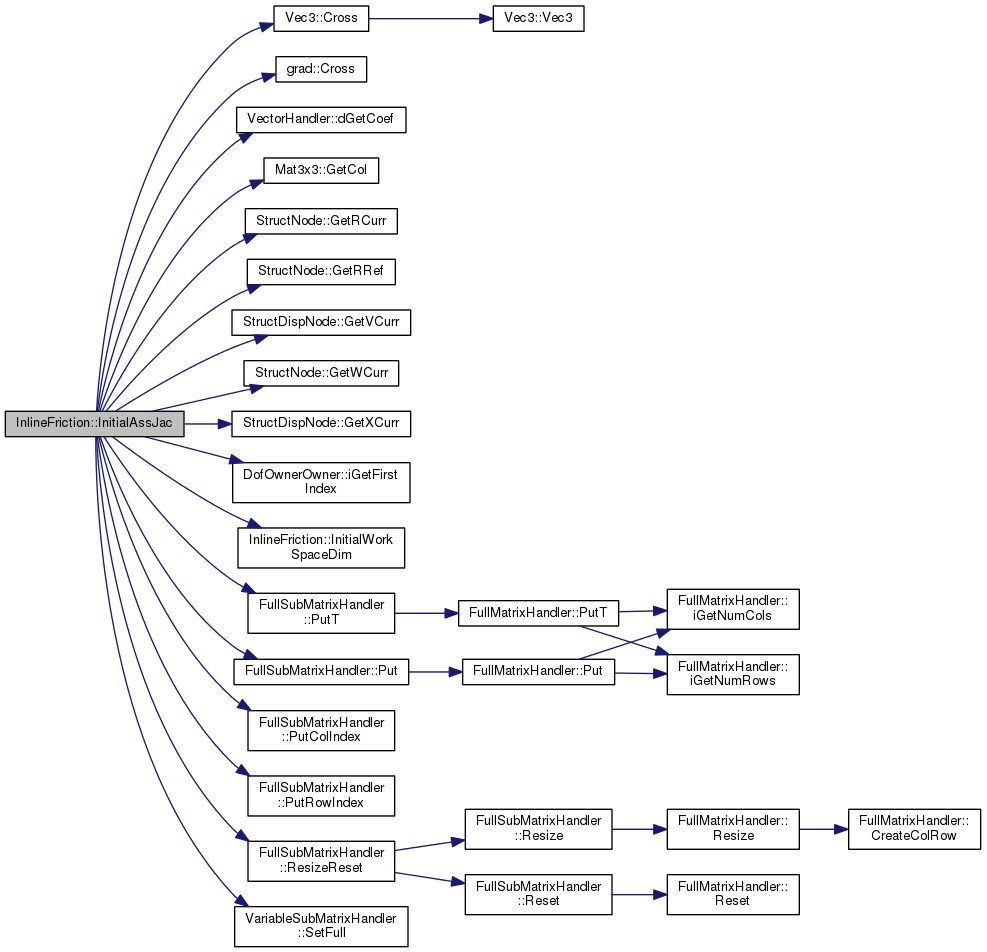

VariableSubMatrixHandler & InlineFriction::InitialAssJac ( VariableSubMatrixHandler &  WorkMat,
const VectorHandler &  XCurr
)
virtual

Implements SubjectToInitialAssembly.

Definition at line 832 of file module-inline_friction.cc.

References Vec3::Cross(), grad::Cross(), VectorHandler::dGetCoef(), e, Mat3x3::GetCol(), StructNode::GetRCurr(), StructNode::GetRRef(), StructDispNode::GetVCurr(), StructNode::GetWCurr(), StructDispNode::GetXCurr(), DofOwnerOwner::iGetFirstIndex(), InitialWorkSpaceDim(), L1, L2, lambda, MatCross, MatCrossCross, o2, pNode1, pNode2, FullSubMatrixHandler::Put(), FullSubMatrixHandler::PutColIndex(), FullSubMatrixHandler::PutRowIndex(), FullSubMatrixHandler::PutT(), FullSubMatrixHandler::ResizeReset(), and VariableSubMatrixHandler::SetFull().

835 {
836  integer iNumRows, iNumCols;
837
838  InitialWorkSpaceDim(&iNumRows, &iNumCols);
839
840  FullSubMatrixHandler& WorkMat = WorkMatVar.SetFull();
841
842  WorkMat.ResizeReset(iNumRows, iNumCols);
843
844  const Vec3& X1 = pNode1->GetXCurr();
845  const Mat3x3& R1 = pNode1->GetRCurr();
846  const Mat3x3& R1_0 = pNode1->GetRRef();
847  const Vec3& XP1 = pNode1->GetVCurr();
848  const Vec3& omega1 = pNode1->GetWCurr();
849  const Vec3& X2 = pNode2->GetXCurr();
850  const Mat3x3& R2 = pNode2->GetRCurr();
851  const Mat3x3& R2_0 = pNode2->GetRRef();
852  const Vec3& XP2 = pNode2->GetVCurr();
853  const Vec3& omega2 = pNode2->GetWCurr();
854
855  const integer iFirstIndexNode1 = pNode1->iGetFirstIndex();
856  const integer iFirstIndexNode2 = pNode2->iGetFirstIndex();
857  const integer iFirstIndex = iGetFirstIndex();
858
859  for (integer i = 1; i <= 12; ++i) {
860  WorkMat.PutRowIndex(i, iFirstIndexNode1 + i);
861  WorkMat.PutColIndex(i, iFirstIndexNode1 + i);
862  WorkMat.PutRowIndex(i + 12, iFirstIndexNode2 + i);
863  WorkMat.PutColIndex(i + 12, iFirstIndexNode2 + i);
864  }
865
866  for (integer i = 1; i <= 4; ++i) {
867  WorkMat.PutRowIndex(i + 24, iFirstIndex + i);
868  WorkMat.PutColIndex(i + 24, iFirstIndex + i);
869  }
870
871  doublereal lambdaP[2];
872
873  for (int i = 1; i <= 2; ++i) {
874  lambda[i - 1] = XCurr.dGetCoef(iFirstIndex + i);
875  lambdaP[i - 1] = XCurr.dGetCoef(iFirstIndex + i + 2);
876  }
877
878  const Vec3 R1e2 = R1 * e.GetCol(2);
879  const Vec3 R1e3 = R1 * e.GetCol(3);
880  const Vec3 R2o2 = R2 * o2;
881  const Vec3 R2_0o2 = R2_0 * o2;
882  const Vec3 l1 = X2 + R2o2 - X1;
883  const Vec3 lP1 = XP2 + omega2.Cross(R2o2) - XP1;
884
885  const Vec3 F1 = R1e2 * lambda[L1] + R1e3 * lambda[L2];
886  const Vec3 FP1 = omega1.Cross(R1 * (e.GetCol(2) * lambda[L1] + e.GetCol(3) * lambda[L2]))
887  + R1 * (e.GetCol(2) * lambdaP[L1] + e.GetCol(3) * lambdaP[L2]);
888  // const Vec3 F2 = -F1;
889
890  const Mat3x3 dF1_dg1 = Mat3x3(MatCross, R1_0 * (e.GetCol(2) * (-lambda[L1]) + e.GetCol(3) * (-lambda[L2])));
891  const Vec3& dF1_dlambda1 = R1e2;
892  const Vec3& dF1_dlambda2 = R1e3;
893
894  const Mat3x3 dM1_dX1 = Mat3x3(MatCross, F1);
895  const Mat3x3 dM1_dg1 = l1.Cross(dF1_dg1);
896  const Mat3x3 dM1_dX2 = -dM1_dX1;
897  const Mat3x3 dM1_dg2 = Mat3x3(MatCrossCross, F1, R2_0o2);
898  const Vec3 dM1_dlambda1 = l1.Cross(dF1_dlambda1);
899  const Vec3 dM1_dlambda2 = l1.Cross(dF1_dlambda2);
900
901  const Mat3x3 dFP1_dg1 = Mat3x3(MatCrossCross, -omega1, R1_0 * ( e.GetCol(2) * lambda[L1] + e.GetCol(3) * lambda[L2]))
902  - Mat3x3(MatCross, R1_0 * ( e.GetCol(2) * lambdaP[L1] + e.GetCol(3) * lambdaP[L2]));
903  const Mat3x3 dFP1_domega1 = Mat3x3(MatCross, R1 * (e.GetCol(2) * (-lambda[L1]) + e.GetCol(3) * (-lambda[L2])));
904  const Vec3 dFP1_dlambda1 = omega1.Cross(R1e2);
905  const Vec3 dFP1_dlambda2 = omega1.Cross(R1e3);
906  const Vec3& dFP1_dlambdaP1 = R1e2;
907  const Vec3& dFP1_dlambdaP2 = R1e3;
908
909  const Mat3x3 dMP1_dX1 = Mat3x3(MatCross, FP1);
910  const Mat3x3 dMP1_dg1 = lP1.Cross(dF1_dg1) + l1.Cross(dFP1_dg1);
911  const Mat3x3 dMP1_dXP1 = Mat3x3(MatCross, F1);
912  const Mat3x3 dMP1_domega1 = l1.Cross(dFP1_domega1);
913  const Mat3x3 dMP1_dX2 = Mat3x3(MatCross, -FP1);
914  const Mat3x3 dMP1_dg2 = (Mat3x3(MatCrossCross, F1, omega2) + Mat3x3(MatCross, FP1)).MulVCross(R2_0o2);
915  const Mat3x3 dMP1_dXP2 = Mat3x3(MatCross, -F1);
916  const Mat3x3 dMP1_domega2 = Mat3x3(MatCrossCross, F1, R2o2);
917  const Vec3 dMP1_dlambda1 = lP1.Cross(dF1_dlambda1) + l1.Cross(dFP1_dlambda1);
918  const Vec3 dMP1_dlambda2 = lP1.Cross(dF1_dlambda2) + l1.Cross(dFP1_dlambda2);
919  const Vec3 dMP1_dlambdaP1 = l1.Cross(dFP1_dlambdaP1);
920  const Vec3 dMP1_dlambdaP2 = l1.Cross(dFP1_dlambdaP2);
921
922  const Mat3x3 dM2_dg1 = (-R2o2).Cross(dF1_dg1);
923  const Mat3x3 dM2_dg2 = Mat3x3(MatCrossCross, -F1, R2_0o2);
924  const Vec3 dM2_dlambda1 = R2o2.Cross(-dF1_dlambda1);
925  const Vec3 dM2_dlambda2 = R2o2.Cross(-dF1_dlambda2);
926
927  const Mat3x3 dMP2_dg1 = (-omega2.Cross(R2o2)).Cross(dF1_dg1) - R2o2.Cross(dFP1_dg1);
928  const Mat3x3 dMP2_domega1 = (-R2o2).Cross(dFP1_domega1);
929  const Mat3x3 dMP2_dg2 = (Mat3x3(MatCrossCross, -F1, omega2) - Mat3x3(MatCross, FP1)).MulVCross(R2_0o2);
930  const Mat3x3 dMP2_domega2 = Mat3x3(MatCrossCross, -F1, R2o2);
931  const Vec3 dMP2_dlambda1 = (-omega2.Cross(R2o2)).Cross(dF1_dlambda1) - R2o2.Cross(dFP1_dlambda1);
932  const Vec3 dMP2_dlambda2 = (-omega2.Cross(R2o2)).Cross(dF1_dlambda2) - R2o2.Cross(dFP1_dlambda2);
933  const Vec3 dMP2_dlambdaP1 = -R2o2.Cross(dFP1_dlambdaP1);
934  const Vec3 dMP2_dlambdaP2 = -R2o2.Cross(dFP1_dlambdaP2);
935
936  const Vec3 dc1_dX1_T = -R1e2;
937  const Vec3 dc1_dg1_T = -l1.Cross(R1_0 * e.GetCol(2));
938  const Vec3& dc1_dX2_T = R1e2;
939  const Vec3 dc1_dg2_T = R2_0o2.Cross(R1e2);
940
941  const Vec3 dc2_dX1_T = -R1e3;
942  const Vec3 dc2_dg1_T = -l1.Cross(R1_0 * e.GetCol(3));
943  const Vec3& dc2_dX2_T = R1e3;
944  const Vec3 dc2_dg2_T = R2_0o2.Cross(R1e3);
945
946  const Vec3 dcP1_dX1_T = -omega1.Cross(R1e2);
947  const Vec3 dcP1_dg1_T = (omega1.Cross(l1) - lP1).Cross(R1_0 * e.GetCol(2));
948  const Vec3 dcP1_dXP1_T = -R1e2;
949  const Vec3 dcP1_domega1_T = -l1.Cross(R1e2);
950  const Vec3 dcP1_dX2_T = omega1.Cross(R1e2);
951  const Vec3 dcP1_dg2_T = R2_0o2.Cross((omega1 - omega2).Cross(R1e2));
952  const Vec3& dcP1_dXP2_T = R1e2;
953  const Vec3 dcP1_domega2_T = R2o2.Cross(R1e2);
954
955  const Vec3 dcP2_dX1_T = -omega1.Cross(R1e3);
956  const Vec3 dcP2_dg1_T = (omega1.Cross(l1) - lP1).Cross(R1_0 * e.GetCol(3));
957  const Vec3 dcP2_dXP1_T = -R1e3;
958  const Vec3 dcP2_domega1_T = -l1.Cross(R1e3);
959  const Vec3 dcP2_dX2_T = omega1.Cross(R1e3);
960  const Vec3 dcP2_dg2_T = R2_0o2.Cross((omega1 - omega2).Cross(R1e3));
961  const Vec3& dcP2_dXP2_T = R1e3;
962  const Vec3 dcP2_domega2_T = R2o2.Cross(R1e3);
963
964  WorkMat.Put( 1, 4, -dF1_dg1);
965  WorkMat.Put( 1, 25, -dF1_dlambda1);
966  WorkMat.Put( 1, 26, -dF1_dlambda2);
967
968  WorkMat.Put( 4, 1, -dM1_dX1);
969  WorkMat.Put( 4, 4, -dM1_dg1);
970  WorkMat.Put( 4, 13, -dM1_dX2);
971  WorkMat.Put( 4, 16, -dM1_dg2);
972  WorkMat.Put( 4, 25, -dM1_dlambda1);
973  WorkMat.Put( 4, 26, -dM1_dlambda2);
974
975  WorkMat.Put( 7, 4, -dFP1_dg1);
976  WorkMat.Put( 7, 10, -dFP1_domega1);
977  WorkMat.Put( 7, 25, -dFP1_dlambda1);
978  WorkMat.Put( 7, 26, -dFP1_dlambda2);
979  WorkMat.Put( 7, 27, -dFP1_dlambdaP1);
980  WorkMat.Put( 7, 28, -dFP1_dlambdaP2);
981
982  WorkMat.Put(10, 1, -dMP1_dX1);
983  WorkMat.Put(10, 4, -dMP1_dg1);
984  WorkMat.Put(10, 7, -dMP1_dXP1);
985  WorkMat.Put(10, 10, -dMP1_domega1);
986  WorkMat.Put(10, 13, -dMP1_dX2);
987  WorkMat.Put(10, 16, -dMP1_dg2);
988  WorkMat.Put(10, 19, -dMP1_dXP2);
989  WorkMat.Put(10, 22, -dMP1_domega2);
990  WorkMat.Put(10, 25, -dMP1_dlambda1);
991  WorkMat.Put(10, 26, -dMP1_dlambda2);
992  WorkMat.Put(10, 27, -dMP1_dlambdaP1);
993  WorkMat.Put(10, 28, -dMP1_dlambdaP2);
994
995  WorkMat.Put(13, 4, dF1_dg1); // dF2_dg1 = -dF1_dg1
996  WorkMat.Put(13, 25, dF1_dlambda1);
997  WorkMat.Put(13, 26, dF1_dlambda2);
998
999  WorkMat.Put(16, 4, -dM2_dg1);
1000  WorkMat.Put(16, 16, -dM2_dg2);
1001  WorkMat.Put(16, 25, -dM2_dlambda1);
1002  WorkMat.Put(16, 26, -dM2_dlambda2);
1003
1004  WorkMat.Put(19, 4, dFP1_dg1);
1005  WorkMat.Put(19, 10, dFP1_domega1);
1006  WorkMat.Put(19, 25, dFP1_dlambda1);
1007  WorkMat.Put(19, 26, dFP1_dlambda2);
1008  WorkMat.Put(19, 27, dFP1_dlambdaP1);
1009  WorkMat.Put(19, 28, dFP1_dlambdaP2);
1010
1011  WorkMat.Put(22, 4, -dMP2_dg1);
1012  WorkMat.Put(22, 10, -dMP2_domega1);
1013  WorkMat.Put(22, 16, -dMP2_dg2);
1014  WorkMat.Put(22, 22, -dMP2_domega2);
1015  WorkMat.Put(22, 25, -dMP2_dlambda1);
1016  WorkMat.Put(22, 26, -dMP2_dlambda2);
1017  WorkMat.Put(22, 27, -dMP2_dlambdaP1);
1018  WorkMat.Put(22, 28, -dMP2_dlambdaP2);
1019
1020  WorkMat.PutT(25, 1, -dc1_dX1_T);
1021  WorkMat.PutT(25, 4, -dc1_dg1_T);
1022  WorkMat.PutT(25, 13, -dc1_dX2_T);
1023  WorkMat.PutT(25, 16, -dc1_dg2_T);
1024
1025  WorkMat.PutT(26, 1, -dc2_dX1_T);
1026  WorkMat.PutT(26, 4, -dc2_dg1_T);
1027  WorkMat.PutT(26, 13, -dc2_dX2_T);
1028  WorkMat.PutT(26, 16, -dc2_dg2_T);
1029
1030  WorkMat.PutT(27, 1, -dcP1_dX1_T);
1031  WorkMat.PutT(27, 4, -dcP1_dg1_T);
1032  WorkMat.PutT(27, 7, -dcP1_dXP1_T);
1033  WorkMat.PutT(27, 10, -dcP1_domega1_T);
1034  WorkMat.PutT(27, 13, -dcP1_dX2_T);
1035  WorkMat.PutT(27, 16, -dcP1_dg2_T);
1036  WorkMat.PutT(27, 19, -dcP1_dXP2_T);
1037  WorkMat.PutT(27, 22, -dcP1_domega2_T);
1038
1039  WorkMat.PutT(28, 1, -dcP2_dX1_T);
1040  WorkMat.PutT(28, 4, -dcP2_dg1_T);
1041  WorkMat.PutT(28, 7, -dcP2_dXP1_T);
1042  WorkMat.PutT(28, 10, -dcP2_domega1_T);
1043  WorkMat.PutT(28, 13, -dcP2_dX2_T);
1044  WorkMat.PutT(28, 16, -dcP2_dg2_T);
1045  WorkMat.PutT(28, 19, -dcP2_dXP2_T);
1046  WorkMat.PutT(28, 22, -dcP2_domega2_T);
1047
1048  return WorkMatVar;
1049 }
FullSubMatrixHandler::PutColIndex
void PutColIndex(integer iSubCol, integer iCol)
Definition: submat.h:325
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
StructNode::GetRRef
virtual const Mat3x3 & GetRRef(void) const
Definition: strnode.h:1006
Vec3
Definition: matvec3.h:98
MatCross
const MatCross_Manip MatCross
Definition: matvec3.cc:639
VariableSubMatrixHandler::SetFull
FullSubMatrixHandler & SetFull(void)
Definition: submat.h:1168
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
FullSubMatrixHandler::PutT
void PutT(integer iRow, integer iCol, const Vec3 &v)
Definition: submat.cc:239
FullSubMatrixHandler::Put
void Put(integer iRow, integer iCol, const Vec3 &v)
Definition: submat.cc:221
Mat3x3::GetCol
Vec3 GetCol(unsigned short int i) const
Definition: matvec3.h:903
VectorHandler::dGetCoef
virtual const doublereal & dGetCoef(integer iRow) const =0
InlineFriction::InitialWorkSpaceDim
virtual void InitialWorkSpaceDim(integer *piNumRows, integer *piNumCols) const
Definition: module-inline_friction.cc:824
StructNode::GetWCurr
virtual const Vec3 & GetWCurr(void) const
Definition: strnode.h:1030
grad::Cross
VectorExpression< VectorCrossExpr< VectorLhsExpr, VectorRhsExpr >, 3 > Cross(const VectorExpression< VectorLhsExpr, 3 > &u, const VectorExpression< VectorRhsExpr, 3 > &v)
Definition: matvec.h:3248
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
FullSubMatrixHandler::ResizeReset
virtual void ResizeReset(integer, integer)
Definition: submat.cc:182
MatCrossCross
const MatCrossCross_Manip MatCrossCross
Definition: matvec3.cc:640
FullSubMatrixHandler::PutRowIndex
void PutRowIndex(integer iSubRow, integer iRow)
Definition: submat.h:311
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51

Here is the call graph for this function:

SubVectorHandler & InlineFriction::InitialAssRes ( SubVectorHandler &  WorkVec,
const VectorHandler &  XCurr
)
virtual

Implements SubjectToInitialAssembly.

Definition at line 1052 of file module-inline_friction.cc.

References a, Vec3::Cross(), grad::Cross(), VectorHandler::dGetCoef(), Vec3::Dot(), e, Mat3x3::GetCol(), StructNode::GetRCurr(), StructDispNode::GetVCurr(), StructNode::GetWCurr(), StructDispNode::GetXCurr(), DofOwnerOwner::iGetFirstIndex(), InitialWorkSpaceDim(), L1, L2, lambda, Mat3x3::MulTV(), o1, o2, pNode1, pNode2, VectorHandler::Put(), VectorHandler::PutCoef(), SubVectorHandler::PutRowIndex(), and VectorHandler::ResizeReset().

1055 {
1056  integer iNumRows, iNumCols;
1057
1058  InitialWorkSpaceDim(&iNumRows, &iNumCols);
1059
1060  WorkVec.ResizeReset(iNumRows);
1061
1062  const Vec3& X1 = pNode1->GetXCurr();
1063  const Mat3x3& R1 = pNode1->GetRCurr();
1064  const Vec3& XP1 = pNode1->GetVCurr();
1065  const Vec3& omega1 = pNode1->GetWCurr();
1066  const Vec3& X2 = pNode2->GetXCurr();
1067  const Mat3x3& R2 = pNode2->GetRCurr();
1068  const Vec3& XP2 = pNode2->GetVCurr();
1069  const Vec3& omega2 = pNode2->GetWCurr();
1070
1071  const integer iFirstIndexNode1 = pNode1->iGetFirstIndex();
1072  const integer iFirstIndexNode2 = pNode2->iGetFirstIndex();
1073  const integer iFirstIndex = iGetFirstIndex();
1074
1075  for (integer i = 1; i <= 12; ++i) {
1076  WorkVec.PutRowIndex(i, iFirstIndexNode1 + i);
1077  WorkVec.PutRowIndex(i + 12, iFirstIndexNode2 + i);
1078  }
1079
1080  for (integer i = 1; i <= 4; ++i) {
1081  WorkVec.PutRowIndex(i + 24, iFirstIndex + i);
1082  }
1083
1084  doublereal lambdaP[2];
1085
1086  for (int i = 1; i <= 2; ++i) {
1087  lambda[i - 1] = XCurr.dGetCoef(iFirstIndex + i);
1088  lambdaP[i - 1] = XCurr.dGetCoef(iFirstIndex + i + 2);
1089  }
1090
1091  const Vec3 R2o2 = R2 * o2;
1092  const Vec3 l1 = X2 + R2o2 - X1;
1093
1094  const Vec3 F1 = R1 * (e.GetCol(2) * lambda[L1] + e.GetCol(3) * lambda[L2]);
1095  const Vec3 M1 = l1.Cross(F1);
1096  const Vec3 FP1 = omega1.Cross(R1 * (e.GetCol(2) * lambda[L1] + e.GetCol(3) * lambda[L2]))
1097  + R1 * (e.GetCol(2) * lambdaP[L1] + e.GetCol(3) * lambdaP[L2]);
1098  const Vec3 MP1 = -F1.Cross(XP2 + omega2.Cross(R2o2) - XP1) + l1.Cross(FP1);
1099  const Vec3 F2 = -F1;
1100  const Vec3 M2 = R2o2.Cross(F2);
1101  const Vec3 FP2 = -FP1;
1102  const Vec3 MP2 = (omega2.Cross(R2o2)).Cross(F2) + R2o2.Cross(FP2);
1103
1104  const Vec3 a = R1.MulTV(l1) - o1;
1105  const Vec3 aP = R1.MulTV(l1.Cross(omega1) + XP2 + omega2.Cross(R2o2) - XP1);
1106
1107  WorkVec.Put( 1, F1);
1108  WorkVec.Put( 4, M1);
1109  WorkVec.Put( 7, FP1);
1110  WorkVec.Put(10, MP1);
1111  WorkVec.Put(13, F2);
1112  WorkVec.Put(16, M2);
1113  WorkVec.Put(19, FP2);
1114  WorkVec.Put(22, MP2);
1115
1116  for (int i = 1; i <= 2; ++i) {
1117  WorkVec.PutCoef(24 + i, e.GetCol(i + 1).Dot(a));
1118  WorkVec.PutCoef(26 + i, e.GetCol(i + 1).Dot(aP));
1119  }
1120
1121  return WorkVec;
1122 }
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
Vec3
Definition: matvec3.h:98
VectorHandler::ResizeReset
virtual void ResizeReset(integer)
Definition: vh.cc:55
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
Vec3::Dot
doublereal Dot(const Vec3 &v) const
Definition: matvec3.h:243
Mat3x3::GetCol
Vec3 GetCol(unsigned short int i) const
Definition: matvec3.h:903
VectorHandler::dGetCoef
virtual const doublereal & dGetCoef(integer iRow) const =0
InlineFriction::InitialWorkSpaceDim
virtual void InitialWorkSpaceDim(integer *piNumRows, integer *piNumCols) const
Definition: module-inline_friction.cc:824
Mat3x3::MulTV
Vec3 MulTV(const Vec3 &v) const
Definition: matvec3.cc:482
SubVectorHandler::PutRowIndex
virtual void PutRowIndex(integer iSubRow, integer iRow)=0
StructNode::GetWCurr
virtual const Vec3 & GetWCurr(void) const
Definition: strnode.h:1030
VectorHandler::PutCoef
virtual void PutCoef(integer iRow, const doublereal &dCoef)=0
grad::Cross
VectorExpression< VectorCrossExpr< VectorLhsExpr, VectorRhsExpr >, 3 > Cross(const VectorExpression< VectorLhsExpr, 3 > &u, const VectorExpression< VectorRhsExpr, 3 > &v)
Definition: matvec.h:3248
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
VectorHandler::Put
virtual void Put(integer iRow, const Vec3 &v)
Definition: vh.cc:93
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
a
static const doublereal a
Definition: hfluid_.h:289
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51

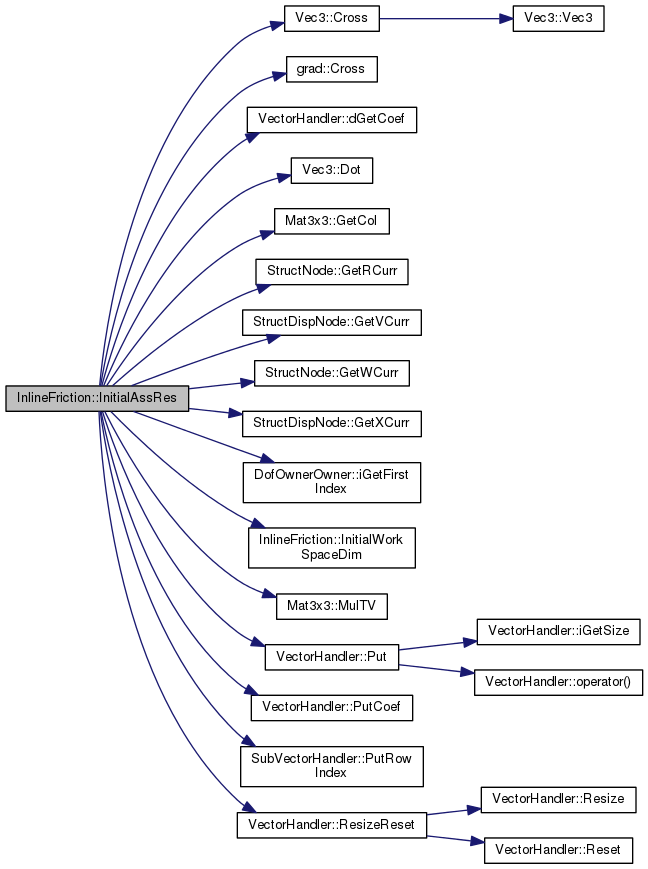

Here is the call graph for this function:

void InlineFriction::InitialWorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
virtual

Implements SubjectToInitialAssembly.

Definition at line 824 of file module-inline_friction.cc.

Referenced by InitialAssJac(), and InitialAssRes().

827 {
828  *piNumRows = *piNumCols = 28;
829 }
doublereal InlineFriction::NormalForceMagnitude ( ) const
inlineprivate

Definition at line 1129 of file module-inline_friction.cc.

References lambda, grad::pow(), and grad::sqrt().

Referenced by AssJac(), and FrictionForce().

1130 {
1131  doublereal lambda_res = 0;
1132
1133  for (int i = 0; i < 2; ++i)
1134  lambda_res += std::pow(lambda[i], 2);
1135
1136  lambda_res = sqrt(lambda_res);
1137
1138  return lambda_res;
1139 }
grad::pow
GradientExpression< BinaryExpr< FuncPow, LhsExpr, RhsExpr > > pow(const GradientExpression< LhsExpr > &u, const GradientExpression< RhsExpr > &v)
Definition: gradient.h:2961
grad::sqrt
GradientExpression< UnaryExpr< FuncSqrt, Expr > > sqrt(const GradientExpression< Expr > &u)
Definition: gradient.h:2974
doublereal
double doublereal
Definition: colamd.c:52

Here is the call graph for this function:

void InlineFriction::Output ( OutputHandler &  OH) const
virtual

Reimplemented from ToBeOutput.

Definition at line 468 of file module-inline_friction.cc.

References ToBeOutput::bToBeOutput(), WithLabel::GetLabel(), L1, L2, lambda, OutputHandler::LOADABLE, OutputHandler::Loadable(), OutputHandler::UseText(), z, and zP.

469 {
470  if ( bToBeOutput() )
471  {
472  if ( OH.UseText(OutputHandler::LOADABLE) )
473  {
474  std::ostream& os = OH.Loadable();
475
476  os << std::setw(8) << GetLabel() << " " << lambda[L1] << " " << lambda[L2] << " " << z << " " << zP << std::endl;
477  }
478  }
479 }
ToBeOutput::bToBeOutput
virtual bool bToBeOutput(void) const
Definition: output.cc:890
OutputHandler::Loadable
std::ostream & Loadable(void) const
Definition: output.h:506
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
OutputHandler::UseText
bool UseText(int out) const
Definition: output.cc:446

Here is the call graph for this function:

std::ostream & InlineFriction::Restart ( std::ostream &  out) const
virtual

Implements Elem.

Definition at line 812 of file module-inline_friction.cc.

813 {
814  return out;
815 }
void InlineFriction::SetValue ( DataManager *  pDM,
VectorHandler &  X,
VectorHandler &  XP,
SimulationEntity::Hints *  ph
)
virtual

Reimplemented from SimulationEntity.

Definition at line 795 of file module-inline_friction.cc.

References DofOwnerOwner::iGetFirstIndex(), lambda, muc, VectorHandler::PutCoef(), z, and zP.

798 {
799  const integer iFirstIndex = iGetFirstIndex();
800
801  for (int i = 1; i <= 2; ++i)
802  X.PutCoef(iFirstIndex + i, lambda[i - 1]);
803
804  if (muc > 0)
805  {
806  X.PutCoef(iFirstIndex + 3, z);
807  XP.PutCoef(iFirstIndex + 3, zP);
808  }
809 }
VectorHandler::PutCoef
virtual void PutCoef(integer iRow, const doublereal &dCoef)=0
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
integer
long int integer
Definition: colamd.c:51

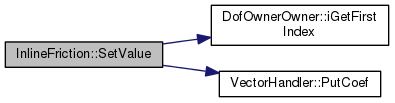

Here is the call graph for this function:

doublereal InlineFriction::SlidingVelocity ( const Vec3 &  X1,
const Mat3x3 &  R1,
const Vec3 &  XP1,
const Vec3 &  omega1,
const Vec3 &  X2,
const Mat3x3 &  R2,
const Vec3 &  XP2,
const Vec3 &  omega2
) const
inlineprivate

Definition at line 1124 of file module-inline_friction.cc.

References Vec3::Cross(), grad::Cross(), Vec3::Dot(), e, Mat3x3::GetCol(), Mat3x3::MulTV(), and o2.

Referenced by AssJac(), AssRes(), and dGetPrivData().

1125 {
1126  return e.GetCol(1).Dot(R1.MulTV(XP2 - (R2 * o2).Cross(omega2) - XP1 + (X2 + R2 * o2 - X1).Cross(omega1)));
1127 }
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
Vec3::Dot
doublereal Dot(const Vec3 &v) const
Definition: matvec3.h:243
Mat3x3::GetCol
Vec3 GetCol(unsigned short int i) const
Definition: matvec3.h:903
Mat3x3::MulTV
Vec3 MulTV(const Vec3 &v) const
Definition: matvec3.cc:482
grad::Cross
VectorExpression< VectorCrossExpr< VectorLhsExpr, VectorRhsExpr >, 3 > Cross(const VectorExpression< VectorLhsExpr, 3 > &u, const VectorExpression< VectorRhsExpr, 3 > &v)
Definition: matvec.h:3248

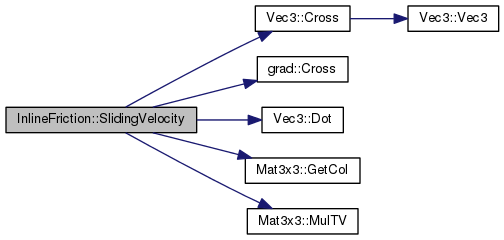

Here is the call graph for this function:

void InlineFriction::WorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
virtual

Implements Elem.

Definition at line 482 of file module-inline_friction.cc.

References muc.

Referenced by AssJac(), and AssRes().

483 {
484  *piNumRows = *piNumCols = 14 + 1 * (muc > 0);
485 }

Member Data Documentation

doublereal InlineFriction::delta
private

Definition at line 130 of file module-inline_friction.cc.

Referenced by AssJac(), AssRes(), FrictionForce(), and InlineFriction().

Mat3x3 InlineFriction::e
private

Definition at line 111 of file module-inline_friction.cc.

Referenced by AssJac(), AssRes(), InitialAssJac(), InitialAssRes(), InlineFriction(), and SlidingVelocity().

doublereal InlineFriction::iv
private

Definition at line 128 of file module-inline_friction.cc.

Referenced by AssJac(), FrictionCoefficient(), and InlineFriction().

doublereal InlineFriction::kv
private

Definition at line 129 of file module-inline_friction.cc.

Referenced by AssJac(), FrictionForce(), and InlineFriction().

doublereal InlineFriction::lambda[2]
private

Definition at line 121 of file module-inline_friction.cc.

Referenced by AssJac(), AssRes(), dGetPrivData(), InitialAssJac(), InitialAssRes(), InlineFriction(), NormalForceMagnitude(), Output(), and SetValue().

doublereal InlineFriction::muc
private

Definition at line 126 of file module-inline_friction.cc.

Referenced by AssJac(), AssRes(), DescribeDof(), DescribeEq(), FrictionCoefficient(), iGetNumDof(), InlineFriction(), SetValue(), and WorkSpaceDim().

doublereal InlineFriction::mus
private

Definition at line 125 of file module-inline_friction.cc.

Referenced by AssJac(), FrictionCoefficient(), and InlineFriction().

Vec3 InlineFriction::o1
private

Definition at line 110 of file module-inline_friction.cc.

Referenced by AssRes(), InitialAssRes(), and InlineFriction().

Vec3 InlineFriction::o2
private

Definition at line 113 of file module-inline_friction.cc.

Referenced by AssJac(), AssRes(), InitialAssJac(), InitialAssRes(), InlineFriction(), and SlidingVelocity().

doublereal InlineFriction::PhiScale
private

Definition at line 131 of file module-inline_friction.cc.

Referenced by AssJac(), AssRes(), and InlineFriction().

StructNode* InlineFriction::pNode1
private

Definition at line 109 of file module-inline_friction.cc.

Referenced by AssJac(), AssRes(), dGetPrivData(), GetConnectedNodes(), InitialAssJac(), InitialAssRes(), and InlineFriction().

StructNode* InlineFriction::pNode2
private

Definition at line 112 of file module-inline_friction.cc.

Referenced by AssJac(), AssRes(), dGetPrivData(), GetConnectedNodes(), InitialAssJac(), InitialAssRes(), and InlineFriction().

doublereal InlineFriction::vs
private

Definition at line 127 of file module-inline_friction.cc.

Referenced by AssJac(), FrictionCoefficient(), and InlineFriction().

doublereal InlineFriction::z
private

Definition at line 122 of file module-inline_friction.cc.

Referenced by AssJac(), AssRes(), dGetPrivData(), FrictionForce(), InlineFriction(), Output(), and SetValue().

doublereal InlineFriction::zP
private

Definition at line 123 of file module-inline_friction.cc.

Referenced by AssRes(), dGetPrivData(), InlineFriction(), Output(), and SetValue().

The documentation for this class was generated from the following file:
