DistanceJoint Class Reference

#include <genj.h>

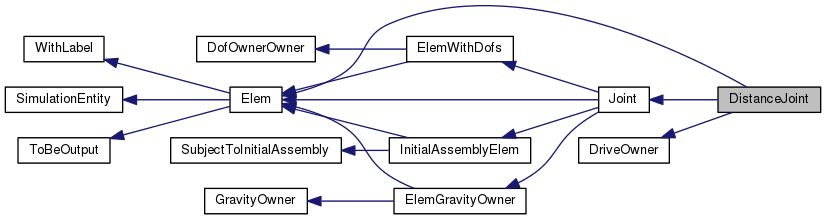

Inheritance diagram for DistanceJoint:
Inheritance graph
[legend]

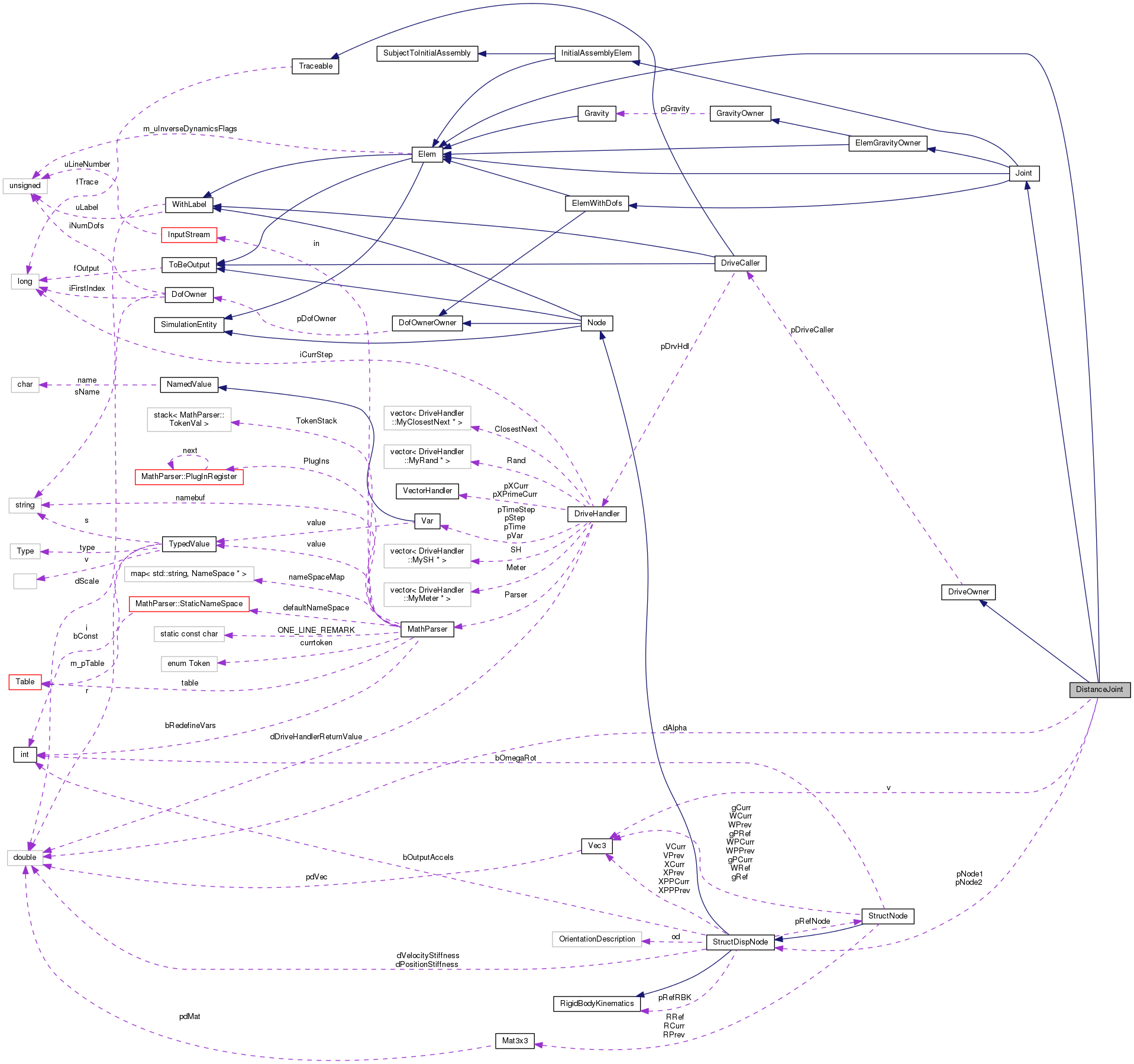

Collaboration diagram for DistanceJoint:
Collaboration graph
[legend]

Public Member Functions

 DistanceJoint (unsigned int uL, const DofOwner *pDO, const StructDispNode *pN1, const StructDispNode *pN2, const DriveCaller *pDC, flag fOut)

 ~DistanceJoint (void)

virtual Joint::Type GetJointType (void) const

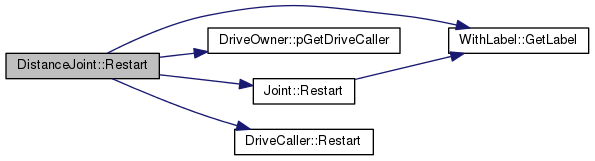

virtual std::ostream & Restart (std::ostream &out) const

virtual unsigned int iGetNumDof (void) const

virtual DofOrder::Order GetDofType (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual void WorkSpaceDim (integer *piNumRows, integer *piNumCols) const

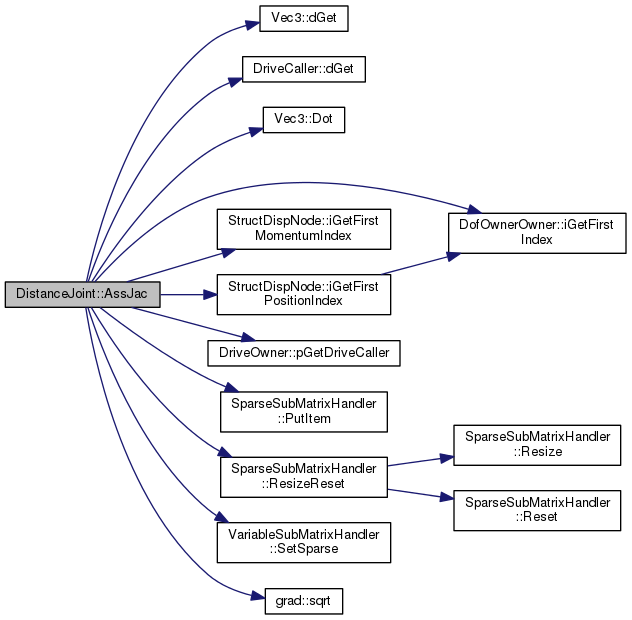

VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

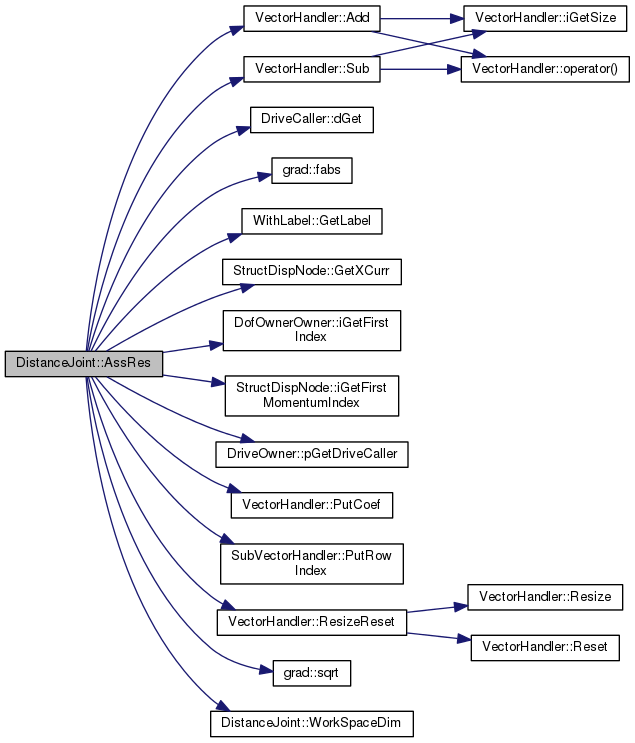

SubVectorHandler & AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

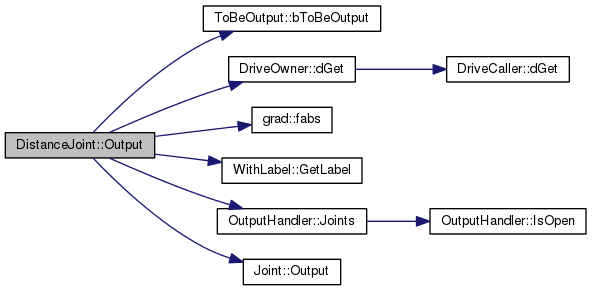

virtual void Output (OutputHandler &OH) const

virtual unsigned int iGetInitialNumDof (void) const

virtual void InitialWorkSpaceDim (integer *piNumRows, integer *piNumCols) const

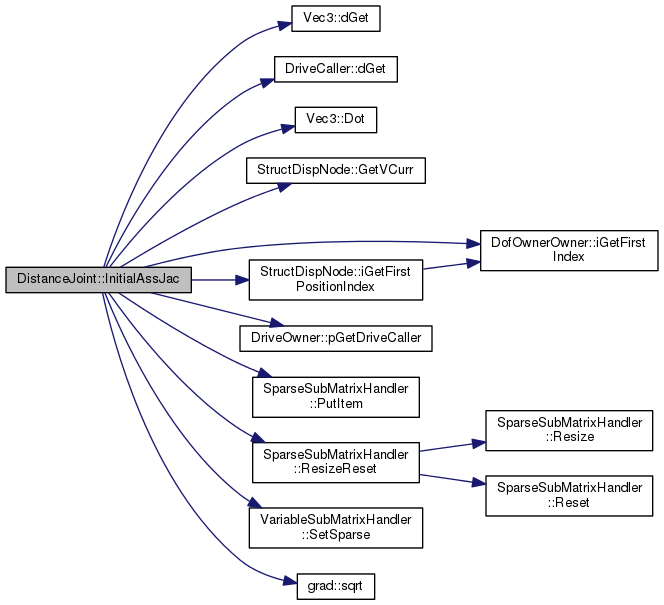

VariableSubMatrixHandler & InitialAssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

SubVectorHandler & InitialAssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr)

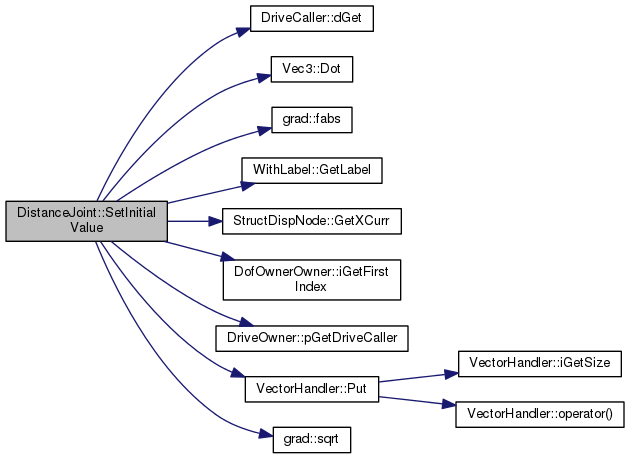

virtual void SetInitialValue (VectorHandler &X)

virtual void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph=0)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual void GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

- Public Member Functions inherited from Elem
 Elem (unsigned int uL, flag fOut)

virtual ~Elem (void)

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual void AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual bool bInverseDynamics (void) const

void SetInverseDynamicsFlags (unsigned uIDF)

unsigned GetInverseDynamicsFlags (void) const

bool bIsErgonomy (void) const

bool bIsRightHandSide (void) const

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler & AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual int GetNumConnectedNodes (void) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual Hint * ParseHint (DataManager *pDM, const char *s) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))

- Public Member Functions inherited from Joint
 Joint (unsigned int uL, const DofOwner *pD, flag fOut)

virtual ~Joint (void)

virtual Elem::Type GetElemType (void) const

std::ostream & Output (std::ostream &out, const char *sJointName, unsigned int uLabel, const Vec3 &FLocal, const Vec3 &MLocal, const Vec3 &FGlobal, const Vec3 &MGlobal) const

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

bool bIsPrescribedMotion (void) const

bool bIsTorque (void) const

- Public Member Functions inherited from ElemGravityOwner
 ElemGravityOwner (unsigned int uL, flag fOut)

virtual ~ElemGravityOwner (void)

virtual doublereal dGetM (void) const

Vec3 GetS (void) const

Mat3x3 GetJ (void) const

Vec3 GetB (void) const

Vec3 GetG (void) const

- Public Member Functions inherited from GravityOwner
 GravityOwner (void)

virtual ~GravityOwner (void)

void PutGravity (const Gravity *pG)

virtual bool bGetGravity (const Vec3 &X, Vec3 &Acc) const

- Public Member Functions inherited from ElemWithDofs
 ElemWithDofs (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~ElemWithDofs (void)

- Public Member Functions inherited from DofOwnerOwner
 DofOwnerOwner (const DofOwner *pDO)

virtual ~DofOwnerOwner ()

virtual const DofOwner * pGetDofOwner (void) const

virtual integer iGetFirstIndex (void) const

- Public Member Functions inherited from InitialAssemblyElem
 InitialAssemblyElem (unsigned int uL, flag fOut)

virtual ~InitialAssemblyElem (void)

- Public Member Functions inherited from SubjectToInitialAssembly
 SubjectToInitialAssembly (void)

virtual ~SubjectToInitialAssembly (void)

- Public Member Functions inherited from DriveOwner
 DriveOwner (const DriveCaller *pDC=0)

 DriveOwner (const DriveOwner &drive)

virtual ~DriveOwner (void)

void Set (const DriveCaller *pDC)

DriveCaller * pGetDriveCaller (void) const

doublereal dGet (const doublereal &dVar) const

doublereal dGet (void) const

bool bIsDifferentiable (void) const

doublereal dGetP (const doublereal &dVar) const

doublereal dGetP (void) const


Private Attributes

const StructDispNode * pNode1

const StructDispNode * pNode2

Vec3 v

doublereal dAlpha


Additional Inherited Members

- Public Types inherited from Elem
enum  Type {
  UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL,
  GRAVITY, BODY, JOINT, JOINT_REGULARIZATION,
  BEAM, PLATE, FORCE, INERTIA,
  ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC,
  BULK, LOADABLE, DRIVEN, EXTERNAL,
  AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT,
  RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE
}

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Public Types inherited from Joint
enum  Type {
  UNKNOWN = -1, DISTANCE = 0, DISTANCEWITHOFFSET, CLAMP,
  SPHERICALHINGE, PIN, UNIVERSALHINGE, UNIVERSALROTATION,
  UNIVERSALPIN, PLANEHINGE, PLANEROTATION, PLANEPIN,
  AXIALROTATION, PLANEDISP, PLANEDISPPIN, INPLANE,
  INPLANECONTACT, J_INLINE, ROD, RODBEZIER,
  DEFORMABLEHINGE, DEFORMABLEDISPJOINT, DEFORMABLEJOINT, DEFORMABLEAXIALJOINT,
  VISCOUSBODY, LINEARVELOCITY, ANGULARVELOCITY, LINEARACCELERATION,
  ANGULARACCELERATION, PRISMATIC, DRIVEHINGE, DRIVEDISP,
  DRIVEDISPPIN, IMPOSEDORIENTATION, IMPOSEDDISP, IMPOSEDDISPPIN,
  IMPOSEDKINEMATICS, BEAMSLIDER, BRAKE, GIMBAL,
  POINT_SURFACE_CONTACT, TOTALJOINT, TOTALPINJOINT, TOTALEQUATION,
  TOTALREACTION, MODAL, SCREWJOINT, LASTJOINTTYPE
}

- Protected Member Functions inherited from Joint
virtual void OutputPrepare_int (const std::string &type, OutputHandler &OH, std::string &name)

- Protected Member Functions inherited from ElemGravityOwner
virtual Vec3 GetS_int (void) const

virtual Mat3x3 GetJ_int (void) const

virtual Vec3 GetB_int (void) const

virtual Vec3 GetG_int (void) const

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput

- Protected Attributes inherited from GravityOwner
Gravity * pGravity

- Protected Attributes inherited from DriveOwner
DriveCaller * pDriveCaller


Detailed Description

Definition at line 44 of file genj.h.

Constructor & Destructor Documentation

DistanceJoint::DistanceJoint ( unsigned int  uL,
const DofOwner *  pDO,
const StructDispNode *  pN1,
const StructDispNode *  pN2,
const DriveCaller *  pDC,
flag  fOut
)

Definition at line 49 of file genj.cc.

References NO_OP.

52 : Elem(uL, fOut),
53 Joint(uL, pDO, fOut),
54 DriveOwner(pDC),
55 pNode1(pN1), pNode2(pN2), v(Zero3), dAlpha(0.)
56 {
57  NO_OP;
58 }
Zero3
const Vec3 Zero3(0., 0., 0.)
Joint::Joint
Joint(unsigned int uL, const DofOwner *pD, flag fOut)
Definition: joint.cc:83
NO_OP
#define NO_OP
Definition: myassert.h:74
DistanceJoint::dAlpha
doublereal dAlpha
Definition: genj.h:49
DistanceJoint::pNode1
const StructDispNode * pNode1
Definition: genj.h:46
DistanceJoint::v
Vec3 v
Definition: genj.h:48
DistanceJoint::pNode2
const StructDispNode * pNode2
Definition: genj.h:47
Elem::Elem
Elem(unsigned int uL, flag fOut)
Definition: elem.cc:41
DriveOwner::DriveOwner
DriveOwner(const DriveCaller *pDC=0)
Definition: drive.cc:627
DistanceJoint::~DistanceJoint ( void  )

Definition at line 62 of file genj.cc.

References NO_OP.

63 {
64  NO_OP;
65 }
NO_OP
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

VariableSubMatrixHandler & DistanceJoint::AssJac ( VariableSubMatrixHandler &  WorkMat,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 111 of file genj.cc.

References ASSERT, dAlpha, DEBUGCOUT, Vec3::dGet(), DriveCaller::dGet(), Vec3::Dot(), DofOwnerOwner::iGetFirstIndex(), StructDispNode::iGetFirstMomentumIndex(), StructDispNode::iGetFirstPositionIndex(), DriveOwner::pGetDriveCaller(), pNode1, pNode2, SparseSubMatrixHandler::PutItem(), SparseSubMatrixHandler::ResizeReset(), VariableSubMatrixHandler::SetSparse(), grad::sqrt(), and v.

115 {
116  DEBUGCOUT("Entering DistanceJoint::AssJac()" << std::endl);
117
118  SparseSubMatrixHandler& WM = WorkMat.SetSparse();
119
120  /* Dimensiona e resetta la matrice di lavoro */
121  doublereal dDistance = pGetDriveCaller()->dGet();
122
123  integer iNode1FirstPosIndex = pNode1->iGetFirstPositionIndex();
124  integer iNode1FirstMomIndex = pNode1->iGetFirstMomentumIndex();
125  integer iNode2FirstPosIndex = pNode2->iGetFirstPositionIndex();
126  integer iNode2FirstMomIndex = pNode2->iGetFirstMomentumIndex();
127  integer iFirstReactionIndex = iGetFirstIndex();
128
129  /*
130  * forza: dAlpha*v
131  * distanza: x2 - x1 = d*v
132  * equazione di normalizzazione di v:
133  * (v^T*v)^1/2 = 1
134  *
135  *
136  * x1 Q1 x2 Q2 v a
137  *
138  * x1 | 0 0 0 0 0 0 |
139  * Q1 | 0 0 0 0 -a*I -v |
140  * x2 | 0 0 0 0 0 0 |
141  * Q2 | 0 0 0 0 a*I v |
142  * v | -c*I 0 c*I 0 -d*I 0 |
143  * a | 0 0 0 0 v^T 0 |
144  * ----------
145  * (vT*v)^1/2
146  *
147  * con c = dCoef, a = dAlpha
148  */
149
150  WM.ResizeReset(24, 0);
151
152  /* Nota: la direzione della reazione, v,
153  * ed il coefficiente di amplificazione dAlpha
154  * sono stati aggiornati durante il calcolo del residuo */
155
156  for (int iCnt = 1; iCnt <= 3; iCnt++) {
157  /* termini di Delta_x1 */
158  WM.PutItem(iCnt, iFirstReactionIndex+iCnt,
159  iNode1FirstPosIndex+iCnt, -dCoef);
160
161  /* termini di Delta_x2 */
162  WM.PutItem(3+iCnt, iFirstReactionIndex+iCnt,
163  iNode2FirstPosIndex+iCnt, dCoef);
164
165  /* termini di Delta_F sul nodo 1 */
166  WM.PutItem(6+iCnt, iNode1FirstMomIndex+iCnt,
167  iFirstReactionIndex+iCnt, -dAlpha);
168
169  /* termini di Delta_F sul nodo 2 */
170  WM.PutItem(9+iCnt, iNode2FirstMomIndex+iCnt,
171  iFirstReactionIndex+iCnt, dAlpha);
172
173  /* termini diagonali di Delta_v */
174  WM.PutItem(12+iCnt, iFirstReactionIndex+iCnt,
175  iFirstReactionIndex+iCnt, -dDistance);
176
177  /* termini di Delta_alpha sul nodo 1 */
178  WM.PutItem(15+iCnt, iNode1FirstMomIndex+iCnt,
179  iFirstReactionIndex+4, -v.dGet(iCnt));
180
181  /* termini di Delta_alpha sul nodo 2 */
182  WM.PutItem(18+iCnt, iNode2FirstMomIndex+iCnt,
183  iFirstReactionIndex+4, v.dGet(iCnt));
184  }
185
186  doublereal d = v.Dot();
187  ASSERT(d > std::numeric_limits<doublereal>::epsilon());
188  if (d > std::numeric_limits<doublereal>::epsilon()) {
189  d = std::sqrt(d);
190  /* termini di Delta_v su alpha */
191  for (int iCnt = 3; iCnt > 0; iCnt--) {
192  WM.PutItem(21+iCnt, iFirstReactionIndex+4,
193  iFirstReactionIndex+iCnt, v.dGet(iCnt)/d);
194  }
195  }
196
197  return WorkMat;
198 }
Vec3::Dot
doublereal Dot(const Vec3 &v) const
Definition: matvec3.h:243
SparseSubMatrixHandler::ResizeReset
void ResizeReset(integer iNewRow, integer iNewCol)
Definition: submat.cc:1084
DistanceJoint::dAlpha
doublereal dAlpha
Definition: genj.h:49
SparseSubMatrixHandler::PutItem
void PutItem(integer iSubIt, integer iRow, integer iCol, const doublereal &dCoef)
Definition: submat.h:997
DistanceJoint::pNode1
const StructDispNode * pNode1
Definition: genj.h:46
Vec3::dGet
const doublereal & dGet(unsigned short int iRow) const
Definition: matvec3.h:285
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
DistanceJoint::v
Vec3 v
Definition: genj.h:48
StructDispNode::iGetFirstMomentumIndex
virtual integer iGetFirstMomentumIndex(void) const =0
StructDispNode::iGetFirstPositionIndex
virtual integer iGetFirstPositionIndex(void) const
Definition: strnode.h:452
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
grad::sqrt
GradientExpression< UnaryExpr< FuncSqrt, Expr > > sqrt(const GradientExpression< Expr > &u)
Definition: gradient.h:2974
DriveOwner::pGetDriveCaller
DriveCaller * pGetDriveCaller(void) const
Definition: drive.cc:658
DriveCaller::dGet
virtual doublereal dGet(const doublereal &dVar) const =0
DistanceJoint::pNode2
const StructDispNode * pNode2
Definition: genj.h:47
VariableSubMatrixHandler::SetSparse
SparseSubMatrixHandler & SetSparse(void)
Definition: submat.h:1178
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51

Here is the call graph for this function:

SubVectorHandler & DistanceJoint::AssRes ( SubVectorHandler &  WorkVec,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 202 of file genj.cc.

References VectorHandler::Add(), ASSERT, dAlpha, DEBUGCOUT, DriveCaller::dGet(), grad::fabs(), WithLabel::GetLabel(), StructDispNode::GetXCurr(), DofOwnerOwner::iGetFirstIndex(), StructDispNode::iGetFirstMomentumIndex(), MBDYN_EXCEPT_ARGS, DriveOwner::pGetDriveCaller(), pNode1, pNode2, VectorHandler::PutCoef(), SubVectorHandler::PutRowIndex(), VectorHandler::ResizeReset(), grad::sqrt(), VectorHandler::Sub(), v, and WorkSpaceDim().

206 {
207  DEBUGCOUT("Entering DistanceJoint::AssRes()" << std::endl);
208
209  /* Dimensiona e resetta la matrice di lavoro */
210  integer iNumRows = 0;
211  integer iNumCols = 0;
212  WorkSpaceDim(&iNumRows, &iNumCols);
213  WorkVec.ResizeReset(iNumRows);
214
215  integer iNode1FirstMomIndex = pNode1->iGetFirstMomentumIndex();
216  integer iNode2FirstMomIndex = pNode2->iGetFirstMomentumIndex();
217  integer iFirstReactionIndex = iGetFirstIndex();
218
219  for (int iCnt = 1; iCnt <= 3; iCnt++) {
220  /* Indici del nodo 1 */
221  WorkVec.PutRowIndex(iCnt, iNode1FirstMomIndex+iCnt);
222
223  /* Indici del nodo 2 */
224  WorkVec.PutRowIndex(3+iCnt, iNode2FirstMomIndex+iCnt);
225  }
226
227  /* Indici del vincolo */
228  for (int iCnt = 1; iCnt <= 4; iCnt++) {
229  WorkVec.PutRowIndex(6+iCnt, iFirstReactionIndex+iCnt);
230  }
231
232  Vec3 x1(pNode1->GetXCurr());
233  Vec3 x2(pNode2->GetXCurr());
234
235  /* Aggiorna i dati propri */
236  v = Vec3(XCurr, iFirstReactionIndex+1);
237  dAlpha = XCurr(iFirstReactionIndex+4);
238
239  doublereal dDistance = pGetDriveCaller()->dGet();
240
241  /* Distanza nulla */
242  if (fabs(dDistance) <= std::numeric_limits<doublereal>::epsilon()) {
243  silent_cerr("DistanceJoint(" << GetLabel() << "): "
244  "near-zero distance" << std::endl);
245  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
246  }
247
248  Vec3 TmpVec(v*dAlpha);
249  WorkVec.Add(1, TmpVec);
250  WorkVec.Sub(4, TmpVec);
251
252  WorkVec.Add(7, x1-x2+v*dDistance);
253
254  doublereal d = v.Dot();
255  ASSERT(d > std::numeric_limits<doublereal>::epsilon());
256  if (d > std::numeric_limits<doublereal>::epsilon()) {
257  d = std::sqrt(d);
258  } else {
259  d = 0.;
260  }
261
262  WorkVec.PutCoef(10, 1.-d);
263
264  return WorkVec;
265 }
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Vec3
Definition: matvec3.h:98
VectorHandler::ResizeReset
virtual void ResizeReset(integer)
Definition: vh.cc:55
DistanceJoint::WorkSpaceDim
virtual void WorkSpaceDim(integer *piNumRows, integer *piNumCols) const
Definition: genj.h:81
VectorHandler::Sub
virtual void Sub(integer iRow, const Vec3 &v)
Definition: vh.cc:78
DistanceJoint::dAlpha
doublereal dAlpha
Definition: genj.h:49
grad::fabs
GradientExpression< UnaryExpr< FuncFabs, Expr > > fabs(const GradientExpression< Expr > &u)
Definition: gradient.h:2973
SubVectorHandler::PutRowIndex
virtual void PutRowIndex(integer iSubRow, integer iRow)=0
DistanceJoint::pNode1
const StructDispNode * pNode1
Definition: genj.h:46
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
DistanceJoint::v
Vec3 v
Definition: genj.h:48
StructDispNode::iGetFirstMomentumIndex
virtual integer iGetFirstMomentumIndex(void) const =0
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
grad::sqrt
GradientExpression< UnaryExpr< FuncSqrt, Expr > > sqrt(const GradientExpression< Expr > &u)
Definition: gradient.h:2974
VectorHandler::PutCoef
virtual void PutCoef(integer iRow, const doublereal &dCoef)=0
DriveOwner::pGetDriveCaller
DriveCaller * pGetDriveCaller(void) const
Definition: drive.cc:658
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
VectorHandler::Add
virtual void Add(integer iRow, const Vec3 &v)
Definition: vh.cc:63
DriveCaller::dGet
virtual doublereal dGet(const doublereal &dVar) const =0
DistanceJoint::pNode2
const StructDispNode * pNode2
Definition: genj.h:47
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62

Here is the call graph for this function:

doublereal DistanceJoint::dGetPrivData ( unsigned int  i) const
virtual

Reimplemented from SimulationEntity.

Definition at line 88 of file genj.cc.

References ASSERT, DriveOwner::dGet(), and MBDYN_EXCEPT_ARGS.

89 {
90  ASSERT(i == 1);
91
92  if (i == 1) {
93  return dGet();
94  }
95
96  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
97 }
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
DriveOwner::dGet
doublereal dGet(void) const
Definition: drive.cc:671
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977

Here is the call graph for this function:

virtual void DistanceJoint::GetConnectedNodes ( std::vector< const Node * > &  connectedNodes) const
inlinevirtual

Reimplemented from Elem.

Definition at line 125 of file genj.h.

References pNode1, and pNode2.

125  {
126  connectedNodes.resize(2);
127  connectedNodes[0] = pNode1;
128  connectedNodes[1] = pNode2;
129  };
DistanceJoint::pNode1
const StructDispNode * pNode1
Definition: genj.h:46
DistanceJoint::pNode2
const StructDispNode * pNode2
Definition: genj.h:47
virtual DofOrder::Order DistanceJoint::GetDofType ( unsigned int  i) const
inlinevirtual

Reimplemented from Elem.

Definition at line 70 of file genj.h.

References DofOrder::ALGEBRAIC, and ASSERT.

71  {
72  ASSERT(i >= 0 && i < 4);
73  return DofOrder::ALGEBRAIC;
74  };
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
virtual DofOrder::Order DistanceJoint::GetEqType ( unsigned int  i) const
inlinevirtual

Reimplemented from SimulationEntity.

Definition at line 76 of file genj.h.

References DofOrder::DIFFERENTIAL.

77  {
78  return DofOrder::DIFFERENTIAL;
79  };
virtual Joint::Type DistanceJoint::GetJointType ( void  ) const
inlinevirtual

Implements Joint.

Definition at line 60 of file genj.h.

References Joint::DISTANCE.

60  {
61  return Joint::DISTANCE;
62  };
virtual unsigned int DistanceJoint::iGetInitialNumDof ( void  ) const
inlinevirtual

Implements SubjectToInitialAssembly.

Definition at line 98 of file genj.h.

98 { return 8; };
virtual unsigned int DistanceJoint::iGetNumDof ( void  ) const
inlinevirtual

Reimplemented from Elem.

Definition at line 67 of file genj.h.

67  {
68  return 4;
69  };
unsigned int DistanceJoint::iGetNumPrivData ( void  ) const
virtual

Reimplemented from SimulationEntity.

Definition at line 70 of file genj.cc.

71 {
72  return 1;
73 }
unsigned int DistanceJoint::iGetPrivDataIdx ( const char *  s) const
virtual

Reimplemented from SimulationEntity.

Definition at line 76 of file genj.cc.

References ASSERT.

77 {
78  ASSERT(s != NULL);
79
80  if (strcmp(s, "d") == 0) {
81  return 1;
82  }
83
84  return 0;
85 }
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
VariableSubMatrixHandler & DistanceJoint::InitialAssJac ( VariableSubMatrixHandler &  WorkMat,
const VectorHandler &  XCurr
)
virtual

Implements SubjectToInitialAssembly.

Definition at line 290 of file genj.cc.

References ASSERT, dAlpha, DEBUGCOUT, Vec3::dGet(), DriveCaller::dGet(), Vec3::Dot(), StructDispNode::GetVCurr(), DofOwnerOwner::iGetFirstIndex(), StructDispNode::iGetFirstPositionIndex(), DriveOwner::pGetDriveCaller(), pNode1, pNode2, SparseSubMatrixHandler::PutItem(), SparseSubMatrixHandler::ResizeReset(), VariableSubMatrixHandler::SetSparse(), grad::sqrt(), and v.

292 {
293  DEBUGCOUT("Entering DistanceJoint::InitialAssJac()" << std::endl);
294
295  SparseSubMatrixHandler& WM = WorkMat.SetSparse();
296
297  /* Dimensiona e resetta la matrice di lavoro */
298  doublereal dDistance = pGetDriveCaller()->dGet();
299
300  integer iNode1FirstPosIndex = pNode1->iGetFirstPositionIndex();
301  integer iNode1FirstVelIndex = iNode1FirstPosIndex+6;
302  integer iNode2FirstPosIndex = pNode2->iGetFirstPositionIndex();
303  integer iNode2FirstVelIndex = iNode2FirstPosIndex+6;
304  integer iFirstReactionIndex = iGetFirstIndex();
305  integer iReactionPrimeIndex = iFirstReactionIndex+4;
306
307  /* Distanza nulla */
308  /*
309  * forza: dAlpha*v
310  * distanza: x2 - x1 = d*v
311  * equazione di normalizzazione di v:
312  * (v^T*v)^1/2 = 1
313  *
314  *
315  * x1 x1P x2 x2P v a w b
316  *
317  * x1 | 0 0 0 0 -a*I -v 0 0 |
318  * x1P | 0 0 0 0 0 0 -b*I -w |
319  * x2 | 0 0 0 0 a*I v 0 0 |
320  * x2P | 0 0 0 0 0 0 b*I w |
321  * v | -I 0 I 0 -d*I 0 0 0 |
322  * a | 0 0 0 0 r 0 0 0 |
323  * w | 0 0 0 0 -I 0 I 0 |
324  * b | 0 -w^T 0 w^T 0 0 s 0 |
325  *
326  * v^T
327  * r = ----------
328  * (vT*v)^1/2
329  *
330  * s = (x2P - x1P)^T
331  *
332  * a = dAlpha
333  */
334
335  WM.ResizeReset(51, 1);
336
337  /* Nota: la direzione della reazione, v,
338  * ed il coefficiente di amplificazione dAlpha
339  * sono stati aggiornati durante il calcolo del residuo */
340
341  dAlpha = XCurr(iFirstReactionIndex+4);
342  doublereal dBeta = XCurr(iReactionPrimeIndex+4);
343  v = Vec3(XCurr, iFirstReactionIndex+1);
344  Vec3 w(XCurr, iReactionPrimeIndex+1);
345  Vec3 deltaXP(pNode2->GetVCurr()-pNode1->GetVCurr());
346
347  for (int iCnt = 1; iCnt <= 3; iCnt++) {
348  doublereal d;
349
350  d = dAlpha;
351  /* termini di Delta_v sul nodo 1 */
352  WM.PutItem(6+iCnt, iNode1FirstPosIndex+iCnt,
353  iFirstReactionIndex+iCnt, -d);
354
355  /* termini di Delta_v sul nodo 2 */
356  WM.PutItem(9+iCnt, iNode2FirstPosIndex+iCnt,
357  iFirstReactionIndex+iCnt, d);
358
359  d = v.dGet(iCnt);
360  /* termini di Delta_alpha sul nodo 1 */
361  WM.PutItem(12+iCnt, iNode1FirstPosIndex+iCnt,
362  iFirstReactionIndex+4, -d);
363
364  /* termini di Delta_alpha sul nodo 2 */
365  WM.PutItem(15+iCnt, iNode2FirstPosIndex+iCnt,
366  iFirstReactionIndex+4, d);
367
368  d = dBeta;
369  /* termini di Delta_w sul nodo 1 */
370  WM.PutItem(18+iCnt, iNode1FirstVelIndex+iCnt,
371  iReactionPrimeIndex+iCnt, -d);
372
373  /* termini di Delta_w sul nodo 2 */
374  WM.PutItem(21+iCnt, iNode2FirstVelIndex+iCnt,
375  iReactionPrimeIndex+iCnt, d);
376
377  d = w.dGet(iCnt);
378  /* termini di Delta_beta sul nodo 1 */
379  WM.PutItem(24+iCnt, iNode1FirstVelIndex+iCnt,
380  iReactionPrimeIndex+4, -d);
381
382  /* termini di Delta_beta sul nodo 2 */
383  WM.PutItem(27+iCnt, iNode2FirstVelIndex+iCnt,
384  iReactionPrimeIndex+4, d);
385
386  d = dDistance;
387  /* termini diagonali di Delta_v */
388  WM.PutItem(30+iCnt, iFirstReactionIndex+iCnt,
389  iFirstReactionIndex+iCnt, -d);
390
391  /* termini diagonali di Delta_w */
392  WM.PutItem(33+iCnt, iReactionPrimeIndex+iCnt,
393  iReactionPrimeIndex+iCnt, 1.);
394
395  /* termini incrociati di Delta_w Delta_v */
396  WM.PutItem(36+iCnt, iReactionPrimeIndex+iCnt,
397  iFirstReactionIndex+iCnt, -1.);
398
399  d = w.dGet(iCnt);
400  /* termini di beta per Delta_x1P: w^T */
401  WM.PutItem(39+iCnt, iReactionPrimeIndex+4,
402  iNode1FirstVelIndex+iCnt, -d);
403
404  /* termini di beta per Delta_x2P: w^T */
405  WM.PutItem(42+iCnt, iReactionPrimeIndex+4,
406  iNode2FirstVelIndex+iCnt, d);
407
408  d = deltaXP.dGet(iCnt);
409  /* termini di beta per Delta_w: (x2P-x1P)^T */
410  WM.PutItem(45+iCnt, iReactionPrimeIndex+4,
411  iReactionPrimeIndex+iCnt, d);
412  }
413
414
415  /* termini di Delta_v su alpha */
416  doublereal d = v.Dot();
417  ASSERT(d > std::numeric_limits<doublereal>::epsilon());
418  if (d > std::numeric_limits<doublereal>::epsilon()) {
419  d = std::sqrt(d);
420  for (int iCnt = 1; iCnt <= 3; iCnt++) {
421  WM.PutItem(48+iCnt, iFirstReactionIndex+4,
422  iFirstReactionIndex+iCnt, v.dGet(iCnt)/d);
423  }
424  } else {
425  for (int iCnt = 1; iCnt <= 3; iCnt++) {
426  WM.PutItem(48+iCnt, iFirstReactionIndex+4,
427  iFirstReactionIndex+iCnt, 0.);
428  }
429  }
430
431  for (int iCnt = 1; iCnt <= 3; iCnt++) {
432  /* termini di Delta_x1 */
433  WM.PutItem(iCnt, iFirstReactionIndex+iCnt,
434  iNode1FirstPosIndex+iCnt, -1.);
435
436  /* termini di Delta_x2 */
437  WM.PutItem(iCnt+3, iFirstReactionIndex+iCnt,
438  iNode2FirstPosIndex+iCnt, 1.);
439  }
440
441  return WorkMat;
442 }
Vec3
Definition: matvec3.h:98
Vec3::Dot
doublereal Dot(const Vec3 &v) const
Definition: matvec3.h:243
SparseSubMatrixHandler::ResizeReset
void ResizeReset(integer iNewRow, integer iNewCol)
Definition: submat.cc:1084
DistanceJoint::dAlpha
doublereal dAlpha
Definition: genj.h:49
SparseSubMatrixHandler::PutItem
void PutItem(integer iSubIt, integer iRow, integer iCol, const doublereal &dCoef)
Definition: submat.h:997
DistanceJoint::pNode1
const StructDispNode * pNode1
Definition: genj.h:46
Vec3::dGet
const doublereal & dGet(unsigned short int iRow) const
Definition: matvec3.h:285
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
DistanceJoint::v
Vec3 v
Definition: genj.h:48
StructDispNode::iGetFirstPositionIndex
virtual integer iGetFirstPositionIndex(void) const
Definition: strnode.h:452
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
grad::sqrt
GradientExpression< UnaryExpr< FuncSqrt, Expr > > sqrt(const GradientExpression< Expr > &u)
Definition: gradient.h:2974
DriveOwner::pGetDriveCaller
DriveCaller * pGetDriveCaller(void) const
Definition: drive.cc:658
DriveCaller::dGet
virtual doublereal dGet(const doublereal &dVar) const =0
DistanceJoint::pNode2
const StructDispNode * pNode2
Definition: genj.h:47
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
VariableSubMatrixHandler::SetSparse
SparseSubMatrixHandler & SetSparse(void)
Definition: submat.h:1178
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51

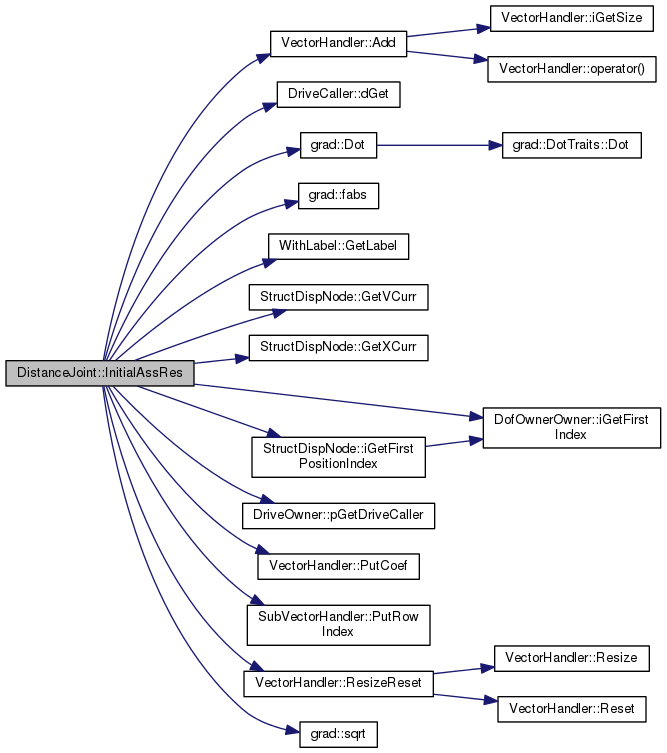

Here is the call graph for this function:

SubVectorHandler & DistanceJoint::InitialAssRes ( SubVectorHandler &  WorkVec,
const VectorHandler &  XCurr
)
virtual

Implements SubjectToInitialAssembly.

Definition at line 447 of file genj.cc.

References VectorHandler::Add(), ASSERT, dAlpha, DEBUGCOUT, DriveCaller::dGet(), grad::Dot(), grad::fabs(), WithLabel::GetLabel(), StructDispNode::GetVCurr(), StructDispNode::GetXCurr(), DofOwnerOwner::iGetFirstIndex(), StructDispNode::iGetFirstPositionIndex(), MBDYN_EXCEPT_ARGS, DriveOwner::pGetDriveCaller(), pNode1, pNode2, VectorHandler::PutCoef(), SubVectorHandler::PutRowIndex(), VectorHandler::ResizeReset(), grad::sqrt(), and v.

449 {
450  DEBUGCOUT("Entering DistanceJoint::InitialAssRes()" << std::endl);
451
452  /* Dimensiona e resetta la matrice di lavoro */
453  WorkVec.ResizeReset(20);
454
455  integer iNode1FirstPosIndex = pNode1->iGetFirstPositionIndex();
456  integer iNode1FirstVelIndex = iNode1FirstPosIndex+6;
457  integer iNode2FirstPosIndex = pNode2->iGetFirstPositionIndex();
458  integer iNode2FirstVelIndex = iNode2FirstPosIndex+6;
459  integer iFirstReactionIndex = iGetFirstIndex();
460  integer iReactionPrimeIndex = iFirstReactionIndex+4;
461
462  for (int iCnt = 1; iCnt <= 3; iCnt++) {
463  /* Indici del nodo 1, posizione */
464  WorkVec.PutRowIndex(iCnt, iNode1FirstPosIndex+iCnt);
465
466  /* Indici del nodo 1, velocita' */
467  WorkVec.PutRowIndex(3+iCnt, iNode1FirstVelIndex+iCnt);
468
469  /* Indici del nodo 2, posizione */
470  WorkVec.PutRowIndex(6+iCnt, iNode2FirstPosIndex+iCnt);
471
472  /* Indici del nodo 2, velocita' */
473  WorkVec.PutRowIndex(9+iCnt, iNode2FirstVelIndex+iCnt);
474  }
475
476  /* Indici del vincolo */
477  for (int iCnt = 1; iCnt <= 8; iCnt++) {
478  WorkVec.PutRowIndex(12+iCnt, iFirstReactionIndex+iCnt);
479  }
480
481  Vec3 x1(pNode1->GetXCurr());
482  Vec3 x2(pNode2->GetXCurr());
483  Vec3 x1P(pNode1->GetVCurr());
484  Vec3 x2P(pNode2->GetVCurr());
485  v = Vec3(XCurr, iFirstReactionIndex+1);
486  Vec3 w(XCurr, iReactionPrimeIndex+1);
487  dAlpha = XCurr(iFirstReactionIndex+4);
488  doublereal dBeta = XCurr(iReactionPrimeIndex+4);
489
490  doublereal dDistance = pGetDriveCaller()->dGet();
491
492  /* Distanza nulla */
493  if (fabs(dDistance) <= std::numeric_limits<doublereal>::epsilon()) {
494  silent_cerr("DistanceJoint(" << GetLabel() << "): "
495  "near-zero distance" << std::endl);
496  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
497  }
498  WorkVec.Add(0+1, v*dAlpha);
499  WorkVec.Add(3+1, w*dBeta);
500  WorkVec.Add(6+1, -v*dAlpha);
501  WorkVec.Add(9+1, -w*dBeta);
502  WorkVec.Add(12+1, x1-x2+v*dDistance);
503
504  doublereal d = v.Dot();
505  ASSERT(d > std::numeric_limits<doublereal>::epsilon());
506  if(d > std::numeric_limits<doublereal>::epsilon()) {
507  d = std::sqrt(d);
508  } else {
509  d = 0.;
510  }
511
512  WorkVec.PutCoef(15+1, 1.-d);
513
514  WorkVec.Add(16+1, v-w);
515  WorkVec.PutCoef(19+1, (x1P-x2P).Dot(w));
516
517  return WorkVec;
518 }
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Vec3
Definition: matvec3.h:98
VectorHandler::ResizeReset
virtual void ResizeReset(integer)
Definition: vh.cc:55
DistanceJoint::dAlpha
doublereal dAlpha
Definition: genj.h:49
grad::fabs
GradientExpression< UnaryExpr< FuncFabs, Expr > > fabs(const GradientExpression< Expr > &u)
Definition: gradient.h:2973
SubVectorHandler::PutRowIndex
virtual void PutRowIndex(integer iSubRow, integer iRow)=0
DistanceJoint::pNode1
const StructDispNode * pNode1
Definition: genj.h:46
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
DistanceJoint::v
Vec3 v
Definition: genj.h:48
StructDispNode::iGetFirstPositionIndex
virtual integer iGetFirstPositionIndex(void) const
Definition: strnode.h:452
grad::Dot
DotTraits< VectorExprLhs, VectorExprRhs, N_rows, N_rows >::ExpressionType Dot(const VectorExpression< VectorExprLhs, N_rows > &u, const VectorExpression< VectorExprRhs, N_rows > &v)
Definition: matvec.h:3133
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
grad::sqrt
GradientExpression< UnaryExpr< FuncSqrt, Expr > > sqrt(const GradientExpression< Expr > &u)
Definition: gradient.h:2974
VectorHandler::PutCoef
virtual void PutCoef(integer iRow, const doublereal &dCoef)=0
DriveOwner::pGetDriveCaller
DriveCaller * pGetDriveCaller(void) const
Definition: drive.cc:658
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
VectorHandler::Add
virtual void Add(integer iRow, const Vec3 &v)
Definition: vh.cc:63
DriveCaller::dGet
virtual doublereal dGet(const doublereal &dVar) const =0
DistanceJoint::pNode2
const StructDispNode * pNode2
Definition: genj.h:47
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62

Here is the call graph for this function:

virtual void DistanceJoint::InitialWorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
inlinevirtual

Implements SubjectToInitialAssembly.

Definition at line 99 of file genj.h.

101  { *piNumRows = 20; *piNumCols = 20; };
void DistanceJoint::Output ( OutputHandler &  OH) const
virtual

Reimplemented from ToBeOutput.

Definition at line 268 of file genj.cc.

References ToBeOutput::bToBeOutput(), dAlpha, DriveOwner::dGet(), grad::fabs(), WithLabel::GetLabel(), OutputHandler::Joints(), Joint::Output(), v, and Zero3.

269 {
270  if(bToBeOutput()) {
271  doublereal d = dGet();
272  Vec3 vTmp;
273  if (fabs(d) > std::numeric_limits<doublereal>::epsilon()) {
274  vTmp = Vec3(dAlpha, 0., 0.);
275  } else {
276  vTmp = v;
277  }
278  Joint::Output(OH.Joints(), "Distance", GetLabel(),
279  vTmp, Zero3, v*dAlpha, Zero3)
280  << " " << v << " " << d << std::endl;
281  }
282 }
Zero3
const Vec3 Zero3(0., 0., 0.)
ToBeOutput::bToBeOutput
virtual bool bToBeOutput(void) const
Definition: output.cc:890
Vec3
Definition: matvec3.h:98
DriveOwner::dGet
doublereal dGet(void) const
Definition: drive.cc:671
DistanceJoint::dAlpha
doublereal dAlpha
Definition: genj.h:49
grad::fabs
GradientExpression< UnaryExpr< FuncFabs, Expr > > fabs(const GradientExpression< Expr > &u)
Definition: gradient.h:2973
DistanceJoint::v
Vec3 v
Definition: genj.h:48
OutputHandler::Joints
std::ostream & Joints(void) const
Definition: output.h:443
doublereal
double doublereal
Definition: colamd.c:52
Joint::Output
std::ostream & Output(std::ostream &out, const char *sJointName, unsigned int uLabel, const Vec3 &FLocal, const Vec3 &MLocal, const Vec3 &FGlobal, const Vec3 &MGlobal) const
Definition: joint.cc:138
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62

Here is the call graph for this function:

std::ostream & DistanceJoint::Restart ( std::ostream &  out) const
virtual

Implements Elem.

Definition at line 100 of file genj.cc.

References WithLabel::GetLabel(), DriveOwner::pGetDriveCaller(), pNode1, pNode2, Joint::Restart(), and DriveCaller::Restart().

101 {
102  Joint::Restart(out) << ", distance, "
103  << pNode1->GetLabel() << ", "
104  << pNode2->GetLabel() << ", ";
105  return pGetDriveCaller()->Restart(out) << ';' << std::endl;
106 }
DriveCaller::Restart
virtual std::ostream & Restart(std::ostream &out) const =0
DistanceJoint::pNode1
const StructDispNode * pNode1
Definition: genj.h:46
Joint::Restart
virtual std::ostream & Restart(std::ostream &out) const
Definition: joint.h:195
DriveOwner::pGetDriveCaller
DriveCaller * pGetDriveCaller(void) const
Definition: drive.cc:658
DistanceJoint::pNode2
const StructDispNode * pNode2
Definition: genj.h:47
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62

Here is the call graph for this function:

void DistanceJoint::SetInitialValue ( VectorHandler &  X)
virtual

Initialize state vector used in initial assembly. May set internal states of the element. Do not rely on being always called, because initial assembly could be implicitly or explicitly skipped

Reimplemented from Joint.

Definition at line 521 of file genj.cc.

References DriveCaller::dGet(), Vec3::Dot(), grad::fabs(), WithLabel::GetLabel(), StructDispNode::GetXCurr(), DofOwnerOwner::iGetFirstIndex(), MBDYN_EXCEPT_ARGS, DriveOwner::pGetDriveCaller(), pNode1, pNode2, VectorHandler::Put(), grad::sqrt(), and v.

522 {
523  integer iFirstIndex = iGetFirstIndex();
524
525  doublereal dDistance = pGetDriveCaller()->dGet();
526  if (fabs(dDistance) <= std::numeric_limits<doublereal>::epsilon()) {
527  silent_cerr("DistanceJoint(" << GetLabel() << "): "
528  "near-zero distance" << std::endl);
529  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
530  }
531
532  v = ((pNode2->GetXCurr())-(pNode1->GetXCurr()));
533  doublereal d = v.Dot();
534  if (d < std::numeric_limits<doublereal>::epsilon()) {
535  silent_cerr("DistanceJoint(" << GetLabel() << "): "
536  "initial length is null" << std::endl);
537  throw ErrNullNorm(MBDYN_EXCEPT_ARGS);
538  }
539  v /= std::sqrt(d);
540
541  X.Put(iFirstIndex+1, v);
542  X.Put(iFirstIndex+4+1, v);
543 }
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Vec3::Dot
doublereal Dot(const Vec3 &v) const
Definition: matvec3.h:243
grad::fabs
GradientExpression< UnaryExpr< FuncFabs, Expr > > fabs(const GradientExpression< Expr > &u)
Definition: gradient.h:2973
DistanceJoint::pNode1
const StructDispNode * pNode1
Definition: genj.h:46
DistanceJoint::v
Vec3 v
Definition: genj.h:48
grad::sqrt
GradientExpression< UnaryExpr< FuncSqrt, Expr > > sqrt(const GradientExpression< Expr > &u)
Definition: gradient.h:2974
DriveOwner::pGetDriveCaller
DriveCaller * pGetDriveCaller(void) const
Definition: drive.cc:658
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
DriveCaller::dGet
virtual doublereal dGet(const doublereal &dVar) const =0
VectorHandler::Put
virtual void Put(integer iRow, const Vec3 &v)
Definition: vh.cc:93
DistanceJoint::pNode2
const StructDispNode * pNode2
Definition: genj.h:47
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62

Here is the call graph for this function:

void DistanceJoint::SetValue ( DataManager *  pDM,
VectorHandler &  X,
VectorHandler &  XP,
SimulationEntity::Hints *  ph = 0
)
virtual

Reimplemented from Joint.

Definition at line 547 of file genj.cc.

References DriveCaller::dGet(), Vec3::Dot(), grad::fabs(), WithLabel::GetLabel(), StructDispNode::GetXCurr(), DofOwnerOwner::iGetFirstIndex(), MBDYN_EXCEPT_ARGS, DriveHint::pCreateDrive(), DriveOwner::pGetDriveCaller(), pNode1, pNode2, VectorHandler::Put(), DriveOwner::Set(), grad::sqrt(), WithLabel::uLabel, and v.

550 {
551  if (ph) {
552  for (unsigned i = 0; i < ph->size(); i++) {
553  DriveHint *pdh = dynamic_cast<DriveHint *>((*ph)[i]);
554
555  if (pdh) {
556  pedantic_cout("DistanceJoint(" << uLabel << "): "
557  "creating drive from hint[" << i << "]..." << std::endl);
558
559  DriveCaller *pDC = pdh->pCreateDrive(pDM);
560  if (pDC == 0) {
561  silent_cerr("DistanceJoint(" << uLabel << "): "
562  "unable to create drive after hint "
563  "#" << i << std::endl);
564  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
565  }
566
567  DriveOwner::Set(pDC);
568  continue;
569  }
570  }
571  }
572
573  doublereal dDistance = pGetDriveCaller()->dGet();
574
575  /* Setta a 1 dAlpha, che e' indipendente dalle altre variabili
576  * in caso di distanza nulla */
577  if (fabs(dDistance) <= std::numeric_limits<doublereal>::epsilon()) {
578  silent_cerr("DistanceJoint(" << uLabel << "): "
579  "near-zero distance" << std::endl);
580  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
581  }
582
583  /* Scrive la direzione della distanza. Se e' stata ottenuta con
584  * l'assemblaggio iniziale bene, se no' la calcola */
585  v = pNode2->GetXCurr() - pNode1->GetXCurr();
586  doublereal d = v.Dot();
587  if (d <= std::numeric_limits<doublereal>::epsilon()) {
588  silent_cerr("DistanceJoint(" << uLabel << ") "
589  "linked to nodes " << pNode1->GetLabel()
590  << " and " << pNode2->GetLabel() << ": "
591  "nodes are coincident;" << std::endl
592  << "initial joint assembly is recommended"
593  << std::endl);
594  throw ErrNullNorm(MBDYN_EXCEPT_ARGS);
595  }
596  v /= std::sqrt(d);
597
598  /* Scrittura sul vettore soluzione */
599  X.Put(iGetFirstIndex() + 1, v);
600 }
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Vec3::Dot
doublereal Dot(const Vec3 &v) const
Definition: matvec3.h:243
grad::fabs
GradientExpression< UnaryExpr< FuncFabs, Expr > > fabs(const GradientExpression< Expr > &u)
Definition: gradient.h:2973
DistanceJoint::pNode1
const StructDispNode * pNode1
Definition: genj.h:46
DistanceJoint::v
Vec3 v
Definition: genj.h:48
WithLabel::uLabel
unsigned int uLabel
Definition: withlab.h:44
DriveHint::pCreateDrive
DriveCaller * pCreateDrive(DataManager *pDM) const
Definition: hint_impl.cc:117
grad::sqrt
GradientExpression< UnaryExpr< FuncSqrt, Expr > > sqrt(const GradientExpression< Expr > &u)
Definition: gradient.h:2974
DriveOwner::pGetDriveCaller
DriveCaller * pGetDriveCaller(void) const
Definition: drive.cc:658
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
DriveCaller::dGet
virtual doublereal dGet(const doublereal &dVar) const =0
VectorHandler::Put
virtual void Put(integer iRow, const Vec3 &v)
Definition: vh.cc:93
DistanceJoint::pNode2
const StructDispNode * pNode2
Definition: genj.h:47
DriveOwner::Set
void Set(const DriveCaller *pDC)
Definition: drive.cc:647
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62

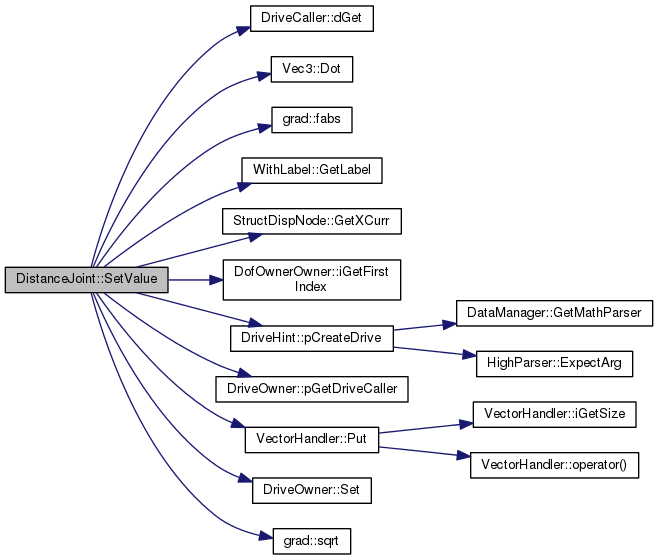

Here is the call graph for this function:

virtual void DistanceJoint::WorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
inlinevirtual

Implements Elem.

Definition at line 81 of file genj.h.

Referenced by AssRes().

82  { *piNumRows = 10; *piNumCols = 10; };

Member Data Documentation

doublereal DistanceJoint::dAlpha
private

Definition at line 49 of file genj.h.

Referenced by AssJac(), AssRes(), InitialAssJac(), InitialAssRes(), and Output().

const StructDispNode* DistanceJoint::pNode1
private

Definition at line 46 of file genj.h.

Referenced by AssJac(), AssRes(), GetConnectedNodes(), InitialAssJac(), InitialAssRes(), Restart(), SetInitialValue(), and SetValue().

const StructDispNode* DistanceJoint::pNode2
private

Definition at line 47 of file genj.h.

Referenced by AssJac(), AssRes(), GetConnectedNodes(), InitialAssJac(), InitialAssRes(), Restart(), SetInitialValue(), and SetValue().

Vec3 DistanceJoint::v
mutableprivate

Definition at line 48 of file genj.h.

Referenced by AssJac(), AssRes(), InitialAssJac(), InitialAssRes(), Output(), SetInitialValue(), and SetValue().

The documentation for this class was generated from the following files:
