StructExtForce Class Reference

#include <strext.h>

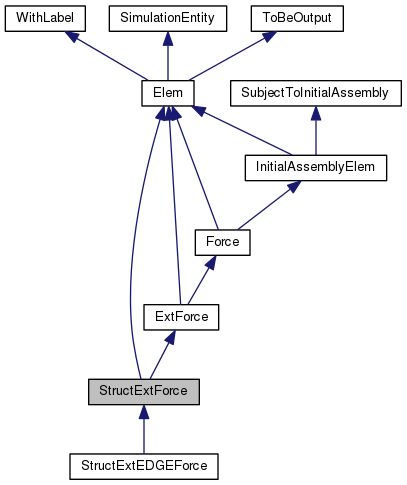

Inheritance diagram for StructExtForce:
Inheritance graph
[legend]

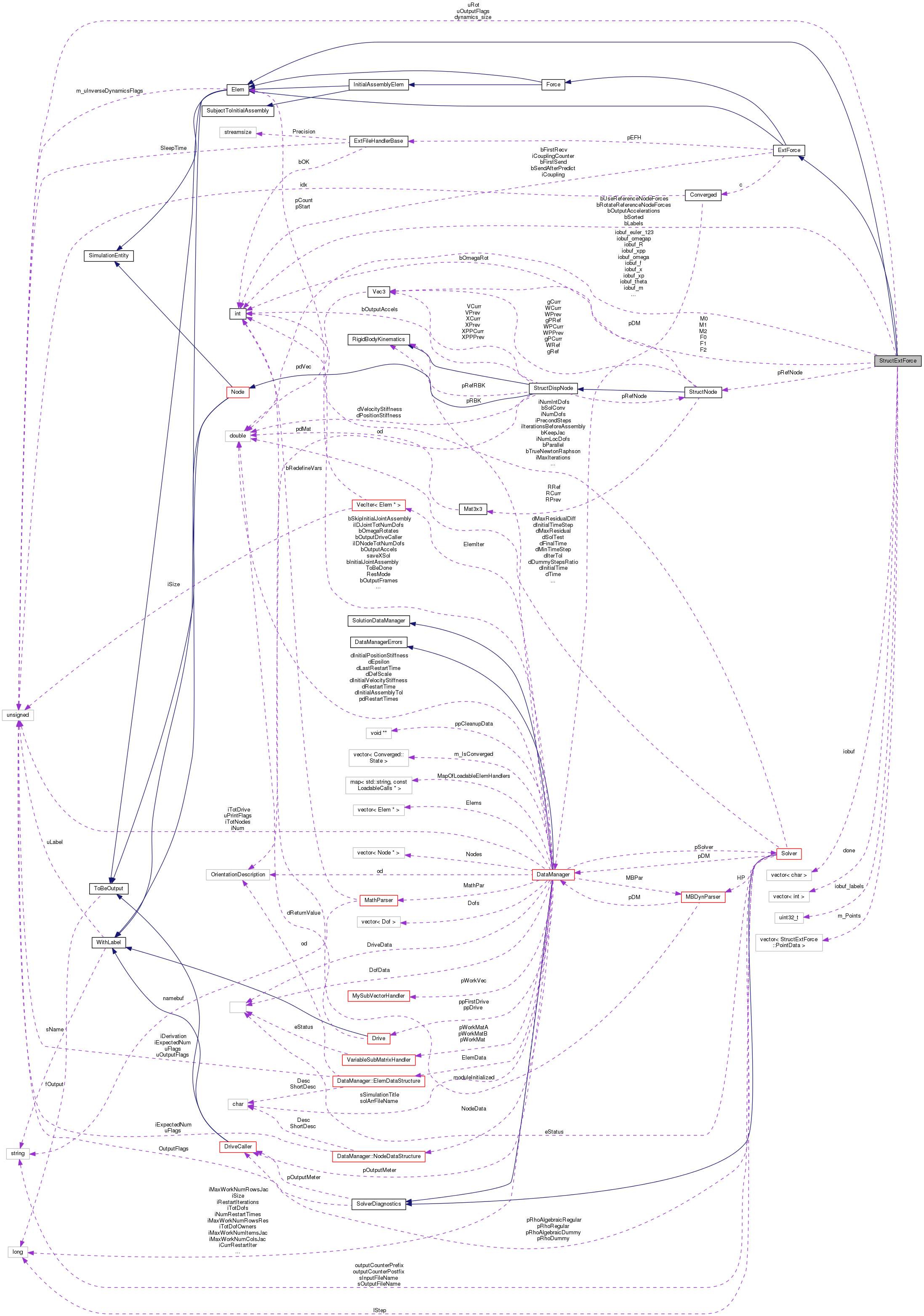

Collaboration diagram for StructExtForce:
Collaboration graph
[legend]

Classes

struct  PointData


Public Member Functions

 StructExtForce (unsigned int uL, DataManager *pDM, const StructNode *pRefNode, bool bUseReferenceNodeForces, bool bRotateReferenceNodeForces, std::vector< unsigned > &Labels, std::vector< const StructNode * > &Nodes, std::vector< Vec3 > &Offsets, bool bSorted, bool bLabels, bool bOutputAccelerations, unsigned bRot, ExtFileHandlerBase *pEFH, bool bSendAfterPredict, int iCoupling, unsigned uOutputFlags, flag fOut)

virtual ~StructExtForce (void)

virtual Force::Type GetForceType (void) const

void WorkSpaceDim (integer *piNumRows, integer *piNumCols) const

SubVectorHandler & AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

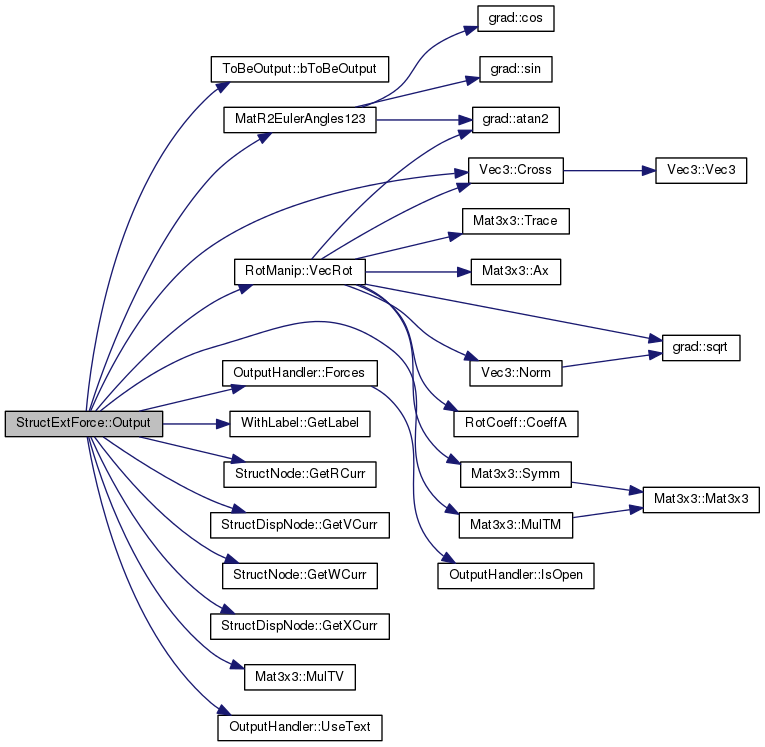

virtual void Output (OutputHandler &OH) const

virtual void GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

- Public Member Functions inherited from Elem
 Elem (unsigned int uL, flag fOut)

virtual ~Elem (void)

virtual unsigned int iGetNumDof (void) const

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order GetDofType (unsigned int) const

virtual void AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual bool bInverseDynamics (void) const

void SetInverseDynamicsFlags (unsigned uIDF)

unsigned GetInverseDynamicsFlags (void) const

bool bIsErgonomy (void) const

bool bIsRightHandSide (void) const

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler & AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual int GetNumConnectedNodes (void) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual Hint * ParseHint (DataManager *pDM, const char *s) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))

- Public Member Functions inherited from ExtForce
 ExtForce (unsigned int uL, DataManager *pDM, ExtFileHandlerBase *pEFH, bool bSendAfterPredict, int iCoupling, flag fOut)

virtual ~ExtForce (void)

virtual void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *h=0)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void InitialWorkSpaceDim (integer *piNumRows, integer *piNumCols) const

virtual VariableSubMatrixHandler & InitialAssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler & InitialAssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr)

- Public Member Functions inherited from Force
 Force (unsigned int uL, flag fOut)

virtual ~Force (void)

virtual Elem::Type GetElemType (void) const

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, doublereal, const VectorHandler &, const VectorHandler &)

virtual std::ostream & Restart (std::ostream &out) const

virtual unsigned int iGetInitialNumDof (void) const

- Public Member Functions inherited from InitialAssemblyElem
 InitialAssemblyElem (unsigned int uL, flag fOut)

virtual ~InitialAssemblyElem (void)

- Public Member Functions inherited from SubjectToInitialAssembly
 SubjectToInitialAssembly (void)

virtual ~SubjectToInitialAssembly (void)


Protected Member Functions

bool Prepare (ExtFileHandlerBase *pEFH)

void Send (ExtFileHandlerBase *pEFH, ExtFileHandlerBase::SendWhen when)

void Recv (ExtFileHandlerBase *pEFH)

virtual void SendToStream (std::ostream &outf, ExtFileHandlerBase::SendWhen when)

virtual void SendToFileDes (int outfd, ExtFileHandlerBase::SendWhen when)

virtual void RecvFromStream (std::istream &inf)

virtual void RecvFromFileDes (int infd)

- Protected Member Functions inherited from ExtForce
void Send (ExtFileHandlerBase::SendWhen when)

void Recv (void)


Protected Attributes

const StructNode * pRefNode

bool bUseReferenceNodeForces

bool bRotateReferenceNodeForces

Vec3 F0

Vec3 M0

Vec3 F1

Vec3 M1

Vec3 F2

Vec3 M2

unsigned uOutputFlags

std::vector< PointData > m_Points

bool bLabels

bool bSorted

std::vector< bool > done

unsigned uRot

bool bOutputAccelerations

unsigned dynamics_size

std::vector< char > iobuf

uint32_t * iobuf_labels

doublereal * iobuf_x

doublereal * iobuf_R

doublereal * iobuf_theta

doublereal * iobuf_euler_123

doublereal * iobuf_xp

doublereal * iobuf_omega

doublereal * iobuf_xpp

doublereal * iobuf_omegap

doublereal * iobuf_f

doublereal * iobuf_m

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput

- Protected Attributes inherited from ExtForce
Converged c

ExtFileHandlerBase * pEFH

bool bSendAfterPredict

int iCoupling

int iCouplingCounter

bool bFirstSend

bool bFirstRecv


Friends

Elem * ReadStructExtForce (DataManager *pDM, MBDynParser &HP, unsigned int uLabel)


Additional Inherited Members

- Public Types inherited from Elem
enum  Type {
  UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL,
  GRAVITY, BODY, JOINT, JOINT_REGULARIZATION,
  BEAM, PLATE, FORCE, INERTIA,
  ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC,
  BULK, LOADABLE, DRIVEN, EXTERNAL,
  AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT,
  RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE
}

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Public Types inherited from ExtForce
enum  { COUPLING_NONE = -2, COUPLING_STAGGERED = -1, COUPLING_LOOSE = 0, COUPLING_TIGHT = 1 }

- Public Types inherited from Force
enum  Type {
  UNKNOWN = -1, ABSTRACTFORCE = 0, ABSTRACTINTERNALFORCE, ABSOLUTEDISPFORCE,
  ABSOLUTEINTERNALDISPFORCE, ABSOLUTEFORCE, FOLLOWERFORCE, ABSOLUTECOUPLE,
  FOLLOWERCOUPLE, ABSOLUTEINTERNALFORCE, FOLLOWERINTERNALFORCE, ABSOLUTEINTERNALCOUPLE,
  FOLLOWERINTERNALCOUPLE, TOTALFORCE, TOTALINTERNALFORCE, EXTERNALSTRUCTURAL,
  MODALFORCE, EXTERNALMODAL, LASTFORCETYPE
}


Detailed Description

Definition at line 44 of file strext.h.

Constructor & Destructor Documentation

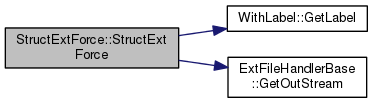

StructExtForce::StructExtForce ( unsigned int  uL,
DataManager *  pDM,
const StructNode *  pRefNode,
bool  bUseReferenceNodeForces,
bool  bRotateReferenceNodeForces,
std::vector< unsigned > &  Labels,
std::vector< const StructNode * > &  Nodes,
std::vector< Vec3 > &  Offsets,
bool  bSorted,
bool  bLabels,
bool  bOutputAccelerations,
unsigned  bRot,
ExtFileHandlerBase *  pEFH,
bool  bSendAfterPredict,
int  iCoupling,
unsigned  uOutputFlags,
flag  fOut
)

Definition at line 47 of file strext.cc.

References ASSERT, done, dynamics_size, WithLabel::GetLabel(), ExtFileHandlerBase::GetOutStream(), iobuf, iobuf_euler_123, iobuf_f, iobuf_labels, iobuf_m, iobuf_omega, iobuf_omegap, iobuf_R, iobuf_theta, iobuf_x, iobuf_xp, iobuf_xpp, m_Points, MBC_ROT_EULER_123, MBC_ROT_MAT, MBC_ROT_NONE, MBC_ROT_THETA, MBDYN_EXCEPT_ARGS, and Zero3.

64 : Elem(uL, fOut),
65 ExtForce(uL, pDM, pEFH, bSendAfterPredict, iCoupling, fOut),
66 pRefNode(pRefNode),
67 bUseReferenceNodeForces(bUseReferenceNodeForces),
68 bRotateReferenceNodeForces(bRotateReferenceNodeForces),
69 F0(Zero3), M0(Zero3),
70 F1(Zero3), M1(Zero3),
71 F2(Zero3), M2(Zero3),
72 uOutputFlags(uOutputFlags),
73 bLabels(bLabels),
74 bSorted(bSorted),
75 uRot(uRot),
76 bOutputAccelerations(bOutputAccelerations),
77 iobuf_labels(0),
78 iobuf_x(0),
79 iobuf_R(0),
80 iobuf_theta(0),
81 iobuf_euler_123(0),
82 iobuf_xp(0),
83 iobuf_omega(0),
84 iobuf_xpp(0),
85 iobuf_omegap(0),
86 iobuf_f(0),
87 iobuf_m(0)
88 {
89  ASSERT(nodes.size() == offsets.size());
90  ASSERT((!bLabels) || (nodes.size() == offsets.size()));
91
92  m_Points.resize(nodes.size());
93
94  switch (uRot) {
95  case MBC_ROT_NONE:
96  case MBC_ROT_THETA:
97  case MBC_ROT_MAT:
98  case MBC_ROT_EULER_123:
99  break;
100
101  default:
102  silent_cerr("StructExtForce(" << GetLabel() << "): "
103  "unknown rotation format " << uRot
104  << std::endl);
105  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
106  }
107
108  for (unsigned i = 0; i < nodes.size(); i++) {
109  m_Points[i].pNode = nodes[i];
110  m_Points[i].Offset = offsets[i];
111  m_Points[i].F = Zero3;
112  m_Points[i].M = Zero3;
113  if (bLabels) {
114  m_Points[i].uLabel = labels[i];
115  } else {
116  m_Points[i].uLabel = m_Points[i].pNode->GetLabel();
117  }
118  }
119
120  ASSERT(!(!bLabels && !bSorted));
121  if (!bSorted) {
122  done.resize(nodes.size());
123  }
124
125  if (bOutputAccelerations) {
126  for (unsigned i = 0; i < m_Points.size(); i++) {
127  const DynamicStructNode *pDSN = dynamic_cast<const DynamicStructNode *>(m_Points[i].pNode);
128  if (pDSN == 0) {
129  silent_cerr("StructExtForce"
130  "(" << GetLabel() << "): "
131  "point #" << i << " StructNode(" << m_Points[i].pNode->GetLabel() << ") "
132  "is not dynamic"
133  << std::endl);
134  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
135  }
136
137  const_cast<DynamicStructNode *>(pDSN)->ComputeAccelerations(true);
138  }
139  }
140
141  unsigned node_kinematics_size = 0;
142  unsigned labels_size = 0;
143
144  // I/O will use filedes
145  if (!pEFH->GetOutStream()) {
146  node_kinematics_size = 3 + 3;
147
148  switch (uRot) {
149  case MBC_ROT_NONE:
150  break;
151
152  case MBC_ROT_MAT:
153  node_kinematics_size += 9 + 3;
154  break;
155
156  case MBC_ROT_THETA:
157  case MBC_ROT_EULER_123:
158  node_kinematics_size += 3 + 3;
159  break;
160
161  default:
162  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
163  }
164
165  if (bOutputAccelerations) {
166  node_kinematics_size += 3;
167  if (uRot != MBC_ROT_NONE) {
168  node_kinematics_size += 3;
169  }
170  }
171
172  node_kinematics_size *= sizeof(doublereal);
173
174  dynamics_size = 3;
175  if (uRot != MBC_ROT_NONE) {
176  dynamics_size += 3;
177  }
178
179  dynamics_size *= sizeof(doublereal);
180
181  if (bLabels) {
182  labels_size = sizeof(uint32_t)*(m_Points.size() + m_Points.size()%2);
183  }
184
185  iobuf.resize(node_kinematics_size*m_Points.size() + labels_size);
186  dynamics_size = dynamics_size*m_Points.size() + labels_size;
187
188  char *ptr = &iobuf[0];
189  if (bLabels) {
190  iobuf_labels = (uint32_t *)ptr;
191  ptr += labels_size;
192  }
193
194  iobuf_x = (doublereal *)ptr;
195  ptr += 3*sizeof(doublereal)*m_Points.size();
196
197  switch (uRot) {
198  case MBC_ROT_NONE:
199  break;
200
201  case MBC_ROT_MAT:
202  iobuf_R = (doublereal *)ptr;
203  ptr += 9*sizeof(doublereal)*m_Points.size();
204  break;
205
206  case MBC_ROT_THETA:
207  iobuf_theta = (doublereal *)ptr;
208  ptr += 3*sizeof(doublereal)*m_Points.size();
209  break;
210
211  case MBC_ROT_EULER_123:
212  iobuf_euler_123 = (doublereal *)ptr;
213  ptr += 3*sizeof(doublereal)*m_Points.size();
214  break;
215  }
216
217  iobuf_xp = (doublereal *)ptr;
218  ptr += 3*sizeof(doublereal)*m_Points.size();
219
220  if (uRot != MBC_ROT_NONE) {
221  iobuf_omega = (doublereal *)ptr;
222  ptr += 3*sizeof(doublereal)*m_Points.size();
223  }
224
225  if (bOutputAccelerations) {
226  iobuf_xpp = (doublereal *)ptr;
227  ptr += 3*sizeof(doublereal)*m_Points.size();
228
229  if (uRot != MBC_ROT_NONE) {
230  iobuf_omegap = (doublereal *)ptr;
231  ptr += 3*sizeof(doublereal)*m_Points.size();
232  }
233  }
234
235  ptr = (char *)iobuf_x;
236
237  iobuf_f = (doublereal *)ptr;
238  ptr += 3*sizeof(doublereal)*m_Points.size();
239
240  if (uRot != MBC_ROT_NONE) {
241  iobuf_m = (doublereal *)ptr;
242  ptr += 3*sizeof(doublereal)*m_Points.size();
243  }
244  }
245 }
StructExtForce::iobuf_R
doublereal * iobuf_R
Definition: strext.h:81
Zero3
const Vec3 Zero3(0., 0., 0.)
StructExtForce::iobuf_m
doublereal * iobuf_m
Definition: strext.h:89
StructExtForce::iobuf_xp
doublereal * iobuf_xp
Definition: strext.h:84
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
StructExtForce::iobuf
std::vector< char > iobuf
Definition: strext.h:78
StructExtForce::iobuf_euler_123
doublereal * iobuf_euler_123
Definition: strext.h:83
ExtForce::bSendAfterPredict
bool bSendAfterPredict
Definition: extforce.h:196
StructExtForce::done
std::vector< bool > done
Definition: strext.h:71
StructExtForce::bLabels
bool bLabels
Definition: strext.h:69
ExtForce::ExtForce
ExtForce(unsigned int uL, DataManager *pDM, ExtFileHandlerBase *pEFH, bool bSendAfterPredict, int iCoupling, flag fOut)
Definition: extforce.cc:677
StructExtForce::bOutputAccelerations
bool bOutputAccelerations
Definition: strext.h:74
labels
static int labels
Definition: test_strext_socket_lib.c:88
StructExtForce::bSorted
bool bSorted
Definition: strext.h:70
StructExtForce::m_Points
std::vector< PointData > m_Points
Definition: strext.h:67
StructExtForce::iobuf_theta
doublereal * iobuf_theta
Definition: strext.h:82
StructExtForce::iobuf_xpp
doublereal * iobuf_xpp
Definition: strext.h:86
StructExtForce::bUseReferenceNodeForces
bool bUseReferenceNodeForces
Definition: strext.h:50
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
ExtFileHandlerBase::GetOutStream
virtual std::ostream * GetOutStream(void)
Definition: extforce.cc:72
nodes
static int nodes
Definition: test_strext_socket_lib.c:87
StructExtForce::uRot
unsigned uRot
Definition: strext.h:73
StructExtForce::iobuf_omegap
doublereal * iobuf_omegap
Definition: strext.h:87
StructExtForce::dynamics_size
unsigned dynamics_size
Definition: strext.h:77
Elem::Elem
Elem(unsigned int uL, flag fOut)
Definition: elem.cc:41
doublereal
double doublereal
Definition: colamd.c:52
StructExtForce::iobuf_labels
uint32_t * iobuf_labels
Definition: strext.h:79
StructExtForce::iobuf_omega
doublereal * iobuf_omega
Definition: strext.h:85
StructExtForce::bRotateReferenceNodeForces
bool bRotateReferenceNodeForces
Definition: strext.h:51
StructExtForce::uOutputFlags
unsigned uOutputFlags
Definition: strext.h:55
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
StructExtForce::pRefNode
const StructNode * pRefNode
Definition: strext.h:49
StructExtForce::iobuf_x
doublereal * iobuf_x
Definition: strext.h:80
StructExtForce::iobuf_f
doublereal * iobuf_f
Definition: strext.h:88

Here is the call graph for this function:

StructExtForce::~StructExtForce ( void  )
virtual

Definition at line 247 of file strext.cc.

References NO_OP.

248 {
249  NO_OP;
250 }
NO_OP
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

SubVectorHandler & StructExtForce::AssRes ( SubVectorHandler &  WorkVec,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 1126 of file strext.cc.

References VectorHandler::Add(), bRotateReferenceNodeForces, ToBeOutput::bToBeOutput(), bUseReferenceNodeForces, ExtForce::COUPLING_NONE, grad::Cross(), StructExtForce::PointData::F, F0, F1, F2, StructNode::GetRCurr(), StructDispNode::GetXCurr(), ExtForce::iCoupling, StructDispNode::iGetFirstMomentumIndex(), StructExtForce::PointData::M, M0, M1, M2, m_Points, MBC_ROT_NONE, StructExtForce::PointData::Offset, StructExtForce::PointData::pNode, pRefNode, SubVectorHandler::PutRowIndex(), ExtForce::Recv(), VectorHandler::Resize(), VectorHandler::ResizeReset(), uRot, and Zero3.

1130 {
1131  ExtForce::Recv();
1132
1133  if (iCoupling == COUPLING_NONE) {
1134  WorkVec.Resize(0);
1135  return WorkVec;
1136  }
1137
1138  int iOffset;
1139  if (uRot != MBC_ROT_NONE) {
1140  iOffset = 6;
1141
1142  } else {
1143  iOffset = 3;
1144  }
1145
1146  if (pRefNode) {
1147  integer iSize = m_Points.size();
1148  if (bUseReferenceNodeForces) {
1149  iSize++;
1150  }
1151
1152  WorkVec.ResizeReset(iOffset*iSize);
1153
1154  const Vec3& xRef = pRefNode->GetXCurr();
1155  const Mat3x3& RRef = pRefNode->GetRCurr();
1156
1157  // manipulate
1158  if (bUseReferenceNodeForces) {
1159  if (bRotateReferenceNodeForces) {
1160  F1 = RRef*F0;
1161  if (uRot != MBC_ROT_NONE) {
1162  M1 = RRef*M0;
1163  }
1164
1165  } else {
1166  F1 = F0;
1167  if (uRot != MBC_ROT_NONE) {
1168  M1 = M0;
1169  }
1170  }
1171  }
1172
1173  F2 = Zero3;
1174  M2 = Zero3;
1175  for (unsigned i = 0; i < m_Points.size(); i++) {
1176  const PointData& point = m_Points[i];
1177
1178  integer iFirstIndex = point.pNode->iGetFirstMomentumIndex();
1179  for (int r = 1; r <= iOffset; r++) {
1180  WorkVec.PutRowIndex(i*iOffset + r, iFirstIndex + r);
1181  }
1182
1183  Vec3 f(RRef*point.F);
1184  WorkVec.Add(i*iOffset + 1, f);
1185
1186  Vec3 m;
1187  if (uRot != MBC_ROT_NONE) {
1188  m = RRef*point.M + (point.pNode->GetRCurr()*point.Offset).Cross(f);
1189  WorkVec.Add(i*iOffset + 4, m);
1190  }
1191
1192  if (bUseReferenceNodeForces || bToBeOutput()) {
1193  F2 += f;
1194  if (uRot != MBC_ROT_NONE) {
1195  M2 += m + (point.pNode->GetXCurr() - xRef).Cross(f);
1196  }
1197  }
1198  }
1199
1200  if (bUseReferenceNodeForces) {
1201  unsigned i = m_Points.size();
1202  integer iFirstIndex = pRefNode->iGetFirstMomentumIndex();
1203  for (int r = 1; r <= iOffset; r++) {
1204  WorkVec.PutRowIndex(i*iOffset + r, iFirstIndex + r);
1205  }
1206
1207  F1 -= F2;
1208  M1 -= M2;
1209
1210  WorkVec.Add(i*iOffset + 1, F1);
1211  if (uRot != MBC_ROT_NONE) {
1212  WorkVec.Add(i*iOffset + 4, M1);
1213  }
1214  }
1215
1216  } else {
1217  WorkVec.ResizeReset(iOffset*m_Points.size());
1218
1219  for (unsigned i = 0; i < m_Points.size(); i++) {
1220  const PointData& point = m_Points[i];
1221
1222  integer iFirstIndex = point.pNode->iGetFirstMomentumIndex();
1223  for (int r = 1; r <= iOffset; r++) {
1224  WorkVec.PutRowIndex(i*iOffset + r, iFirstIndex + r);
1225  }
1226
1227  WorkVec.Add(i*iOffset + 1, point.F);
1228  if (uRot != MBC_ROT_NONE) {
1229  WorkVec.Add(i*iOffset + 4, point.M + (point.pNode->GetRCurr()*point.Offset).Cross(point.F));
1230  }
1231  }
1232  }
1233
1234  return WorkVec;
1235 }
Zero3
const Vec3 Zero3(0., 0., 0.)
ToBeOutput::bToBeOutput
virtual bool bToBeOutput(void) const
Definition: output.cc:890
Vec3
Definition: matvec3.h:98
VectorHandler::ResizeReset
virtual void ResizeReset(integer)
Definition: vh.cc:55
ExtForce::Recv
void Recv(void)
Definition: extforce.cc:798
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
SubVectorHandler::PutRowIndex
virtual void PutRowIndex(integer iSubRow, integer iRow)=0
StructExtForce::m_Points
std::vector< PointData > m_Points
Definition: strext.h:67
StructExtForce::bUseReferenceNodeForces
bool bUseReferenceNodeForces
Definition: strext.h:50
StructDispNode::iGetFirstMomentumIndex
virtual integer iGetFirstMomentumIndex(void) const =0
grad::Cross
VectorExpression< VectorCrossExpr< VectorLhsExpr, VectorRhsExpr >, 3 > Cross(const VectorExpression< VectorLhsExpr, 3 > &u, const VectorExpression< VectorRhsExpr, 3 > &v)
Definition: matvec.h:3248
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
VectorHandler::Add
virtual void Add(integer iRow, const Vec3 &v)
Definition: vh.cc:63
StructExtForce::uRot
unsigned uRot
Definition: strext.h:73
ExtForce::iCoupling
int iCoupling
Definition: extforce.h:212
integer
long int integer
Definition: colamd.c:51
StructExtForce::bRotateReferenceNodeForces
bool bRotateReferenceNodeForces
Definition: strext.h:51
StructExtForce::pRefNode
const StructNode * pRefNode
Definition: strext.h:49
VectorHandler::Resize
virtual void Resize(integer iNewSize)=0

Here is the call graph for this function:

void StructExtForce::GetConnectedNodes ( std::vector< const Node * > &  connectedNodes) const
virtual

Reimplemented from Elem.

Definition at line 1344 of file strext.cc.

References m_Points.

1344  {
1345  connectedNodes.resize(m_Points.size());
1346  for (unsigned int i = 0; i < m_Points.size(); i++) {
1347  connectedNodes[i] = m_Points[i].pNode;
1348  }
1349 }
StructExtForce::m_Points
std::vector< PointData > m_Points
Definition: strext.h:67
virtual Force::Type StructExtForce::GetForceType ( void  ) const
inlinevirtual

Implements Force.

Definition at line 123 of file strext.h.

References Force::EXTERNALSTRUCTURAL.

123  {
124  return Force::EXTERNALSTRUCTURAL;
125  };
void StructExtForce::Output ( OutputHandler &  OH) const
virtual

Reimplemented from ToBeOutput.

Definition at line 1238 of file strext.cc.

References ToBeOutput::bToBeOutput(), Vec3::Cross(), dRaDegr, F0, F1, F2, OutputHandler::FORCES, OutputHandler::Forces(), WithLabel::GetLabel(), StructNode::GetRCurr(), StructDispNode::GetVCurr(), StructNode::GetWCurr(), StructDispNode::GetXCurr(), M0, M1, M2, m_Points, MatR2EulerAngles123(), MBC_ROT_EULER_123, MBC_ROT_MAT, MBC_ROT_NONE, MBC_ROT_THETA, Mat3x3::MulTM(), Mat3x3::MulTV(), ExtFileHandlerBase::OUTPUT_DYN, ExtFileHandlerBase::OUTPUT_KIN, ExtFileHandlerBase::OUTPUT_REF_DYN, pRefNode, R, uOutputFlags, uRot, OutputHandler::UseText(), and RotManip::VecRot().

1239 {
1240  if (bToBeOutput()) {
1241  if (OH.UseText(OutputHandler::FORCES)) {
1242  std::ostream& out = OH.Forces();
1243
1244  if (pRefNode && (uOutputFlags & ExtFileHandlerBase::OUTPUT_REF_DYN)) {
1245  out << GetLabel() << "#" << pRefNode->GetLabel()
1246  << " " << F0
1247  << " " << M0
1248  << " " << F1
1249  << " " << M1
1250  << " " << F2
1251  << " " << M2
1252  << std::endl;
1253  }
1254
1255  if (uOutputFlags & ExtFileHandlerBase::OUTPUT_DYN) {
1256  for (std::vector<PointData>::const_iterator point = m_Points.begin(); point != m_Points.end(); ++point) {
1257  out << GetLabel() << "@" << point->uLabel
1258  << " " << point->F
1259  << " " << point->M
1260  << std::endl;
1261  }
1262  }
1263
1264  if (uOutputFlags & ExtFileHandlerBase::OUTPUT_KIN) {
1265  if (pRefNode) {
1266  const Vec3& xRef = pRefNode->GetXCurr();
1267  const Mat3x3& RRef = pRefNode->GetRCurr();
1268  const Vec3& xpRef = pRefNode->GetVCurr();
1269  const Vec3& wRef = pRefNode->GetWCurr();
1270  //const Vec3& xppRef = pRefNode->GetXPPCurr();
1271  //const Vec3& wpRef = pRefNode->GetWPCurr();
1272
1273  for (std::vector<PointData>::const_iterator point = m_Points.begin(); point != m_Points.end(); ++point) {
1274  Vec3 f(point->pNode->GetRCurr()*point->Offset);
1275  Vec3 x(point->pNode->GetXCurr() + f);
1276  Vec3 Dx(x - xRef);
1277  Mat3x3 DR(RRef.MulTM(point->pNode->GetRCurr()));
1278  Vec3 v(point->pNode->GetVCurr() + point->pNode->GetWCurr().Cross(f));
1279  Vec3 Dv(v - xpRef - wRef.Cross(Dx));
1280  const Vec3& w(point->pNode->GetWCurr());
1281
1282  out << GetLabel() << "." << point->uLabel
1283  << " " << RRef.MulTV(Dx);
1284
1285  switch (uRot) {
1286  case MBC_ROT_MAT:
1287  out << " " << DR;
1288  break;
1289
1290  case MBC_ROT_THETA:
1291  out << " " << RotManip::VecRot(DR);
1292  break;
1293
1294  case MBC_ROT_NONE:
1295  case MBC_ROT_EULER_123:
1296  out << " " << MatR2EulerAngles123(DR)*dRaDegr;
1297  break;
1298  }
1299
1300  out << " " << RRef.MulTV(Dv)
1301  << " " << RRef.MulTV(w - wRef)
1302  << std::endl;
1303  }
1304
1305  } else {
1306  for (std::vector<PointData>::const_iterator point = m_Points.begin(); point != m_Points.end(); ++point) {
1307  const Mat3x3& R = point->pNode->GetRCurr();
1308  Vec3 f = R*point->Offset;
1309  Vec3 x = point->pNode->GetXCurr() + f;
1310  const Vec3& w = point->pNode->GetWCurr();
1311  Vec3 wCrossf = w.Cross(f);
1312  Vec3 v = point->pNode->GetVCurr() + wCrossf;
1313
1314  out << GetLabel() << "." << point->uLabel
1315  << " " << x;
1316
1317  switch (uRot) {
1318  case MBC_ROT_MAT:
1319  out << " " << R;
1320  break;
1321
1322  case MBC_ROT_THETA:
1323  out << " " << RotManip::VecRot(R);
1324  break;
1325
1326  case MBC_ROT_NONE:
1327  case MBC_ROT_EULER_123:
1328  out << " " << MatR2EulerAngles123(R)*dRaDegr;
1329  break;
1330  }
1331  out << " " << v
1332  << " " << w
1333  << std::endl;
1334  }
1335  }
1336  }
1337  }
1338
1339  /* TODO: NetCDF */
1340  }
1341 }
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
ToBeOutput::bToBeOutput
virtual bool bToBeOutput(void) const
Definition: output.cc:890
Vec3
Definition: matvec3.h:98
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
RotManip::VecRot
Vec3 VecRot(const Mat3x3 &Phi)
Definition: Rot.cc:136
Mat3x3::MulTV
Vec3 MulTV(const Vec3 &v) const
Definition: matvec3.cc:482
StructExtForce::m_Points
std::vector< PointData > m_Points
Definition: strext.h:67
MatR2EulerAngles123
Vec3 MatR2EulerAngles123(const Mat3x3 &R)
Definition: matvec3.cc:893
StructNode::GetWCurr
virtual const Vec3 & GetWCurr(void) const
Definition: strnode.h:1030
dRaDegr
const doublereal dRaDegr
Definition: matvec3.cc:884
Mat3x3::MulTM
Mat3x3 MulTM(const Mat3x3 &m) const
Definition: matvec3.cc:500
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
StructExtForce::uRot
unsigned uRot
Definition: strext.h:73
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
StructExtForce::uOutputFlags
unsigned uOutputFlags
Definition: strext.h:55
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
StructExtForce::pRefNode
const StructNode * pRefNode
Definition: strext.h:49
OutputHandler::Forces
std::ostream & Forces(void) const
Definition: output.h:450
R
Mat3x3 R
Definition: mbdyn_util_oct.cc:74
OutputHandler::UseText
bool UseText(int out) const
Definition: output.cc:446

Here is the call graph for this function:

bool StructExtForce::Prepare ( ExtFileHandlerBase *  pEFH)
protectedvirtual

Implements ExtForce.

Definition at line 266 of file strext.cc.

References bLabels, bOutputAccelerations, buf, ExtFileHandlerBase::GetInFileDes(), ExtFileHandlerBase::GetInStream(), WithLabel::GetLabel(), ExtFileHandlerBase::GetOutFileDes(), ExtFileHandlerBase::GetOutStream(), ExtFileHandlerBase::GetRecvFlags(), ExtFileHandlerBase::GetSendFlags(), m_Points, MBC_ACCELS, MBC_LABELS, MBC_MODAL_NODAL_MASK, MBC_NODAL, MBC_REF_NODE, MBC_ROT_MASK, MBDYN_EXCEPT_ARGS, ExtFileHandlerBase::NEGOTIATE_CLIENT, ExtFileHandlerBase::NEGOTIATE_NO, ExtFileHandlerBase::NEGOTIATE_SERVER, ExtFileHandlerBase::NegotiateRequest(), pRefNode, and uRot.

267 {
268  bool bResult = true;
269
270  switch (pEFH->NegotiateRequest()) {
271  case ExtFileHandlerBase::NEGOTIATE_NO:
272  break;
273
274  case ExtFileHandlerBase::NEGOTIATE_CLIENT: {
275  std::ostream *outfp = pEFH->GetOutStream();
276  if (outfp) {
277
278 #ifdef USE_SOCKET
279  } else {
280  char buf[sizeof(uint32_t) + sizeof(uint32_t)];
281  uint32_t *uint32_ptr;
282
283  uint32_ptr = (uint32_t *)&buf[0];
284  uint32_ptr[0] = MBC_NODAL | uRot;
285  if (pRefNode != 0) {
286  uint32_ptr[0] |= MBC_REF_NODE;
287  }
288
289  if (bLabels) {
290  uint32_ptr[0] |= MBC_LABELS;
291  }
292
293  if (bOutputAccelerations) {
294  uint32_ptr[0] |= MBC_ACCELS;
295  }
296
297  uint32_ptr[1] = m_Points.size();
298
299  ssize_t rc = send(pEFH->GetOutFileDes(),
300  (const void *)buf, sizeof(buf),
301  pEFH->GetSendFlags());
302  if (rc == -1) {
303  int save_errno = errno;
304  char *err_msg = strerror(save_errno);
305  silent_cerr("StructExtForce(" << GetLabel() << "): "
306  "negotiation request send() failed "
307  "(" << save_errno << ": " << err_msg << ")"
308  << std::endl);
309  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
310
311  } else if (rc != sizeof(buf)) {
312  silent_cerr("StructExtForce(" << GetLabel() << "): "
313  "negotiation request send() failed "
314  "(sent " << rc << " of " << sizeof(buf) << " bytes)"
315  << std::endl);
316  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
317  }
318 #endif // USE_SOCKET
319  }
320  } break;
321
322  case ExtFileHandlerBase::NEGOTIATE_SERVER: {
323  unsigned uN;
324  unsigned uNodal;
325  bool bRef;
326  unsigned uR;
327  bool bA;
328  bool bL;
329
330  std::istream *infp = pEFH->GetInStream();
331  if (infp) {
332  // TODO: stream negotiation?
333
334 #ifdef USE_SOCKET
335  } else {
336  char buf[sizeof(uint32_t) + sizeof(uint32_t)];
337  uint32_t *uint32_ptr;
338
339  ssize_t rc = recv(pEFH->GetInFileDes(),
340  (void *)buf, sizeof(buf),
341  pEFH->GetRecvFlags());
342  if (rc == -1) {
343  int save_errno = errno;
344  char *err_msg = strerror(save_errno);
345  silent_cerr("StructExtForce(" << GetLabel() << "): "
346  "negotiation response recv() failed "
347  "(" << save_errno << ": " << err_msg << ")"
348  << std::endl);
349  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
350
351  } else if (rc != sizeof(buf)) {
352  silent_cerr("StructExtForce(" << GetLabel() << "): "
353  "negotiation response recv() failed "
354  "(got " << rc << " of " << sizeof(buf) << " bytes)"
355  << std::endl);
356  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
357  }
358
359  uint32_ptr = (uint32_t *)&buf[0];
360  uNodal = (uint32_ptr[0] & MBC_MODAL_NODAL_MASK);
361  bRef = (uint32_ptr[0] & MBC_REF_NODE);
362  uR = (uint32_ptr[0] & MBC_ROT_MASK);
363  bL = (uint32_ptr[0] & MBC_LABELS);
364  bA = (uint32_ptr[0] & MBC_ACCELS);
365
366  uN = uint32_ptr[1];
367 #endif // USE_SOCKET
368  }
369
370  if (uNodal != MBC_NODAL) {
371  silent_cerr("StructExtForce(" << GetLabel() << "): "
372  "negotiation response failed: expecting MBC_NODAL "
373  "(=" << MBC_NODAL << "), got " << uNodal
374  << std::endl);
375  bResult = false;
376  }
377
378  if ((pRefNode != 0 && !bRef) || (pRefNode == 0 && bRef)) {
379  silent_cerr("StructExtForce(" << GetLabel() << "): "
380  "negotiation response failed: reference node configuration mismatch "
381  "(local=" << (pRefNode != 0 ? "yes" : "no") << ", remote=" << (bRef ? "yes" : "no") << ")"
382  << std::endl);
383  bResult = false;
384  }
385
386  if (uR != uRot) {
387  silent_cerr("StructExtForce(" << GetLabel() << "): "
388  "negotiation response failed: orientation output mismatch "
389  "(local=" << uRot << ", remote=" << uR << ")"
390  << std::endl);
391  bResult = false;
392  }
393
394  if (bL != bLabels) {
395  silent_cerr("StructExtForce(" << GetLabel() << "): "
396  "negotiation response failed: labels output mismatch "
397  "(local=" << (bLabels ? "yes" : "no") << ", remote=" << (bL ? "yes" : "no") << ")"
398  << std::endl);
399  bResult = false;
400  }
401
402  if (bA != bOutputAccelerations) {
403  silent_cerr("StructExtForce(" << GetLabel() << "): "
404  "negotiation response failed: acceleration output mismatch "
405  "(local=" << (bOutputAccelerations ? "yes" : "no") << ", remote=" << (bA ? "yes" : "no") << ")"
406  << std::endl);
407  bResult = false;
408  }
409
410  if (uN != m_Points.size()) {
411  silent_cerr("StructExtForce(" << GetLabel() << "): "
412  "negotiation response failed: node number mismatch "
413  "(local=" << m_Points.size() << ", remote=" << uN << ")"
414  << std::endl);
415  bResult = false;
416  }
417  } break;
418
419  default:
420  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
421  }
422
423  return bResult;
424 }
ExtFileHandlerBase::GetInStream
virtual std::istream * GetInStream(void)
Definition: extforce.cc:78
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
ExtFileHandlerBase::GetInFileDes
virtual int GetInFileDes(void)
Definition: extforce.cc:99
ExtFileHandlerBase::GetOutFileDes
virtual int GetOutFileDes(void)
Definition: extforce.cc:85
StructExtForce::bLabels
bool bLabels
Definition: strext.h:69
MBC_ACCELS
Definition: mbc.h:71
ExtFileHandlerBase::NegotiateRequest
virtual Negotiate NegotiateRequest(void) const
Definition: extforce.cc:63
StructExtForce::bOutputAccelerations
bool bOutputAccelerations
Definition: strext.h:74
MBC_NODAL
Definition: mbc.h:66
StructExtForce::m_Points
std::vector< PointData > m_Points
Definition: strext.h:67
ExtFileHandlerBase::GetRecvFlags
virtual int GetRecvFlags(void) const
Definition: extforce.cc:106
ExtFileHandlerBase::GetOutStream
virtual std::ostream * GetOutStream(void)
Definition: extforce.cc:72
StructExtForce::uRot
unsigned uRot
Definition: strext.h:73
ExtFileHandlerBase::GetSendFlags
virtual int GetSendFlags(void) const
Definition: extforce.cc:92
buf
static doublereal buf[BUFSIZE]
Definition: discctrl.cc:333
MBC_LABELS
Definition: mbc.h:73
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
StructExtForce::pRefNode
const StructNode * pRefNode
Definition: strext.h:49

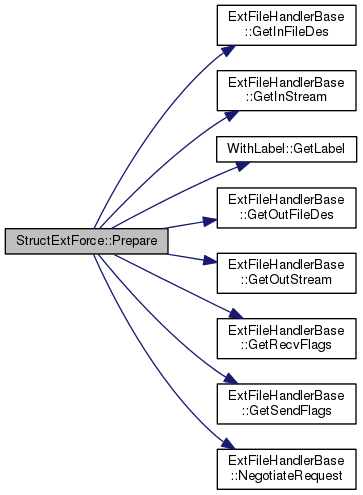

Here is the call graph for this function:

void StructExtForce::Recv ( ExtFileHandlerBase *  pEFH)
protectedvirtual

Implements ExtForce.

Definition at line 821 of file strext.cc.

References ExtFileHandlerBase::GetInFileDes(), ExtFileHandlerBase::GetInStream(), RecvFromFileDes(), and RecvFromStream().

822 {
823  std::istream *infp = pEFH->GetInStream();
824  if (infp) {
825  RecvFromStream(*infp);
826
827  } else {
828  RecvFromFileDes(pEFH->GetInFileDes());
829  }
830 }
ExtFileHandlerBase::GetInStream
virtual std::istream * GetInStream(void)
Definition: extforce.cc:78
ExtFileHandlerBase::GetInFileDes
virtual int GetInFileDes(void)
Definition: extforce.cc:99
StructExtForce::RecvFromStream
virtual void RecvFromStream(std::istream &inf)
Definition: strext.cc:833
StructExtForce::RecvFromFileDes
virtual void RecvFromFileDes(int infd)
Definition: strext.cc:961

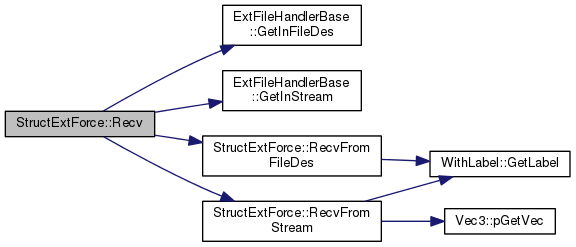

Here is the call graph for this function:

void StructExtForce::RecvFromFileDes ( int  infd)
protectedvirtual

Reimplemented in StructExtEDGEForce.

Definition at line 961 of file strext.cc.

References ASSERT, bLabels, bSorted, buf, done, dynamics_size, StructExtForce::PointData::F, F0, WithLabel::GetLabel(), iobuf, iobuf_f, iobuf_labels, iobuf_m, StructExtForce::PointData::M, M0, m_Points, MBC_ROT_NONE, MBDYN_EXCEPT_ARGS, StructExtForce::PointData::pNode, pRefNode, WithLabel::uLabel, and uRot.

Referenced by Recv().

962 {
963 #ifdef USE_SOCKET
964  if (pRefNode) {
965  size_t ulen = 0;
966  char buf[2*sizeof(uint32_t) + 6*sizeof(doublereal)];
967  doublereal *f;
968  ssize_t len;
969
970  if (bLabels) {
971  // to align with double
972  ulen = 2*sizeof(uint32_t);
973  }
974
975  if (uRot != MBC_ROT_NONE) {
976  ulen += 6*sizeof(doublereal);
977
978  } else {
979  ulen += 3*sizeof(doublereal);
980  }
981
982  len = recv(infd, (void *)buf, ulen, 0);
983  if (len == -1) {
984  int save_errno = errno;
985  char *err_msg = strerror(save_errno);
986  silent_cerr("StructExtForce(" << GetLabel() << "): "
987  "recv() failed (" << save_errno << ": "
988  << err_msg << ")" << std::endl);
989  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
990
991  } else if (unsigned(len) != ulen) {
992  silent_cerr("StructExtForce(" << GetLabel() << "): "
993  "recv() failed (got " << len << " of "
994  << ulen << " bytes)" << std::endl);
995  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
996  }
997
998  if (bLabels) {
999  uint32_t *uint32_ptr = (uint32_t *)buf;
1000  unsigned l = uint32_ptr[0];
1001  if (l != pRefNode->GetLabel()) {
1002  silent_cerr("StructExtForce(" << GetLabel() << "): "
1003  "invalid reference node label "
1004  "(wanted " << pRefNode->GetLabel() << ", got " << l << ")"
1005  << std::endl);
1006  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1007  }
1008  f = (doublereal *)&uint32_ptr[2];
1009
1010  } else {
1011  f = (doublereal *)buf;
1012  }
1013
1014  F0 = Vec3(&f[0]);
1015  if (uRot != MBC_ROT_NONE) {
1016  M0 = Vec3(&f[3]);
1017  }
1018  }
1019
1020  ssize_t len = recv(infd, (void *)&iobuf[0], dynamics_size, 0);
1021  if (len == -1) {
1022  int save_errno = errno;
1023  char *err_msg = strerror(save_errno);
1024  silent_cerr("StructExtForce(" << GetLabel() << "): "
1025  "recv() failed (" << save_errno << ": "
1026  << err_msg << ")" << std::endl);
1027  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1028
1029  } else if (unsigned(len) != dynamics_size) {
1030  silent_cerr("StructExtForce(" << GetLabel() << "): "
1031  "recv() failed " "(got " << len << " of "
1032  << dynamics_size << " bytes)" << std::endl);
1033  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1034  }
1035
1036  if (!bSorted) {
1037  ASSERT(bLabels);
1038
1039  done.resize(m_Points.size());
1040  fill(done.begin(), done.end(), false);
1041
1042  unsigned cnt;
1043  for (cnt = 0; cnt < m_Points.size(); cnt++) {
1044  PointData& point = m_Points[cnt];
1045
1046  unsigned l = iobuf_labels[cnt];
1047  std::vector<PointData>::const_iterator p;
1048  for (p = m_Points.begin(); p != m_Points.end(); ++p) {
1049  if (p->uLabel == l) {
1050  break;
1051  }
1052  }
1053
1054  if (p == m_Points.end()) {
1055  silent_cerr("StructExtForce"
1056  "(" << GetLabel() << "): "
1057  "unknown label " << l
1058  << " as " << cnt << "-th node"
1059  << std::endl);
1060  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1061  }
1062
1063  unsigned i = p - m_Points.begin();
1064
1065  if (done[i]) {
1066  silent_cerr("StructExtForce"
1067  "(" << GetLabel() << "): "
1068  "label " << l << " already done"
1069  << std::endl);
1070  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1071  }
1072
1073  done[i] = true;
1074
1075  point.F = &iobuf_f[3*i];
1076  if (uRot != MBC_ROT_NONE) {
1077  point.M = &iobuf_m[3*i];
1078  }
1079  }
1080
1081  if (cnt != m_Points.size()) {
1082  silent_cerr("StructExtForce(" << GetLabel() << "): "
1083  "invalid node number " << cnt
1084  << std::endl);
1085
1086  for (unsigned i = 0; i < m_Points.size(); i++) {
1087  if (!done[i]) {
1088  silent_cerr("StructExtForce"
1089  "(" << GetLabel() << "): "
1090  "label " << m_Points[i].uLabel << "node " << m_Points[i].pNode->GetLabel()
1091  << " not done" << std::endl);
1092  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1093  }
1094  }
1095
1096  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1097  }
1098
1099  } else {
1100  for (unsigned i = 0; i < m_Points.size(); i++) {
1101  PointData& point = m_Points[i];
1102
1103  if (bLabels) {
1104  unsigned l = iobuf_labels[i];
1105  if (point.pNode->GetLabel() != l) {
1106  silent_cerr("StructExtForce"
1107  "(" << GetLabel() << "): "
1108  "invalid " << i << "-th label " << l
1109  << std::endl);
1110  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1111  }
1112  }
1113
1114  point.F = Vec3(&iobuf_f[3*i]);
1115  if (uRot != MBC_ROT_NONE) {
1116  point.M = Vec3(&iobuf_m[3*i]);
1117  }
1118  }
1119  }
1120 #else // ! USE_SOCKET
1121  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1122 #endif // ! USE_SOCKET
1123 }
StructExtForce::iobuf_m
doublereal * iobuf_m
Definition: strext.h:89
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Vec3
Definition: matvec3.h:98
StructExtForce::iobuf
std::vector< char > iobuf
Definition: strext.h:78
StructExtForce::done
std::vector< bool > done
Definition: strext.h:71
StructExtForce::bLabels
bool bLabels
Definition: strext.h:69
StructExtForce::bSorted
bool bSorted
Definition: strext.h:70
StructExtForce::m_Points
std::vector< PointData > m_Points
Definition: strext.h:67
WithLabel::uLabel
unsigned int uLabel
Definition: withlab.h:44
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
StructExtForce::uRot
unsigned uRot
Definition: strext.h:73
StructExtForce::dynamics_size
unsigned dynamics_size
Definition: strext.h:77
buf
static doublereal buf[BUFSIZE]
Definition: discctrl.cc:333
doublereal
double doublereal
Definition: colamd.c:52
StructExtForce::iobuf_labels
uint32_t * iobuf_labels
Definition: strext.h:79
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
StructExtForce::pRefNode
const StructNode * pRefNode
Definition: strext.h:49
StructExtForce::iobuf_f
doublereal * iobuf_f
Definition: strext.h:88

Here is the call graph for this function:

void StructExtForce::RecvFromStream ( std::istream &  inf)
protectedvirtual

Reimplemented in StructExtEDGEForce.

Definition at line 833 of file strext.cc.

References ASSERT, bLabels, bSorted, done, StructExtForce::PointData::F, F0, WithLabel::GetLabel(), StructExtForce::PointData::M, M0, m_Points, MBC_ROT_NONE, MBDYN_EXCEPT_ARGS, Vec3::pGetVec(), StructExtForce::PointData::pNode, pRefNode, WithLabel::uLabel, and uRot.

Referenced by Recv().

834 {
835  if (pRefNode) {
836  doublereal *f = F0.pGetVec(), *m = M0.pGetVec();
837
838  if (bLabels) {
839  // TODO: implement "unsorted"
840  unsigned l;
841  inf >> l;
842  }
843
844  inf >> f[0] >> f[1] >> f[2];
845  if (uRot != MBC_ROT_NONE) {
846  inf >> m[0] >> m[1] >> m[2];
847  }
848  }
849
850  if (!bSorted) {
851  ASSERT(bLabels);
852
853  done.resize(m_Points.size());
854  fill(done.begin(), done.end(), false);
855
856  unsigned cnt;
857  for (cnt = 0; inf; cnt++) {
858  /* assume unsigned int label */
859  unsigned l, i;
860  doublereal f[3], m[3];
861
862  inf >> l
863  >> f[0] >> f[1] >> f[2];
864  if (uRot != MBC_ROT_NONE) {
865  inf >> m[0] >> m[1] >> m[2];
866  }
867
868  if (!inf) {
869  break;
870  }
871
872  for (i = 0; i < m_Points.size(); i++) {
873  if (m_Points[i].uLabel == l) {
874  break;
875  }
876  }
877
878  if (i == m_Points.size()) {
879  silent_cerr("StructExtForce"
880  "(" << GetLabel() << "): "
881  "unknown label " << l
882  << " as " << cnt << "-th node"
883  << std::endl);
884  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
885  }
886
887  if (done[i]) {
888  silent_cerr("StructExtForce"
889  "(" << GetLabel() << "): "
890  "label " << l << " already done"
891  << std::endl);
892  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
893  }
894
895  done[i] = true;
896
897  m_Points[i].F = Vec3(f);
898  if (uRot != MBC_ROT_NONE) {
899  m_Points[i].M = Vec3(m);
900  }
901  }
902
903  if (cnt != m_Points.size()) {
904  silent_cerr("StructExtForce(" << GetLabel() << "): "
905  "invalid number of nodes " << cnt
906  << std::endl);
907
908  for (unsigned i = 0; i < m_Points.size(); i++) {
909  if (!done[i]) {
910  silent_cerr("StructExtForce"
911  "(" << GetLabel() << "): "
912  "label " << m_Points[i].uLabel << " node " << m_Points[i].pNode->GetLabel()
913  << " not done" << std::endl);
914  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
915  }
916  }
917
918  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
919  }
920
921  } else {
922  for (unsigned i = 0; i < m_Points.size(); i++) {
923  PointData& point = m_Points[i];
924
925
926  /* assume unsigned int label */
927  doublereal f[3], m[3];
928
929  if (bLabels) {
930  unsigned l;
931  inf >> l;
932
933  if (point.pNode->GetLabel() != l) {
934  silent_cerr("StructExtForce"
935  "(" << GetLabel() << "): "
936  "invalid " << i << "-th label " << l
937  << std::endl);
938  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
939  }
940  }
941
942  inf
943  >> f[0] >> f[1] >> f[2];
944  if (uRot != MBC_ROT_NONE) {
945  inf >> m[0] >> m[1] >> m[2];
946  }
947
948  if (!inf) {
949  break;
950  }
951
952  point.F = Vec3(f);
953  if (uRot != MBC_ROT_NONE) {
954  point.M = Vec3(m);
955  }
956  }
957  }
958 }
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Vec3
Definition: matvec3.h:98
StructExtForce::done
std::vector< bool > done
Definition: strext.h:71
StructExtForce::bLabels
bool bLabels
Definition: strext.h:69
StructExtForce::bSorted
bool bSorted
Definition: strext.h:70
StructExtForce::m_Points
std::vector< PointData > m_Points
Definition: strext.h:67
WithLabel::uLabel
unsigned int uLabel
Definition: withlab.h:44
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
StructExtForce::uRot
unsigned uRot
Definition: strext.h:73
Vec3::pGetVec
const doublereal * pGetVec(void) const
Definition: matvec3.h:192
doublereal
double doublereal
Definition: colamd.c:52
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
StructExtForce::pRefNode
const StructNode * pRefNode
Definition: strext.h:49

Here is the call graph for this function:

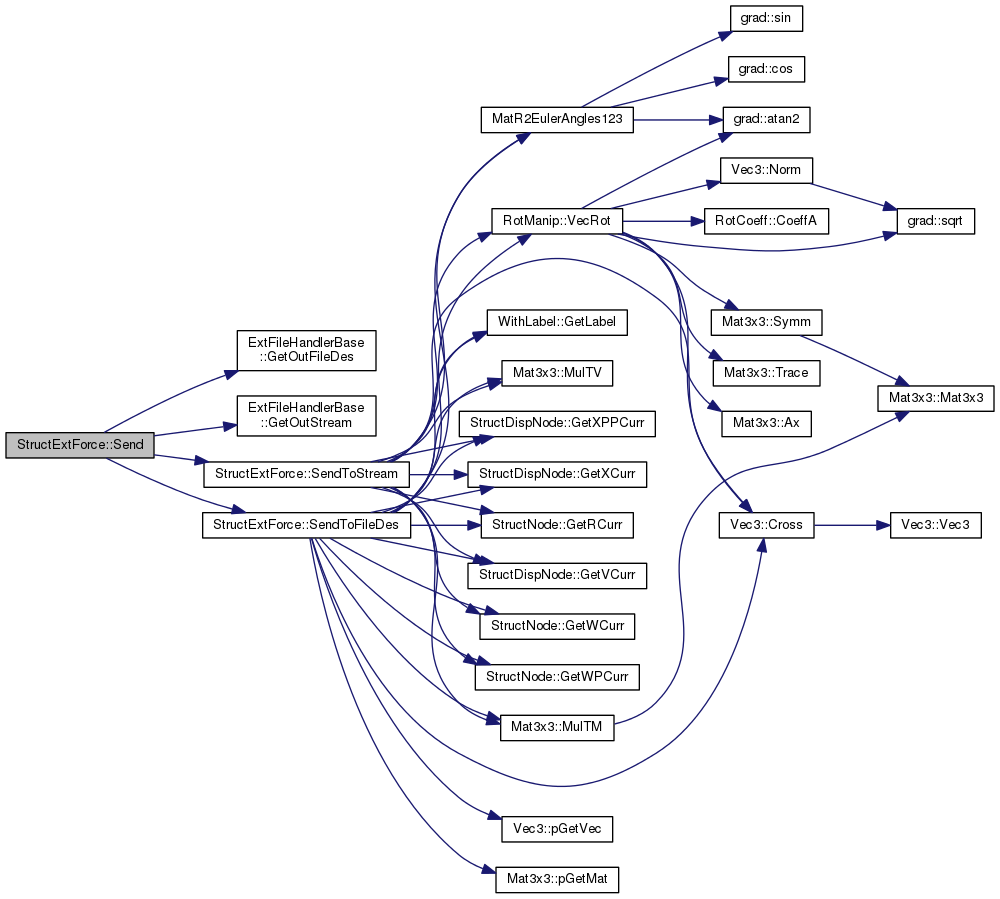

void StructExtForce::Send ( ExtFileHandlerBase *  pEFH,
ExtFileHandlerBase::SendWhen  when
)
protectedvirtual

Implements ExtForce.

Definition at line 430 of file strext.cc.

References ExtFileHandlerBase::GetOutFileDes(), ExtFileHandlerBase::GetOutStream(), SendToFileDes(), and SendToStream().

431 {
432  std::ostream *outfp = pEFH->GetOutStream();
433  if (outfp) {
434  SendToStream(*outfp, when);
435
436  } else {
437  SendToFileDes(pEFH->GetOutFileDes(), when);
438  }
439 }

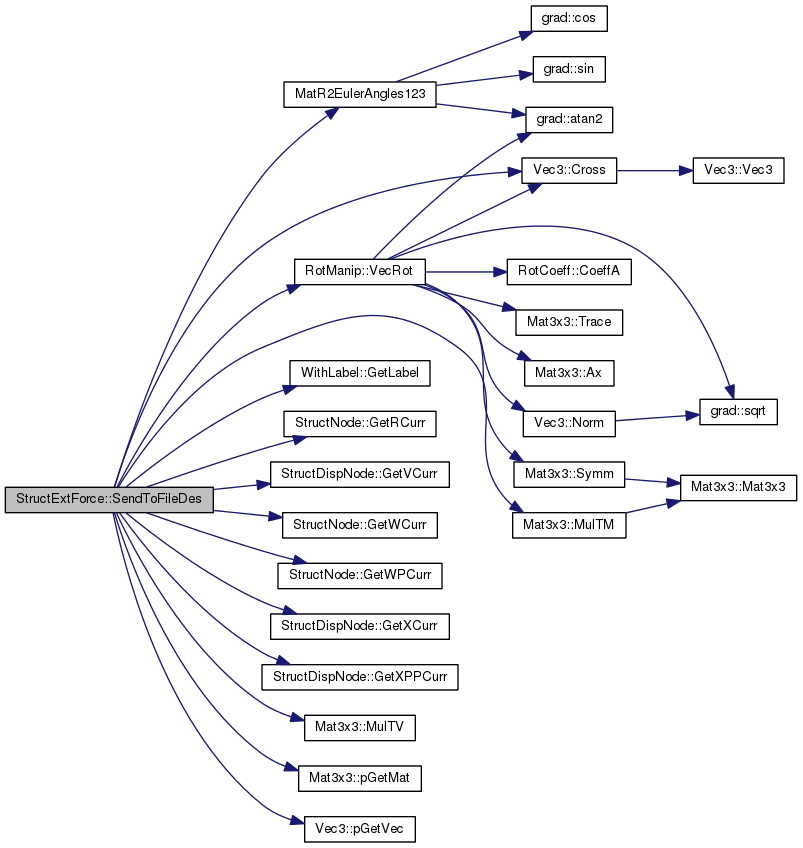

StructExtForce::SendToFileDes
virtual void SendToFileDes(int outfd, ExtFileHandlerBase::SendWhen when)
Definition: strext.cc:644
ExtFileHandlerBase::GetOutFileDes
virtual int GetOutFileDes(void)
Definition: extforce.cc:85
ExtFileHandlerBase::GetOutStream
virtual std::ostream * GetOutStream(void)
Definition: extforce.cc:72
StructExtForce::SendToStream
virtual void SendToStream(std::ostream &outf, ExtFileHandlerBase::SendWhen when)
Definition: strext.cc:442

Here is the call graph for this function:

void StructExtForce::SendToFileDes ( int  outfd,
ExtFileHandlerBase::SendWhen  when
)
protectedvirtual

Reimplemented in StructExtEDGEForce.

Definition at line 644 of file strext.cc.

References bLabels, bOutputAccelerations, Vec3::Cross(), dRaDegr, WithLabel::GetLabel(), StructNode::GetRCurr(), StructDispNode::GetVCurr(), StructNode::GetWCurr(), StructNode::GetWPCurr(), StructDispNode::GetXCurr(), StructDispNode::GetXPPCurr(), iobuf, iobuf_euler_123, iobuf_labels, iobuf_omega, iobuf_omegap, iobuf_R, iobuf_theta, iobuf_x, iobuf_xp, iobuf_xpp, m_Points, MatR2EulerAngles123(), MBC_ROT_EULER_123, MBC_ROT_MAT, MBC_ROT_NONE, MBC_ROT_THETA, MBDYN_EXCEPT_ARGS, Mat3x3::MulTM(), Mat3x3::MulTV(), StructExtForce::PointData::Offset, Mat3x3::pGetMat(), Vec3::pGetVec(), StructExtForce::PointData::pNode, pRefNode, R, uRot, and RotManip::VecRot().

Referenced by Send().

645 {
646 #ifdef USE_SOCKET
647  if (pRefNode) {
648  const Vec3& xRef = pRefNode->GetXCurr();
649  const Mat3x3& RRef = pRefNode->GetRCurr();
650  const Vec3& xpRef = pRefNode->GetVCurr();
651  const Vec3& wRef = pRefNode->GetWCurr();
652  const Vec3& xppRef = pRefNode->GetXPPCurr();
653  const Vec3& wpRef = pRefNode->GetWPCurr();
654
655  if (bLabels) {
656  uint32_t l[2];
657  l[0] = pRefNode->GetLabel();
658  l[1] = 0;
659  send(outfd, (void *)&l[0], sizeof(l), 0);
660  }
661
662  send(outfd, (void *)xRef.pGetVec(), 3*sizeof(doublereal), 0);
663  switch (uRot) {
664  case MBC_ROT_NONE:
665  break;
666
667  case MBC_ROT_MAT:
668  send(outfd, (void *)RRef.pGetMat(), 9*sizeof(doublereal), 0);
669  break;
670
671  case MBC_ROT_THETA: {
672  Vec3 Theta(RotManip::VecRot(RRef));
673  send(outfd, (void *)Theta.pGetVec(), 3*sizeof(doublereal), 0);
674  } break;
675
676  case MBC_ROT_EULER_123: {
677  Vec3 E(MatR2EulerAngles123(RRef)*dRaDegr);
678  send(outfd, (void *)E.pGetVec(), 3*sizeof(doublereal), 0);
679  } break;
680  }
681  send(outfd, (void *)xpRef.pGetVec(), 3*sizeof(doublereal), 0);
682  if (uRot != MBC_ROT_NONE) {
683  send(outfd, (void *)wRef.pGetVec(), 3*sizeof(doublereal), 0);
684  }
685  if (bOutputAccelerations) {
686  send(outfd, (void *)xppRef.pGetVec(), 3*sizeof(doublereal), 0);
687  if (uRot != MBC_ROT_NONE) {
688  send(outfd, (void *)wpRef.pGetVec(), 3*sizeof(doublereal), 0);
689  }
690  }
691
692  for (unsigned i = 0; i < m_Points.size(); i++) {
693  const PointData& point = m_Points[i];
694  Vec3 f(point.pNode->GetRCurr()*point.Offset);
695  Vec3 x(point.pNode->GetXCurr() + f);
696  Vec3 Dx(x - xRef);
697  Mat3x3 DR(RRef.MulTM(point.pNode->GetRCurr()));
698  Vec3 v(point.pNode->GetVCurr() + point.pNode->GetWCurr().Cross(f));
699  Vec3 Dv(v - xpRef - wRef.Cross(Dx));
700  const Vec3& w(point.pNode->GetWCurr());
701
702  // manipulate
703  if (bLabels) {
704  uint32_t l = point.pNode->GetLabel();
705  iobuf_labels[i] = l;
706  }
707
708  Vec3 xTilde(RRef.MulTV(Dx));
709  memcpy(&iobuf_x[3*i], xTilde.pGetVec(), 3*sizeof(doublereal));
710
711  switch (uRot) {
712  case MBC_ROT_NONE:
713  break;
714
715  case MBC_ROT_MAT:
716  memcpy(&iobuf_R[9*i], DR.pGetMat(), 9*sizeof(doublereal));
717  break;
718
719  case MBC_ROT_THETA: {
720  Vec3 Theta(RotManip::VecRot(DR));
721  memcpy(&iobuf_theta[3*i], Theta.pGetVec(), 3*sizeof(doublereal));
722  } break;
723
724  case MBC_ROT_EULER_123: {
725  Vec3 E(MatR2EulerAngles123(DR)*dRaDegr);
726  memcpy(&iobuf_euler_123[3*i], E.pGetVec(), 3*sizeof(doublereal));
727  } break;
728  }
729
730  Vec3 vTilde(RRef.MulTV(Dv));
731  memcpy(&iobuf_xp[3*i], vTilde.pGetVec(), 3*sizeof(doublereal));
732
733  if (uRot != MBC_ROT_NONE) {
734  Vec3 wTilde(RRef.MulTV(w - wRef));
735  memcpy(&iobuf_omega[3*i], wTilde.pGetVec(), 3*sizeof(doublereal));
736  }
737
738  if (bOutputAccelerations) {
739  const Vec3& xpp = point.pNode->GetXPPCurr();
740  const Vec3& wp = point.pNode->GetWPCurr();
741
742  Vec3 xppTilde(RRef.MulTV(xpp - xppRef - wpRef.Cross(Dx)
743  - wRef.Cross(wRef.Cross(Dx) + Dv*2)
744  + wp.Cross(f) + w.Cross(w.Cross(f))));
745  memcpy(&iobuf_xpp[3*i], xppTilde.pGetVec(), 3*sizeof(doublereal));
746
747  if (uRot != MBC_ROT_NONE) {
748  Vec3 wpTilde(RRef.MulTV(wp) - wpRef - wRef.Cross(w));
749  memcpy(&iobuf_omegap[3*i], wpTilde.pGetVec(), 3*sizeof(doublereal));
750  }
751  }
752  }
753
754  } else {
755  for (unsigned i = 0; i < m_Points.size(); i++) {
756  /*
757  p = x + f
758  R = R
759  v = xp + w cross f
760  w = w
761  a = xpp + wp cross f + w cross w cross f
762  wp = wp
763  */
764
765  // Optimization of the above formulas
766  const PointData& point = m_Points[i];
767  const Mat3x3& R = point.pNode->GetRCurr();
768  Vec3 f = R*point.Offset;
769  Vec3 x = point.pNode->GetXCurr() + f;
770  const Vec3& w = point.pNode->GetWCurr();
771  Vec3 wCrossf = w.Cross(f);
772  Vec3 v = point.pNode->GetVCurr() + wCrossf;
773
774  if (bLabels) {
775  uint32_t l = point.pNode->GetLabel();
776  iobuf_labels[i] = l;
777  }
778  memcpy(&iobuf_x[3*i], x.pGetVec(), 3*sizeof(doublereal));
779  switch (uRot) {
780  case MBC_ROT_NONE:
781  break;
782
783  case MBC_ROT_MAT:
784  memcpy(&iobuf_R[9*i], R.pGetMat(), 9*sizeof(doublereal));
785  break;
786
787  case MBC_ROT_THETA: {
788  Vec3 Theta(RotManip::VecRot(R));
789  memcpy(&iobuf_theta[3*i], Theta.pGetVec(), 3*sizeof(doublereal));
790  } break;
791
792  case MBC_ROT_EULER_123: {
793  Vec3 E(MatR2EulerAngles123(R)*dRaDegr);
794  memcpy(&iobuf_euler_123[3*i], E.pGetVec(), 3*sizeof(doublereal));
795  } break;
796  }
797  memcpy(&iobuf_xp[3*i], v.pGetVec(), 3*sizeof(doublereal));
798  if (uRot != MBC_ROT_NONE) {
799  memcpy(&iobuf_omega[3*i], w.pGetVec(), 3*sizeof(doublereal));
800  }
801
802  if (bOutputAccelerations) {
803  const Vec3& wp = point.pNode->GetWPCurr();
804  Vec3 xpp = point.pNode->GetXPPCurr() + wp.Cross(f) + w.Cross(wCrossf);
805
806  memcpy(&iobuf_xpp[3*i], xpp.pGetVec(), 3*sizeof(doublereal));
807  if (uRot != MBC_ROT_NONE) {
808  memcpy(&iobuf_omegap[3*i], wp.pGetVec(), 3*sizeof(doublereal));
809  }
810  }
811  }
812  }
813
814  send(outfd, &iobuf[0], iobuf.size(), 0);
815 #else // ! USE_SOCKET
816  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
817 #endif // ! USE_SOCKET
818 }
StructExtForce::iobuf_R
doublereal * iobuf_R
Definition: strext.h:81
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
StructExtForce::iobuf_xp
doublereal * iobuf_xp
Definition: strext.h:84
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Vec3
Definition: matvec3.h:98
StructExtForce::iobuf
std::vector< char > iobuf
Definition: strext.h:78
StructExtForce::iobuf_euler_123
doublereal * iobuf_euler_123
Definition: strext.h:83
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
StructExtForce::bLabels
bool bLabels
Definition: strext.h:69
RotManip::VecRot
Vec3 VecRot(const Mat3x3 &Phi)
Definition: Rot.cc:136
Mat3x3::MulTV
Vec3 MulTV(const Vec3 &v) const
Definition: matvec3.cc:482
StructExtForce::bOutputAccelerations
bool bOutputAccelerations
Definition: strext.h:74
StructExtForce::m_Points
std::vector< PointData > m_Points
Definition: strext.h:67
StructExtForce::iobuf_theta
doublereal * iobuf_theta
Definition: strext.h:82
StructExtForce::iobuf_xpp
doublereal * iobuf_xpp
Definition: strext.h:86
MatR2EulerAngles123
Vec3 MatR2EulerAngles123(const Mat3x3 &R)
Definition: matvec3.cc:893
StructNode::GetWCurr
virtual const Vec3 & GetWCurr(void) const
Definition: strnode.h:1030
dRaDegr
const doublereal dRaDegr
Definition: matvec3.cc:884
StructNode::GetWPCurr
virtual const Vec3 & GetWPCurr(void) const
Definition: strnode.h:1042
Mat3x3::MulTM
Mat3x3 MulTM(const Mat3x3 &m) const
Definition: matvec3.cc:500
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
Mat3x3::pGetMat
const doublereal * pGetMat(void) const
Definition: matvec3.h:743
StructExtForce::uRot
unsigned uRot
Definition: strext.h:73
StructExtForce::iobuf_omegap
doublereal * iobuf_omegap
Definition: strext.h:87
Vec3::pGetVec
const doublereal * pGetVec(void) const
Definition: matvec3.h:192
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
StructDispNode::GetXPPCurr
virtual const Vec3 & GetXPPCurr(void) const
Definition: strnode.h:334
doublereal
double doublereal
Definition: colamd.c:52
StructExtForce::iobuf_labels
uint32_t * iobuf_labels
Definition: strext.h:79
StructExtForce::iobuf_omega
doublereal * iobuf_omega
Definition: strext.h:85
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
StructExtForce::pRefNode
const StructNode * pRefNode
Definition: strext.h:49
StructExtForce::iobuf_x
doublereal * iobuf_x
Definition: strext.h:80
R
Mat3x3 R
Definition: mbdyn_util_oct.cc:74

Here is the call graph for this function:

void StructExtForce::SendToStream ( std::ostream &  outf,
ExtFileHandlerBase::SendWhen  when
)
protectedvirtual

Reimplemented in StructExtEDGEForce.

Definition at line 442 of file strext.cc.

References a, bLabels, bOutputAccelerations, Vec3::Cross(), dRaDegr, WithLabel::GetLabel(), StructNode::GetRCurr(), StructDispNode::GetVCurr(), StructNode::GetWCurr(), StructNode::GetWPCurr(), StructDispNode::GetXCurr(), StructDispNode::GetXPPCurr(), m_Points, MatR2EulerAngles123(), MBC_ROT_EULER_123, MBC_ROT_MAT, MBC_ROT_NONE, MBC_ROT_THETA, Mat3x3::MulTM(), Mat3x3::MulTV(), pRefNode, R, uRot, and RotManip::VecRot().

Referenced by ReadStructExtForce(), and Send().

443 {
444  if (pRefNode) {
445  const Vec3& xRef = pRefNode->GetXCurr();
446  const Mat3x3& RRef = pRefNode->GetRCurr();
447  const Vec3& xpRef = pRefNode->GetVCurr();
448  const Vec3& wRef = pRefNode->GetWCurr();
449  const Vec3& xppRef = pRefNode->GetXPPCurr();
450  const Vec3& wpRef = pRefNode->GetWPCurr();
451
452  outf << "# reference node" << std::endl;
453
454  if (bLabels) {
455  outf
456  << pRefNode->GetLabel()
457  << " ";
458  }
459
460  outf
461  << xRef;
462
463  switch (uRot) {
464  case MBC_ROT_NONE:
465  break;
466
467  case MBC_ROT_MAT:
468  outf
469  << " " << RRef;
470  break;
471
472  case MBC_ROT_THETA:
473  outf
474  << " " << RotManip::VecRot(RRef);
475  break;
476
477  case MBC_ROT_EULER_123:
478  outf
479  << " " << MatR2EulerAngles123(RRef)*dRaDegr;
480  break;
481  }
482
483  outf
484  << " " << xpRef;
485
486  if (uRot != MBC_ROT_NONE) {
487  outf
488  << " " << wRef;
489  }
490
491  if (bOutputAccelerations) {
492  outf
493  << " " << xppRef;
494
495  if (uRot != MBC_ROT_NONE) {
496  outf
497  << " " << wpRef;
498  }
499  }
500  outf << std::endl;
501
502  outf << "# regular nodes" << std::endl;
503
504  for (std::vector<PointData>::const_iterator point = m_Points.begin(); point != m_Points.end(); ++point) {
505  Vec3 f(point->pNode->GetRCurr()*point->Offset);
506  Vec3 x(point->pNode->GetXCurr() + f);
507  Vec3 Dx(x - xRef);
508  Mat3x3 DR(RRef.MulTM(point->pNode->GetRCurr()));
509  Vec3 v(point->pNode->GetVCurr() + point->pNode->GetWCurr().Cross(f));
510  Vec3 Dv(v - xpRef - wRef.Cross(Dx));
511  const Vec3& w(point->pNode->GetWCurr());
512
513  // manipulate
514
515  if (bLabels) {
516  outf
517  << point->pNode->GetLabel()
518  << " ";
519  }
520
521  outf
522  << RRef.MulTV(Dx);
523
524  switch (uRot) {
525  case MBC_ROT_NONE:
526  break;
527
528  case MBC_ROT_MAT:
529  outf
530  << " " << DR;
531  break;
532
533  case MBC_ROT_THETA:
534  outf
535  << " " << RotManip::VecRot(DR);
536  break;
537
538  case MBC_ROT_EULER_123:
539  outf
540  << " " << MatR2EulerAngles123(DR)*dRaDegr;
541  break;
542  }
543
544  outf
545  << " " << RRef.MulTV(Dv);
546
547  if (uRot != MBC_ROT_NONE) {
548  outf
549  << " " << RRef.MulTV(w - wRef);
550  }
551
552  if (bOutputAccelerations) {
553  const Vec3& xpp(point->pNode->GetXPPCurr());
554  const Vec3& wp(point->pNode->GetWPCurr());
555
556  outf
557  << " " << RRef.MulTV(xpp - xppRef - wpRef.Cross(Dx)
558  - wRef.Cross(wRef.Cross(Dx) + Dv*2)
559  + wp.Cross(f) + w.Cross(w.Cross(f)));
560  if (uRot != MBC_ROT_NONE) {
561  outf
562  << " " << RRef.MulTV(wp - wpRef - wRef.Cross(w));
563  }
564  }
565  outf << std::endl;
566  }
567
568  } else {
569  outf << "# regular nodes" << std::endl;
570
571  for (std::vector<PointData>::const_iterator point = m_Points.begin(); point != m_Points.end(); ++point) {
572  /*
573  p = x + f
574  R = R
575  v = xp + w cross f
576  w = w
577  a = xpp + wp cross f + w cross w cross f
578  wp = wp
579  */
580
581  // Optimization of the above formulas
582  const Mat3x3& R = point->pNode->GetRCurr();
583  Vec3 f = R*point->Offset;
584  Vec3 x = point->pNode->GetXCurr() + f;
585  const Vec3& w = point->pNode->GetWCurr();
586  Vec3 wCrossf = w.Cross(f);
587  Vec3 v = point->pNode->GetVCurr() + wCrossf;
588
589  if (bLabels) {
590  outf
591  << point->pNode->GetLabel()
592  << " ";
593  }
594
595  outf
596  << x;
597
598  switch (uRot) {
599  case MBC_ROT_NONE:
600  break;
601
602  case MBC_ROT_MAT:
603  outf
604  << " " << R;
605  break;
606
607  case MBC_ROT_THETA:
608  outf
609  << " " << RotManip::VecRot(R);
610  break;
611
612  case MBC_ROT_EULER_123:
613  outf
614  << " " << MatR2EulerAngles123(R)*dRaDegr;
615  break;
616  }
617  outf
618  << " " << v;
619
620  if (uRot != MBC_ROT_NONE) {
621  outf
622  << " " << w;
623  }
624
625  if (bOutputAccelerations) {
626  const Vec3& wp = point->pNode->GetWPCurr();
627  Vec3 a = point->pNode->GetXPPCurr() + wp.Cross(f) + w.Cross(wCrossf);
628
629  outf
630  << " " << a;
631
632  if (uRot != MBC_ROT_NONE) {
633  outf
634  << " " << wp;
635  }
636  }
637
638  outf << std::endl;
639  }
640  }
641 }
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
Vec3
Definition: matvec3.h:98
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
StructExtForce::bLabels
bool bLabels
Definition: strext.h:69
RotManip::VecRot
Vec3 VecRot(const Mat3x3 &Phi)
Definition: Rot.cc:136
Mat3x3::MulTV
Vec3 MulTV(const Vec3 &v) const
Definition: matvec3.cc:482
StructExtForce::bOutputAccelerations
bool bOutputAccelerations
Definition: strext.h:74
StructExtForce::m_Points
std::vector< PointData > m_Points
Definition: strext.h:67
MatR2EulerAngles123
Vec3 MatR2EulerAngles123(const Mat3x3 &R)
Definition: matvec3.cc:893
StructNode::GetWCurr
virtual const Vec3 & GetWCurr(void) const
Definition: strnode.h:1030
dRaDegr
const doublereal dRaDegr
Definition: matvec3.cc:884
StructNode::GetWPCurr
virtual const Vec3 & GetWPCurr(void) const
Definition: strnode.h:1042
Mat3x3::MulTM
Mat3x3 MulTM(const Mat3x3 &m) const
Definition: matvec3.cc:500
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
StructExtForce::uRot
unsigned uRot
Definition: strext.h:73
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
a
static const doublereal a
Definition: hfluid_.h:289
StructDispNode::GetXPPCurr
virtual const Vec3 & GetXPPCurr(void) const
Definition: strnode.h:334
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
StructExtForce::pRefNode
const StructNode * pRefNode
Definition: strext.h:49
R
Mat3x3 R
Definition: mbdyn_util_oct.cc:74

Here is the call graph for this function:

void StructExtForce::WorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
virtual

Implements Elem.

Definition at line 253 of file strext.cc.

References ExtForce::COUPLING_NONE, ExtForce::iCoupling, m_Points, and pRefNode.

254 {
255  if (iCoupling == COUPLING_NONE) {
256  *piNumRows = 0;
257  *piNumCols = 0;
258
259  } else {
260  *piNumRows = (pRefNode ? 6 : 0) + 6*m_Points.size();
261  *piNumCols = 1;
262  }
263 }
StructExtForce::m_Points
std::vector< PointData > m_Points
Definition: strext.h:67
ExtForce::iCoupling
int iCoupling
Definition: extforce.h:212
StructExtForce::pRefNode
const StructNode * pRefNode
Definition: strext.h:49

Friends And Related Function Documentation

Elem* ReadStructExtForce ( DataManager *  pDM,
MBDynParser &  HP,
unsigned int  uLabel
)
friend

Definition at line 1352 of file strext.cc.

1355 {
1356  ExtFileHandlerBase *pEFH = 0;
1357  int iCoupling;
1358
1359  bool bSendAfterPredict;
1360  ReadExtForce(pDM, HP, uLabel, pEFH, bSendAfterPredict, iCoupling);
1361
1362  const StructNode *pRefNode(0);
1363  if (HP.IsKeyWord("reference" "node")) {
1364  pRefNode = pDM->ReadNode<const StructNode, Node::STRUCTURAL>(HP);
1365  }
1366
1367  bool bSorted(true);
1368  bool bLabels(false);
1369  unsigned uRot = MBC_ROT_MAT;
1370  bool bOutputAccelerations(false);
1371  bool bUseReferenceNodeForces(true);
1372  bool bRotateReferenceNodeForces(true);
1373
1374  bool bGotSorted(false);
1375  bool bGotLabels(false);
1376  bool bGotRot(false);
1377  bool bGotAccels(false);
1378  bool bGotUseRefForces(false);
1379
1380  while (HP.IsArg()) {
1381  if (HP.IsKeyWord("unsorted")) {
1382  silent_cerr("StructExtForce(" << uLabel << "): "
1383  "use of \"unsorted\" deprecated in favor of \"sorted, { yes | no }\" at line "
1384  << HP.GetLineData() << std::endl);
1385
1386  if (bGotSorted) {
1387  silent_cerr("StructExtForce(" << uLabel << "): "
1388  "\"unsorted\" already specified at line "
1389  << HP.GetLineData() << std::endl);
1390  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1391  }
1392
1393  bSorted = false;
1394  bGotSorted = true;
1395
1396  } else if (HP.IsKeyWord("sorted")) {
1397  if (bGotSorted) {
1398  silent_cerr("StructExtForce(" << uLabel << "): "
1399  "\"sorted\" already specified at line "
1400  << HP.GetLineData() << std::endl);
1401  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1402  }
1403
1404  if (!HP.GetYesNo(bSorted)) {
1405  silent_cerr("StructExtForce(" << uLabel << "): "
1406  "\"sorted\" must be either \"yes\" or \"no\" at line "
1407  << HP.GetLineData() << std::endl);
1408  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1409  }
1410  bGotSorted = true;
1411
1412  } else if (HP.IsKeyWord("no" "labels")) {
1413  silent_cerr("StructExtForce(" << uLabel << "): "
1414  "use of \"no labels\" deprecated in favor of \"labels, { yes | no }\" at line "
1415  << HP.GetLineData() << std::endl);
1416
1417  if (bGotLabels) {
1418  silent_cerr("StructExtForce(" << uLabel << "): "
1419  "\"no labels\" already specified at line "
1420  << HP.GetLineData() << std::endl);
1421  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1422  }
1423
1424  bLabels = false;
1425  bGotLabels = true;
1426
1427  } else if (HP.IsKeyWord("labels")) {
1428  if (bGotLabels) {
1429  silent_cerr("StructExtForce(" << uLabel << "): "
1430  "\"labels\" already specified at line "
1431  << HP.GetLineData() << std::endl);
1432  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1433  }
1434
1435  if (!HP.GetYesNo(bLabels)) {
1436  silent_cerr("StructExtForce(" << uLabel << "): "
1437  "\"labels\" must be either \"yes\" or \"no\" at line "
1438  << HP.GetLineData() << std::endl);
1439  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1440  }
1441  bGotLabels = true;
1442
1443  } else if (HP.IsKeyWord("orientation")) {
1444  if (bGotRot) {
1445  silent_cerr("StructExtForce(" << uLabel << "): "
1446  "\"orientation\" already specified at line "
1447  << HP.GetLineData() << std::endl);
1448  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1449  }
1450
1451  if (HP.IsKeyWord("none")) {
1452  uRot = MBC_ROT_NONE;
1453
1454  } else if (HP.IsKeyWord("orientation" "vector")) {
1455  uRot = MBC_ROT_THETA;
1456
1457  } else if (HP.IsKeyWord("orientation" "matrix")) {
1458  uRot = MBC_ROT_MAT;
1459
1460  } else if (HP.IsKeyWord("euler" "123")) {
1461  uRot = MBC_ROT_EULER_123;
1462
1463  } else {
1464  silent_cerr("StructExtForce(" << uLabel << "): "
1465  "unknown \"orientation\" format at line "
1466  << HP.GetLineData() << std::endl);
1467  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1468  }
1469
1470  bGotRot = true;
1471
1472  } else if (HP.IsKeyWord("accelerations")) {
1473  if (bGotAccels) {
1474  silent_cerr("StructExtForce(" << uLabel << "): "
1475  "\"accelerations\" already specified at line "
1476  << HP.GetLineData() << std::endl);
1477  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1478  }
1479
1480  if (!HP.GetYesNo(bOutputAccelerations)) {
1481  silent_cerr("StructExtForce(" << uLabel << "): "
1482  "\"accelerations\" must be either \"yes\" or \"no\" at line "
1483  << HP.GetLineData() << std::endl);
1484  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1485  }
1486  bGotAccels = true;
1487
1488  } else if (HP.IsKeyWord("use" "reference" "node" "forces")) {
1489  if (pRefNode == 0) {
1490  silent_cerr("StructExtForce(" << uLabel << "): "
1491  "\"use reference node forces\" only meaningful when reference node is used at line "
1492  << HP.GetLineData() << std::endl);
1493  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1494  }
1495
1496  if (bGotUseRefForces) {
1497  silent_cerr("StructExtForce(" << uLabel << "): "
1498  "\"use reference node forces\" already specified at line "
1499  << HP.GetLineData() << std::endl);
1500  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1501  }
1502
1503  if (!HP.GetYesNo(bUseReferenceNodeForces)) {
1504  silent_cerr("StructExtForce(" << uLabel << "): "
1505  "\"use reference node forces\" must be either \"yes\" or \"no\" at line "
1506  << HP.GetLineData() << std::endl);
1507  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1508  }
1509  bGotUseRefForces = true;
1510
1511  if (bUseReferenceNodeForces && HP.IsKeyWord("rotate" "reference" "node" "forces")) {
1512  if (!HP.GetYesNo(bRotateReferenceNodeForces)) {
1513  silent_cerr("StructExtForce(" << uLabel << "): "
1514  "\"rotate reference node forces\" must be either \"yes\" or \"no\" at line "
1515  << HP.GetLineData() << std::endl);
1516  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1517  }
1518  }
1519
1520  } else {
1521  break;
1522  }
1523  }
1524
1525  if (!bLabels && !bSorted) {
1526  silent_cerr("StructExtForce(" << uLabel << "): "
1527  "\"no labels\" and \"unsorted\" incompatible" << std::endl);
1528  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1529  }
1530
1531  int n = HP.GetInt();
1532  if (n <= 0) {
1533  silent_cerr("StructExtForce(" << uLabel << "): illegal node number " << n <<
1534  " at line " << HP.GetLineData() << std::endl);
1535  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1536  }
1537
1538  std::vector<unsigned> Labels;
1539  std::vector<unsigned>::iterator curr_label;
1540  if (bLabels) {
1541  Labels.resize(n);
1542  curr_label = Labels.begin();
1543  }
1544  std::vector<const StructNode *> Nodes(n);
1545  std::vector<Vec3> Offsets(n);
1546
1547  for (int i = 0; i < n; i++ ) {
1548  Nodes[i] = pDM->ReadNode<const StructNode, Node::STRUCTURAL>(HP);
1549
1550  ReferenceFrame RF(Nodes[i]);
1551
1552  if (bLabels) {
1553  unsigned ul;
1554  if (HP.IsKeyWord("label")) {
1555  int l = HP.GetInt();
1556  if (l < 0) {
1557  silent_cerr("StructExtForce(" << uLabel << "): "
1558  "invalid label for point #" << i << " at line "
1559  << HP.GetLineData() << std::endl);
1560  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1561  }
1562  ul = unsigned(l);
1563
1564  } else {
1565  ul = Nodes[i]->GetLabel();
1566  }
1567
1568  if (std::find(Labels.begin(), curr_label, ul) < curr_label) {
1569  silent_cerr("StructExtForce(" << uLabel << "): "
1570  "duplicate label for point #" << i << " at line "
1571  << HP.GetLineData() << std::endl);
1572  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1573  }
1574
1575  *curr_label = ul;
1576  ++curr_label;
1577
1578  }
1579
1580  if (HP.IsKeyWord("offset")) {
1581  Offsets[i] = HP.GetPosRel(RF);
1582
1583  } else {
1584  Offsets[i] = Vec3(Zero3);
1585  }
1586
1587  for (int j = 0; j < i; j++) {
1588  if (Nodes[j] == Nodes[i]) {
1589  if (Offsets[j].IsExactlySame(Offsets[i])) {
1590  silent_cerr("StructExtForce(" << uLabel << "): "
1591  "warning, point #" << i << " is identical to point #" << j << " (same node, same offset)" << std::endl);
1592  } else {
1593  silent_cerr("StructExtForce(" << uLabel << "): "
1594  "warning, point #" << i << " is based on same node of point #" << j << " (offsets differ)" << std::endl);
1595  }
1596  }
1597  }
1598  }
1599
1600  std::ofstream out;
1601  if (HP.IsKeyWord("echo")) {
1602  const char *s = HP.GetFileName();
1603  if (s == NULL) {
1604  silent_cerr("StructMappingExtForce(" << uLabel << "): "
1605  "unable to parse echo file name "
1606  "at line " << HP.GetLineData()
1607  << std::endl);
1608  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1609  }
1610
1611  out.open(s);
1612  if (!out) {
1613  int save_errno = errno;
1614  silent_cerr("StructMappingExtForce(" << uLabel << "): "
1615  "unable to open file \"" << s << "\" (" << save_errno << ": " << strerror(save_errno) << ")" << std::endl);
1616  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1617  }
1618 #if 0
1619
1620  std::ofstream out(s);
1621
1622  out.setf(std::ios::scientific);
1623
1624  for (unsigned i = 0; i < Nodes.size(); i++) {
1625  if (bLabels) {
1626  out << Labels[i];
1627  } else {
1628  out << Nodes[i]->GetLabel();
1629  }
1630
1631  out << " " << (Nodes[i]->GetXCurr() + Offsets[i]) << " ";
1632  switch (uRot) {
1633  case MBC_ROT_MAT:
1634  out << Nodes[i]->GetRCurr();
1635  break;
1636
1637  case MBC_ROT_THETA:
1638  out << RotManip::VecRot(Nodes[i]->GetRCurr());
1639  break;
1640
1641  case MBC_ROT_NONE:
1642  case MBC_ROT_EULER_123:
1643  out << MatR2EulerAngles123(Nodes[i]->GetRCurr())*dRaDegr;
1644  break;
1645  }
1646  out << " " << Nodes[i]->GetVCurr() + Nodes[i]->GetWCurr().Cross(Offsets[i])
1647  << " " << Nodes[i]->GetWCurr()
1648  << std::endl;
1649  }
1650 #endif
1651  }
1652
1653  unsigned uOutputFlags = ExtFileHandlerBase::OUTPUT_REF_DYN;
1654  flag fOut = pDM->fReadOutput(HP, Elem::FORCE);
1655  if (HP.IsArg()) {
1656  if (HP.IsKeyWord("kinematics")) {
1657  uOutputFlags |= ExtFileHandlerBase::OUTPUT_KIN;
1658  fOut = 1;
1659  } else {
1660  silent_cerr("StructMappingExtForce(" << uLabel << "): "
1661  "unexpected arg at line " << HP.GetLineData() << std::endl);
1662  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1663  }
1664  }
1665
1666  StructExtForce *pEl = 0;
1667
1668  if (dynamic_cast<ExtFileHandlerEDGE *>(pEFH)) {
1669  SAFENEWWITHCONSTRUCTOR(pEl, StructExtEDGEForce,
1670  StructExtEDGEForce(uLabel, pDM, pRefNode,
1671  bUseReferenceNodeForces, bRotateReferenceNodeForces,
1672  Labels, Nodes, Offsets,
1673  bSorted, bLabels, bOutputAccelerations, uRot,
1674  pEFH, bSendAfterPredict, iCoupling, uOutputFlags, fOut));
1675
1676  } else {
1677  SAFENEWWITHCONSTRUCTOR(pEl, StructExtForce,
1678  StructExtForce(uLabel, pDM, pRefNode,
1679  bUseReferenceNodeForces, bRotateReferenceNodeForces,
1680  Labels, Nodes, Offsets,
1681  bSorted, bLabels, bOutputAccelerations, uRot,
1682  pEFH, bSendAfterPredict, iCoupling, uOutputFlags, fOut));
1683  }
1684
1685  if (out.is_open()) {
1686  pEl->SendToStream(out, ExtFileHandlerBase::SEND_FIRST_TIME);
1687  }
1688
1689  return pEl;
1690 }
DataManager::fReadOutput
flag fReadOutput(MBDynParser &HP, const T &t) const
Definition: dataman.h:1064
Zero3
const Vec3 Zero3(0., 0., 0.)
flag
long int flag
Definition: mbdyn.h:43
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Vec3
Definition: matvec3.h:98
HighParser::GetInt
virtual integer GetInt(integer iDefval=0)
Definition: parser.cc:1050
ExtForce::bSendAfterPredict
bool bSendAfterPredict
Definition: extforce.h:196
IncludeParser::GetFileName
virtual const char * GetFileName(enum Delims Del=DEFAULTDELIM)
Definition: parsinc.cc:673
StructExtForce::StructExtForce
StructExtForce(unsigned int uL, DataManager *pDM, const StructNode *pRefNode, bool bUseReferenceNodeForces, bool bRotateReferenceNodeForces, std::vector< unsigned > &Labels, std::vector< const StructNode * > &Nodes, std::vector< Vec3 > &Offsets, bool bSorted, bool bLabels, bool bOutputAccelerations, unsigned bRot, ExtFileHandlerBase *pEFH, bool bSendAfterPredict, int iCoupling, unsigned uOutputFlags, flag fOut)
Definition: strext.cc:47
StructExtForce::bLabels
bool bLabels
Definition: strext.h:69
RotManip::VecRot
Vec3 VecRot(const Mat3x3 &Phi)
Definition: Rot.cc:136
StructExtForce::bOutputAccelerations
bool bOutputAccelerations
Definition: strext.h:74
MBDynParser::GetPosRel
Vec3 GetPosRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1331
StructExtForce::bSorted
bool bSorted
Definition: strext.h:70
HighParser::IsKeyWord
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910
ExtForce::pEFH
ExtFileHandlerBase * pEFH
Definition: extforce.h:193
MatR2EulerAngles123
Vec3 MatR2EulerAngles123(const Mat3x3 &R)
Definition: matvec3.cc:893
StructExtForce::bUseReferenceNodeForces
bool bUseReferenceNodeForces
Definition: strext.h:50
dRaDegr
const doublereal dRaDegr
Definition: matvec3.cc:884
WithLabel::uLabel
unsigned int uLabel
Definition: withlab.h:44
StructExtForce::SendToStream
virtual void SendToStream(std::ostream &outf, ExtFileHandlerBase::SendWhen when)
Definition: strext.cc:442
SAFENEWWITHCONSTRUCTOR
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698
HighParser::GetYesNo
virtual bool GetYesNo(bool &bRet)
Definition: parser.cc:1022
HighParser::IsArg
virtual bool IsArg(void)
Definition: parser.cc:807
StructExtForce::uRot
unsigned uRot
Definition: strext.h:73
ExtForce::iCoupling
int iCoupling
Definition: extforce.h:212
StructExtForce::bRotateReferenceNodeForces
bool bRotateReferenceNodeForces
Definition: strext.h:51
IncludeParser::GetLineData
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697
StructExtForce::uOutputFlags
unsigned uOutputFlags
Definition: strext.h:55
DataManager::ReadNode
Node * ReadNode(MBDynParser &HP, Node::Type type) const
Definition: dataman3.cc:2309
StructExtForce::pRefNode
const StructNode * pRefNode
Definition: strext.h:49
ReadExtForce
void ReadExtForce(DataManager *pDM, MBDynParser &HP, unsigned int uLabel, ExtFileHandlerBase *&pEFH, bool &bSendAfterPredict, int &iCoupling)
Definition: extforce.cc:1141
IsExactlySame
bool IsExactlySame(const doublereal &d1, const doublereal &d2)
Definition: matvec3.cc:1131

Member Data Documentation

bool StructExtForce::bLabels
protected

Definition at line 69 of file strext.h.

Referenced by Prepare(), RecvFromFileDes(), StructExtEDGEForce::RecvFromStream(), RecvFromStream(), SendToFileDes(), and SendToStream().

bool StructExtForce::bOutputAccelerations
protected

Definition at line 74 of file strext.h.

Referenced by Prepare(), SendToFileDes(), and SendToStream().

bool StructExtForce::bRotateReferenceNodeForces
protected

Definition at line 51 of file strext.h.

Referenced by AssRes().

bool StructExtForce::bSorted
protected

Definition at line 70 of file strext.h.

Referenced by RecvFromFileDes(), StructExtEDGEForce::RecvFromStream(), and RecvFromStream().

bool StructExtForce::bUseReferenceNodeForces
protected

Definition at line 50 of file strext.h.

Referenced by AssRes().

std::vector<bool> StructExtForce::done
protected

Definition at line 71 of file strext.h.

Referenced by RecvFromFileDes(), RecvFromStream(), and StructExtForce().

unsigned StructExtForce::dynamics_size
protected

Definition at line 77 of file strext.h.

Referenced by RecvFromFileDes(), and StructExtForce().

Vec3 StructExtForce::F0
protected

Definition at line 52 of file strext.h.

Referenced by AssRes(), Output(), RecvFromFileDes(), and RecvFromStream().

Vec3 StructExtForce::F1
protected

Definition at line 53 of file strext.h.

Referenced by AssRes(), and Output().

Vec3 StructExtForce::F2
protected

Definition at line 54 of file strext.h.

Referenced by AssRes(), and Output().

std::vector<char> StructExtForce::iobuf
protected

Definition at line 78 of file strext.h.

Referenced by RecvFromFileDes(), SendToFileDes(), and StructExtForce().

doublereal* StructExtForce::iobuf_euler_123
protected

Definition at line 83 of file strext.h.

Referenced by SendToFileDes(), and StructExtForce().

doublereal* StructExtForce::iobuf_f
protected

Definition at line 88 of file strext.h.

Referenced by RecvFromFileDes(), and StructExtForce().

uint32_t* StructExtForce::iobuf_labels
protected

Definition at line 79 of file strext.h.

Referenced by RecvFromFileDes(), SendToFileDes(), and StructExtForce().

doublereal* StructExtForce::iobuf_m
protected

Definition at line 89 of file strext.h.

Referenced by RecvFromFileDes(), and StructExtForce().

doublereal* StructExtForce::iobuf_omega
protected

Definition at line 85 of file strext.h.

Referenced by SendToFileDes(), and StructExtForce().

doublereal* StructExtForce::iobuf_omegap
protected

Definition at line 87 of file strext.h.

Referenced by SendToFileDes(), and StructExtForce().

doublereal* StructExtForce::iobuf_R
protected

Definition at line 81 of file strext.h.

Referenced by SendToFileDes(), and StructExtForce().

doublereal* StructExtForce::iobuf_theta
protected

Definition at line 82 of file strext.h.

Referenced by SendToFileDes(), and StructExtForce().

doublereal* StructExtForce::iobuf_x
protected

Definition at line 80 of file strext.h.

Referenced by SendToFileDes(), and StructExtForce().

doublereal* StructExtForce::iobuf_xp
protected

Definition at line 84 of file strext.h.

Referenced by SendToFileDes(), and StructExtForce().

doublereal* StructExtForce::iobuf_xpp
protected

Definition at line 86 of file strext.h.

Referenced by SendToFileDes(), and StructExtForce().

Vec3 StructExtForce::M0
protected

Definition at line 52 of file strext.h.

Referenced by AssRes(), Output(), RecvFromFileDes(), and RecvFromStream().

Vec3 StructExtForce::M1
protected

Definition at line 53 of file strext.h.

Referenced by AssRes(), and Output().

Vec3 StructExtForce::M2
protected

Definition at line 54 of file strext.h.

Referenced by AssRes(), and Output().

std::vector<PointData> StructExtForce::m_Points
protected

Definition at line 67 of file strext.h.

Referenced by AssRes(), GetConnectedNodes(), Output(), Prepare(), RecvFromFileDes(), StructExtEDGEForce::RecvFromStream(), RecvFromStream(), SendToFileDes(), StructExtEDGEForce::SendToStream(), SendToStream(), StructExtForce(), and WorkSpaceDim().

const StructNode* StructExtForce::pRefNode
protected

Definition at line 49 of file strext.h.

Referenced by AssRes(), Output(), Prepare(), RecvFromFileDes(), RecvFromStream(), SendToFileDes(), StructExtEDGEForce::SendToStream(), SendToStream(), and WorkSpaceDim().

unsigned StructExtForce::uOutputFlags
protected

Definition at line 55 of file strext.h.

Referenced by Output().

unsigned StructExtForce::uRot
protected

Definition at line 73 of file strext.h.

Referenced by AssRes(), Output(), Prepare(), RecvFromFileDes(), RecvFromStream(), SendToFileDes(), and SendToStream().

The documentation for this class was generated from the following files:
