force.cc File Reference
#include "mbconfig.h"
#include <cfloat>
#include "dataman.h"
#include "force.h"
#include "strforce.h"
#include "strext.h"
#include "strmappingext.h"
#include "modalforce.h"
#include "modalext.h"
#include "modalmappingext.h"
#include "totalj.h"
#include "tpldrive_impl.h"

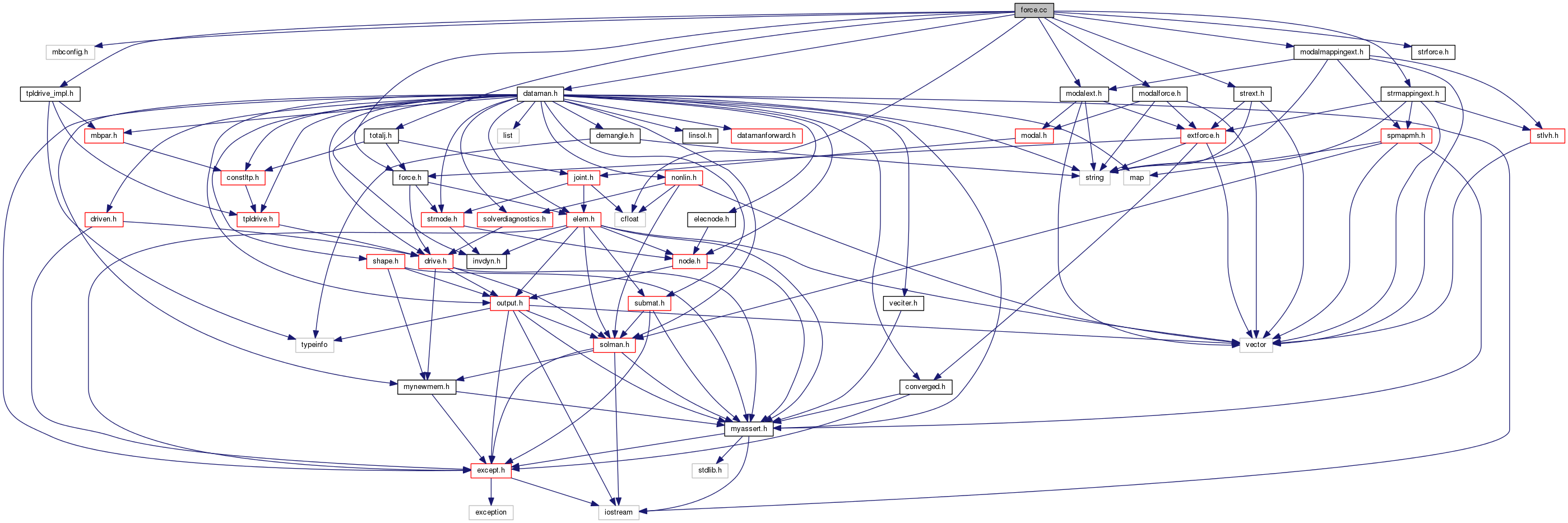

Include dependency graph for force.cc:

Go to the source code of this file.

Functions

Elem * ReadForce (DataManager *pDM, MBDynParser &HP, unsigned int uLabel, bool bCouple)


Function Documentation

Elem* ReadForce ( DataManager *  pDM,
MBDynParser &  HP,
unsigned int  uLabel,
bool  bCouple
)

Definition at line 246 of file force.cc.

References DEBUGCOUT, Eye3, Elem::FORCE, DataManager::fReadOutput(), MBDynParser::GetDriveCaller(), IncludeParser::GetLineData(), MBDynParser::GetPosRel(), MBDynParser::GetRotRel(), HighParser::GetWord(), HighParser::IsArg(), HighParser::IsKeyWord(), LASTKEYWORD, MBDYN_EXCEPT_ARGS, ScalarDof::pNode, psReadNodesNodes, ReadDC3D(), ReadModalExtForce(), ReadModalForce(), ReadModalMappingExtForce(), DataManager::ReadNode(), ReadScalarDof(), ReadStructExtForce(), ReadStructMappingExtForce(), ReadStructuralForce(), SAFENEW, SAFENEWWITHCONSTRUCTOR, Node::STRUCTURAL, and Zero3.

Referenced by DataManager::ReadOneElem().

250 {
251  const char* sKeyWords[] = {
252  "conservative", // deprecated
253  "absolute",
254  "absolute" "displacement",
255  "follower",
256
257  "conservative" "internal", // deprecated
258  "absolute" "internal",
259  "absolute" "internal" "displacement",
260  "follower" "internal",
261
262  "total", // not implented
263  "total" "internal",
264
265  "external" "structural",
266  "external" "structural" "mapping",
267
268  "modal",
269  "external" "modal",
270  "external" "modal" "mapping",
271
272  "abstract",
273  "abstract" "internal",
274
275  NULL
276  };
277
278  /* enum delle parole chiave */
279  enum KeyWords {
280  UNKNOWN = -1,
281
282  CONSERVATIVE, // deprecated
283  MB_ABSOLUTE, // NOTE: "ABSOLUTE" conflicts with gcc 4.6.1 on MinGW
284  ABSOLUTEDISPLACEMENT,
285  FOLLOWER,
286
287  CONSERVATIVEINTERNAL, // deprecated
288  ABSOLUTEINTERNAL,
289  ABSOLUTEINTERNALDISPLACEMENT,
290  FOLLOWERINTERNAL,
291
292  TOTAL,
293  TOTALINTERNAL,
294
295  EXTERNALSTRUCTURAL,
296  EXTERNALSTRUCTURALMAPPING,
297
298  MODALFORCE,
299  EXTERNALMODAL,
300  EXTERNALMODALMAPPING,
301
302  ABSTRACT,
303  ABSTRACTINTERNAL,
304
305  LASTKEYWORD
306  };
307
308  /* tabella delle parole chiave */
309  KeyTable K(HP, sKeyWords);
310
311  /* tipo di forza */
312  KeyWords CurrType = KeyWords(HP.GetWord());
313  if (CurrType == UNKNOWN) {
314  silent_cerr("Force(" << uLabel << "): unknown force type "
315  "at line " << HP.GetLineData() << std::endl);
316  throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
317  }
318
319  switch (CurrType) {
320  case CONSERVATIVE:
321  case MB_ABSOLUTE:
322  case FOLLOWER:
323  case CONSERVATIVEINTERNAL:
324  case ABSOLUTEINTERNAL:
325  case FOLLOWERINTERNAL:
326 #if 0 /* not implemented yet */
327  case TOTAL:
328 #endif
329  case TOTALINTERNAL:
330  break;
331
332  default:
333  if (bCouple) {
334  silent_cerr("Force(" << uLabel << "): must be a \"force\"" << std::endl);
335  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
336  }
337  }
338
339  switch (CurrType) {
340  case CONSERVATIVE:
341  silent_cout("Force(" << uLabel << "): "
342  "deprecated \"conservative\" "
343  "at line " << HP.GetLineData() << "; "
344  "use \"absolute\" instead" << std::endl);
345  break;
346
347  case CONSERVATIVEINTERNAL:
348  silent_cout("Force(" << uLabel << "): "
349  "deprecated \"conservative internal\" "
350  "at line " << HP.GetLineData() << "; "
351  "use \"absolute internal\" instead" << std::endl);
352  break;
353
354  default:
355  break;
356  }
357
358  Elem* pEl = 0;
359
360  switch (CurrType) {
361  case ABSTRACT: {
362  /* tabella delle parole chiave */
363  KeyTable KDof(HP, psReadNodesNodes);
364  ScalarDof SD = ReadScalarDof(pDM, HP, true, false);
365  DriveCaller* pDC = HP.GetDriveCaller();
366  flag fOut = pDM->fReadOutput(HP, Elem::FORCE);
367
368  SAFENEWWITHCONSTRUCTOR(pEl,
369  AbstractForce,
370  AbstractForce(uLabel, SD.pNode, pDC, fOut));
371  } break;
372
373  case ABSTRACTINTERNAL: {
374  /* tabella delle parole chiave */
375  KeyTable KDof(HP, psReadNodesNodes);
376  ScalarDof SD1 = ReadScalarDof(pDM, HP, true, false);
377  ScalarDof SD2 = ReadScalarDof(pDM, HP, true, false);
378  DriveCaller* pDC = HP.GetDriveCaller();
379  flag fOut = pDM->fReadOutput(HP, Elem::FORCE);
380
381  SAFENEWWITHCONSTRUCTOR(pEl,
382  AbstractInternalForce,
383  AbstractInternalForce(uLabel, SD1.pNode, SD2.pNode, pDC, fOut));
384  } break;
385
386  case EXTERNALSTRUCTURAL:
387  pEl = ReadStructExtForce(pDM, HP, uLabel);
388  break;
389
390  case EXTERNALSTRUCTURALMAPPING:
391  pEl = ReadStructMappingExtForce(pDM, HP, uLabel);
392  break;
393
394  case MODALFORCE:
395  pEl = ReadModalForce(pDM, HP, uLabel);
396  break;
397
398  case EXTERNALMODAL:
399  pEl = ReadModalExtForce(pDM, HP, uLabel);
400  break;
401
402  case EXTERNALMODALMAPPING:
403  pEl = ReadModalMappingExtForce(pDM, HP, uLabel);
404  break;
405
406  case ABSOLUTEDISPLACEMENT:
407  pEl = ReadStructuralForce(pDM, HP, uLabel, true, bCouple, false, false);
408  break;
409
410  case CONSERVATIVE:
411  case MB_ABSOLUTE:
412  pEl = ReadStructuralForce(pDM, HP, uLabel, false, bCouple, false, false);
413  break;
414
415  case FOLLOWER:
416  pEl = ReadStructuralForce(pDM, HP, uLabel, false, bCouple, true, false);
417  break;
418
419  case ABSOLUTEINTERNALDISPLACEMENT:
420  pEl = ReadStructuralForce(pDM, HP, uLabel, true, bCouple, false, true);
421  break;
422
423  case CONSERVATIVEINTERNAL:
424  case ABSOLUTEINTERNAL:
425  pEl = ReadStructuralForce(pDM, HP, uLabel, false, bCouple, false, true);
426  break;
427
428  case FOLLOWERINTERNAL:
429  pEl = ReadStructuralForce(pDM, HP, uLabel, false, bCouple, true, true);
430  break;
431
432  case TOTAL:
433  case TOTALINTERNAL: {
434  /* nodo collegato 1 */
435  const StructNode* pNode1 = pDM->ReadNode<const StructNode, Node::STRUCTURAL>(HP);
436
437  Vec3 f1(Zero3);
438  Mat3x3 R1h(Eye3);
439  Mat3x3 R1hr(Eye3);
440
441  ReferenceFrame RF(pNode1);
442
443  if (HP.IsKeyWord("position")) {
444  f1 = HP.GetPosRel(ReferenceFrame(pNode1));
445  }
446
447  if (HP.IsKeyWord("force" "orientation")) {
448  DEBUGCOUT("Force orientation matrix is supplied" << std::endl);
449  R1h = HP.GetRotRel(RF);
450  }
451
452  if (HP.IsKeyWord("moment" "orientation")) {
453  DEBUGCOUT("Moment orientation matrix is supplied" << std::endl);
454  R1hr = HP.GetRotRel(RF);
455  }
456
457  const StructNode* pNode2 = 0;
458  Vec3 f2(Zero3);
459  Mat3x3 R2h(Eye3);
460  Mat3x3 R2hr(Eye3);
461
462  if (CurrType == TOTALINTERNAL) {
463  /* nodo collegato 2 */
464  pNode2 = pDM->ReadNode<const StructNode, Node::STRUCTURAL>(HP);
465
466  RF = ReferenceFrame(pNode2);
467
468  if (HP.IsKeyWord("position")) {
469  f2 = HP.GetPosRel(ReferenceFrame(pNode2));
470  }
471
472  if (HP.IsKeyWord("force" "orientation")) {
473  DEBUGCOUT("Force orientation matrix is supplied" << std::endl);
474  R2h = HP.GetRotRel(RF);
475  }
476
477  if (HP.IsKeyWord("moment" "orientation")) {
478  DEBUGCOUT("Moment orientation matrix is supplied" << std::endl);
479  R2hr = HP.GetRotRel(RF);
480  }
481  }
482
483  TplDriveCaller<Vec3>* pFDC = 0;
484  if (HP.IsKeyWord("force")) {
485  if (!HP.IsKeyWord("null")) {
486  pFDC = ReadDC3D(pDM, HP);
487  }
488  }
489
490  if (pFDC == 0) {
491  SAFENEW(pFDC, ZeroTplDriveCaller<Vec3>);
492  }
493
494  TplDriveCaller<Vec3>* pMDC = 0;
495  if (HP.IsKeyWord("moment")) {
496  if (!HP.IsKeyWord("null")) {
497  pMDC = ReadDC3D(pDM, HP);
498  }
499  }
500
501  if (pMDC == 0) {
502  SAFENEW(pMDC, ZeroTplDriveCaller<Vec3>);
503  }
504
505  flag fOut = pDM->fReadOutput(HP, Elem::FORCE);
506
507  switch (CurrType) {
508  case TOTALINTERNAL:
509  SAFENEWWITHCONSTRUCTOR(pEl,
510  TotalForce,
511  TotalForce(uLabel,
512  pFDC,
513  pMDC,
514  pNode1, f1, R1h, R1hr,
515  pNode2, f2, R2h, R2hr,
516  fOut));
517  break;
518
519  default:
520  silent_cerr("total force not implemented yet at line " << HP.GetLineData() << "; use a \"force\" and a \"couple\" element instead" << std::endl);
521  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
522  }
523  } break;
524
525  default:
526  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
527  }
528
529  /* Se non c'e' il punto e virgola finale */
530  if (HP.IsArg()) {
531  silent_cerr("Force(" << uLabel << "): "
532  "semicolon expected at line " << HP.GetLineData()
533  << std::endl);
534  throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
535  }
536
537  return pEl;
538 } /* End of ReadForce() */
DataManager::fReadOutput
flag fReadOutput(MBDynParser &HP, const T &t) const
Definition: dataman.h:1064
ScalarDof::pNode
ScalarNode * pNode
Definition: node.h:708
MBDynParser::GetRotRel
Mat3x3 GetRotRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1795
Zero3
const Vec3 Zero3(0., 0., 0.)
flag
long int flag
Definition: mbdyn.h:43
psReadNodesNodes
const char * psReadNodesNodes[]
Definition: enums.cc:398
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Vec3
Definition: matvec3.h:98
ReadModalExtForce
Elem * ReadModalExtForce(DataManager *pDM, MBDynParser &HP, unsigned int uLabel)
Definition: modalext.cc:589
Eye3
const Mat3x3 Eye3(1., 0., 0., 0., 1., 0., 0., 0., 1.)
ReadModalMappingExtForce
Elem * ReadModalMappingExtForce(DataManager *pDM, MBDynParser &HP, unsigned int uLabel)
Definition: modalmappingext.cc:584
ReadStructExtForce
Elem * ReadStructExtForce(DataManager *pDM, MBDynParser &HP, unsigned int uLabel)
Definition: strext.cc:1352
ReadModalForce
Elem * ReadModalForce(DataManager *pDM, MBDynParser &HP, unsigned int uLabel)
Definition: modalforce.cc:145
ReadDC3D
TplDriveCaller< Vec3 > * ReadDC3D(const DataManager *pDM, MBDynParser &HP)
Definition: tpldrive_impl.cc:830
SAFENEW
#define SAFENEW(pnt, item)
Definition: mynewmem.h:695
MBDynParser::GetPosRel
Vec3 GetPosRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1331
HighParser::IsKeyWord
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
KeyWords
KeyWords
Definition: dataman4.cc:94
SAFENEWWITHCONSTRUCTOR
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698
HighParser::IsArg
virtual bool IsArg(void)
Definition: parser.cc:807
Elem
Definition: elem.h:75
HighParser::GetWord
virtual int GetWord(void)
Definition: parser.cc:1083
MBDynParser::GetDriveCaller
DriveCaller * GetDriveCaller(bool bDeferred=false)
Definition: mbpar.cc:2033
ReadStructMappingExtForce
Elem * ReadStructMappingExtForce(DataManager *pDM, MBDynParser &HP, unsigned int uLabel)
Definition: strmappingext.cc:1804
ReadStructuralForce
Elem * ReadStructuralForce(DataManager *pDM, MBDynParser &HP, unsigned int uLabel, bool bDisp, bool bCouple, bool bFollower, bool bInternal)
Definition: strforce.cc:2713
IncludeParser::GetLineData
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697
DataManager::ReadNode
Node * ReadNode(MBDynParser &HP, Node::Type type) const
Definition: dataman3.cc:2309
ReadScalarDof
ScalarDof ReadScalarDof(const DataManager *pDM, MBDynParser &HP, bool bDof, bool bOrder)
Definition: dataman3.cc:2423

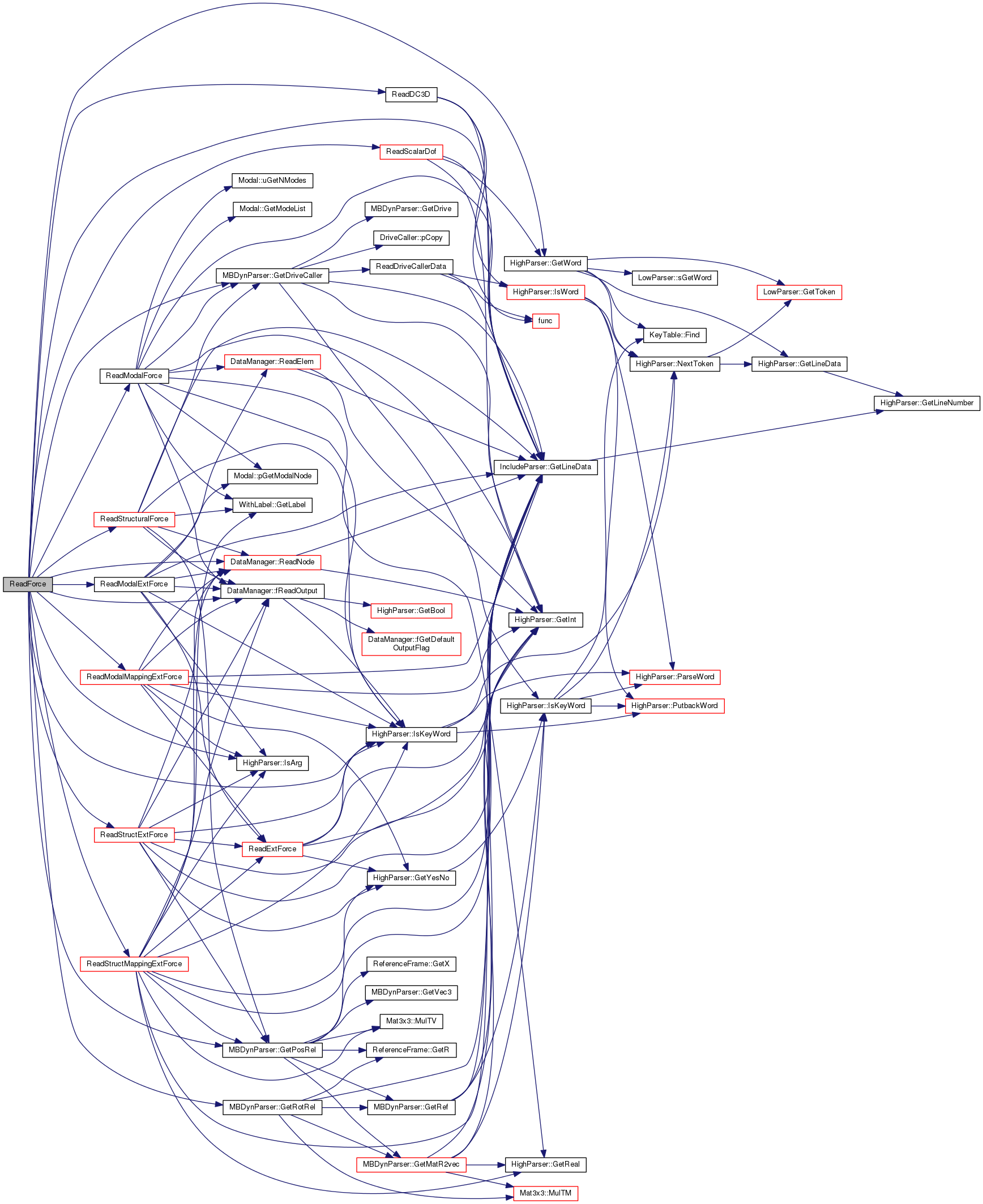

Here is the call graph for this function:
