#include <thermalresistance.h>

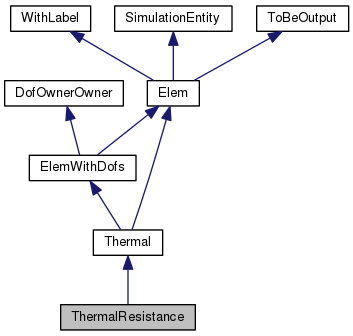

Inheritance diagram for ThermalResistance:

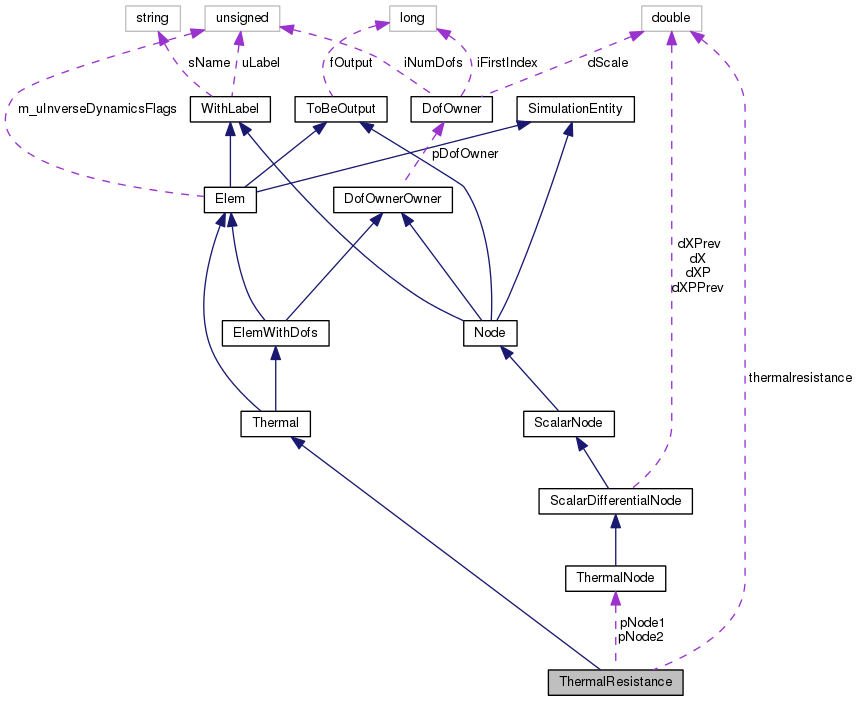

Collaboration diagram for ThermalResistance:

Public Member Functions
	ThermalResistance (unsigned int uL, const DofOwner pDO, const ThermalNode p1, const ThermalNode *p2, doublereal r, flag fOut)

	~ThermalResistance (void)

virtual Thermal::Type	GetThermalType (void) const

virtual void	WorkSpaceDim (integer piNumRows, integer piNumCols) const

VariableSubMatrixHandler &	AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

SubVectorHandler &	AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

Public Member Functions inherited from Thermal
	Thermal (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual	~Thermal (void)

virtual std::ostream &	Restart (std::ostream &out) const

virtual Elem::Type	GetElemType (void) const

Public Member Functions inherited from Elem
	Elem (unsigned int uL, flag fOut)

virtual	~Elem (void)

virtual unsigned int	iGetNumDof (void) const

virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order	GetDofType (unsigned int) const

virtual void	AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual bool	bInverseDynamics (void) const

void	SetInverseDynamicsFlags (unsigned uIDF)

unsigned	GetInverseDynamicsFlags (void) const

bool	bIsErgonomy (void) const

bool	bIsRightHandSide (void) const

virtual VariableSubMatrixHandler &	AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler &	AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual int	GetNumConnectedNodes (void) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)

virtual	~SimulationEntity (void)

virtual bool	bIsValidIndex (unsigned int i) const

virtual DofOrder::Order	GetEqType (unsigned int i) const

virtual void	SetValue (DataManager pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints h=0)

virtual Hint *	ParseHint (DataManager pDM, const char s) const

virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int	iGetNumPrivData (void) const

virtual unsigned int	iGetPrivDataIdx (const char *s) const

virtual doublereal	dGetPrivData (unsigned int i) const

virtual std::ostream &	OutputAppend (std::ostream &out) const

virtual void	ReadInitialState (MBDynParser &HP)

Public Member Functions inherited from ToBeOutput
	ToBeOutput (flag fOut=fDefaultOut)

virtual	~ToBeOutput (void)

virtual void	OutputPrepare (OutputHandler &OH)

virtual void	Output (OutputHandler &OH) const

virtual void	Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag	fToBeOutput (void) const

virtual bool	bToBeOutput (void) const

virtual void	SetOutputFlag (flag f=flag(1))

Public Member Functions inherited from ElemWithDofs
	ElemWithDofs (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual	~ElemWithDofs (void)

Public Member Functions inherited from DofOwnerOwner
	DofOwnerOwner (const DofOwner *pDO)

virtual	~DofOwnerOwner ()

virtual const DofOwner *	pGetDofOwner (void) const

virtual integer	iGetFirstIndex (void) const

virtual void	SetInitialValue (VectorHandler &X)

Private Attributes
const ThermalNode *	pNode1

const ThermalNode *	pNode2

doublereal	thermalresistance

Additional Inherited Members
Public Types inherited from Thermal
enum	Type { UNKNOWN = -1, THERMALRESISTANCE = 0, THERMALCAPACITANCE, THERMALSOURCE, LASTTHERMLATYPE }

Public Types inherited from Elem
enum	Type { UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL, GRAVITY, BODY, JOINT, JOINT_REGULARIZATION, BEAM, PLATE, FORCE, INERTIA, ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC, BULK, LOADABLE, DRIVEN, EXTERNAL, AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT, RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE }

Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints

Public Types inherited from ToBeOutput
enum	{ OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Protected Attributes inherited from ToBeOutput
flag	fOutput

Detailed Description

Definition at line 7 of file thermalresistance.h.

Constructor & Destructor Documentation

ThermalResistance::ThermalResistance	(	unsigned int	uL,
		const DofOwner *	pDO,
		const ThermalNode *	p1,
		const ThermalNode *	p2,
		doublereal	r,
		flag	fOut
	)

Definition at line 6 of file thermalresistance.cc.

References NO_OP.

                                  :
 Elem(uL, fOut),
 Thermal(uL, pDO, fOut),
 pNode1(p1),
 pNode2(p2),
 thermalresistance(r) {
         NO_OP;
 };

ThermalResistance::~ThermalResistance ( void )

Definition at line 19 of file thermalresistance.cc.

19 {};

Member Function Documentation

VariableSubMatrixHandler & ThermalResistance::AssJac	(	VariableSubMatrixHandler &	WorkMat,
		doublereal	dCoef,
		const VectorHandler &	XCurr,
		const VectorHandler &	XPrimeCurr
	)

virtual

Implements Elem.

Definition at line 32 of file thermalresistance.cc.

References FullSubMatrixHandler::DecCoef(), Node::iGetFirstColIndex(), Node::iGetFirstRowIndex(), FullSubMatrixHandler::IncCoef(), pNode1, pNode2, FullSubMatrixHandler::PutColIndex(), FullSubMatrixHandler::PutRowIndex(), FullSubMatrixHandler::ResizeReset(), VariableSubMatrixHandler::SetFull(), thermalresistance, and WorkSpaceDim().

                                                                  {
         /* Setta la sottomatrice come piena (e' un po' dispersivo, ma lo jacobiano
          * e' complicato */
         FullSubMatrixHandler& WM = WorkMat.SetFull();

         /* Ridimensiona la sottomatrice in base alle esigenze */
         integer iNumRows = 0;
         integer iNumCols = 0;

         WorkSpaceDim(&iNumRows, &iNumCols);
         WM.ResizeReset(iNumRows, iNumCols);

         integer iNode1RowIndex = pNode1->iGetFirstRowIndex() + 1;
         integer iNode2RowIndex = pNode2->iGetFirstRowIndex() + 1;
         integer iNode1ColIndex = pNode1->iGetFirstColIndex() + 1;
         integer iNode2ColIndex = pNode2->iGetFirstColIndex() + 1;

         WM.PutRowIndex(1, iNode1RowIndex);
         WM.PutColIndex(1, iNode1ColIndex);
         WM.PutRowIndex(2, iNode2RowIndex);
         WM.PutColIndex(2, iNode2ColIndex);

         doublereal ri = 1. / thermalresistance * dCoef;

         WM.IncCoef(1, 1, ri);
         WM.DecCoef(1, 2, ri);
         WM.DecCoef(2, 1, ri);
         WM.IncCoef(2, 2, ri);

         return WorkMat;
 };

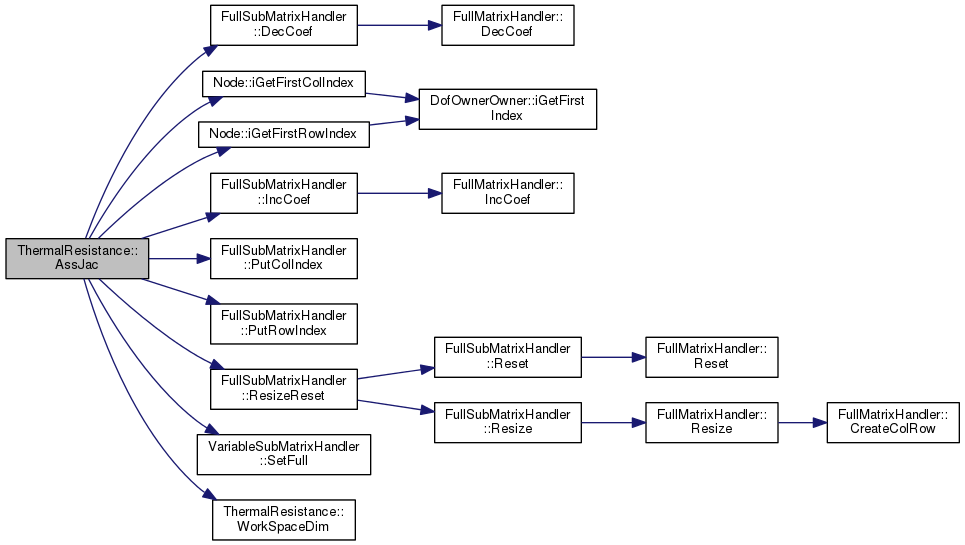

Here is the call graph for this function:

SubVectorHandler & ThermalResistance::AssRes	(	SubVectorHandler &	WorkVec,
		doublereal	dCoef,
		const VectorHandler &	XCurr,
		const VectorHandler &	XPrimeCurr
	)

virtual

Implements Elem.

Definition at line 67 of file thermalresistance.cc.

References VectorHandler::DecCoef(), ScalarDifferentialNode::dGetX(), Node::iGetFirstRowIndex(), VectorHandler::IncCoef(), pNode1, pNode2, SubVectorHandler::PutRowIndex(), VectorHandler::ResizeReset(), thermalresistance, and WorkSpaceDim().

                                                          {
         integer iNumRows = 0;
         integer iNumCols = 0;
         WorkSpaceDim(&iNumRows, &iNumCols);
         WorkVec.ResizeReset(iNumRows);

         /* Indici */
         integer iNode1RowIndex = pNode1->iGetFirstRowIndex() + 1;
         integer iNode2RowIndex = pNode2->iGetFirstRowIndex() + 1;

         WorkVec.PutRowIndex(1, iNode1RowIndex);
         WorkVec.PutRowIndex(2, iNode2RowIndex);

         double t1 = pNode1->dGetX();
         double t2 = pNode2->dGetX();

         doublereal q21 = (t2 - t1) / thermalresistance;

         WorkVec.IncCoef(1, q21);
         WorkVec.DecCoef(2, q21);

         return WorkVec;
 };

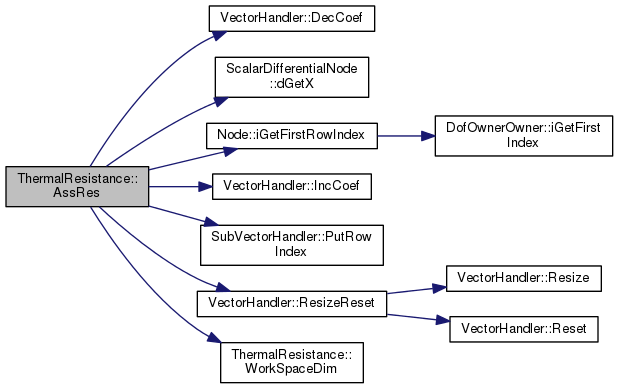

Here is the call graph for this function:

void ThermalResistance::GetConnectedNodes ( std::vector< const Node * > & connectedNodes ) const

virtual

Reimplemented from Elem.

Definition at line 105 of file thermalresistance.cc.

References pNode1, and pNode2.

                                                                                        {
      connectedNodes.resize(2);
      connectedNodes[0] = pNode1;
      connectedNodes[1] = pNode2;
 };

Thermal::Type ThermalResistance::GetThermalType ( void ) const

virtual

Implements Thermal.

Definition at line 22 of file thermalresistance.cc.

References Thermal::THERMALRESISTANCE.

                                                         {
         return THERMALRESISTANCE;
 };

void ThermalResistance::WorkSpaceDim	(	integer *	piNumRows,
		integer *	piNumCols
	)		const

virtual

Implements Elem.

Definition at line 26 of file thermalresistance.cc.

Referenced by AssJac(), and AssRes().

                                                                                  {
         *piNumRows = 2;
         *piNumCols = 2;
 };

Member Data Documentation

const ThermalNode* ThermalResistance::pNode1

private

Definition at line 9 of file thermalresistance.h.

Referenced by AssJac(), AssRes(), and GetConnectedNodes().

const ThermalNode* ThermalResistance::pNode2

private

Definition at line 10 of file thermalresistance.h.

Referenced by AssJac(), AssRes(), and GetConnectedNodes().

doublereal ThermalResistance::thermalresistance

private

Definition at line 11 of file thermalresistance.h.

Referenced by AssJac(), and AssRes().

The documentation for this class was generated from the following files:
