#include <therm.h>

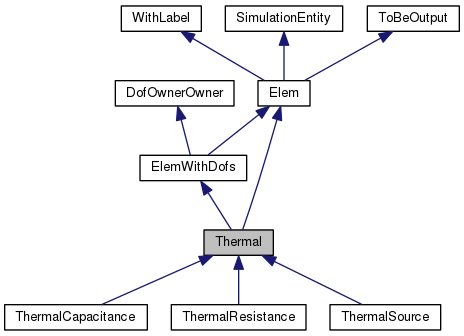

Inheritance diagram for Thermal:

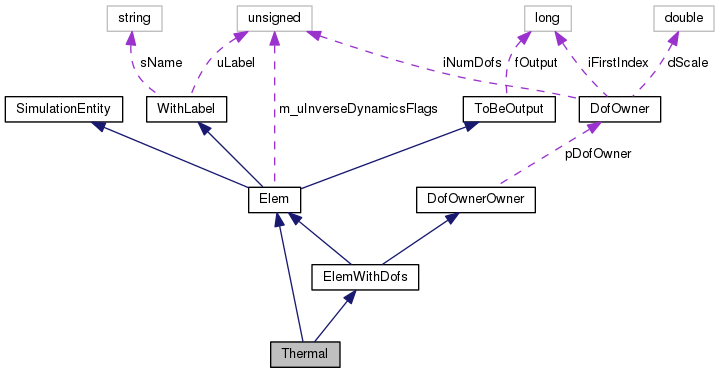

Collaboration diagram for Thermal:

Public Types
enum	Type { UNKNOWN = -1, THERMALRESISTANCE = 0, THERMALCAPACITANCE, THERMALSOURCE, LASTTHERMLATYPE }

Public Types inherited from Elem
enum	Type { UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL, GRAVITY, BODY, JOINT, JOINT_REGULARIZATION, BEAM, PLATE, FORCE, INERTIA, ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC, BULK, LOADABLE, DRIVEN, EXTERNAL, AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT, RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE }

Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints

Public Types inherited from ToBeOutput
enum	{ OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

Public Member Functions
	Thermal (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual	~Thermal (void)

virtual std::ostream &	Restart (std::ostream &out) const

virtual Elem::Type	GetElemType (void) const

virtual Thermal::Type	GetThermalType (void) const =0

Public Member Functions inherited from Elem
	Elem (unsigned int uL, flag fOut)

virtual	~Elem (void)

virtual unsigned int	iGetNumDof (void) const

virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order	GetDofType (unsigned int) const

virtual void	WorkSpaceDim (integer piNumRows, integer piNumCols) const =0

virtual void	AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual SubVectorHandler &	AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)=0

virtual VariableSubMatrixHandler &	AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)=0

virtual bool	bInverseDynamics (void) const

void	SetInverseDynamicsFlags (unsigned uIDF)

unsigned	GetInverseDynamicsFlags (void) const

bool	bIsErgonomy (void) const

bool	bIsRightHandSide (void) const

virtual VariableSubMatrixHandler &	AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler &	AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual int	GetNumConnectedNodes (void) const

virtual void	GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)

virtual	~SimulationEntity (void)

virtual bool	bIsValidIndex (unsigned int i) const

virtual DofOrder::Order	GetEqType (unsigned int i) const

virtual void	SetValue (DataManager pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints h=0)

virtual Hint *	ParseHint (DataManager pDM, const char s) const

virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int	iGetNumPrivData (void) const

virtual unsigned int	iGetPrivDataIdx (const char *s) const

virtual doublereal	dGetPrivData (unsigned int i) const

virtual std::ostream &	OutputAppend (std::ostream &out) const

virtual void	ReadInitialState (MBDynParser &HP)

Public Member Functions inherited from ToBeOutput
	ToBeOutput (flag fOut=fDefaultOut)

virtual	~ToBeOutput (void)

virtual void	OutputPrepare (OutputHandler &OH)

virtual void	Output (OutputHandler &OH) const

virtual void	Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag	fToBeOutput (void) const

virtual bool	bToBeOutput (void) const

virtual void	SetOutputFlag (flag f=flag(1))

Public Member Functions inherited from ElemWithDofs
	ElemWithDofs (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual	~ElemWithDofs (void)

Public Member Functions inherited from DofOwnerOwner
	DofOwnerOwner (const DofOwner *pDO)

virtual	~DofOwnerOwner ()

virtual const DofOwner *	pGetDofOwner (void) const

virtual integer	iGetFirstIndex (void) const

virtual void	SetInitialValue (VectorHandler &X)

Additional Inherited Members
Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Protected Attributes inherited from ToBeOutput
flag	fOutput

Detailed Description

Definition at line 40 of file therm.h.

Member Enumeration Documentation

enum Thermal::Type

Enumerator
UNKNOWN
THERMALRESISTANCE
THERMALCAPACITANCE
THERMALSOURCE
LASTTHERMLATYPE

Definition at line 43 of file therm.h.

              {
       UNKNOWN = -1,

       THERMALRESISTANCE = 0,
       THERMALCAPACITANCE,
       THERMALSOURCE,

       LASTTHERMLATYPE
    };

Constructor & Destructor Documentation

Thermal::Thermal	(	unsigned int	uL,
		const DofOwner *	pDO,
		flag	fOut
	)

Definition at line 45 of file therm.cc.

References NO_OP.

 : Elem(uL, fOut),
 ElemWithDofs(uL, pDO, fOut)
 {
         NO_OP;
 }

Thermal::~Thermal ( void )

virtual

Definition at line 54 of file therm.cc.

References NO_OP.

 {
         NO_OP;
 }

Member Function Documentation

Elem::Type Thermal::GetElemType ( void ) const

virtual

Implements Elem.

Definition at line 69 of file therm.cc.

References Elem::THERMAL.

 {
         return Elem::THERMAL;
 }

virtual Thermal::Type Thermal::GetThermalType ( void ) const

pure virtual

Implemented in ThermalResistance, ThermalCapacitance, and ThermalSource.

std::ostream & Thermal::Restart ( std::ostream & out ) const

virtual

Implements Elem.

Definition at line 63 of file therm.cc.

References WithLabel::GetLabel().

                                                   {
         return out << "  thermal: " << GetLabel();
 }

Here is the call graph for this function:

The documentation for this class was generated from the following files:
