Tank Class Reference

#include <hutils.h>

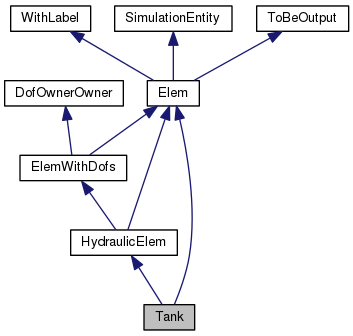

Inheritance diagram for Tank:
Inheritance graph
[legend]

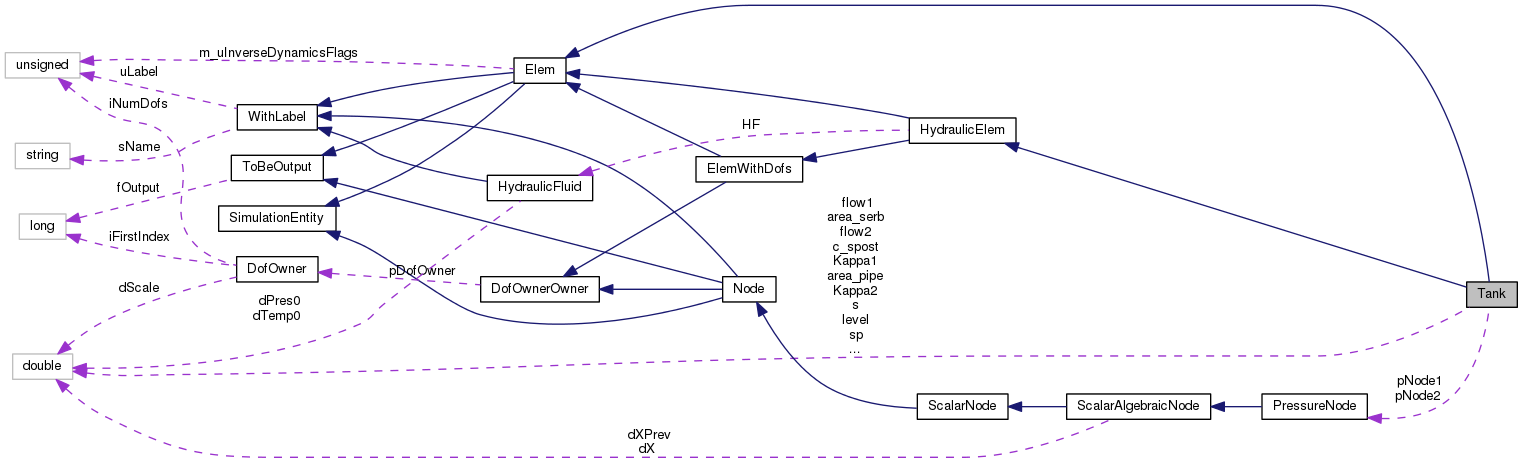

Collaboration diagram for Tank:
Collaboration graph
[legend]

Public Member Functions

 Tank (unsigned int uL, const DofOwner *pD, HydraulicFluid *hf, const PressureNode *p1, const PressureNode *p2, doublereal press, doublereal A_pipe, doublereal A_serb, doublereal lev, doublereal s_mx, doublereal s_mn, doublereal c_s, flag fOut)

 ~Tank (void)

virtual HydraulicElem::Type GetHydraulicType (void) const

virtual std::ostream & Restart (std::ostream &out) const

virtual unsigned int iGetNumDof (void) const

virtual DofOrder::Order GetDofType (unsigned int i) const

virtual void WorkSpaceDim (integer *piNumRows, integer *piNumCols) const

VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

SubVectorHandler & AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Output (OutputHandler &OH) const

virtual void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph=0)

virtual void GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

- Public Member Functions inherited from Elem
 Elem (unsigned int uL, flag fOut)

virtual ~Elem (void)

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual void AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual bool bInverseDynamics (void) const

void SetInverseDynamicsFlags (unsigned uIDF)

unsigned GetInverseDynamicsFlags (void) const

bool bIsErgonomy (void) const

bool bIsRightHandSide (void) const

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler & AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual int GetNumConnectedNodes (void) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual Hint * ParseHint (DataManager *pDM, const char *s) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))

- Public Member Functions inherited from HydraulicElem
 HydraulicElem (unsigned int uL, const DofOwner *pDO, HydraulicFluid *hf, flag fOut)

virtual ~HydraulicElem (void)

virtual Elem::Type GetElemType (void) const

- Public Member Functions inherited from ElemWithDofs
 ElemWithDofs (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~ElemWithDofs (void)

- Public Member Functions inherited from DofOwnerOwner
 DofOwnerOwner (const DofOwner *pDO)

virtual ~DofOwnerOwner ()

virtual const DofOwner * pGetDofOwner (void) const

virtual integer iGetFirstIndex (void) const

virtual void SetInitialValue (VectorHandler &X)


Private Attributes

const PressureNode * pNode1

const PressureNode * pNode2

doublereal press

doublereal area_pipe

doublereal area_serb

doublereal level

doublereal s_max

doublereal s_min

doublereal Kappa1

doublereal Kappa2

doublereal c_spost

doublereal s

doublereal sp

doublereal flow1

doublereal flow2


Additional Inherited Members

- Public Types inherited from Elem
enum  Type {
  UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL,
  GRAVITY, BODY, JOINT, JOINT_REGULARIZATION,
  BEAM, PLATE, FORCE, INERTIA,
  ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC,
  BULK, LOADABLE, DRIVEN, EXTERNAL,
  AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT,
  RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE
}

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Public Types inherited from HydraulicElem
enum  Type {
  UNKNOWN = -1, MINOR_LOSS = 0, THREEWAYMINORLOSS, CONTROL_VALVE,
  DYNAMIC_CONTROL_VALVE, PRESSURE_FLOW_CONTROL_VALVE, PRESSURE_VALVE, FLOW_VALVE,
  ORIFICE, ACCUMULATOR, TANK, PIPE,
  DYNAMIC_PIPE, HYDRAULIC_ACTUATOR, ACTUATOR, LASTHYDRAULICTYPE
}

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput

- Protected Attributes inherited from HydraulicElem
HydraulicFluid * HF


Detailed Description

Definition at line 139 of file hutils.h.

Constructor & Destructor Documentation

Tank::Tank ( unsigned int  uL,
const DofOwner *  pD,
HydraulicFluid *  hf,
const PressureNode *  p1,
const PressureNode *  p2,
doublereal  press,
doublereal  A_pipe,
doublereal  A_serb,
doublereal  lev,
doublereal  s_mx,
doublereal  s_mn,
doublereal  c_s,
flag  fOut
)

Definition at line 393 of file hutils.cc.

References ASSERT, PressureNode::GetNodeType(), Node::HYDRAULIC, Kappa1, Kappa2, pNode1, and pNode2.

398 : Elem(uL, fOut),
399 HydraulicElem(uL, pDO, hf, fOut),
400 pNode1(p1), pNode2(p2),
401 press(Ps), area_pipe(A_pipe), area_serb(A_serb),level(lev),
402 s_max(s_mx), s_min(s_mn), c_spost(c_s)
403 {
404  ASSERT(pNode1 != NULL);
405  ASSERT(pNode1->GetNodeType() == Node::HYDRAULIC);
406  ASSERT(pNode2 != NULL);
407  ASSERT(pNode2->GetNodeType() == Node::HYDRAULIC);
408  ASSERT(Ps > std::numeric_limits<doublereal>::epsilon());
409  ASSERT(A_pipe > std::numeric_limits<doublereal>::epsilon());
410  ASSERT(A_serb > std::numeric_limits<doublereal>::epsilon());
411  ASSERT(lev >= 0.);
412  ASSERT(s_mx >= 0.);
413  ASSERT(s_mn >= 0.);
414
415  Kappa1 = 1.;
416  Kappa2 = .5;
417 }
Tank::area_serb
doublereal area_serb
Definition: hutils.h:145
Tank::press
doublereal press
Definition: hutils.h:143
Tank::pNode2
const PressureNode * pNode2
Definition: hutils.h:142
Tank::level
doublereal level
Definition: hutils.h:146
Tank::Kappa2
doublereal Kappa2
Definition: hutils.h:150
HydraulicElem::HydraulicElem
HydraulicElem(unsigned int uL, const DofOwner *pDO, HydraulicFluid *hf, flag fOut)
Definition: preselem.cc:54
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
Tank::c_spost
doublereal c_spost
Definition: hutils.h:151
Tank::pNode1
const PressureNode * pNode1
Definition: hutils.h:141
Tank::s_max
doublereal s_max
Definition: hutils.h:147
PressureNode::GetNodeType
virtual Node::Type GetNodeType(void) const
Definition: presnode.h:54
Tank::s_min
doublereal s_min
Definition: hutils.h:148
Elem::Elem
Elem(unsigned int uL, flag fOut)
Definition: elem.cc:41
Tank::Kappa1
doublereal Kappa1
Definition: hutils.h:149
Tank::area_pipe
doublereal area_pipe
Definition: hutils.h:144

Here is the call graph for this function:

Tank::~Tank ( void  )

Definition at line 420 of file hutils.cc.

References NO_OP.

421 {
422  NO_OP;
423 }
NO_OP
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

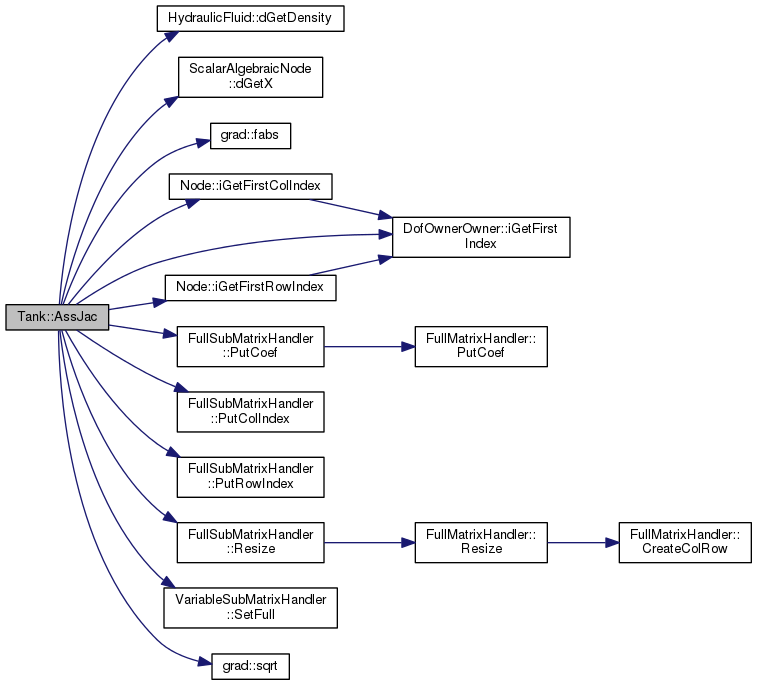

VariableSubMatrixHandler & Tank::AssJac ( VariableSubMatrixHandler &  WorkMat,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 466 of file hutils.cc.

References area_pipe, area_serb, c_spost, DEBUGCOUT, HydraulicFluid::dGetDensity(), ScalarAlgebraicNode::dGetX(), grad::fabs(), flow1, flow2, HydraulicElem::HF, Node::iGetFirstColIndex(), DofOwnerOwner::iGetFirstIndex(), Node::iGetFirstRowIndex(), Kappa1, Kappa2, pNode1, pNode2, press, FullSubMatrixHandler::PutCoef(), FullSubMatrixHandler::PutColIndex(), FullSubMatrixHandler::PutRowIndex(), FullSubMatrixHandler::Resize(), s, s_max, s_min, VariableSubMatrixHandler::SetFull(), and grad::sqrt().

470 {
471  DEBUGCOUT("Entering Tank::AssJac()" << std::endl);
472
473  FullSubMatrixHandler& WM = WorkMat.SetFull();
474  WM.Resize(3, 3);
475
476  integer iNode1RowIndex = pNode1->iGetFirstRowIndex()+1;
477  integer iNode2RowIndex = pNode2->iGetFirstRowIndex()+1;
478  integer iNode1ColIndex = pNode1->iGetFirstColIndex()+1;
479  integer iNode2ColIndex = pNode2->iGetFirstColIndex()+1;
480  integer iFirstIndex = iGetFirstIndex();
481
482  WM.PutRowIndex(1, iNode1RowIndex);
483  WM.PutRowIndex(2, iNode2RowIndex);
484  WM.PutColIndex(1, iNode1ColIndex);
485  WM.PutColIndex(2, iNode2ColIndex);
486
487  WM.PutRowIndex(3, iFirstIndex+1);
488  WM.PutColIndex(3, iFirstIndex+1);
489
490  doublereal p1 = pNode1->dGetX();
491  doublereal p2 = pNode2->dGetX();
492  /* p1 = XCurr(pNode1->iGetFirstRowIndex()+1); */
493
494  s = XCurr(iFirstIndex+1); /* livello */
495
496  /* salto di pressione nodo1-Tank */
497  doublereal jumpPres1S = fabs(p1-press);
498  /* evito di dividere per un numero troppo piccolo */
499  if (jumpPres1S < 1.e8*std::numeric_limits<doublereal>::epsilon()) {
500  jumpPres1S = 1.e8*std::numeric_limits<doublereal>::epsilon();
501  }
502
503  /* salto di pressione Tank-nodo2 */
504  doublereal jumpPresS2 = fabs(press-p2);
505  /* evito di dividere per un numero troppo piccolo */
506  if (jumpPresS2 < 1.e8*std::numeric_limits<doublereal>::epsilon()) {
507  jumpPresS2 = 1.e8*std::numeric_limits<doublereal>::epsilon();
508  }
509  doublereal density = HF->dGetDensity((p1+p2)/2.);
510
511  doublereal Jac11 = -.5*density*area_pipe*sqrt(2./(Kappa1*density*jumpPres1S));
512  doublereal Jac12 = 0.;
513  doublereal Jac13 = 0.;
514
515  doublereal Jac21 = 0.;
516  doublereal Jac22 = -.5*density*area_pipe*sqrt(2./(Kappa2*density*jumpPresS2));
517  doublereal Jac23 = 0.;
518
519  doublereal Jac31 = .5*area_pipe/area_serb*sqrt(2./(Kappa1*density*jumpPres1S));
520  doublereal Jac32 = .5*area_pipe/area_serb*sqrt(2./(Kappa2*density*jumpPresS2));
521  doublereal Jac33 = -1.-c_spost*dCoef;
522
523  if(s < s_min) {
524  /* Livello dell'olio sotto la soglia minima:
525  * esco dalla presa di emergenza */
526 #ifdef HYDR_DEVEL
527  DEBUGCOUT("Jac Esco dalla presa di emergenza: " << std::endl);
528 #endif
529  }
530  if (s > s_max && -flow1 > flow2) {
531  /* se e' pieno non puo' entrare di piu' di quella che esce */
532  Jac31 = Jac32 = 0.;
533 #ifdef HYDR_DEVEL
534  DEBUGCOUT("Jac Serbatoio pieno : " << std::endl);
535 #endif
536  }
537
538  if (s < 0. && flow2 > -flow1) {
539  /* se e' vuoto non puo' uscire di piu' di quella che entra */
540  Jac31 = Jac32 = 0.;
541 #ifdef HYDR_DEVEL
542  DEBUGCOUT("Jac Serbatoio vuoto : "<< std::endl);
543 #endif
544  }
545
546  WM.PutCoef(1, 1, Jac11);
547  WM.PutCoef(1, 2, Jac12);
548  WM.PutCoef(1, 3, Jac13);
549  WM.PutCoef(2, 1, Jac21);
550  WM.PutCoef(2, 2, Jac22);
551  WM.PutCoef(2, 3, Jac23);
552  WM.PutCoef(3, 1, Jac31);
553  WM.PutCoef(3, 2, Jac32);
554  WM.PutCoef(3, 3, Jac33);
555
556  return WorkMat;
557 }
Tank::flow2
doublereal flow2
Definition: hutils.h:155
Tank::area_serb
doublereal area_serb
Definition: hutils.h:145
Tank::press
doublereal press
Definition: hutils.h:143
Tank::pNode2
const PressureNode * pNode2
Definition: hutils.h:142
FullSubMatrixHandler::PutColIndex
void PutColIndex(integer iSubCol, integer iCol)
Definition: submat.h:325
VariableSubMatrixHandler::SetFull
FullSubMatrixHandler & SetFull(void)
Definition: submat.h:1168
Tank::s
doublereal s
Definition: hutils.h:152
FullSubMatrixHandler::Resize
void Resize(integer iNewRow, integer iNewCol)
Definition: submat.cc:138
FullSubMatrixHandler::PutCoef
void PutCoef(integer iRow, integer iCol, const doublereal &dCoef)
Definition: submat.h:672
Tank::Kappa2
doublereal Kappa2
Definition: hutils.h:150
Tank::flow1
doublereal flow1
Definition: hutils.h:154
grad::fabs
GradientExpression< UnaryExpr< FuncFabs, Expr > > fabs(const GradientExpression< Expr > &u)
Definition: gradient.h:2973
HydraulicFluid::dGetDensity
virtual doublereal dGetDensity(void) const =0
ScalarAlgebraicNode::dGetX
virtual const doublereal & dGetX(void) const
Definition: node.h:492
HydraulicElem::HF
HydraulicFluid * HF
Definition: preselem.h:79
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
Node::iGetFirstRowIndex
virtual integer iGetFirstRowIndex(void) const
Definition: node.cc:82
Tank::c_spost
doublereal c_spost
Definition: hutils.h:151
grad::sqrt
GradientExpression< UnaryExpr< FuncSqrt, Expr > > sqrt(const GradientExpression< Expr > &u)
Definition: gradient.h:2974
Tank::pNode1
const PressureNode * pNode1
Definition: hutils.h:141
FullSubMatrixHandler::PutRowIndex
void PutRowIndex(integer iSubRow, integer iRow)
Definition: submat.h:311
Tank::s_max
doublereal s_max
Definition: hutils.h:147
Tank::s_min
doublereal s_min
Definition: hutils.h:148
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51
Tank::Kappa1
doublereal Kappa1
Definition: hutils.h:149
Tank::area_pipe
doublereal area_pipe
Definition: hutils.h:144
Node::iGetFirstColIndex
virtual integer iGetFirstColIndex(void) const
Definition: node.cc:88

Here is the call graph for this function:

SubVectorHandler & Tank::AssRes ( SubVectorHandler &  WorkVec,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 561 of file hutils.cc.

References area_pipe, area_serb, c_spost, copysign(), DEBUGCOUT, HydraulicFluid::dGetDensity(), ScalarAlgebraicNode::dGetX(), grad::fabs(), flow1, flow2, WithLabel::GetLabel(), HydraulicElem::HF, DofOwnerOwner::iGetFirstIndex(), Node::iGetFirstRowIndex(), Kappa1, Kappa2, level, MBDYN_EXCEPT_ARGS, pNode1, pNode2, press, SubVectorHandler::PutItem(), VectorHandler::Resize(), s, s_max, s_min, sp, and grad::sqrt().

565 {
566  DEBUGCOUT("Entering Tank::AssRes()" << std::endl);
567
568  WorkVec.Resize(3);
569
570  integer iNode1RowIndex = pNode1->iGetFirstRowIndex()+1;
571  integer iNode2RowIndex = pNode2->iGetFirstRowIndex()+1;
572
573  doublereal p1 = pNode1->dGetX();
574  doublereal p2 = pNode2->dGetX();
575
576  integer iFirstIndex = iGetFirstIndex();
577
578  s = XCurr(iFirstIndex+1); /* livello */
579  sp = XPrimeCurr(iFirstIndex+1); /* velocita' del livello */
580
581  if (s < 0.) {
582  silent_cerr("Tank(" << GetLabel() << ": negative fluid level "
583  << s << " impossible" << std::endl);
584  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
585  }
586
587  doublereal jumpPres1S = fabs(p1-press);
588  doublereal jumpPresS2 = fabs(press-p2);
589  doublereal Res_1 = 0.;
590  doublereal Res_2 = 0.;
591  doublereal Res_3 = 0.;
592  /* unused? doublereal Res_4 = 0.; */
593  c_spost = 0.;
594
595  doublereal density = HF->dGetDensity((p1+p2/2.));
596
597  Res_1 = density*area_pipe*sqrt(2./(Kappa1*density))*copysign(sqrt(jumpPres1S), p1-press);
598  Res_2 = -density*area_pipe*sqrt(2./(Kappa2*density))*copysign(sqrt(jumpPresS2), press-p2);
599
600  if (s > s_max && Res_1 > -Res_2) {
601  /* se e' pieno non puo' entrare di piu' di quella che esce */
602  Res_1 = -Res_2;
603  c_spost = 1.;
604 #ifdef HYDR_DEVEL
605  DEBUGCOUT("Res Serbatoio pieno: " << std::endl);
606 #endif
607  }
608
609  if (s <s_min) {
610  /* livello dell'olio sotto al livello minimo:
611  * esco dalla presa di emergenza */
612 #ifdef HYDR_DEVEL
613  DEBUGCOUT("Esco dalla presa di emergenza: " << std::endl);
614 #endif
615  }
616
617
618  if (s < 0. && Res_2 < -Res_1) {
619  c_spost = 0.;
620  /* se e' vuoto non puo' uscire di piu' di quella che entra */
621  Res_2 = -Res_1;
622 #ifdef HYDR_DEVEL
623  DEBUGCOUT("Res Serbatoio vuoto: " << std::endl);
624 #endif
625  }
626
627  Res_3 = sp+(-Res_1-Res_2)/(area_serb*density)+c_spost*(s-s_max);
628
629  flow1 = -Res_1; /* per l'output */
630  flow2 = -Res_2; /* per l'output */
631
632 #ifdef HYDR_DEVEL
633  DEBUGCOUT("Kappa1: " << Kappa1 << std::endl);
634  DEBUGCOUT("Kappa2: " << Kappa2 << std::endl);
635  DEBUGCOUT("jumpPres1S: " << jumpPres1S << std::endl);
636  DEBUGCOUT("jumpPresS2: " << jumpPresS2 << std::endl);
637  DEBUGCOUT("density: " << density << std::endl);
638  DEBUGCOUT("p1: " << p1 << std::endl);
639  DEBUGCOUT("p2: " << p2 << std::endl);
640  DEBUGCOUT("press: " << press << std::endl);
641  DEBUGCOUT("s: " << s << std::endl);
642  DEBUGCOUT("level: " << level << std::endl);
643  DEBUGCOUT("s_max: " << s_max << std::endl);
644  DEBUGCOUT("s_min: " << s_min << std::endl);
645  DEBUGCOUT("sp: " << sp << std::endl);
646  DEBUGCOUT("area_pipe: " << area_pipe << std::endl);
647  DEBUGCOUT("area_serb: " << area_serb << std::endl);
648  DEBUGCOUT("PORTATE AI VARI NODI (positive se entranti)" << std::endl);
649  DEBUGCOUT("-Res_1: " << -Res_1 << " (portata nodo1) " << std::endl);
650  DEBUGCOUT("-Res_2: " << -Res_2 << " (portata nodo2) " << std::endl);
651  DEBUGCOUT("Res_3: " << Res_3 << std::endl);
652 #endif
653
654  WorkVec.PutItem(1, iNode1RowIndex, Res_1);
655  WorkVec.PutItem(2, iNode2RowIndex, Res_2);
656  WorkVec.PutItem(3, iFirstIndex+1, Res_3);
657
658  return WorkVec;
659 }
Tank::flow2
doublereal flow2
Definition: hutils.h:155
Tank::area_serb
doublereal area_serb
Definition: hutils.h:145
Tank::press
doublereal press
Definition: hutils.h:143
Tank::pNode2
const PressureNode * pNode2
Definition: hutils.h:142
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Tank::s
doublereal s
Definition: hutils.h:152
Tank::level
doublereal level
Definition: hutils.h:146
Tank::Kappa2
doublereal Kappa2
Definition: hutils.h:150
Tank::flow1
doublereal flow1
Definition: hutils.h:154
grad::fabs
GradientExpression< UnaryExpr< FuncFabs, Expr > > fabs(const GradientExpression< Expr > &u)
Definition: gradient.h:2973
SubVectorHandler::PutItem
virtual void PutItem(integer iSubRow, integer iRow, const doublereal &dCoef)
Definition: submat.h:1445
HydraulicFluid::dGetDensity
virtual doublereal dGetDensity(void) const =0
ScalarAlgebraicNode::dGetX
virtual const doublereal & dGetX(void) const
Definition: node.h:492
HydraulicElem::HF
HydraulicFluid * HF
Definition: preselem.h:79
copysign
doublereal copysign(doublereal x, doublereal y)
Definition: gradient.h:97
Tank::sp
doublereal sp
Definition: hutils.h:153
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
Node::iGetFirstRowIndex
virtual integer iGetFirstRowIndex(void) const
Definition: node.cc:82
Tank::c_spost
doublereal c_spost
Definition: hutils.h:151
grad::sqrt
GradientExpression< UnaryExpr< FuncSqrt, Expr > > sqrt(const GradientExpression< Expr > &u)
Definition: gradient.h:2974
Tank::pNode1
const PressureNode * pNode1
Definition: hutils.h:141
Tank::s_max
doublereal s_max
Definition: hutils.h:147
Tank::s_min
doublereal s_min
Definition: hutils.h:148
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51
Tank::Kappa1
doublereal Kappa1
Definition: hutils.h:149
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
VectorHandler::Resize
virtual void Resize(integer iNewSize)=0
Tank::area_pipe
doublereal area_pipe
Definition: hutils.h:144

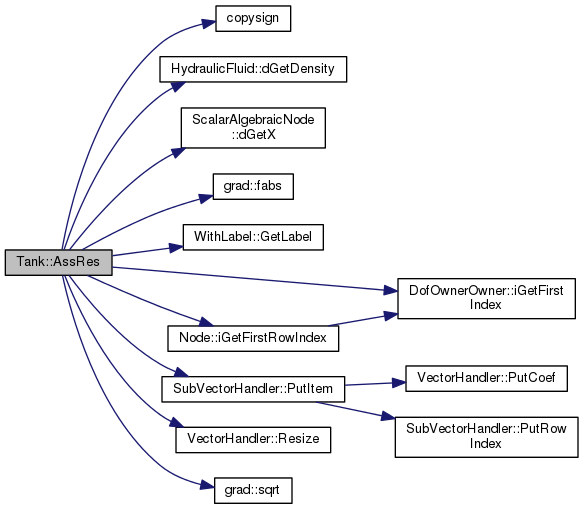

Here is the call graph for this function:

virtual void Tank::GetConnectedNodes ( std::vector< const Node * > &  connectedNodes) const
inlinevirtual

Reimplemented from Elem.

Definition at line 197 of file hutils.h.

References pNode1, and pNode2.

197  {
198  connectedNodes.resize(2);
199  connectedNodes[0] = pNode1;
200  connectedNodes[1] = pNode2;
201  };
Tank::pNode2
const PressureNode * pNode2
Definition: hutils.h:142
Tank::pNode1
const PressureNode * pNode1
Definition: hutils.h:141
DofOrder::Order Tank::GetDofType ( unsigned int  i) const
virtual

Reimplemented from Elem.

Definition at line 450 of file hutils.cc.

References ASSERT, and DofOrder::DIFFERENTIAL.

451 {
452
453  ASSERT(i >= 0 && i <= 1);
454  return DofOrder::DIFFERENTIAL;
455 }
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
HydraulicElem::Type Tank::GetHydraulicType ( void  ) const
virtual

Implements HydraulicElem.

Definition at line 428 of file hutils.cc.

References HydraulicElem::TANK.

429 {
430  return HydraulicElem::TANK;
431 }
unsigned int Tank::iGetNumDof ( void  ) const
virtual

Reimplemented from Elem.

Definition at line 443 of file hutils.cc.

444 {
445  return 1;
446 }
void Tank::Output ( OutputHandler &  OH) const
virtual

Reimplemented from ToBeOutput.

Definition at line 662 of file hutils.cc.

References ToBeOutput::bToBeOutput(), flow1, flow2, WithLabel::GetLabel(), OutputHandler::Hydraulic(), s, and sp.

663 {
664  if (bToBeOutput()) {
665  std::ostream& out = OH.Hydraulic();
666  out << std::setw(8) << GetLabel();
667  out << " " << s << " " << sp << " " << flow1 << " " << flow2 << std::endl;
668  }
669 }
Tank::flow2
doublereal flow2
Definition: hutils.h:155
ToBeOutput::bToBeOutput
virtual bool bToBeOutput(void) const
Definition: output.cc:890
Tank::s
doublereal s
Definition: hutils.h:152
Tank::flow1
doublereal flow1
Definition: hutils.h:154
Tank::sp
doublereal sp
Definition: hutils.h:153
OutputHandler::Hydraulic
std::ostream & Hydraulic(void) const
Definition: output.h:492
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62

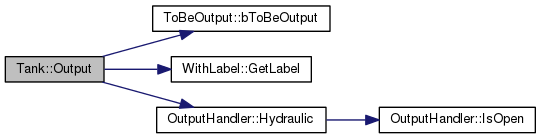

Here is the call graph for this function:

std::ostream & Tank::Restart ( std::ostream &  out) const
virtual

Implements Elem.

Definition at line 436 of file hutils.cc.

437 {
438  return out << "Tank not implemented yet!" << std::endl;
439 }
void Tank::SetValue ( DataManager *  pDM,
VectorHandler &  X,
VectorHandler &  XP,
SimulationEntity::Hints *  ph = 0
)
virtual

Reimplemented from SimulationEntity.

Definition at line 672 of file hutils.cc.

References DofOwnerOwner::iGetFirstIndex(), level, and VectorHandler::PutCoef().

675 {
676  integer i = iGetFirstIndex();
677  X.PutCoef(i+1, level);
678 }
Tank::level
doublereal level
Definition: hutils.h:146
VectorHandler::PutCoef
virtual void PutCoef(integer iRow, const doublereal &dCoef)=0
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
integer
long int integer
Definition: colamd.c:51

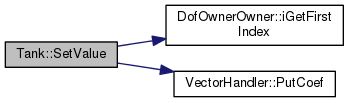

Here is the call graph for this function:

void Tank::WorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
virtual

Implements Elem.

Definition at line 459 of file hutils.cc.

459  {
460  *piNumRows = 3;
461  *piNumCols = 3;
462 }

Member Data Documentation

doublereal Tank::area_pipe
private

Definition at line 144 of file hutils.h.

Referenced by AssJac(), and AssRes().

doublereal Tank::area_serb
private

Definition at line 145 of file hutils.h.

Referenced by AssJac(), and AssRes().

doublereal Tank::c_spost
private

Definition at line 151 of file hutils.h.

Referenced by AssJac(), and AssRes().

doublereal Tank::flow1
private

Definition at line 154 of file hutils.h.

Referenced by AssJac(), AssRes(), and Output().

doublereal Tank::flow2
private

Definition at line 155 of file hutils.h.

Referenced by AssJac(), AssRes(), and Output().

doublereal Tank::Kappa1
private

Definition at line 149 of file hutils.h.

Referenced by AssJac(), AssRes(), and Tank().

doublereal Tank::Kappa2
private

Definition at line 150 of file hutils.h.

Referenced by AssJac(), AssRes(), and Tank().

doublereal Tank::level
private

Definition at line 146 of file hutils.h.

Referenced by AssRes(), and SetValue().

const PressureNode* Tank::pNode1
private

Definition at line 141 of file hutils.h.

Referenced by AssJac(), AssRes(), GetConnectedNodes(), and Tank().

const PressureNode* Tank::pNode2
private

Definition at line 142 of file hutils.h.

Referenced by AssJac(), AssRes(), GetConnectedNodes(), and Tank().

doublereal Tank::press
private

Definition at line 143 of file hutils.h.

Referenced by AssJac(), and AssRes().

doublereal Tank::s
private

Definition at line 152 of file hutils.h.

Referenced by AssJac(), AssRes(), and Output().

doublereal Tank::s_max
private

Definition at line 147 of file hutils.h.

Referenced by AssJac(), and AssRes().

doublereal Tank::s_min
private

Definition at line 148 of file hutils.h.

Referenced by AssJac(), and AssRes().

doublereal Tank::sp
private

Definition at line 153 of file hutils.h.

Referenced by AssRes(), and Output().

The documentation for this class was generated from the following files:
