Pipe Class Reference

#include <pipe.h>

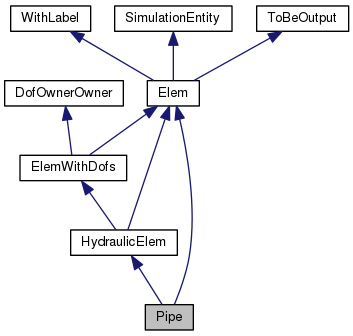

Inheritance diagram for Pipe:
Inheritance graph
[legend]

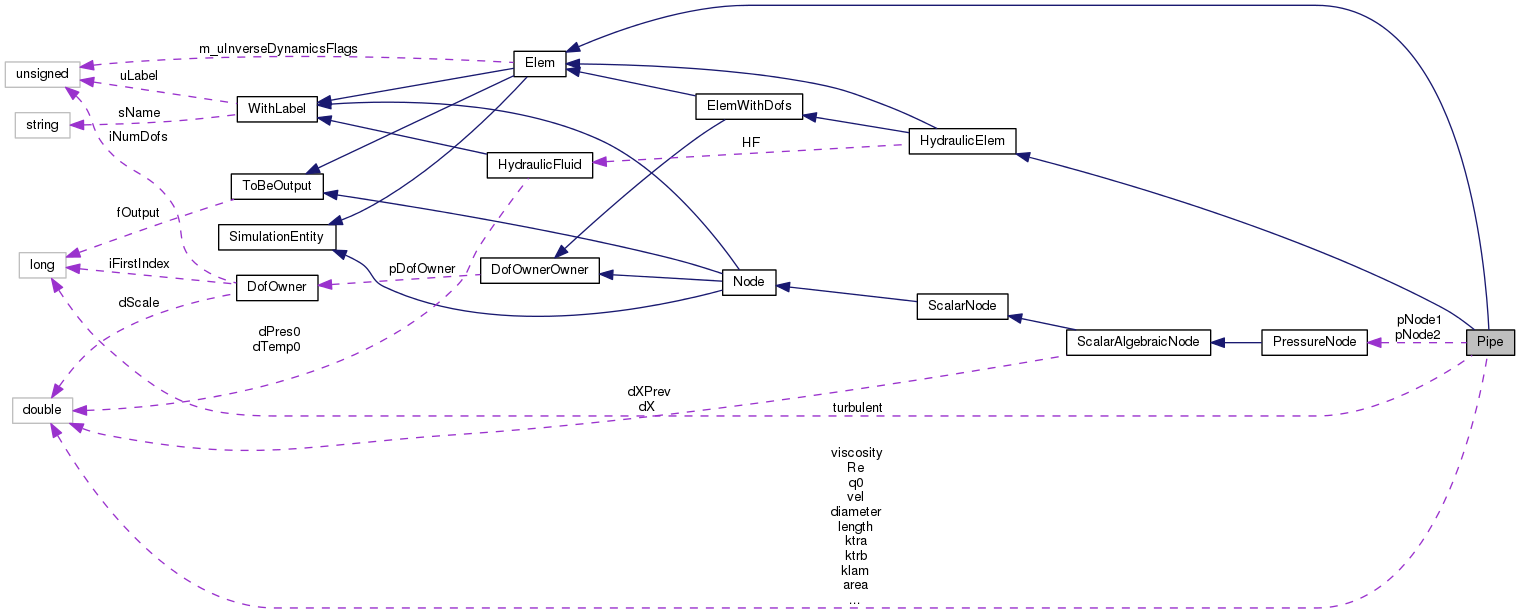

Collaboration diagram for Pipe:
Collaboration graph
[legend]

Public Member Functions

 Pipe (unsigned int uL, const DofOwner *pD, HydraulicFluid *hf, const PressureNode *p1, const PressureNode *p2, doublereal Dh, doublereal A, doublereal L, flag transition, doublereal q0, flag fOut)

 ~Pipe (void)

virtual HydraulicElem::Type GetHydraulicType (void) const

virtual std::ostream & Restart (std::ostream &out) const

virtual unsigned int iGetNumDof (void) const

virtual DofOrder::Order GetDofType (unsigned int i) const

virtual void WorkSpaceDim (integer *piNumRows, integer *piNumCols) const

VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

SubVectorHandler & AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void Output (OutputHandler &OH) const

virtual void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph=0)

virtual void GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

- Public Member Functions inherited from Elem
 Elem (unsigned int uL, flag fOut)

virtual ~Elem (void)

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual void AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual bool bInverseDynamics (void) const

void SetInverseDynamicsFlags (unsigned uIDF)

unsigned GetInverseDynamicsFlags (void) const

bool bIsErgonomy (void) const

bool bIsRightHandSide (void) const

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler & AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual int GetNumConnectedNodes (void) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual Hint * ParseHint (DataManager *pDM, const char *s) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))

- Public Member Functions inherited from HydraulicElem
 HydraulicElem (unsigned int uL, const DofOwner *pDO, HydraulicFluid *hf, flag fOut)

virtual ~HydraulicElem (void)

virtual Elem::Type GetElemType (void) const

- Public Member Functions inherited from ElemWithDofs
 ElemWithDofs (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~ElemWithDofs (void)

- Public Member Functions inherited from DofOwnerOwner
 DofOwnerOwner (const DofOwner *pDO)

virtual ~DofOwnerOwner ()

virtual const DofOwner * pGetDofOwner (void) const

virtual integer iGetFirstIndex (void) const

virtual void SetInitialValue (VectorHandler &X)


Private Attributes

const PressureNode * pNode1

const PressureNode * pNode2

doublereal diameter

doublereal viscosity

doublereal area

doublereal length

flag turbulent

doublereal q0

doublereal vel

doublereal flow

doublereal Re

doublereal ktrb

doublereal klam

doublereal ktra


Additional Inherited Members

- Public Types inherited from Elem
enum  Type {
  UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL,
  GRAVITY, BODY, JOINT, JOINT_REGULARIZATION,
  BEAM, PLATE, FORCE, INERTIA,
  ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC,
  BULK, LOADABLE, DRIVEN, EXTERNAL,
  AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT,
  RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE
}

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Public Types inherited from HydraulicElem
enum  Type {
  UNKNOWN = -1, MINOR_LOSS = 0, THREEWAYMINORLOSS, CONTROL_VALVE,
  DYNAMIC_CONTROL_VALVE, PRESSURE_FLOW_CONTROL_VALVE, PRESSURE_VALVE, FLOW_VALVE,
  ORIFICE, ACCUMULATOR, TANK, PIPE,
  DYNAMIC_PIPE, HYDRAULIC_ACTUATOR, ACTUATOR, LASTHYDRAULICTYPE
}

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput

- Protected Attributes inherited from HydraulicElem
HydraulicFluid * HF


Detailed Description

Definition at line 45 of file pipe.h.

Constructor & Destructor Documentation

Pipe::Pipe ( unsigned int  uL,
const DofOwner *  pD,
HydraulicFluid *  hf,
const PressureNode *  p1,
const PressureNode *  p2,
doublereal  Dh,
doublereal  A,
doublereal  L,
flag  transition,
doublereal  q0,
flag  fOut
)

Definition at line 46 of file pipe.cc.

References area, ASSERT, DEBUGCOUT, HydraulicFluid::dGetDensity(), HydraulicFluid::dGetViscosity(), ScalarAlgebraicNode::dGetX(), diameter, PressureNode::GetNodeType(), HydraulicElem::HF, Node::HYDRAULIC, klam, ktra, ktrb, length, pNode1, pNode2, grad::pow(), and viscosity.

50 : Elem(uL, fOut),
51 HydraulicElem(uL, pDO, hf, fOut),
52 pNode1(p1), pNode2(p2),
53 diameter(Dh), area(A),
54 length(L), turbulent(transition), q0(q0)
55 {
56  ASSERT(pNode1 != NULL);
57  ASSERT(pNode1->GetNodeType() == Node::HYDRAULIC);
58  ASSERT(pNode2 != NULL);
59  ASSERT(pNode2->GetNodeType() == Node::HYDRAULIC);
60  ASSERT(Dh > std::numeric_limits<doublereal>::epsilon());
61  ASSERT(A > std::numeric_limits<doublereal>::epsilon());
62  ASSERT(L> std::numeric_limits<doublereal>::epsilon());
63  viscosity = HF->dGetViscosity();
64
65  doublereal density = HF->dGetDensity((pNode1->dGetX()+pNode2->dGetX())/2.);
66
67  klam = 32.*length*viscosity/((diameter*diameter)*area*density);
68  ktra = .5*length/(diameter*density*area*area);
69  doublereal den = pow(diameter, 1.25)*pow(area, 1.75)*density;
70  doublereal num = .1582*pow(viscosity, .25)*length;
71  ktrb = num/den;
72
73 #ifdef HYDR_DEVEL
74  DEBUGCOUT("Costruttore Laminare: klam: " << klam <<std::endl);
75  DEBUGCOUT("Costruttore Transizione: ktra: " << ktra <<std::endl);
76  DEBUGCOUT("Costruttore Turbolento: ktrb: " << ktrb <<std::endl);
77 #endif /* HYDR_DEVEL */
78 }
Pipe::pNode1
const PressureNode * pNode1
Definition: pipe.h:47
grad::pow
GradientExpression< BinaryExpr< FuncPow, LhsExpr, RhsExpr > > pow(const GradientExpression< LhsExpr > &u, const GradientExpression< RhsExpr > &v)
Definition: gradient.h:2961
Pipe::turbulent
flag turbulent
Definition: pipe.h:53
Pipe::area
doublereal area
Definition: pipe.h:51
Pipe::ktra
doublereal ktra
Definition: pipe.h:61
HydraulicFluid::dGetDensity
virtual doublereal dGetDensity(void) const =0
ScalarAlgebraicNode::dGetX
virtual const doublereal & dGetX(void) const
Definition: node.h:492
HydraulicElem::HydraulicElem
HydraulicElem(unsigned int uL, const DofOwner *pDO, HydraulicFluid *hf, flag fOut)
Definition: preselem.cc:54
Pipe::q0
doublereal q0
Definition: pipe.h:54
HydraulicElem::HF
HydraulicFluid * HF
Definition: preselem.h:79
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
Pipe::length
doublereal length
Definition: pipe.h:52
Pipe::ktrb
doublereal ktrb
Definition: pipe.h:59
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
Pipe::pNode2
const PressureNode * pNode2
Definition: pipe.h:48
HydraulicFluid::dGetViscosity
virtual doublereal dGetViscosity(void) const =0
Pipe::diameter
doublereal diameter
Definition: pipe.h:49
Pipe::viscosity
doublereal viscosity
Definition: pipe.h:50
PressureNode::GetNodeType
virtual Node::Type GetNodeType(void) const
Definition: presnode.h:54
Elem::Elem
Elem(unsigned int uL, flag fOut)
Definition: elem.cc:41
doublereal
double doublereal
Definition: colamd.c:52
Pipe::klam
doublereal klam
Definition: pipe.h:60

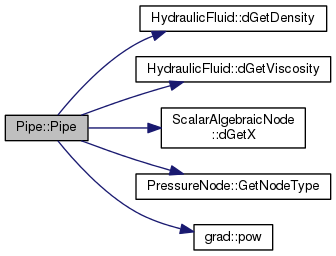

Here is the call graph for this function:

Pipe::~Pipe ( void  )

Definition at line 80 of file pipe.cc.

References NO_OP.

81 {
82  NO_OP;
83 }
NO_OP
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

void Pipe::AfterConvergence ( const VectorHandler &  X,
const VectorHandler &  XP
)
virtual

Reimplemented from SimulationEntity.

Definition at line 426 of file pipe.cc.

References DEBUGCOUT, HydraulicFluid::dGetRe(), WithLabel::GetLabel(), HydraulicElem::HF, HydraulicFluid::LOWER, Re, turbulent, and HydraulicFluid::UPPER.

427 {
428  if (Re < HF->dGetRe(HydraulicFluid::LOWER)) {
429 #ifdef HYDR_DEVEL
430  DEBUGCOUT("Pipe(" << GetLabel() << "): laminar" << std::endl);
431 #endif /* HYDR_DEVEL */
432  turbulent = 0;
433  } else if (Re > HF->dGetRe(HydraulicFluid::UPPER)) {
434 #ifdef HYDR_DEVEL
435  DEBUGCOUT("Pipe(" << GetLabel() << "): turbulent" << std::endl);
436 #endif /* HYDR_DEVEL */
437  turbulent = 1;
438 #ifdef HYDR_DEVEL
439  } else {
440  DEBUGCOUT("Pipe(" << GetLabel() << "): transition ("
441  << turbulent << ")" << std::endl);
442 #endif /* HYDR_DEVEL */
443  }
444 }
Pipe::turbulent
flag turbulent
Definition: pipe.h:53
HydraulicFluid::dGetRe
virtual doublereal dGetRe(Re which)
Definition: hfluid.h:95
HydraulicElem::HF
HydraulicFluid * HF
Definition: preselem.h:79
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
Pipe::Re
doublereal Re
Definition: pipe.h:58
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62

Here is the call graph for this function:

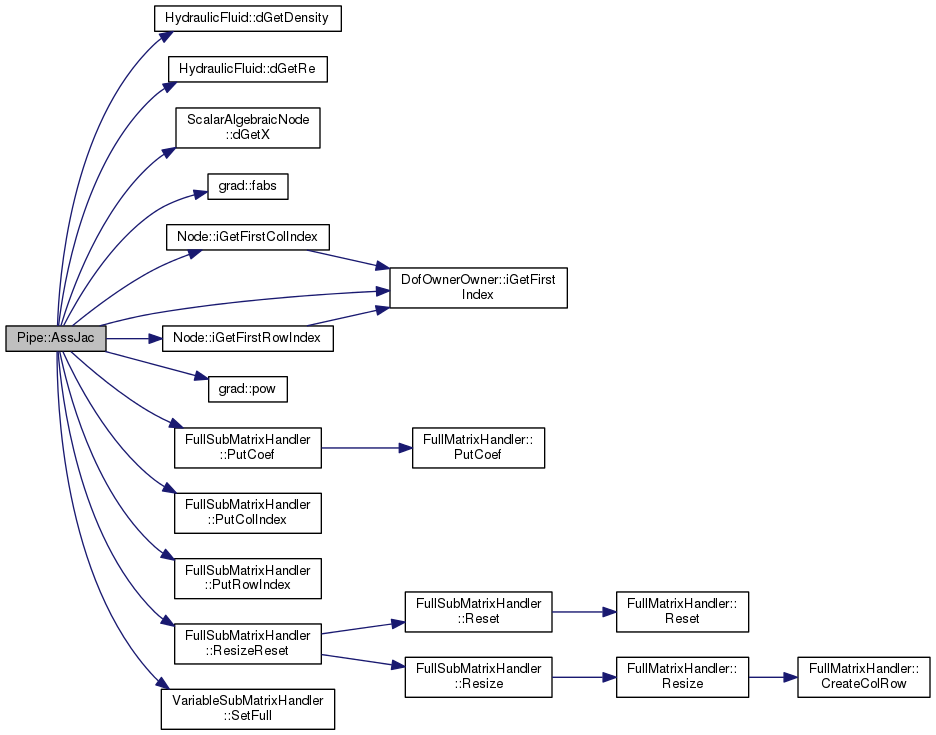

VariableSubMatrixHandler & Pipe::AssJac ( VariableSubMatrixHandler &  WorkMat,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 112 of file pipe.cc.

References a, area, c, DEBUGCOUT, HydraulicFluid::dGetDensity(), HydraulicFluid::dGetRe(), ScalarAlgebraicNode::dGetX(), diameter, grad::fabs(), HydraulicElem::HF, Node::iGetFirstColIndex(), DofOwnerOwner::iGetFirstIndex(), Node::iGetFirstRowIndex(), klam, ktra, ktrb, length, HydraulicFluid::LOWER, pNode1, pNode2, grad::pow(), FullSubMatrixHandler::PutCoef(), FullSubMatrixHandler::PutColIndex(), FullSubMatrixHandler::PutRowIndex(), Re, FullSubMatrixHandler::ResizeReset(), VariableSubMatrixHandler::SetFull(), turbulent, HydraulicFluid::UPPER, and viscosity.

116 {
117  DEBUGCOUT("Entering Pipe::AssJac()" << std::endl);
118 #ifdef HYDR_DEVEL
119  DEBUGCOUT("dblepsilon INIZIO: " << std::numeric_limits<doublereal>::epsilon() << std::endl);
120 #endif /* HYDR_DEVEL */
121
122  FullSubMatrixHandler& WM = WorkMat.SetFull();
123  WM.ResizeReset(3, 3);
124
125  integer iNode1RowIndex = pNode1->iGetFirstRowIndex()+1;
126  integer iNode2RowIndex = pNode2->iGetFirstRowIndex()+1;
127  integer iNode1ColIndex = pNode1->iGetFirstColIndex()+1;
128  integer iNode2ColIndex = pNode2->iGetFirstColIndex()+1;
129  integer iFirstIndex = iGetFirstIndex()+1;
130
131  WM.PutRowIndex(1, iNode1RowIndex);
132  WM.PutRowIndex(2, iNode2RowIndex);
133  WM.PutColIndex(1, iNode1ColIndex);
134  WM.PutColIndex(2, iNode2ColIndex);
135  WM.PutRowIndex(3, iFirstIndex);
136  WM.PutColIndex(3, iFirstIndex);
137
138  doublereal p1 = pNode1->dGetX();
139  doublereal p2 = pNode2->dGetX();
140  doublereal jumpPres = fabs(p1-p2);
141  doublereal q = XCurr(iFirstIndex); /* portata */
142  doublereal Jac13 = -1.;
143  doublereal Jac23 = 1.;
144  doublereal Jac31 = 1.;
145  doublereal Jac32 = -1.;
146  doublereal Jac33;
147
148  if (Re < HF->dGetRe(HydraulicFluid::LOWER)) {
149  /****************************************
150  * moto sicuramente laminare (jacobiano)
151  ***************************************/
152 #ifdef HYDR_DEVEL
153  DEBUGCOUT("Entering Pipe::AssJac() sono laminare" << std::endl);
154 #endif /* HYDR_DEVEL */
155  Jac33 = -klam;
156  } else if (Re > HF->dGetRe(HydraulicFluid::UPPER)) {
157  /*******************************************
158  * moto sicuramente turbolento (jacobiano)
159  ******************************************/
160 #ifdef HYDR_DEVEL
161  DEBUGCOUT("Entering Pipe::AssJac() sono turbolento" << std::endl);
162 #endif /* HYDR_DEVEL */
163  /* evito di dividere per un numero troppo piccolo */
164  if (jumpPres < 1.e8*std::numeric_limits<doublereal>::epsilon()) {
165  jumpPres = 1.e8*std::numeric_limits<doublereal>::epsilon();
166  }
167 #ifdef HYDR_DEVEL
168  DEBUGCOUT("AssJac() JUMPPRES dopo: " << jumpPres << std::endl);
169 #endif /* HYDR_DEVEL */
170
171  Jac33 = -7./4.*ktrb*pow(fabs(q),3./4.);
172
173  } else {
174  /***********************************
175  * moto di transizione (jacobiano)
176  **********************************/
177 #ifdef HYDR_DEVEL
178  DEBUGCOUT("Entering Pipe::AssJac() sono in transizione" << std::endl);
179 #endif /* HYDR_DEVEL */
180  if (turbulent == 0) {
181  /*******************************************************
182  * moto di transizione laminare-turbolento (jacobiano)
183  ******************************************************/
184 #ifdef HYDR_DEVEL
185  DEBUGCOUT("Sono in transizione lam->turb" << std::endl);
186 #endif /* HYDR_DEVEL */
187  if (Re < HF->dGetRe(HydraulicFluid::LOWER)*1.25) {
188  /* uso lo jacobiano laminare */
189  Jac33 = -klam;
190  } else {
191  doublereal dva = diameter/(viscosity*area);
192  doublereal c = -1.8e-5*dva;
193  doublereal dva2 = dva*dva;
194  doublereal b = 8.e-10*dva2;
195  doublereal dva3 = dva2*dva;
196  doublereal a = 7.e-13*dva3;
197  doublereal d = .0542;
198
199  doublereal aq = fabs(q);
200  doublereal aq2 = aq*aq;
201  doublereal aq3 = aq2*aq;
202  doublereal aq4 = aq3*aq;
203
204  Jac33 = -5.*ktra*a*aq4-4.*ktra*b*aq3-3.*ktra*c*aq2-2.*ktra*d*aq;
205  }
206  } else {
207  /*******************************************************
208  * moto di transizione turbolento-laminare (jacobiano)
209  ******************************************************/
210 #ifdef HYDR_DEVEL
211  DEBUGCOUT("Sono in transizione turb->lam" << std::endl);
212 #endif /* HYDR_DEVEL */
213  if (Re > HF->dGetRe(HydraulicFluid::UPPER)*.775) {
214  /* uso lo jacobiano turbolento per la parte finale */
215  /* evito di dividere per un numero troppo piccolo */
216  if (jumpPres < 1.e8*std::numeric_limits<doublereal>::epsilon()) {
217  jumpPres = 1.e8*std::numeric_limits<doublereal>::epsilon();
218  }
219 #ifdef HYDR_DEVEL
220  DEBUGCOUT("AssJac() JUMPPRES dopo: " << jumpPres << std::endl);
221 #endif /* HYDR_DEVEL */
222
223  Jac33 = -7./4.*ktrb*pow(fabs(q),3./4.);
224
225  } else {
226 #ifdef HYDR_DEVEL
227  DEBUGCOUT("Jac turb->lam: TRATTO DI INTERPOLAZIONE" << std::endl);
228 #endif /* HYDR_DEVEL */
229  doublereal dva = diameter/(viscosity*area);
230  doublereal c = -1.8e-5*dva;
231  doublereal dva2 = dva*dva;
232  doublereal b = 2.e-9*dva2;
233  doublereal dva3 = dva2*dva;
234  doublereal a = 9.e-13*dva3;
235  doublereal d = .0528;
236
237  doublereal aq = fabs(q);
238  doublereal aq2 = aq*aq;
239  doublereal aq3 = aq2*aq;
240  doublereal aq4 = aq3*aq;
241
242  Jac33 = -5.*ktra*a*aq4-4.*ktra*b*aq3-3.*ktra*c*aq2-2.*ktra*d*aq;
243  }
244  }
245  }
246
247 #ifdef HYDR_DEVEL
248  DEBUGCOUT("JAC Re: " << Re << std::endl);
249  DEBUGCOUT("JAC density: " << HF->dGetDensity((p1+p2)/2.) << std::endl);
250  DEBUGCOUT("JAC p1: " << p1 << std::endl);
251  DEBUGCOUT("JAC p2: " << p2 << std::endl);
252  DEBUGCOUT("JAC jumpPres: " << jumpPres << std::endl);
253  DEBUGCOUT("JAC length: " << length << std::endl);
254  DEBUGCOUT("JAC diameter: " << diameter << std::endl);
255  DEBUGCOUT("JAC viscosity: " << viscosity << std::endl);
256  DEBUGCOUT("JAC turbulent: " << turbulent << std::endl);
257  DEBUGCOUT("JAC q: " << q << std::endl);
258  DEBUGCOUT("JAC Jac13: " << Jac13 << std::endl);
259  DEBUGCOUT("JAC Jac23: " << Jac23 << std::endl);
260  DEBUGCOUT("JAC Jac31: " << Jac31 << std::endl);
261  DEBUGCOUT("JAC Jac32: " << Jac32 << std::endl);
262  DEBUGCOUT("JAC Jac33: " << Jac33 << std::endl);
263 #endif /* HYDR_DEVEL */
264
265  WM.PutCoef(1, 3, Jac13);
266  WM.PutCoef(2, 3, Jac23);
267  WM.PutCoef(3, 1, Jac31);
268  WM.PutCoef(3, 2, Jac32);
269  WM.PutCoef(3, 3, Jac33);
270
271  return WorkMat;
272 }
Pipe::pNode1
const PressureNode * pNode1
Definition: pipe.h:47
FullSubMatrixHandler::PutColIndex
void PutColIndex(integer iSubCol, integer iCol)
Definition: submat.h:325
grad::pow
GradientExpression< BinaryExpr< FuncPow, LhsExpr, RhsExpr > > pow(const GradientExpression< LhsExpr > &u, const GradientExpression< RhsExpr > &v)
Definition: gradient.h:2961
Pipe::turbulent
flag turbulent
Definition: pipe.h:53
HydraulicFluid::dGetRe
virtual doublereal dGetRe(Re which)
Definition: hfluid.h:95
VariableSubMatrixHandler::SetFull
FullSubMatrixHandler & SetFull(void)
Definition: submat.h:1168
FullSubMatrixHandler::PutCoef
void PutCoef(integer iRow, integer iCol, const doublereal &dCoef)
Definition: submat.h:672
Pipe::area
doublereal area
Definition: pipe.h:51
grad::fabs
GradientExpression< UnaryExpr< FuncFabs, Expr > > fabs(const GradientExpression< Expr > &u)
Definition: gradient.h:2973
Pipe::ktra
doublereal ktra
Definition: pipe.h:61
HydraulicFluid::dGetDensity
virtual doublereal dGetDensity(void) const =0
ScalarAlgebraicNode::dGetX
virtual const doublereal & dGetX(void) const
Definition: node.h:492
HydraulicElem::HF
HydraulicFluid * HF
Definition: preselem.h:79
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
Node::iGetFirstRowIndex
virtual integer iGetFirstRowIndex(void) const
Definition: node.cc:82
Pipe::length
doublereal length
Definition: pipe.h:52
Pipe::ktrb
doublereal ktrb
Definition: pipe.h:59
Pipe::pNode2
const PressureNode * pNode2
Definition: pipe.h:48
Pipe::diameter
doublereal diameter
Definition: pipe.h:49
Pipe::viscosity
doublereal viscosity
Definition: pipe.h:50
FullSubMatrixHandler::ResizeReset
virtual void ResizeReset(integer, integer)
Definition: submat.cc:182
c
static std::stack< cleanup * > c
Definition: cleanup.cc:59
FullSubMatrixHandler::PutRowIndex
void PutRowIndex(integer iSubRow, integer iRow)
Definition: submat.h:311
Pipe::Re
doublereal Re
Definition: pipe.h:58
a
static const doublereal a
Definition: hfluid_.h:289
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
Pipe::klam
doublereal klam
Definition: pipe.h:60
integer
long int integer
Definition: colamd.c:51
Node::iGetFirstColIndex
virtual integer iGetFirstColIndex(void) const
Definition: node.cc:88

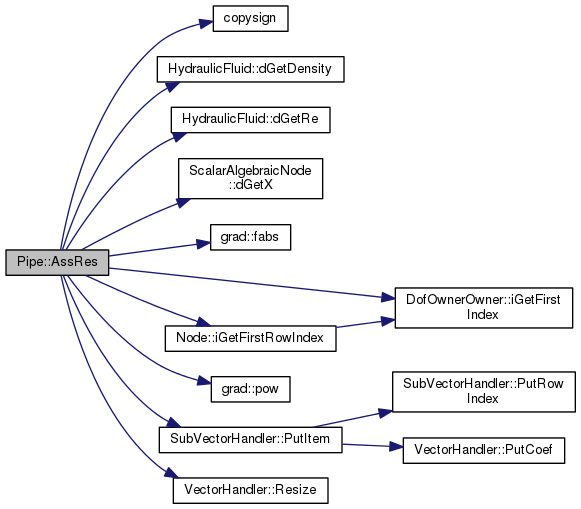

Here is the call graph for this function:

SubVectorHandler & Pipe::AssRes ( SubVectorHandler &  WorkVec,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 275 of file pipe.cc.

References a, area, c, copysign(), DEBUGCOUT, HydraulicFluid::dGetDensity(), HydraulicFluid::dGetRe(), ScalarAlgebraicNode::dGetX(), diameter, grad::fabs(), flow, HydraulicElem::HF, DofOwnerOwner::iGetFirstIndex(), Node::iGetFirstRowIndex(), klam, ktra, ktrb, length, HydraulicFluid::LOWER, pNode1, pNode2, grad::pow(), SubVectorHandler::PutItem(), Re, VectorHandler::Resize(), turbulent, HydraulicFluid::UPPER, vel, and viscosity.

279 {
280  DEBUGCOUT("Entering Pipe::AssRes()" << std::endl);
281  WorkVec.Resize(3);
282
283  integer iNode1RowIndex = pNode1->iGetFirstRowIndex()+1;
284  integer iNode2RowIndex = pNode2->iGetFirstRowIndex()+1;
285  integer iFirstIndex = iGetFirstIndex()+1;
286
287  doublereal q = XCurr(iFirstIndex); /* portata q */
288  doublereal p1 = pNode1->dGetX();
289  doublereal p2 = pNode2->dGetX();
290  doublereal density = HF->dGetDensity((p1+p2)/2.);
291
292  doublereal Res_1 = q;
293  doublereal Res_2 = -q;
294  doublereal Res_3 = 0.;
295
296  flow = q;
297  vel = flow/(density*area);
298  Re = density*fabs(vel)*diameter/viscosity;
299  if (Re < HF->dGetRe(HydraulicFluid::LOWER)) {
300  /**************************************
301  * moto sicuramente laminare (residuo)
302  *************************************/
303 #ifdef HYDR_DEVEL
304  DEBUGCOUT("Entering Pipe::AssRes() SONO LAMINARE" << std::endl);
305 #endif /* HYDR_DEVEL */
306  Res_3 = klam*q-p1+p2;
307  } else if (Re > HF->dGetRe(HydraulicFluid::UPPER)) {
308  /*****************************************
309  * moto sicuramente turbolento (residuo)
310  ****************************************/
311 #ifdef HYDR_DEVEL
312  DEBUGCOUT("Entering Pipe::AssRes() SONO TURBOLENTO" << std::endl);
313 #endif /* HYDR_DEVEL */
314  Res_3= ktrb*copysign(pow(fabs(q),7./4.),q)-p1+p2;
315  } else {
316  /*********************************
317  * moto di transizione (residuo)
318  ********************************/
319 #ifdef HYDR_DEVEL
320  DEBUGCOUT("SONO IN TRANSIZIONE " << std::endl);
321  DEBUGCOUT("Re: " << Re << std::endl);
322  DEBUGCOUT("q: " << q << std::endl);
323  DEBUGCOUT("vel: " << vel << std::endl);
324 #endif /* HYDR_DEVEL */
325  if (turbulent == 0) {
326  /*****************************************************
327  * moto di transizione laminare-turbolento (residuo)
328  ****************************************************/
329 #ifdef HYDR_DEVEL
330  DEBUGCOUT("SONO IN TRANSIZIONE lam->turb" << std::endl);
331 #endif /* HYDR_DEVEL */
332  if (Re < HF->dGetRe(HydraulicFluid::LOWER)*1.25) {
333  /* uso il residuo laminare */
334  Res_3 = klam*q-p1+p2;
335 #ifdef HYDR_DEVEL
336  DEBUGCOUT("RES lam->turb: TRATTO 64/RE" << std::endl);
337  DEBUGCOUT("Re: " << Re << std::endl);
338 #endif /* HYDR_DEVEL */
339  } else {
340 #ifdef HYDR_DEVEL
341  DEBUGCOUT("RES lam->turb:TRATTO DI INTERPOLAZIONE"<< std::endl);
342 #endif /* HYDR_DEVEL */
343  doublereal dva = diameter/(viscosity*area);
344  doublereal c = -1.8e-5*dva;
345  doublereal dva2 = dva*dva;
346  doublereal b = 8.e-10*dva2;
347  doublereal dva3 = dva2*dva;
348  doublereal a = 7.e-13*dva3;
349  doublereal d = .0542;
350
351 #ifdef HYDR_DEVEL
352  doublereal fa = ((a*q+b)*q+c)*q+d;
353  DEBUGCOUT("fa lam->turb: " << fa << std::endl);
354 #endif /* HYDR_DEVEL */
355  doublereal aq = fabs(q);
356  doublereal aq2 = aq*aq;
357  doublereal aq3 = aq2*aq;
358  doublereal aq4 = aq3*aq;
359
360  Res_3 = -p1+p2+q*(ktra*a*aq4+ktra*b*aq3+ktra*c*aq2+ktra*d*aq);
361  }
362  } else {
363  /****************************************************
364  * moto di transizione turbolento-laminare (residuo)
365  ***************************************************/
366 #ifdef HYDR_DEVEL
367  DEBUGCOUT("SONO IN TRANSIZIONE turb->lam" << std::endl);
368 #endif /* HYDR_DEVEL */
369  if (Re > HF->dGetRe(HydraulicFluid::UPPER)*.775) {
370  /* utilizzo il residuo turbolento */
371  Res_3= ktrb*copysign(pow(fabs(q),7./4.),q)-p1+p2;
372
373 #ifdef HYDR_DEVEL
374  DEBUGCOUT("RES turb->lam:TRATTO 0.3164/Re^0.25" << std::endl);
375 #endif /* HYDR_DEVEL */
376  } else {
377 #ifdef HYDR_DEVEL
378  DEBUGCOUT("RES turb->lam:TRATTO DI INTERPOLAZIONE"<< std::endl);
379 #endif /* HYDR_DEVEL */
380  doublereal dva = diameter/(viscosity*area);
381  doublereal c = -1.8e-5*dva;
382  doublereal dva2 = dva*dva;
383  doublereal b = 2.e-9*dva2;
384  doublereal dva3 = dva2*dva;
385  doublereal a = 9.e-13*dva3;
386  doublereal d = .0528;
387
388  doublereal aq = fabs(q);
389  doublereal aq2 = aq*aq;
390  doublereal aq3 = aq2*aq;
391  doublereal aq4 = aq3*aq;
392
393  Res_3 = -p1+p2+q*(ktra*a*aq4+ktra*b*aq3+ktra*c*aq2+ktra*d*aq);
394  }
395  }
396  }
397
398 #ifdef HYDR_DEVEL
399  DEBUGCOUT("RES density: " << density << std::endl);
400  DEBUGCOUT("RES p1: " << p1 << std::endl);
401  DEBUGCOUT("RES p2: " << p2 << std::endl);
402  DEBUGCOUT("RES jumpPres: " << fabs(p1-p2) << std::endl);
403  DEBUGCOUT("RES length: " << length << std::endl);
404  DEBUGCOUT("RES diameter: " << diameter << std::endl);
405  DEBUGCOUT("RES viscosity: " << viscosity << std::endl);
406  DEBUGCOUT("RES area : " << area << std::endl);
407  DEBUGCOUT("RES q: " << q << std::endl);
408  DEBUGCOUT("***********************************************" << std::endl);
409  DEBUGCOUT("RES velocita': " << vel << std::endl);
410  DEBUGCOUT(" se positiva il fluido va dal nodo 1 al nodo 2" << std::endl);
411  DEBUGCOUT("***********************************************" << std::endl);
412  DEBUGCOUT("RES Re: " << Re << std::endl);
413  DEBUGCOUT("RES Res_1: " << Res_1 << std::endl);
414  DEBUGCOUT("RES Res_2: " << Res_2 << std::endl);
415  DEBUGCOUT("RES Res_3: " << Res_3 << std::endl);
416 #endif /* HYDR_DEVEL */
417
418  WorkVec.PutItem(1, iNode1RowIndex, Res_1);
419  WorkVec.PutItem(2, iNode2RowIndex, Res_2);
420  WorkVec.PutItem(3, iFirstIndex, Res_3);
421
422  return WorkVec;
423 }
Pipe::pNode1
const PressureNode * pNode1
Definition: pipe.h:47
grad::pow
GradientExpression< BinaryExpr< FuncPow, LhsExpr, RhsExpr > > pow(const GradientExpression< LhsExpr > &u, const GradientExpression< RhsExpr > &v)
Definition: gradient.h:2961
Pipe::vel
doublereal vel
Definition: pipe.h:56
Pipe::turbulent
flag turbulent
Definition: pipe.h:53
HydraulicFluid::dGetRe
virtual doublereal dGetRe(Re which)
Definition: hfluid.h:95
Pipe::area
doublereal area
Definition: pipe.h:51
grad::fabs
GradientExpression< UnaryExpr< FuncFabs, Expr > > fabs(const GradientExpression< Expr > &u)
Definition: gradient.h:2973
SubVectorHandler::PutItem
virtual void PutItem(integer iSubRow, integer iRow, const doublereal &dCoef)
Definition: submat.h:1445
Pipe::ktra
doublereal ktra
Definition: pipe.h:61
HydraulicFluid::dGetDensity
virtual doublereal dGetDensity(void) const =0
ScalarAlgebraicNode::dGetX
virtual const doublereal & dGetX(void) const
Definition: node.h:492
HydraulicElem::HF
HydraulicFluid * HF
Definition: preselem.h:79
copysign
doublereal copysign(doublereal x, doublereal y)
Definition: gradient.h:97
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
Node::iGetFirstRowIndex
virtual integer iGetFirstRowIndex(void) const
Definition: node.cc:82
Pipe::length
doublereal length
Definition: pipe.h:52
Pipe::ktrb
doublereal ktrb
Definition: pipe.h:59
Pipe::pNode2
const PressureNode * pNode2
Definition: pipe.h:48
Pipe::diameter
doublereal diameter
Definition: pipe.h:49
Pipe::flow
doublereal flow
Definition: pipe.h:57
Pipe::viscosity
doublereal viscosity
Definition: pipe.h:50
c
static std::stack< cleanup * > c
Definition: cleanup.cc:59
Pipe::Re
doublereal Re
Definition: pipe.h:58
a
static const doublereal a
Definition: hfluid_.h:289
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
Pipe::klam
doublereal klam
Definition: pipe.h:60
integer
long int integer
Definition: colamd.c:51
VectorHandler::Resize
virtual void Resize(integer iNewSize)=0

Here is the call graph for this function:

virtual void Pipe::GetConnectedNodes ( std::vector< const Node * > &  connectedNodes) const
inlinevirtual

Reimplemented from Elem.

Definition at line 104 of file pipe.h.

References pNode1, and pNode2.

104  {
105  connectedNodes.resize(2);
106  connectedNodes[0] = pNode1;
107  connectedNodes[1] = pNode2;
108  };
Pipe::pNode1
const PressureNode * pNode1
Definition: pipe.h:47
Pipe::pNode2
const PressureNode * pNode2
Definition: pipe.h:48
DofOrder::Order Pipe::GetDofType ( unsigned int  i) const
virtual

Reimplemented from Elem.

Definition at line 100 of file pipe.cc.

References DofOrder::ALGEBRAIC, and ASSERT.

100  {
101  ASSERT(i == 0);
102  return DofOrder::ALGEBRAIC;
103 }
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
HydraulicElem::Type Pipe::GetHydraulicType ( void  ) const
virtual

Implements HydraulicElem.

Definition at line 86 of file pipe.cc.

References HydraulicElem::PIPE.

86  {
87  return HydraulicElem::PIPE;
88 }
unsigned int Pipe::iGetNumDof ( void  ) const
virtual

Reimplemented from Elem.

Definition at line 96 of file pipe.cc.

96  {
97  return 1;
98 }
void Pipe::Output ( OutputHandler &  OH) const
virtual

Reimplemented from ToBeOutput.

Definition at line 446 of file pipe.cc.

References ToBeOutput::bToBeOutput(), flow, WithLabel::GetLabel(), OutputHandler::Hydraulic(), Re, and vel.

447 {
448  if (bToBeOutput()) {
449  OH.Hydraulic()
450  << std::setw(8) << GetLabel()
451  << " " << vel << " " << flow << " " << Re << std::endl;
452  }
453 }
ToBeOutput::bToBeOutput
virtual bool bToBeOutput(void) const
Definition: output.cc:890
Pipe::vel
doublereal vel
Definition: pipe.h:56
Pipe::flow
doublereal flow
Definition: pipe.h:57
Pipe::Re
doublereal Re
Definition: pipe.h:58
OutputHandler::Hydraulic
std::ostream & Hydraulic(void) const
Definition: output.h:492
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62

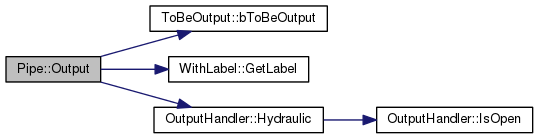

Here is the call graph for this function:

std::ostream & Pipe::Restart ( std::ostream &  out) const
virtual

Implements Elem.

Definition at line 91 of file pipe.cc.

92 {
93  return out << "Pipe not implemented yet!" << std::endl;
94 }
void Pipe::SetValue ( DataManager *  pDM,
VectorHandler &  X,
VectorHandler &  XP,
SimulationEntity::Hints *  ph = 0
)
virtual

Reimplemented from SimulationEntity.

Definition at line 456 of file pipe.cc.

References DofOwnerOwner::iGetFirstIndex(), VectorHandler::PutCoef(), and q0.

459 {
460  integer i = iGetFirstIndex();
461  X.PutCoef(i+1, q0); /* portata iniziale nodo 2 */
462 }
Pipe::q0
doublereal q0
Definition: pipe.h:54
VectorHandler::PutCoef
virtual void PutCoef(integer iRow, const doublereal &dCoef)=0
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
integer
long int integer
Definition: colamd.c:51

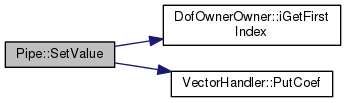

Here is the call graph for this function:

void Pipe::WorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
virtual

Implements Elem.

Definition at line 106 of file pipe.cc.

106  {
107  *piNumRows = 3;
108  *piNumCols = 3;
109 }

Member Data Documentation

doublereal Pipe::area
private

Definition at line 51 of file pipe.h.

Referenced by AssJac(), AssRes(), and Pipe().

doublereal Pipe::diameter
private

Definition at line 49 of file pipe.h.

Referenced by AssJac(), AssRes(), and Pipe().

doublereal Pipe::flow
private

Definition at line 57 of file pipe.h.

Referenced by AssRes(), and Output().

doublereal Pipe::klam
private

Definition at line 60 of file pipe.h.

Referenced by AssJac(), AssRes(), and Pipe().

doublereal Pipe::ktra
private

Definition at line 61 of file pipe.h.

Referenced by AssJac(), AssRes(), and Pipe().

doublereal Pipe::ktrb
private

Definition at line 59 of file pipe.h.

Referenced by AssJac(), AssRes(), and Pipe().

doublereal Pipe::length
private

Definition at line 52 of file pipe.h.

Referenced by AssJac(), AssRes(), and Pipe().

const PressureNode* Pipe::pNode1
private

Definition at line 47 of file pipe.h.

Referenced by AssJac(), AssRes(), GetConnectedNodes(), and Pipe().

const PressureNode* Pipe::pNode2
private

Definition at line 48 of file pipe.h.

Referenced by AssJac(), AssRes(), GetConnectedNodes(), and Pipe().

doublereal Pipe::q0
private

Definition at line 54 of file pipe.h.

Referenced by SetValue().

doublereal Pipe::Re
private

Definition at line 58 of file pipe.h.

Referenced by AfterConvergence(), AssJac(), AssRes(), and Output().

flag Pipe::turbulent
private

Definition at line 53 of file pipe.h.

Referenced by AfterConvergence(), AssJac(), and AssRes().

doublereal Pipe::vel
private

Definition at line 56 of file pipe.h.

Referenced by AssRes(), and Output().

doublereal Pipe::viscosity
private

Definition at line 50 of file pipe.h.

Referenced by AssJac(), AssRes(), and Pipe().

The documentation for this class was generated from the following files:
