#include <streamoutelem.h>

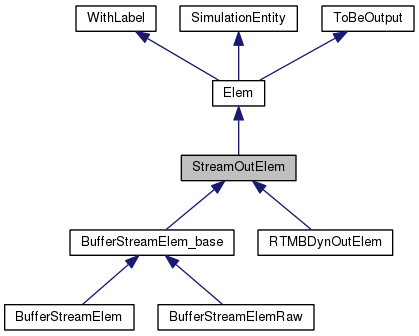

Inheritance diagram for StreamOutElem:

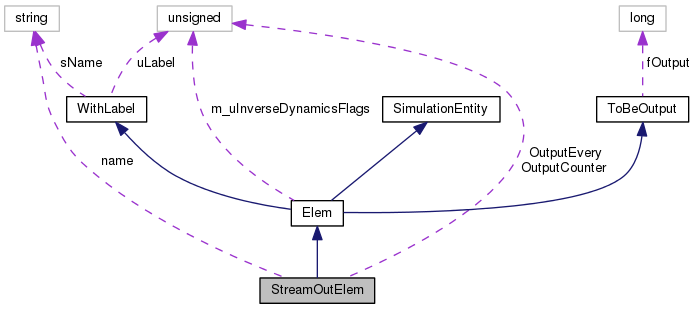

Collaboration diagram for StreamOutElem:

Public Types
enum	Type { UNDEFINED = -1, RTAI, SOCKETSTREAM, BUFFERSTREAM }

Public Types inherited from Elem
enum	Type { UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL, GRAVITY, BODY, JOINT, JOINT_REGULARIZATION, BEAM, PLATE, FORCE, INERTIA, ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC, BULK, LOADABLE, DRIVEN, EXTERNAL, AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT, RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE }

Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints

Public Types inherited from ToBeOutput
enum	{ OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

Public Member Functions
	StreamOutElem (unsigned int uL, const std::string &name, unsigned int oe)

virtual	~StreamOutElem (void)

virtual Elem::Type	GetElemType (void) const

virtual void	WorkSpaceDim (integer piRows, integer piCols) const

virtual SubVectorHandler &	AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &X, const VectorHandler &XP)

virtual VariableSubMatrixHandler &	AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &X, const VectorHandler &XP)

Public Member Functions inherited from Elem
	Elem (unsigned int uL, flag fOut)

virtual	~Elem (void)

virtual std::ostream &	Restart (std::ostream &out) const =0

virtual unsigned int	iGetNumDof (void) const

virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order	GetDofType (unsigned int) const

virtual void	AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual bool	bInverseDynamics (void) const

void	SetInverseDynamicsFlags (unsigned uIDF)

unsigned	GetInverseDynamicsFlags (void) const

bool	bIsErgonomy (void) const

bool	bIsRightHandSide (void) const

virtual VariableSubMatrixHandler &	AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler &	AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual int	GetNumConnectedNodes (void) const

virtual void	GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)

virtual	~SimulationEntity (void)

virtual bool	bIsValidIndex (unsigned int i) const

virtual DofOrder::Order	GetEqType (unsigned int i) const

virtual void	SetValue (DataManager pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints h=0)

virtual Hint *	ParseHint (DataManager pDM, const char s) const

virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int	iGetNumPrivData (void) const

virtual unsigned int	iGetPrivDataIdx (const char *s) const

virtual doublereal	dGetPrivData (unsigned int i) const

virtual std::ostream &	OutputAppend (std::ostream &out) const

virtual void	ReadInitialState (MBDynParser &HP)

Public Member Functions inherited from ToBeOutput
	ToBeOutput (flag fOut=fDefaultOut)

virtual	~ToBeOutput (void)

virtual void	OutputPrepare (OutputHandler &OH)

virtual void	Output (OutputHandler &OH) const

virtual void	Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag	fToBeOutput (void) const

virtual bool	bToBeOutput (void) const

virtual void	SetOutputFlag (flag f=flag(1))

Protected Attributes
std::string	name

unsigned int	OutputEvery

unsigned int	OutputCounter

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Protected Attributes inherited from ToBeOutput
flag	fOutput

Detailed Description

Definition at line 45 of file streamoutelem.h.

Member Enumeration Documentation

enum StreamOutElem::Type

Enumerator
UNDEFINED
RTAI
SOCKETSTREAM
BUFFERSTREAM

Definition at line 47 of file streamoutelem.h.

                   {
                 UNDEFINED = -1,

                 RTAI,
                 SOCKETSTREAM,
                 BUFFERSTREAM
         };

Constructor & Destructor Documentation

StreamOutElem::StreamOutElem	(	unsigned int	uL,
		const std::string &	name,
		unsigned int	oe
	)

Definition at line 48 of file streamoutelem.cc.

References ASSERT, and OutputEvery.

 : Elem(uL, flag(0)),
 name(name),
 OutputEvery(oe), OutputCounter(0)
 {
         ASSERT(OutputEvery > 0);
 }

StreamOutElem::~StreamOutElem ( void )

virtual

Definition at line 58 of file streamoutelem.cc.

References NO_OP.

 {
         NO_OP;
 }

Member Function Documentation

VariableSubMatrixHandler & StreamOutElem::AssJac	(	VariableSubMatrixHandler &	WorkMat,
		doublereal	dCoef,
		const VectorHandler &	X,
		const VectorHandler &	XP
	)

virtual

Implements Elem.

Definition at line 85 of file streamoutelem.cc.

References VariableSubMatrixHandler::SetNullMatrix().

 {
         WorkMat.SetNullMatrix();
         return WorkMat;
 }

Here is the call graph for this function:

SubVectorHandler & StreamOutElem::AssRes	(	SubVectorHandler &	WorkVec,
		doublereal	dCoef,
		const VectorHandler &	X,
		const VectorHandler &	XP
	)

virtual

Implements Elem.

Definition at line 77 of file streamoutelem.cc.

References VectorHandler::Resize().

 {
         WorkVec.Resize(0);
         return WorkVec;
 }

Here is the call graph for this function:

Elem::Type StreamOutElem::GetElemType ( void ) const

virtual

Implements Elem.

Definition at line 64 of file streamoutelem.cc.

References Elem::SOCKETSTREAM_OUTPUT.

 {
         return Elem::SOCKETSTREAM_OUTPUT;
 }

void StreamOutElem::WorkSpaceDim	(	integer *	piRows,
		integer *	piCols
	)		const

virtual

Implements Elem.

Definition at line 70 of file streamoutelem.cc.

 {
         *piRows = 0;
         *piCols = 0;
 }

Member Data Documentation

std::string StreamOutElem::name

protected

Definition at line 56 of file streamoutelem.h.

Referenced by RTMBDynOutElem::RTMBDynOutElem().

unsigned int StreamOutElem::OutputCounter

mutableprotected

Definition at line 60 of file streamoutelem.h.

Referenced by BufferStreamElem_base::AfterConvergence(), and BufferStreamElem_base::SetValue().

unsigned int StreamOutElem::OutputEvery

protected

Definition at line 59 of file streamoutelem.h.

Referenced by BufferStreamElem_base::AfterConvergence(), and StreamOutElem().

The documentation for this class was generated from the following files:
