#include <elecnode.h>

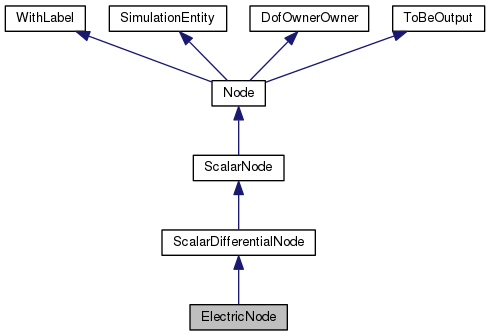

Inheritance diagram for ElectricNode:

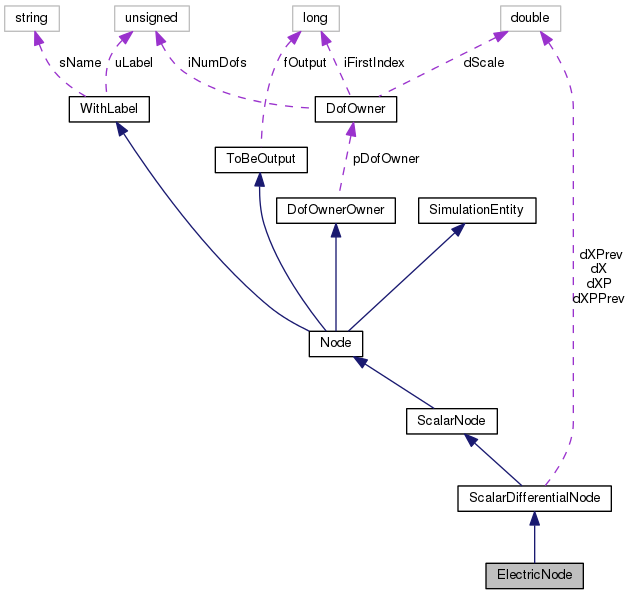

Collaboration diagram for ElectricNode:

Public Member Functions
	ElectricNode (unsigned int uL, const DofOwner *pDO, doublereal dx, doublereal dxp, flag fOut)

virtual	~ElectricNode (void)

virtual Node::Type	GetNodeType (void) const

virtual void	Output (OutputHandler &OH) const

Public Member Functions inherited from ScalarDifferentialNode
	ScalarDifferentialNode (unsigned int uL, const DofOwner *pDO, const doublereal &dx, const doublereal &dxp, flag fOut)

virtual	~ScalarDifferentialNode (void)

virtual DofOrder::Order	GetDofType (unsigned int i) const

virtual const doublereal &	dGetDofValue (int iDof, int iOrder=0) const

virtual const doublereal &	dGetDofValuePrev (int iDof, int iOrder=0) const

virtual void	SetDofValue (const doublereal &dValue, unsigned int iDof, unsigned int iOrder=0)

virtual void	SetX (const doublereal &d)

virtual const doublereal &	dGetX (void) const

virtual void	SetXPrime (const doublereal &d)

virtual const doublereal &	dGetXPrime (void) const

virtual void	SetValue (DataManager pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints ph=0)

virtual void	Update (const class VectorHandler &, const class VectorHandler &)

std::ostream &	Restart (std::ostream &out) const

virtual unsigned int	iGetNumPrivData (void) const

virtual unsigned int	iGetPrivDataIdx (const char *s) const

virtual doublereal	dGetPrivData (unsigned int i) const

Public Member Functions inherited from ScalarNode
	ScalarNode (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual	~ScalarNode (void)

virtual unsigned int	iGetNumDof (void) const

virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)

Public Member Functions inherited from Node
	Node (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual	~Node (void)

const Node *	GetNode (void) const

virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual integer	iGetFirstRowIndex (void) const

virtual integer	iGetFirstColIndex (void) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)

virtual	~SimulationEntity (void)

virtual bool	bIsValidIndex (unsigned int i) const

virtual DofOrder::Order	GetEqType (unsigned int i) const

virtual Hint *	ParseHint (DataManager pDM, const char s) const

virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual std::ostream &	OutputAppend (std::ostream &out) const

virtual void	ReadInitialState (MBDynParser &HP)

Public Member Functions inherited from DofOwnerOwner
	DofOwnerOwner (const DofOwner *pDO)

virtual	~DofOwnerOwner ()

virtual const DofOwner *	pGetDofOwner (void) const

virtual integer	iGetFirstIndex (void) const

virtual void	SetInitialValue (VectorHandler &X)

Public Member Functions inherited from ToBeOutput
	ToBeOutput (flag fOut=fDefaultOut)

virtual	~ToBeOutput (void)

virtual void	OutputPrepare (OutputHandler &OH)

virtual void	Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag	fToBeOutput (void) const

virtual bool	bToBeOutput (void) const

virtual void	SetOutputFlag (flag f=flag(1))

Additional Inherited Members
Public Types inherited from Node
enum	Type { UNKNOWN = -1, ABSTRACT = 0, STRUCTURAL, ELECTRIC, THERMAL, PARAMETER, HYDRAULIC, LASTNODETYPE }

Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints

Public Types inherited from ToBeOutput
enum	{ OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

Protected Member Functions inherited from ScalarDifferentialNode
virtual std::ostream &	Output (std::ostream &out) const

Protected Attributes inherited from ScalarDifferentialNode
doublereal	dX

doublereal	dXP

doublereal	dXPrev

doublereal	dXPPrev

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Protected Attributes inherited from ToBeOutput
flag	fOutput

Detailed Description

Definition at line 84 of file elecnode.h.

Constructor & Destructor Documentation

ElectricNode::ElectricNode	(	unsigned int	uL,
		const DofOwner *	pDO,
		doublereal	dx,
		doublereal	dxp,
		flag	fOut
	)

Definition at line 41 of file elecnode.cc.

References NO_OP.

 : ScalarDifferentialNode(uL, pDO, dx, dxp, fOut)
 {
         NO_OP;
 }

ElectricNode::~ElectricNode ( void )

virtual

Definition at line 52 of file elecnode.cc.

References NO_OP.

 {
         NO_OP;
 }

Member Function Documentation

Node::Type ElectricNode::GetNodeType ( void ) const

virtual

Reimplemented from ScalarDifferentialNode.

Definition at line 59 of file elecnode.cc.

References Node::ELECTRIC.

 {
         return Node::ELECTRIC;
 }

virtual void ElectricNode::Output ( OutputHandler & OH ) const

inlinevirtual

Reimplemented from ScalarNode.

Definition at line 96 of file elecnode.h.

References OutputHandler::Electric(), and ScalarDifferentialNode::Output().

                                                      {
         ScalarDifferentialNode::Output(OH.Electric());
         };

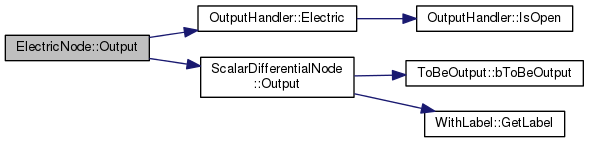

Here is the call graph for this function:

The documentation for this class was generated from the following files:
