InverseSolver Class Reference

#include <invsolver.h>

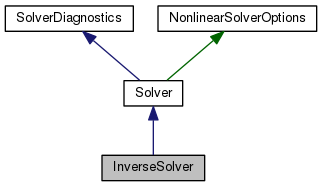

Inheritance diagram for InverseSolver:
Inheritance graph
[legend]

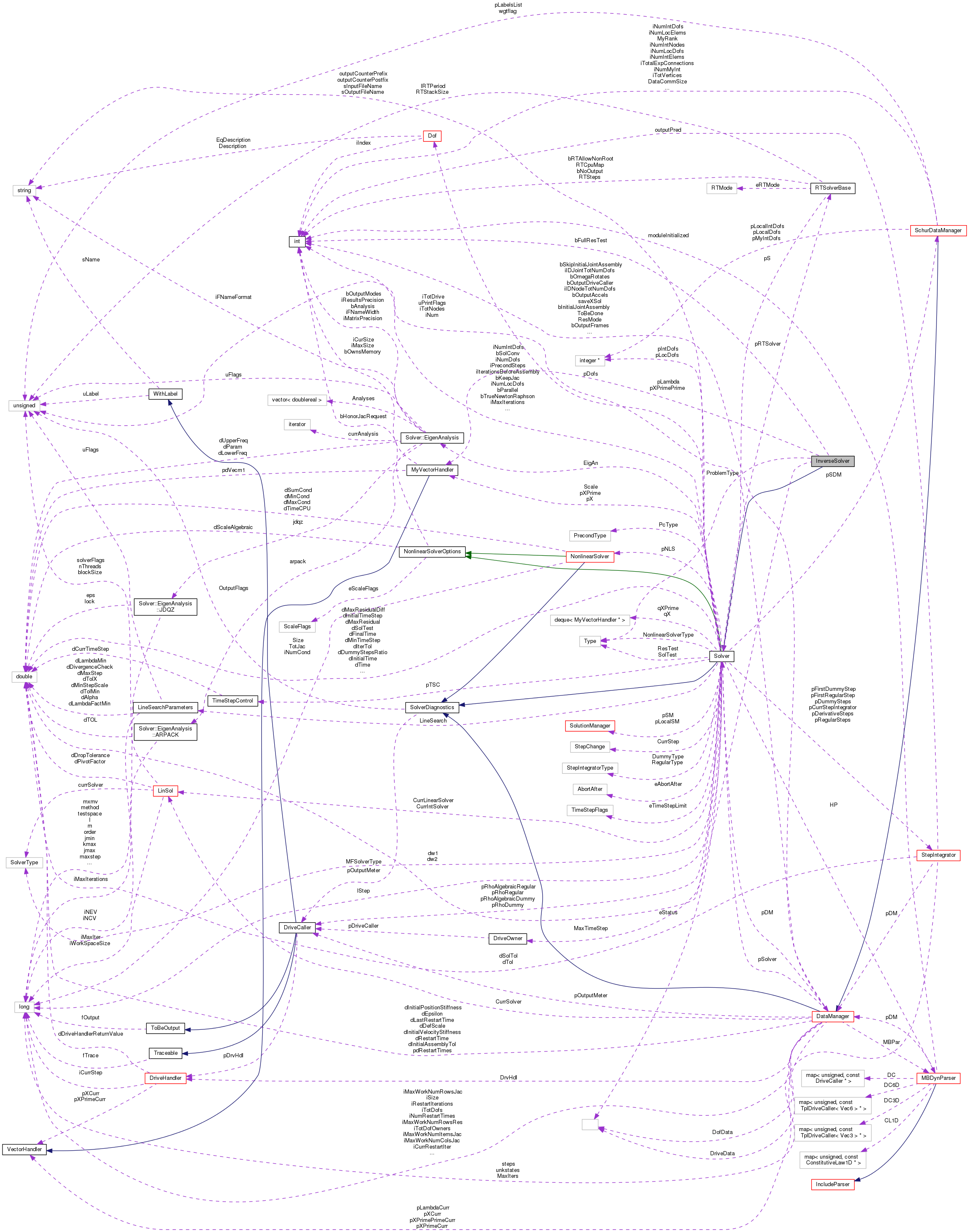

Collaboration diagram for InverseSolver:
Collaboration graph
[legend]

Public Member Functions

 InverseSolver (MBDynParser &HP, const std::string &sInputFileName, const std::string &sOutputFileName, unsigned int nThreads, bool bParallel=false)

virtual ~InverseSolver (void)

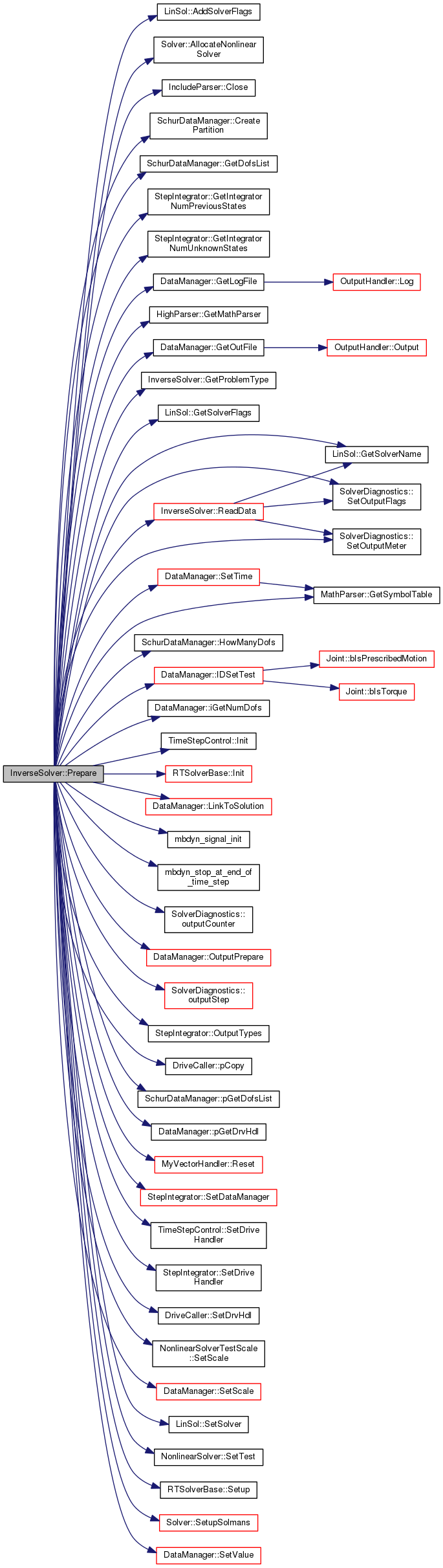

virtual bool Prepare (void)

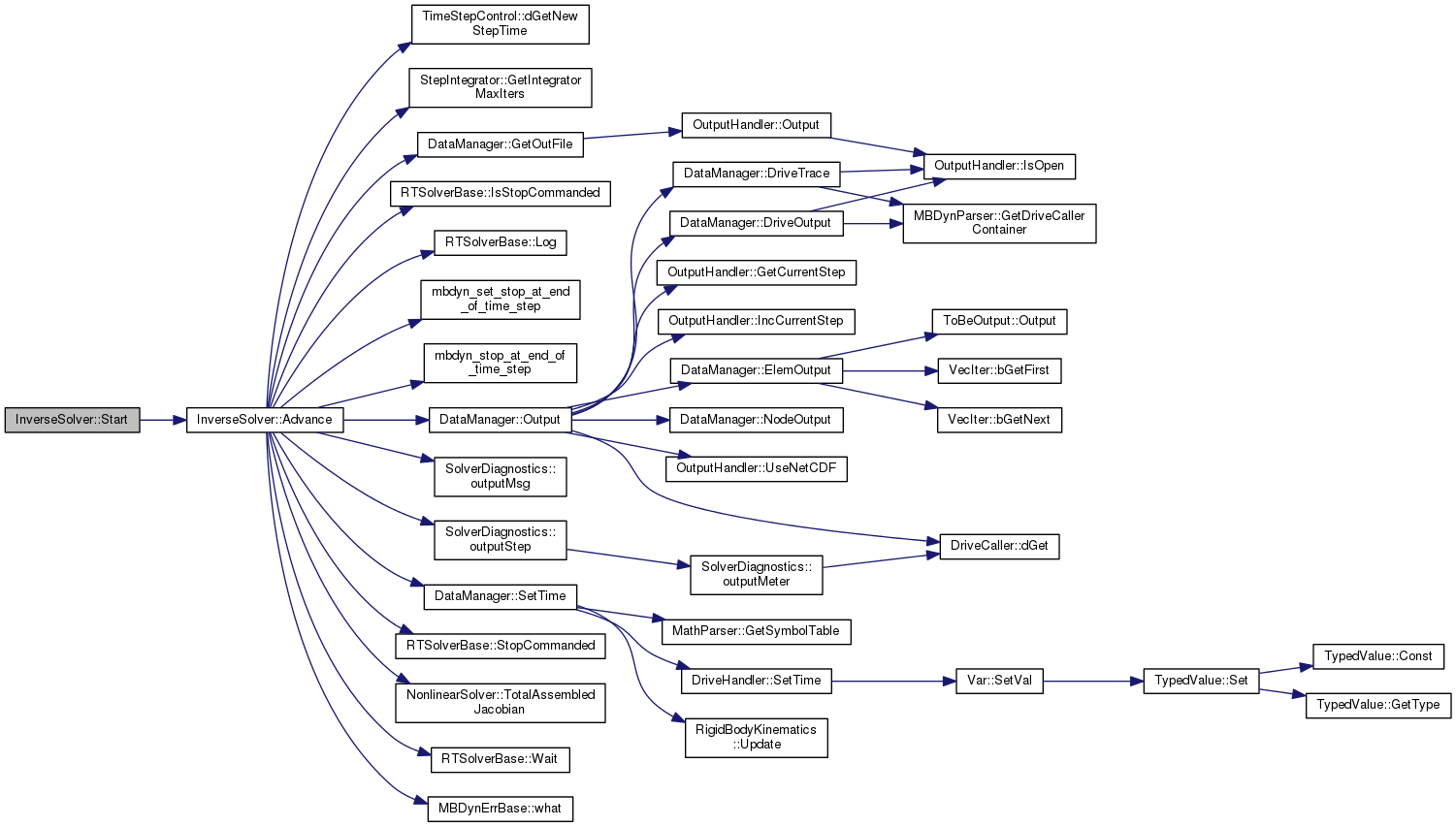

virtual bool Start (void)

virtual bool Advance (void)

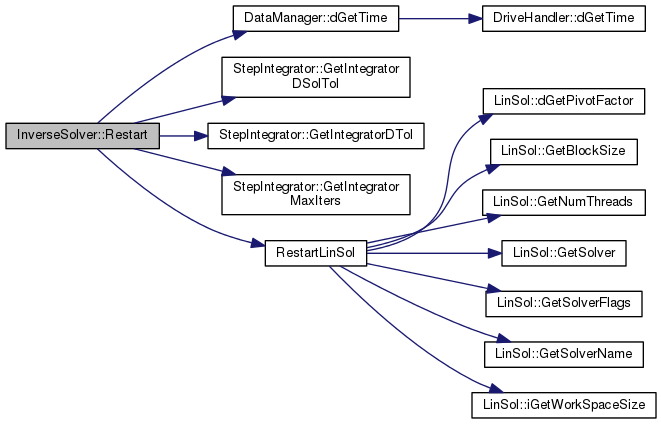

std::ostream & Restart (std::ostream &out, DataManager::eRestart type) const

InverseDynamics::Type GetProblemType (void) const

void GetWeight (InverseDynamics::Order iOrder, doublereal &dw1, doublereal &dw2) const

- Public Member Functions inherited from Solver
 Solver (MBDynParser &HP, const std::string &sInputFileName, const std::string &sOutputFileName, unsigned int nThreads, bool bParallel=false)

virtual ~Solver (void)

void Run (void)

std::ostream & Restart (std::ostream &out, DataManager::eRestart type) const

virtual DataManager * pGetDataManager (void) const

virtual SolutionManager * pGetSolutionManager (void) const

virtual const LinSol & GetLinearSolver (void) const

virtual NonlinearSolver * pGetNonlinearSolver (void) const

virtual StepIntegrator * pGetStepIntegrator (void) const

virtual doublereal dGetFinalTime (void) const

virtual doublereal dGetInitialTimeStep (void) const

virtual clock_t GetCPUTime (void) const

virtual void PrintResidual (const VectorHandler &Res, integer iIterCnt) const

virtual void PrintSolution (const VectorHandler &Sol, integer iIterCnt) const

virtual void CheckTimeStepLimit (doublereal dErr, doublereal dErrDiff) const throw (NonlinearSolver::TimeStepLimitExceeded, NonlinearSolver::MaxResidualExceeded)

- Public Member Functions inherited from SolverDiagnostics
 SolverDiagnostics (unsigned OF=OUTPUT_DEFAULT, DriveCaller *pOM=0)

virtual ~SolverDiagnostics (void)

void SetNoOutput (void)

void SetOutputMeter (DriveCaller *pOM)

void SetOutputDriveHandler (const DriveHandler *pDH)

void SetOutputFlags (unsigned OF)

void AddOutputFlags (unsigned OF)

void DelOutputFlags (unsigned OF)

MatrixHandler::Norm_t GetCondMatNorm (void) const

bool outputMeter (void) const

bool outputIters (void) const

bool outputRes (void) const

bool outputSol (void) const

bool outputJac (void) const

bool outputStep (void) const

bool outputBailout (void) const

bool outputCounter (void) const

bool outputMatrixConditionNumber (void) const

bool outputSolverConditionNumber (void) const

bool outputSolverConditionStat (void) const

bool outputCPUTime (void) const

bool outputMsg (void) const


Protected Member Functions

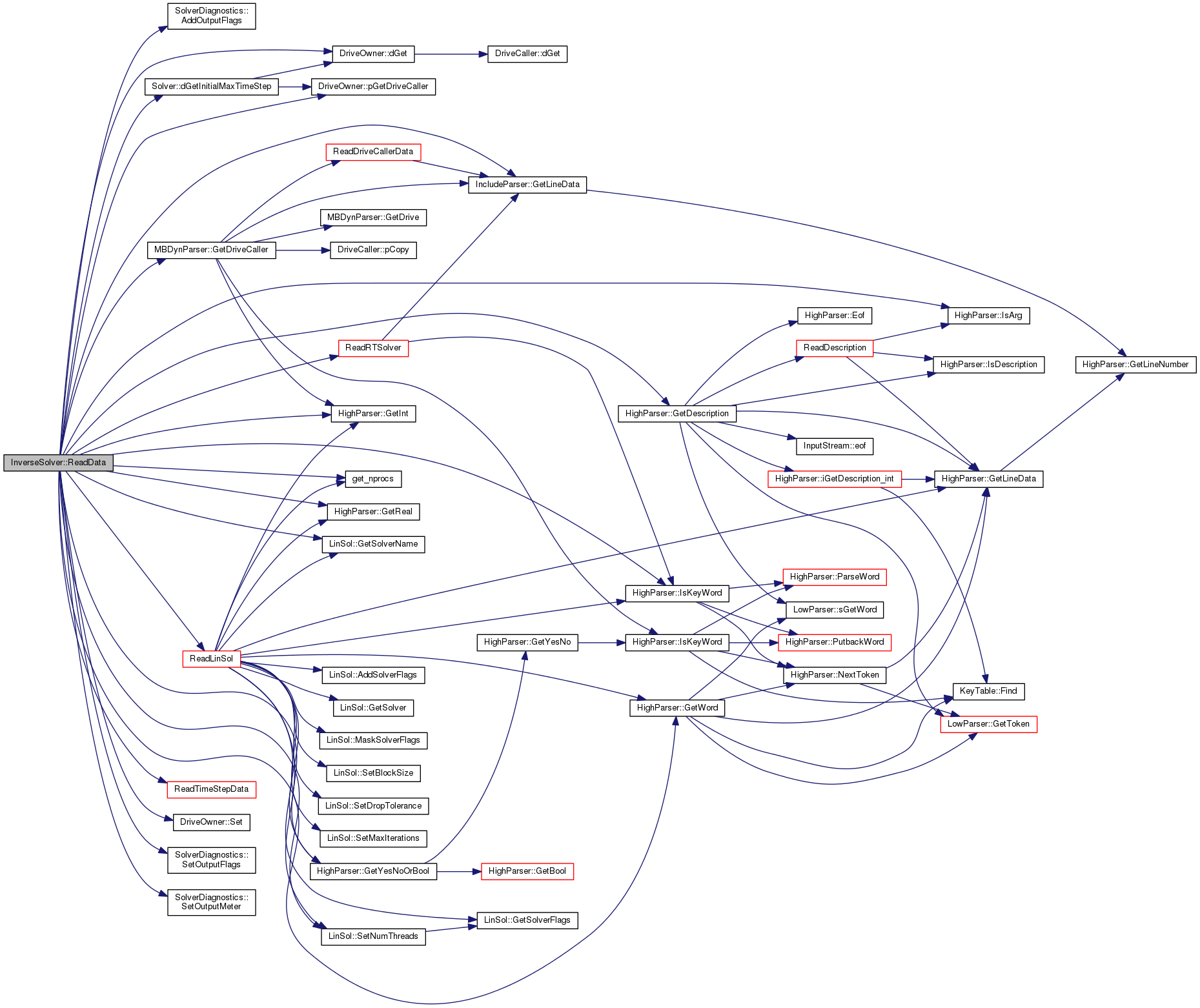

void ReadData (MBDynParser &HP)

- Protected Member Functions inherited from Solver
void Eig (bool bNewLine=false)

void Flip (void)

void ReadData (MBDynParser &HP)

SolutionManager *const AllocateSolman (integer iNLD, integer iLWS=0)

SolutionManager *const AllocateSchurSolman (integer iStates)

NonlinearSolver *const AllocateNonlinearSolver ()

void SetupSolmans (integer iStates, bool bCanBeParallel=false)

doublereal dGetInitialMaxTimeStep () const

- Protected Member Functions inherited from NonlinearSolverOptions
 NonlinearSolverOptions (bool bHonorJacRequest=false, enum ScaleFlags eScaleFlags=SCALE_ALGEBRAIC_EQUATIONS_NO, doublereal dScaleAlgebraic=1.)


Protected Attributes

InverseDynamics::Type ProblemType

doublereal dw1 [3]

doublereal dw2 [3]

MyVectorHandler * pXPrimePrime

MyVectorHandler * pLambda

bool bFullResTest

- Protected Attributes inherited from Solver
TimeStepControl * pTSC

doublereal dCurrTimeStep

integer iStIter

doublereal dTime

DriveOwner MaxTimeStep

doublereal dMinTimeStep

StepIntegrator::StepChange CurrStep

std::string sInputFileName

std::string sOutputFileName

MBDynParser & HP

integer iMaxIterations

struct EigenAnalysis EigAn

RTSolverBase * pRTSolver

integer iNumPreviousVectors

integer iUnkStates

doublereal * pdWorkSpace

std::deque< MyVectorHandler * > qX

std::deque< MyVectorHandler * > qXPrime

MyVectorHandler * pX

MyVectorHandler * pXPrime

doublereal dInitialTime

doublereal dFinalTime

doublereal dRefTimeStep

doublereal dInitialTimeStep

doublereal dMaxResidual

doublereal dMaxResidualDiff

enum Solver::TimeStepFlags eTimeStepLimit

integer iDummyStepsNumber

doublereal dDummyStepsRatio

AbortAfter eAbortAfter

StepIntegratorType RegularType

StepIntegratorType DummyType

StepIntegrator * pDerivativeSteps

StepIntegrator * pFirstDummyStep

StepIntegrator * pDummySteps

StepIntegrator * pFirstRegularStep

StepIntegrator * pRegularSteps

StepIntegrator * pCurrStepIntegrator

DriveCaller * pRhoRegular

DriveCaller * pRhoAlgebraicRegular

DriveCaller * pRhoDummy

DriveCaller * pRhoAlgebraicDummy

doublereal dDerivativesCoef

LinSol CurrLinearSolver

NonlinearSolverTest::Type ResTest

NonlinearSolverTest::Type SolTest

bool bScale

MyVectorHandler Scale

bool bTrueNewtonRaphson

bool bKeepJac

integer iIterationsBeforeAssembly

NonlinearSolver::Type NonlinearSolverType

MatrixFreeSolver::SolverType MFSolverType

doublereal dIterTol

Preconditioner::PrecondType PcType

integer iPrecondSteps

integer iIterativeMaxSteps

doublereal dIterertiveEtaMax

doublereal dIterertiveTau

struct LineSearchParameters LineSearch

bool bParallel

SchurDataManager * pSDM

LinSol CurrIntSolver

integer iNumLocDofs

integer iNumIntDofs

integer * pLocDofs

integer * pIntDofs

Dof * pDofs

SolutionManager * pLocalSM

DataManager * pDM

integer iNumDofs

SolutionManager * pSM

NonlinearSolver * pNLS

enum Solver:: { ... }  eStatus

bool bOutputCounter

std::string outputCounterPrefix

std::string outputCounterPostfix

integer iTotIter

doublereal dTotErr

doublereal dTest

doublereal dSolTest

bool bSolConv

bool bOut

long lStep

- Protected Attributes inherited from SolverDiagnostics
unsigned OutputFlags

DriveCaller * pOutputMeter

- Protected Attributes inherited from NonlinearSolverOptions
bool bHonorJacRequest

enum
NonlinearSolverOptions::ScaleFlags 		eScaleFlags

doublereal dScaleAlgebraic


Additional Inherited Members

- Protected Types inherited from Solver
enum  TimeStepFlags { TS_SOFT_LIMIT = 0, TS_HARD_LIMIT = 1 }

enum  AbortAfter {
  AFTER_UNKNOWN, AFTER_INPUT, AFTER_ASSEMBLY, AFTER_DERIVATIVES,
  AFTER_DUMMY_STEPS
}

enum  StepIntegratorType {
  INT_CRANKNICOLSON, INT_MODCRANKNICOLSON, INT_MS2, INT_HOPE,
  INT_THIRDORDER, INT_IMPLICITEULER, INT_UNKNOWN
}

enum  { SOLVER_STATUS_UNINITIALIZED, SOLVER_STATUS_PREPARED, SOLVER_STATUS_STARTED }

- Protected Types inherited from SolverDiagnostics
enum  {
  OUTPUT_NONE = 0x0000, OUTPUT_ITERS = 0x0001, OUTPUT_RES = 0x0002, OUTPUT_SOL = 0x0004,
  OUTPUT_JAC = 0x0008, OUTPUT_BAILOUT = 0x0010, OUTPUT_MSG = 0x0020, OUTPUT_COUNTER = 0x0040,
  OUTPUT_MAT_COND_NUM_1 = 0x0080, OUTPUT_MAT_COND_NUM_INF = 0x0100, OUTPUT_SOLVER_COND_NUM = 0x0200, OUTPUT_SOLVER_COND_STAT = 0x400,
  OUTPUT_CPU_TIME = 0x800, OUTPUT_MAT_COND_NUM = OUTPUT_MAT_COND_NUM_1 | OUTPUT_MAT_COND_NUM_INF, OUTPUT_DEFAULT = OUTPUT_MSG, OUTPUT_STEP = (OUTPUT_ITERS | OUTPUT_RES | OUTPUT_SOL | OUTPUT_JAC | OUTPUT_MAT_COND_NUM | OUTPUT_SOLVER_COND_NUM),
  OUTPUT_MASK = 0x07FF
}

- Protected Types inherited from NonlinearSolverOptions
enum  ScaleFlags { SCALE_ALGEBRAIC_EQUATIONS_NO = 0, SCALE_ALGEBRAIC_EQUATIONS_YES = 1 }


Detailed Description

Definition at line 67 of file invsolver.h.

Constructor & Destructor Documentation

InverseSolver::InverseSolver ( MBDynParser &  HP,
const std::string &  sInputFileName,
const std::string &  sOutputFileName,
unsigned int  nThreads,
bool  bParallel = false
)

Definition at line 79 of file invsolver.cc.

References DEBUGCOUTFNAME.

84 : Solver(HPar, sInFName, sOutFName, nThreads, bPar),
85 ProblemType(InverseDynamics::FULLY_ACTUATED_COLLOCATED),
86 pXPrimePrime(0), pLambda(0),
87 bFullResTest(false)
88 {
89  DEBUGCOUTFNAME("InverseSolver::InverseSolver");
90 }
InverseSolver::bFullResTest
bool bFullResTest
Definition: invsolver.h:75
DEBUGCOUTFNAME
#define DEBUGCOUTFNAME(fname)
Definition: myassert.h:256
InverseSolver::pLambda
MyVectorHandler * pLambda
Definition: invsolver.h:73
InverseSolver::ProblemType
InverseDynamics::Type ProblemType
Definition: invsolver.h:69
Solver::Solver
Solver(MBDynParser &HP, const std::string &sInputFileName, const std::string &sOutputFileName, unsigned int nThreads, bool bParallel=false)
Definition: solver.cc:274
InverseSolver::pXPrimePrime
MyVectorHandler * pXPrimePrime
Definition: invsolver.h:72
InverseSolver::~InverseSolver ( void  )
virtual

Definition at line 759 of file invsolver.cc.

References DEBUGCOUTFNAME, Solver::pDM, Solver::pdWorkSpace, pLambda, Solver::pNLS, Solver::pRegularSteps, Solver::pSM, Solver::pX, Solver::pXPrime, pXPrimePrime, SAFEDELETE, and SAFEDELETEARR.

760 {
761  DEBUGCOUTFNAME("Solver::~Solver");
762
763  SAFEDELETE(pX);
764  SAFEDELETE(pXPrime);
765  SAFEDELETE(pXPrimePrime);
766  SAFEDELETE(pLambda);
767
768  if (pdWorkSpace != NULL) {
769  SAFEDELETEARR(pdWorkSpace);
770  }
771
772  if (pDM != NULL) {
773  SAFEDELETE(pDM);
774  }
775
776  if (pRegularSteps) {
777  SAFEDELETE(pRegularSteps);
778  }
779
780  if (pSM) {
781  SAFEDELETE(pSM);
782  }
783
784  if (pNLS) {
785  SAFEDELETE(pNLS);
786  }
787 }
Solver::pX
MyVectorHandler * pX
Definition: solver.h:233
DEBUGCOUTFNAME
#define DEBUGCOUTFNAME(fname)
Definition: myassert.h:256
SAFEDELETEARR
#define SAFEDELETEARR(pnt)
Definition: mynewmem.h:713
Solver::pSM
SolutionManager * pSM
Definition: solver.h:332
Solver::pDM
DataManager * pDM
Definition: solver.h:327
Solver::pRegularSteps
StepIntegrator * pRegularSteps
Definition: solver.h:282
InverseSolver::pLambda
MyVectorHandler * pLambda
Definition: invsolver.h:73
Solver::pXPrime
MyVectorHandler * pXPrime
Definition: solver.h:234
Solver::pNLS
NonlinearSolver * pNLS
Definition: solver.h:333
Solver::pdWorkSpace
doublereal * pdWorkSpace
Definition: solver.h:230
InverseSolver::pXPrimePrime
MyVectorHandler * pXPrimePrime
Definition: invsolver.h:72
SAFEDELETE
#define SAFEDELETE(pnt)
Definition: mynewmem.h:710

Member Function Documentation

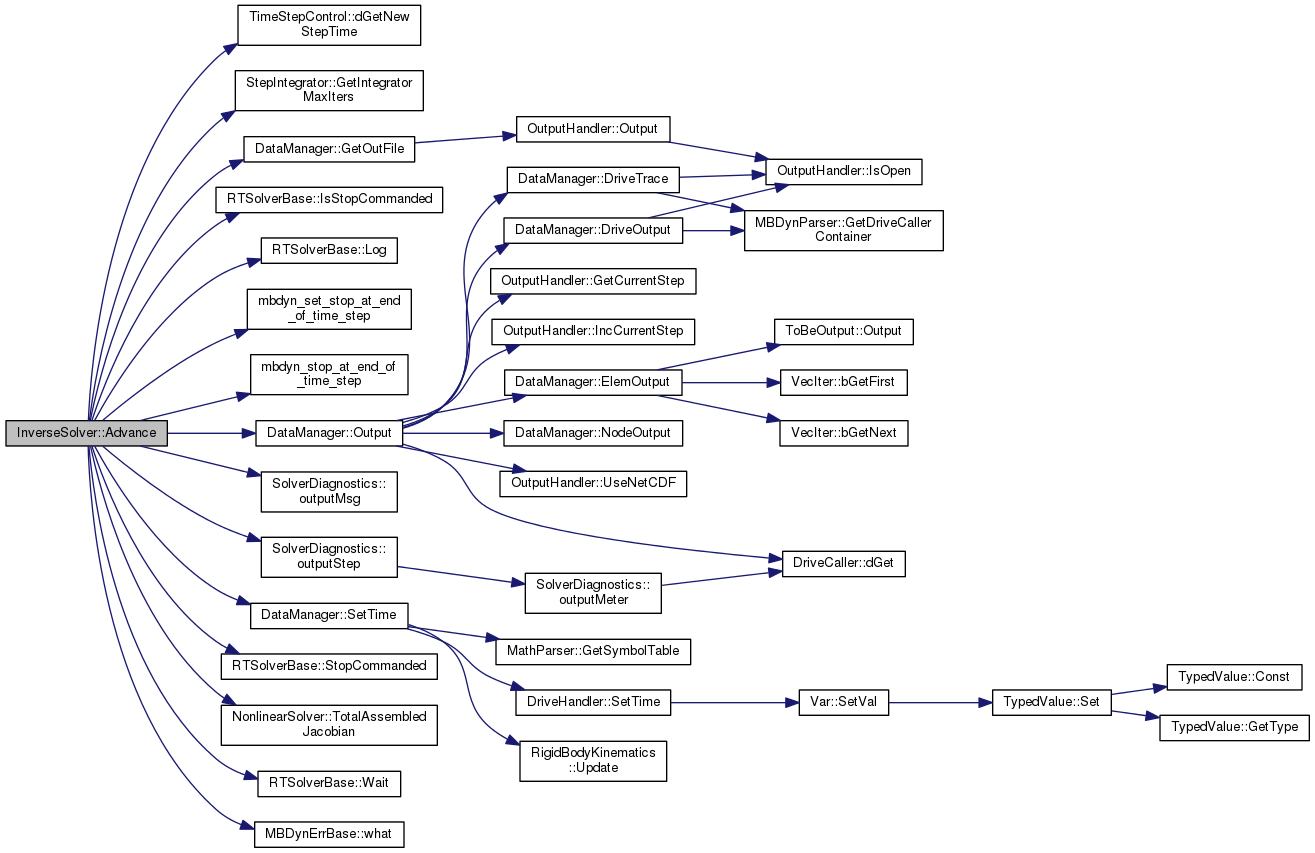

bool InverseSolver::Advance ( void  )
virtual

Reimplemented from Solver.

Definition at line 538 of file invsolver.cc.

References Solver::bOut, Solver::bOutputCounter, Solver::bSolConv, Solver::CurrStep, Solver::dCurrTimeStep, DEBUGCOUT, DEBUGCOUTFNAME, Solver::dFinalTime, TimeStepControl::dGetNewStepTime(), Solver::dMinTimeStep, Solver::dRefTimeStep, Solver::dSolTest, Solver::dTest, Solver::dTime, Solver::dTotErr, Solver::eStatus, StepIntegrator::GetIntegratorMaxIters(), DataManager::GetOutFile(), RTSolverBase::IsStopCommanded(), Solver::iStIter, Solver::iTotIter, RTSolverBase::Log(), Solver::lStep, MBDYN_EXCEPT_ARGS, mbdyn_set_stop_at_end_of_time_step(), mbdyn_stop_at_end_of_time_step(), StepIntegrator::NEWSTEP, DataManager::Output(), Solver::outputCounterPostfix, Solver::outputCounterPrefix, SolverDiagnostics::outputMsg(), SolverDiagnostics::outputStep(), Solver::pDM, pLambda, Solver::pNLS, Solver::pRegularSteps, Solver::pRTSolver, Solver::pTSC, Solver::pX, Solver::pXPrime, pXPrimePrime, StepIntegrator::REPEATSTEP, DataManager::SetTime(), Solver::SOLVER_STATUS_STARTED, Solver::sOutputFileName, RTSolverBase::StopCommanded(), NonlinearSolver::TotalAssembledJacobian(), RTSolverBase::Wait(), and MBDynErrBase::what().

Referenced by Start().

539 {
540  DEBUGCOUTFNAME("InverseSolver::Advance");
541
542  // consistency check
543  if (eStatus != SOLVER_STATUS_STARTED) {
544  silent_cerr("Started() must be called first" << std::endl);
545  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
546  }
547
548  StepIntegrator::StepChange CurrStep = StepIntegrator::NEWSTEP;
549
550  if (dTime >= dFinalTime) {
551  if (pRTSolver) {
552  pRTSolver->StopCommanded();
553  }
554
555  silent_cout(outputCounterPrefix
556  << "End of simulation at time "
557  << dTime << " after "
558  << lStep << " steps;" << std::endl
559  << "output in file \"" << sOutputFileName << "\"" << std::endl
560  << "total iterations: " << iTotIter << std::endl
561  << "total Jacobian matrices: " << pNLS->TotalAssembledJacobian() << std::endl
562  << "total error: " << dTotErr << std::endl);
563
564  if (pRTSolver) {
565  pRTSolver->Log();
566  }
567
568  return false;
569
570  } else if (pRTSolver && pRTSolver->IsStopCommanded()) {
571  silent_cout(outputCounterPrefix
572  << "Simulation is stopped by RTAI task" << std::endl
573  << "Simulation ended at time "
574  << dTime << " after "
575  << lStep << " steps;" << std::endl
576  << "total iterations: " << iTotIter << std::endl
577  << "total Jacobian matrices: " << pNLS->TotalAssembledJacobian() << std::endl
578  << "total error: " << dTotErr << std::endl);
579  pRTSolver->Log();
580  return false;
581
582  } else if (mbdyn_stop_at_end_of_time_step()
583 #ifdef USE_MPI
584  || (MPI_Finalized(&mpi_finalize), mpi_finalize)
585 #endif /* USE_MPI */
586  )
587  {
588  if (pRTSolver) {
589  pRTSolver->StopCommanded();
590  }
591
592  silent_cout(outputCounterPrefix
593  << "Interrupted!" << std::endl
594  << "Simulation ended at time "
595  << dTime << " after "
596  << lStep << " steps;" << std::endl
597  << "total iterations: " << iTotIter << std::endl
598  << "total Jacobian matrices: " << pNLS->TotalAssembledJacobian() << std::endl
599  << "total error: " << dTotErr << std::endl);
600
601  if (pRTSolver) {
602  pRTSolver->Log();
603  }
604
605  throw ErrInterrupted(MBDYN_EXCEPT_ARGS);
606  }
607
608  lStep++;
609
610  if (pRTSolver) {
611  pRTSolver->Wait();
612  }
613
614  int retries = -1;
615 IfStepIsToBeRepeated:
616  try {
617  retries++;
618  pDM->SetTime(dTime + dCurrTimeStep, dCurrTimeStep, lStep);
619  if (outputStep()) {
620  silent_cout("Step(" << lStep << ':' << retries << ") t=" << dTime + dCurrTimeStep << " dt=" << dCurrTimeStep << std::endl);
621  }
622  dTest = dynamic_cast<InverseDynamicsStepSolver *>(pRegularSteps)->Advance(this, dRefTimeStep,
623  CurrStep, pX, pXPrime, pXPrimePrime, pLambda,
624  iStIter, dTest, dSolTest);
625  }
626
627  catch (NonlinearSolver::NoConvergence) {
628  if (dCurrTimeStep > dMinTimeStep) {
629  /* Riduce il passo */
630  CurrStep = StepIntegrator::REPEATSTEP;
631  doublereal dOldCurrTimeStep = dCurrTimeStep;
632  dCurrTimeStep = pTSC->dGetNewStepTime(CurrStep, iStIter);
633  if (dCurrTimeStep < dOldCurrTimeStep) {
634  DEBUGCOUT("Changing time step"
635  " during step "
636  << lStep << " after "
637  << iStIter << " iterations"
638  << std::endl);
639  goto IfStepIsToBeRepeated;
640  }
641  }
642
643  silent_cerr(outputCounterPrefix
644  << "Max iterations number "
645  << std::abs(pRegularSteps->GetIntegratorMaxIters())
646  << " has been reached during"
647  " step " << lStep << ';'
648  << std::endl
649  << "time step dt="
650  << dCurrTimeStep
651  << " cannot be reduced"
652  " further;" << std::endl
653  << "aborting..." << std::endl);
654  throw ErrMaxIterations(MBDYN_EXCEPT_ARGS);
655  }
656
657  catch (NonlinearSolver::ErrSimulationDiverged) {
658  /*
659  * Mettere qui eventuali azioni speciali
660  * da intraprendere in caso di errore ...
661  */
662  silent_cerr(outputCounterPrefix
663  << "Simulation diverged after "
664  << iStIter << " iterations, before "
665  "reaching max iteration number "
666  << pRegularSteps->GetIntegratorMaxIters()
667  << " during step " << lStep << ';'
668  << std::endl
669  << "time step dt="
670  << dCurrTimeStep
671  << " cannot be reduced"
672  " further;" << std::endl
673  << "aborting..." << std::endl);
674  throw SimulationDiverged(MBDYN_EXCEPT_ARGS);
675  }
676  catch (NonlinearSolver::ConvergenceOnSolution) {
677  bSolConv = true;
678  }
679
680  catch (EndOfSimulation& eos) {
681  silent_cerr("Simulation ended during a regular step:\n"
682  << eos.what() << "\n");
683  mbdyn_set_stop_at_end_of_time_step();
684 #ifdef USE_MPI
685  MBDynComm.Abort(0);
686 #endif /* USE_MPI */
687
688  if (pRTSolver) {
689  pRTSolver->StopCommanded();
690  }
691
692  silent_cout(outputCounterPrefix
693  << "Simulation ended at time "
694  << dTime << " after "
695  << lStep << " steps;" << std::endl
696  << "total iterations: " << iTotIter << std::endl
697  << "total Jacobian matrices: " << pNLS->TotalAssembledJacobian() << std::endl
698  << "total error: " << dTotErr << std::endl);
699
700  if (pRTSolver) {
701  pRTSolver->Log();
702  }
703
704  return false;
705  }
706  catch (...) {
707  throw;
708  }
709
710  dTotErr += dTest;
711  iTotIter += iStIter;
712
713  bOut = pDM->Output(lStep, dTime + dCurrTimeStep, dCurrTimeStep);
714
715  /* Si fa dare l'std::ostream al file di output per il log */
716  std::ostream& Out = pDM->GetOutFile();
717
718  if (outputMsg()) {
719  Out << "Step " << lStep
720  << " " << dTime+dCurrTimeStep
721  << " " << dCurrTimeStep
722  << " " << iStIter
723  << " " << dTest
724  << " " << dSolTest
725  << " " << bSolConv
726  << " " << bOut
727  << std::endl;
728  }
729
730  if (bOutputCounter) {
731  silent_cout("Step " << std::setw(5) << lStep
732  << " " << std::setw(13) << dTime + dCurrTimeStep
733  << " " << std::setw(13) << dCurrTimeStep
734  << " " << std::setw(4) << iStIter
735  << " " << std::setw(13) << dTest
736  << " " << std::setw(13) << dSolTest
737  << " " << bSolConv
738  << " " << bOut
739  << outputCounterPostfix);
740  }
741
742  DEBUGCOUT("Step " << lStep
743  << " has been successfully completed "
744  "in " << iStIter << " iterations" << std::endl);
745
746  dRefTimeStep = dCurrTimeStep;
747  dTime += dRefTimeStep;
748
749  bSolConv = false;
750
751  /* Calcola il nuovo timestep */
752  dCurrTimeStep = pTSC->dGetNewStepTime(CurrStep,iStIter);
753  DEBUGCOUT("Current time step: " << dCurrTimeStep << std::endl);
754
755  return true;
756 }
Solver::pX
MyVectorHandler * pX
Definition: solver.h:233
Solver::outputCounterPrefix
std::string outputCounterPrefix
Definition: solver.h:362
Solver::bOutputCounter
bool bOutputCounter
Definition: solver.h:361
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
DEBUGCOUTFNAME
#define DEBUGCOUTFNAME(fname)
Definition: myassert.h:256
InverseSolver::Advance
virtual bool Advance(void)
Definition: invsolver.cc:538
Solver::dRefTimeStep
doublereal dRefTimeStep
Definition: solver.h:240
Solver::dMinTimeStep
doublereal dMinTimeStep
Definition: solver.h:111
DataManager::Output
virtual bool Output(long lStep, const doublereal &dTime, const doublereal &dTimeStep, bool force=false) const
Definition: dataman2.cc:2355
Solver::sOutputFileName
std::string sOutputFileName
Definition: solver.h:114
RTSolverBase::Wait
virtual void Wait(void)=0
Solver::iTotIter
integer iTotIter
Definition: solver.h:364
SolverDiagnostics::outputMsg
bool outputMsg(void) const
Definition: solverdiagnostics.h:131
Solver::CurrStep
StepIntegrator::StepChange CurrStep
Definition: solver.h:112
StepIntegrator::GetIntegratorMaxIters
virtual integer GetIntegratorMaxIters(void) const
Definition: stepsol.cc:93
Solver::dTime
doublereal dTime
Definition: solver.h:109
Solver::iStIter
integer iStIter
Definition: solver.h:108
Solver::eStatus
enum Solver::@38 eStatus
SolverDiagnostics::outputStep
bool outputStep(void) const
Definition: solverdiagnostics.h:100
RTSolverBase::StopCommanded
virtual void StopCommanded(void)=0
NonlinearSolver::TotalAssembledJacobian
virtual integer TotalAssembledJacobian(void)
Definition: nonlin.cc:468
DataManager::GetOutFile
std::ostream & GetOutFile(void) const
Definition: dataman.h:325
Solver::dSolTest
doublereal dSolTest
Definition: solver.h:368
Solver::pDM
DataManager * pDM
Definition: solver.h:327
Solver::pRegularSteps
StepIntegrator * pRegularSteps
Definition: solver.h:282
Solver::dCurrTimeStep
doublereal dCurrTimeStep
Definition: solver.h:107
Solver::pRTSolver
RTSolverBase * pRTSolver
Definition: solver.h:225
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
Solver::dFinalTime
doublereal dFinalTime
Definition: solver.h:239
InverseSolver::pLambda
MyVectorHandler * pLambda
Definition: invsolver.h:73
RTSolverBase::IsStopCommanded
virtual bool IsStopCommanded(void)
Definition: rtsolver.cc:81
RTSolverBase::Log
virtual void Log(void)=0
mbdyn_stop_at_end_of_time_step
int mbdyn_stop_at_end_of_time_step(void)
Definition: solver.cc:182
DataManager::SetTime
void SetTime(const doublereal &dTime, const doublereal &dTimeStep=-1., const integer &iStep=-1, bool bServePending=true)
Definition: dataman2.cc:139
TimeStepControl::dGetNewStepTime
virtual doublereal dGetNewStepTime(StepIntegrator::StepChange currStep, doublereal iPerformedIters)=0
Solver::dTotErr
doublereal dTotErr
Definition: solver.h:366
Solver::pTSC
TimeStepControl * pTSC
Definition: solver.h:106
Solver::outputCounterPostfix
std::string outputCounterPostfix
Definition: solver.h:363
Solver::pXPrime
MyVectorHandler * pXPrime
Definition: solver.h:234
Solver::pNLS
NonlinearSolver * pNLS
Definition: solver.h:333
Solver::bOut
bool bOut
Definition: solver.h:370
doublereal
double doublereal
Definition: colamd.c:52
Solver::bSolConv
bool bSolConv
Definition: solver.h:369
Solver::dTest
doublereal dTest
Definition: solver.h:367
Solver::lStep
long lStep
Definition: solver.h:371
mbdyn_set_stop_at_end_of_time_step
void mbdyn_set_stop_at_end_of_time_step(void)
Definition: solver.cc:200
InverseSolver::pXPrimePrime
MyVectorHandler * pXPrimePrime
Definition: invsolver.h:72

Here is the call graph for this function:

InverseDynamics::Type InverseSolver::GetProblemType ( void  ) const

Definition at line 889 of file invsolver.cc.

References ProblemType.

Referenced by DataManager::AssConstrJac(), DataManager::AssConstrRes(), and Prepare().

890 {
891  return ProblemType;
892 }
InverseSolver::ProblemType
InverseDynamics::Type ProblemType
Definition: invsolver.h:69
void InverseSolver::GetWeight ( InverseDynamics::Order  iOrder,
doublereal &  dw1,
doublereal &  dw2
) const

Definition at line 895 of file invsolver.cc.

References InverseDynamics::ACCELERATION, MBDYN_EXCEPT_ARGS, InverseDynamics::POSITION, and InverseDynamics::VELOCITY.

Referenced by DataManager::AssConstrJac(), and DataManager::AssConstrRes().

896 {
897  switch (iOrder) {
898  case InverseDynamics::POSITION:
899  dw1 = this->dw1[0];
900  dw2 = this->dw2[0];
901  break;
902
903  case InverseDynamics::VELOCITY:
904  dw1 = this->dw1[1];
905  dw2 = this->dw2[1];
906  break;
907
908  case InverseDynamics::ACCELERATION:
909 #if 0
910  dw1 = 0.;
911  dw2 = this->dw1[2] + this->dw2[2];
912 #endif
913  dw1 = this->dw1[2];
914  dw2 = this->dw2[2];
915  break;
916
917  default:
918  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
919  }
920 }
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
InverseSolver::dw2
doublereal dw2[3]
Definition: invsolver.h:71
InverseSolver::dw1
doublereal dw1[3]
Definition: invsolver.h:70
bool InverseSolver::Prepare ( void  )
virtual

Reimplemented from Solver.

Definition at line 93 of file invsolver.cc.

References LinSol::AddSolverFlags(), Solver::AFTER_INPUT, Solver::AllocateNonlinearSolver(), ASSERT, bFullResTest, Solver::bOutputCounter, Solver::bParallel, Solver::bScale, Solver::bSolConv, IncludeParser::Close(), SchurDataManager::CreatePartition(), Solver::CurrLinearSolver, Solver::dCurrTimeStep, DEBUG_LEVEL_MATCH, DEBUGCOUT, DEBUGCOUTFNAME, DEBUGLCOUT, Solver::dInitialTime, Solver::dInitialTimeStep, Solver::dMinTimeStep, Solver::dRefTimeStep, Solver::dTime, Solver::eAbortAfter, EMPTY, Solver::eStatus, SchurDataManager::GetDofsList(), StepIntegrator::GetIntegratorNumPreviousStates(), StepIntegrator::GetIntegratorNumUnknownStates(), DataManager::GetLogFile(), HighParser::GetMathParser(), DataManager::GetOutFile(), GetProblemType(), LinSol::GetSolverFlags(), LinSol::GetSolverName(), MathParser::GetSymbolTable(), SchurDataManager::HowManyDofs(), Solver::HP, DataManager::IDSetTest(), DataManager::iGetNumDofs(), Solver::iMaxIterations, TimeStepControl::Init(), RTSolverBase::Init(), SchurDataManager::INTERNAL, Solver::iNumDofs, Solver::iNumIntDofs, Solver::iNumLocDofs, Solver::iNumPreviousVectors, Solver::iUnkStates, DataManager::LinkToSolution(), SchurDataManager::LOCAL, Solver::lStep, Solver::MaxTimeStep, MBDYN_EXCEPT_ARGS, mbdyn_signal_init(), mbdyn_stop_at_end_of_time_step(), NonlinearSolverTest::MINMAX, MYDEBUG_JAC, MYDEBUG_MEM, MYDEBUG_PRED, MYDEBUG_RESIDUAL, MYDEBUG_SOL, NonlinearSolverTest::NONE, NonlinearSolverTest::NORM, SolverDiagnostics::OUTPUT_JAC, SolverDiagnostics::OUTPUT_RES, SolverDiagnostics::OUTPUT_SOL, SolverDiagnostics::outputCounter(), Solver::outputCounterPostfix, Solver::outputCounterPrefix, SolverDiagnostics::OutputFlags, DataManager::OutputPrepare(), SolverDiagnostics::outputStep(), StepIntegrator::OutputTypes(), DriveCaller::pCopy(), Solver::pCurrStepIntegrator, Solver::pDM, Solver::pDofs, Solver::pdWorkSpace, SchurDataManager::pGetDofsList(), DataManager::pGetDrvHdl(), Solver::pIntDofs, pLambda, Solver::pLocDofs, Solver::pNLS, SolverDiagnostics::pOutputMeter, Solver::pRegularSteps, Solver::pRTSolver, Solver::pSDM, Solver::pTSC, Solver::pX, Solver::pXPrime, pXPrimePrime, Solver::qX, Solver::qXPrime, ReadData(), MyVectorHandler::Reset(), Solver::ResTest, SAFENEW, SAFENEWARR, SAFENEWWITHCONSTRUCTOR, Solver::Scale, StepIntegrator::SetDataManager(), TimeStepControl::SetDriveHandler(), StepIntegrator::SetDriveHandler(), DriveCaller::SetDrvHdl(), SolverDiagnostics::SetOutputFlags(), SolverDiagnostics::SetOutputMeter(), NonlinearSolverTestScale::SetScale(), DataManager::SetScale(), LinSol::SetSolver(), NonlinearSolver::SetTest(), DataManager::SetTime(), RTSolverBase::Setup(), Solver::SetupSolmans(), DataManager::SetValue(), Solver::sInputFileName, Solver::SolTest, LinSol::SOLVER_FLAGS_ALLOWS_MT_ASS, Solver::SOLVER_STATUS_PREPARED, Solver::SOLVER_STATUS_UNINITIALIZED, Solver::sOutputFileName, SchurDataManager::TOTAL, LinSol::UMFPACK_SOLVER, InverseDynamics::UNDERDETERMINED_FULLY_ACTUATED, InverseDynamics::UNDERDETERMINED_UNDERACTUATED_COLLOCATED, and LinSol::Y12_SOLVER.

94 {
95  DEBUGCOUTFNAME("InverseSolver::Prepare");
96
97  // consistency check
98  if (eStatus != SOLVER_STATUS_UNINITIALIZED) {
99  silent_cerr("Prepare() must be called first" << std::endl);
100  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
101  }
102
103  mbdyn_signal_init(1);
104
105  /* Legge i dati relativi al metodo di integrazione */
106  ReadData(HP);
107
108 /*FIXME:*/
109 // bParallel = false;
110
111 #ifdef USE_MULTITHREAD
112  ThreadPrepare();
113 #endif /* USE_MULTITHREAD */
114
115  if (pRTSolver) {
116  pRTSolver->Setup();
117  }
118
119  int mpi_finalize = 0;
120
121 #ifdef USE_SCHUR
122  if (bParallel) {
123  DEBUGLCOUT(MYDEBUG_MEM, "creating parallel SchurDataManager"
124  << std::endl);
125
126  SAFENEWWITHCONSTRUCTOR(pSDM,
127  SchurDataManager,
128  SchurDataManager(HP,
129  OutputFlags,
130  this,
131  dInitialTime,
132  sOutputFileName.c_str(),
133  sInputFileName.c_str(),
134  eAbortAfter == AFTER_INPUT));
135
136  /* FIXME: who frees sNewOutname? */
137
138  pDM = pSDM;
139
140  } else
141 #endif // USE_SCHUR
142  {
143  /* chiama il gestore dei dati generali della simulazione */
144 #ifdef USE_MULTITHREAD
145  if (nThreads > 1) {
146  if (!(CurrLinearSolver.GetSolverFlags() & LinSol::SOLVER_FLAGS_ALLOWS_MT_ASS)) {
147  /* conservative: dir may use too much memory */
148  if (!CurrLinearSolver.AddSolverFlags(LinSol::SOLVER_FLAGS_ALLOWS_MT_ASS)) {
149  bool b;
150
151 #if defined(USE_UMFPACK)
152  b = CurrLinearSolver.SetSolver(LinSol::UMFPACK_SOLVER,
153  LinSol::SOLVER_FLAGS_ALLOWS_MT_ASS);
154 #elif defined(USE_Y12)
155  b = CurrLinearSolver.SetSolver(LinSol::Y12_SOLVER,
156  LinSol::SOLVER_FLAGS_ALLOWS_MT_ASS);
157 #else
158  b = false;
159 #endif
160  if (!b) {
161  silent_cerr("unable to select a CC-capable solver"
162  << std::endl);
163  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
164  }
165  }
166  }
167
168  silent_cout("Creating multithread solver "
169  "with " << nThreads << " threads "
170  "and "
171  << CurrLinearSolver.GetSolverName()
172  << " linear solver"
173  << std::endl);
174
175  SAFENEWWITHCONSTRUCTOR(pDM,
176  MultiThreadDataManager,
177  MultiThreadDataManager(HP,
178  OutputFlags,
179  this,
180  dInitialTime,
181  sOutputFileName.c_str(),
182  sInputFileName.c_str(),
183  eAbortAfter == AFTER_INPUT,
184  nThreads));
185
186  } else
187 #endif /* USE_MULTITHREAD */
188  {
189  DEBUGLCOUT(MYDEBUG_MEM, "creating DataManager"
190  << std::endl);
191
192  silent_cout("Creating scalar solver "
193  "with "
194  << CurrLinearSolver.GetSolverName()
195  << " linear solver"
196  << std::endl);
197
198  SAFENEWWITHCONSTRUCTOR(pDM,
199  DataManager,
200  DataManager(HP,
201  OutputFlags,
202  this,
203  dInitialTime,
204  sOutputFileName.c_str(),
205  sInputFileName.c_str(),
206  eAbortAfter == AFTER_INPUT));
207  }
208  }
209
210  { // log of symbol table
211  std::ostream& out = pDM->GetLogFile();
212  out << HP.GetMathParser().GetSymbolTable();
213  }
214  HP.Close();
215
216  /* Si fa dare l'std::ostream al file di output per il log */
217  std::ostream& Out = pDM->GetOutFile();
218
219  /* Qui crea le partizioni: principale fra i processi, se parallelo */
220 #ifdef USE_SCHUR
221  if (bParallel) {
222  pSDM->CreatePartition();
223  }
224 #endif // USE_SCHUR
225
226  const DriveHandler* pDH = pDM->pGetDrvHdl();
227  pRegularSteps->SetDriveHandler(pDH);
228  /* Costruisce i vettori della soluzione ai vari passi */
229  DEBUGLCOUT(MYDEBUG_MEM, "creating solution vectors" << std::endl);
230
231 #ifdef USE_SCHUR
232  if (bParallel) {
233  iNumDofs = pSDM->HowManyDofs(SchurDataManager::TOTAL);
234  pDofs = pSDM->pGetDofsList();
235
236  iNumLocDofs = pSDM->HowManyDofs(SchurDataManager::LOCAL);
237  pLocDofs = pSDM->GetDofsList(SchurDataManager::LOCAL);
238
239  iNumIntDofs = pSDM->HowManyDofs(SchurDataManager::INTERNAL);
240  pIntDofs = pSDM->GetDofsList(SchurDataManager::INTERNAL);
241
242  } else
243 #endif // USE_SCHUR
244  {
245  iNumDofs = pDM->iGetNumDofs();
246  }
247
248  /* relink those known drive callers that might need
249  * the data manager, but were verated ahead of it */
250
251  ASSERT(iNumDofs > 0);
252
253 #if 0
254  /* sono i passi precedenti usati dall'integratore */
255  integer iRSteps = pRegularSteps->GetIntegratorNumPreviousStates();
256  integer iRUnkStates = pRegularSteps->GetIntegratorNumUnknownStates();
257 #endif // 0
258
259  /* FIXME: pdWorkspace?*/
260
261 #if 1
262  /* allocate workspace for previous time steps */
263  SAFENEWARR(pdWorkSpace, doublereal,
264  2*(iNumPreviousVectors)*iNumDofs);
265  /* allocate MyVectorHandlers for previous time steps: use workspace */
266  for (int ivec = 0; ivec < iNumPreviousVectors; ivec++) {
267  SAFENEWWITHCONSTRUCTOR(pX,
268  MyVectorHandler,
269  MyVectorHandler(iNumDofs, pdWorkSpace+ivec*iNumDofs));
270  qX.push_back(pX);
271  SAFENEWWITHCONSTRUCTOR(pXPrime,
272  MyVectorHandler,
273  MyVectorHandler(iNumDofs,
274  pdWorkSpace+((iNumPreviousVectors)+ivec)*iNumDofs));
275  qXPrime.push_back(pXPrime);
276  pX = NULL;
277  pXPrime = NULL;
278  }
279  /* allocate MyVectorHandlers for unknown time step(s): own memory */
280 #endif
281
282  SAFENEWWITHCONSTRUCTOR(pX,
283  MyVectorHandler,
284  MyVectorHandler(iUnkStates*iNumDofs));
285  SAFENEWWITHCONSTRUCTOR(pXPrime,
286  MyVectorHandler,
287  MyVectorHandler(iUnkStates*iNumDofs));
288  SAFENEWWITHCONSTRUCTOR(pXPrimePrime,
289  MyVectorHandler,
290  MyVectorHandler(iUnkStates*iNumDofs));
291  SAFENEWWITHCONSTRUCTOR(pLambda,
292  MyVectorHandler,
293  MyVectorHandler(iUnkStates*iNumDofs));
294
295  pX->Reset();
296  pXPrime->Reset();
297  pXPrimePrime->Reset();
298  pLambda->Reset();
299
300  /* relink those known drive callers that might need
301  * the data manager, but were verated ahead of it */
302  pTSC->SetDriveHandler(pDM->pGetDrvHdl());
303
304  /*
305  * Immediately link DataManager to current solution
306  *
307  * this should work as long as the last unknown time step is put
308  * at the beginning of pX, pXPrime
309  */
310
311  pDM->LinkToSolution(*pX, *pXPrime, *pXPrimePrime, *pLambda);
312
313  /* a questo punto si costruisce il nonlinear solver */
314  pNLS = AllocateNonlinearSolver();
315
316  /* FIXME: Serve?*/
317  MyVectorHandler Scale(iNumDofs);
318  if (bScale) {
319  /* collects scale factors from data manager */
320  pDM->SetScale(Scale);
321  }
322
323
324  /*
325  * prepare tests for nonlinear solver;
326  *
327  * test on residual may allow pre-scaling;
328  * test on solution (difference between two iterations) does not
329  */
330  NonlinearSolverTest *pResTest = NULL;
331  if (bScale) {
332  NonlinearSolverTestScale *pResTestScale = NULL;
333
334  switch (ResTest) {
335  case NonlinearSolverTest::NORM:
336  SAFENEW(pResTestScale, NonlinearSolverTestScaleNorm);
337  break;
338
339  case NonlinearSolverTest::MINMAX:
340  SAFENEW(pResTestScale, NonlinearSolverTestScaleMinMax);
341  break;
342
343  default:
344  ASSERT(0);
345  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
346  }
347
348  /* registers scale factors at nonlinear solver */
349  pResTestScale->SetScale(&Scale);
350
351  pResTest = pResTestScale;
352
353
354  } else {
355  switch (ResTest) {
356  case NonlinearSolverTest::NONE:
357  SAFENEW(pResTest, NonlinearSolverTestNone);
358  break;
359
360  case NonlinearSolverTest::NORM:
361  SAFENEW(pResTest, NonlinearSolverTestNorm);
362  break;
363
364  case NonlinearSolverTest::MINMAX:
365  SAFENEW(pResTest, NonlinearSolverTestMinMax);
366  break;
367
368  default:
369  ASSERT(0);
370  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
371  }
372  }
373
374  NonlinearSolverTest *pSolTest = NULL;
375  switch (SolTest) {
376  case NonlinearSolverTest::NONE:
377  SAFENEW(pSolTest, NonlinearSolverTestNone);
378  break;
379
380  case NonlinearSolverTest::NORM:
381  SAFENEW(pSolTest, NonlinearSolverTestNorm);
382  break;
383
384  case NonlinearSolverTest::MINMAX:
385  SAFENEW(pSolTest, NonlinearSolverTestMinMax);
386  break;
387
388  default:
389  ASSERT(0);
390  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
391  }
392
393  // pippero
394  switch (GetProblemType()) {
395  case InverseDynamics::UNDERDETERMINED_UNDERACTUATED_COLLOCATED:
396  case InverseDynamics::UNDERDETERMINED_FULLY_ACTUATED:
397  {
398  NonlinearSolverTestRange *pRT = new NonlinearSolverTestRange(pResTest);
399  NonlinearSolverTestRange *pST = new NonlinearSolverTestRange(pSolTest);
400  pDM->IDSetTest(pRT, pST, bFullResTest);
401  pResTest = pRT;
402  pSolTest = pST;
403  } break;
404
405  default:
406  break;
407  }
408
409  /* registers tests in nonlinear solver */
410  pNLS->SetTest(pResTest, pSolTest);
411
412  /*
413  * Dell'assemblaggio iniziale dei vincoli se ne occupa il DataManager
414  * in quanto e' lui il responsabile dei dati della simulazione,
415  * e quindi anche della loro coerenza. Inoltre e' lui a sapere
416  * quali equazioni sono di vincolo o meno.
417  */
418
419  pDM->SetValue(*pX, *pXPrime);
420
421
422  /*
423  * Prepare output
424  */
425  pDM->OutputPrepare();
426
427  /*
428  * Dialoga con il DataManager per dargli il tempo iniziale
429  * e per farsi inizializzare i vettori di soluzione e derivata
430  */
431  /* FIXME: the time is already set by DataManager, but FileDrivers
432  * have not been ServePending'd
433  */
434  dTime = dInitialTime - dInitialTimeStep;
435  pDM->SetTime(dTime + dInitialTimeStep, dInitialTimeStep, 0);
436
437  // dTest = 0.;
438  // dSolTest = 0.;
439
440  mbdyn_signal_init(0);
441
442  /* settaggio degli output Types */
443  unsigned OF = OutputFlags;
444  if ( DEBUG_LEVEL_MATCH(MYDEBUG_RESIDUAL) ) {
445  OF |= OUTPUT_RES;
446  }
447  if ( DEBUG_LEVEL_MATCH(MYDEBUG_JAC) ) {
448  OF |= OUTPUT_JAC;
449  }
450  if ( DEBUG_LEVEL_MATCH(MYDEBUG_SOL) ) {
451  OF |= OUTPUT_SOL;
452  }
453  pNLS->SetOutputFlags(OF);
454  if (pOutputMeter) {
455  pOutputMeter->SetDrvHdl(pDM->pGetDrvHdl());
456  pNLS->SetOutputMeter(pOutputMeter->pCopy());
457  }
458
459  pRegularSteps->SetDataManager(pDM);
460  pRegularSteps->OutputTypes(DEBUG_LEVEL_MATCH(MYDEBUG_PRED));
461
462 #ifdef USE_EXTERNAL
463  pNLS->SetExternal(External::EMPTY);
464 #endif /* USE_EXTERNAL */
465
466  dCurrTimeStep = 0.;
467
468 #ifdef USE_EXTERNAL
469  /* comunica che gli ultimi dati inviati sono la condizione iniziale */
470  External::SendInitial();
471 #endif /* USE_EXTERNAL */
472
473 #ifdef USE_EXTERNAL
474  /* il prossimo passo e' un regular */
475  pNLS->SetExternal(External::REGULAR);
476 #endif /* USE_EXTERNAL */
477
478  lStep = -1;
479  DEBUGCOUT("Current time step: " << dCurrTimeStep << std::endl);
480
481  if (mbdyn_stop_at_end_of_time_step()) {
482  /* Fa l'output della soluzione al primo passo ed esce */
483  Out << "Interrupted during first step." << std::endl;
484  throw ErrInterrupted(MBDYN_EXCEPT_ARGS);
485  }
486
487  bSolConv = false;
488  dRefTimeStep = dInitialTimeStep;
489  dCurrTimeStep = dRefTimeStep;
490
491  if (pRTSolver) {
492  pRTSolver->Init();
493  }
494
495  bOutputCounter = outputCounter() && isatty(fileno(stderr));
496  outputCounterPrefix = bOutputCounter ? "\n" : "";
497  outputCounterPostfix = outputStep() ? "\n" : "\r";
498
499  pTSC->Init(iMaxIterations, dMinTimeStep, MaxTimeStep, dInitialTimeStep);
500
501  /* Setup SolutionManager(s) */
502  ASSERT(pRegularSteps != 0);
503  SetupSolmans(pRegularSteps->GetIntegratorNumUnknownStates(), true);
504
505  /* this is here to force AfterConvergence()
506  * since we need to explicitly SetTime() to the next time step */
507  pDM->SetValue(*pX, *pXPrime);
508
509  pCurrStepIntegrator = pRegularSteps;
510
511  eStatus = SOLVER_STATUS_PREPARED;
512
513  return true;
514 }
InverseSolver::bFullResTest
bool bFullResTest
Definition: invsolver.h:75
DataManager::SetScale
void SetScale(VectorHandler &XScale) const
Definition: dofman.cc:159
Solver::iUnkStates
integer iUnkStates
Definition: solver.h:229
SchurDataManager::GetDofsList
integer * GetDofsList(DofType who) const
Definition: schurdataman.cc:142
Solver::pX
MyVectorHandler * pX
Definition: solver.h:233
DataManager::IDSetTest
virtual void IDSetTest(NonlinearSolverTestRange *pResTest, NonlinearSolverTestRange *pSolTest, bool bFullResTest)
Definition: invdataman.cc:1111
Solver::iNumIntDofs
integer iNumIntDofs
Definition: solver.h:319
DEBUG_LEVEL_MATCH
#define DEBUG_LEVEL_MATCH(level)
Definition: myassert.h:241
Solver::outputCounterPrefix
std::string outputCounterPrefix
Definition: solver.h:362
LinSol::GetSolverFlags
unsigned GetSolverFlags(void) const
Definition: linsol.cc:257
Solver::pCurrStepIntegrator
StepIntegrator * pCurrStepIntegrator
Definition: solver.h:283
Solver::bParallel
bool bParallel
Definition: solver.h:315
NonlinearSolverTestScale::SetScale
virtual void SetScale(const VectorHandler *pScl)
Definition: nonlin.cc:278
SolverDiagnostics::outputCounter
bool outputCounter(void) const
Definition: solverdiagnostics.h:109
Solver::bOutputCounter
bool bOutputCounter
Definition: solver.h:361
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Solver::pLocDofs
integer * pLocDofs
Definition: solver.h:320
SolverDiagnostics::SetOutputMeter
void SetOutputMeter(DriveCaller *pOM)
Definition: solverdiagnostics.cc:56
DEBUGCOUTFNAME
#define DEBUGCOUTFNAME(fname)
Definition: myassert.h:256
Solver::bScale
bool bScale
Definition: solver.h:297
SolverDiagnostics::SetOutputFlags
void SetOutputFlags(unsigned OF)
Definition: solverdiagnostics.cc:74
StepIntegrator::OutputTypes
virtual void OutputTypes(const bool fpred)
Definition: stepsol.cc:111
RTSolverBase::Init
virtual void Init(void)
Definition: rtsolver.cc:69
Solver::dRefTimeStep
doublereal dRefTimeStep
Definition: solver.h:240
Solver::dMinTimeStep
doublereal dMinTimeStep
Definition: solver.h:111
Solver::sOutputFileName
std::string sOutputFileName
Definition: solver.h:114
TimeStepControl::SetDriveHandler
virtual void SetDriveHandler(const DriveHandler *driveHandler)=0
Solver::iMaxIterations
integer iMaxIterations
Definition: solver.h:116
DataManager::pGetDrvHdl
const DriveHandler * pGetDrvHdl(void) const
Definition: dataman.h:340
Solver::dTime
doublereal dTime
Definition: solver.h:109
Solver::iNumPreviousVectors
integer iNumPreviousVectors
Definition: solver.h:228
StepIntegrator::SetDataManager
void SetDataManager(DataManager *pDatMan)
Definition: stepsol.cc:74
Solver::eStatus
enum Solver::@38 eStatus
InverseSolver::GetProblemType
InverseDynamics::Type GetProblemType(void) const
Definition: invsolver.cc:889
SolverDiagnostics::outputStep
bool outputStep(void) const
Definition: solverdiagnostics.h:100
Solver::qXPrime
std::deque< MyVectorHandler * > qXPrime
Definition: solver.h:232
SolverDiagnostics::pOutputMeter
DriveCaller * pOutputMeter
Definition: solverdiagnostics.h:41
Solver::sInputFileName
std::string sInputFileName
Definition: solver.h:113
Solver::CurrLinearSolver
LinSol CurrLinearSolver
Definition: solver.h:292
Solver::SetupSolmans
void SetupSolmans(integer iStates, bool bCanBeParallel=false)
Definition: solver.cc:5135
mbdyn_signal_init
void mbdyn_signal_init(int pre)
Definition: solver.cc:208
LinSol::SetSolver
bool SetSolver(SolverType t, unsigned f=SOLVER_FLAGS_NONE)
Definition: linsol.cc:181
DataManager::SetValue
void SetValue(VectorHandler &X, VectorHandler &XP)
Definition: dataman2.cc:1404
DataManager::LinkToSolution
void LinkToSolution(VectorHandler &XCurr, VectorHandler &XPrimeCurr)
Definition: dataman2.cc:172
DriveCaller::SetDrvHdl
virtual void SetDrvHdl(const DriveHandler *pDH)
Definition: drive.cc:487
Solver::SolTest
NonlinearSolverTest::Type SolTest
Definition: solver.h:296
DataManager::GetOutFile
std::ostream & GetOutFile(void) const
Definition: dataman.h:325
SAFENEW
#define SAFENEW(pnt, item)
Definition: mynewmem.h:695
Solver::pDM
DataManager * pDM
Definition: solver.h:327
LinSol::AddSolverFlags
bool AddSolverFlags(unsigned f)
Definition: linsol.cc:292
Solver::AllocateNonlinearSolver
NonlinearSolver *const AllocateNonlinearSolver()
Definition: solver.cc:5073
Solver::pRegularSteps
StepIntegrator * pRegularSteps
Definition: solver.h:282
Solver::dInitialTimeStep
doublereal dInitialTimeStep
Definition: solver.h:241
Solver::dCurrTimeStep
doublereal dCurrTimeStep
Definition: solver.h:107
Solver::pRTSolver
RTSolverBase * pRTSolver
Definition: solver.h:225
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
DataManager::OutputPrepare
virtual void OutputPrepare(void)
Definition: dataman2.cc:1451
InverseSolver::ReadData
void ReadData(MBDynParser &HP)
Definition: invsolver.cc:924
InverseSolver::pLambda
MyVectorHandler * pLambda
Definition: invsolver.h:73
NonlinearSolver::SetTest
virtual void SetTest(NonlinearSolverTest *pr, NonlinearSolverTest *ps)
Definition: nonlin.cc:455
Solver::pDofs
Dof * pDofs
Definition: solver.h:322
HighParser::GetMathParser
virtual MathParser & GetMathParser(void)
Definition: parser.cc:668
mbdyn_stop_at_end_of_time_step
int mbdyn_stop_at_end_of_time_step(void)
Definition: solver.cc:182
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
MyVectorHandler::Reset
virtual void Reset(void)
Definition: vh.cc:459
SAFENEWWITHCONSTRUCTOR
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698
DataManager::SetTime
void SetTime(const doublereal &dTime, const doublereal &dTimeStep=-1., const integer &iStep=-1, bool bServePending=true)
Definition: dataman2.cc:139
Solver::MaxTimeStep
DriveOwner MaxTimeStep
Definition: solver.h:110
DriveCaller::pCopy
virtual DriveCaller * pCopy(void) const =0
StepIntegrator::SetDriveHandler
virtual void SetDriveHandler(const DriveHandler *pDH)
Definition: stepsol.cc:117
SchurDataManager::pGetDofsList
Dof * pGetDofsList(void) const
Definition: schurdataman.cc:148
Solver::qX
std::deque< MyVectorHandler * > qX
Definition: solver.h:231
SchurDataManager::HowManyDofs
integer HowManyDofs(DofType who) const
Definition: schurdataman.cc:136
Solver::ResTest
NonlinearSolverTest::Type ResTest
Definition: solver.h:295
Solver::pIntDofs
integer * pIntDofs
Definition: solver.h:321
StepIntegrator::GetIntegratorNumPreviousStates
virtual integer GetIntegratorNumPreviousStates(void) const
Definition: stepsol.cc:81
Solver::pTSC
TimeStepControl * pTSC
Definition: solver.h:106
DataManager::GetLogFile
std::ostream & GetLogFile(void) const
Definition: dataman.h:326
Solver::outputCounterPostfix
std::string outputCounterPostfix
Definition: solver.h:363
Solver::pXPrime
MyVectorHandler * pXPrime
Definition: solver.h:234
Solver::iNumLocDofs
integer iNumLocDofs
Definition: solver.h:318
Solver::pNLS
NonlinearSolver * pNLS
Definition: solver.h:333
Solver::dInitialTime
doublereal dInitialTime
Definition: solver.h:238
SAFENEWARR
#define SAFENEWARR(pnt, item, sz)
Definition: mynewmem.h:701
Solver::pSDM
SchurDataManager * pSDM
Definition: solver.h:316
EMPTY
#define EMPTY
Definition: colamd.c:768
Solver::Scale
MyVectorHandler Scale
Definition: solver.h:298
TimeStepControl::Init
virtual void Init(integer iMaxIterations, doublereal dMinTimeStep, const DriveOwner &MaxTimeStep, doublereal dInitialTimeStep)=0
Solver::eAbortAfter
AbortAfter eAbortAfter
Definition: solver.h:264
LinSol::GetSolverName
const char *const GetSolverName(void) const
Definition: linsol.cc:269
doublereal
double doublereal
Definition: colamd.c:52
Solver::bSolConv
bool bSolConv
Definition: solver.h:369
integer
long int integer
Definition: colamd.c:51
Solver::pdWorkSpace
doublereal * pdWorkSpace
Definition: solver.h:230
Solver::iNumDofs
integer iNumDofs
Definition: solver.h:329
MathParser::GetSymbolTable
Table & GetSymbolTable(void) const
Definition: mathp.cc:1931
IncludeParser::Close
virtual void Close(void)
Definition: parsinc.cc:155
RTSolverBase::Setup
virtual void Setup(void)=0
SchurDataManager::CreatePartition
void CreatePartition(void)
DEBUGLCOUT
#define DEBUGLCOUT(level, msg)
Definition: myassert.h:244
Solver::lStep
long lStep
Definition: solver.h:371
Solver::HP
MBDynParser & HP
Definition: solver.h:115
InverseSolver::pXPrimePrime
MyVectorHandler * pXPrimePrime
Definition: invsolver.h:72
DataManager::iGetNumDofs
integer iGetNumDofs(void) const
Definition: dataman.h:809
StepIntegrator::GetIntegratorNumUnknownStates
virtual integer GetIntegratorNumUnknownStates(void) const
Definition: stepsol.cc:87

Here is the call graph for this function:

void InverseSolver::ReadData ( MBDynParser &  HP)
protected

Definition at line 924 of file invsolver.cc.

References InverseDynamics::ACCELERATION, SolverDiagnostics::AddOutputFlags(), Solver::AFTER_ASSEMBLY, Solver::AFTER_DERIVATIVES, Solver::AFTER_DUMMY_STEPS, Solver::AFTER_INPUT, ASSERT, bFullResTest, NonlinearSolverOptions::bHonorJacRequest, MatrixFreeSolver::BICGSTAB, Solver::bKeepJac, Solver::bParallel, Solver::bScale, Solver::bTrueNewtonRaphson, Solver::CurrIntSolver, Solver::CurrLinearSolver, dDefaultMaxTimeStep, dDefaultTol, DEBUGCOUTFNAME, DEBUGLCOUT, MatrixFreeSolver::DEFAULT, NonlinearSolver::DEFAULT, Solver::dFinalTime, DriveOwner::dGet(), Solver::dGetInitialMaxTimeStep(), Solver::dInitialTime, Solver::dInitialTimeStep, Solver::dIterertiveEtaMax, Solver::dIterertiveTau, Solver::dIterTol, Solver::dMinTimeStep, dw1, dw2, Solver::eAbortAfter, END, Preconditioner::FULLJACOBIANMATRIX, InverseDynamics::FULLY_ACTUATED_COLLOCATED, InverseDynamics::FULLY_ACTUATED_NON_COLLOCATED, get_nprocs(), HighParser::GetDescription(), MBDynParser::GetDriveCaller(), HighParser::GetInt(), IncludeParser::GetLineData(), HighParser::GetReal(), LinSol::GetSolverName(), HighParser::GetWord(), HighParser::GetYesNoOrBool(), MatrixFreeSolver::GMRES, iDefaultIterationsBeforeAssembly, iDefaultMaxIterations, Solver::iIterationsBeforeAssembly, Solver::iIterativeMaxSteps, Solver::iMaxIterations, Solver::iPrecondSteps, HighParser::IsArg(), HighParser::IsKeyWord(), LASTKEYWORD, NonlinearSolver::MATRIXFREE, Solver::MaxTimeStep, MBDYN_EXCEPT_ARGS, Solver::MFSolverType, NonlinearSolverTest::MINMAX, MYDEBUG_INPUT, NonlinearSolver::NEWTONRAPHSON, NonlinearSolverTest::NONE, Solver::NonlinearSolverType, NonlinearSolverTest::NORM, OUTPUT, SolverDiagnostics::OUTPUT_BAILOUT, SolverDiagnostics::OUTPUT_DEFAULT, SolverDiagnostics::OUTPUT_ITERS, SolverDiagnostics::OUTPUT_JAC, SolverDiagnostics::OUTPUT_MSG, SolverDiagnostics::OUTPUT_NONE, SolverDiagnostics::OUTPUT_RES, SolverDiagnostics::OUTPUT_SOL, Solver::PcType, DriveOwner::pGetDriveCaller(), Solver::pRegularSteps, ProblemType, Solver::pRTSolver, Solver::pTSC, ReadLinSol(), ReadRTSolver(), ReadTimeStepData(), Solver::ResTest, SAFENEWWITHCONSTRUCTOR, DriveOwner::Set(), LinSol::SetNumThreads(), SolverDiagnostics::SetOutputFlags(), SolverDiagnostics::SetOutputMeter(), Solver::SolTest, InverseDynamics::UNDERDETERMINED_FULLY_ACTUATED, InverseDynamics::UNDERDETERMINED_UNDERACTUATED_COLLOCATED, and InverseDynamics::VELOCITY.

Referenced by Prepare().

925 {
926  DEBUGCOUTFNAME("InverseDynamics::ReadData");
927
928  /* parole chiave */
929  const char* sKeyWords[] = {
930  "begin",
931  "inverse" "dynamics",
932  "end",
933
934  "initial" "time",
935  "final" "time",
936  "time" "step",
937  "min" "time" "step",
938  "max" "time" "step",
939  "tolerance",
940  "max" "iterations",
941  "modify" "residual" "test",
942  "full" "residual" "test",
943
944  "abort" "after",
945  "input",
946  "assembly",
947  "derivatives",
948
949  /* DEPRECATED */ "fictitious" "steps" /* END OF DEPRECATED */ ,
950  "dummy" "steps",
951
952  "output",
953  "none",
954  "iterations",
955  "residual",
956  "solution",
957  /* DEPRECATED */ "jacobian" /* END OF DEPRECATED */ ,
958  "jacobian" "matrix",
959  "bailout",
960  "messages",
961  "output" "meter",
962
963  "method",
964  "inverse" "default",
965
966
967  /* DEPRECATED */
968  "true",
969  "modified",
970  /* END OF DEPRECATED */
971
972  "strategy",
973
974  /* DEPRECATED */
975  "solver",
976  "interface" "solver",
977  /* END OF DEPRECATED */
978  "linear" "solver",
979  "interface" "linear" "solver",
980
981  /* DEPRECATED */
982  "preconditioner",
983  /* END OF DEPRECATED */
984
985  "nonlinear" "solver",
986  "default",
987  "newton" "raphson",
988  "matrix" "free",
989  "bicgstab",
990  "gmres",
991  /* DEPRECATED */ "full" "jacobian" /* END OF DEPRECATED */ ,
992  "full" "jacobian" "matrix",
993
994  /* RTAI stuff */
995  "real" "time",
996
997  /* multithread stuff */
998  "threads",
999
1000  "problem" "type",
1001  "fully" "actuated" "collocated",
1002  "fully" "actuated" "non" "collocated",
1003  "underdetermined" "underactuated" "collocated",
1004  "underdetermined" "fully" "actuated",
1005
1006  NULL
1007  };
1008
1009  /* enum delle parole chiave */
1010  enum KeyWords {
1011  UNKNOWN = -1,
1012  BEGIN = 0,
1013  INVERSEDYNAMICS,
1014  END,
1015
1016  INITIALTIME,
1017  FINALTIME,
1018  TIMESTEP,
1019  MINTIMESTEP,
1020  MAXTIMESTEP,
1021  TOLERANCE,
1022  MAXITERATIONS,
1023  MODIFY_RES_TEST,
1024  FULL_RES_TEST,
1025
1026  ABORTAFTER,
1027  INPUT,
1028  ASSEMBLY,
1029  DERIVATIVES,
1030  FICTITIOUSSTEPS,
1031  DUMMYSTEPS,
1032
1033  OUTPUT,
1034  NONE,
1035  ITERATIONS,
1036  RESIDUAL,
1037  SOLUTION,
1038  JACOBIAN,
1039  JACOBIANMATRIX,
1040  BAILOUT,
1041  MESSAGES,
1042  OUTPUTMETER,
1043
1044  METHOD,
1045  INVERSEDEFAULT,
1046
1047  /* DEPRECATED */
1048  NR_TRUE,
1049  MODIFIED,
1050  /* END OF DEPRECATED */
1051
1052  STRATEGY,
1053
1054  /* DEPRECATED */
1055  SOLVER,
1056  INTERFACESOLVER,
1057  /* END OF DEPRECATED */
1058  LINEARSOLVER,
1059  INTERFACELINEARSOLVER,
1060
1061  /* DEPRECATED */
1062  PRECONDITIONER,
1063  /* END OF DEPRECATED */
1064
1065  NONLINEARSOLVER,
1066  DEFAULT,
1067  NEWTONRAPHSON,
1068  MATRIXFREE,
1069  BICGSTAB,
1070  GMRES,
1071  FULLJACOBIAN,
1072  FULLJACOBIANMATRIX,
1073
1074  /* RTAI stuff */
1075  REALTIME,
1076
1077  THREADS,
1078
1079  PROBLEMTYPE,
1080  FAC,
1081  FANC,
1082  UDUAC,
1083  UDFA,
1084
1085  LASTKEYWORD
1086  };
1087
1088  /* tabella delle parole chiave */
1089  KeyTable K(HP, sKeyWords);
1090
1091  /* legge i dati della simulazione */
1092  if (KeyWords(HP.GetDescription()) != BEGIN) {
1093  silent_cerr("Error: <begin> expected at line "
1094  << HP.GetLineData() << "; aborting..." << std::endl);
1095  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1096  }
1097
1098  if (KeyWords(HP.GetWord()) != INVERSEDYNAMICS) {
1099  silent_cerr("Error: <begin: inverse dynamics;> expected at line "
1100  << HP.GetLineData() << "; aborting..." << std::endl);
1101  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1102  }
1103
1104  /* dati letti qui ma da passare alle classi
1105  * StepIntegration e NonlinearSolver
1106  */
1107
1108  doublereal dTol = ::dDefaultTol;
1109  doublereal dSolutionTol = 0.;
1110  iMaxIterations = ::iDefaultMaxIterations;
1111  bool bModResTest(false);
1112
1113 #ifdef USE_MULTITHREAD
1114  bool bSolverThreads(false);
1115  unsigned nSolverThreads(0);
1116 #endif /* USE_MULTITHREAD */
1117
1118
1119  /* Ciclo infinito */
1120  while (true) {
1121  KeyWords CurrKeyWord = KeyWords(HP.GetDescription());
1122
1123  switch (CurrKeyWord) {
1124  case INITIALTIME:
1125  dInitialTime = HP.GetReal();
1126  DEBUGLCOUT(MYDEBUG_INPUT, "Initial time is "
1127  << dInitialTime << std::endl);
1128  break;
1129
1130  case FINALTIME:
1131  dFinalTime = HP.GetReal();
1132  DEBUGLCOUT(MYDEBUG_INPUT, "Final time is "
1133  << dFinalTime << std::endl);
1134
1135  if(dFinalTime <= dInitialTime) {
1136  silent_cerr("warning: final time " << dFinalTime
1137  << " is less than initial time "
1138  << dInitialTime << ';' << std::endl
1139  << "this will cause the simulation"
1140  " to abort" << std::endl);
1141  }
1142  break;
1143
1144  case TIMESTEP:
1145  dInitialTimeStep = HP.GetReal();
1146  DEBUGLCOUT(MYDEBUG_INPUT, "Initial time step is "
1147  << dInitialTimeStep << std::endl);
1148
1149  if (dInitialTimeStep == 0.) {
1150  silent_cerr("warning, null initial time step"
1151  " is not allowed" << std::endl);
1152  } else if (dInitialTimeStep < 0.) {
1153  dInitialTimeStep = -dInitialTimeStep;
1154  silent_cerr("warning, negative initial time step"
1155  " is not allowed;" << std::endl
1156  << "its modulus " << dInitialTimeStep
1157  << " will be considered" << std::endl);
1158  }
1159  break;
1160
1161  case MINTIMESTEP:
1162  dMinTimeStep = HP.GetReal();
1163  DEBUGLCOUT(MYDEBUG_INPUT, "Min time step is "
1164  << dMinTimeStep << std::endl);
1165
1166  if (dMinTimeStep == 0.) {
1167  silent_cerr("warning, null minimum time step"
1168  " is not allowed" << std::endl);
1169  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1170  } else if (dMinTimeStep < 0.) {
1171  dMinTimeStep = -dMinTimeStep;
1172  silent_cerr("warning, negative minimum time step"
1173  " is not allowed;" << std::endl
1174  << "its modulus " << dMinTimeStep
1175  << " will be considered" << std::endl);
1176  }
1177  break;
1178
1179  case MAXTIMESTEP:
1180  MaxTimeStep.Set(HP.GetDriveCaller());
1181 #ifdef DEBUG
1182  if (typeid(*MaxTimeStep.pGetDriveCaller()) == typeid(PostponedDriveCaller)) {
1183  DEBUGLCOUT(MYDEBUG_INPUT, "Max time step is postponed" << std::endl);
1184
1185  } else {
1186  DEBUGLCOUT(MYDEBUG_INPUT, "Max time step is " << MaxTimeStep.dGet() << std::endl);
1187  }
1188 #endif // DEBUG
1189
1190  if (dGetInitialMaxTimeStep() == 0.) {
1191  silent_cout("no max time step limit will be"
1192  " considered" << std::endl);
1193  } else if (dGetInitialMaxTimeStep() < 0.) {
1194  silent_cerr("negative max time step"
1195  " is not allowed" << std::endl);
1196  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1197  }
1198  break;
1199
1200  case ABORTAFTER: {
1201  KeyWords WhenToAbort(KeyWords(HP.GetWord()));
1202  switch (WhenToAbort) {
1203  case INPUT:
1204  eAbortAfter = AFTER_INPUT;
1205  DEBUGLCOUT(MYDEBUG_INPUT,
1206  "Simulation will abort after"
1207  " data input" << std::endl);
1208  break;
1209
1210  case ASSEMBLY:
1211  eAbortAfter = AFTER_ASSEMBLY;
1212  DEBUGLCOUT(MYDEBUG_INPUT,
1213  "Simulation will abort after"
1214  " initial assembly" << std::endl);
1215  break;
1216
1217  case DERIVATIVES:
1218  eAbortAfter = AFTER_DERIVATIVES;
1219  DEBUGLCOUT(MYDEBUG_INPUT,
1220  "Simulation will abort after"
1221  " derivatives solution" << std::endl);
1222  break;
1223
1224  case FICTITIOUSSTEPS:
1225  case DUMMYSTEPS:
1226  eAbortAfter = AFTER_DUMMY_STEPS;
1227  DEBUGLCOUT(MYDEBUG_INPUT,
1228  "Simulation will abort after"
1229  " dummy steps solution" << std::endl);
1230  break;
1231
1232  default:
1233  silent_cerr("Don't know when to abort,"
1234  " so I'm going to abort now" << std::endl);
1235  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1236  }
1237  break;
1238  }
1239
1240  case OUTPUT: {
1241  unsigned OF = OUTPUT_DEFAULT;
1242  bool setOutput = false;
1243
1244  while (HP.IsArg()) {
1245  KeyWords OutputFlag(KeyWords(HP.GetWord()));
1246  switch (OutputFlag) {
1247  case NONE:
1248  OF = OUTPUT_NONE;
1249  setOutput = true;
1250  break;
1251
1252  case ITERATIONS:
1253  OF |= OUTPUT_ITERS;
1254  break;
1255
1256  case RESIDUAL:
1257  OF |= OUTPUT_RES;
1258  break;
1259
1260  case SOLUTION:
1261  OF |= OUTPUT_SOL;
1262  break;
1263
1264  case JACOBIAN:
1265  case JACOBIANMATRIX:
1266  OF |= OUTPUT_JAC;
1267  break;
1268
1269  case BAILOUT:
1270  OF |= OUTPUT_BAILOUT;
1271  break;
1272
1273  case MESSAGES:
1274  OF |= OUTPUT_MSG;
1275  break;
1276
1277  default:
1278  silent_cerr("Unknown output flag "
1279  "at line " << HP.GetLineData()
1280  << "; ignored" << std::endl);
1281  break;
1282  }
1283  }
1284
1285  if (setOutput) {
1286  SetOutputFlags(OF);
1287  } else {
1288  AddOutputFlags(OF);
1289  }
1290
1291  break;
1292  }
1293
1294  case OUTPUTMETER:
1295  SetOutputMeter(HP.GetDriveCaller(true));
1296  break;
1297
1298  case TOLERANCE: {
1299  /*
1300  * residual tolerance; can be the keyword "null",
1301  * which means that the convergence test
1302  * will be computed on the solution, or a number
1303  */
1304  if (HP.IsKeyWord("null")) {
1305  dTol = 0.;
1306
1307  } else {
1308  dTol = HP.GetReal();
1309  if (dTol < 0.) {
1310  dTol = ::dDefaultTol;
1311  silent_cerr("warning, residual tolerance "
1312  "< 0. is illegal; "
1313  "using default value " << dTol
1314  << std::endl);
1315  }
1316  }
1317
1318  /* safe default */
1319  if (dTol == 0.) {
1320  ResTest = NonlinearSolverTest::NONE;
1321  }
1322
1323  if (HP.IsArg()) {
1324  if (HP.IsKeyWord("test")) {
1325  if (HP.IsKeyWord("norm")) {
1326  ResTest = NonlinearSolverTest::NORM;
1327  } else if (HP.IsKeyWord("minmax")) {
1328  ResTest = NonlinearSolverTest::MINMAX;
1329  } else if (HP.IsKeyWord("none")) {
1330  ResTest = NonlinearSolverTest::NONE;
1331  } else {
1332  silent_cerr("unknown test "
1333  "method at line "
1334  << HP.GetLineData()
1335  << std::endl);
1336  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1337  }
1338
1339  if (HP.IsKeyWord("scale")) {
1340  if (ResTest == NonlinearSolverTest::NONE) {
1341  silent_cerr("it's a nonsense "
1342  "to scale a disabled test; "
1343  "\"scale\" ignored"
1344  << std::endl);
1345  bScale = false;
1346  } else {
1347  bScale = true;
1348  }
1349  }
1350  }
1351  }
1352
1353  if (HP.IsArg()) {
1354  if (!HP.IsKeyWord("null")) {
1355  dSolutionTol = HP.GetReal();
1356  }
1357
1358  /* safe default */
1359  if (dSolutionTol != 0.) {
1360  SolTest = NonlinearSolverTest::NORM;
1361  }
1362
1363  if (HP.IsArg()) {
1364  if (HP.IsKeyWord("test")) {
1365  if (HP.IsKeyWord("norm")) {
1366  SolTest = NonlinearSolverTest::NORM;
1367  } else if (HP.IsKeyWord("minmax")) {
1368  SolTest = NonlinearSolverTest::MINMAX;
1369  } else if (HP.IsKeyWord("none")) {
1370  SolTest = NonlinearSolverTest::NONE;
1371  } else {
1372  silent_cerr("unknown test "
1373  "method at line "
1374  << HP.GetLineData()
1375  << std::endl);
1376  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1377  }
1378  }
1379  }
1380
1381  } else if (dTol == 0.) {
1382  silent_cerr("need solution tolerance "
1383  "with null residual tolerance"
1384  << std::endl);
1385  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1386  }
1387
1388  if (dSolutionTol < 0.) {
1389  dSolutionTol = 0.;
1390  silent_cerr("warning, solution tolerance "
1391  "< 0. is illegal; "
1392  "solution test is disabled"
1393  << std::endl);
1394  }
1395
1396  if (dTol == 0. && dSolutionTol == 0.) {
1397  silent_cerr("both residual and solution "
1398  "tolerances are zero" << std::endl);
1399  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1400  }
1401
1402  DEBUGLCOUT(MYDEBUG_INPUT, "tolerance = " << dTol
1403  << ", " << dSolutionTol << std::endl);
1404  break;
1405  }
1406
1407
1408  case MAXITERATIONS: {
1409  iMaxIterations = HP.GetInt();
1410  if (iMaxIterations < 1) {
1411  iMaxIterations = ::iDefaultMaxIterations;
1412  silent_cerr("warning, max iterations "
1413  "< 1 is illegal; using default value "
1414  << iMaxIterations
1415  << std::endl);
1416  }
1417  DEBUGLCOUT(MYDEBUG_INPUT,
1418  "Max iterations = "
1419  << iMaxIterations << std::endl);
1420  if (HP.IsKeyWord("at" "most")) {
1421  iMaxIterations = -iMaxIterations;
1422  }
1423  break;
1424  }
1425
1426  case MODIFY_RES_TEST:
1427  if (bParallel) {
1428  silent_cerr("\"modify residual test\" "
1429  "not supported by schur data manager "
1430  "at line " << HP.GetLineData()
1431  << "; ignored" << std::endl);
1432  } else {
1433  bModResTest = true;
1434  DEBUGLCOUT(MYDEBUG_INPUT,
1435  "Modify residual test" << std::endl);
1436  }
1437  break;
1438
1439  case FULL_RES_TEST:
1440  if (HP.IsArg()) {
1441  bFullResTest = HP.GetYesNoOrBool();
1442
1443  } else {
1444  bFullResTest = true;
1445  }
1446
1447  DEBUGLCOUT(MYDEBUG_INPUT,
1448  "Full residual test: " << bFullResTest << std::endl);
1449  break;
1450
1451  case NEWTONRAPHSON: {
1452  pedantic_cout("Newton Raphson is deprecated; use "
1453  "\"nonlinear solver: newton raphson "
1454  "[ , modified, <steps> ]\" instead"
1455  << std::endl);
1456  KeyWords NewRaph(KeyWords(HP.GetWord()));
1457  switch(NewRaph) {
1458  case MODIFIED:
1459  bTrueNewtonRaphson = 0;
1460  if (HP.IsArg()) {
1461  iIterationsBeforeAssembly = HP.GetInt();
1462  } else {
1463  iIterationsBeforeAssembly = ::iDefaultIterationsBeforeAssembly;
1464  }
1465  DEBUGLCOUT(MYDEBUG_INPUT, "Modified "
1466  "Newton-Raphson will be used; "
1467  "matrix will be assembled "
1468  "at most after "
1469  << iIterationsBeforeAssembly
1470  << " iterations" << std::endl);
1471  break;
1472
1473  default:
1474  silent_cerr("warning: unknown case; "
1475  "using default" << std::endl);
1476
1477  /* no break: fall-thru to next case */
1478  case NR_TRUE:
1479  bTrueNewtonRaphson = 1;
1480  iIterationsBeforeAssembly = 0;
1481  break;
1482  }
1483  break;
1484  }
1485
1486  case END:
1487  if (KeyWords(HP.GetWord()) != INVERSEDYNAMICS) {
1488  silent_cerr("\"end: inverse dynamics;\" expected "
1489  "at line " << HP.GetLineData()
1490  << "; aborting..." << std::endl);
1491  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1492  }
1493  goto EndOfCycle;
1494
1495  case STRATEGY:
1496  pTSC = ReadTimeStepData(this,HP);
1497
1498  break;
1499
1500  case SOLVER:
1501  silent_cerr("\"solver\" keyword at line "
1502  << HP.GetLineData()
1503  << " is deprecated; "
1504  "use \"linear solver\" instead"
1505  << std::endl);
1506  case LINEARSOLVER:
1507  ReadLinSol(CurrLinearSolver, HP);
1508  break;
1509
1510  case INTERFACESOLVER:
1511  silent_cerr("\"interface solver\" keyword at line "
1512  << HP.GetLineData()
1513  << " is deprecated; "
1514  "use \"interface linear solver\" "
1515  "instead" << std::endl);
1516  case INTERFACELINEARSOLVER:
1517  ReadLinSol(CurrIntSolver, HP, true);
1518
1519 #ifndef USE_MPI
1520  silent_cerr("Interface solver only allowed "
1521  "when compiled with MPI support" << std::endl);
1522 #endif /* ! USE_MPI */
1523  break;
1524
1525  case NONLINEARSOLVER:
1526  switch (KeyWords(HP.GetWord())) {
1527  case DEFAULT:
1528  NonlinearSolverType = NonlinearSolver::DEFAULT;
1529  break;
1530
1531  case NEWTONRAPHSON:
1532  NonlinearSolverType = NonlinearSolver::NEWTONRAPHSON;
1533  break;
1534
1535  case MATRIXFREE:
1536  NonlinearSolverType = NonlinearSolver::MATRIXFREE;
1537  break;
1538
1539  default:
1540  silent_cerr("unknown nonlinear solver "
1541  "at line " << HP.GetLineData()
1542  << std::endl);
1543  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1544  break;
1545  }
1546
1547  switch (NonlinearSolverType) {
1548  case NonlinearSolver::NEWTONRAPHSON:
1549  bTrueNewtonRaphson = true;
1550  bKeepJac = false;
1551  iIterationsBeforeAssembly = 0;
1552
1553  if (HP.IsKeyWord("modified")) {
1554  bTrueNewtonRaphson = false;
1555  iIterationsBeforeAssembly = HP.GetInt();
1556
1557  if (HP.IsKeyWord("keep" "jacobian")) {
1558  pedantic_cout("Use of deprecated \"keep jacobian\" at line " << HP.GetLineData() << std::endl);
1559  bKeepJac = true;
1560
1561  } else if (HP.IsKeyWord("keep" "jacobian" "matrix")) {
1562  bKeepJac = true;
1563  }
1564
1565  DEBUGLCOUT(MYDEBUG_INPUT, "modified "
1566  "Newton-Raphson "
1567  "will be used; "
1568  "matrix will be "
1569  "assembled at most "
1570  "after "
1571  << iIterationsBeforeAssembly
1572  << " iterations"
1573  << std::endl);
1574  if (HP.IsKeyWord("honor" "element" "requests")) {
1575  bHonorJacRequest = true;
1576  DEBUGLCOUT(MYDEBUG_INPUT,
1577  "honor elements' "
1578  "request to update "
1579  "the preconditioner"
1580  << std::endl);
1581  }
1582  }
1583  break;
1584
1585  case NonlinearSolver::MATRIXFREE:
1586  switch (KeyWords(HP.GetWord())) {
1587  case DEFAULT:
1588  MFSolverType = MatrixFreeSolver::DEFAULT;
1589  break;
1590
1591
1592  case BICGSTAB:
1593  MFSolverType = MatrixFreeSolver::BICGSTAB;
1594  break;
1595
1596  case GMRES:
1597  MFSolverType = MatrixFreeSolver::GMRES;
1598  break;
1599
1600  default:
1601  silent_cerr("unknown iterative "
1602  "solver at line "
1603  << HP.GetLineData()
1604  << std::endl);
1605  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1606  }
1607
1608  if (HP.IsKeyWord("tolerance")) {
1609  dIterTol = HP.GetReal();
1610  DEBUGLCOUT(MYDEBUG_INPUT,"inner "
1611  "iterative solver "
1612  "tolerance: "
1613  << dIterTol
1614  << std::endl);
1615  }
1616
1617  if (HP.IsKeyWord("steps")) {
1618  iIterativeMaxSteps = HP.GetInt();
1619  DEBUGLCOUT(MYDEBUG_INPUT, "maximum "
1620  "number of inner "
1621  "steps for iterative "
1622  "solver: "
1623  << iIterativeMaxSteps
1624  << std::endl);
1625  }
1626
1627  if (HP.IsKeyWord("tau")) {
1628  dIterertiveTau = HP.GetReal();
1629  DEBUGLCOUT(MYDEBUG_INPUT,
1630  "tau scaling "
1631  "coefficient "
1632  "for iterative "
1633  "solver: "
1634  << dIterertiveTau
1635  << std::endl);
1636  }
1637
1638  if (HP.IsKeyWord("eta")) {
1639  dIterertiveEtaMax = HP.GetReal();
1640  DEBUGLCOUT(MYDEBUG_INPUT, "maximum "
1641  "eta coefficient "
1642  "for iterative "
1643  "solver: "
1644  << dIterertiveEtaMax
1645  << std::endl);
1646  }
1647
1648  if (HP.IsKeyWord("preconditioner")) {
1649  KeyWords KPrecond = KeyWords(HP.GetWord());
1650  switch (KPrecond) {
1651  case FULLJACOBIAN:
1652  case FULLJACOBIANMATRIX:
1653  PcType = Preconditioner::FULLJACOBIANMATRIX;
1654  if (HP.IsKeyWord("steps")) {
1655  iPrecondSteps = HP.GetInt();
1656  DEBUGLCOUT(MYDEBUG_INPUT,
1657  "number of steps "
1658  "before recomputing "
1659  "the preconditioner: "
1660  << iPrecondSteps
1661  << std::endl);
1662  }
1663  if (HP.IsKeyWord("honor" "element" "requests")) {
1664  bHonorJacRequest = true;
1665  DEBUGLCOUT(MYDEBUG_INPUT,
1666  "honor elements' "
1667  "request to update "
1668  "the preconditioner"
1669  << std::endl);
1670  }
1671  break;
1672
1673  /* add other preconditioners
1674  * here */
1675
1676  default:
1677  silent_cerr("unknown "
1678  "preconditioner "
1679  "at line "
1680  << HP.GetLineData()
1681  << std::endl);
1682  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1683  }
1684  break;
1685  }
1686  break;
1687
1688  default:
1689  ASSERT(0);
1690  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1691  }
1692  break;
1693
1694  case REALTIME:
1695  pRTSolver = ReadRTSolver(this, HP);
1696  break;
1697
1698  case THREADS:
1699  if (HP.IsKeyWord("auto")) {
1700 #ifdef USE_MULTITHREAD
1701  int n = get_nprocs();
1702  /* sanity checks ... */
1703  if (n <= 0) {
1704  silent_cerr("got " << n << " CPUs "
1705  "at line "
1706  << HP.GetLineData()
1707  << std::endl);
1708  nThreads = 1;
1709  } else {
1710  nThreads = n;
1711  }
1712 #else /* ! USE_MULTITHREAD */
1713  silent_cerr("configure with "
1714  "--enable-multithread "
1715  "for multithreaded assembly"
1716  << std::endl);
1717 #endif /* ! USE_MULTITHREAD */
1718
1719  } else if (HP.IsKeyWord("disable")) {
1720 #ifdef USE_MULTITHREAD
1721  nThreads = 1;
1722 #endif /* USE_MULTITHREAD */
1723
1724  } else {
1725 #ifdef USE_MULTITHREAD
1726  bool bAssembly = false;
1727  bool bSolver = false;
1728  bool bAll = true;
1729  unsigned nt;
1730 #endif // USE_MULTITHREAD
1731
1732  if (HP.IsKeyWord("assembly")) {
1733 #ifdef USE_MULTITHREAD
1734  bAll = false;
1735  bAssembly = true;
1736 #endif // USE_MULTITHREAD
1737
1738  } else if (HP.IsKeyWord("solver")) {
1739 #ifdef USE_MULTITHREAD
1740  bAll = false;
1741  bSolver = true;
1742 #endif // USE_MULTITHREAD
1743  }
1744
1745 #ifdef USE_MULTITHREAD
1746  nt =
1747 #endif // USE_MULTITHREAD
1748  HP.GetInt();
1749
1750 #ifdef USE_MULTITHREAD
1751  if (bAll || bAssembly) {
1752  nThreads = nt;
1753  }
1754
1755  if (bAll || bSolver) {
1756  bSolverThreads = true;
1757  nSolverThreads = nt;
1758  }
1759 #else /* ! USE_MULTITHREAD */
1760  silent_cerr("configure with "
1761  "--enable-multithread "
1762  "for multithreaded assembly"
1763  << std::endl);
1764 #endif /* ! USE_MULTITHREAD */
1765  }
1766  break;
1767
1768  case PROBLEMTYPE:
1769  switch (KeyWords(HP.GetWord())) {
1770  case FAC:
1771  // default
1772  ProblemType = InverseDynamics::FULLY_ACTUATED_COLLOCATED;
1773  break;
1774
1775  case FANC:
1776  ProblemType = InverseDynamics::FULLY_ACTUATED_NON_COLLOCATED;
1777  break;
1778
1779  case UDUAC:
1780  ProblemType = InverseDynamics::UNDERDETERMINED_UNDERACTUATED_COLLOCATED;
1781  if (HP.IsKeyWord("weights")) {
1782  for (int iCnt = 0; iCnt <= InverseDynamics::VELOCITY; iCnt++) {
1783  dw1[iCnt] = HP.GetReal();
1784  dw2[iCnt] = HP.GetReal();
1785  }
1786  dw1[InverseDynamics::ACCELERATION] = 0.;
1787  dw2[InverseDynamics::ACCELERATION] = 0.;
1788
1789  } else {
1790  for (int iCnt = 0; iCnt <= InverseDynamics::ACCELERATION; iCnt++) {
1791  dw1[iCnt] = 1.;
1792  dw2[iCnt] = 0.;
1793  }
1794  }
1795
1796  break;
1797
1798  case UDFA:
1799  ProblemType = InverseDynamics::UNDERDETERMINED_FULLY_ACTUATED;
1800  if (HP.IsKeyWord("weights")) {
1801  for (int iCnt = 0; iCnt <= InverseDynamics::ACCELERATION; iCnt++) {
1802  dw1[iCnt] = HP.GetReal();
1803  dw2[iCnt] = HP.GetReal();
1804  }
1805
1806  } else {
1807  for (int iCnt = 0; iCnt <= InverseDynamics::ACCELERATION; iCnt++) {
1808  dw1[iCnt] = 1.;
1809  dw2[iCnt] = 0.;
1810  }
1811  }
1812  break;
1813
1814  default:
1815  silent_cerr("inverse dynamics: unrecognized problem type at line " << HP.GetLineData() << std::endl);
1816  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1817  }
1818
1819  if (HP.IsArg()) {
1820  silent_cerr("inverse dynamics: semicolon expected at line " << HP.GetLineData() << std::endl);
1821  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1822  }
1823  break;
1824
1825  default:
1826  silent_cerr("unknown description at line "
1827  << HP.GetLineData() << "; aborting..."
1828  << std::endl);
1829  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
1830  }
1831  }
1832
1833 EndOfCycle: /* esce dal ciclo di lettura */
1834
1835  if (MaxTimeStep.pGetDriveCaller() == 0) {
1836  DriveCaller *pDC = 0;
1837  SAFENEWWITHCONSTRUCTOR(pDC, ConstDriveCaller, ConstDriveCaller(::dDefaultMaxTimeStep));
1838  MaxTimeStep.Set(pDC);
1839  }
1840
1841  if (typeid(*MaxTimeStep.pGetDriveCaller()) == typeid(ConstDriveCaller)) {
1842  MaxTimeStep.Set(new ConstDriveCaller(dInitialTimeStep));
1843  }
1844
1845  if (pTSC == 0) {
1846  pedantic_cout("No time step control strategy defined; defaulting to NoChange time step control" );
1847  pTSC = new NoChange(this);
1848  }
1849
1850  if (dFinalTime < dInitialTime) {
1851  eAbortAfter = AFTER_ASSEMBLY;
1852  }
1853
1854  if (dFinalTime == dInitialTime) {
1855  eAbortAfter = AFTER_DERIVATIVES;
1856  }
1857
1858  SAFENEWWITHCONSTRUCTOR(pRegularSteps,
1859  InverseDynamicsStepSolver,
1860  InverseDynamicsStepSolver(iMaxIterations,
1861  dTol,
1862  dSolutionTol,
1863  0, /* Previous Steps to be used */
1864  1, /* Unknown States: FIXME: 2? 3? */
1865  bModResTest));
1866
1867 #ifdef USE_MULTITHREAD
1868  if (bSolverThreads) {
1869  if (CurrLinearSolver.SetNumThreads(nSolverThreads)) {
1870  silent_cerr("linear solver "
1871  << CurrLinearSolver.GetSolverName()
1872  << " does not support "
1873  "threaded solution" << std::endl);
1874  }
1875  }
1876 #endif /* USE_MULTITHREAD */
1877 }
InverseSolver::bFullResTest
bool bFullResTest
Definition: invsolver.h:75
ReadLinSol
void ReadLinSol(LinSol &cs, HighParser &HP, bool bAllowEmpty)
Definition: readlinsol.cc:39
ReadRTSolver
RTSolverBase * ReadRTSolver(Solver *pS, MBDynParser &HP)
Definition: rtsolver.cc:206
Solver::bParallel
bool bParallel
Definition: solver.h:315
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
SolverDiagnostics::SetOutputMeter
void SetOutputMeter(DriveCaller *pOM)
Definition: solverdiagnostics.cc:56
DEBUGCOUTFNAME
#define DEBUGCOUTFNAME(fname)
Definition: myassert.h:256
HighParser::GetInt
virtual integer GetInt(integer iDefval=0)
Definition: parser.cc:1050
Solver::bScale
bool bScale
Definition: solver.h:297
SolverDiagnostics::SetOutputFlags
void SetOutputFlags(unsigned OF)
Definition: solverdiagnostics.cc:74
InverseSolver::dw2
doublereal dw2[3]
Definition: invsolver.h:71
Solver::dMinTimeStep
doublereal dMinTimeStep
Definition: solver.h:111
LinSol::SetNumThreads
bool SetNumThreads(unsigned nt)
Definition: linsol.cc:314
Solver::iMaxIterations
integer iMaxIterations
Definition: solver.h:116
InverseSolver::dw1
doublereal dw1[3]
Definition: invsolver.h:70
Solver::NonlinearSolverType
NonlinearSolver::Type NonlinearSolverType
Definition: solver.h:304
Solver::iIterationsBeforeAssembly
integer iIterationsBeforeAssembly
Definition: solver.h:303
END
Definition: dataman4.cc:96
HighParser::GetYesNoOrBool
virtual bool GetYesNoOrBool(bool bDefval=false)
Definition: parser.cc:1038
Solver::CurrLinearSolver
LinSol CurrLinearSolver
Definition: solver.h:292
Solver::MFSolverType
MatrixFreeSolver::SolverType MFSolverType
Definition: solver.h:305
iDefaultMaxIterations
static const integer iDefaultMaxIterations
Definition: solver_impl.h:99
Solver::SolTest
NonlinearSolverTest::Type SolTest
Definition: solver.h:296
SolverDiagnostics::AddOutputFlags
void AddOutputFlags(unsigned OF)
Definition: solverdiagnostics.cc:80
iDefaultIterationsBeforeAssembly
static const integer iDefaultIterationsBeforeAssembly
Definition: solver_impl.h:92
HighParser::IsKeyWord
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910
Solver::bTrueNewtonRaphson
bool bTrueNewtonRaphson
Definition: solver.h:301
Solver::pRegularSteps
StepIntegrator * pRegularSteps
Definition: solver.h:282
Solver::bKeepJac
bool bKeepJac
Definition: solver.h:302
Solver::dInitialTimeStep
doublereal dInitialTimeStep
Definition: solver.h:241
dDefaultMaxTimeStep
static const doublereal dDefaultMaxTimeStep
Definition: solver_impl.h:101
HighParser::GetDescription
int GetDescription(void)
Definition: parser.cc:730
Solver::pRTSolver
RTSolverBase * pRTSolver
Definition: solver.h:225
Solver::dFinalTime
doublereal dFinalTime
Definition: solver.h:239
Solver::dIterertiveTau
doublereal dIterertiveTau
Definition: solver.h:311
Solver::dIterertiveEtaMax
doublereal dIterertiveEtaMax
Definition: solver.h:310
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
KeyWords
KeyWords
Definition: dataman4.cc:94
SAFENEWWITHCONSTRUCTOR
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698
DriveOwner::pGetDriveCaller
DriveCaller * pGetDriveCaller(void) const
Definition: drive.cc:658
InverseSolver::ProblemType
InverseDynamics::Type ProblemType
Definition: invsolver.h:69
Solver::MaxTimeStep
DriveOwner MaxTimeStep
Definition: solver.h:110
dDefaultTol
static const doublereal dDefaultTol
Definition: solver_impl.h:95
Solver::iPrecondSteps
integer iPrecondSteps
Definition: solver.h:308
HighParser::IsArg
virtual bool IsArg(void)
Definition: parser.cc:807
HighParser::GetWord
virtual int GetWord(void)
Definition: parser.cc:1083
Solver::ResTest
NonlinearSolverTest::Type ResTest
Definition: solver.h:295
Solver::pTSC
TimeStepControl * pTSC
Definition: solver.h:106
Solver::PcType
Preconditioner::PrecondType PcType
Definition: solver.h:307
DriveOwner::Set
void Set(const DriveCaller *pDC)
Definition: drive.cc:647
DriveOwner::dGet
doublereal dGet(const doublereal &dVar) const
Definition: drive.cc:664
get_nprocs
int get_nprocs(void)
Definition: get_nprocs.c:44
Solver::dInitialTime
doublereal dInitialTime
Definition: solver.h:238
ReadTimeStepData
TimeStepControl * ReadTimeStepData(Solver *s, MBDynParser &HP)
Definition: TimeStepControl.cc:380
MBDynParser::GetDriveCaller
DriveCaller * GetDriveCaller(bool bDeferred=false)
Definition: mbpar.cc:2033
Solver::dGetInitialMaxTimeStep
doublereal dGetInitialMaxTimeStep() const
Definition: solver.cc:4990
Solver::eAbortAfter
AbortAfter eAbortAfter
Definition: solver.h:264
LinSol::GetSolverName
const char *const GetSolverName(void) const
Definition: linsol.cc:269
doublereal
double doublereal
Definition: colamd.c:52
Solver::iIterativeMaxSteps
integer iIterativeMaxSteps
Definition: solver.h:309
IncludeParser::GetLineData
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697
DEBUGLCOUT
#define DEBUGLCOUT(level, msg)
Definition: myassert.h:244
Solver::dIterTol
doublereal dIterTol
Definition: solver.h:306
Solver::CurrIntSolver
LinSol CurrIntSolver
Definition: solver.h:317
HighParser::GetReal
virtual doublereal GetReal(const doublereal &dDefval=0.0)
Definition: parser.cc:1056

Here is the call graph for this function:

std::ostream & InverseSolver::Restart ( std::ostream &  out,
DataManager::eRestart  type
) const

Definition at line 791 of file invsolver.cc.

References ASSERT, DataManager::ATEND, NonlinearSolverOptions::bHonorJacRequest, Solver::bKeepJac, Solver::bScale, Solver::bTrueNewtonRaphson, Solver::CurrLinearSolver, Solver::dDerivativesCoef, Solver::dDummyStepsRatio, Solver::dFinalTime, DataManager::dGetTime(), Solver::dInitialTimeStep, StepIntegrator::GetIntegratorDSolTol(), StepIntegrator::GetIntegratorDTol(), StepIntegrator::GetIntegratorMaxIters(), Solver::iDummyStepsNumber, Solver::iIterationsBeforeAssembly, DataManager::ITERATIONS, NonlinearSolver::MATRIXFREE, MBDYN_EXCEPT_ARGS, NonlinearSolverTest::MINMAX, NonlinearSolver::NEWTONRAPHSON, NO_OP, NonlinearSolverTest::NONE, Solver::NonlinearSolverType, NonlinearSolverTest::NORM, Solver::pDerivativeSteps, Solver::pDM, Solver::pDummySteps, Solver::pRegularSteps, RestartLinSol(), Solver::ResTest, Solver::SolTest, DataManager::TIME, and DataManager::TIMES.

792 {
793 #if 0
794  out << "begin: inverse dynamics;" << std::endl;
795  switch(type) {
796  case DataManager::ATEND:
797  out << " # initial time: " << pDM->dGetTime() << ";"
798  << std::endl
799  << " # final time: " << dFinalTime << ";"
800  << std::endl
801  << " # time step: " << dInitialTimeStep << ";"
802  << std::endl;
803  break;
804  case DataManager::ITERATIONS:
805  case DataManager::TIME:
806  case DataManager::TIMES:
807  out << " initial time: " << pDM->dGetTime()<< ";" << std::endl
808  << " final time: " << dFinalTime << ";" << std::endl
809  << " time step: " << dInitialTimeStep << ";"
810  << std::endl;
811  break;
812  default:
813  ASSERT(0);
814  }
815
816  out << " max iterations: " << pRegularSteps->GetIntegratorMaxIters()
817  << ";" << std::endl
818  << " tolerance: " << pRegularSteps->GetIntegratorDTol();
819  switch(ResTest) {
820  case NonlinearSolverTest::NORM:
821  out << ", test, norm" ;
822  break;
823  case NonlinearSolverTest::MINMAX:
824  out << ", test, minmax" ;
825  break;
826  case NonlinearSolverTest::NONE:
827  NO_OP;
828  default:
829  silent_cerr("unhandled nonlinear solver test type" << std::endl);
830  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
831  }
832
833  if (bScale) {
834  out << ", scale"
835  << ", " << pRegularSteps->GetIntegratorDSolTol();
836  }
837
838  switch (SolTest) {
839  case NonlinearSolverTest::NORM:
840  out << ", test, norm" ;
841  break;
842  case NonlinearSolverTest::MINMAX:
843  out << ", test, minmax" ;
844  break;
845  case NonlinearSolverTest::NONE:
846  NO_OP;
847  default:
848  ASSERT(0);
849  }
850  out
851  << ";" << std::endl
852  << " derivatives max iterations: " << pDerivativeSteps->GetIntegratorMaxIters() << ";" << std::endl
853  << " derivatives tolerance: " << pDerivativeSteps->GetIntegratorDTol() << ";" << std::endl
854  << " derivatives coefficient: " << dDerivativesCoef << ";" << std::endl;
855  if (iDummyStepsNumber) {
856  out
857  << " dummy steps max iterations: " << pDummySteps->GetIntegratorMaxIters() << ";" << std::endl
858  << " dummy steps tolerance: " << pDummySteps->GetIntegratorDTol() << ";" << std::endl;
859  }
860  out
861  << " dummy steps number: " << iDummyStepsNumber << ";" << std::endl
862  << " dummy steps ratio: " << dDummyStepsRatio << ";" << std::endl;
863  switch (NonlinearSolverType) {
864  case NonlinearSolver::MATRIXFREE:
865  out << " # nonlinear solver: matrix free;" << std::endl;
866  break;
867  case NonlinearSolver::NEWTONRAPHSON:
868  default :
869  out << " nonlinear solver: newton raphson";
870  if (!bTrueNewtonRaphson) {
871  out << ", modified, " << iIterationsBeforeAssembly;
872  if (bKeepJac) {
873  out << ", keep jacobian matrix";
874  }
875  if (bHonorJacRequest) {
876  out << ", honor element requests";
877  }
878  }
879  out << ";" << std::endl;
880  }
881  out << " solver: ";
882  RestartLinSol(out, CurrLinearSolver);
883  out << "end: multistep;" << std::endl << std::endl;
884 #endif
885  return out;
886 }
RestartLinSol
std::ostream & RestartLinSol(std::ostream &out, const LinSol &cs)
Definition: readlinsol.cc:611
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Solver::bScale
bool bScale
Definition: solver.h:297
DataManager::dGetTime
doublereal dGetTime(void) const
Definition: dataman2.cc:165
Solver::iDummyStepsNumber
integer iDummyStepsNumber
Definition: solver.h:253
Solver::dDummyStepsRatio
doublereal dDummyStepsRatio
Definition: solver.h:254
Solver::pDerivativeSteps
StepIntegrator * pDerivativeSteps
Definition: solver.h:278
StepIntegrator::GetIntegratorMaxIters
virtual integer GetIntegratorMaxIters(void) const
Definition: stepsol.cc:93
NO_OP
#define NO_OP
Definition: myassert.h:74
Solver::NonlinearSolverType
NonlinearSolver::Type NonlinearSolverType
Definition: solver.h:304
Solver::iIterationsBeforeAssembly
integer iIterationsBeforeAssembly
Definition: solver.h:303
Solver::CurrLinearSolver
LinSol CurrLinearSolver
Definition: solver.h:292
Solver::SolTest
NonlinearSolverTest::Type SolTest
Definition: solver.h:296
Solver::pDM
DataManager * pDM
Definition: solver.h:327
Solver::bTrueNewtonRaphson
bool bTrueNewtonRaphson
Definition: solver.h:301
Solver::pRegularSteps
StepIntegrator * pRegularSteps
Definition: solver.h:282
Solver::bKeepJac
bool bKeepJac
Definition: solver.h:302
Solver::dInitialTimeStep
doublereal dInitialTimeStep
Definition: solver.h:241
StepIntegrator::GetIntegratorDTol
virtual doublereal GetIntegratorDTol(void) const
Definition: stepsol.cc:99
Solver::dFinalTime
doublereal dFinalTime
Definition: solver.h:239
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
Solver::pDummySteps
StepIntegrator * pDummySteps
Definition: solver.h:280
Solver::ResTest
NonlinearSolverTest::Type ResTest
Definition: solver.h:295
Solver::dDerivativesCoef
doublereal dDerivativesCoef
Definition: solver.h:290
StepIntegrator::GetIntegratorDSolTol
virtual doublereal GetIntegratorDSolTol(void) const
Definition: stepsol.cc:105

Here is the call graph for this function:

bool InverseSolver::Start ( void  )
virtual

Reimplemented from Solver.

Definition at line 517 of file invsolver.cc.

References Advance(), DEBUGCOUTFNAME, Solver::eStatus, MBDYN_EXCEPT_ARGS, Solver::SOLVER_STATUS_PREPARED, and Solver::SOLVER_STATUS_STARTED.

518 {
519  DEBUGCOUTFNAME("InverseSolver::Start");
520
521  // consistency check
522  if (eStatus != SOLVER_STATUS_PREPARED) {
523  silent_cerr("Start() must be called after Prepare()" << std::endl);
524  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
525  }
526
527  // temporarily push status forward
528  eStatus = SOLVER_STATUS_STARTED;
529  bool b = Advance();
530  if (!b) {
531  // roll status back in case of failure
532  eStatus = SOLVER_STATUS_PREPARED;
533  }
534  return b;
535 }
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
DEBUGCOUTFNAME
#define DEBUGCOUTFNAME(fname)
Definition: myassert.h:256
InverseSolver::Advance
virtual bool Advance(void)
Definition: invsolver.cc:538
Solver::eStatus
enum Solver::@38 eStatus

Here is the call graph for this function:

Member Data Documentation

bool InverseSolver::bFullResTest
protected

Definition at line 75 of file invsolver.h.

Referenced by Prepare(), and ReadData().

doublereal InverseSolver::dw1[3]
protected

Definition at line 70 of file invsolver.h.

Referenced by ReadData().

doublereal InverseSolver::dw2[3]
protected

Definition at line 71 of file invsolver.h.

Referenced by ReadData().

MyVectorHandler* InverseSolver::pLambda
protected

Definition at line 73 of file invsolver.h.

Referenced by Advance(), Prepare(), and ~InverseSolver().

InverseDynamics::Type InverseSolver::ProblemType
protected

Definition at line 69 of file invsolver.h.

Referenced by GetProblemType(), and ReadData().

MyVectorHandler* InverseSolver::pXPrimePrime
protected

Definition at line 72 of file invsolver.h.

Referenced by Advance(), Prepare(), and ~InverseSolver().

The documentation for this class was generated from the following files:
