PostponedDriveCaller Class Reference

#include <drive_.h>

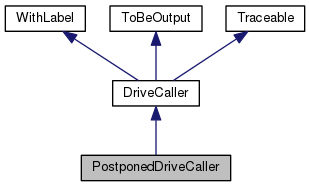

Inheritance diagram for PostponedDriveCaller:

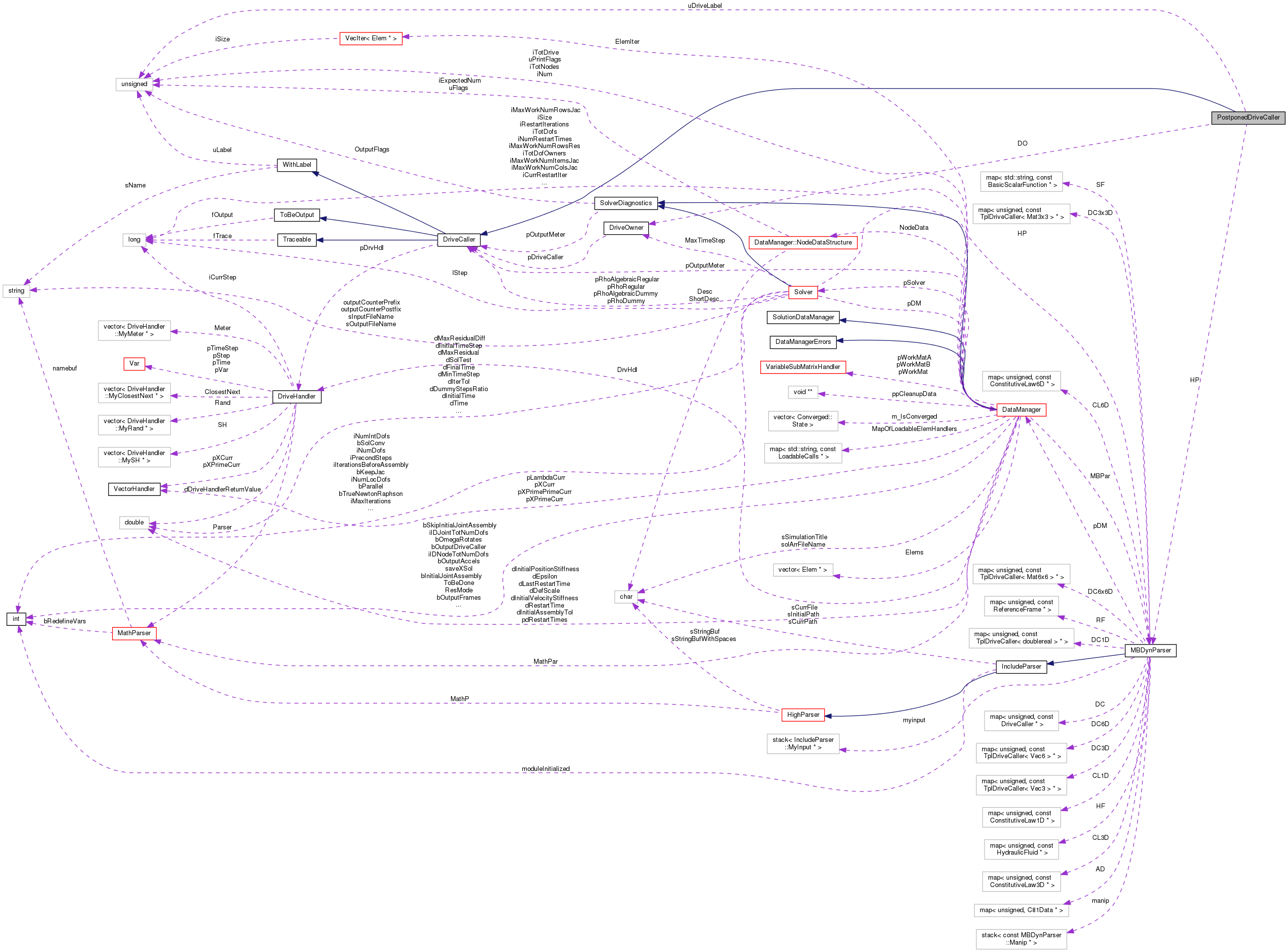

Collaboration diagram for PostponedDriveCaller:

Public Member Functions
	PostponedDriveCaller (MBDynParser &HP, unsigned uLabel)
virtual	~PostponedDriveCaller (void)
virtual std::ostream &	Restart (std::ostream &out) const
virtual DriveCaller *	pCopy (void) const
doublereal	dGet (void) const
doublereal	dGet (const doublereal &dVar) const
virtual bool	bIsDifferentiable (void) const
virtual doublereal	dGetP (const doublereal &dVar) const
Public Member Functions inherited from DriveCaller
	DriveCaller (const DriveHandler *pDH)
virtual	~DriveCaller (void)
virtual doublereal	dGetP (void) const
virtual void	SetDrvHdl (const DriveHandler *pDH)
virtual const DriveHandler *	pGetDrvHdl (void) const
virtual void	Output (OutputHandler &OH) const
virtual void	Trace (OutputHandler &OH) const
Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")
virtual	~WithLabel (void)
void	PutLabel (unsigned int uL)
void	PutName (const std::string &sN)
unsigned int	GetLabel (void) const
const std::string &	GetName (void) const
Public Member Functions inherited from ToBeOutput
	ToBeOutput (flag fOut=fDefaultOut)
virtual	~ToBeOutput (void)
virtual void	OutputPrepare (OutputHandler &OH)
virtual void	Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const
virtual flag	fToBeOutput (void) const
virtual bool	bToBeOutput (void) const
virtual void	SetOutputFlag (flag f=flag(1))
Public Member Functions inherited from Traceable
	Traceable (flag fTrace=0)
virtual	~Traceable (void)
virtual flag	fToBeTraced (void) const
virtual void	SetTraceFlag (flag f=TRACE)

Protected Member Functions
void	Check (void) const

Protected Attributes
MBDynParser &	HP
unsigned	uDriveLabel
DriveOwner	DO
Protected Attributes inherited from DriveCaller
DriveHandler *	pDrvHdl
Protected Attributes inherited from WithLabel
unsigned int	uLabel
std::string	sName
Protected Attributes inherited from ToBeOutput
flag	fOutput

Additional Inherited Members
Public Types inherited from DriveCaller
enum	OutputFlags { OUTPUT_VALUE = OUTPUT_PRIVATE << 0, OUTPUT_DERIVATIVE = OUTPUT_PRIVATE << 1 }
enum	TraceFlags { TRACE_VALUE = TRACE_PRIVATE << 0, TRACE_DERIVATIVE = TRACE_PRIVATE << 1 }
Public Types inherited from ToBeOutput
enum	{ OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }
Public Types inherited from Traceable
enum	{ TRACE = 0x01U, TRACE_PUBLIC_MASK = 0x0FU, TRACE_PRIVATE = 0x10U, TRACE_PRIVATE_MASK = ~TRACE_PUBLIC_MASK }

Detailed Description

Definition at line 1647 of file drive_.h.

Constructor & Destructor Documentation

PostponedDriveCaller::PostponedDriveCaller	(	MBDynParser &	HP,
		unsigned	uLabel
	)

Definition at line 1223 of file drive_.cc.

References NO_OP.

Referenced by pCopy().

: DriveCaller(0),
HP(HP), uDriveLabel(uLabel), DO(0)
{
        NO_OP;
}

PostponedDriveCaller::~PostponedDriveCaller ( void  )

virtual

Definition at line 1230 of file drive_.cc.

References NO_OP.

{
        NO_OP;
}

Member Function Documentation

bool PostponedDriveCaller::bIsDifferentiable ( void  ) const

inlinevirtual

Reimplemented from DriveCaller.

Definition at line 1688 of file drive_.h.

References DriveOwner::bIsDifferentiable(), Check(), and DO.

{
        Check();
        return DO.bIsDifferentiable();
}

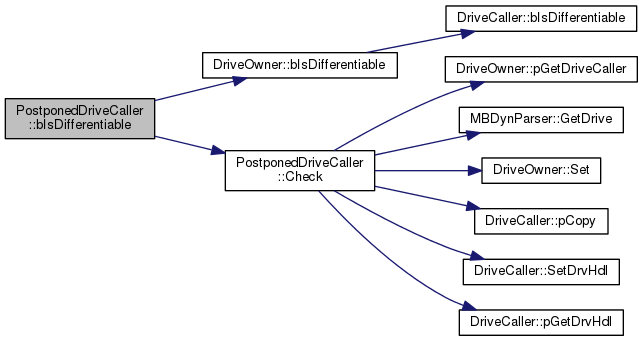

Here is the call graph for this function:

void PostponedDriveCaller::Check ( void  ) const

protected

Definition at line 1210 of file drive_.cc.

References DO, MBDynParser::GetDrive(), HP, MBDYN_EXCEPT_ARGS, DriveCaller::pCopy(), DriveOwner::pGetDriveCaller(), DriveCaller::pGetDrvHdl(), DriveOwner::Set(), DriveCaller::SetDrvHdl(), and uDriveLabel.

Referenced by bIsDifferentiable(), dGet(), dGetP(), and Restart().

{
        if (!DO.pGetDriveCaller()) {
                const DriveCaller *pDC = HP.GetDrive(uDriveLabel);
                if (pDC == 0) {
                        silent_cerr("PostponedDriveCaller: unable to resolve postponed drive caller \"" << uDriveLabel << "\"" << std::endl);
                        throw ErrGeneric(MBDYN_EXCEPT_ARGS);
                }
                DO.Set(pDC->pCopy());
                const_cast<PostponedDriveCaller *>(this)->SetDrvHdl(DO.pGetDriveCaller()->pGetDrvHdl());
        }
}

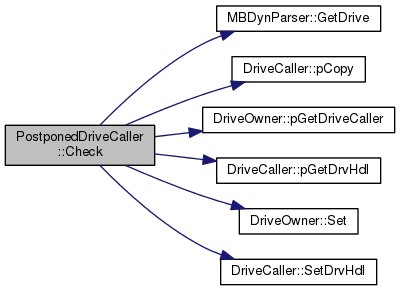

Here is the call graph for this function:

doublereal PostponedDriveCaller::dGet ( void  ) const

inlinevirtual

Reimplemented from DriveCaller.

Definition at line 1674 of file drive_.h.

References Check(), DriveOwner::dGet(), and DO.

{
        Check();
        return DO.dGet();
}

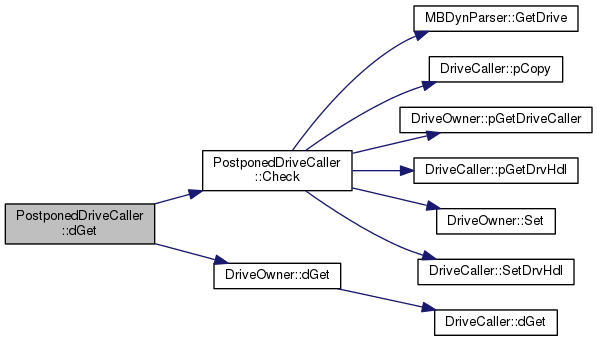

Here is the call graph for this function:

doublereal PostponedDriveCaller::dGet ( const doublereal &  dVar ) const

inlinevirtual

Implements DriveCaller.

Definition at line 1681 of file drive_.h.

References Check(), DriveOwner::dGet(), and DO.

{
        Check();
        return DO.dGet(dVar);
}

Here is the call graph for this function:

doublereal PostponedDriveCaller::dGetP ( const doublereal &  dVar ) const

inlinevirtual

Reimplemented from DriveCaller.

Definition at line 1695 of file drive_.h.

References Check(), DriveOwner::dGetP(), and DO.

{
        Check();
        return DO.dGetP(dVar);
}

Here is the call graph for this function:

DriveCaller * PostponedDriveCaller::pCopy ( void  ) const

virtual

Implements DriveCaller.

Definition at line 1249 of file drive_.cc.

References HP, PostponedDriveCaller(), SAFENEWWITHCONSTRUCTOR, and uDriveLabel.

{
        DriveCaller *pDC = 0;
        SAFENEWWITHCONSTRUCTOR(pDC, PostponedDriveCaller,
                PostponedDriveCaller(HP, uDriveLabel));
        return pDC;
}

Here is the call graph for this function:

std::ostream & PostponedDriveCaller::Restart ( std::ostream &  out ) const

virtual

Implements DriveCaller.

Definition at line 1237 of file drive_.cc.

References Check(), DO, DriveOwner::pGetDriveCaller(), DriveCaller::Restart(), and uDriveLabel.

{
        Check();

        out << ", deferred, " << uDriveLabel << " /* actual drive: ",
            DO.pGetDriveCaller()->Restart(out) << " */";

        return out;
}

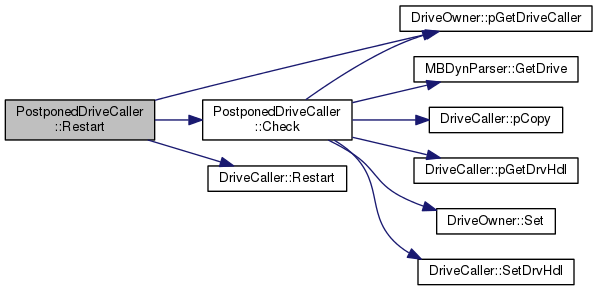

Here is the call graph for this function:

Member Data Documentation

DriveOwner PostponedDriveCaller::DO

mutableprotected

Definition at line 1651 of file drive_.h.

Referenced by bIsDifferentiable(), Check(), dGet(), dGetP(), and Restart().

MBDynParser& PostponedDriveCaller::HP

protected

Definition at line 1649 of file drive_.h.

Referenced by Check(), and pCopy().

unsigned PostponedDriveCaller::uDriveLabel

protected

Definition at line 1650 of file drive_.h.

Referenced by Check(), pCopy(), and Restart().

---

The documentation for this class was generated from the following files:

• drive_.h
• drive_.cc
