Eu2PhiDCR Struct Reference

Inheritance diagram for Eu2PhiDCR:

Collaboration diagram for Eu2PhiDCR:

Public Member Functions
virtual TplDriveCaller< Vec3 > *	Read (const DataManager *pDM, MBDynParser &HP)
Public Member Functions inherited from TplDriveCallerRead< Vec3 >
virtual	~TplDriveCallerRead (void)

Detailed Description

Definition at line 112 of file module-eu2phi.cc.

Member Function Documentation

virtual TplDriveCaller<Vec3>* Eu2PhiDCR::Read ( const DataManager *  pDM, MBDynParser &  HP  )

inlinevirtual

Implements TplDriveCallerRead< Vec3 >.

Definition at line 114 of file module-eu2phi.cc.

References EULER_123, EULER_313, EULER_321, IncludeParser::GetLineData(), MBDynParser::GetTplDriveCaller(), HighParser::IsKeyWord(), MBDYN_EXCEPT_ARGS, and ReadOrientationDescription().

                                                      {
                if (HP.IsKeyWord("help")) {
                        silent_cout(
"Eu2PhiWrap: converts a TplDriveCaller<Vec3> containing three Euler angles\n"
"into the corresponding Euler vector\n"
"\n"
"Syntax:\n"
"    eu2phi ,\n"
"        [ help , ]\n"
"        [ format , { euler123 | euler313 | euler321 } , ]\n"
"        (TplDriveCaller<Vec3>) <drive>\n");
                }

                OrientationDescription od(EULER_123);

                if (HP.IsKeyWord("format")) {
                        od = ReadOrientationDescription(HP);
                        switch (od) {
                        case EULER_123:
                        case EULER_313:
                        case EULER_321:
                                break;

                        default:
                                silent_cerr("Eu2PhiWrap: unhandled format at line " << HP.GetLineData() << std::endl);
                                throw ErrGeneric(MBDYN_EXCEPT_ARGS);
                        }
                }

                return new Eu2PhiWrap(HP.GetTplDriveCaller<Vec3>(), od);
        };

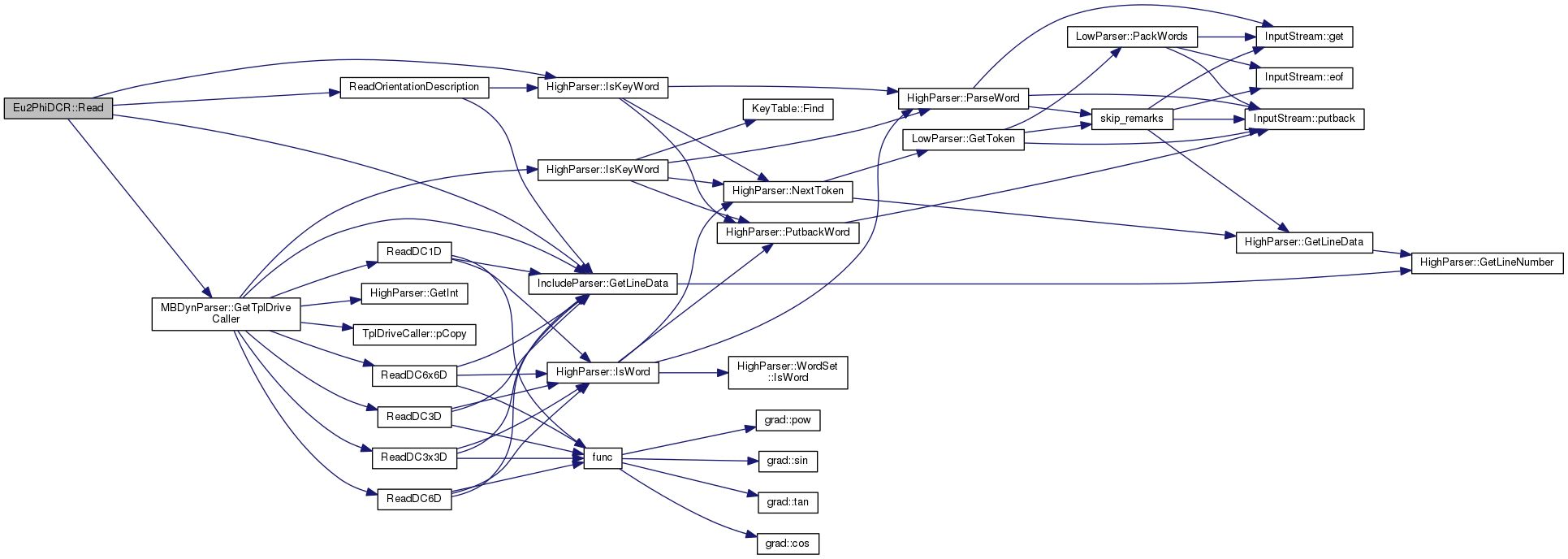

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• module-eu2phi.cc
