friction.h File Reference

#include "ScalarFunctions.h"
#include "simentity.h"
#include "elem.h"
#include "JacSubMatrix.h"

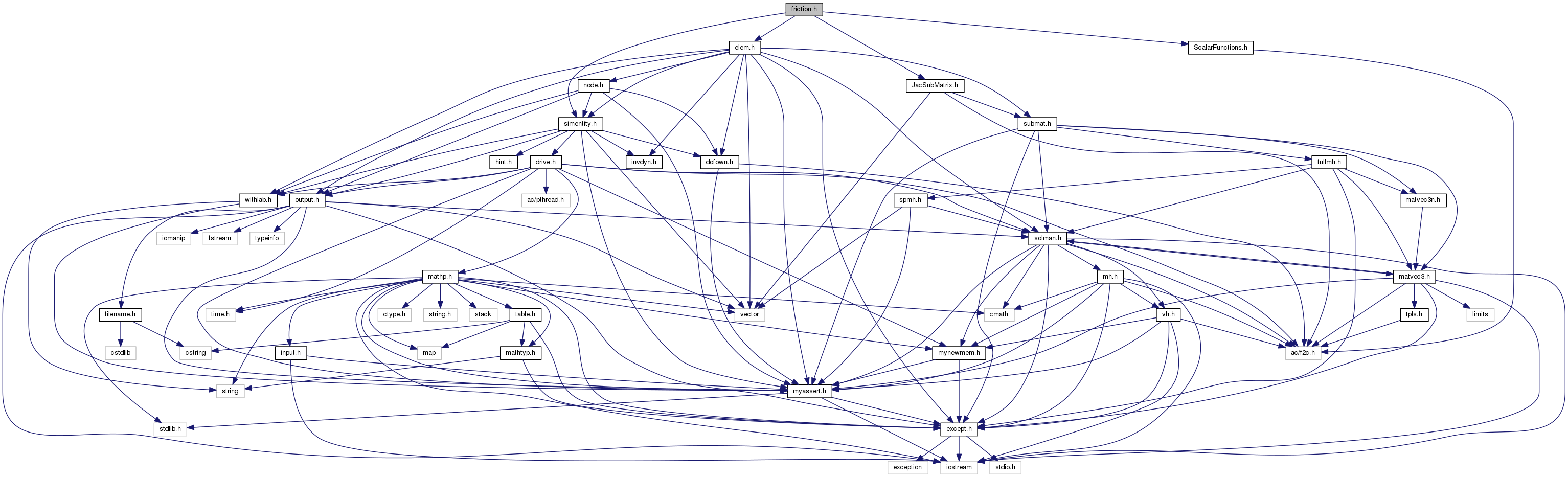

Include dependency graph for friction.h:

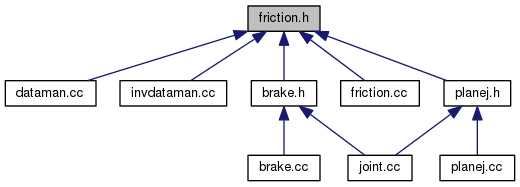

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	BasicFriction
class	BasicShapeCoefficient
class	ModLugreFriction
class	DiscreteCoulombFriction
class	SimpleShapeCoefficient
class	SimplePlaneHingeJointSh_c
class	ScrewJointSh_c

Functions
BasicFriction *const	ParseFriction (MBDynParser &HP, DataManager *pDM)
BasicShapeCoefficient *const	ParseShapeCoefficient (MBDynParser &HP)

Function Documentation

BasicFriction* const ParseFriction	(	MBDynParser &	HP,
		DataManager *	pDM
	)

Definition at line 608 of file friction.cc.

References IncludeParser::GetLineData(), HighParser::GetReal(), HighParser::IsKeyWord(), LASTKEYWORD, MBDYN_EXCEPT_ARGS, and ParseScalarFunction().

{
   const char* sKeyWords[] = {
      "modlugre",
      "discrete" "coulomb",
      NULL
   };
        enum KeyWords {
             MODLUGRE = 0,
             DISCRETECOULOMB,
             LASTKEYWORD
        };
        /* token corrente */
        KeyWords FuncType;

        KeyTable K(HP, sKeyWords);

        FuncType = KeyWords(HP.IsKeyWord());
        switch (FuncType) {
        case MODLUGRE: {
                doublereal sigma0 = HP.GetReal();
                doublereal sigma1 = HP.GetReal();
                doublereal sigma2 = HP.GetReal();
                doublereal kappa = HP.GetReal();
                const BasicScalarFunction*const sf =
                        ParseScalarFunction(HP, pDM);
                return new ModLugreFriction(sigma0, sigma1, sigma2, kappa, sf);
                break;
        }
        case DISCRETECOULOMB: {
                const BasicScalarFunction*const sf =
                        ParseScalarFunction(HP, pDM);
                doublereal sigma2 = 0.;
                doublereal vel_ratio = 0.8;
                if (HP.IsKeyWord("sigma2")) {
                        sigma2 = HP.GetReal();
                }
                if (HP.IsKeyWord("velocity" "ratio")) {
                        vel_ratio = HP.GetReal();
                }
                return new DiscreteCoulombFriction(sf,sigma2, vel_ratio);
                break;
        }
        default: {
                silent_cerr("ParseFriction(): unrecognized friction type "
                                "at line " << HP.GetLineData() << std::endl);
                throw MBDynParser::ErrGeneric(MBDYN_EXCEPT_ARGS);
                break;
        }
        }
        return 0;
};

Here is the call graph for this function:

BasicShapeCoefficient* const ParseShapeCoefficient

(

MBDynParser &

HP

)

Definition at line 662 of file friction.cc.

References IncludeParser::GetLineData(), HighParser::GetReal(), HighParser::IsKeyWord(), LASTKEYWORD, and MBDYN_EXCEPT_ARGS.

                                                                    {
        const char* sKeyWords[] = {
                "simple",
                "simple" "plane" "hinge",
                "screw" "joint",
                NULL
        };
        enum KeyWords {
                SIMPLE = 0,
                SIMPLEPLANEHINGE,
                SCREWJOINT,
                LASTKEYWORD
        };
        /* token corrente */
        KeyWords FuncType;

        KeyTable K(HP, sKeyWords);

        FuncType = KeyWords(HP.IsKeyWord());
        switch (FuncType) {
        case SIMPLE: {
                return new SimpleShapeCoefficient();
                break;
        }
        case SIMPLEPLANEHINGE: {
                return new SimplePlaneHingeJointSh_c();
                break;
        }
        case SCREWJOINT: {
                doublereal radius(0.), hta(0.);
                if (HP.IsKeyWord("radius")) {
                        radius = HP.GetReal();
                } else {
                        pedantic_cerr("ScrewJointShapeCoefficient: missing keyword \"radius\" at line "
                                << HP.GetLineData());
                }
                if (HP.IsKeyWord("half" "thread" "angle")) {
                        hta = HP.GetReal();
                } else {
                        pedantic_cerr("ScrewJointShapeCoefficient: missing keyword \"half thread angle\" at line "
                                << HP.GetLineData());
                }
                return new ScrewJointSh_c(radius, hta);
                break;
        }
        default: {
                silent_cerr("ParseShapeCoefficient(): "
                        "unrecognized shape coefficient type "
                        "at line " << HP.GetLineData() << std::endl);
                throw MBDynParser::ErrGeneric(MBDYN_EXCEPT_ARGS);
                break;
        }
        }
        return 0;
};

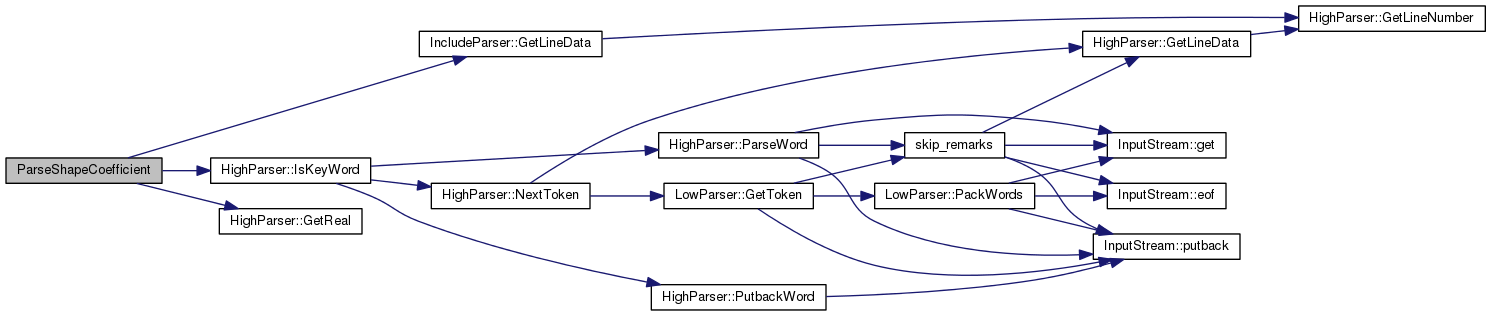

Here is the call graph for this function:
