ScalarFunctions.h File Reference

#include "ac/f2c.h"

Include dependency graph for ScalarFunctions.h:

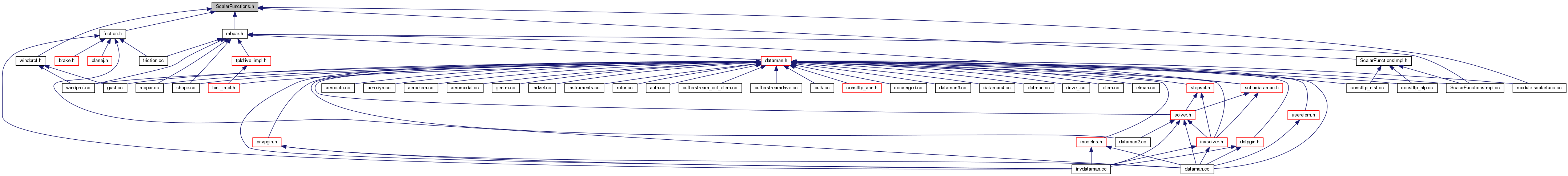

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	BasicScalarFunction
class	DifferentiableScalarFunction
struct	ScalarFunctionRead

Functions
const BasicScalarFunction *const	ParseScalarFunction (MBDynParser &HP, DataManager *const pDM)
void	SetScalarFunctionDriveCallerData (void)
bool	SetSF (const std::string &s, const ScalarFunctionRead *rf)
void	InitSF (void)
void	DestroySF (void)

Function Documentation

void DestroySF

(

void

)

Definition at line 1527 of file ScalarFunctionsImpl.cc.

References done, MBDYN_EXCEPT_ARGS, and SFRead.

Referenced by MBDynParser::~MBDynParser().

{
        if (::done == 0) {
                silent_cerr("DestroySF() called once too many" << std::endl);
                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        if (--done > 0) {
                return;
        }

        for (SFReadType::iterator i = SFRead.begin(); i != SFRead.end(); ++i) {
                delete i->second;
        }
        SFRead.clear();
}

void InitSF

(

void

)

Definition at line 1409 of file ScalarFunctionsImpl.cc.

References ASSERT, done, MBDYN_EXCEPT_ARGS, SetCL1D(), SetCL3D(), SetCL6D(), SetDriveCallerData(), and SetSF().

Referenced by MBDynParser::MBDynParser().

{
        if (::done++ > 0) {
                return;
        }

        bool b;

        b = SetSF("const", new ConstSFR);
        ASSERT(b);
        b = SetSF("linear", new LinearSFR);
        ASSERT(b);
        b = SetSF("pow", new PowSFR);
        ASSERT(b);
        b = SetSF("log", new LogSFR);
        ASSERT(b);
        b = SetSF("exp", new ExpSFR);
        ASSERT(b);
        b = SetSF("sum", new SumSFR);
        ASSERT(b);
        b = SetSF("sub", new SubSFR);
        ASSERT(b);
        b = SetSF("mul", new MulSFR);
        ASSERT(b);
        b = SetSF("div", new DivSFR);
        ASSERT(b);
        b = SetSF("cubic" "spline", new CubicSplineSFR);
        ASSERT(b);
        b = SetSF("multilinear", new MultiLinearSFR);
        ASSERT(b);
        b = SetSF("chebychev", new ChebychevSFR);
        ASSERT(b);

        /* this is about initializing the scalar function drive */
        ScalarFunctionDCR *rf = new ScalarFunctionDCR;
        if (!SetDriveCallerData("scalar" "function", rf)) {
                delete rf;

                silent_cerr("unable to register scalar function drive caller"
                        << std::endl);

                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        /* this is about initializing the scalar function constitutive law(s) */
        ConstitutiveLawRead<doublereal, doublereal> *rf1D
                = new ScalarFunctionIsotropicCLR<doublereal, doublereal>;
        if (!SetCL1D("scalar" "function" "elastic" "isotropic", rf1D)) {
                delete rf1D;

                silent_cerr("unable to register scalar function isotropic 1D constitutive law"
                        << std::endl);

                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        rf1D = new ScalarFunctionIsotropicCLR<doublereal, doublereal>;
        if (!SetCL1D("scalar" "function" "elastic" "orthotropic", rf1D)) {
                delete rf1D;

                silent_cerr("unable to register scalar function orthotropic 1D constitutive law"
                        << std::endl);

                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        rf1D = new ScalarFunctionIsotropicCLR<doublereal, doublereal>;
        if (!SetCL1D("scalar" "function" "elastic", rf1D)) {
                delete rf1D;

                silent_cerr("unable to register scalar function 1D constitutive law"
                        << std::endl);

                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        ConstitutiveLawRead<Vec3, Mat3x3> *rf3D = new ScalarFunctionIsotropicCLR<Vec3, Mat3x3>;
        if (!SetCL3D("scalar" "function" "elastic" "isotropic", rf3D)) {
                delete rf3D;

                silent_cerr("unable to register scalar function isotropic 3D constitutive law"
                        << std::endl);

                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        rf3D = new ScalarFunctionOrthotropicCLR<Vec3, Mat3x3>;
        if (!SetCL3D("scalar" "function" "elastic" "orthotropic", rf3D)) {
                delete rf3D;

                silent_cerr("unable to register scalar function orthotropic 3D constitutive law"
                        << std::endl);

                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        ConstitutiveLawRead<Vec6, Mat6x6> *rf6D = new ScalarFunctionIsotropicCLR<Vec6, Mat6x6>;
        if (!SetCL6D("scalar" "function" "elastic" "isotropic", rf6D)) {
                delete rf6D;

                silent_cerr("unable to register scalar function isotropic 6D constitutive law"
                        << std::endl);

                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        rf6D = new ScalarFunctionOrthotropicCLR<Vec6, Mat6x6>;
        if (!SetCL6D("scalar" "function" "elastic" "orthotropic", rf6D)) {
                delete rf6D;

                silent_cerr("unable to register scalar function orthotropic 6D constitutive law"
                        << std::endl);

                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }
}

Here is the call graph for this function:

const BasicScalarFunction* const ParseScalarFunction	(	MBDynParser &	HP,
		DataManager *const	pDM
	)

Definition at line 1011 of file ScalarFunctionsImpl.cc.

References func(), IncludeParser::GetLineData(), MBDynParser::GetScalarFunction(), HighParser::GetStringWithDelims(), HighParser::IsWord(), MBDYN_EXCEPT_ARGS, MBDynParser::SetScalarFunction(), and SFRead.

Referenced by MBDynParser::GetScalarFunction(), ParseFriction(), ScalarFuncGR::Read(), NLSFViscoElasticCLR< T, Tder, Typ >::Read(), NLPViscoElasticCLR< T, Tder, Typ >::Read(), SumSFR::Read(), SubSFR::Read(), MulSFR::Read(), DivSFR::Read(), ScalarFunctionDCR::Read(), ScalarFunctionIsotropicCLR< T, Tder >::Read(), ScalarFunctionOrthotropicCLR< T, Tder >::Read(), and MBDynParser::ScalarFunction_int().

{
        std::string func_name(HP.GetStringWithDelims());

        const BasicScalarFunction *sf = HP.GetScalarFunction(func_name);
        if (sf == 0) {
                const char *s = HP.IsWord(SFWordSet);
                if (s == 0) {
                        s = "const";
                }

                SFReadType::iterator func = SFRead.find(std::string(s));
                if (func == SFRead.end()) {
                        silent_cerr("unknown scalar function type \"" << s << "\" "
                                "for function \"" << func_name << "\" "
                                "at line " << HP.GetLineData() << std::endl);
                        throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
                }

                try {
                        sf = func->second->Read(pDM, HP);
                } catch (...) {
                        silent_cerr("Unable to parse "
                                "ScalarFunction(\"" << func_name << "\") "
                                "at line " << HP.GetLineData() << std::endl);
                        throw;
                }
                if (!HP.SetScalarFunction(func_name, sf)) {
                        silent_cerr("scalar function \"" << func_name << "\" "
                                "already defined at line " << HP.GetLineData() << std::endl);
                        throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
                }

        } else if (HP.IsWord(SFWordSet)) {
                silent_cerr("Error: redefinition of "
                        "\"" << func_name << "\" scalar function "
                        "at line " << HP.GetLineData() << std::endl);
                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        return sf;
}

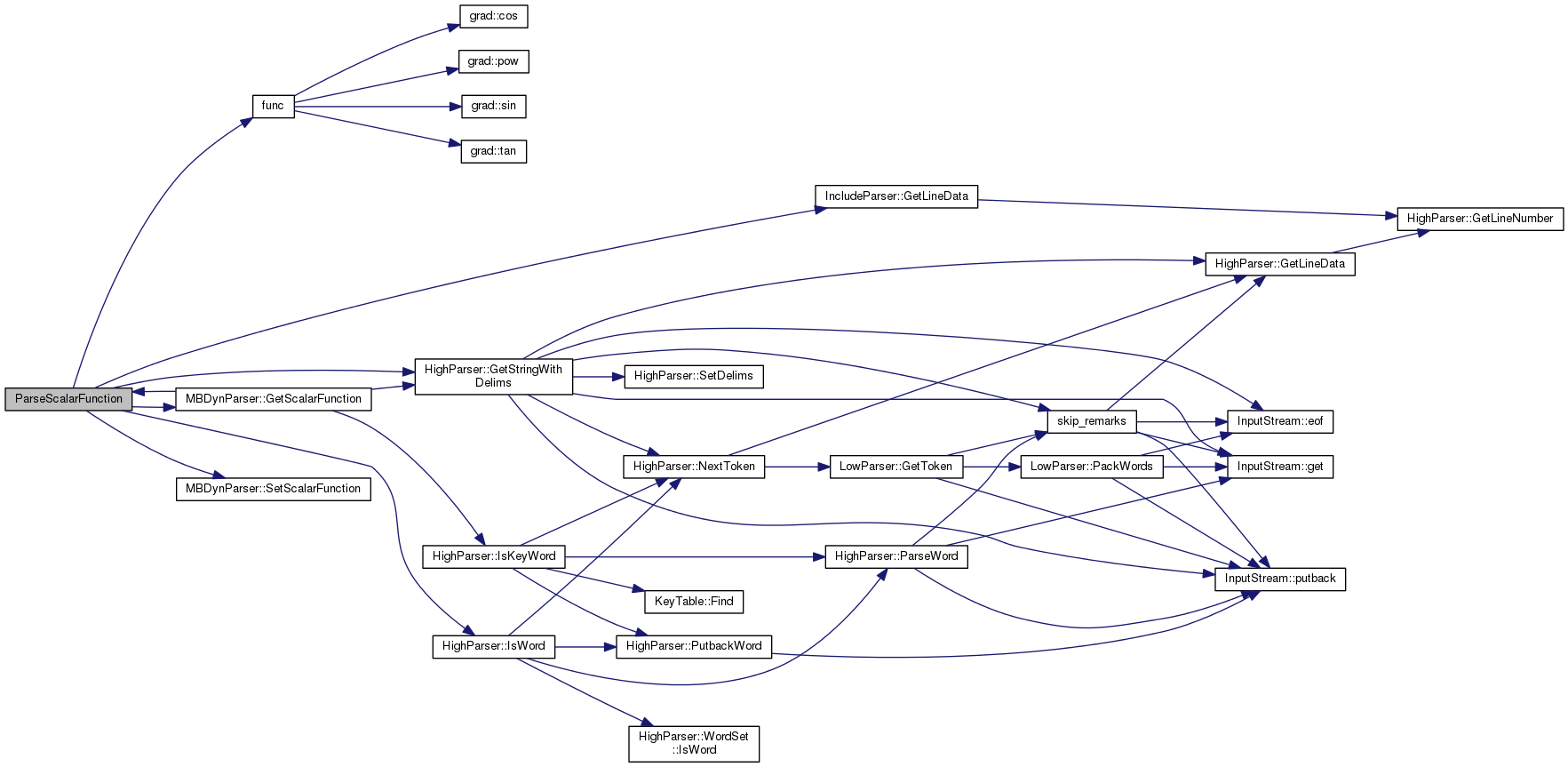

Here is the call graph for this function:

void SetScalarFunctionDriveCallerData

(

void

)

bool SetSF	(	const std::string &	s,
		const ScalarFunctionRead *	rf
	)

Definition at line 1399 of file ScalarFunctionsImpl.cc.

References SFRead.

Referenced by InitSF(), mbdyn_octave_set(), and module_init().

{
        pedantic_cout("registering scalar function \"" << s << "\""
                << std::endl );
        return SFRead.insert(SFReadType::value_type(s, rf)).second;
}
