#include <privdrive.h>

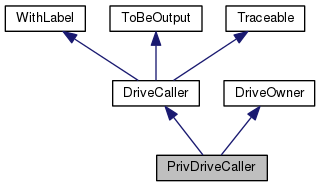

Inheritance diagram for PrivDriveCaller:

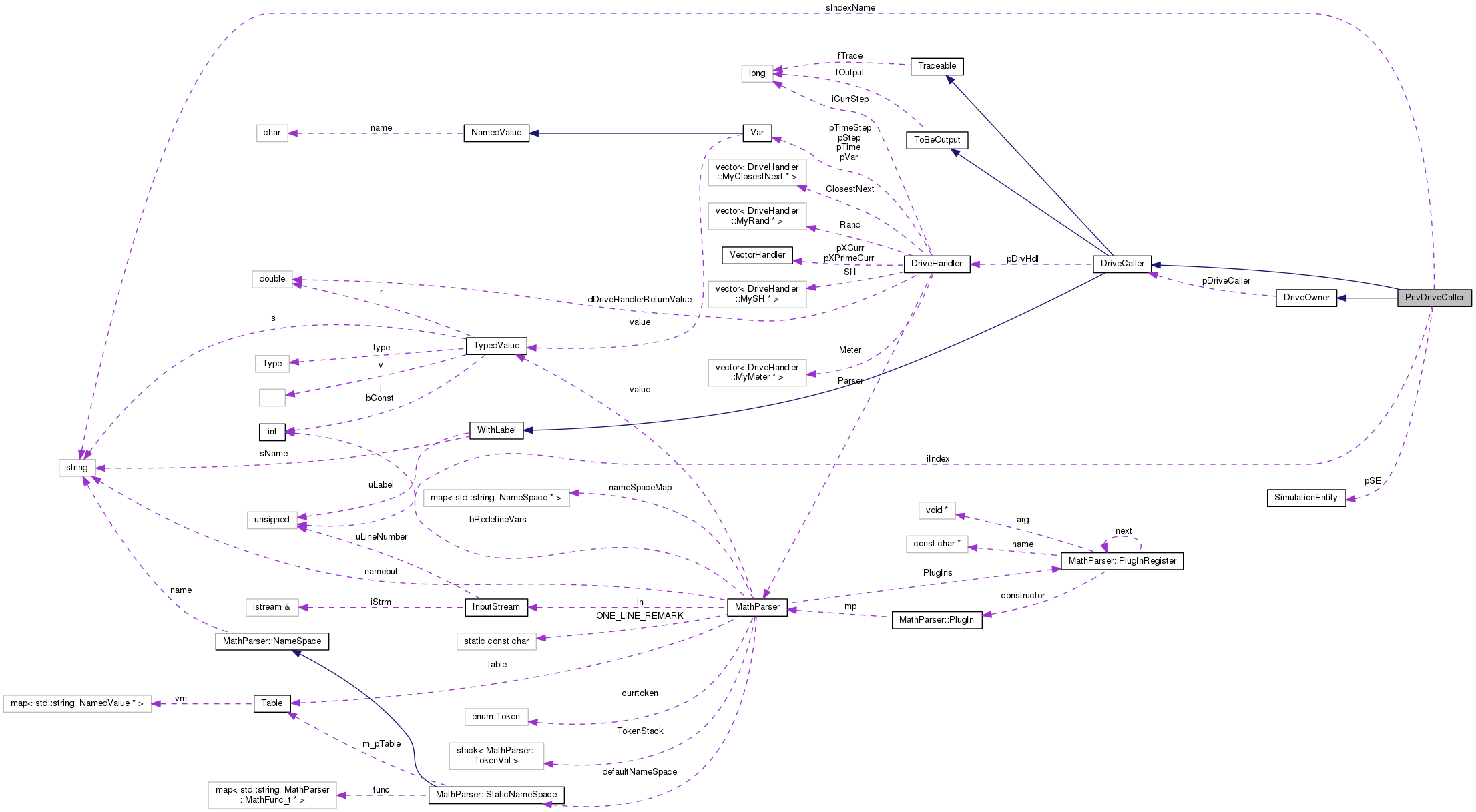

Collaboration diagram for PrivDriveCaller:

Public Member Functions
	PrivDriveCaller (const DriveHandler pDH, const DriveCaller pDC, const SimulationEntity *p, unsigned int i, const std::string &s)

virtual	~PrivDriveCaller (void)

virtual DriveCaller *	pCopy (void) const

virtual std::ostream &	Restart (std::ostream &out) const

doublereal	dGet (const doublereal &dVar) const

doublereal	dGet (void) const

unsigned int	iGetIndex (void) const

const SimulationEntity *	iGetSE (void) const

Public Member Functions inherited from DriveCaller
	DriveCaller (const DriveHandler *pDH)

virtual	~DriveCaller (void)

virtual bool	bIsDifferentiable (void) const

virtual doublereal	dGetP (const doublereal &dVar) const

virtual doublereal	dGetP (void) const

virtual void	SetDrvHdl (const DriveHandler *pDH)

virtual const DriveHandler *	pGetDrvHdl (void) const

virtual void	Output (OutputHandler &OH) const

virtual void	Trace (OutputHandler &OH) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from ToBeOutput
	ToBeOutput (flag fOut=fDefaultOut)

virtual	~ToBeOutput (void)

virtual void	OutputPrepare (OutputHandler &OH)

virtual void	Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag	fToBeOutput (void) const

virtual bool	bToBeOutput (void) const

virtual void	SetOutputFlag (flag f=flag(1))

Public Member Functions inherited from Traceable
	Traceable (flag fTrace=0)

virtual	~Traceable (void)

virtual flag	fToBeTraced (void) const

virtual void	SetTraceFlag (flag f=TRACE)

Public Member Functions inherited from DriveOwner
	DriveOwner (const DriveCaller *pDC=0)

	DriveOwner (const DriveOwner &drive)

virtual	~DriveOwner (void)

void	Set (const DriveCaller *pDC)

DriveCaller *	pGetDriveCaller (void) const

doublereal	dGet (const doublereal &dVar) const

doublereal	dGet (void) const

bool	bIsDifferentiable (void) const

doublereal	dGetP (const doublereal &dVar) const

doublereal	dGetP (void) const

Protected Attributes
const SimulationEntity *	pSE

unsigned int	iIndex

std::string	sIndexName

Protected Attributes inherited from DriveCaller
DriveHandler *	pDrvHdl

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Protected Attributes inherited from ToBeOutput
flag	fOutput

Protected Attributes inherited from DriveOwner
DriveCaller *	pDriveCaller

Additional Inherited Members
Public Types inherited from DriveCaller
enum	OutputFlags { OUTPUT_VALUE = OUTPUT_PRIVATE << 0, OUTPUT_DERIVATIVE = OUTPUT_PRIVATE << 1 }

enum	TraceFlags { TRACE_VALUE = TRACE_PRIVATE << 0, TRACE_DERIVATIVE = TRACE_PRIVATE << 1 }

Public Types inherited from ToBeOutput
enum	{ OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

Public Types inherited from Traceable
enum	{ TRACE = 0x01U, TRACE_PUBLIC_MASK = 0x0FU, TRACE_PRIVATE = 0x10U, TRACE_PRIVATE_MASK = ~TRACE_PUBLIC_MASK }

Detailed Description

Definition at line 48 of file privdrive.h.

Constructor & Destructor Documentation

PrivDriveCaller::PrivDriveCaller	(	const DriveHandler *	pDH,
		const DriveCaller *	pDC,
		const SimulationEntity *	p,
		unsigned int	i,
		const std::string &	s
	)

Definition at line 41 of file privdrive.cc.

References NO_OP.

Referenced by pCopy().

 : DriveCaller(pDH), DriveOwner(pDC), pSE(p), iIndex(i), sIndexName(s)
 {
         NO_OP;
 };

PrivDriveCaller::~PrivDriveCaller ( void )

virtual

Definition at line 49 of file privdrive.cc.

References NO_OP.

 {
         NO_OP;
 }

Member Function Documentation

doublereal PrivDriveCaller::dGet ( const doublereal & dVar ) const

inlinevirtual

Implements DriveCaller.

Definition at line 72 of file privdrive.h.

References dGet().

 {
         silent_cerr("warning, possible improper call of element drive with real argument; \"dVar\" is ignored and private data is returned instead"
                 << std::endl);

         // ignore dVar; return private data
         return dGet();
 }

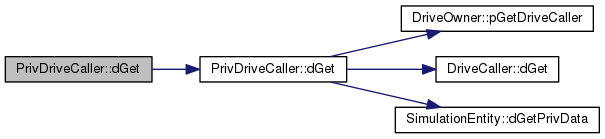

Here is the call graph for this function:

doublereal PrivDriveCaller::dGet ( void ) const

inlinevirtual

Reimplemented from DriveCaller.

Definition at line 82 of file privdrive.h.

References DriveCaller::dGet(), SimulationEntity::dGetPrivData(), iIndex, DriveOwner::pGetDriveCaller(), and pSE.

Referenced by dGet().

 {
         return pGetDriveCaller()->dGet(pSE->dGetPrivData(iIndex));
 }

Here is the call graph for this function:

unsigned int PrivDriveCaller::iGetIndex ( void ) const

Definition at line 104 of file privdrive.cc.

References iIndex.

                                      {
         return iIndex;
 }

const SimulationEntity * PrivDriveCaller::iGetSE ( void ) const

Definition at line 109 of file privdrive.cc.

References pSE.

                                   {
         return pSE;
 }

DriveCaller * PrivDriveCaller::pCopy ( void ) const

virtual

Implements DriveCaller.

Definition at line 56 of file privdrive.cc.

References iIndex, DriveCaller::pDrvHdl, DriveOwner::pGetDriveCaller(), PrivDriveCaller(), pSE, SAFENEWWITHCONSTRUCTOR, and sIndexName.

 {
         DriveCaller* pDC = NULL;

         SAFENEWWITHCONSTRUCTOR(pDC,
                         PrivDriveCaller,
                         PrivDriveCaller(pDrvHdl,
                                 pGetDriveCaller()->pCopy(),
                                 pSE, iIndex, sIndexName));

         return pDC;
 }

Here is the call graph for this function:

std::ostream & PrivDriveCaller::Restart ( std::ostream & out ) const

virtual

Implements DriveCaller.

Definition at line 72 of file privdrive.cc.

References Elem::GetElemType(), WithLabel::GetLabel(), Node::GetNodeType(), SimulationEntity::iGetNumPrivData(), iIndex, MBDYN_EXCEPT_ARGS, DriveOwner::pGetDriveCaller(), pSE, psReadElemsElems, psReadNodesNodes, DriveCaller::Restart(), and sIndexName.

 {
         const Elem *pElem = dynamic_cast<const Elem *>(pSE);
         const Node *pNode = dynamic_cast<const Node *>(pSE);

         if (pElem != 0) {
                 out << " element, "
                         << pElem->GetLabel() << ", "
                         << psReadElemsElems[pElem->GetElemType()] << ", ";

         } else if (pNode != 0) {
                 out << " node, "
                         << pNode->GetLabel() << ", "
                         << psReadNodesNodes[pNode->GetNodeType()] << ", ";

         } else {
                 throw ErrGeneric(MBDYN_EXCEPT_ARGS);
         }

         if (!sIndexName.empty()) {
                 out << "string, " << sIndexName;

         } else if (pElem->iGetNumPrivData() > 1) {
                 out << "index, " << iIndex;
         }

         out << ", ";

         return DriveOwner::pGetDriveCaller()->Restart(out);
 }

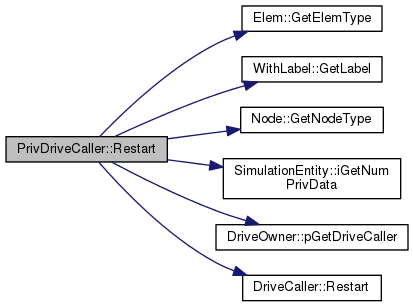

Here is the call graph for this function:

Member Data Documentation

unsigned int PrivDriveCaller::iIndex

protected

Definition at line 52 of file privdrive.h.

Referenced by dGet(), iGetIndex(), pCopy(), and Restart().

const SimulationEntity* PrivDriveCaller::pSE

protected

Definition at line 51 of file privdrive.h.

Referenced by dGet(), iGetSE(), pCopy(), and Restart().

std::string PrivDriveCaller::sIndexName

protected

Definition at line 53 of file privdrive.h.

Referenced by pCopy(), and Restart().

The documentation for this class was generated from the following files:
