SimulationEntityDCR Struct Reference

Inheritance diagram for SimulationEntityDCR:

Collaboration diagram for SimulationEntityDCR:

Protected Member Functions
DriveCaller *	Read (const DataManager *pDM, MBDynParser &HP, const SimulationEntity *pSE, const std::string &msg)
Protected Member Functions inherited from DriveCallerRead
void	NeedDM (const DataManager *pDM, MBDynParser &HP, bool bDeferred, const char *const name)

Additional Inherited Members
Public Member Functions inherited from DriveCallerRead
virtual	~DriveCallerRead (void)
virtual DriveCaller *	Read (const DataManager *pDM, MBDynParser &HP, bool bDeferred)=0
Static Public Member Functions inherited from DriveCallerRead
static void	ReadOutput (DriveCaller *pDC, const DataManager *pDM, MBDynParser &HP)

Detailed Description

Definition at line 2586 of file drive_.cc.

Member Function Documentation

DriveCaller * SimulationEntityDCR::Read ( const DataManager *  pDM, MBDynParser &  HP, const SimulationEntity *  pSE, const std::string &  msg  )

protected

Definition at line 2594 of file drive_.cc.

References MBDynParser::GetDriveCaller(), HighParser::GetInt(), IncludeParser::GetLineData(), HighParser::GetStringWithDelims(), SimulationEntity::iGetNumPrivData(), SimulationEntity::iGetPrivDataIdx(), HighParser::IsKeyWord(), MBDYN_EXCEPT_ARGS, DataManager::pGetDrvHdl(), and SAFENEWWITHCONSTRUCTOR.

Referenced by ElementDCR::Read(), and NodeDCR::Read().

{
        const DriveHandler* pDrvHdl = pDM->pGetDrvHdl();
        DriveCaller *pDC = 0;

        unsigned int iIndex = 0;
        std::string sIndexName;
        if (HP.IsKeyWord("string")) {
                sIndexName = HP.GetStringWithDelims();
                if (sIndexName.empty()) {
                        silent_cerr("empty string for " << msg
                                << " at line " << HP.GetLineData()
                                << std::endl);
                        throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
                }
                iIndex = pSE->iGetPrivDataIdx(sIndexName.c_str());
                if (iIndex == 0) {
                        silent_cerr("illegal string \"" << sIndexName << "\""
                                " for " << msg
                                << " at line " << HP.GetLineData()
                                << std::endl);
                        throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
                }

        } else if (HP.IsKeyWord("index")) {
                silent_cout("\"index\" deprecated for " << msg
                        << "; use \"string\" instead at line " << HP.GetLineData() << std::endl);

                iIndex = HP.GetInt();

        } else if (pSE->iGetNumPrivData() == 1) {
                iIndex = 1;

        } else {
                silent_cerr("need a private data index for " << msg
                        << " at line " << HP.GetLineData() << std::endl);
                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        if (iIndex < 1 || iIndex > pSE->iGetNumPrivData()) {
                silent_cerr("illegal index " << iIndex << " for " << msg
                        << " at line " << HP.GetLineData() << std::endl);
                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

#ifdef USE_MPI
        /* FIXME: todo ... */
        if (MPI::Is_initialized() && MBDynComm.Get_size() > 1) {
                silent_cerr("warning: add explicit connection entry for " << msg
                        << " at line " << HP.GetLineData() << std::endl);
        }
#endif /* USE_MPI */

        /* Chiamata ricorsiva a leggere il drive supplementare */
        DriveCaller* pTmp = 0;
        pTmp = HP.GetDriveCaller();

        /* allocazione e creazione */
        SAFENEWWITHCONSTRUCTOR(pDC,
                PrivDriveCaller,
                PrivDriveCaller(pDrvHdl, pTmp, pSE, iIndex, sIndexName.c_str()));

        return pDC;
}

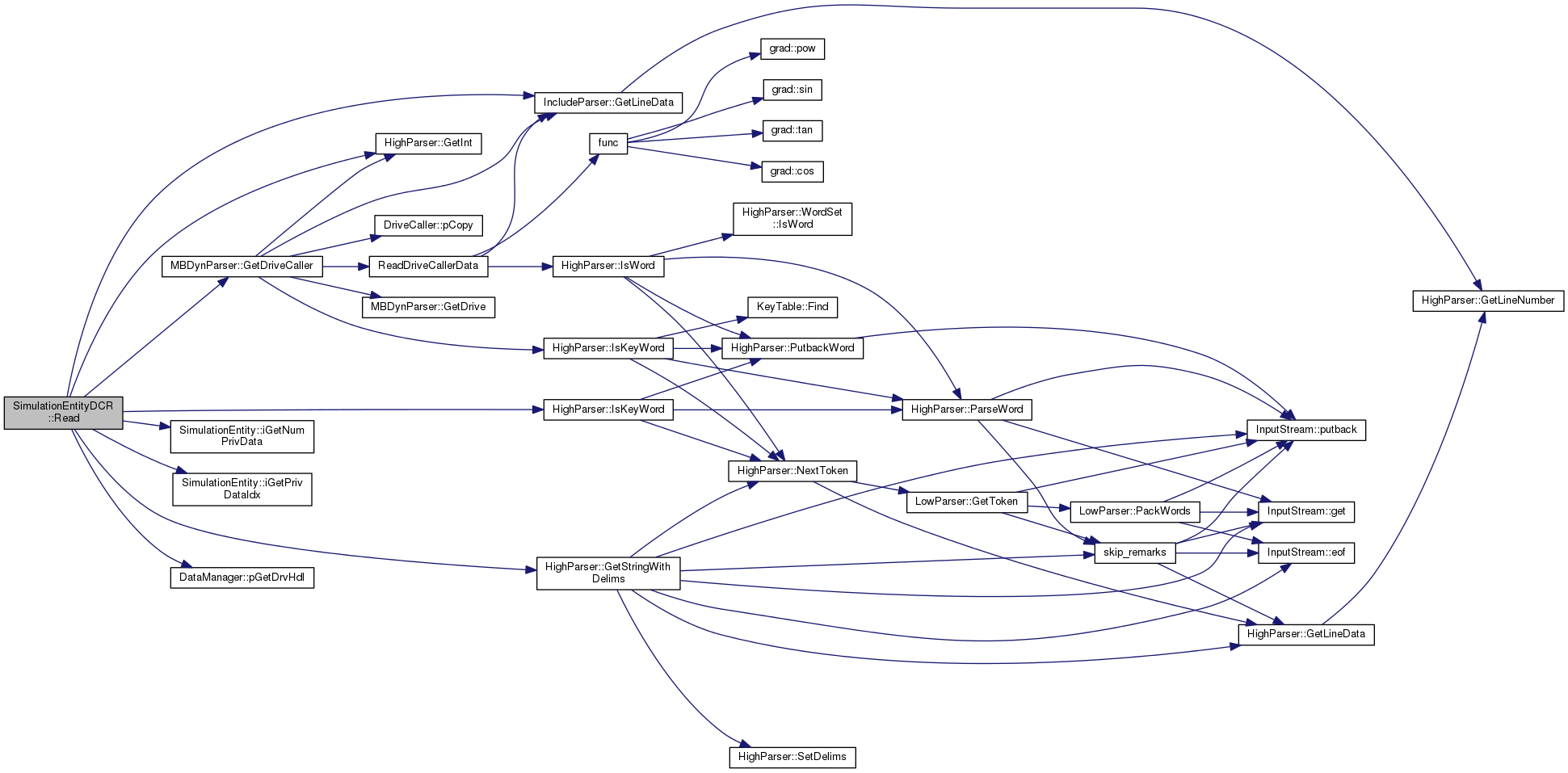

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• drive_.cc
