StreamDR Struct Reference

#include <socketstreamdrive.h>

Inheritance diagram for StreamDR:

Collaboration diagram for StreamDR:

Public Member Functions
	StreamDR (void)
	StreamDR (const std::string &s)
virtual Drive *	Read (unsigned uLabel, const DataManager *pDM, MBDynParser &HP)
Public Member Functions inherited from DriveRead
virtual	~DriveRead (void)

Private Attributes
std::string	s

Detailed Description

Definition at line 88 of file socketstreamdrive.h.

Constructor & Destructor Documentation

StreamDR::StreamDR ( void  )

inline

Definition at line 93 of file socketstreamdrive.h.

References NO_OP.

{ NO_OP; };

StreamDR::StreamDR ( const std::string &  s )

inline

Definition at line 94 of file socketstreamdrive.h.

References NO_OP.

: s(s) { NO_OP; };

Member Function Documentation

Drive * StreamDR::Read ( unsigned  uLabel, const DataManager *  pDM, MBDynParser &  HP  )

virtual

Implements DriveRead.

Definition at line 622 of file socketstreamdrive.cc.

References IncludeParser::GetLineData(), MBDYN_EXCEPT_ARGS, and ReadRTMBDynInDrive().

{
        Drive *pDr = 0;

        if (!s.empty()) {
                pedantic_cout("\"" << s << "\" is deprecated; "
                        "use \"stream\" instead at line "
                        << HP.GetLineData() << std::endl);
        }

#ifdef USE_RTAI
        if (::rtmbdyn_rtai_task != NULL){
                silent_cout("starting RTMBDyn drive " << uLabel << std::endl);
                pDr = ReadRTMBDynInDrive(pDM, HP, uLabel);
        } else
#endif /* USE_RTAI */
        {
#ifdef USE_SOCKET
                silent_cout("starting stream drive " << uLabel << std::endl);
                pDr = ReadStreamDrive(pDM, HP, uLabel);
#else // ! USE_SOCKET
                silent_cerr("stream drive " << uLabel
                        << " not allowed at line " << HP.GetLineData()
                        << " because apparently the current architecture "
                        "does not support sockets" << std::endl);
                throw ErrGeneric(MBDYN_EXCEPT_ARGS);
#endif // ! USE_SOCKET
        }

        return pDr;
}

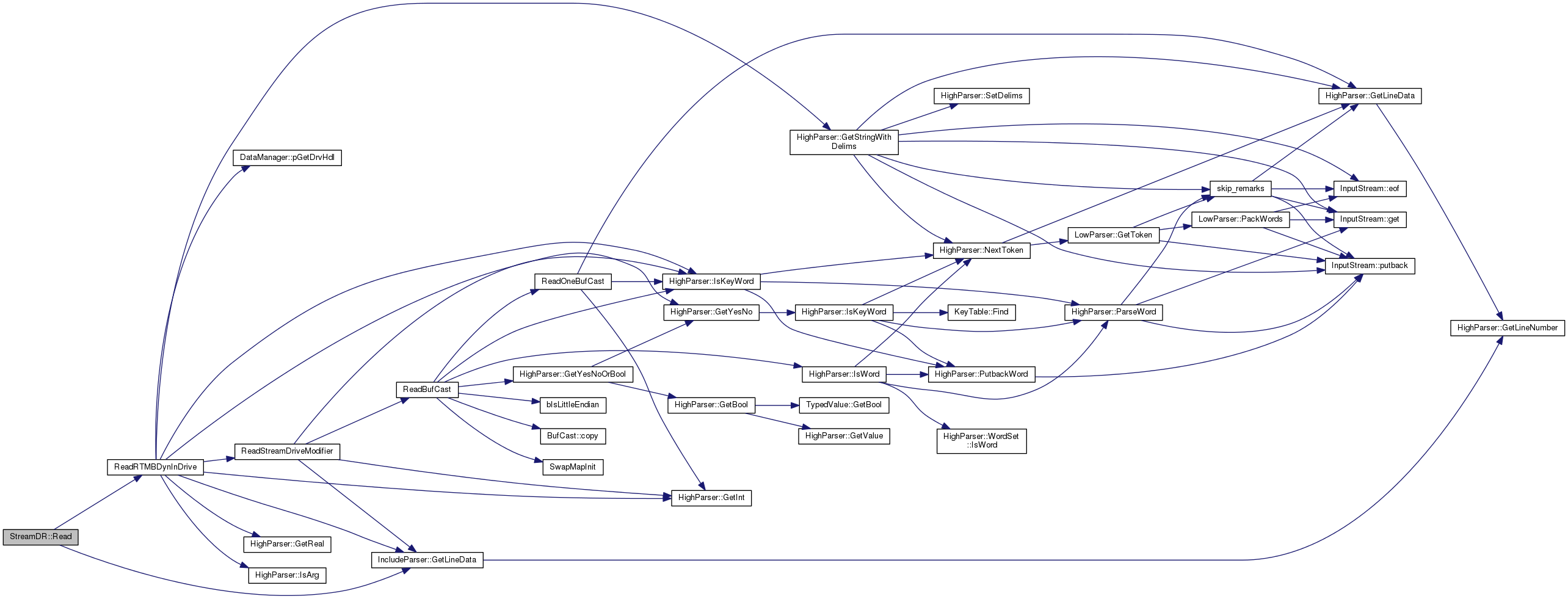

Here is the call graph for this function:

Member Data Documentation

std::string StreamDR::s

private

Definition at line 90 of file socketstreamdrive.h.

---

The documentation for this struct was generated from the following files:

• socketstreamdrive.h
• socketstreamdrive.cc
