LinearViscousCLR< T, Tder > Struct Template Reference

Inheritance diagram for LinearViscousCLR< T, Tder >:

Collaboration diagram for LinearViscousCLR< T, Tder >:

Public Member Functions
virtual ConstitutiveLaw< T, Tder > *	Read (const DataManager *pDM, MBDynParser &HP, ConstLawType::Type &CLType)
Public Member Functions inherited from ConstitutiveLawRead< T, Tder >
virtual	~ConstitutiveLawRead (void)

Detailed Description

template<class T, class Tder>
struct LinearViscousCLR< T, Tder >

Definition at line 769 of file constltp_impl.cc.

Member Function Documentation

template<class T , class Tder >

virtual ConstitutiveLaw<T, Tder>* LinearViscousCLR< T, Tder >::Read ( const DataManager *  pDM, MBDynParser &  HP, ConstLawType::Type &  CLType  )

inlinevirtual

Implements ConstitutiveLawRead< T, Tder >.

Definition at line 771 of file constltp_impl.cc.

References DEBUGCOUT, IncludeParser::GetLineData(), GetPreStress(), HighParser::GetReal(), SAFENEWWITHCONSTRUCTOR, and ConstLawType::VISCOUS.

                                                                                {
                ConstitutiveLaw<T, Tder>* pCL = 0;

                CLType = ConstLawType::VISCOUS;

                doublereal dSP = HP.GetReal();
                DEBUGCOUT("stiffness prime = " << dSP << std::endl);

                if (dSP <= 0.) {
                        silent_cerr("warning, null or negative stiffness prime at line "
                                << HP.GetLineData() << std::endl);
                }

                /* Prestress (no prestrain) */
                T PreStress(mb_zero<T>());
                GetPreStress(HP, PreStress);

                typedef LinearViscousIsotropicConstitutiveLaw<T, Tder> L;
                SAFENEWWITHCONSTRUCTOR(pCL, L, L(PreStress, dSP));

                return pCL;
        };

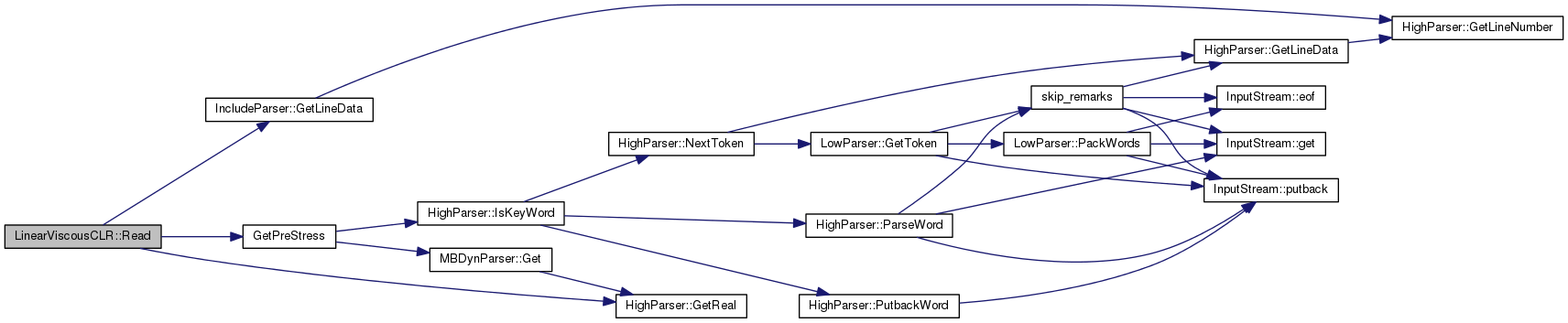

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• constltp_impl.cc
