DoubleLinearElasticCLR< T, Tder > Struct Template Reference

Inheritance diagram for DoubleLinearElasticCLR< T, Tder >:

Collaboration diagram for DoubleLinearElasticCLR< T, Tder >:

Public Member Functions
virtual ConstitutiveLaw< T, Tder > *	Read (const DataManager *pDM, MBDynParser &HP, ConstLawType::Type &CLType)
Public Member Functions inherited from ConstitutiveLawRead< T, Tder >
virtual	~ConstitutiveLawRead (void)

Detailed Description

template<class T, class Tder>
struct DoubleLinearElasticCLR< T, Tder >

Definition at line 468 of file constltp_impl.cc.

Member Function Documentation

template<class T , class Tder >

virtual ConstitutiveLaw<T, Tder>* DoubleLinearElasticCLR< T, Tder >::Read ( const DataManager *  pDM, MBDynParser &  HP, ConstLawType::Type &  CLType  )

inlinevirtual

Implements ConstitutiveLawRead< T, Tder >.

Definition at line 470 of file constltp_impl.cc.

References DEBUGCOUT, dS, ConstLawType::ELASTIC, IncludeParser::GetLineData(), GetPreStress(), HighParser::GetReal(), and SAFENEWWITHCONSTRUCTOR.

                                                                                {
                ConstitutiveLaw<T, Tder>* pCL = 0;

                CLType = ConstLawType::ELASTIC;

                doublereal dS = HP.GetReal();
                DEBUGCOUT("stiffness = " << dS << std::endl);

                if (dS <= 0.) {
                        silent_cerr("warning, null or negative stiffness at line "
                                << HP.GetLineData() << std::endl);
                }

                doublereal dUpp = HP.GetReal();
                if (dUpp <= 0.) {
                        silent_cerr("warning, null or negative upper limit strain at line "
                                << HP.GetLineData() << std::endl);
                }

                doublereal dLow = HP.GetReal();
                if (dLow >= 0.) {
                        silent_cerr("warning, null or positive lower limit strain at line "
                                << HP.GetLineData() << std::endl);
                }

                doublereal dSecondS = HP.GetReal();
                if (dSecondS <= 0.) {
                        silent_cerr("warning, null or negative second stiffness at line "
                                << HP.GetLineData() << std::endl);
                }

                /* Prestress and prestrain */
                T PreStress(mb_zero<T>());
                GetPreStress(HP, PreStress);
                TplDriveCaller<T>* pTplDC = GetPreStrain<T>(pDM, HP);

                typedef DoubleLinearElasticConstitutiveLaw<T, Tder> L;
                SAFENEWWITHCONSTRUCTOR(pCL,
                                L,
                                L(pTplDC, PreStress, dS, dUpp, dLow, dSecondS));

                return pCL;
        };

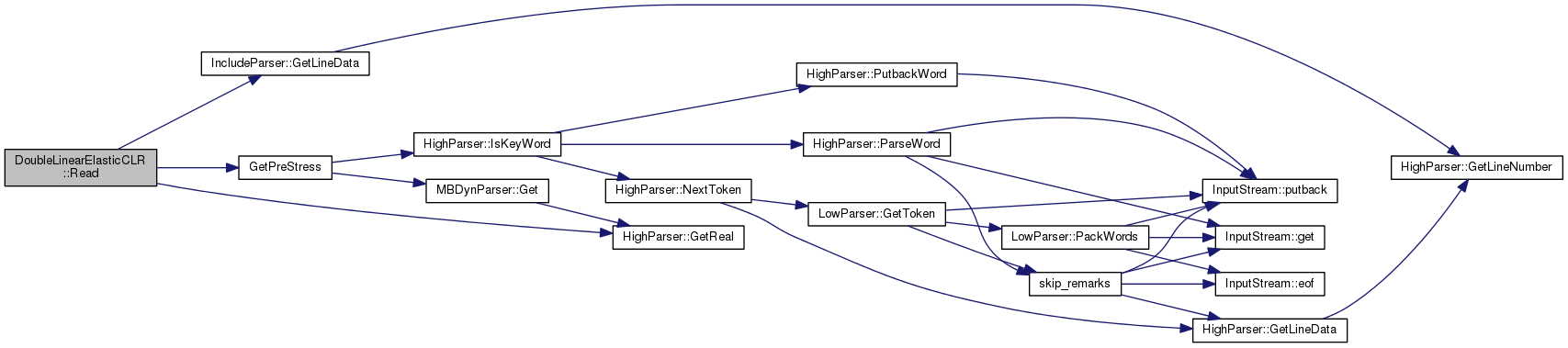

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• constltp_impl.cc
