ScalarFuncWindProfile Class Reference

#include <windprof.h>

Inheritance diagram for ScalarFuncWindProfile:

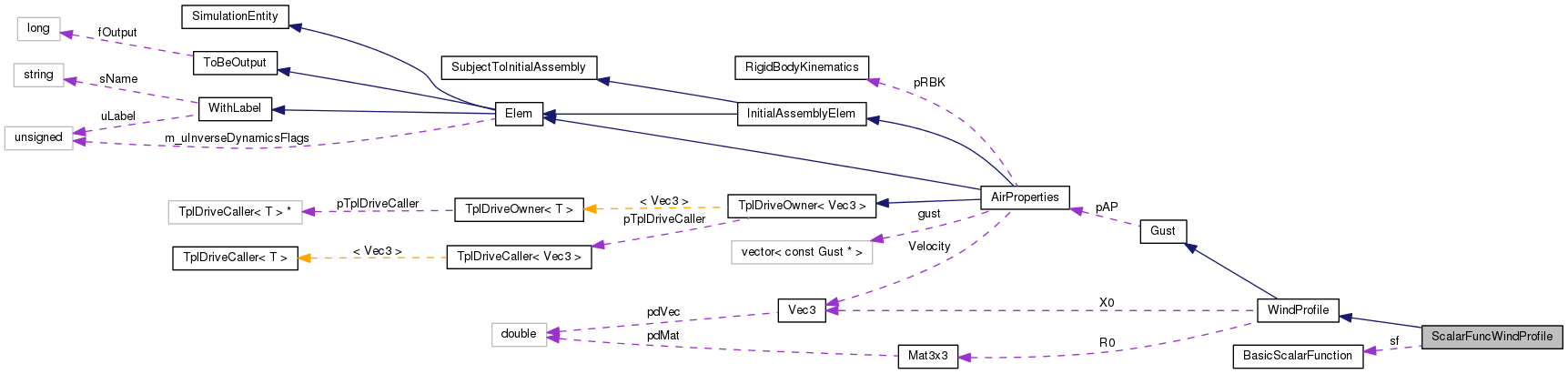

Collaboration diagram for ScalarFuncWindProfile:

Public Member Functions
	ScalarFuncWindProfile (const Vec3 &X0, const Mat3x3 &R0, const BasicScalarFunction *sf)
virtual	~ScalarFuncWindProfile (void)
virtual bool	GetVelocity (const Vec3 &X, Vec3 &V) const
virtual std::ostream &	Restart (std::ostream &out) const
Public Member Functions inherited from WindProfile
	WindProfile (const Vec3 &X0, const Mat3x3 &R0)
virtual	~WindProfile (void)
Public Member Functions inherited from Gust
virtual	~Gust (void)
void	SetAirProperties (const AirProperties *pap)
virtual Vec3	GetVelocity (const Vec3 &X) const

Protected Attributes
const BasicScalarFunction *	sf
Protected Attributes inherited from WindProfile
const Vec3	X0
const Mat3x3	R0
Protected Attributes inherited from Gust
const AirProperties *	pAP

Detailed Description

Definition at line 61 of file windprof.h.

Constructor & Destructor Documentation

ScalarFuncWindProfile::ScalarFuncWindProfile	(	const Vec3 &	X0,
		const Mat3x3 &	R0,
		const BasicScalarFunction *	sf
	)

Definition at line 62 of file windprof.cc.

References ASSERT.

: WindProfile(X0, R0),
sf(sf)
{
        ASSERT(sf != 0);
}

ScalarFuncWindProfile::~ScalarFuncWindProfile ( void  )

virtual

Definition at line 72 of file windprof.cc.

References NO_OP.

{
        NO_OP;
}

Member Function Documentation

bool ScalarFuncWindProfile::GetVelocity ( const Vec3 &  X, Vec3 &  V  ) const

virtual

Implements Gust.

Definition at line 78 of file windprof.cc.

References Mat3x3::GetVec(), WindProfile::R0, and WindProfile::X0.

{
        // dZ is the component of (X - X0) along axis 3 of R0
        doublereal dZ = R0.GetVec(3)*(X - X0);

        // V is projected along axis 1 of R0
        V = R0.GetVec(1)*(*sf)(dZ);

        return true;
}

Here is the call graph for this function:

std::ostream & ScalarFuncWindProfile::Restart ( std::ostream &  out ) const

virtual

Implements Gust.

Definition at line 90 of file windprof.cc.

References WindProfile::R0, and WindProfile::X0.

{
        return out << "scalar function, "
                << ", reference position, " << X0
                << ", reference orientation, " << R0
                << " # not implemented yet";
}

Member Data Documentation

const BasicScalarFunction* ScalarFuncWindProfile::sf

protected

Definition at line 63 of file windprof.h.

---

The documentation for this class was generated from the following files:

• windprof.h
• windprof.cc
