MBDyn-1.7.3
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups
userelem.h File Reference
#include "elem.h"
#include "dataman.h"
#include "gravity.h"
#include "aerodyn.h"

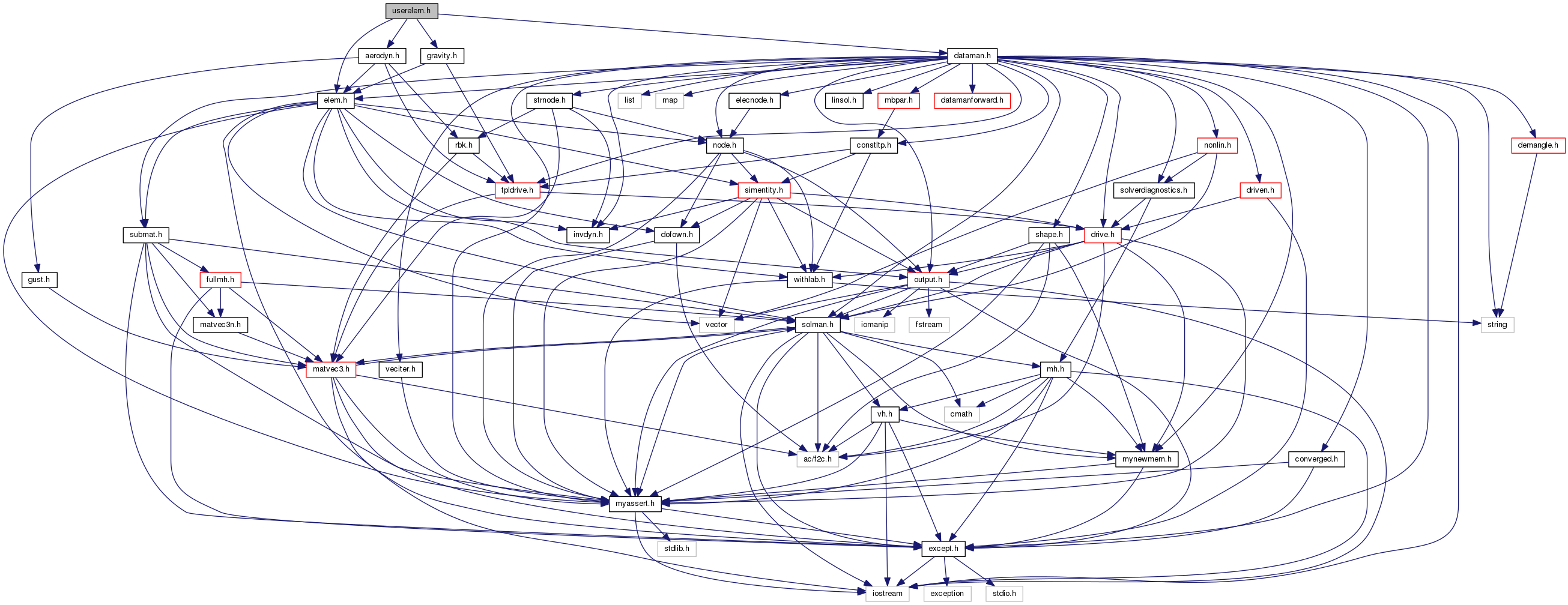

Include dependency graph for userelem.h:

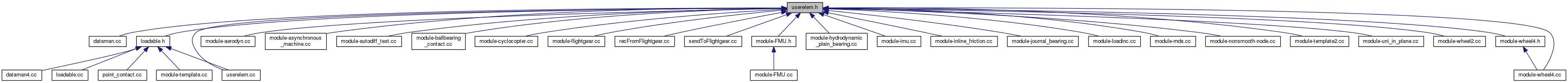

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  UserDefinedElem

struct  UserDefinedElemRead

struct  UDERead< UDE >


Functions

bool SetUDE (const std::string &s, UserDefinedElemRead *rude)

void InitUDE (void)

void DestroyUDE (void)

UserDefinedElemParseUserDefinedElem (unsigned uLabel, DofOwner *pDO, DataManager *const pDM, MBDynParser &HP)


Function Documentation

void DestroyUDE ( void  )

Definition at line 134 of file userelem.cc.

References done, MBDYN_EXCEPT_ARGS, and UDEMap.

Referenced by DataManager::~DataManager().

135 {
136  if (::done == 0) {
137  silent_cerr("DestroyUDE() called once too many" << std::endl);
139  }
140
141  if (--done > 0) {
142  return;
143  }
144
145  for (UDEMapType::iterator i = UDEMap.begin(); i != UDEMap.end(); ++i) {
146  delete i->second;
147  }
148  UDEMap.clear();
149 }
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
static UDEMapType UDEMap
Definition: userelem.cc:51
static unsigned done
Definition: userelem.cc:104
void InitUDE ( void  )

Definition at line 107 of file userelem.cc.

References ASSERT, asynchronous_machine_set(), done, inline_friction_set(), mbdyn_cyclocopter_set(), SetUDE(), and wheel2_set().

Referenced by DataManager::DataManager().

108 {
109  if (::done++ > 0) {
110  return;
111  }
112
113  bool b;
114
115  b = SetUDE("loadable", new LoadableElemRead);
116  ASSERT(b != false);
117 #ifdef STATIC_MODULES
118  b = wheel2_set();
119  ASSERT(b != false);
121  ASSERT(b != false);
122  b = inline_friction_set();
123  ASSERT(b != false);
124  b = mbdyn_cyclocopter_set();
125  ASSERT(b != false);
126 #ifdef HAVE_CHARM
127  b = mbcharm_set();
128  ASSERT(b != false);
129 #endif // HAVE_CHARM
130 #endif // STATIC_MODULES
131 }
bool inline_friction_set(void)
bool asynchronous_machine_set(void)
bool wheel2_set(void)
#define ASSERT(expression)
Definition: colamd.c:977
bool SetUDE(const std::string &s, UserDefinedElemRead *rude)
Definition: userelem.cc:97
bool mbdyn_cyclocopter_set(void)
static unsigned done
Definition: userelem.cc:104

Here is the call graph for this function:

UserDefinedElem* ParseUserDefinedElem ( unsigned  uLabel,
DofOwner pDO,
DataManager *const  pDM,
MBDynParser HP
)

Definition at line 61 of file userelem.cc.

References DEBUGCOUTFNAME, IncludeParser::GetLineData(), HighParser::IsWord(), MBDYN_EXCEPT_ARGS, and UDEMap.

Referenced by DataManager::ReadOneElem().

63 {
64  DEBUGCOUTFNAME("ParseUserDefinedElem(" << uLabel << ")");
65
66  const char *s = HP.IsWord(::UDEWordSet);
67  if (s == 0) {
68  silent_cerr("ParseUserDefinedElem(" << uLabel << "): "
69  "unknown user-defined element type "
70  "at line " << HP.GetLineData() << std::endl);
72  }
73
74  UDEMapType::iterator i = ::UDEMap.find(std::string(s));
75  if (i == ::UDEMap.end()) {
76  silent_cerr("ParseUserDefinedElem(" << uLabel << "): "
77  "unknown user-defined element type \"" << s << "\" "
78  "at line " << HP.GetLineData() << std::endl);
80  }
81
82  return i->second->Read(uLabel, pDO, pDM, HP);
83 }
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
#define DEBUGCOUTFNAME(fname)
Definition: myassert.h:256
virtual const char * IsWord(const HighParser::WordSet &ws)
Definition: parser.cc:977
static UDEMapType UDEMap
Definition: userelem.cc:51
static UDEWordSetType UDEWordSet
Definition: userelem.cc:58
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697

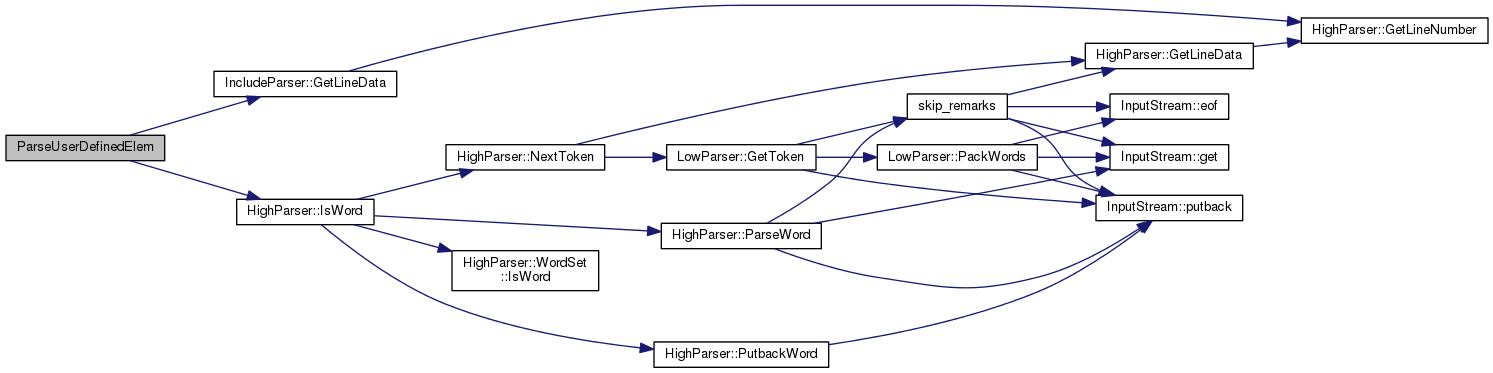

Here is the call graph for this function:

bool SetUDE ( const std::string &  s,
UserDefinedElemRead rude
)

Definition at line 97 of file userelem.cc.

References UDEMap.

Referenced by asynchronous_machine_set(), autodiff_test_set(), ballbearing_contact_set(), hydrodynamic_plain_bearing_set(), InitUDE(), inline_friction_set(), journal_bearing_set(), mbdyn_cyclocopter_set(), mbdyn_octave_set(), module_init(), uni_in_plane_set(), and wheel2_set().

98 {
99  pedantic_cout("registering user-defined element \"" << s << "\""
100  << std::endl );
101  return UDEMap.insert(UDEMapType::value_type(s, rude)).second;
102 }
static UDEMapType UDEMap
Definition: userelem.cc:51
