ParabolicDCR Struct Reference

Inheritance diagram for ParabolicDCR:

Collaboration diagram for ParabolicDCR:

Public Member Functions
DriveCaller *	Read (const DataManager *pDM, MBDynParser &HP, bool bDeferred)
Public Member Functions inherited from DriveCallerRead
virtual	~DriveCallerRead (void)

Additional Inherited Members
Static Public Member Functions inherited from DriveCallerRead
static void	ReadOutput (DriveCaller *pDC, const DataManager *pDM, MBDynParser &HP)
Protected Member Functions inherited from DriveCallerRead
void	NeedDM (const DataManager *pDM, MBDynParser &HP, bool bDeferred, const char *const name)

Detailed Description

Definition at line 1642 of file drive_.cc.

Member Function Documentation

DriveCaller * ParabolicDCR::Read ( const DataManager *  pDM, MBDynParser &  HP, bool  bDeferred  )

virtual

Implements DriveCallerRead.

Definition at line 1648 of file drive_.cc.

References DEBUGCOUT, HighParser::GetReal(), DriveCallerRead::NeedDM(), DataManager::pGetDrvHdl(), and SAFENEWWITHCONSTRUCTOR.

{
        NeedDM(pDM, HP, bDeferred, "parabolic");

        const DriveHandler* pDrvHdl = 0;
        if (pDM != 0) {
                pDrvHdl = pDM->pGetDrvHdl();
        }

        DriveCaller *pDC = 0;

        /* lettura dei dati specifici */
        doublereal dC0 = HP.GetReal();
        DEBUGCOUT("Offset: " << dC0 << std::endl);

        doublereal dC1 = HP.GetReal();
        DEBUGCOUT("Slope: " << dC1 << std::endl);

        doublereal dC2 = HP.GetReal();
        DEBUGCOUT("Parabolic slope: " << dC2 << std::endl);

        /* allocazione e creazione */
        SAFENEWWITHCONSTRUCTOR(pDC,
                ParabolicDriveCaller,
                ParabolicDriveCaller(pDrvHdl, dC0, dC1, dC2));

        return pDC;
}

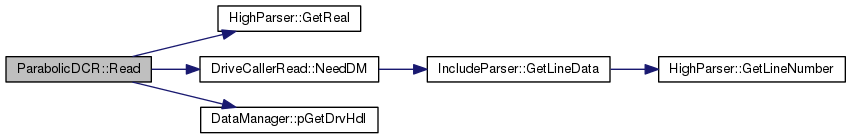

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• drive_.cc
