ExponentialDCR Struct Reference

Inheritance diagram for ExponentialDCR:

Collaboration diagram for ExponentialDCR:

Public Member Functions
DriveCaller *	Read (const DataManager *pDM, MBDynParser &HP, bool bDeferred)
Public Member Functions inherited from DriveCallerRead
virtual	~DriveCallerRead (void)

Additional Inherited Members
Static Public Member Functions inherited from DriveCallerRead
static void	ReadOutput (DriveCaller *pDC, const DataManager *pDM, MBDynParser &HP)
Protected Member Functions inherited from DriveCallerRead
void	NeedDM (const DataManager *pDM, MBDynParser &HP, bool bDeferred, const char *const name)

Detailed Description

Definition at line 2186 of file drive_.cc.

Member Function Documentation

DriveCaller * ExponentialDCR::Read ( const DataManager *  pDM, MBDynParser &  HP, bool  bDeferred  )

virtual

Implements DriveCallerRead.

Definition at line 2192 of file drive_.cc.

References DEBUGCOUT, HighParser::GetReal(), DriveCallerRead::NeedDM(), DataManager::pGetDrvHdl(), and SAFENEWWITHCONSTRUCTOR.

{
        NeedDM(pDM, HP, bDeferred, "exponential");

        const DriveHandler* pDrvHdl = 0;
        if (pDM != 0) {
                pDrvHdl = pDM->pGetDrvHdl();
        }

        DriveCaller *pDC = 0;

        doublereal dAmplitude = HP.GetReal(1.);
        DEBUGCOUT("Amplitude value: " << dAmplitude << std::endl);

        doublereal dTimeConst = HP.GetReal();
        DEBUGCOUT("Time constant value: " << dTimeConst << std::endl);

        doublereal dInitialTime = HP.GetReal();
        DEBUGCOUT("Initial time: " << dInitialTime << std::endl);

        doublereal dInitialValue = HP.GetReal();
        DEBUGCOUT("Initial value: " << dInitialValue << std::endl);

        SAFENEWWITHCONSTRUCTOR(pDC,
                ExpDriveCaller,
                ExpDriveCaller(pDrvHdl, dAmplitude, dTimeConst,
                        dInitialTime, dInitialValue));

        return pDC;
}

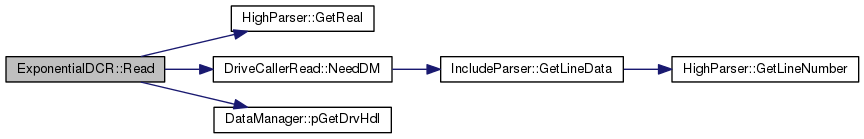

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• drive_.cc
