DoubleStepDCR Struct Reference

Inheritance diagram for DoubleStepDCR:

Collaboration diagram for DoubleStepDCR:

Public Member Functions
DriveCaller *	Read (const DataManager *pDM, MBDynParser &HP, bool bDeferred)
Public Member Functions inherited from DriveCallerRead
virtual	~DriveCallerRead (void)

Additional Inherited Members
Static Public Member Functions inherited from DriveCallerRead
static void	ReadOutput (DriveCaller *pDC, const DataManager *pDM, MBDynParser &HP)
Protected Member Functions inherited from DriveCallerRead
void	NeedDM (const DataManager *pDM, MBDynParser &HP, bool bDeferred, const char *const name)

Detailed Description

Definition at line 1762 of file drive_.cc.

Member Function Documentation

DriveCaller * DoubleStepDCR::Read ( const DataManager *  pDM, MBDynParser &  HP, bool  bDeferred  )

virtual

Implements DriveCallerRead.

Definition at line 1768 of file drive_.cc.

References DEBUGCOUT, IncludeParser::GetLineData(), HighParser::GetReal(), DriveCallerRead::NeedDM(), DataManager::pGetDrvHdl(), and SAFENEWWITHCONSTRUCTOR.

{
        NeedDM(pDM, HP, bDeferred, "double step");

        const DriveHandler* pDrvHdl = 0;
        if (pDM != 0) {
                pDrvHdl = pDM->pGetDrvHdl();
        }

        DriveCaller *pDC = 0;

        doublereal dStepTime = HP.GetReal();
        DEBUGCOUT("Initial time: " << dStepTime << std::endl);

        doublereal dEndStepTime = HP.GetReal();
        DEBUGCOUT("Final time: " << dEndStepTime << std::endl);

        if (dEndStepTime <= dStepTime) {
                silent_cerr("Warning at line "
                        << HP.GetLineData()
                        << ": final time " << dEndStepTime
                        << " is less than or equal to initial time " << dStepTime
                        << " in double step func drive" << std::endl);
        }

        doublereal dStepValue = HP.GetReal(1.);
        DEBUGCOUT("Step Value: " << dStepValue << std::endl);

        doublereal dInitialValue = HP.GetReal();
        DEBUGCOUT("InitialValue: " << dInitialValue << std::endl);

        SAFENEWWITHCONSTRUCTOR(pDC,
                DoubleStepDriveCaller,
                DoubleStepDriveCaller(pDrvHdl,
                        dStepTime,
                        dStepValue,
                        dEndStepTime,
                        dInitialValue));

        return pDC;
}

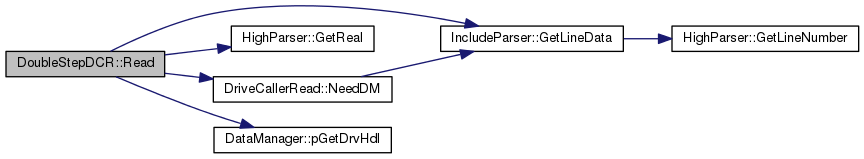

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• drive_.cc
