module-flightgear.cc File Reference
#include "mbconfig.h"
#include <unistd.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <fstream>
#include "userelem.h"
#include "socketstream_out_elem.h"
#include "socketstreamdrive.h"
#include "bufmod.h"
#include "drive_.h"
#include "module-flightgear.h"

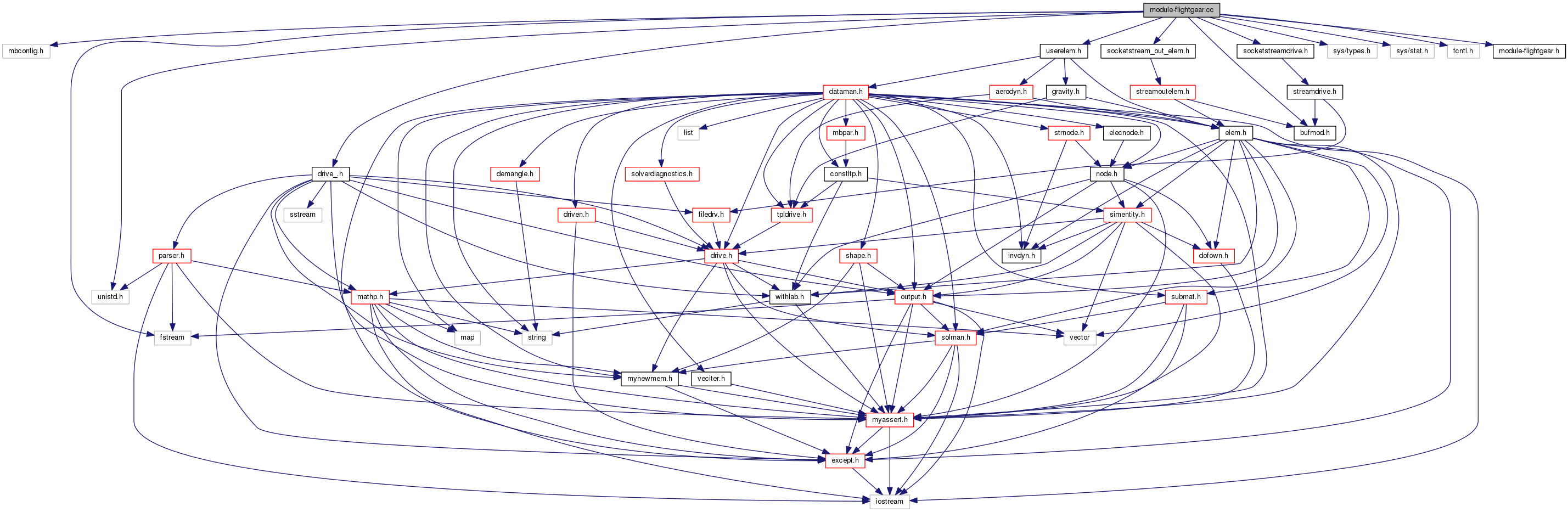

Include dependency graph for module-flightgear.cc:

Go to the source code of this file.

Functions

int module_init (const char *module_name, void *pdm, void *php)
 This function registers our user defined element for the math parser. More...

void buildFieldsDescriptionFG (void)

void readFGStructuresFromFile (const char *filePath, std::string currentVersionLabel, FieldsDescriptionFG &fieldsDescriptionFG, int &currentVersion)

void printOptionsOnTextFile (const char *fileName, FieldsDescriptionFG &fieldsDescriptionFG)

void buildFGBufCast (std::vector< BufCast * > &data, FieldsDescriptionFG &fieldsDescriptionFGInUse)

BufCastbuildOneFGBufCast (size_t &offset, TypeMap_t &swapmap, const std::type_info &fieldType)


Variables

FGNetFDMWordSet fGNetFDMWordSet

FGNetCtrlsWordSet fGNetCtrlsWordSet

FieldsDescriptionFG fieldsDescriptionFGNetFDM

FieldsDescriptionFG fieldsDescriptionFGNetCtrls

int FGNetFDMCurVersion

int FGNetCtrlsCurVersion


Function Documentation

void buildFGBufCast ( std::vector< BufCast * > &  data,
FieldsDescriptionFG fieldsDescriptionFGInUse
)

Definition at line 312 of file module-flightgear.cc.

References bIsLittleEndian(), buildOneFGBufCast(), and SwapMapInit().

Referenced by FlightGearStreamOutputReader::buildFGStreamContentModifier(), and FlightGearFileDriveReader::buildFGStreamDriveModifier().

312  {
313  TypeMap_t swapmap;
314  SwapMapInit(swapmap);
315
316  //every type must be reversed for FG communication! (FG expects big-endian format data)
317  if(bIsLittleEndian()){
318  for(TypeMap_t::iterator i = swapmap.begin() ; i != swapmap.end() ; i++){
319  i->second = true;
320  }
321  }
322
323  for (FieldsDescriptionFG::iterator it = fieldsDescriptionFGInUse.begin() ; it != fieldsDescriptionFGInUse.end() ; it++){
324  data[it->second.position-1] = buildOneFGBufCast(it->second.offset, swapmap, it->second.type);
325  }
326  }
void SwapMapInit(TypeMap_t &swapmap)
Definition: bufmod.cc:266
bool bIsLittleEndian(void)
Definition: bufmod.cc:259
std::map< std::string, bool > TypeMap_t
Definition: bufmod.h:37
BufCast * buildOneFGBufCast(size_t &offset, TypeMap_t &swapmap, const std::type_info &fieldType)

Here is the call graph for this function:

void buildFieldsDescriptionFG ( void  )

Definition at line 91 of file module-flightgear.cc.

References fieldsDescriptionFGNetCtrls, fieldsDescriptionFGNetFDM, and readFGStructuresFromFile().

Referenced by module_init().

91  {
92  //FGStructuresLoaded = true;
93  readFGStructuresFromFile("FG_structures/FGNetFDM_structure.txt", "FG_NET_FDM_VERSION", fieldsDescriptionFGNetFDM, FGNetFDMCurVersion);
94  readFGStructuresFromFile("FG_structures/FGNetCtrls_structure.txt", "FG_NET_CTRLS_VERSION", fieldsDescriptionFGNetCtrls, FGNetCtrlsCurVersion);
95 }
void readFGStructuresFromFile(const char *filePath, std::string currentVersionLabel, FieldsDescriptionFG &fieldsDescriptionFG, int &currentVersion)
int FGNetCtrlsCurVersion
int FGNetFDMCurVersion
FieldsDescriptionFG fieldsDescriptionFGNetCtrls
FieldsDescriptionFG fieldsDescriptionFGNetFDM

Here is the call graph for this function:

BufCast* buildOneFGBufCast ( size_t &  offset,
TypeMap_t swapmap,
const std::type_info &  fieldType
)

Definition at line 328 of file module-flightgear.cc.

Referenced by buildFGBufCast().

328  {
329  BufCast *pBC(0);
330
331  if (fieldType == typeid(int8_t)) {
332  TypeMap_t::const_iterator i = swapmap.find(typeid(int8_t).name());
333  if (i->second) {
334  pBC = new TBufCastHToN<int8_t>(offset);
335  } else {
336  pBC = new TBufCast<int8_t>(offset);
337  }
338
339  } else if (fieldType == typeid(uint8_t)) {
340  TypeMap_t::const_iterator i = swapmap.find(typeid(uint8_t).name());
341  if (i->second) {
342  pBC = new TBufCastHToN<uint8_t>(offset);
343  } else {
344  pBC = new TBufCast<uint8_t>(offset);
345  }
346
347  } else if (fieldType == typeid(int16_t)) {
348  TypeMap_t::const_iterator i = swapmap.find(typeid(int16_t).name());
349  if (i->second) {
350  pBC = new TBufCastHToN<int16_t>(offset);
351  } else {
352  pBC = new TBufCast<int16_t>(offset);
353  }
354
355  } else if (fieldType == typeid(uint16_t)) {
356  TypeMap_t::const_iterator i = swapmap.find(typeid(uint16_t).name());
357  if (i->second) {
358  pBC = new TBufCastHToN<uint16_t>(offset);
359  } else {
360  pBC = new TBufCast<uint16_t>(offset);
361  }
362
363  } else if (fieldType == typeid(int32_t)) {
364  TypeMap_t::const_iterator i = swapmap.find(typeid(int32_t).name());
365  if (i->second) {
366  pBC = new TBufCastHToN<int32_t>(offset);
367  } else {
368  pBC = new TBufCast<int32_t>(offset);
369  }
370
371  } else if (fieldType == typeid(uint32_t)) {
372  TypeMap_t::const_iterator i = swapmap.find(typeid(uint32_t).name());
373  if (i->second) {
374  pBC = new TBufCastHToN<uint32_t>(offset);
375  } else {
376  pBC = new TBufCast<uint32_t>(offset);
377  }
378
379  } else if (fieldType == typeid(float)) {
380  TypeMap_t::const_iterator i = swapmap.find(typeid(float).name());
381  if (i->second) {
382  pBC = new TBufCastHToN<float>(offset);
383  } else {
384  pBC = new TBufCast<float>(offset);
385  }
386
387  } else if (fieldType == typeid(double)) {
388  TypeMap_t::const_iterator i = swapmap.find(typeid(double).name());
389  if (i->second) {
390  pBC = new TBufCastHToN<double>(offset);
391  } else {
392  pBC = new TBufCast<double>(offset);
393  }
394
395  }
396
397  return pBC;
398  }
Definition: bufmod.h:42
int module_init ( const char *  module_name,
void *  pdm,
void *  php
)

This function registers our user defined element for the math parser.

It is called when the "module load" statement appears in the input file.

Definition at line 59 of file module-flightgear.cc.

References buildFieldsDescriptionFG(), pHP, setFileDriveCallerType(), SetFileDriveContentType(), and SetStreamOutputContentType().

59  {
60
61 #if 0
62  DataManager *pDM = (DataManager *)pdm;
63  MBDynParser *pHP = (MBDynParser *)php;
64 #endif
65  /*Stream output element content type for Flight Gear*/
67  if (!SetStreamOutputContentType("FlightGear", rf1)) {
68  delete rf1;
69  return -1;
70  }
71
72  /*file drive content type for Flight Gear*/
74  if (!SetFileDriveContentType("FlightGear", rf2)) {
75  delete rf2;
76  return -1;
77  }
78
79  /*file drive caller content type for Flight Gear*/
81  if (!setFileDriveCallerType("FlightGear", rf3)) {
82  delete rf3;
83  return -1;
84  }
85
87
88  return 0;
89 }
bool setFileDriveCallerType(const char *name, FileDriveCallerTypeReader *rf)
Definition: drive_.cc:2920
bool SetStreamOutputContentType(const char *name, StreamOutputContentTypeReader *rf)
bool SetFileDriveContentType(const char *name, FileDriveContentTypeReader *rf)
void buildFieldsDescriptionFG(void)
static std::stack< const HighParser * > pHP
Definition: parser.cc:598

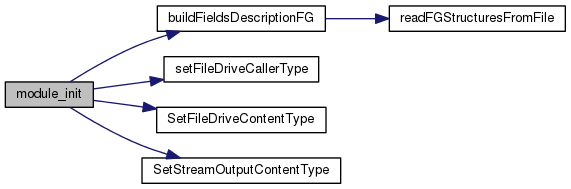

Here is the call graph for this function:

void printOptionsOnTextFile ( const char *  fileName,
FieldsDescriptionFG fieldsDescriptionFG
)

Definition at line 292 of file module-flightgear.cc.

References MBDYN_EXCEPT_ARGS.

Referenced by FlightGearStreamOutputReader::Read(), and FlightGearFileDriveReader::Read().

292  {
293  std::ofstream outFile;
294  outFile.open(fileName);
295
296  if(!outFile.is_open()){
297  silent_cerr("Error while writing on file: " << fileName << ", impossible to open it" << std::endl);
299  }
300
301  for(int i = 0 ; i < (int)fieldsDescriptionFG.size() ; i++){
302  for(FieldsDescriptionFG::iterator it = fieldsDescriptionFG.begin() ; it != fieldsDescriptionFG.end() ; it++){
303  if(it->second.position == i+1){
304  outFile << it->first << std::endl;
305  }
306  }
307  }
308
309  outFile.close();
310  }
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
void readFGStructuresFromFile ( const char *  filePath,
std::string  currentVersionLabel,
FieldsDescriptionFG fieldsDescriptionFG,
int currentVersion
)

Definition at line 97 of file module-flightgear.cc.

References MBDYN_EXCEPT_ARGS.

Referenced by buildFieldsDescriptionFG().

97  {
98
99  std::string fieldNameDelimiter = ":";//after name field this character must occur
100  std::string fieldInfoDelimiter = "= ";//before field info (type, size, offset) this character must occur
101  std::string fieldInfoSeparator = ",";//field info (type, size, offset) are comma separated
102  std::string openSquareBracket = "[";//used to identify fields with multiple entities (array)
103
104  std::ifstream infile(filePath);
105
106  /*checks if file is correctly opened*/
107  if(!infile.is_open()){
108  silent_cerr("Error while loading of " << filePath << ": file not found" << std::endl);
110  }
111
112  std::string line; /*the file is read by lines: every line is temporary stored inside of this object*/
113  std::getline(infile, line);/*gets first line of the file, where field 'version' should be stored*/
114
115  /*checks if file is empty*/
116  if(infile.eof()){
117  silent_cerr("Error while reading " << filePath << ": file is empty"<< std::endl);
119  }
120
121  /*reads current version*/
122
123  if(line.find(currentVersionLabel) == std::string::npos){/*checks if version is present and it is the first field*/
124  silent_cerr("Error while reading " << filePath << ": " << currentVersionLabel << " not found at line '" << line.substr(0, line.size()-1) << "'" << std::endl);
126  }
127  std::size_t found = line.find(fieldInfoDelimiter);/*finds delimiter before version value*/
128  if(found == std::string::npos){/*checks if delimiter is present before version value*/
129  silent_cerr("Error while reading " << filePath << ": " << "delimiter '" << fieldInfoDelimiter << "' not found after " << currentVersionLabel << std::endl);
131  }
132  /*acquisition of the version value*/
133
134  std::string value = std::string();
135  for(int i = 0 ; isdigit(line.at(found + fieldInfoDelimiter.size() + i)) ; i++){
136  char digit = line.at(found + fieldInfoDelimiter.size() + i);
137  std::stringstream ss;
138  ss << digit;
139  std::string tmp;
140  ss >> tmp;
141  value.append(tmp);
142  }
143
144  if(value.size() == 0){/*checks if version value is present in the file*/
145  silent_cerr("Error while reading " << filePath << ": " << " missing value of " << currentVersionLabel << " at line '" << line.substr(0, line.size()-1) << "'" << std::endl);
147  }
148
149  std::stringstream tmpss1;
150  tmpss1 << value;
151  tmpss1 >> currentVersion; //stores the acquired value inside of FGNetFDMCurVersion/FGNetCtrlsCurVersion
152
153  /*reads all of the other fields*/
154
155  int fieldPosition = 1; /*used to register every field with its proper position*/
156  do{
157  std::getline(infile, line);
158  if(!infile.eof()){
159
160  /*reads field name*/
161
162  std::string fieldName; /*stores the name of field read from the file*/
163  found = line.find(fieldNameDelimiter); /*searches for name delimiter in order to acquire field name*/
164  if(found == std::string::npos){/*checks if delimiter is missing*/
165  silent_cerr("Error while reading " << filePath << ": " << "delimiter '" << fieldNameDelimiter << "' not found at line '" << line.substr(0,line.size()-1) << "'" << std::endl);
167  }
168  fieldName = line.substr(0, found); /*collects only the part of the current line containing the field name*/
169  found = line.find(fieldInfoDelimiter);/*ex: eng_state: type, size, offset = unsigned int [4], 16, 124 finds where '= ' is located*/
170  if(found == std::string::npos){
171  silent_cerr("Error while reading " << filePath << ": " << "delimiter '" << fieldInfoDelimiter << "' not found for field '" << fieldName << "'" << std::endl);
173  }
174  std::string fieldInfoRawString = line.substr(line.find(fieldInfoDelimiter) + fieldInfoDelimiter.size(), line.size()); //ex: "unsigned int [4], 16, 124"
175
176  /*reads field type*/
177
178  found = fieldInfoRawString.find(openSquareBracket);
179  int fieldNumOfElem; //store how many elements that field has (ex array fields will have fieldNumOfElem > 1)
180  std::string typeFullName;
181  if(found != std::string::npos){/*field is an array: '[' found inside of the current line*/
182  /*reads the number inside of []*/
183  value = std::string();
184  for(int i = 0 ; isdigit(fieldInfoRawString.at(found + openSquareBracket.size() + i)) ; i++){
185  char digit = fieldInfoRawString.at(found + openSquareBracket.size() + i);
186  std::stringstream ss;
187  ss << digit;
188  std::string tmp;
189  ss >> tmp;
190  value.append(tmp);
191  }
192  if(value.size() == 0){/*checks if [] are empty*/
193  silent_cerr("Error while reading " << filePath << ": " << " empty brackets for field '" << fieldName << "' at line '" << line.substr(0, line.size()-1) << "'" << std::endl);
195  }
196  std::stringstream tmpss2;
197  tmpss2 << value;
198  tmpss2 >> fieldNumOfElem;
199
200  typeFullName = fieldInfoRawString.substr(0, found-1); //ex: gets "unsigned int" from current line*/
201  found = fieldInfoRawString.find(fieldInfoSeparator); //finds the first comma
202  }else{
203  fieldNumOfElem = 1; /*the current field is a single-variable field*/
204  found = fieldInfoRawString.find(fieldInfoSeparator); //finds the first comma
205  if(found != std::string::npos){
206  typeFullName = fieldInfoRawString.substr(0, found);
207  }
208  }
209
210  /*checks if both info separators ',' are missing*/
211  if(found == std::string::npos){
212  silent_cerr("Error while reading " << filePath << ": " << "both info separators '" <<fieldInfoSeparator << "' missing for field '" << fieldName << "' at line '" << line.substr(0, line.size()-1) << "'" << std::endl);
214  }
215
216  /*checks if one info separator ',' are missing*/
217  std::string tmp = fieldInfoRawString.substr(found+1, fieldInfoRawString.size());
218  if(tmp.find(fieldInfoSeparator) == std::string::npos){
219  silent_cerr("Error while reading " << filePath << ": " << "missing info separator '" <<fieldInfoSeparator << "' for field '" << fieldName << "' at line '" << line.substr(0, line.size()-1) << "'" << std::endl);
221  }
222
223  std::string sizeAndOffsetRawString = fieldInfoRawString.substr(found+1, fieldInfoRawString.size()); /*ex: got " 16, 124" */
224  found = sizeAndOffsetRawString.find(fieldInfoSeparator); /*gets second comma in the current line (between size and offset)*/
225
226  /*reads offset*/
227  int offset;
228  value = std::string();
229  for(int i = 0 ; isdigit(sizeAndOffsetRawString.at(found+2+i)) && found+2+i < sizeAndOffsetRawString.size() ; i++){
230  char digit = sizeAndOffsetRawString.at(found+2+i);
231  std::stringstream ss;
232  ss << digit;
233  std::string tmp;
234  ss >> tmp;
235  value.append(tmp);
236  }
237
238  if(value.size() == 0){/*checks if offset is missing*/
239  silent_cerr("Error while reading " << filePath << ": " << " missing offset for field '" << fieldName << "' at line '" << line.substr(0, line.size()-1) << "'" << std::endl);
241  }
242
243  std::stringstream tmpss3;
244  tmpss3 << value;
245  tmpss3 >> offset;
246
247  /*once all information has been acquired, field is registered inside of fieldsDescriptionFG*/
248
249  for(int i = 0 ; i < fieldNumOfElem ; i++){//creates 'fieldNumOfElem' entries for the current field
250  std::string label = std::string();
251  std::string finalFieldName = std::string(fieldName);
252
253  if(fieldNumOfElem > 1){
254  label = std::string("_");
255  std::string num;
256  std::stringstream convert;
257  convert << i+1;
258  num = convert.str();
259
260  if(fieldNumOfElem < 10){
261  label.append("0");
262  }
263
264  label.append(num);
265  }
266  finalFieldName.append(label);
267
268  if(typeFullName.compare("unsigned int") == 0){
269  fieldsDescriptionFG.insert(FieldsDescriptionFG::value_type(finalFieldName,{typeid(uint32_t),sizeof(uint32_t),fieldPosition,offset+sizeof(uint32_t)*i}));
270  }else if(typeFullName.compare("int") == 0){
271  fieldsDescriptionFG.insert(FieldsDescriptionFG::value_type(finalFieldName,{typeid(int32_t),sizeof(int32_t),fieldPosition,offset+sizeof(int32_t)*i}));
272  }else if(typeFullName.compare("float") == 0){
273  fieldsDescriptionFG.insert(FieldsDescriptionFG::value_type(finalFieldName,{typeid(float),sizeof(float),fieldPosition,offset+sizeof(float)*i}));
274  }else if(typeFullName.compare("double") == 0){
275  fieldsDescriptionFG.insert(FieldsDescriptionFG::value_type(finalFieldName,{typeid(double),sizeof(double),fieldPosition,offset+sizeof(double)*i}));
276  }else{
277  silent_cerr("Error while reading " << filePath << ": " << " unknown type for field '" << fieldName << "' at line '" << line.substr(0, line.size()-1) << "'" << std::endl);
279  }
280
281  fieldPosition++;
282  }
283  }else if(fieldPosition == 1){
284  silent_cerr("Error while reading " << filePath << ": " << " file does not contain any field description" << std::endl);
286  }
287  }while(!infile.eof());
288
289  infile.close();
290 }
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63

Variable Documentation

int FGNetCtrlsCurVersion

Definition at line 56 of file module-flightgear.cc.

Referenced by FlightGearStreamOutputReader::setDefaultValues().

int FGNetFDMCurVersion

Definition at line 55 of file module-flightgear.cc.

Referenced by FlightGearStreamOutputReader::setDefaultValues().
