SchurMatrixHandler Class Reference

#include <schurmh.h>

Inheritance diagram for SchurMatrixHandler:

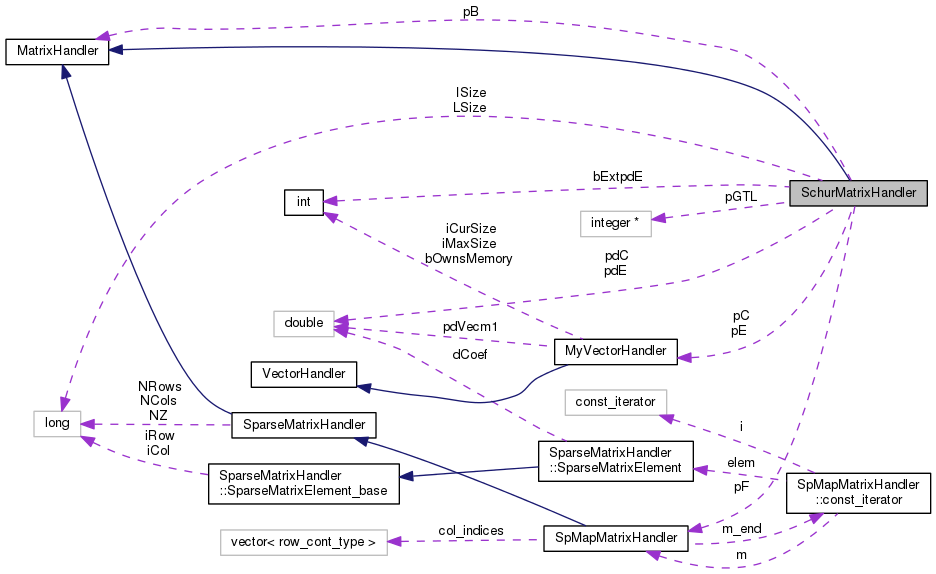

Collaboration diagram for SchurMatrixHandler:

Classes
class	ErrGeneric

Public Member Functions
	SchurMatrixHandler (int LocSize, int IntSize, MatrixHandler *pBM, integer *pGlobToLoc, doublereal *pdEv=0)
virtual	~SchurMatrixHandler (void)
virtual integer	iGetNumRows (void) const
virtual integer	iGetNumCols (void) const
MatrixHandler *	GetBMat (void)
void	SetBMat (MatrixHandler *pBM)
doublereal *	GetCMat (void)
virtual void	Reset (void)
virtual void	Resize (integer, integer)
virtual void	MatEFCReset (void)
virtual void	PutCoef (integer iRow, integer iCol, const doublereal &dCoef)
virtual void	IncCoef (integer iRow, integer iCol, const doublereal &dCoef)
virtual void	DecCoef (integer iRow, integer iCol, const doublereal &dCoef)
virtual const doublereal &	dGetCoef (integer iRow, integer iCol) const
virtual const doublereal &	operator() (integer iRow, integer iCol) const
virtual doublereal &	operator() (integer iRow, integer iCol)
virtual doublereal *	GetECol (const integer iCol) const
virtual doublereal *	GetEColSol (const integer iCol) const
virtual VectorHandler &	CompNewg (VectorHandler &g, const VectorHandler &f) const
virtual void	CompLocSchur (void)
virtual VectorHandler &	CompNewf (VectorHandler &f, const VectorHandler &g) const
virtual void	PrintMatrix (void)
Public Member Functions inherited from MatrixHandler
virtual	~MatrixHandler (void)
virtual void	ResizeReset (integer, integer)
virtual const doublereal *	pdGetMat (void) const
virtual doublereal *	pdGetMat (void)
virtual integer *	piGetRows (void) const
virtual integer *	piGetCols (void) const
virtual integer	PacMat (void)
virtual MatrixHandler &	operator= (const MatrixHandler &MH)
virtual MatrixHandler &	operator+= (const SubMatrixHandler &SubMH)
virtual MatrixHandler &	operator-= (const SubMatrixHandler &SubMH)
virtual MatrixHandler &	operator+= (const VariableSubMatrixHandler &SubMH)
virtual MatrixHandler &	operator-= (const VariableSubMatrixHandler &SubMH)
virtual MatrixHandler &	ScalarMul (const doublereal &d)
virtual MatrixHandler &	MatMatMul (MatrixHandler &out, const MatrixHandler &in) const
virtual MatrixHandler &	MatTMatMul (MatrixHandler &out, const MatrixHandler &in) const
virtual MatrixHandler &	MatMatIncMul (MatrixHandler &out, const MatrixHandler &in) const
virtual MatrixHandler &	MatTMatIncMul (MatrixHandler &out, const MatrixHandler &in) const
virtual MatrixHandler &	MatMatDecMul (MatrixHandler &out, const MatrixHandler &in) const
virtual MatrixHandler &	MatTMatDecMul (MatrixHandler &out, const MatrixHandler &in) const
virtual VectorHandler &	MatVecMul (VectorHandler &out, const VectorHandler &in) const
virtual VectorHandler &	MatTVecMul (VectorHandler &out, const VectorHandler &in) const
virtual VectorHandler &	MatVecIncMul (VectorHandler &out, const VectorHandler &in) const
virtual VectorHandler &	MatTVecIncMul (VectorHandler &out, const VectorHandler &in) const
virtual VectorHandler &	MatVecDecMul (VectorHandler &out, const VectorHandler &in) const
virtual VectorHandler &	MatTVecDecMul (VectorHandler &out, const VectorHandler &in) const
virtual doublereal	ConditionNumber (enum Norm_t eNorm=NORM_1) const
virtual doublereal	Norm (enum Norm_t eNorm=NORM_1) const

Protected Attributes
integer	LSize
integer	ISize
MatrixHandler *	pB
MyVectorHandler *	pE
doublereal *	pdE
SpMapMatrixHandler *	pF
MyVectorHandler *	pC
doublereal *	pdC
integer *	pGTL
bool	bExtpdE

Additional Inherited Members
Public Types inherited from MatrixHandler
enum	Norm_t { NORM_1, NORM_INF }
Protected Member Functions inherited from MatrixHandler
virtual MatrixHandler &	MatMatMul_base (void(MatrixHandler::*op)(integer iRow, integer iCol, const doublereal &dCoef), MatrixHandler &out, const MatrixHandler &in) const
virtual MatrixHandler &	MatTMatMul_base (void(MatrixHandler::*op)(integer iRow, integer iCol, const doublereal &dCoef), MatrixHandler &out, const MatrixHandler &in) const
virtual VectorHandler &	MatVecMul_base (void(VectorHandler::*op)(integer iRow, const doublereal &dCoef), VectorHandler &out, const VectorHandler &in) const
virtual VectorHandler &	MatTVecMul_base (void(VectorHandler::*op)(integer iRow, const doublereal &dCoef), VectorHandler &out, const VectorHandler &in) const

Detailed Description

Definition at line 52 of file schurmh.h.

Constructor & Destructor Documentation

SchurMatrixHandler::SchurMatrixHandler	(	int	LocSize,
		int	IntSize,
		MatrixHandler *	pBM,
		integer *	pGlobToLoc,
		doublereal *	pdEv = 0
	)

Definition at line 82 of file schurmh.cc.

References bExtpdE, ISize, LSize, pC, pdC, pdE, pE, pF, SAFENEWARR, and SAFENEWWITHCONSTRUCTOR.

: LSize(LocSize),
ISize(IntSize),
pB(pBM),
pE(0),
pdE(0),
pF(0),
pC(0),
pdC(0),
pGTL(pGlobToLoc),
bExtpdE(pdEv != 0 ? true : false)
{
        if (!bExtpdE) {
                SAFENEWARR(pdE, doublereal, LSize*ISize);
                pdEv = pdE;
        }

        SAFENEWWITHCONSTRUCTOR(pE,
                                MyVectorHandler,
                                MyVectorHandler(LSize*ISize, pdEv));
        SAFENEWARR(pdC, doublereal, ISize*ISize);
        SAFENEWWITHCONSTRUCTOR(pC,
                                MyVectorHandler,
                                MyVectorHandler(ISize*ISize, pdC));
        SAFENEWWITHCONSTRUCTOR(pF,
                                SpMapMatrixHandler,
                                SpMapMatrixHandler(ISize, LSize));

#ifdef DEBUG
        IsValid();
#endif /* DEBUG */
}

SchurMatrixHandler::~SchurMatrixHandler ( void  )

virtual

Definition at line 116 of file schurmh.cc.

References bExtpdE, pC, pdC, pdE, pE, pF, SAFEDELETE, and SAFEDELETEARR.

{
        if (pE != 0) {
                SAFEDELETE(pE);
        }
        if (pC != 0) {
                SAFEDELETE(pC);
        }
        if (pF != 0) {
                SAFEDELETE(pF);
        }
        if (!bExtpdE && pdE != 0) {
                SAFEDELETEARR(pdE);
        }
        if (pdC != 0) {
                SAFEDELETEARR(pdC);
        }
}

Member Function Documentation

void SchurMatrixHandler::CompLocSchur ( void  )

inlinevirtual

Reimplemented in SchurMatrixHandlerUm.

Definition at line 436 of file schurmh.h.

References ISize, LSize, pdC, pdE, and pF.

{
        for (int j = 0; j < ISize; j++) {
                int iColc = j * ISize;
                int iCole = j * LSize;

                for (int k = 0; k < LSize; k++) {
                        for (int i = 0; i < ISize; i++) {
                                pdC[i + iColc] -=
                                        pF->operator()(i + 1, k + 1) * pdE[k + iCole];
                        }
                }
        }
}

VectorHandler & SchurMatrixHandler::CompNewf ( VectorHandler &  f, const VectorHandler &  g  ) const

inlinevirtual

Reimplemented in SchurMatrixHandlerUm.

Definition at line 452 of file schurmh.h.

References ASSERT, VectorHandler::DecCoef(), VectorHandler::iGetSize(), ISize, LSize, and pdE.

{
#ifdef DEBUG
        ASSERT(f.iGetSize() == LSize);
        ASSERT(g.iGetSize() == ISize);
#endif /* DEBUG */

        for (int j = 0; j < ISize; j++) {
                int iColx = j * LSize;
                for (int i = 0; i < LSize; i++) {
                        if (pdE[i + iColx] != 0) {
                                f.DecCoef(i + 1, pdE[i + iColx]*g(j + 1));
                        }
                }
        }
        return f;
}

Here is the call graph for this function:

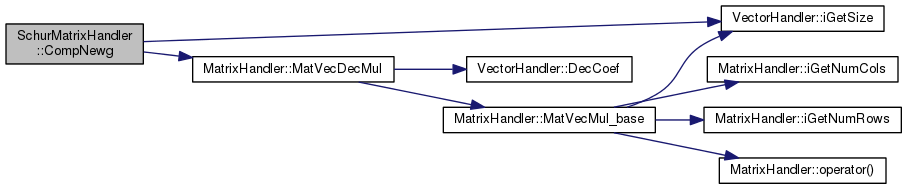

VectorHandler & SchurMatrixHandler::CompNewg ( VectorHandler &  g, const VectorHandler &  f  ) const

inlinevirtual

Definition at line 422 of file schurmh.h.

References ASSERT, VectorHandler::iGetSize(), ISize, LSize, MatrixHandler::MatVecDecMul(), and pF.

{
#ifdef DEBUG
        ASSERT(f.iGetSize() == LSize);
        ASSERT(g.iGetSize() == ISize);
#endif /* DEBUG */

        pF->MatVecDecMul(g, f);

        return g;
}

Here is the call graph for this function:

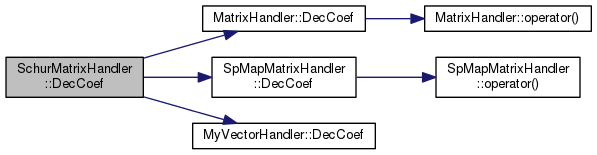

void SchurMatrixHandler::DecCoef ( integer  iRow, integer  iCol, const doublereal &  dCoef  )

inlinevirtual

Reimplemented from MatrixHandler.

Reimplemented in SchurMatrixHandlerUm.

Definition at line 265 of file schurmh.h.

References MatrixHandler::DecCoef(), SpMapMatrixHandler::DecCoef(), MyVectorHandler::DecCoef(), ISize, LSize, MBDYN_EXCEPT_ARGS, pB, pC, pE, pF, and pGTL.

{
#ifdef DEBUG
        IsValid();
#endif /* DEBUG */

        if (pGTL[iRow] > 0) {
                if (pGTL[iCol] > 0) {
                        pB->DecCoef(pGTL[iRow], pGTL[iCol], dCoef);
                        return;

                } else if (pGTL[iCol] < 0) {
                        pE->DecCoef(pGTL[iRow] - (pGTL[iCol] + 1)*LSize, dCoef);
                        return;
                }

        } else if (pGTL[iRow] < 0) {
                if (pGTL[iCol] > 0) {
                        pF->DecCoef(-pGTL[iRow], pGTL[iCol], dCoef);
                        return;

                } else if (pGTL[iCol] < 0) {
                        pC->DecCoef(-pGTL[iRow] - (pGTL[iCol] + 1)*ISize, dCoef);
                        return;
                }
        }

#ifdef USE_MPI
        silent_cerr("SchurMatrixHandler::DecCoef() "
                "Process(" << MBDynComm.Get_rank() << "): "
                "trying to operate on nonlocal indices "
                << iRow << "," << iCol << std::endl);
#else /* ! USE_MPI */
        silent_cerr("SchurMatrixHandler::DecCoef() "
                "trying to operate on nonlocal indices "
                << iRow << "," << iCol << std::endl);
#endif /* ! USE_MPI */

        throw ErrGeneric(MBDYN_EXCEPT_ARGS);
}

Here is the call graph for this function:

const doublereal & SchurMatrixHandler::dGetCoef ( integer  iRow, integer  iCol  ) const

inlinevirtual

Reimplemented from MatrixHandler.

Reimplemented in SchurMatrixHandlerUm.

Definition at line 308 of file schurmh.h.

References ISize, LSize, pB, pC, pE, pF, pGTL, and Zero1.

{
#ifdef DEBUG
        IsValid();
#endif /* DEBUG */

        if (pGTL[iRow] > 0) {
                if (pGTL[iCol] > 0) {
                        return pB->operator()(pGTL[iRow], pGTL[iCol]);

                } else if(pGTL[iCol] < 0) {
                        return pE->operator()(pGTL[iRow] - (pGTL[iCol] + 1)*LSize);
                }

        } else if (pGTL[iRow] < 0) {
                if (pGTL[iCol] > 0) {
                        return pF->operator()(-pGTL[iRow], pGTL[iCol]);

                } else if (pGTL[iCol] < 0) {
                        return pC->operator()(-pGTL[iRow] - (pGTL[iCol] + 1)*ISize);
                }
        }

#ifdef USE_MPI
        silent_cerr("SchurMatrixHandler::dGetCoef() "
                "Process(" << MBDynComm.Get_rank() << "): "
                "trying to operate on nonlocal indices "
                << iRow << "," << iCol << std::endl);
#else /* ! USE_MPI */
        silent_cerr("SchurMatrixHandler::dGetCoef() "
                "trying to operate on nonlocal indices "
                << iRow << "," << iCol << std::endl);
#endif /* ! USE_MPI */

        return ::Zero1;
}

MatrixHandler * SchurMatrixHandler::GetBMat

(

void

)

Definition at line 62 of file schurmh.cc.

References pB.

{
        return pB;
}

doublereal * SchurMatrixHandler::GetCMat

(

void

)

Definition at line 77 of file schurmh.cc.

References pdC.

{
        return pdC;
}

doublereal * SchurMatrixHandler::GetECol ( const integer  iCol ) const

inlinevirtual

Reimplemented in SchurMatrixHandlerUm.

Definition at line 144 of file schurmh.h.

References LSize, and pdE.

{
        return &pdE[LSize*iCol];
}

doublereal * SchurMatrixHandler::GetEColSol ( const integer  iCol ) const

inlinevirtual

Reimplemented in SchurMatrixHandlerUm.

Definition at line 150 of file schurmh.h.

References LSize, and pdE.

{
        return &pdE[LSize*iCol];
}

integer SchurMatrixHandler::iGetNumCols ( void  ) const

virtual

Implements MatrixHandler.

Definition at line 55 of file schurmh.cc.

References ISize, and LSize.

{
        return LSize + ISize;
}

integer SchurMatrixHandler::iGetNumRows ( void  ) const

virtual

Implements MatrixHandler.

Definition at line 49 of file schurmh.cc.

References ISize, and LSize.

{
        return LSize + ISize;
}

void SchurMatrixHandler::IncCoef ( integer  iRow, integer  iCol, const doublereal &  dCoef  )

inlinevirtual

Reimplemented from MatrixHandler.

Reimplemented in SchurMatrixHandlerUm.

Definition at line 222 of file schurmh.h.

References MatrixHandler::IncCoef(), SpMapMatrixHandler::IncCoef(), MyVectorHandler::IncCoef(), ISize, LSize, MBDYN_EXCEPT_ARGS, pB, pC, pE, pF, and pGTL.

{
#ifdef DEBUG
        IsValid();
#endif /* DEBUG */

        if (pGTL[iRow] > 0) {
                if (pGTL[iCol] > 0) {
                        pB->IncCoef(pGTL[iRow], pGTL[iCol], dCoef);
                        return;

                } else if (pGTL[iCol] < 0) {
                        pE->IncCoef(pGTL[iRow] - (pGTL[iCol] + 1)*LSize, dCoef);
                        return;
                }

        } else if (pGTL[iRow] < 0) {
                if (pGTL[iCol] > 0) {
                        pF->IncCoef(-pGTL[iRow], pGTL[iCol], dCoef);
                        return;

                } else if (pGTL[iCol] < 0) {
                        pC->IncCoef(-pGTL[iRow] - (pGTL[iCol] + 1)*ISize, dCoef);
                        return;
                }
        }

#ifdef USE_MPI
        silent_cerr("SchurMatrixHandler::IncCoef() "
                "Process(" << MBDynComm.Get_rank() << "): "
                "trying to operate on nonlocal indices "
                << iRow << "," << iCol << std::endl);
#else /* ! USE_MPI */
        silent_cerr("SchurMatrixHandler::IncCoef() "
                "trying to operate on nonlocal indices "
                << iRow << "," << iCol << std::endl);
#endif /* ! USE_MPI */

        throw ErrGeneric(MBDYN_EXCEPT_ARGS);
}

Here is the call graph for this function:

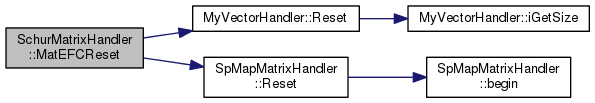

void SchurMatrixHandler::MatEFCReset ( void  )

inlinevirtual

Reimplemented in SchurMatrixHandlerUm.

Definition at line 156 of file schurmh.h.

References pC, pE, pF, MyVectorHandler::Reset(), and SpMapMatrixHandler::Reset().

Referenced by Reset().

{
#ifdef DEBUG
        IsValid();
#endif /* DEBUG */

        pE->Reset();
        pF->Reset();
        pC->Reset();
}

Here is the call graph for this function:

const doublereal & SchurMatrixHandler::operator() ( integer  iRow, integer  iCol  ) const

inlinevirtual

Implements MatrixHandler.

Definition at line 384 of file schurmh.h.

References ISize, LSize, pB, pC, pE, pF, pGTL, and Zero1.

{
#ifdef DEBUG
        IsValid();
#endif /* DEBUG */

        if (pGTL[iRow] > 0) {
                if (pGTL[iCol] > 0) {
                        return pB->operator()(pGTL[iRow], pGTL[iCol]);

                } else if (pGTL[iCol] < 0) {
                        return pE->operator()(pGTL[iRow] - (pGTL[iCol] + 1)*LSize);
                }

        } else {
                if (pGTL[iCol] > 0) {
                        return pF->operator()(-pGTL[iRow], pGTL[iCol]);

                } else if (pGTL[iCol] < 0) {
                        return pC->operator()(-pGTL[iRow] - (pGTL[iCol] + 1)*ISize);
                }
        }

#ifdef USE_MPI
        silent_cerr("SchurMatrixHandler::operator() "
                "Process(" << MBDynComm.Get_rank() << "): "
                "trying to operate on nonlocal indices "
                << iRow << "," << iCol << std::endl);
#else /* ! USE_MPI */
        silent_cerr("SchurMatrixHandler::operator() "
                "trying to operate on nonlocal indices "
                << iRow << "," << iCol << std::endl);
#endif /* ! USE_MPI */

        return ::Zero1;
}

doublereal & SchurMatrixHandler::operator() ( integer  iRow, integer  iCol  )

inlinevirtual

Implements MatrixHandler.

Definition at line 346 of file schurmh.h.

References ISize, LSize, MBDYN_EXCEPT_ARGS, pB, pC, pE, pF, and pGTL.

{
#ifdef DEBUG
        IsValid();
#endif /* DEBUG */

        if (pGTL[iRow] > 0) {
                if (pGTL[iCol] > 0) {
                        return (*pB)(pGTL[iRow], pGTL[iCol]);

                } else if (pGTL[iCol] < 0) {
                        return (*pE)(pGTL[iRow] - (pGTL[iCol] + 1)*LSize);
                }

        } else {
                if (pGTL[iCol] > 0) {
                        return (*pF)(-pGTL[iRow], pGTL[iCol]);

                } else if (pGTL[iCol] < 0) {
                        return (*pC)(-pGTL[iRow] - (pGTL[iCol] + 1)*ISize);
                }
        }

#ifdef USE_MPI
        silent_cerr("SchurMatrixHandler::operator() "
                "Process(" << MBDynComm.Get_rank() << "): "
                "trying to operate on nonlocal indices "
                << iRow << "," << iCol << std::endl);
#else /* ! USE_MPI */
        silent_cerr("SchurMatrixHandler::operator() "
                "trying to operate on nonlocal indices "
                << iRow << "," << iCol << std::endl);
#endif /* ! USE_MPI */

        throw ErrGeneric(MBDYN_EXCEPT_ARGS);
}

void SchurMatrixHandler::PrintMatrix ( void  )

inlinevirtual

Reimplemented in SchurMatrixHandlerUm.

Definition at line 471 of file schurmh.h.

References ISize, LSize, pB, pdC, pdE, and pF.

{
        silent_cout("Schur Matrix " << std::endl);

        for (int i = 0; i < LSize; i++) {
                for (int j = 0; j < LSize; j++) {
                        silent_cout(pB->operator()(i + 1, j + 1) << " ");
                }

                for (int j = 0; j < ISize; j++) {
                        silent_cout(pdE[i + j*LSize] << " ");
                }
                silent_cout(std::endl);
        }

        for (int i = 0; i < ISize; i++) {
                for (int j = 0; j < LSize; j++) {
                        silent_cout(pF->operator()(i + 1, j + 1) << " ");
                }

                for (int j = 0; j < ISize; j++) {
                        silent_cout(pdC[i + j*ISize] << " ");
                }
                silent_cout(std::endl);
        }
}

void SchurMatrixHandler::PutCoef ( integer  iRow, integer  iCol, const doublereal &  dCoef  )

inlinevirtual

Reimplemented from MatrixHandler.

Reimplemented in SchurMatrixHandlerUm.

Definition at line 179 of file schurmh.h.

References ISize, LSize, MBDYN_EXCEPT_ARGS, pB, pC, pE, pF, pGTL, MatrixHandler::PutCoef(), MyVectorHandler::PutCoef(), and SpMapMatrixHandler::PutCoef().

{
#ifdef DEBUG
        IsValid();
#endif /* DEBUG */

        if (pGTL[iRow] > 0) {
                if (pGTL[iCol] > 0) {
                        pB->PutCoef(pGTL[iRow], pGTL[iCol], dCoef);
                        return;

                } else if (pGTL[iCol] < 0) {
                        pE->PutCoef(pGTL[iRow] - (pGTL[iCol] + 1)*LSize, dCoef);
                        return;
                }

        } else if (pGTL[iRow] < 0) {
                if (pGTL[iCol] > 0) {
                        pF->PutCoef(-pGTL[iRow], pGTL[iCol], dCoef);
                        return;

                } else if (pGTL[iCol] < 0) {
                        pC->PutCoef(-pGTL[iRow] - (pGTL[iCol] + 1)*ISize, dCoef);
                        return;
                }
        }

#ifdef USE_MPI
        silent_cerr("SchurMatrixHandler::PutCoef() "
                "Process(" << MBDynComm.Get_rank() << "): "
                "trying to operate on nonlocal indices "
                << iRow << "," << iCol << std::endl);
#else /* ! USE_MPI */
        silent_cerr("SchurMatrixHandler::PutCoef() "
                "trying to operate on nonlocal indices "
                << iRow << "," << iCol << std::endl);
#endif /* ! USE_MPI */

        throw ErrGeneric(MBDYN_EXCEPT_ARGS);
}

Here is the call graph for this function:

void SchurMatrixHandler::Reset ( void  )

inlinevirtual

Implements MatrixHandler.

Reimplemented in SchurMatrixHandlerUm.

Definition at line 168 of file schurmh.h.

References MatEFCReset(), pB, and MatrixHandler::Reset().

{
#ifdef DEBUG
        IsValid();
#endif /* DEBUG */

        pB->Reset();
        MatEFCReset();
}

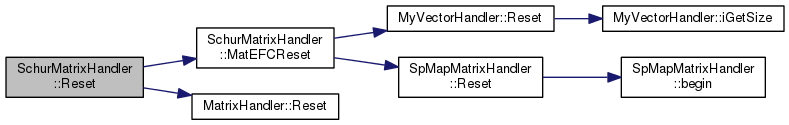

Here is the call graph for this function:

void SchurMatrixHandler::Resize ( integer  , integer    )

virtual

Implements MatrixHandler.

Definition at line 152 of file schurmh.cc.

References MBDYN_EXCEPT_ARGS.

{
        silent_cerr("cannot resize a SchurMatrixHandler" << std::endl);
        throw ErrGeneric(MBDYN_EXCEPT_ARGS);
}

void SchurMatrixHandler::SetBMat

(

MatrixHandler *

pBM

)

Definition at line 69 of file schurmh.cc.

References pB.

{
        pB = pBM;
}

Member Data Documentation

bool SchurMatrixHandler::bExtpdE

protected

Definition at line 74 of file schurmh.h.

Referenced by SchurMatrixHandler(), and ~SchurMatrixHandler().

integer SchurMatrixHandler::ISize

protected

Definition at line 60 of file schurmh.h.

Referenced by CompLocSchur(), SchurMatrixHandlerUm::CompLocSchur(), CompNewf(), SchurMatrixHandlerUm::CompNewf(), CompNewg(), DecCoef(), SchurMatrixHandlerUm::DecCoef(), dGetCoef(), SchurMatrixHandlerUm::dGetCoef(), iGetNumCols(), iGetNumRows(), IncCoef(), SchurMatrixHandlerUm::IncCoef(), SchurMatrixHandlerUm::MatEFCReset(), operator()(), PrintMatrix(), SchurMatrixHandlerUm::PrintMatrix(), PutCoef(), SchurMatrixHandlerUm::PutCoef(), SchurMatrixHandler(), and SchurMatrixHandlerUm::SchurMatrixHandlerUm().

integer SchurMatrixHandler::LSize

protected

Definition at line 60 of file schurmh.h.

Referenced by CompLocSchur(), SchurMatrixHandlerUm::CompLocSchur(), CompNewf(), SchurMatrixHandlerUm::CompNewf(), CompNewg(), DecCoef(), SchurMatrixHandlerUm::DecCoef(), dGetCoef(), SchurMatrixHandlerUm::dGetCoef(), GetECol(), SchurMatrixHandlerUm::GetECol(), GetEColSol(), SchurMatrixHandlerUm::GetEColSol(), iGetNumCols(), iGetNumRows(), IncCoef(), SchurMatrixHandlerUm::IncCoef(), SchurMatrixHandlerUm::MatEFCReset(), operator()(), PrintMatrix(), SchurMatrixHandlerUm::PrintMatrix(), PutCoef(), SchurMatrixHandlerUm::PutCoef(), SchurMatrixHandler(), and SchurMatrixHandlerUm::SchurMatrixHandlerUm().

MatrixHandler* SchurMatrixHandler::pB

protected

Definition at line 61 of file schurmh.h.

Referenced by DecCoef(), SchurMatrixHandlerUm::DecCoef(), dGetCoef(), SchurMatrixHandlerUm::dGetCoef(), GetBMat(), IncCoef(), SchurMatrixHandlerUm::IncCoef(), operator()(), PrintMatrix(), SchurMatrixHandlerUm::PrintMatrix(), PutCoef(), SchurMatrixHandlerUm::PutCoef(), Reset(), SchurMatrixHandlerUm::Reset(), and SetBMat().

MyVectorHandler* SchurMatrixHandler::pC

protected

Definition at line 65 of file schurmh.h.

Referenced by DecCoef(), SchurMatrixHandlerUm::DecCoef(), dGetCoef(), SchurMatrixHandlerUm::dGetCoef(), IncCoef(), SchurMatrixHandlerUm::IncCoef(), MatEFCReset(), SchurMatrixHandlerUm::MatEFCReset(), operator()(), PutCoef(), SchurMatrixHandlerUm::PutCoef(), SchurMatrixHandler(), and ~SchurMatrixHandler().

doublereal* SchurMatrixHandler::pdC

protected

Definition at line 66 of file schurmh.h.

Referenced by CompLocSchur(), SchurMatrixHandlerUm::CompLocSchur(), GetCMat(), PrintMatrix(), SchurMatrixHandlerUm::PrintMatrix(), SchurMatrixHandler(), and ~SchurMatrixHandler().

doublereal* SchurMatrixHandler::pdE

protected

Definition at line 63 of file schurmh.h.

Referenced by CompLocSchur(), CompNewf(), GetECol(), SchurMatrixHandlerUm::GetECol(), GetEColSol(), PrintMatrix(), SchurMatrixHandlerUm::PrintMatrix(), SchurMatrixHandler(), SchurMatrixHandlerUm::SchurMatrixHandlerUm(), ~SchurMatrixHandler(), and SchurMatrixHandlerUm::~SchurMatrixHandlerUm().

MyVectorHandler* SchurMatrixHandler::pE

protected

Definition at line 62 of file schurmh.h.

Referenced by DecCoef(), SchurMatrixHandlerUm::DecCoef(), dGetCoef(), SchurMatrixHandlerUm::dGetCoef(), IncCoef(), SchurMatrixHandlerUm::IncCoef(), MatEFCReset(), operator()(), PutCoef(), SchurMatrixHandlerUm::PutCoef(), SchurMatrixHandler(), SchurMatrixHandlerUm::SchurMatrixHandlerUm(), ~SchurMatrixHandler(), and SchurMatrixHandlerUm::~SchurMatrixHandlerUm().

SpMapMatrixHandler* SchurMatrixHandler::pF

protected

Definition at line 64 of file schurmh.h.

Referenced by CompLocSchur(), SchurMatrixHandlerUm::CompLocSchur(), CompNewg(), DecCoef(), SchurMatrixHandlerUm::DecCoef(), dGetCoef(), SchurMatrixHandlerUm::dGetCoef(), IncCoef(), SchurMatrixHandlerUm::IncCoef(), MatEFCReset(), SchurMatrixHandlerUm::MatEFCReset(), operator()(), PrintMatrix(), SchurMatrixHandlerUm::PrintMatrix(), PutCoef(), SchurMatrixHandlerUm::PutCoef(), SchurMatrixHandler(), and ~SchurMatrixHandler().

integer* SchurMatrixHandler::pGTL

protected

Definition at line 72 of file schurmh.h.

Referenced by DecCoef(), SchurMatrixHandlerUm::DecCoef(), dGetCoef(), SchurMatrixHandlerUm::dGetCoef(), IncCoef(), SchurMatrixHandlerUm::IncCoef(), operator()(), PutCoef(), and SchurMatrixHandlerUm::PutCoef().

---

The documentation for this class was generated from the following files:

• schurmh.h
• schurmh.cc
