STAHRAeroData Class Reference

#include <aerodata_impl.h>

Inheritance diagram for STAHRAeroData:

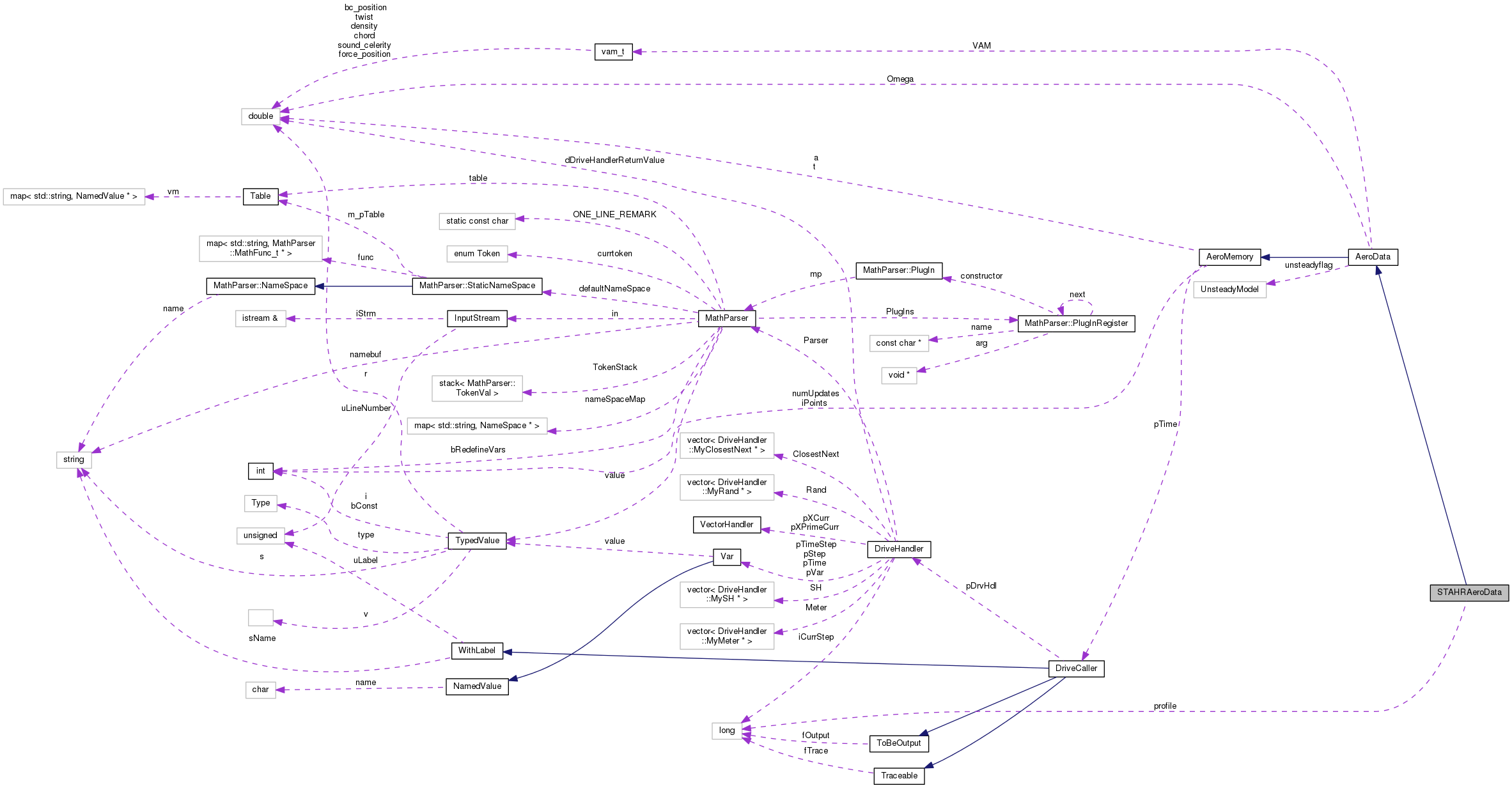

Collaboration diagram for STAHRAeroData:

Public Member Functions
	STAHRAeroData (int i_p, int i_dim, AeroData::UnsteadyModel u, integer p, DriveCaller *ptime=0)
virtual	~STAHRAeroData (void)
std::ostream &	Restart (std::ostream &out) const
int	GetForces (int i, const doublereal *W, doublereal *TNG, outa_t &OUTA)
int	GetForcesJac (int i, const doublereal *W, doublereal *TNG, Mat6x6 &J, outa_t &OUTA)
Public Member Functions inherited from AeroData
	AeroData (int i_p, int i_dim, UnsteadyModel u=STEADY, DriveCaller *pt=0)
virtual	~AeroData (void)
std::ostream &	RestartUnsteady (std::ostream &out) const
virtual void	SetAirData (const doublereal &rho, const doublereal &c)
virtual void	SetSectionData (const doublereal &abscissa, const doublereal &chord, const doublereal &forcepoint, const doublereal &velocitypoint, const doublereal &twist, const doublereal &omega=0.)
virtual unsigned int	iGetNumDof (void) const
virtual DofOrder::Order	GetDofType (unsigned int i) const
virtual void	AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, integer iFirstIndex, integer iFirstSubIndex, int i, const doublereal *W, doublereal *TNG, outa_t &OUTA)
virtual void	AssJac (FullSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, integer iFirstIndex, integer iFirstSubIndex, const Mat3xN &vx, const Mat3xN &wx, Mat3xN &fq, Mat3xN &cq, int i, const doublereal *W, doublereal *TNG, Mat6x6 &J, outa_t &OUTA)
virtual void	AfterConvergence (int i, const VectorHandler &X, const VectorHandler &XP)
AeroData::UnsteadyModel	Unsteady (void) const
Public Member Functions inherited from AeroMemory
	AeroMemory (DriveCaller *pt)
virtual	~AeroMemory (void)
void	Predict (int i, doublereal alpha, doublereal &alf1, doublereal &alf2)
void	Update (int i)
void	SetNumPoints (int i)
int	GetNumPoints (void) const

Protected Attributes
integer	profile
Protected Attributes inherited from AeroData
UnsteadyModel	unsteadyflag
vam_t	VAM
doublereal	Omega
Protected Attributes inherited from AeroMemory
DriveCaller *	pTime

Additional Inherited Members
Public Types inherited from AeroData
enum	UnsteadyModel { STEADY = 0, HARRIS = 1, BIELAWA = 2, LAST }
enum	{   VX = 0, VY = 1, VZ = 2, WX = 3,   WY = 4, WZ = 5, FX = 0, FY = 1,   FZ = 2, MX = 3, MY = 4, MZ = 5 }
Protected Member Functions inherited from AeroData
int	StorageSize (void) const
int	GetForcesJacForwardDiff_int (int i, const doublereal *W, doublereal *TNG, Mat6x6 &J, outa_t &OUTA)
int	GetForcesJacCenteredDiff_int (int i, const doublereal *W, doublereal *TNG, Mat6x6 &J, outa_t &OUTA)

Detailed Description

Definition at line 39 of file aerodata_impl.h.

Constructor & Destructor Documentation

STAHRAeroData::STAHRAeroData	(	int	i_p,
		int	i_dim,
		AeroData::UnsteadyModel	u,
		integer	p,
		DriveCaller *	ptime = 0
	)

Definition at line 43 of file aerodata_impl.cc.

References ASSERT, and AeroData::STEADY.

: AeroData(i_p, i_dim, u, ptime),
profile(p)
{
        ASSERT(u != AeroData::STEADY ? (ptime != 0) : 1);
}

STAHRAeroData::~STAHRAeroData ( void  )

virtual

Definition at line 52 of file aerodata_impl.cc.

References NO_OP.

{
        NO_OP;
}

Member Function Documentation

int STAHRAeroData::GetForces ( int  i, const doublereal *  W, doublereal *  TNG, outa_t &  OUTA  )

virtual

Reimplemented from AeroData.

Definition at line 77 of file aerodata_impl.cc.

References aerod2(), outa_t::alf1, outa_t::alf2, grad::atan2(), AeroData::BIELAWA, AeroData::HARRIS, AeroData::Omega, AeroMemory::Predict(), profile, AeroData::unsteadyflag, AeroData::VAM, AeroData::VX, and AeroData::VY.

{

        switch (unsteadyflag) {
        case AeroData::HARRIS:
        case AeroData::BIELAWA:
                Predict(i, atan2(-W[VY], W[VX]), OUTA.alf1, OUTA.alf2);
                break;

        default:
                break;
        }

        integer u = unsteadyflag;
        __FC_DECL__(aerod2)(const_cast<doublereal *>(W), reinterpret_cast<doublereal *>(&VAM),
                TNG, reinterpret_cast<doublereal *>(&OUTA), &u, &Omega, &profile);

        return 0;
}

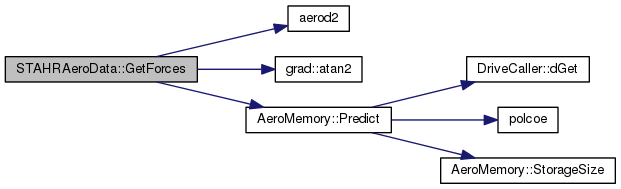

Here is the call graph for this function:

int STAHRAeroData::GetForcesJac ( int  i, const doublereal *  W, doublereal *  TNG, Mat6x6 &  J, outa_t &  OUTA  )

virtual

Reimplemented from AeroData.

Definition at line 99 of file aerodata_impl.cc.

References AeroData::GetForcesJacForwardDiff_int().

{
        return AeroData::GetForcesJacForwardDiff_int(i, W, TNG, J, OUTA);
}

Here is the call graph for this function:

std::ostream & STAHRAeroData::Restart ( std::ostream &  out ) const

virtual

Implements AeroData.

Definition at line 58 of file aerodata_impl.cc.

References MBDYN_EXCEPT_ARGS, profile, and AeroData::RestartUnsteady().

{
        switch (profile) {
        case 1:
                out << "NACA0012";
                break;

        case 2:
                out << "RAE9671";
                break;

        default:
                throw ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        return RestartUnsteady(out);
}

Here is the call graph for this function:

Member Data Documentation

integer STAHRAeroData::profile

protected

Definition at line 41 of file aerodata_impl.h.

Referenced by GetForces(), and Restart().

---

The documentation for this class was generated from the following files:

• aerodata_impl.h
• aerodata_impl.cc
