NRTrim Class Reference

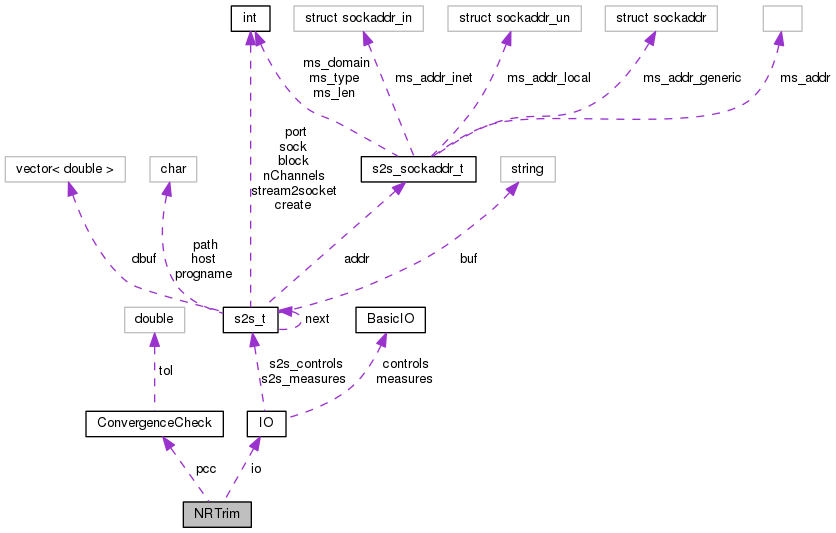

Collaboration diagram for NRTrim:

Public Member Functions
	NRTrim (IO &io, int n, double t)
	~NRTrim (void)
int	DoTrim (const std::vector< double > expectedMeasures, const std::vector< double > incrControls, std::vector< double > controls)

Private Attributes
IO &	io
ConvergenceCheck *	pcc

Detailed Description

Definition at line 465 of file trim.cc.

Constructor & Destructor Documentation

NRTrim::NRTrim	(	IO &	io,
		int	n,
		double	t
	)

Definition at line 479 of file trim.cc.

References pcc.

: io(io),
pcc(0)
{
        pcc = new FFDConvergenceCheck(n, t, .99);
}

NRTrim::~NRTrim ( void  )

inline

Definition at line 472 of file trim.cc.

{};

Member Function Documentation

int NRTrim::DoTrim	(	const std::vector< double >	expectedMeasures,
		const std::vector< double >	incrControls,
		std::vector< double >	controls
	)

Definition at line 487 of file trim.cc.

References c, ConvergenceCheck::Check(), IO::Controls(), TrimEval::FuncEval(), LinSol::GetSolutionManager(), io, IO::Measures(), pcc, SolutionManager::pMatHdl(), SolutionManager::pResHdl(), SolutionManager::pSolHdl(), VectorHandler::PutCoef(), MatrixHandler::PutCoef(), and SolutionManager::Solve().

Referenced by main().

{
        TrimEval                te(io, *pcc);
        std::vector<double>     Xref(incrControls.size()),
                                X(incrControls.size());
        std::vector<double>     Fref(expectedMeasures.size()),
                                F(expectedMeasures.size(), 0.);
        LinSol                  LS;
        SolutionManager         *psm(LS.GetSolutionManager(expectedMeasures.size()));
        MatrixHandler           *pM = psm->pMatHdl();
        VectorHandler           *pR = psm->pResHdl();
        VectorHandler           *pX = psm->pSolHdl();

        if (expectedMeasures.size() != incrControls.size()) {
                return -1;
        }

        for (unsigned int i = 0; i < incrControls.size(); i++) {
                Xref[i] = io.Controls()[i];
        }

        for (unsigned int i = 0; i < expectedMeasures.size(); i++) {
                Fref[i] = io.Measures()[i];
        }

        for (unsigned int c = 0; c < incrControls.size(); c++) {
                for (unsigned int i = 0; i < incrControls.size(); i++) {
                        X[i] = Xref[i];
                }
                X[c] += incrControls[c];

                te.FuncEval(X, F, 10, 1000);

                for (unsigned int i = 0; i < expectedMeasures.size(); i++) {
                        pM->PutCoef(i + 1, c + 1, F[i] - Fref[i]);
                }
        }

        while (!pcc->Check(io.Measures())) {
                for (unsigned int i = 0; i < expectedMeasures.size(); i++) {
                        pR->PutCoef(i + 1, expectedMeasures[i] - Fref[i]);
                }

                psm->Solve();

                for (unsigned int i = 0; i < incrControls.size(); i++) {
                        X[i] = Xref[i] + pX->operator()(i + 1);
                        Xref[i] = X[i];
                }

                te.FuncEval(X, F, 10, 1000);

                for (unsigned int i = 0; i < expectedMeasures.size(); i++) {
                        Fref[i] = F[i];
                }
        }

        return 0;
}

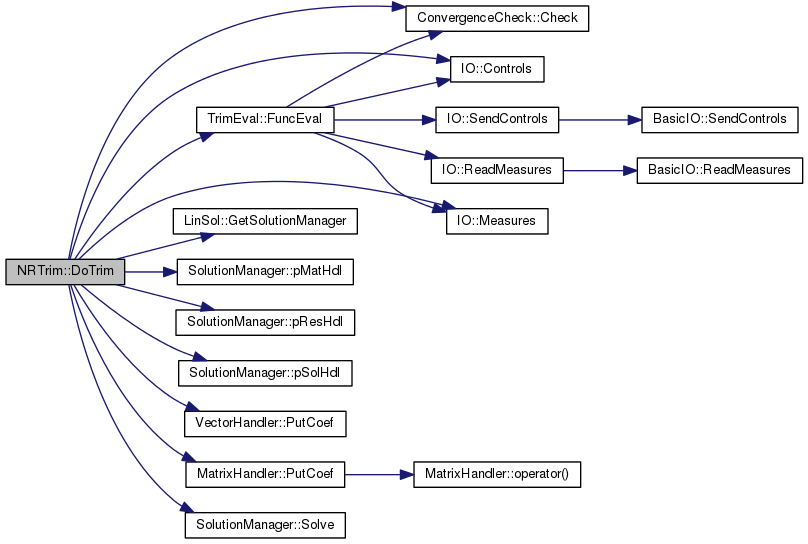

Here is the call graph for this function:

Member Data Documentation

IO& NRTrim::io

private

Definition at line 467 of file trim.cc.

Referenced by DoTrim().

ConvergenceCheck* NRTrim::pcc

private

Definition at line 468 of file trim.cc.

Referenced by DoTrim(), and NRTrim().

---

The documentation for this class was generated from the following file:

• trim.cc
