TrimEval Class Reference

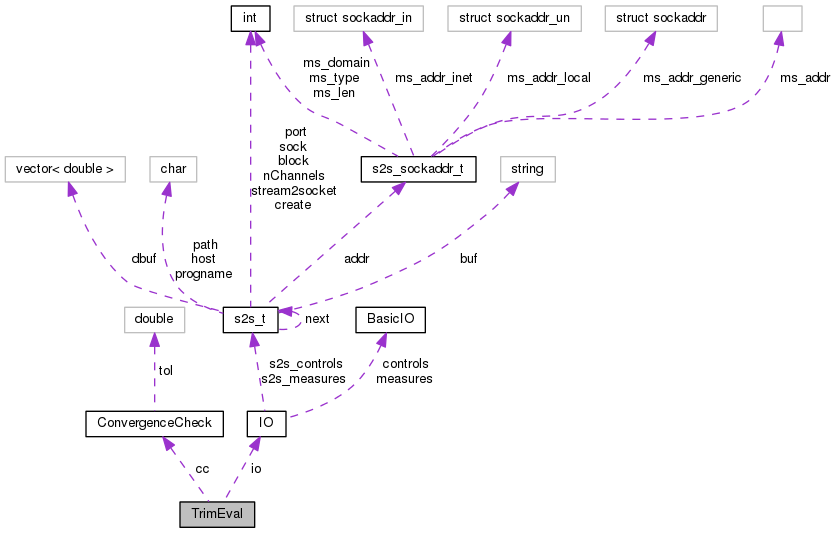

Collaboration diagram for TrimEval:

Public Member Functions
	TrimEval (IO &io, ConvergenceCheck &cc)
	~TrimEval (void)
int	FuncEval (std::vector< double > &X, std::vector< double > &F, int nSteps, int maxSteps)

Protected Attributes
IO &	io
ConvergenceCheck &	cc

Detailed Description

Definition at line 416 of file trim.cc.

Constructor & Destructor Documentation

TrimEval::TrimEval ( IO &  io, ConvergenceCheck &  cc  )

inline

Definition at line 422 of file trim.cc.

: io(io), cc(cc) {};

TrimEval::~TrimEval ( void  )

inline

Definition at line 423 of file trim.cc.

{};

Member Function Documentation

int TrimEval::FuncEval	(	std::vector< double > &	X,
		std::vector< double > &	F,
		int	nSteps,
		int	maxSteps
	)

Definition at line 429 of file trim.cc.

References cc, ConvergenceCheck::Check(), IO::Controls(), io, IO::Measures(), IO::ReadMeasures(), and IO::SendControls().

Referenced by NRTrim::DoTrim().

{
        if (X.size() != io.Controls().size()) {
                return -1;
        }

        std::vector<double>     Xref(X.size());
        std::vector<double>     deltaX(X.size());

        for (unsigned int i = 0; i < X.size(); i++) {
                Xref[i] = io.Controls()[i];
                deltaX[i] = X[i] - Xref[i];
        }

        int     currStep;
        for (currStep = 0; currStep < nSteps; currStep++) {
                for (unsigned int i = 0; i < X.size(); i++) {
                        io.Controls()[i] = Xref[i] + (deltaX[i]*currStep)/nSteps;
                }

                io.SendControls();
                io.ReadMeasures();
        }

        for (; currStep < maxSteps; currStep++) {
                if (cc.Check(io.Measures())) {
                        return 1;
                }

                io.SendControls();
                io.ReadMeasures();
        }

        return 0;
}

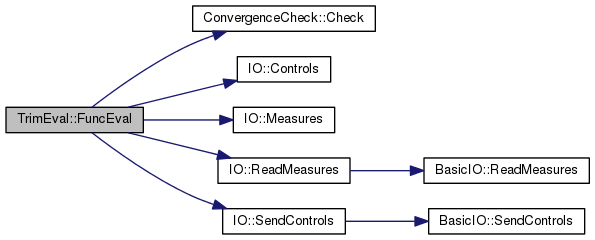

Here is the call graph for this function:

Member Data Documentation

ConvergenceCheck& TrimEval::cc

protected

Definition at line 419 of file trim.cc.

Referenced by FuncEval().

IO& TrimEval::io

protected

Definition at line 418 of file trim.cc.

Referenced by FuncEval().

---

The documentation for this class was generated from the following file:

• trim.cc
