LinearDriveCaller Class Reference

#include <drive_.h>

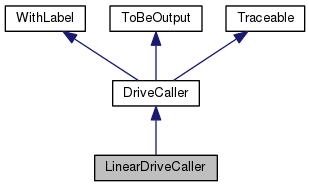

Inheritance diagram for LinearDriveCaller:

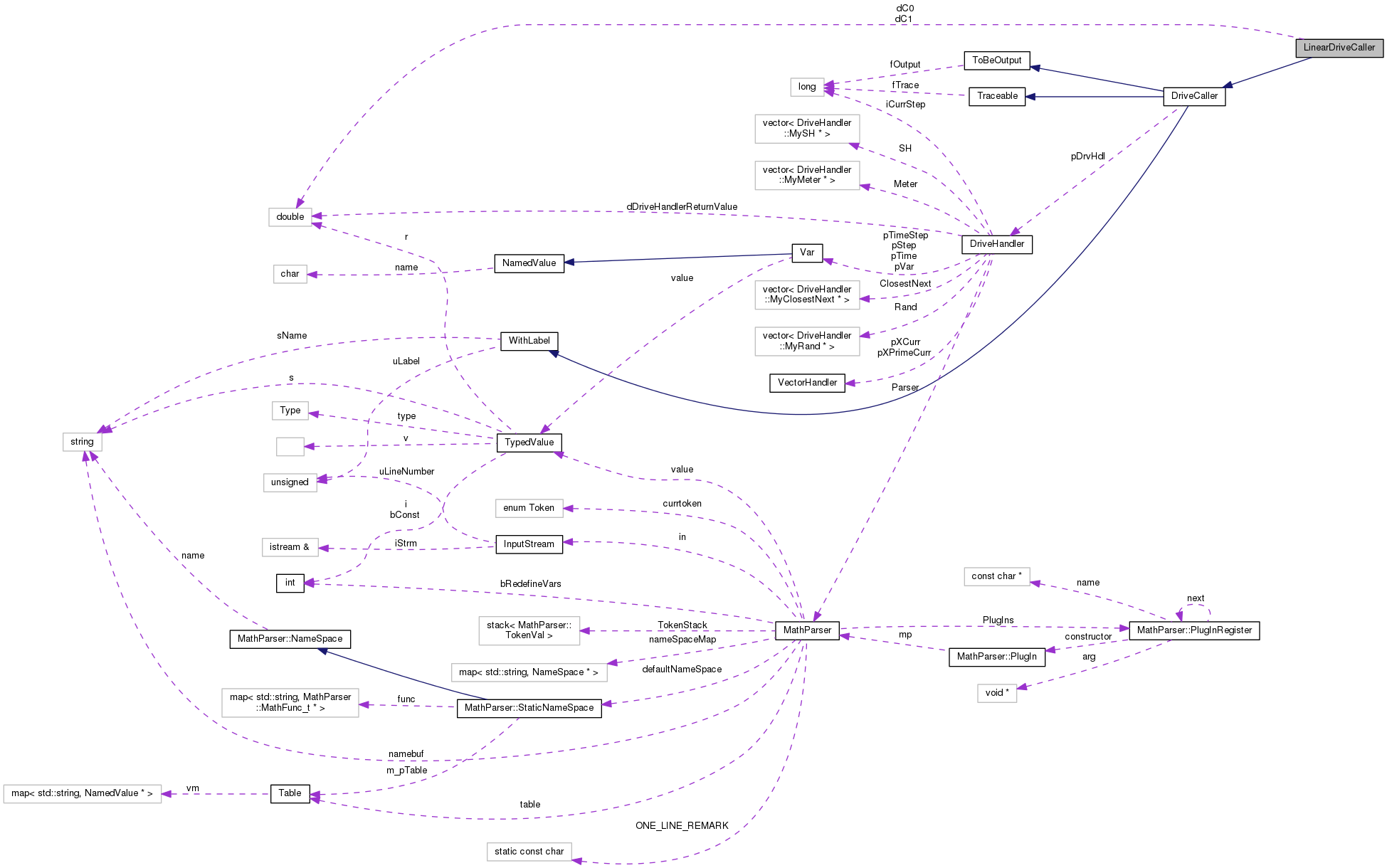

Collaboration diagram for LinearDriveCaller:

Public Member Functions

 LinearDriveCaller (const DriveHandler *pDH, doublereal d0, doublereal d1)

virtual ~LinearDriveCaller (void)

virtual DriveCallerpCopy (void) const

virtual std::ostream & Restart (std::ostream &out) const

doublereal dGet (const doublereal &dVar) const

virtual bool bIsDifferentiable (void) const

virtual doublereal dGetP (const doublereal &dVar) const

- Public Member Functions inherited from DriveCaller
 DriveCaller (const DriveHandler *pDH)

virtual ~DriveCaller (void)

virtual doublereal dGet (void) const

virtual doublereal dGetP (void) const

virtual void SetDrvHdl (const DriveHandler *pDH)

virtual const DriveHandlerpGetDrvHdl (void) const

virtual void Output (OutputHandler &OH) const

virtual void Trace (OutputHandler &OH) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))

- Public Member Functions inherited from Traceable
 Traceable (flag fTrace=0)

virtual ~Traceable (void)

virtual flag fToBeTraced (void) const

virtual void SetTraceFlag (flag f=TRACE)


Private Attributes

doublereal dC0

doublereal dC1


Additional Inherited Members

- Public Types inherited from DriveCaller
enum  OutputFlags { OUTPUT_VALUE = OUTPUT_PRIVATE << 0, OUTPUT_DERIVATIVE = OUTPUT_PRIVATE << 1 }

enum  TraceFlags { TRACE_VALUE = TRACE_PRIVATE << 0, TRACE_DERIVATIVE = TRACE_PRIVATE << 1 }

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Public Types inherited from Traceable
enum  { TRACE = 0x01U, TRACE_PUBLIC_MASK = 0x0FU, TRACE_PRIVATE = 0x10U, TRACE_PRIVATE_MASK = ~TRACE_PUBLIC_MASK }

- Protected Attributes inherited from DriveCaller
DriveHandlerpDrvHdl

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput


Detailed Description

Definition at line 277 of file drive_.h.

Constructor & Destructor Documentation

LinearDriveCaller::LinearDriveCaller ( const DriveHandler pDH,
doublereal  d0,
doublereal  d1
)

Definition at line 284 of file drive_.cc.

References NO_OP.

Referenced by pCopy().

286 : DriveCaller(pDH), dC0(d0), dC1(d1)
287 {
288  NO_OP;
289 }
doublereal dC0
Definition: drive_.h:279
doublereal dC1
Definition: drive_.h:280
#define NO_OP
Definition: myassert.h:74
DriveCaller(const DriveHandler *pDH)
Definition: drive.cc:475
LinearDriveCaller::~LinearDriveCaller ( void  )
virtual

Definition at line 291 of file drive_.cc.

References NO_OP.

292 {
293  NO_OP;
294 }
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

bool LinearDriveCaller::bIsDifferentiable ( void  ) const
inlinevirtual

Reimplemented from DriveCaller.

Definition at line 312 of file drive_.h.

313 {
314  return true;
315 }
doublereal LinearDriveCaller::dGet ( const doublereal dVar) const
inlinevirtual

Implements DriveCaller.

Definition at line 306 of file drive_.h.

References dC0, and dC1.

307 {
308  return dC0 + dVar*dC1;
309 }
doublereal dC0
Definition: drive_.h:279
doublereal dC1
Definition: drive_.h:280
doublereal LinearDriveCaller::dGetP ( const doublereal dVar) const
inlinevirtual

Reimplemented from DriveCaller.

Definition at line 318 of file drive_.h.

References dC1.

319 {
320  return dC1;
321 }
doublereal dC1
Definition: drive_.h:280
DriveCaller * LinearDriveCaller::pCopy ( void  ) const
virtual

Implements DriveCaller.

Definition at line 298 of file drive_.cc.

References dC0, dC1, LinearDriveCaller(), DriveCaller::pDrvHdl, and SAFENEWWITHCONSTRUCTOR.

299 {
300  DriveCaller* pDC = 0;
302  return pDC;
303 }
doublereal dC0
Definition: drive_.h:279
doublereal dC1
Definition: drive_.h:280
LinearDriveCaller(const DriveHandler *pDH, doublereal d0, doublereal d1)
Definition: drive_.cc:284
DriveHandler * pDrvHdl
Definition: drive.h:444
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698

Here is the call graph for this function:

std::ostream & LinearDriveCaller::Restart ( std::ostream &  out) const
virtual

Implements DriveCaller.

Definition at line 307 of file drive_.cc.

References dC0, and dC1.

308 {
309  return out << " linear, " << dC0 << ", " << dC1;
310 }
doublereal dC0
Definition: drive_.h:279
doublereal dC1
Definition: drive_.h:280

Member Data Documentation

doublereal LinearDriveCaller::dC0
private

Definition at line 279 of file drive_.h.

Referenced by dGet(), pCopy(), and Restart().

doublereal LinearDriveCaller::dC1
private

Definition at line 280 of file drive_.h.

Referenced by dGet(), dGetP(), pCopy(), and Restart().


The documentation for this class was generated from the following files:
