CompTplDriveCaller< Mat3x3 > Class Template Reference

Inheritance diagram for CompTplDriveCaller< Mat3x3 >:

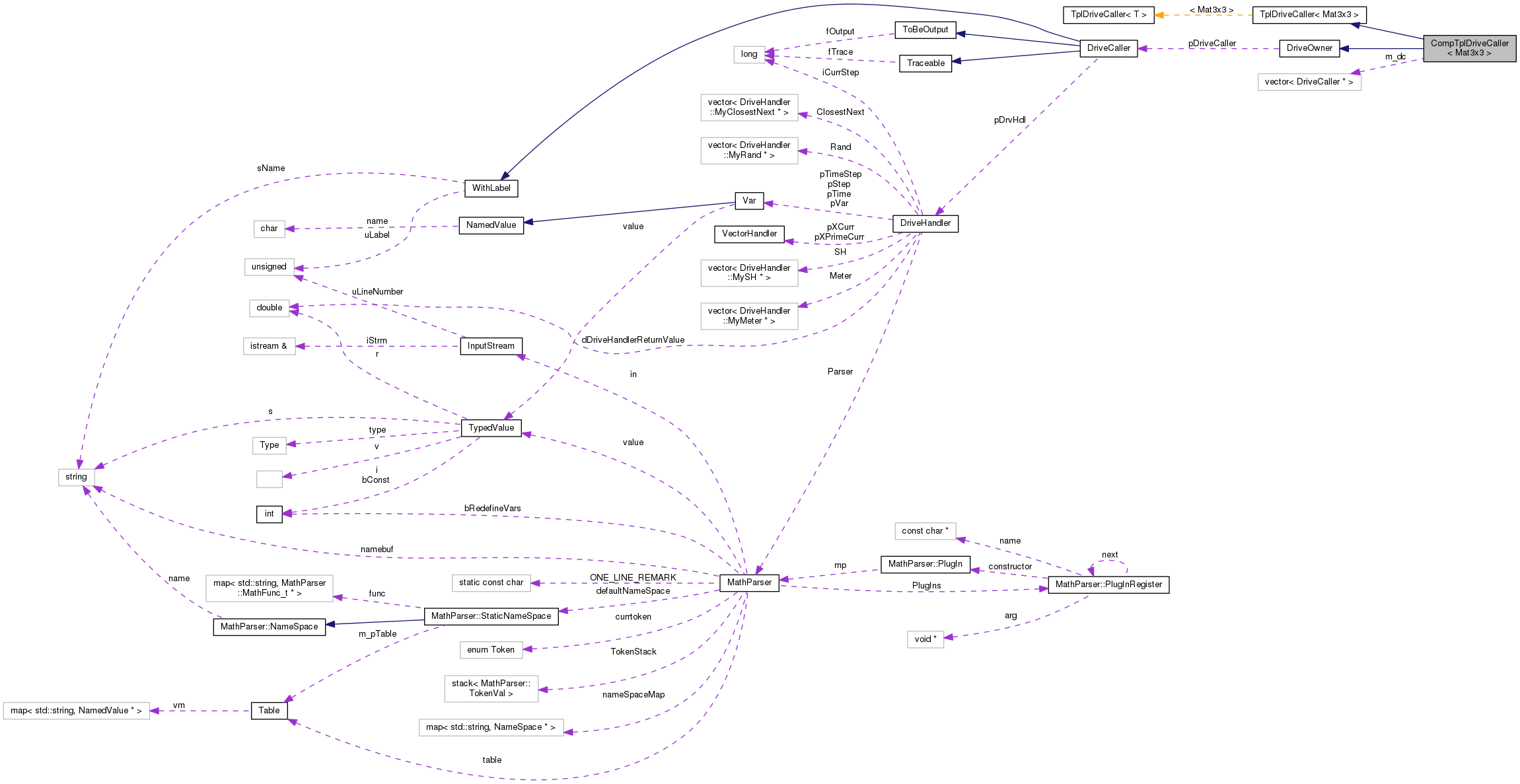

Collaboration diagram for CompTplDriveCaller< Mat3x3 >:

Public Member Functions
	CompTplDriveCaller (std::vector< DriveCaller * > &dc)
	~CompTplDriveCaller (void)
virtual TplDriveCaller< Mat3x3 > *	pCopy (void) const
virtual std::ostream &	Restart (std::ostream &out) const
virtual std::ostream &	Restart_int (std::ostream &out) const
Mat3x3	Get (const doublereal &dVar) const
Mat3x3	Get (void) const
bool	bIsDifferentiable (void) const
Mat3x3	GetP (void) const
int	getNDrives (void) const
Public Member Functions inherited from TplDriveCaller< Mat3x3 >
virtual	~TplDriveCaller (void)
Public Member Functions inherited from DriveOwner
	DriveOwner (const DriveCaller *pDC=0)
	DriveOwner (const DriveOwner &drive)
virtual	~DriveOwner (void)
void	Set (const DriveCaller *pDC)
DriveCaller *	pGetDriveCaller (void) const
doublereal	dGet (const doublereal &dVar) const
doublereal	dGet (void) const
bool	bIsDifferentiable (void) const
doublereal	dGetP (const doublereal &dVar) const
doublereal	dGetP (void) const

Protected Attributes
std::vector< DriveCaller * >	m_dc
Protected Attributes inherited from DriveOwner
DriveCaller *	pDriveCaller

Detailed Description

template<>
class CompTplDriveCaller< Mat3x3 >

Definition at line 213 of file tpldrive_impl.cc.

Constructor & Destructor Documentation

CompTplDriveCaller< Mat3x3 >::CompTplDriveCaller ( std::vector< DriveCaller * > &  dc )

inline

Definition at line 218 of file tpldrive_impl.cc.

References MBDYN_EXCEPT_ARGS.

        : m_dc(dc)
        {
                if (dc.size() != 9) {
                        throw ErrGeneric(MBDYN_EXCEPT_ARGS);
                }
        };

CompTplDriveCaller< Mat3x3 >::~CompTplDriveCaller ( void  )

inline

Definition at line 226 of file tpldrive_impl.cc.

References CompTplDriveCaller< T >::m_dc.

                                  {
                for (unsigned i = 0; i < m_dc.size(); i++) {
                        delete m_dc[i];
                }
        };

Member Function Documentation

bool CompTplDriveCaller< Mat3x3 >::bIsDifferentiable ( void  ) const

inlinevirtual

Reimplemented from TplDriveCaller< Mat3x3 >.

Definition at line 288 of file tpldrive_impl.cc.

References CompTplDriveCaller< T >::bIsDifferentiable(), and CompTplDriveCaller< T >::m_dc.

                                                  {
                for (unsigned i = 0; i < m_dc.size(); i++) {
                        if (!m_dc[i]->bIsDifferentiable()) {
                                return false;
                        }
                }

                return true;
        };

Here is the call graph for this function:

Mat3x3 CompTplDriveCaller< Mat3x3 >::Get ( const doublereal &  dVar ) const

inlinevirtual

Implements TplDriveCaller< Mat3x3 >.

Definition at line 267 of file tpldrive_impl.cc.

References CompTplDriveCaller< T >::m_dc.

                                                        {
                Mat3x3 t;

                for (unsigned i = 0; i < m_dc.size(); i++) {
                        t(i/3 + 1, i%3 + 1) = m_dc[i]->dGet(dVar);
                }

                return t;
        };

Mat3x3 CompTplDriveCaller< Mat3x3 >::Get ( void  ) const

inlinevirtual

Reimplemented from TplDriveCaller< Mat3x3 >.

Definition at line 277 of file tpldrive_impl.cc.

References CompTplDriveCaller< T >::m_dc.

                                      {
                Mat3x3 t;

                for (unsigned i = 0; i < m_dc.size(); i++) {
                        t(i/3 + 1, i%3 + 1) = m_dc[i]->dGet();
                }

                return t;
        };

int CompTplDriveCaller< Mat3x3 >::getNDrives ( void  ) const

inlinevirtual

Implements TplDriveCaller< Mat3x3 >.

Definition at line 308 of file tpldrive_impl.cc.

References CompTplDriveCaller< T >::m_dc.

                                          {
                return m_dc.size();
        };

Mat3x3 CompTplDriveCaller< Mat3x3 >::GetP ( void  ) const

inlinevirtual

Reimplemented from TplDriveCaller< Mat3x3 >.

Definition at line 298 of file tpldrive_impl.cc.

References CompTplDriveCaller< T >::m_dc.

                                       {
                Mat3x3 t;

                for (unsigned i = 0; i < m_dc.size(); i++) {
                        t(i/3 + 1, i%3 + 1) = m_dc[i]->dGetP();
                }

                return t;
        };

virtual TplDriveCaller<Mat3x3>* CompTplDriveCaller< Mat3x3 >::pCopy ( void  ) const

inlinevirtual

Implements TplDriveCaller< Mat3x3 >.

Definition at line 233 of file tpldrive_impl.cc.

References CompTplDriveCaller< T >::m_dc, and SAFENEWWITHCONSTRUCTOR.

                                                          {
                typedef CompTplDriveCaller<Mat3x3> dc;
                TplDriveCaller<Mat3x3>* pDC = 0;

                std::vector<DriveCaller *> tmpdc(m_dc.size());

                for (unsigned i = 0; i < m_dc.size(); i++) {
                        tmpdc[i] = m_dc[i]->pCopy();
                }

                SAFENEWWITHCONSTRUCTOR(pDC, dc, dc(tmpdc));

                return pDC;
        };

virtual std::ostream& CompTplDriveCaller< Mat3x3 >::Restart ( std::ostream &  out ) const

inlinevirtual

Implements TplDriveCaller< Mat3x3 >.

Definition at line 249 of file tpldrive_impl.cc.

References CompTplDriveCaller< T >::m_dc.

                                                           {
                out << "component";

                for (unsigned i = 0; i < m_dc.size(); i++) {
                        out << ", ", m_dc[i]->Restart(out);
                }

                return out;
        };

virtual std::ostream& CompTplDriveCaller< Mat3x3 >::Restart_int ( std::ostream &  out ) const

inlinevirtual

Implements TplDriveCaller< Mat3x3 >.

Definition at line 259 of file tpldrive_impl.cc.

References CompTplDriveCaller< T >::m_dc.

                                                               {
                for (unsigned i = 0; i < m_dc.size(); i++) {
                        out << ", ", m_dc[i]->Restart(out);
                }

                return out;
        };

Member Data Documentation

std::vector<DriveCaller *> CompTplDriveCaller< Mat3x3 >::m_dc

protected

Definition at line 215 of file tpldrive_impl.cc.

---

The documentation for this class was generated from the following file:

• tpldrive_impl.cc
