BiCGStab Class Reference

#include <bicg.h>

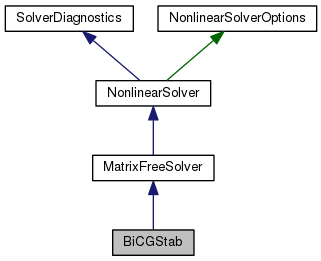

Inheritance diagram for BiCGStab:
Inheritance graph
[legend]

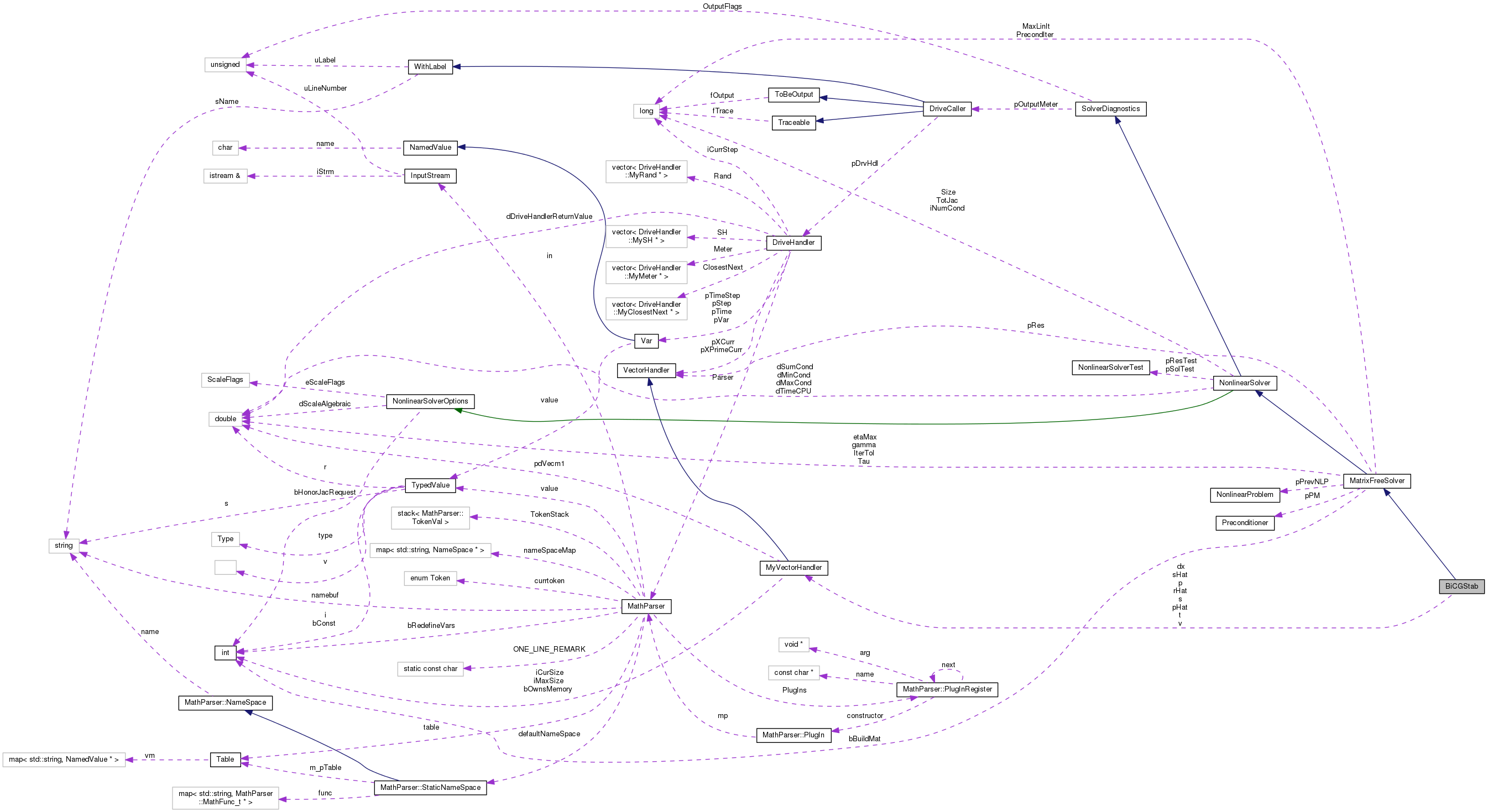

Collaboration diagram for BiCGStab:
Collaboration graph
[legend]

Public Member Functions

 BiCGStab (const Preconditioner::PrecondType PType, const integer iPStep, doublereal ITol, integer MaxIt, doublereal etaMx, doublereal T, const NonlinearSolverOptions &options)

 ~BiCGStab (void)

virtual void Solve (const NonlinearProblem *NLP, Solver *pS, const integer iMaxIter, const doublereal &Tol, integer &iIterCnt, doublereal &dErr, const doublereal &SolTol, doublereal &dSolErr)

- Public Member Functions inherited from MatrixFreeSolver
 MatrixFreeSolver (const Preconditioner::PrecondType PType, const integer iPStep, doublereal ITol, integer MaxIt, doublereal etaMx, doublereal T, const NonlinearSolverOptions &options)

 ~MatrixFreeSolver (void)

- Public Member Functions inherited from NonlinearSolver
 NonlinearSolver (const NonlinearSolverOptions &options)

virtual void SetTest (NonlinearSolverTest *pr, NonlinearSolverTest *ps)

virtual ~NonlinearSolver (void)

virtual bool MakeResTest (Solver *pS, const NonlinearProblem *pNLP, const VectorHandler &Vec, const doublereal &dTol, doublereal &dTest, doublereal &dTestDiff)

virtual integer TotalAssembledJacobian (void)

virtual NonlinearSolverTest * pGetResTest (void)

virtual NonlinearSolverTest * pGetSolTest (void)

- Public Member Functions inherited from SolverDiagnostics
 SolverDiagnostics (unsigned OF=OUTPUT_DEFAULT, DriveCaller *pOM=0)

virtual ~SolverDiagnostics (void)

void SetNoOutput (void)

void SetOutputMeter (DriveCaller *pOM)

void SetOutputDriveHandler (const DriveHandler *pDH)

void SetOutputFlags (unsigned OF)

void AddOutputFlags (unsigned OF)

void DelOutputFlags (unsigned OF)

MatrixHandler::Norm_t GetCondMatNorm (void) const

bool outputMeter (void) const

bool outputIters (void) const

bool outputRes (void) const

bool outputSol (void) const

bool outputJac (void) const

bool outputStep (void) const

bool outputBailout (void) const

bool outputCounter (void) const

bool outputMatrixConditionNumber (void) const

bool outputSolverConditionNumber (void) const

bool outputSolverConditionStat (void) const

bool outputCPUTime (void) const

bool outputMsg (void) const


Private Attributes

MyVectorHandler rHat

MyVectorHandler p

MyVectorHandler pHat

MyVectorHandler s

MyVectorHandler sHat

MyVectorHandler t

MyVectorHandler v

MyVectorHandler dx


Additional Inherited Members

- Public Types inherited from MatrixFreeSolver
enum  SolverType {
  UNKNOWN = -1, BICGSTAB, GMRES, DEFAULT = GMRES,
  LAST
}

- Public Types inherited from NonlinearSolver
enum  Type {
  UNKNOWN = -1, NEWTONRAPHSON, MATRIXFREE, LINESEARCH,
  DEFAULT = NEWTONRAPHSON, LASTSOLVERTYPE
}

- Protected Types inherited from NonlinearSolver
enum  CPUTimeType { CPU_RESIDUAL, CPU_JACOBIAN, CPU_LINEAR_SOLVER, CPU_LAST_TYPE }

- Protected Types inherited from SolverDiagnostics
enum  {
  OUTPUT_NONE = 0x0000, OUTPUT_ITERS = 0x0001, OUTPUT_RES = 0x0002, OUTPUT_SOL = 0x0004,
  OUTPUT_JAC = 0x0008, OUTPUT_BAILOUT = 0x0010, OUTPUT_MSG = 0x0020, OUTPUT_COUNTER = 0x0040,
  OUTPUT_MAT_COND_NUM_1 = 0x0080, OUTPUT_MAT_COND_NUM_INF = 0x0100, OUTPUT_SOLVER_COND_NUM = 0x0200, OUTPUT_SOLVER_COND_STAT = 0x400,
  OUTPUT_CPU_TIME = 0x800, OUTPUT_MAT_COND_NUM = OUTPUT_MAT_COND_NUM_1 | OUTPUT_MAT_COND_NUM_INF, OUTPUT_DEFAULT = OUTPUT_MSG, OUTPUT_STEP = (OUTPUT_ITERS | OUTPUT_RES | OUTPUT_SOL | OUTPUT_JAC | OUTPUT_MAT_COND_NUM | OUTPUT_SOLVER_COND_NUM),
  OUTPUT_MASK = 0x07FF
}

- Protected Types inherited from NonlinearSolverOptions
enum  ScaleFlags { SCALE_ALGEBRAIC_EQUATIONS_NO = 0, SCALE_ALGEBRAIC_EQUATIONS_YES = 1 }

- Protected Member Functions inherited from NonlinearSolver
virtual bool MakeSolTest (Solver *pS, const VectorHandler &Vec, const doublereal &dTol, doublereal &dTest)

doublereal dGetCondMax () const

doublereal dGetCondMin () const

doublereal dGetCondAvg () const

doublereal dGetTimeCPU (CPUTimeType eType) const

void AddCond (doublereal dCond)

void AddTimeCPU (doublereal dTime, CPUTimeType eType)

- Protected Member Functions inherited from NonlinearSolverOptions
 NonlinearSolverOptions (bool bHonorJacRequest=false, enum ScaleFlags eScaleFlags=SCALE_ALGEBRAIC_EQUATIONS_NO, doublereal dScaleAlgebraic=1.)

- Protected Attributes inherited from MatrixFreeSolver
Preconditioner * pPM

VectorHandler * pRes

doublereal IterTol

integer MaxLinIt

doublereal Tau

doublereal gamma

doublereal etaMax

integer PrecondIter

bool bBuildMat

const NonlinearProblem * pPrevNLP

- Protected Attributes inherited from NonlinearSolver
integer Size

integer TotJac

NonlinearSolverTest * pResTest

NonlinearSolverTest * pSolTest

- Protected Attributes inherited from SolverDiagnostics
unsigned OutputFlags

DriveCaller * pOutputMeter

- Protected Attributes inherited from NonlinearSolverOptions
bool bHonorJacRequest

enum
NonlinearSolverOptions::ScaleFlags 		eScaleFlags

doublereal dScaleAlgebraic


Detailed Description

Definition at line 45 of file bicg.h.

Constructor & Destructor Documentation

BiCGStab::BiCGStab ( const Preconditioner::PrecondType  PType,
const integer  iPStep,
doublereal  ITol,
integer  MaxIt,
doublereal  etaMx,
doublereal  T,
const NonlinearSolverOptions &  options
)

Definition at line 57 of file bicg.cc.

References NO_OP.

64 : MatrixFreeSolver(PType, iPStep, ITol, MaxIt, etaMx, T, options)
65 {
66  NO_OP;
67 }
NO_OP
#define NO_OP
Definition: myassert.h:74
MatrixFreeSolver::MatrixFreeSolver
MatrixFreeSolver(const Preconditioner::PrecondType PType, const integer iPStep, doublereal ITol, integer MaxIt, doublereal etaMx, doublereal T, const NonlinearSolverOptions &options)
Definition: mfree.cc:47
BiCGStab::~BiCGStab ( void  )

Definition at line 69 of file bicg.cc.

References NO_OP.

70 {
71  NO_OP;
72 }
NO_OP
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

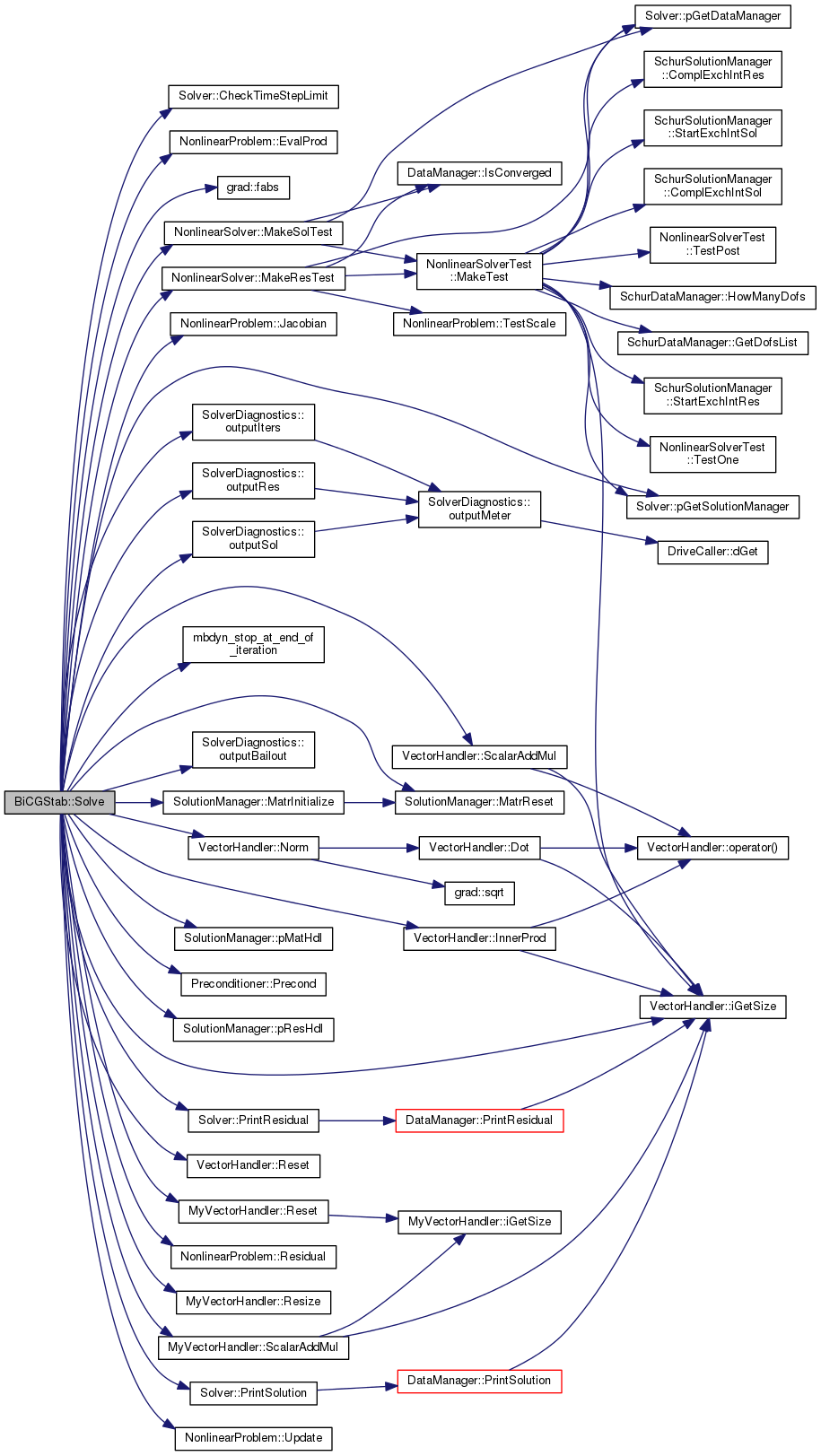

void BiCGStab::Solve ( const NonlinearProblem *  NLP,
Solver *  pS,
const integer  iMaxIter,
const doublereal &  Tol,
integer &  iIterCnt,
doublereal &  dErr,
const doublereal &  SolTol,
doublereal &  dSolErr
)
virtual

Implements NonlinearSolver.

Definition at line 75 of file bicg.cc.

References ASSERT, MatrixFreeSolver::bBuildMat, NonlinearSolverOptions::bHonorJacRequest, Solver::CheckTimeStepLimit(), DEBUGCOUT, dx, MatrixFreeSolver::etaMax, NonlinearProblem::EvalProd(), grad::fabs(), MatrixFreeSolver::gamma, VectorHandler::iGetSize(), VectorHandler::InnerProd(), NonlinearProblem::Jacobian(), NonlinearSolver::MakeResTest(), NonlinearSolver::MakeSolTest(), SolutionManager::MatrInitialize(), SolutionManager::MatrReset(), MatrixFreeSolver::MaxLinIt, MBDYN_EXCEPT_ARGS, mbdyn_stop_at_end_of_iteration(), VectorHandler::Norm(), SolverDiagnostics::outputBailout(), SolverDiagnostics::outputIters(), SolverDiagnostics::outputRes(), SolverDiagnostics::outputSol(), p, Solver::pGetSolutionManager(), pHat, SolutionManager::pMatHdl(), MatrixFreeSolver::pPM, MatrixFreeSolver::pPrevNLP, Preconditioner::Precond(), MatrixFreeSolver::PrecondIter, MatrixFreeSolver::pRes, SolutionManager::pResHdl(), Solver::PrintResidual(), Solver::PrintSolution(), VectorHandler::Reset(), MyVectorHandler::Reset(), NonlinearProblem::Residual(), MyVectorHandler::Resize(), rHat, s, VectorHandler::ScalarAddMul(), MyVectorHandler::ScalarAddMul(), sHat, NonlinearSolver::Size, t, MatrixFreeSolver::Tau, NonlinearSolver::TotJac, NonlinearProblem::Update(), and v.

83 {
84  ASSERT(pNLP != NULL);
85  ASSERT(pS != NULL);
86
87  SolutionManager *pSM = pS->pGetSolutionManager();
88
89  iIterCnt = 0;
90  dSolErr = 0.;
91
92  /* external nonlinear iteration */
93
94  /* riassembla sempre lo jacobiano se l'integratore e' nuovo */
95  if (pNLP != pPrevNLP) {
96  bBuildMat = true;
97  }
98
99  if (!PrecondIter) {
100  bBuildMat = true;
101  }
102
103  pPrevNLP = pNLP;
104  pRes = pSM->pResHdl();
105  Size = pRes->iGetSize();
106
107  doublereal eta = etaMax;
108  doublereal rateo = 0.;
109  doublereal Fnorm = 1.;
110  doublereal resid;
111  doublereal rho_1;
112  doublereal rho_2 = 0.;
113  doublereal alpha;
114  doublereal beta;
115  doublereal omega;
116  VectorHandler* pr;
117
118  /*
119  * these will be resized (actually allocated)
120  * only the first time they're used, unless
121  * the size of the problem changes
122  *
123  * FIXME: need to review this code.
124  */
125  rHat.Resize(Size);
126  p.Resize(Size);
127  pHat.Resize(Size);
128  s.Resize(Size);
129  sHat.Resize(Size);
130  t.Resize(Size);
131  v.Resize(Size);
132  dx.Resize(Size);
133
134  integer TotalIter = 0;
135
136 #ifdef DEBUG_ITERATIVE
137  std::cout << " BiCGStab New Step " <<std::endl;
138 #endif /* DEBUG_ITERATIVE */
139
140  doublereal dOldErr = 1.; //initialize to silence g++ warning
141  doublereal dErrFactor = 1.;
142  doublereal dErrDiff = 0.;
143
144  while (true) {
145
146 #ifdef USE_EXTERNAL
147  SendExternal();
148 #endif /* USE_EXTERNAL */
149
150  pRes->Reset();
151  try {
152  pNLP->Residual(pRes);
153  }
154  catch (SolutionDataManager::ChangedEquationStructure) {
155  if (bHonorJacRequest) {
156  bBuildMat = true;
157  }
158  }
159
160  if (outputRes()) {
161  pS->PrintResidual(*pRes, iIterCnt);
162  }
163
164  bool bTest = MakeResTest(pS, pNLP, *pRes, Tol, dErr, dErrDiff);
165  if (iIterCnt > 0) {
166  dErrFactor *= dErr/dOldErr;
167  }
168  dOldErr = dErr;
169
170 #ifdef DEBUG_ITERATIVE
171  std::cerr << "dErr " << dErr << std::endl;
172 #endif /* DEBUG_ITERATIVE */
173
174  if (outputIters()) {
175 #ifdef USE_MPI
176  if (!bParallel || MBDynComm.Get_rank() == 0)
177 #endif /* USE_MPI */
178  {
179  silent_cout("\tIteration(" << iIterCnt << ") " << dErr);
180  if (bBuildMat && !bTest) {
181  silent_cout(" J");
182  }
183  silent_cout(std::endl);
184  }
185  }
186
187  pS->CheckTimeStepLimit(dErr, dErrDiff);
188
189  if (bTest) {
190  return;
191  }
192  if (!std::isfinite(dErr)) {
193  throw ErrSimulationDiverged(MBDYN_EXCEPT_ARGS);
194  }
195  if (iIterCnt >= std::abs(iMaxIter)) {
196  if (iMaxIter < 0 && dErrFactor < 1.) {
197  return;
198  }
199  if (outputBailout()) {
200  pS->PrintResidual(*pRes, iIterCnt);
201  }
202  throw NoConvergence(MBDYN_EXCEPT_ARGS);
203  }
204  rateo = dErr*dErr/Fnorm;
205  Fnorm = dErr*dErr;
206
207  iIterCnt++;
208
209  /* inner iteration to solve the linear system */
210
211  /* BiCGSTAB Iterative solver */
212  DEBUGCOUT("Using BiCGStab iterative solver" << std::endl);
213
214  /* r0 = b- A*x0 but we choose (x0 = 0) => r0 = b */
215  /* N.B. *pRes = -F(0) */
216
217  pr = pRes;
218  doublereal LocTol = eta * dErr;
219
220  rHat = *pr;
221
222 #ifdef DEBUG_ITERATIVE
223  std::cerr << "LocTol " << LocTol << std::endl;
224 #endif /* DEBUG_ITERATIVE */
225
226  rho_1 = dErr*dErr; /*rhat.InnerProd(r); */
227  resid = dErr;
228  v.Reset();
229  t.Reset();
230  p.Reset();
231  dx.Reset();
232
233  if (bBuildMat) {
234  pSM->MatrReset();
235
236 rebuild_matrix:;
237  try {
238  pNLP->Jacobian(pSM->pMatHdl());
239
240  } catch (MatrixHandler::ErrRebuildMatrix) {
241  silent_cout("NewtonRaphsonSolver: "
242  "rebuilding matrix..."
243  << std::endl);
244
245  /* need to rebuild the matrix... */
246  pSM->MatrInitialize();
247  goto rebuild_matrix;
248
249  } catch (...) {
250  throw;
251  }
252
253  bBuildMat = false;
254  TotalIter = 0;
255  TotJac++;
256
257 #ifdef DEBUG_ITERATIVE
258  std::cerr << "Jacobian " << std::endl;
259 #endif /* DEBUG_ITERATIVE */
260
261  }
262
263 #ifdef DEBUG_ITERATIVE
264  std::cerr << "rho_1 " << rho_1 << std::endl;
265 #endif /* DEBUG_ITERATIVE */
266
267  int It = 0;
268  while ((resid > LocTol) && (It++ < MaxLinIt)) {
269  if (It == 1) {
270  p = *pr;
271  } else {
272  rho_1 = rHat.InnerProd(*pr);
273
274 #ifdef DEBUG_ITERATIVE
275  std::cerr << "rho_1 " << rho_1 << std::endl;
276 #endif /* DEBUG_ITERATIVE */
277
278  if (fabs(rho_1) < std::numeric_limits<doublereal>::epsilon()) {
279  silent_cout("Bi-CGStab Iterative "
280  "Solver breakdown"
281  << " rho_1 = 0 "
282  << std::endl);
283  break;
284  }
285  beta = (rho_1/rho_2) * (alpha/omega);
286
287 #ifdef DEBUG_ITERATIVE
288  std::cerr << "beta " << beta << std::endl;
289 #endif /* DEBUG_ITERATIVE */
290
291  p.ScalarAddMul(*pr, p.ScalarAddMul(v, -omega), beta);
292  }
293  /* right preconditioning */
294  pPM->Precond(p, pHat, pSM);
295  pNLP->EvalProd(Tau, rHat, pHat, v);
296 #if 0
297  (pSM->pMatHdl())->MatVecMul(v,pHat);
298 #endif
299 #ifdef DEBUG_ITERATIVE
300  std::cout << "v:" << std::endl;
301  for (int iTmpCnt = 1; iTmpCnt <= Size; iTmpCnt++) {
302  std::cout << "Dof" << std::setw(4) << iTmpCnt << ": "
303  << v(iTmpCnt) << std::endl;
304  }
305 #endif /* DEBUG_ITERATIVE */
306
307  alpha = rHat.InnerProd(v);
308  alpha = rho_1 / alpha;
309
310 #ifdef DEBUG_ITERATIVE
311  std::cerr << "alpha " << alpha << std::endl;
312 #endif /* DEBUG_ITERATIVE */
313
314  s.ScalarAddMul(*pr, v, -alpha);
315
316 #ifdef DEBUG_ITERATIVE
317  std::cerr << "s.Norm() " << s.Norm() << std::endl;
318 #endif /* DEBUG_ITERATIVE */
319
320  if ((resid = s.Norm()) < LocTol) {
321  dx.ScalarAddMul(pHat, alpha);
322  TotalIter++;
323  break;
324  }
325  pPM->Precond(s, sHat, pSM);
326  pNLP->EvalProd(Tau, rHat, sHat, t);
327 #if 0
328  (pSM->pMatHdl())->MatVecMul(t,sHat);
329 #endif
330  omega = t.Norm();
331  omega = t.InnerProd(s) / omega;
332
333 #ifdef DEBUG_ITERATIVE
334  std::cerr << "omega " << omega << std::endl;
335 #endif /* DEBUG_ITERATIVE */
336
337  dx.ScalarAddMul(pHat, alpha);
338  dx.ScalarAddMul(sHat, omega);
339  pr->ScalarAddMul(s, t, -omega);
340  rho_2 = rho_1;
341  resid = pr->Norm();
342
343 #ifdef DEBUG_ITERATIVE
344  std::cerr << "resid " << resid << std::endl;
345 #endif /* DEBUG_ITERATIVE */
346
347  TotalIter++;
348  if (fabs(omega) < std::numeric_limits<doublereal>::epsilon()) {
349  silent_cout("Bi-CGStab Iterative Solver "
350  "breakdown omega = 0 " << std::endl);
351  break;
352  }
353  if (It == MaxLinIt) {
354  silent_cerr("Iterative inner solver didn't "
355  "converge. Continuing..."
356  << std::endl);
357  }
358  }
359  /* se ha impiegato troppi passi riassembla lo jacobiano */
360
361  if (TotalIter >= PrecondIter && PrecondIter) {
362  bBuildMat = true;
363  }
364  /* calcola il nuovo eta */
365
366  doublereal etaNew = gamma * rateo;
367  doublereal etaBis;
368  if ((etaBis = gamma*eta*eta) > .1) {
369  etaNew = (etaNew > etaBis) ? etaNew : etaBis;
370  }
371  eta = (etaNew < etaMax) ? etaNew : etaMax;
372  /* prevent oversolving */
373  etaBis = .5*Tol/dErr;
374  eta = (eta > etaBis) ? eta : etaBis;
375
376 #ifdef DEBUG_ITERATIVE
377  std::cerr << "eta " << eta << std::endl;
378 #endif /* DEBUG_ITERATIVE */
379
380  if (outputSol()) {
381  pS->PrintSolution(dx, iIterCnt);
382  }
383
384  pNLP->Update(&dx);
385
386  bTest = MakeSolTest(pS, dx, SolTol, dSolErr);
387  if (outputIters()) {
388 #ifdef USE_MPI
389  if (!bParallel || MBDynComm.Get_rank() == 0)
390 #endif /* USE_MPI */
391  {
392  silent_cout("\t\tSolErr " << dSolErr
393  << std::endl);
394  }
395  }
396
397  if (bTest) {
398  throw ConvergenceOnSolution(MBDYN_EXCEPT_ARGS);
399  }
400
401  // allow to bail out in case of multiple CTRL^C
402  if (mbdyn_stop_at_end_of_iteration()) {
403  throw ErrInterrupted(MBDYN_EXCEPT_ARGS);
404  }
405  }
406 }
MatrixFreeSolver::pPM
Preconditioner * pPM
Definition: mfree.h:61
VectorHandler::Reset
virtual void Reset(void)=0
SolutionManager::pResHdl
virtual VectorHandler * pResHdl(void) const =0
Solver::pGetSolutionManager
virtual SolutionManager * pGetSolutionManager(void) const
Definition: solver.h:398
SolverDiagnostics::outputIters
bool outputIters(void) const
Definition: solverdiagnostics.h:84
NonlinearSolver::TotJac
integer TotJac
Definition: nonlin.h:252
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
SolverDiagnostics::outputBailout
bool outputBailout(void) const
Definition: solverdiagnostics.h:104
BiCGStab::pHat
MyVectorHandler pHat
Definition: bicg.h:48
NonlinearSolver::MakeSolTest
virtual bool MakeSolTest(Solver *pS, const VectorHandler &Vec, const doublereal &dTol, doublereal &dTest)
Definition: nonlin.cc:497
Solver::PrintResidual
virtual void PrintResidual(const VectorHandler &Res, integer iIterCnt) const
Definition: solver.cc:5194
NonlinearSolver::MakeResTest
virtual bool MakeResTest(Solver *pS, const NonlinearProblem *pNLP, const VectorHandler &Vec, const doublereal &dTol, doublereal &dTest, doublereal &dTestDiff)
Definition: nonlin.cc:474
BiCGStab::s
MyVectorHandler s
Definition: bicg.h:48
MatrixFreeSolver::bBuildMat
bool bBuildMat
Definition: mfree.h:69
Solver::CheckTimeStepLimit
virtual void CheckTimeStepLimit(doublereal dErr, doublereal dErrDiff) const
Definition: solver.cc:5205
VectorHandler::InnerProd
virtual doublereal InnerProd(const VectorHandler &VH) const
Definition: vh.cc:269
MyVectorHandler::ScalarAddMul
virtual VectorHandler & ScalarAddMul(const VectorHandler &VH, const VectorHandler &VH1, const doublereal &d)
Definition: vh.cc:499
SolverDiagnostics::outputRes
bool outputRes(void) const
Definition: solverdiagnostics.h:88
NonlinearSolver::Size
integer Size
Definition: nonlin.h:251
BiCGStab::rHat
MyVectorHandler rHat
Definition: bicg.h:48
BiCGStab::dx
MyVectorHandler dx
Definition: bicg.h:48
VectorHandler::iGetSize
virtual integer iGetSize(void) const =0
VectorHandler::Norm
virtual doublereal Norm(void) const
Definition: vh.cc:262
BiCGStab::p
MyVectorHandler p
Definition: bicg.h:48
grad::fabs
GradientExpression< UnaryExpr< FuncFabs, Expr > > fabs(const GradientExpression< Expr > &u)
Definition: gradient.h:2973
MyVectorHandler::Resize
virtual void Resize(integer iSize)
Definition: vh.cc:347
BiCGStab::t
MyVectorHandler t
Definition: bicg.h:48
mbdyn_stop_at_end_of_iteration
int mbdyn_stop_at_end_of_iteration(void)
Definition: solver.cc:172
MatrixFreeSolver::PrecondIter
integer PrecondIter
Definition: mfree.h:68
SolverDiagnostics::outputSol
bool outputSol(void) const
Definition: solverdiagnostics.h:92
MatrixFreeSolver::pPrevNLP
const NonlinearProblem * pPrevNLP
Definition: mfree.h:70
SolutionManager::pMatHdl
virtual MatrixHandler * pMatHdl(void) const =0
BiCGStab::sHat
MyVectorHandler sHat
Definition: bicg.h:48
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
SolutionManager::MatrReset
virtual void MatrReset(void)=0
BiCGStab::v
MyVectorHandler v
Definition: bicg.h:48
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
Preconditioner::Precond
virtual void Precond(VectorHandler &b, VectorHandler &x, SolutionManager *pSM) const =0
SolutionManager::MatrInitialize
virtual void MatrInitialize(void)
Definition: solman.cc:72
MyVectorHandler::Reset
virtual void Reset(void)
Definition: vh.cc:459
MatrixFreeSolver::MaxLinIt
integer MaxLinIt
Definition: mfree.h:64
MatrixFreeSolver::Tau
doublereal Tau
Definition: mfree.h:65
VectorHandler::ScalarAddMul
virtual VectorHandler & ScalarAddMul(const VectorHandler &VH, const doublereal &d)
Definition: vh.cc:108
MatrixFreeSolver::pRes
VectorHandler * pRes
Definition: mfree.h:62
Solver::PrintSolution
virtual void PrintSolution(const VectorHandler &Sol, integer iIterCnt) const
Definition: solver.cc:5200
MatrixFreeSolver::etaMax
doublereal etaMax
Definition: mfree.h:67
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51
MatrixFreeSolver::gamma
doublereal gamma
Definition: mfree.h:66

Here is the call graph for this function:

Member Data Documentation

MyVectorHandler BiCGStab::dx
private

Definition at line 48 of file bicg.h.

Referenced by Solve().

MyVectorHandler BiCGStab::p
private

Definition at line 48 of file bicg.h.

Referenced by Solve().

MyVectorHandler BiCGStab::pHat
private

Definition at line 48 of file bicg.h.

Referenced by Solve().

MyVectorHandler BiCGStab::rHat
private

Definition at line 48 of file bicg.h.

Referenced by Solve().

MyVectorHandler BiCGStab::s
private

Definition at line 48 of file bicg.h.

Referenced by Solve().

MyVectorHandler BiCGStab::sHat
private

Definition at line 48 of file bicg.h.

Referenced by Solve().

MyVectorHandler BiCGStab::t
private

Definition at line 48 of file bicg.h.

Referenced by Solve().

MyVectorHandler BiCGStab::v
private

Definition at line 48 of file bicg.h.

Referenced by Solve().

The documentation for this class was generated from the following files:
