MBDyn-1.7.3
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups
Public Member Functions | List of all members
NonlinearProblem Class Referenceabstract

#include <nonlinpb.h>

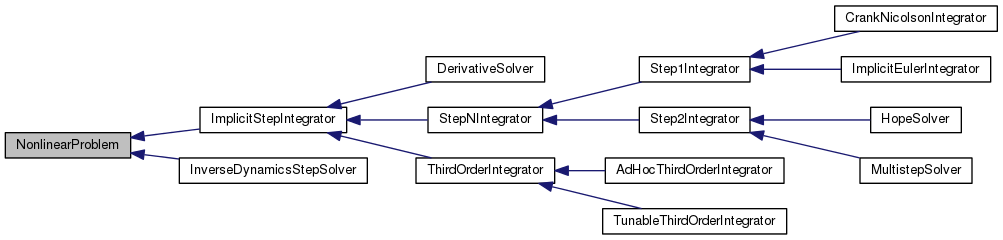

Inheritance diagram for NonlinearProblem:
Inheritance graph
[legend]

Public Member Functions

virtual ~NonlinearProblem (void)

virtual void Residual (VectorHandler *pRes) const =0

virtual void Jacobian (MatrixHandler *pJac) const =0

virtual void Update (const VectorHandler *pSol) const =0

virtual doublereal TestScale (const NonlinearSolverTest *pTest, doublereal &dAlgebraicEquations) const =0

virtual void EvalProd (doublereal Tau, const VectorHandler &f0, const VectorHandler &w, VectorHandler &z) const =0


Detailed Description

Definition at line 47 of file nonlinpb.h.

Constructor & Destructor Documentation

virtual NonlinearProblem::~NonlinearProblem ( void  )
inlinevirtual

Definition at line 51 of file nonlinpb.h.

51 { };

Member Function Documentation

virtual void NonlinearProblem::EvalProd ( doublereal  Tau,
const VectorHandler &  f0,
const VectorHandler &  w,
VectorHandler &  z
) const
pure virtual

Implemented in InverseDynamicsStepSolver, and ImplicitStepIntegrator.

Referenced by BiCGStab::Solve(), and Gmres::Solve().

virtual void NonlinearProblem::Jacobian ( MatrixHandler *  pJac) const
pure virtual

Implemented in InverseDynamicsStepSolver, StepNIntegrator, DerivativeSolver, and ThirdOrderIntegrator.

Referenced by LineSearchSolver::Jacobian(), BiCGStab::Solve(), NewtonRaphsonSolver::Solve(), and Gmres::Solve().

virtual void NonlinearProblem::Residual ( VectorHandler *  pRes) const
pure virtual

Implemented in InverseDynamicsStepSolver, StepNIntegrator, DerivativeSolver, and ThirdOrderIntegrator.

Referenced by ImplicitStepIntegrator::EvalProd(), LineSearchSolver::Residual(), BiCGStab::Solve(), NewtonRaphsonSolver::Solve(), and Gmres::Solve().

virtual doublereal NonlinearProblem::TestScale ( const NonlinearSolverTest *  pTest,
doublereal &  dAlgebraicEquations
) const
pure virtual

Implemented in InverseDynamicsStepSolver, StepNIntegrator, DerivativeSolver, and ImplicitStepIntegrator.

Referenced by NonlinearSolver::MakeResTest().

virtual void NonlinearProblem::Update ( const VectorHandler *  pSol) const
pure virtual

Implemented in InverseDynamicsStepSolver, StepNIntegrator, DerivativeSolver, and ThirdOrderIntegrator.

Referenced by ImplicitStepIntegrator::EvalProd(), LineSearchSolver::LineSearch(), BiCGStab::Solve(), NewtonRaphsonSolver::Solve(), and Gmres::Solve().

The documentation for this class was generated from the following file:
