c81data.cc File Reference

#include "mbconfig.h"
#include <cerrno>
#include <cstdlib>
#include <cstdio>
#include <cstring>
#include <iostream>
#include <sstream>
#include <iomanip>
#include <cmath>
#include "ac/f2c.h"
#include "myassert.h"
#include "aerodc81.h"
#include "c81data.h"

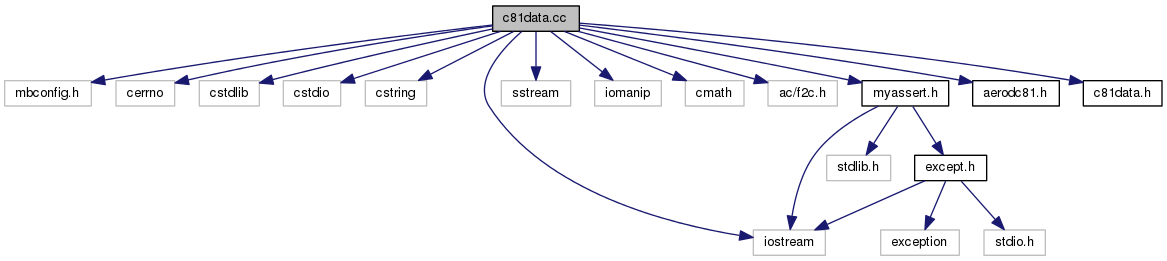

Include dependency graph for c81data.cc:

Go to the source code of this file.

Functions
static int	do_stall (int NM, int NA, doublereal *a, doublereal *stall, const doublereal dcltol)
static int	get_int (const char *const from, int &i)
static int	get_double (const char *const from, doublereal &d)
static int	get_c81_vec (std::istream &in, doublereal *v, int ncols)
static int	check_vec (doublereal *v, int n)
static int	get_c81_mat (std::istream &in, doublereal *m, int nrows, int ncols)
static int	put_c81_row (std::ostream &out, doublereal *v, int dim, int ncols, int first=0)
static int	put_c81_vec (std::ostream &out, doublereal *v, int nrows)
static int	put_c81_mat (std::ostream &out, doublereal *m, int nrows, int ncols)
void	c81_data_destroy (c81_data *data)
int	c81_data_read (std::istream &in, c81_data *data, const doublereal dcltol, int *ff)
int	c81_data_merge (unsigned ndata, const c81_data **data, const doublereal *upper_bounds, doublereal dCsi, doublereal dcltol, c81_data *i_data)
int	c81_data_write (std::ostream &out, c81_data *data)
int	read_fc511_row (std::istream &in, doublereal *d, int NC)
int	read_fc511_mat (std::istream &in, doublereal *d, int NR, int NC)
int	read_fc511_block (std::istream &in, int &NA, int &NM, doublereal *&da, doublereal *&dm)
int	c81_data_fc511_read (std::istream &in, c81_data *data, const doublereal dcltol)
int	c81_data_nrel_read (std::istream &in, c81_data *data, const doublereal dcltol)
int	c81_data_read_free_format (std::istream &in, c81_data *data, const doublereal dcltol)
int	c81_data_write_free_format (std::ostream &out, c81_data *data)
c81_data *	get_c81_data (long int jpro)
int	c81_data_set (long int jpro, c81_data *data)
int	c81_data_do_stall (c81_data *data, const doublereal dcltol)
static int	flip_one (int NM, int NA, doublereal *v, int ss)
int	c81_data_flip (c81_data *data)

Variables
static int	c81_ndata = 0
static c81_data **	__c81_pdata = NULL

Function Documentation

void c81_data_destroy

(

c81_data *

data

)

Definition at line 276 of file c81data.cc.

References c81_data::ad, c81_data::al, c81_data::am, c81_data::md, c81_data::ml, c81_data::mm, c81_data::mstall, and c81_data::stall.

Referenced by main(), C81InterpolatedAeroData::~C81InterpolatedAeroData(), and MBDynParser::~MBDynParser().

{
        delete[] data->ml;
        delete[] data->al;

        delete[] data->md;
        delete[] data->ad;

        delete[] data->mm;
        delete[] data->am;

        delete[] data->stall;
        delete[] data->mstall;
}

int c81_data_do_stall	(	c81_data *	data,
		const doublereal	dcltol
	)

Definition at line 1244 of file c81data.cc.

References c81_data::al, c81_data::am, do_stall(), c81_data::mstall, c81_data::NAL, c81_data::NAM, c81_data::NML, c81_data::NMM, and c81_data::stall.

Referenced by c81_data_fc511_read(), c81_data_merge(), c81_data_nrel_read(), c81_data_read(), and c81_data_read_free_format().

{
        if (data == NULL || data->NML <= 0 || data->NMM <= 0) {
                return -1;
        }

        data->stall = new doublereal[3*data->NML];
        do_stall(data->NML, data->NAL, data->al, data->stall, dcltol);

        data->mstall = new doublereal[3*data->NMM];
        do_stall(data->NMM, data->NAM, data->am, data->mstall, dcltol);

        return 0;
}

Here is the call graph for this function:

int c81_data_fc511_read	(	std::istream &	in,
		c81_data *	data,
		const doublereal	dcltol
	)

Definition at line 810 of file c81data.cc.

References c81_data::ad, c81_data::al, c81_data::am, buf, c81_data_do_stall(), c81_data::header, c81_data::md, c81_data::ml, c81_data::mm, c81_data::NAD, c81_data::NAL, c81_data::NAM, c81_data::NMD, c81_data::NML, c81_data::NMM, read_fc511_block(), and STRLENOF.

Referenced by MBDynParser::C81Data_int(), and main().

{
        char buf[128];  // 81 should suffice; let's make it 128

        /* header */
        in.getline(buf, sizeof(buf));

        memcpy(data->header, buf, sizeof(data->header));
        data->header[STRLENOF(data->header)] = '\0';

        char    *p;

        in.getline(buf, sizeof(buf));
        p = buf;

        while (isspace(p[0])) {
                p++;
        }

        if (!p[0] || strncasecmp(p, "cl", 2) != 0 || (p[2] != '\0' && !isspace(p[2]))) {
                return -1;
        }

        if (read_fc511_block(in, data->NAL, data->NML, data->al, data->ml)) {
                return -1;
        }

        in.getline(buf, sizeof(buf));
        p = buf;

        while (isspace(p[0])) {
                p++;
        }

        if (!p[0] || strncasecmp(p, "cd", 2) != 0 || (p[2] != '\0' && !isspace(p[2]))) {
                return -1;
        }

        if (read_fc511_block(in, data->NAD, data->NMD, data->ad, data->md)) {
                return -1;
        }

        in.getline(buf, sizeof(buf));
        p = buf;

        while (isspace(p[0])) {
                p++;
        }

        if (!p[0] || strncasecmp(p, "cm", 2) != 0 || (p[2] != '\0' && !isspace(p[2]))) {
                return -1;
        }

        if (read_fc511_block(in, data->NAM, data->NMM, data->am, data->mm)) {
                return -1;
        }

        /* FIXME: maybe this is not the best place */
        c81_data_do_stall(data, dcltol);

        return 0;
}

Here is the call graph for this function:

int c81_data_flip

(

c81_data *

data

)

Definition at line 1286 of file c81data.cc.

References c81_data::ad, c81_data::al, c81_data::am, flip_one(), c81_data::NAD, c81_data::NAL, c81_data::NAM, c81_data::NMD, c81_data::NML, and c81_data::NMM.

Referenced by MBDynParser::C81Data_int(), and main().

{
        int rc;

        rc = flip_one(data->NML, data->NAL, data->al, -1);
        if (rc) {
                return rc;
        }

        rc = flip_one(data->NMD, data->NAD, data->ad, 1);
        if (rc) {
                return rc;
        }

        rc = flip_one(data->NMM, data->NAM, data->am, -1);
        return rc;
}

Here is the call graph for this function:

int c81_data_merge	(	unsigned	ndata,
		const c81_data **	data,
		const doublereal *	upper_bounds,
		doublereal	dCsi,
		doublereal	dcltol,
		c81_data *	i_data
	)

Definition at line 396 of file c81data.cc.

References c81_data::ad, c81_data::al, c81_data::am, ASSERT, c81_data_do_stall(), for(), c81_data::header, c81_data::md, c81_data::ml, c81_data::mm, c81_data::NAD, c81_data::NAL, c81_data::NAM, c81_data::NMD, c81_data::NML, and c81_data::NMM.

Referenced by C81InterpolatedAeroData::C81InterpolatedAeroData().

{
        ASSERT(ndata > 0);
        ASSERT(data != 0);
        ASSERT(upper_bounds != 0);
        ASSERT(dCsi >= -1.);
        ASSERT(dCsi <= 1.);
        ASSERT(dcltol > 0.);
        ASSERT(i_data != 0);

        if (dCsi < upper_bounds[0]) {
                silent_cerr("cannot find C81 data lower bound for point xi=" << dCsi << std::endl);
                return -1;
        }

        int to = 0;
        for (unsigned i = 1; i < ndata; i++) {
                if (upper_bounds[i] > dCsi) {
                        to = i;
                        break;
                }
        }
        if (to == 0) {
                silent_cerr("cannot find C81 data upper bound for point xi=" << dCsi << std::endl);
                return -1;
        }

        int from = to - 1;
        if (unsigned(from) == ndata) {
                silent_cerr("cannot find C81 data upper bound for point xi=" << dCsi << std::endl);
                return -1;
        }

        /* we need to interpolate between data[from]
         * and data[to] */

        /* we only accept homogeneous data sources,
         * i.e. same Mach and alpha patterns */
        if (data[from]->NML != data[to]->NML) {
                silent_cerr("number of Mach points for Cl between airfoils "
                        << from << " (" << data[from]->NML << ") and "
                        << to << " (" << data[to]->NML << ") do not match"
                        << std::endl);
                return -1;
        }

        if (data[from]->NAL != data[to]->NAL) {
                silent_cerr("number of AoA points for Cl between airfoils "
                        << from << " (" << data[from]->NAL << ") and "
                        << to << " (" << data[to]->NAL << ") do not match"
                        << std::endl);
                return -1;
        }

        if (data[from]->NMD != data[to]->NMD) {
                silent_cerr("number of Mach points for Cd between airfoils "
                        << from << " (" << data[from]->NMD << ") and "
                        << to << " (" << data[to]->NMD << ") do not match"
                        << std::endl);
                return -1;
        }

        if (data[from]->NAD != data[to]->NAD) {
                silent_cerr("number of AoA points for Cd between airfoils "
                        << from << " (" << data[from]->NAD << ") and "
                        << to << " (" << data[to]->NAD << ") do not match"
                        << std::endl);
                return -1;
        }

        if (data[from]->NMM != data[to]->NMM) {
                silent_cerr("number of Mach points for Cm between airfoils "
                        << from << " (" << data[from]->NMM << ") and "
                        << to << " (" << data[to]->NMM << ") do not match"
                        << std::endl);
                return -1;
        }

        if (data[from]->NAM != data[to]->NAM) {
                silent_cerr("number of AoA points for Cm between airfoils "
                        << from << " (" << data[from]->NAM << ") and "
                        << to << " (" << data[to]->NAM << ") do not match"
                        << std::endl);
                return -1;
        }

        for (int i = 0; i < data[from]->NML; i++) {
                if (data[from]->ml[i] != data[to]->ml[i]) {
                        silent_cerr("Mach point " << i << "for Cl of airfoils "
                                << from << " (" << data[from]->ml[i] << ") and "
                                << to << " (" << data[to]->ml[i] << ") differs"
                                << std::endl);
                        return -1;
                }
        }

        for (int i = 0; i < data[from]->NAL; i++) {
                if (data[from]->al[i] != data[to]->al[i]) {
                        silent_cerr("AoA point " << i << "for Cl of airfoils "
                                << from << " (" << data[from]->al[i] << ") and "
                                << to << " (" << data[to]->al[i] << ") differs"
                                << std::endl);
                        return -1;
                }
        }

        for (int i = 0; i < data[from]->NMD; i++) {
                if (data[from]->md[i] != data[to]->md[i]) {
                        silent_cerr("Mach point " << i << "for Cd of airfoils "
                                << from << " (" << data[from]->md[i] << ") and "
                                << to << " (" << data[to]->md[i] << ") differs"
                                << std::endl);
                        return -1;
                }
        }

        for (int i = 0; i < data[from]->NAD; i++) {
                if (data[from]->ad[i] != data[to]->ad[i]) {
                        silent_cerr("AoA point " << i << "for Cd of airfoils "
                                << from << " (" << data[from]->ad[i] << ") and "
                                << to << " (" << data[to]->ad[i] << ") differs"
                                << std::endl);
                        return -1;
                }
        }

        for (int i = 0; i < data[from]->NMM; i++) {
                if (data[from]->mm[i] != data[to]->mm[i]) {
                        silent_cerr("Mach point " << i << "for Cm of airfoils "
                                << from << " (" << data[from]->mm[i] << ") and "
                                << to << " (" << data[to]->mm[i] << ") differs"
                                << std::endl);
                        return -1;
                }
        }

        for (int i = 0; i < data[from]->NAM; i++) {
                if (data[from]->am[i] != data[to]->am[i]) {
                        silent_cerr("AoA point " << i << "for Cm of airfoils "
                                << from << " (" << data[from]->am[i] << ") and "
                                << to << " (" << data[to]->am[i] << ") differs"
                                << std::endl);
                        return -1;
                }
        }

        snprintf(i_data->header, sizeof(i_data->header),
                "interpolated (\"%s\"[%e]->\"%s\"[%e]: [%e])",
                data[from]->header, upper_bounds[from],
                data[to]->header, upper_bounds[to], dCsi);

        i_data->NML = data[from]->NML;
        i_data->NAL = data[from]->NAL;
        i_data->NMD = data[from]->NMD;
        i_data->NAD = data[from]->NAD;
        i_data->NMM = data[from]->NMM;
        i_data->NAM = data[from]->NAM;

        doublereal dw = upper_bounds[to] - upper_bounds[from];
        doublereal dw_from = (upper_bounds[to] - dCsi)/dw;
        doublereal dw_to = (dCsi - upper_bounds[from])/dw;

        /* lift */
        i_data->ml = new doublereal[i_data->NML];
        for (int i = 0; i < i_data->NML; i++) {
                i_data->ml[i] = data[from]->ml[i];
        }
        i_data->al = new doublereal[(i_data->NML + 1)*i_data->NAL];
        for (int i = 0; i < i_data->NAL; i++) {
                i_data->al[i] = data[from]->al[i];
        }
        for (int i = i_data->NAL; i < (i_data->NML + 1)*i_data->NAL; i++) {
                i_data->al[i] = dw_from*data[from]->al[i] + dw_to*data[to]->al[i];
        }

        /* drag */
        i_data->md = new doublereal[i_data->NMD];
        for (int i = 0; i < i_data->NMD; i++) {
                i_data->md[i] = data[from]->md[i];
        }
        i_data->ad = new doublereal[(i_data->NMD + 1)*i_data->NAD];
        for (int i = 0; i < i_data->NAD; i++) {
                i_data->ad[i] = data[from]->ad[i];
        }
        for (int i = i_data->NAD; i < (i_data->NMD + 1)*i_data->NAD; i++) {
                i_data->ad[i] = dw_from*data[from]->ad[i] + dw_to*data[to]->ad[i];
        }

        /* moment */
        i_data->mm = new doublereal[i_data->NMM];
        for (int i = 0; i < i_data->NMM; i++) {
                i_data->mm[i] = data[from]->mm[i];
        }
        i_data->am = new doublereal[(i_data->NMM + 1)*i_data->NAM];
        for (int i = 0; i < i_data->NAM; i++) {
                i_data->am[i] = data[from]->am[i];
        }
        for (int i = i_data->NAM; i < (i_data->NMM + 1)*i_data->NAM; i++) {
                i_data->am[i] = dw_from*data[from]->am[i] + dw_to*data[to]->am[i];
        }

        // FIXME: maybe this is not the best place
        c81_data_do_stall(i_data, dcltol);

        return 0;
}

Here is the call graph for this function:

int c81_data_nrel_read	(	std::istream &	in,
		c81_data *	data,
		const doublereal	dcltol
	)

Definition at line 874 of file c81data.cc.

References c81_data::ad, c81_data::al, c81_data::am, buf, c81_data_do_stall(), c81_data::header, c81_data::md, c81_data::ml, c81_data::mm, c81_data::NAD, c81_data::NAL, c81_data::NAM, c81_data::NMD, c81_data::NML, c81_data::NMM, and STRLENOF.

Referenced by MBDynParser::C81Data_int(), and main().

{
        char buf[128];  // 81 should suffice; let's make it 128

        // header
        in.getline(buf, sizeof(buf));

        // keep the first one
        memcpy(data->header, buf, sizeof(data->header));
        data->header[STRLENOF(data->header)] = '\0';

        // discard the second one
        in.getline(buf, sizeof(buf));

        int n;
        in >> n;
        if (n != 1) {
                silent_cerr("NREL format: can only handle one airfoil per file (got " << n << ")" << std::endl);
                return -1;
        }

        // discard remaining lines
        for (int i = 0; i < 12; i++) {
                // discard
                in.getline(buf, sizeof(buf));
        }

        std::streampos pos = in.tellg();
        for (n = 0; in; n++) {
                in.getline(buf, sizeof(buf));
        }

        in.clear();
        in.seekg(pos);
        n--;

        if (n < 2) {
                silent_cerr("insufficient number of data points n=" << n << " in NREL data format (n >= 2 required)" << std::endl);
                return -1;
        }

        /* lift */
        data->NML = 1;
        data->ml = new doublereal[data->NML];
        data->ml[0] = 0.;
        data->NAL = n;
        data->al = new doublereal[2*data->NAL];

        /* drag */
        data->NMD = 1;
        data->md = new doublereal[data->NMD];
        data->md[0] = 0.;
        data->NAD = n;
        data->ad = new doublereal[2*data->NAD];

        /* moment */
        data->NMM = 1;
        data->mm = new doublereal[data->NMM];
        data->mm[0] = 0.;
        data->NAM = n;
        data->am = new doublereal[2*data->NAM];

        for (int i = 0; i < n; i++) {
                doublereal alpha, cl, cd, cm;
                in >> alpha >> cl >> cd >> cm;

                if (i == 0 && alpha != -180.) {
                        silent_cerr("warning: NREL data format: first alpha=" << alpha << " != -180.)" << std::endl);
                } else if (i == n - 1 && alpha != 180.) {
                        silent_cerr("warning: NREL data format: last alpha=" << alpha << " != 180.)" << std::endl);
                }

                data->al[i] = alpha;
                data->al[data->NAL + i] = cl;
                data->ad[i] = alpha;
                data->ad[data->NAD + i] = cd;
                data->am[i] = alpha;
                data->am[data->NAM + i] = cm;
        }

        /* FIXME: maybe this is not the best place */
        c81_data_do_stall(data, dcltol);

        return 0;
}

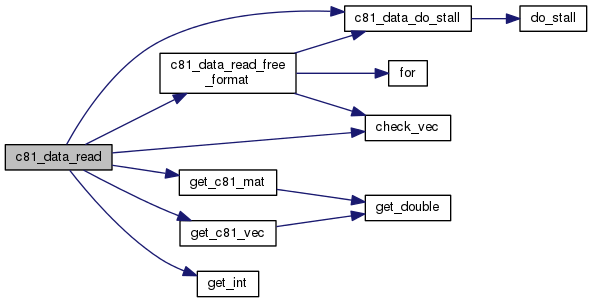

Here is the call graph for this function:

int c81_data_read	(	std::istream &	in,
		c81_data *	data,
		const doublereal	dcltol,
		int *	ff
	)

Definition at line 292 of file c81data.cc.

References c81_data::ad, c81_data::al, c81_data::am, buf, c81_data_do_stall(), c81_data_read_free_format(), check_vec(), get_c81_mat(), get_c81_vec(), get_int(), c81_data::header, c81_data::md, c81_data::ml, c81_data::mm, c81_data::NAD, c81_data::NAL, c81_data::NAM, c81_data::NMD, c81_data::NML, c81_data::NMM, and STRLENOF.

Referenced by MBDynParser::C81Data_int(), and main().

{
        char buf[BUFSIZ];       // 81 should suffice

        if (ff) {
                *ff = 0;
        }

        /* header */
        in.getline(buf, sizeof(buf));
        if (strncasecmp(buf, "# FREE FORMAT", STRLENOF("# FREE FORMAT")) == 0) {
                if (ff) {
                        *ff = 1;
                }

                return c81_data_read_free_format(in, data, dcltol);
        }

        buf[42] = '\0';
        if (get_int(&buf[40], data->NAM)) {
                return -1;
        }

        buf[40] = '\0';
        if (get_int(&buf[38], data->NMM)) {
                return -1;
        }

        buf[38] = '\0';
        if (get_int(&buf[36], data->NAD)) {
                return -1;
        }

        buf[36] = '\0';
        if (get_int(&buf[34], data->NMD)) {
                return -1;
        }

        buf[34] = '\0';
        if (get_int(&buf[32], data->NAL)) {
                return -1;
        }

        buf[32] = '\0';
        if (get_int(&buf[30], data->NML)) {
                return -1;
        }

        if (data->NAM <= 0 || data->NMM <= 0
                        || data->NAD <= 0 || data->NMD <= 0
                        || data->NAL <= 0 || data->NML <= 0) {
                return -1;
        }

        buf[30] = '\0';
        strncpy(data->header, buf, 30);
        data->header[30] = '\0';

        /* lift */
        data->ml = new doublereal[data->NML];
        get_c81_vec(in, data->ml, data->NML);
        if (check_vec(data->ml, data->NML)) {
                return -1;
        }

        data->al = new doublereal[(data->NML+1)*data->NAL];
        get_c81_mat(in, data->al, data->NAL, data->NML+1);
        if (check_vec(data->al, data->NAL)) {
                return -1;
        }

        /* drag */
        data->md = new doublereal[data->NMD];
        get_c81_vec(in, data->md, data->NMD);
        if (check_vec(data->md, data->NMD)) {
                return -1;
        }

        data->ad = new doublereal[(data->NMD+1)*data->NAD];
        get_c81_mat(in, data->ad, data->NAD, data->NMD+1);
        if (check_vec(data->ad, data->NAD)) {
                return -1;
        }

        /* moment */
        data->mm = new doublereal[data->NMM];
        get_c81_vec(in, data->mm, data->NMM);
        if (check_vec(data->mm, data->NMM)) {
                return -1;
        }

        data->am = new doublereal[(data->NMM+1)*data->NAM];
        get_c81_mat(in, data->am, data->NAM, data->NMM+1);
        if (check_vec(data->am, data->NAM)) {
                return -1;
        }

        /* FIXME: maybe this is not the best place */
        c81_data_do_stall(data, dcltol);

        return 0;
}

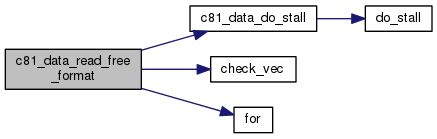

Here is the call graph for this function:

int c81_data_read_free_format	(	std::istream &	in,
		c81_data *	data,
		const doublereal	dcltol
	)

Definition at line 961 of file c81data.cc.

References c81_data::ad, c81_data::al, c81_data::am, buf, c, c81_data_do_stall(), check_vec(), for(), c81_data::header, c81_data::md, c81_data::ml, c81_data::mm, c81_data::NAD, c81_data::NAL, c81_data::NAM, c81_data::NMD, c81_data::NML, c81_data::NMM, and STRLENOF.

Referenced by c81_data_read(), MBDynParser::C81Data_int(), and main().

{
        char buf[128];  // 81 should suffice; let's make it 128

        /* header */
        in.getline(buf, sizeof(buf));
        if (strncasecmp(buf, "# FREE FORMAT", STRLENOF("# FREE FORMAT")) == 0) {
                in.getline(buf, sizeof(buf));
        }

        char    *p = std::strchr(buf, ';');
        if (p == NULL) {
                return -1;
        }

        size_t  len = STRLENOF(data->header);
        if (size_t(p - buf) < len) {
                len = size_t(p - buf);
        }

        strncpy(data->header, buf, len);
        data->header[len] = '\0';

        std::istringstream s(++p);

        s >> data->NML;
        s >> data->NAL;
        s >> data->NMD;
        s >> data->NAD;
        s >> data->NMM;
        s >> data->NAM;

        if (data->NAM <= 0 || data->NMM <= 0
                        || data->NAD <= 0 || data->NMD <= 0
                        || data->NAL <= 0 || data->NML <= 0) {
                return -1;
        }

        /* lift */
        data->ml = new doublereal[data->NML];
        for (int c = 0; c < data->NML; c++) {
                in >> data->ml[c];
        }
        if (check_vec(data->ml, data->NML)) {
                return -1;
        }

        data->al = new doublereal[(data->NML + 1)*data->NAL];
        for (int r = 0; r < data->NAL; r++) {
                /* NOTE: "<=" because the number of columns is data->NML + 1
                 * for the angle of attack */
                for (int c = 0; c <= data->NML; c++) {
                        in >> data->al[r + data->NAL*c];
                }
        }
        if (check_vec(data->al, data->NAL)) {
                return -1;
        }

        /* drag */
        data->md = new doublereal[data->NMD];
        for (int c = 0; c < data->NMD; c++) {
                in >> data->md[c];
        }
        if (check_vec(data->md, data->NMD)) {
                return -1;
        }

        data->ad = new doublereal[(data->NMD + 1)*data->NAD];
        for (int r = 0; r < data->NAD; r++) {
                for (int c = 0; c <= data->NMD; c++) {
                        in >> data->ad[r + data->NAD*c];
                }
        }
        if (check_vec(data->ad, data->NAD)) {
                return -1;
        }

        /* moment */
        data->mm = new doublereal[data->NMM];
        for (int c = 0; c < data->NMM; c++) {
                in >> data->mm[c];
        }
        if (check_vec(data->mm, data->NMM)) {
                return -1;
        }

        data->am = new doublereal[(data->NMM + 1)*data->NAM];
        for (int r = 0; r < data->NAM; r++) {
                for (int c = 0; c <= data->NMM; c++) {
                        in >> data->am[r + data->NAM*c];
                }
        }
        if (check_vec(data->am, data->NAM)) {
                return -1;
        }

        /* FIXME: maybe this is not the best place */
        c81_data_do_stall(data, dcltol);

        return 0;
}

Here is the call graph for this function:

int c81_data_set	(	long int	jpro,
		c81_data *	data
	)

Definition at line 1137 of file c81data.cc.

References __c81_pdata, and c81_ndata.

{
        if (__c81_pdata == NULL || jpro >= c81_ndata) {
                c81_data** pp = NULL;
                int ndata = c81_ndata;

                if (jpro >= c81_ndata) {
                        ndata = jpro+1;
                }

                pp = new c81_data*[ndata];
                if (__c81_pdata != NULL) {
                        for (int i = 0; i < ndata; i++) {
                                pp[i] = __c81_pdata[i];
                        }
                        delete[] __c81_pdata;
                }
                __c81_pdata = pp;
                c81_ndata = ndata;
        } else if (__c81_pdata[jpro] != NULL) {
                silent_cerr("profile " << jpro << "already defined" << std::endl);
                return -1;
        }

        __c81_pdata[jpro] = data;

        return 0;
}

int c81_data_write	(	std::ostream &	out,
		c81_data *	data
	)

Definition at line 610 of file c81data.cc.

References c81_data::ad, c81_data::al, c81_data::am, c81_data::header, c81_data::md, c81_data::ml, c81_data::mm, c81_data::NAD, c81_data::NAL, c81_data::NAM, c81_data::NMD, c81_data::NML, c81_data::NMM, put_c81_mat(), and put_c81_vec().

Referenced by MBDynParser::C81Data_int(), and main().

{
        if (data == 0) {
                return -1;
        }

        std::ios::fmtflags tmpflags;
        tmpflags = out.flags(std::ios::left);
        out << std::setw(30) << data->header;
        out.flags(tmpflags);
        out
                << std::setw(2) << data->NML
                << std::setw(2) << data->NAL
                << std::setw(2) << data->NMD
                << std::setw(2) << data->NAD
                << std::setw(2) << data->NMM
                << std::setw(2) << data->NAM
                << std::endl;

        put_c81_vec(out, data->ml, data->NML);
        put_c81_mat(out, data->al, data->NAL, data->NML+1);

        put_c81_vec(out, data->md, data->NMD);
        put_c81_mat(out, data->ad, data->NAD, data->NMD+1);

        put_c81_vec(out, data->mm, data->NMM);
        put_c81_mat(out, data->am, data->NAM, data->NMM+1);

        return 0;
}

Here is the call graph for this function:

int c81_data_write_free_format	(	std::ostream &	out,
		c81_data *	data
	)

Definition at line 1065 of file c81data.cc.

References c81_data::ad, c81_data::al, c81_data::am, c, c81_data::header, c81_data::md, c81_data::ml, c81_data::mm, c81_data::NAD, c81_data::NAL, c81_data::NAM, c81_data::NMD, c81_data::NML, and c81_data::NMM.

Referenced by MBDynParser::C81Data_int(), and main().

{
        if (data == 0) {
                return -1;
        }

        out << "# FREE FORMAT" << std::endl;

        out << data->header << ";"
                << " " << data->NML
                << " "<< data->NAL
                << " "<< data->NMD
                << " "<< data->NAD
                << " "<< data->NMM
                << " "<< data->NAM
                << std::endl;

        /* lift */
        for (int c = 0; c < data->NML; c++) {
                out << data->ml[c] << " ";
        }
        out << std::endl;
        for (int r = 0; r < data->NAL; r++) {
                /* NOTE: "<=" because the number of columns is data->NML + 1
                 * for the angle of attack */
                for (int c = 0; c <= data->NML; c++) {
                        out << data->al[r + data->NAL*c] << " ";
                }
                out << std::endl;
        }

        /* drag */
        for (int c = 0; c < data->NMD; c++) {
                out << data->md[c] << " ";
        }
        out << std::endl;
        for (int r = 0; r < data->NAD; r++) {
                for (int c = 0; c <= data->NMD; c++) {
                        out << data->ad[r + data->NAD*c] << " ";
                }
                out << std::endl;
        }

        /* moment */
        for (int c = 0; c < data->NMM; c++) {
                out << data->mm[c] << " ";
        }
        out << std::endl;
        for (int r = 0; r < data->NAM; r++) {
                for (int c = 0; c <= data->NMM; c++) {
                        out << data->am[r + data->NAM*c] << " ";
                }
                out << std::endl;
        }

        return 0;
}

static int check_vec ( doublereal *  v, int  n  )

static

Definition at line 171 of file c81data.cc.

Referenced by c81_data_read(), and c81_data_read_free_format().

{
        for (int i = 1; i < n; i++) {
                if (v[i] <= v[i - 1]) {
                        return i;
                }
        }

        return 0;
}

static int do_stall ( int  NM, int  NA, doublereal *  a, doublereal *  stall, const doublereal  dcltol  )

static

Definition at line 1170 of file c81data.cc.

Referenced by c81_data_do_stall().

{
        for (int nm = 0; nm < NM; nm++) {
                int start = NA*(nm + 1);
                int na = NA/2;  // mid point

                // look for zero
                while (a[na] > 0.) {
                        na--;
                        if (na <= 0) {
                                silent_cerr("do_stall: "
                                        "unable to find negative alpha range "
                                        "for Mach #" << nm + 1 << std::endl);
                                return -1;
                        }
                }

                while (a[na] < 0.) {
                        na++;
                        if (na >= NA) {
                                silent_cerr("do_stall: "
                                        "unable to find positive alpha range "
                                        "for Mach #" << nm + 1 << std::endl);
                                return -1;
                        }
                }

                doublereal a0 = a[na];
                doublereal dcl0 = a[start + na];

                doublereal dcla0 = (a[start + na + 1] - dcl0)/(a[na + 1] - a0);

                /* cerca il punto superiore in cui cessa la linearita' */
                stall[nm] = 1.;
                stall[NM + nm] = 1.;
                stall[2*NM + nm] = 0.;

                for (int i = na + 2; i < NA; i++) {
                        doublereal dcla = (a[start + i] - dcl0)/(a[i] - a0);
                        if (dcla - dcla0 < -dcla0*dcltol) {

                                /* alpha di stallo superiore */
                                stall[nm] = a[i - 1];

                                /* mette temporaneamente il Cp di stallo */
                                stall[2*NM + nm] = a[start + i - 1];
                                break;
                        }
                }

                dcla0 = (a[start + na - 1] - dcl0)/(a[na - 1] - a0);

                /* cerca il punto inferiore in cui cessa la linearita' */
                for (int i = na - 2; i >= 0; i--) {
                        doublereal dcla = (a[start + i] - dcl0)/(a[i] - a0);
                        if (dcla - dcla0 < -dcla0*dcltol) {

                                /* stallo inferiore */
                                stall[NM + nm] = a[i + 1];

                                /* sottrae il cl allo stallo inferiore */
                                stall[2*NM + nm] -= a[start + i + 1];

                                /* divide per il delta alpha */
                                stall[2*NM + nm] /= (stall[nm] - stall[NM + nm]);
                                break;
                        }
                }
        }

        return 0;
}

static int flip_one ( int  NM, int  NA, doublereal *  v, int  ss  )

static

Definition at line 1260 of file c81data.cc.

References a.

Referenced by c81_data_flip().

{
        int s = -1;
        for (int m = 0; m <= NM; m++) {
                if (m > 0) {
                        s = ss;
                }

                for (int a = 0; a < NA/2; a++) {
                        doublereal d = v[a];
                        v[a] = s*v[NA - a - 1];
                        v[NA - a - 1] = s*d;
                }

                // NA odd: change sign
                if (NA%2) {
                        v[NA/2] *= s;
                }

                v += NA;
        }

        return 0;
}

c81_data* get_c81_data

(

long int

jpro

)

Definition at line 1128 of file c81data.cc.

{
        if (__c81_pdata == NULL) {
                return NULL;
        }
        return __c81_pdata[jpro];
}

static int get_c81_mat ( std::istream &  in, doublereal *  m, int  nrows, int  ncols  )

static

Definition at line 183 of file c81data.cc.

References buf, c, and get_double().

Referenced by c81_data_read().

{
        char    buf[128];

        if (!in || m == NULL || nrows < 1 || ncols < 1) {
                return -1;
        }

        for (int r = 0; r < nrows; r++) {
                int     row = 0;
                int     offset = 0;

                for (int c = 0; c < ncols; c++) {
                        char    tmp[8];
                        int     i = (c - offset)%(9 - offset + 1);

                        if (i == 0) {
                                if (++row == 2) {
                                        offset = 1;
                                }
                                in.getline(buf, sizeof(buf));
                        }

                        /* skip first except first time */
                        memcpy(tmp, &buf[7*(i + offset)], 7);
                        tmp[7] = '\0';

                        if (get_double(tmp, m[r + nrows*c])) {
                                return -1;
                        }
                }
        }

        return 0;
}

Here is the call graph for this function:

static int get_c81_vec ( std::istream &  in, doublereal *  v, int  ncols  )

static

Definition at line 142 of file c81data.cc.

References buf, c, and get_double().

Referenced by c81_data_read().

{
        char    buf[128];

        if (!in || v == NULL || ncols < 1) {
                return -1;
        }

        for (int c = 0; c < ncols; c++) {
                char    tmp[8];
                int     i = c%9;

                if (i == 0) {
                        in.getline(buf, sizeof(buf));
                }

                /* always skip first */
                memcpy(tmp, &buf[7*(i + 1)], 7);
                tmp[7] = '\0';

                if (get_double(tmp, v[c])) {
                        return -1;
                }
        }

        return 0;
}

Here is the call graph for this function:

static int get_double ( const char *const  from, doublereal &  d  )

static

Definition at line 119 of file c81data.cc.

References buf.

Referenced by get_c81_mat(), get_c81_vec(), read_fc511_mat(), and read_fc511_row().

{
#ifdef HAVE_STRTOD
        char *endptr = NULL;
        errno = 0;
        d = strtod(from, &endptr);
        int save_errno = errno;
        if (endptr != NULL && endptr[0] != '\0' && !isspace(endptr[0])) {
                return -1;

        } else if (save_errno == ERANGE) {
                silent_cerr("c81data: warning, double "
                        << std::string(from, endptr - from)
                        << " overflows" << std::endl);
                return -1;
        }
#else /* !HAVE_STRTOD */
        d = atof(buf);
#endif /* !HAVE_STRTOD */
        return 0;
}

static int get_int ( const char *const  from, int &  i  )

static

Definition at line 71 of file c81data.cc.

References buf.

Referenced by c81_data_read(), and read_fc511_block().

{
#ifdef HAVE_STRTOL
        char *endptr = NULL;
        errno = 0;
        i = strtol(from, &endptr, 10);
        int save_errno = errno;
        if (endptr != NULL && endptr[0] != '\0' && !isspace(endptr[0])) {
                return -1;

        } else if (save_errno == ERANGE) {
                silent_cerr("c81data: warning, int "
                        << std::string(from, endptr - from)
                        << " overflows" << std::endl);
                return -1;
        }
#else /* !HAVE_STRTOL */
        i = atoi(buf);
#endif /* !HAVE_STRTOL */
        return 0;
}

static int put_c81_mat ( std::ostream &  out, doublereal *  m, int  nrows, int  ncols  )

static

Definition at line 262 of file c81data.cc.

References put_c81_row().

Referenced by c81_data_write().

{
        if (!out || m == NULL || nrows < 1 || ncols < 1) {
                return -1;
        }

        for (int i = 0; i < nrows; i++) {
                put_c81_row(out, m+i, nrows, ncols, 1);
        }

        return 0;
}

Here is the call graph for this function:

static int put_c81_row ( std::ostream &  out, doublereal *  v, int  dim, int  ncols, int  first = 0  )

static

Definition at line 220 of file c81data.cc.

Referenced by put_c81_mat(), and put_c81_vec().

{
        int start = 0;
        const int N = 9;

        if (first) {
                out << std::setw(7) << v[0];
                start = dim;
                ncols--;
        } else {
                out << std::setw(7) << "";
        }

        for (int i = 0; i < (ncols-1)/N; i++) {
                for (int j = 0; j < N; j++) {
                        out << std::setw(7) << v[start+dim*j];
                }
                out << std::endl << std::setw(7) << "";
                start += dim*N;
        }

        for (int j = 0; j < (ncols-1)%N+1; j++) {
                out << std::setw(7) << v[start+dim*j];
        }
        out << std::endl;

        return 0;
}

static int put_c81_vec ( std::ostream &  out, doublereal *  v, int  nrows  )

static

Definition at line 250 of file c81data.cc.

References put_c81_row().

Referenced by c81_data_write().

{
        if (!out || v == NULL || nrows < 1) {
                return -1;
        }

        put_c81_row(out, v, 1, nrows);

        return 0;
}

Here is the call graph for this function:

int read_fc511_block	(	std::istream &	in,
		int &	NA,
		int &	NM,
		doublereal *&	da,
		doublereal *&	dm
	)

Definition at line 712 of file c81data.cc.

References buf, c, get_int(), read_fc511_mat(), and read_fc511_row().

Referenced by c81_data_fc511_read().

{
        char buf[128];  // 81 should suffice; let's make it 128

        in.getline(buf, sizeof(buf));

        buf[10] = '\0';
        if (get_int(&buf[5], NM)) {
                return -1;
        }

        buf[5] = '\0';
        if (get_int(&buf[0], NA)) {
                return -1;
        }

        if (NA <= 0 || NM <= 0) {
                return -1;
        }

        dm = new doublereal[NM];
        doublereal *tmpda = new doublereal[NA*(NM + 1)];

        if (read_fc511_row(in, tmpda, NA)) {
                return -1;
        }

        if (read_fc511_row(in, dm, NM)) {
                return -1;
        }

        if (read_fc511_mat(in, &tmpda[NA], NA, NM)) {
                return -1;
        }

        int pos;
        in.getline(buf, sizeof(buf));
        if (get_int(buf, pos)) {
                return -1;
        }

        doublereal *posda = new doublereal[2*pos];

        if (read_fc511_row(in, posda, pos)) {
                return -1;
        }

        if (read_fc511_row(in, &posda[pos], pos)) {
                return -1;
        }

        int neg;
        in.getline(buf, sizeof(buf));
        if (get_int(buf, neg)) {
                return -1;
        }

        int realNA = (neg + NA + pos);
        da = new doublereal[realNA*(NM + 1)];

        if (read_fc511_row(in, da, neg)) {
                return -1;
        }

        if (read_fc511_row(in, &da[realNA], neg)) {
                return -1;
        }

        for (int c = 0; c < 2; c++) {
                for (int r = 0; r < pos; r++) {
                        da[realNA*c + neg + NA + r] = posda[pos*c + r];
                }
        }

        for (int c = 2; c < NM + 1; c++) {
                for (int r = 0; r < neg; r++) {
                        da[realNA*c + r] = da[realNA + r];
                }
                for (int r = 0; r < pos; r++) {
                        da[realNA*c + neg + NA + r] = posda[pos + r];
                }
        }

        for (int c = 0; c < (NM + 1); c++) {
                for (int r = 0; r < NA; r++) {
                        da[realNA*c + neg + r] = tmpda[NA*c + r];
                }
        }

        delete[] tmpda;
        delete[] posda;

        NA = realNA;

        return 0;
}

Here is the call graph for this function:

int read_fc511_mat	(	std::istream &	in,
		doublereal *	d,
		int	NR,
		int	NC
	)

Definition at line 676 of file c81data.cc.

References buf, c, and get_double().

Referenced by read_fc511_block().

{
        for (int i = 0; i < NR; i++) {
                int     r;

                for (r = 0; r < NC/8; r++) {
                        char    buf[81];

                        in.getline(buf, sizeof(buf));

                        for (int c = 7; c >= 0; c--) {
                                buf[10*(c + 1)] = '\0';
                                if (get_double(&buf[10*c], d[NR*(8*r + c) + i])) {
                                        return -1;
                                }
                        }
                }

                if (NC%8) {
                        char    buf[81];

                        in.getline(buf, sizeof(buf));

                        for (int c = NC%8 - 1; c >= 0; c--) {
                                buf[10*(c + 1)] = '\0';
                                if (get_double(&buf[10*c], d[NR*(8*r + c) + i])) {
                                        return -1;
                                }
                        }
                }
        }

        return 0;
}

Here is the call graph for this function:

int read_fc511_row	(	std::istream &	in,
		doublereal *	d,
		int	NC
	)

Definition at line 642 of file c81data.cc.

References buf, c, and get_double().

Referenced by read_fc511_block().

{
        int     r;

        for (r = 0; r < NC/8; r++) {
                char    buf[81];

                in.getline(buf, sizeof(buf));

                for (int c = 7; c >= 0; c--) {
                        buf[10*(c + 1)] = '\0';
                        if (get_double(&buf[10*c], d[8*r + c])) {
                                return -1;
                        }
                }
        }

        if (NC%8) {
                char    buf[81];

                in.getline(buf, sizeof(buf));

                for (int c = NC%8 - 1; c >= 0; c--) {
                        buf[10*(c + 1)] = '\0';
                        if (get_double(&buf[10*c], d[8*r + c])) {
                                return -1;
                        }
                }
        }

        return 0;
}

Here is the call graph for this function:

Variable Documentation

c81_data** __c81_pdata = NULL

static

Definition at line 1125 of file c81data.cc.

Referenced by c81_data_set().

int c81_ndata = 0

static

Definition at line 1124 of file c81data.cc.

Referenced by c81_data_set().
